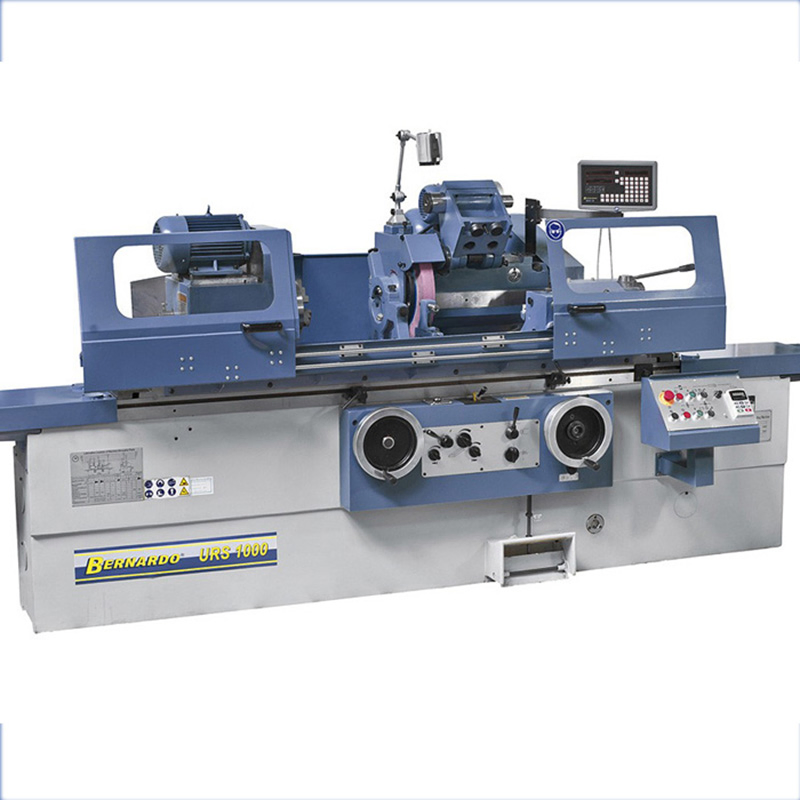

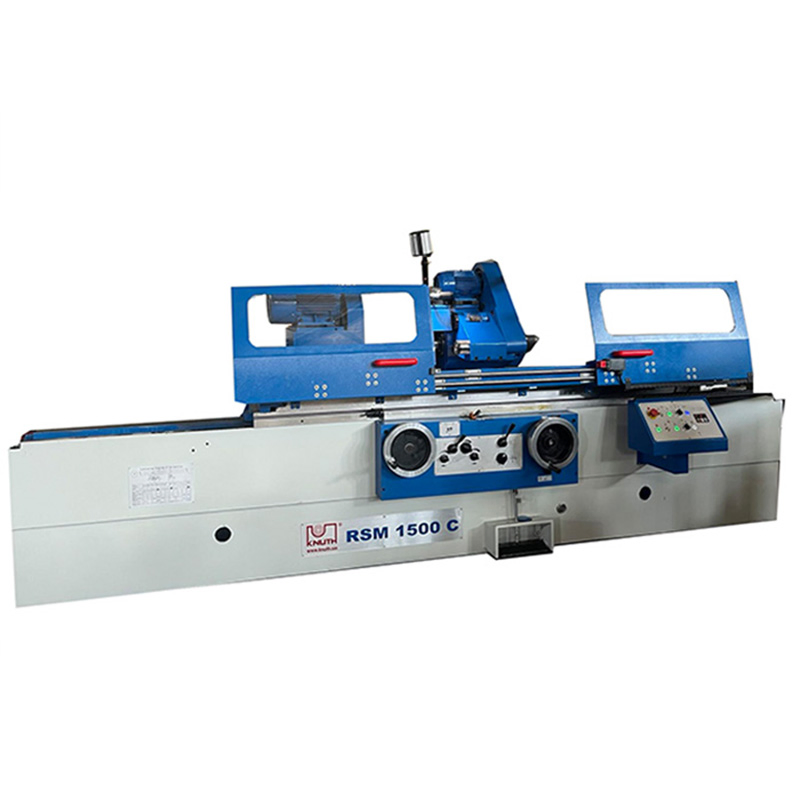

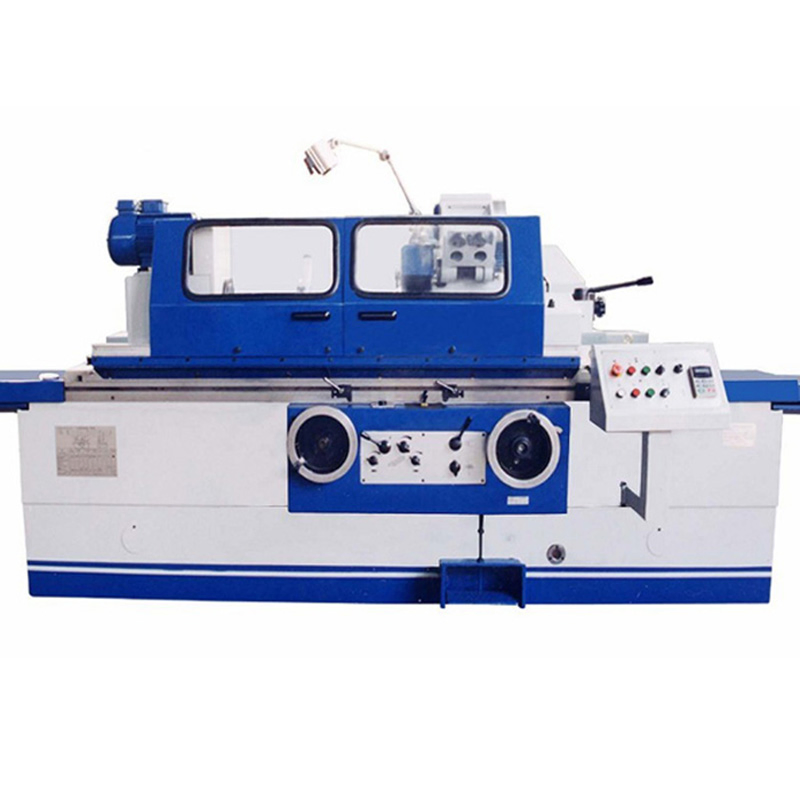

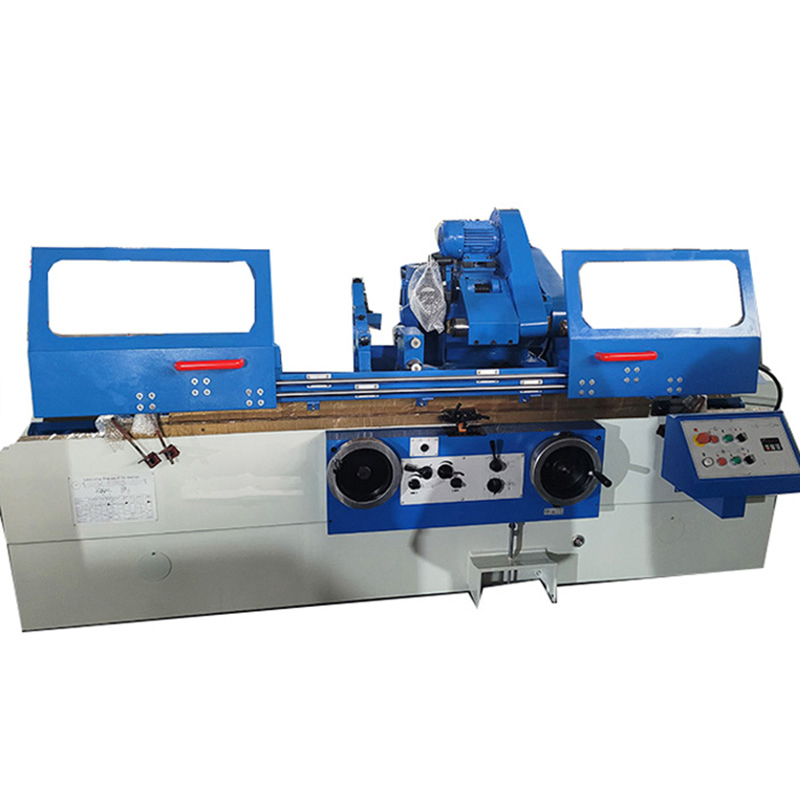

M1432b Universal Cylindrical Grinding Machine External and Internal Grinder Machine
M1432b Universal Cylindrical Grinding Machine External and Internal Grinder Machine
M1432b Universal Cylindrical Grinding Machine External and Internal Grinder Machine
M1432b Universal Cylindrical Grinding Machine External and Internal Grinder Machine
M1432b Universal Cylindrical Grinding Machine External and Internal Grinder Machine
1 / 5
M1432b Universal Cylindrical Grinding Machine External and Internal Grinder Machine
M1432b Universal Cylindrical Grinding Machine External and Internal Grinder Machine
M1432b Universal Cylindrical Grinding Machine External and Internal Grinder Machine
M1432b Universal Cylindrical Grinding Machine External and Internal Grinder Machine
M1432b Universal Cylindrical Grinding Machine External and Internal Grinder Machine

M1432b Universal Cylindrical Grinding Machine External and Internal Grinder Machine

Customization: Available
After-sales Service: One Year
Warranty: One Year
Send Inquiry

Product Description

📊 Basic Information
Model NO.
M1432B
Type
External Grinding Machine
Controlling Mode
Artificial / Automatic
Precision
High Precision (IT6, IT5)
Center Height
180mm
Dia Ground
8-320mm
Max Work Piece Weight
150kg
Certification
GS, CE, RoHS, ISO 9001
⚙️ Product Description

The M1432B Universal Cylindrical Grinding Machine is designed for grinding cylindrical and conical external surfaces and holes with high precision (accuracy levels of IT6 and IT5). The machine offers versatile operation with both manual and hydraulic control options for the longitudinal travel of the worktable and the in-feed of the wheel head.

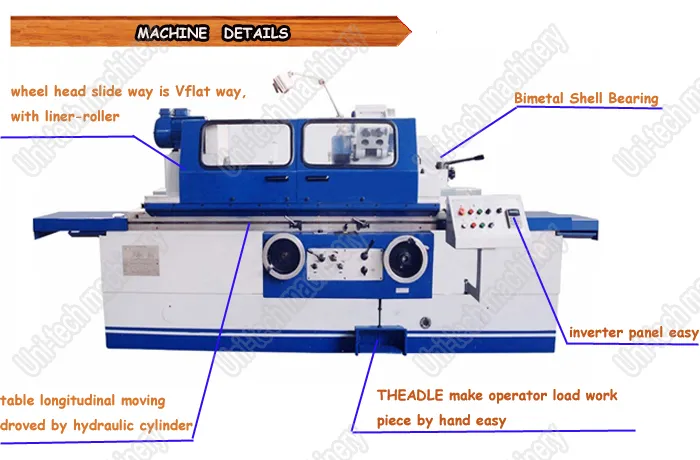

M1432B Grinding Machine
Advanced Control: Rapid approach and withdrawal of the tailstock center and lubrication of slide-ways are hydraulically controlled.
Premium Components: Electrical systems follow CE standards, utilizing world-renowned brands like Siemens and Schneider.
High Precision Spindle: Mounted in pre-loaded angular deep-groove ball bearings for low-vibration and high accuracy.
Precision Hardware: Vertical lift lead screws from specialized manufacturers ensure smooth movement and intermittent feed.
Durable Finish: Elaborate painting and rounded corners for both industrial durability and aesthetic appeal.
📋 Technical Specifications
Model Description Unit M1432B×1000 M1432B×1500 M1420×500 M1420×750
Distance between centersmm10001500500750
Center heightmm180180135135
Dia. Ground (O.D)mm8~3208~3205~2005~200
Dia. Ground (I.D)mm30~10030~10025~10025~100
Max length ground (O.D)mm10001500500750
Max weight of work piecekg150150100100
Wheel spindle speedr/min1670167016701670
Internal grinding speedr/min10000100001000010000
Wheelhead motor powerKw5.55.544

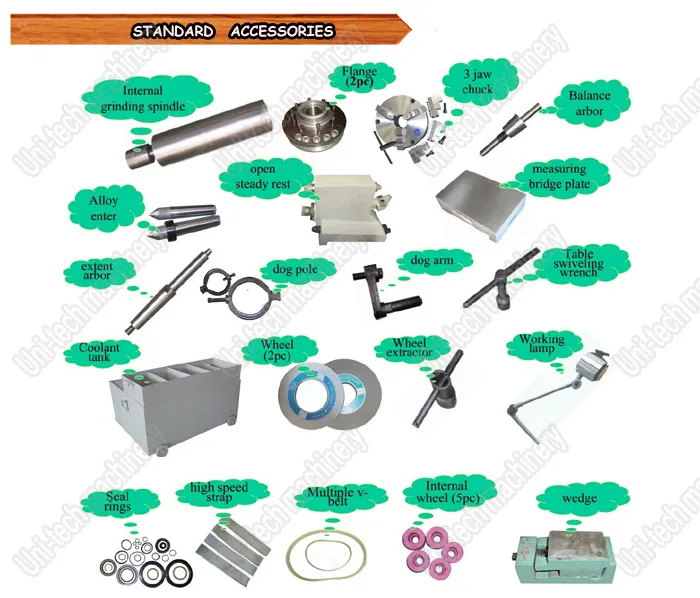

Grinding Detail 1

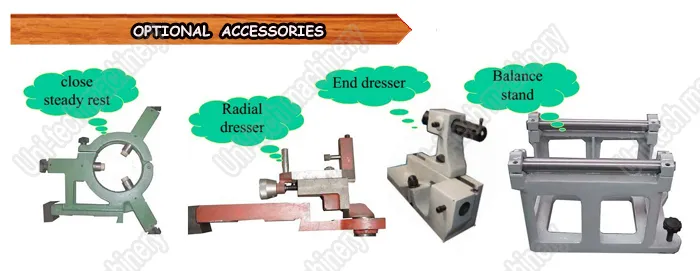

Grinding Detail 2
📸 Detailed Photos

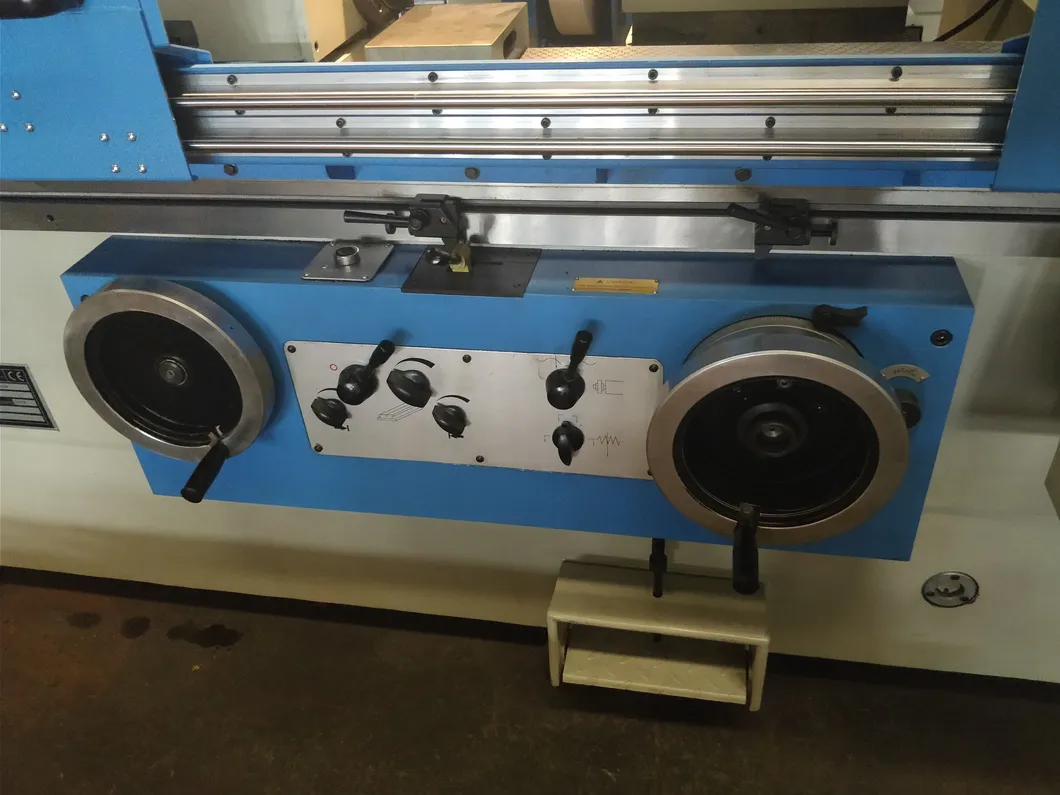

Detailed Machine View 1

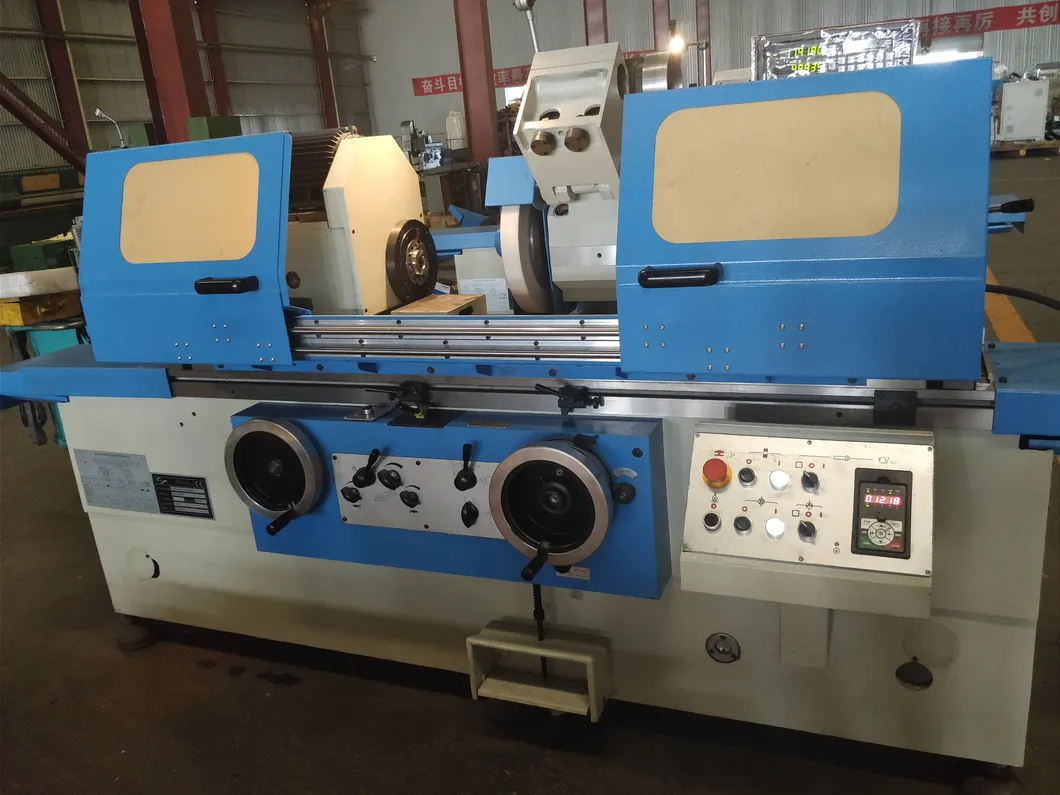

Detailed Machine View 2

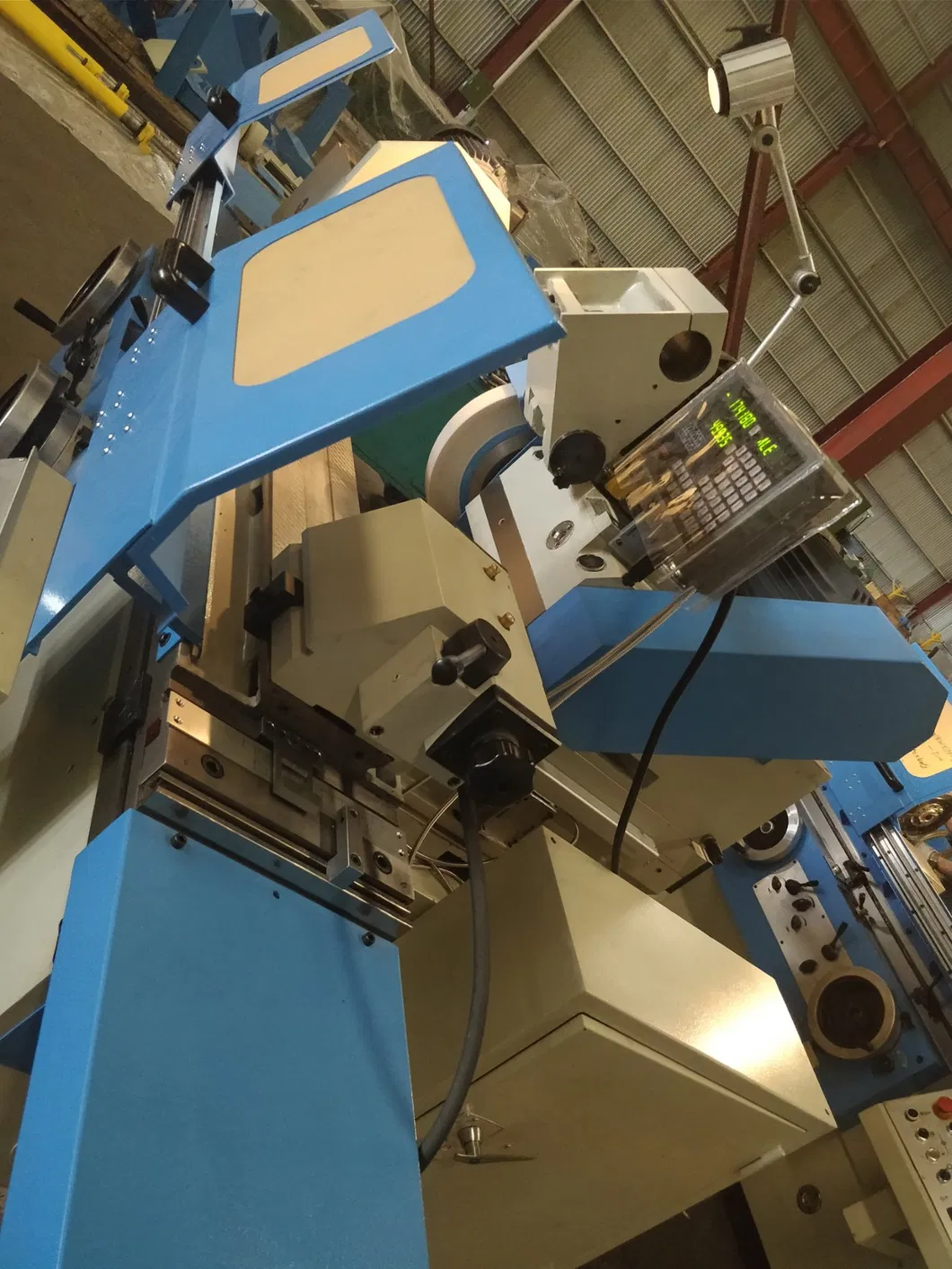

Vertical Component View

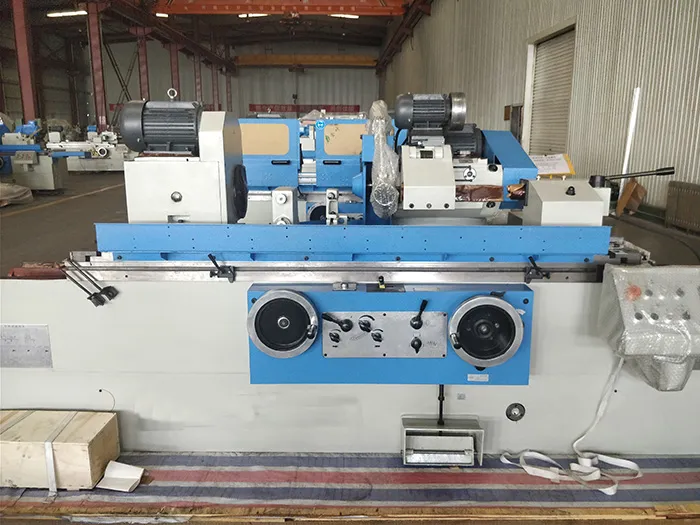

Component Detail 3

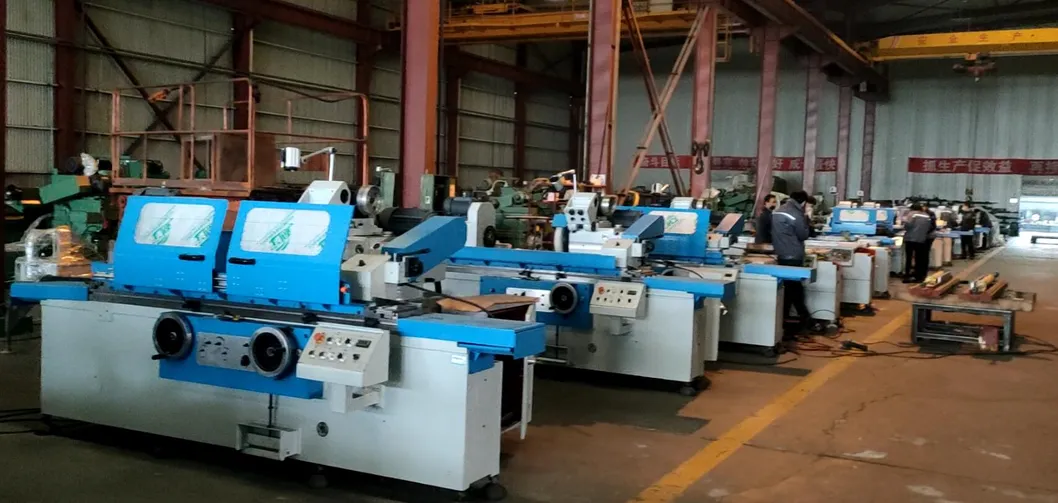

Component Detail 4

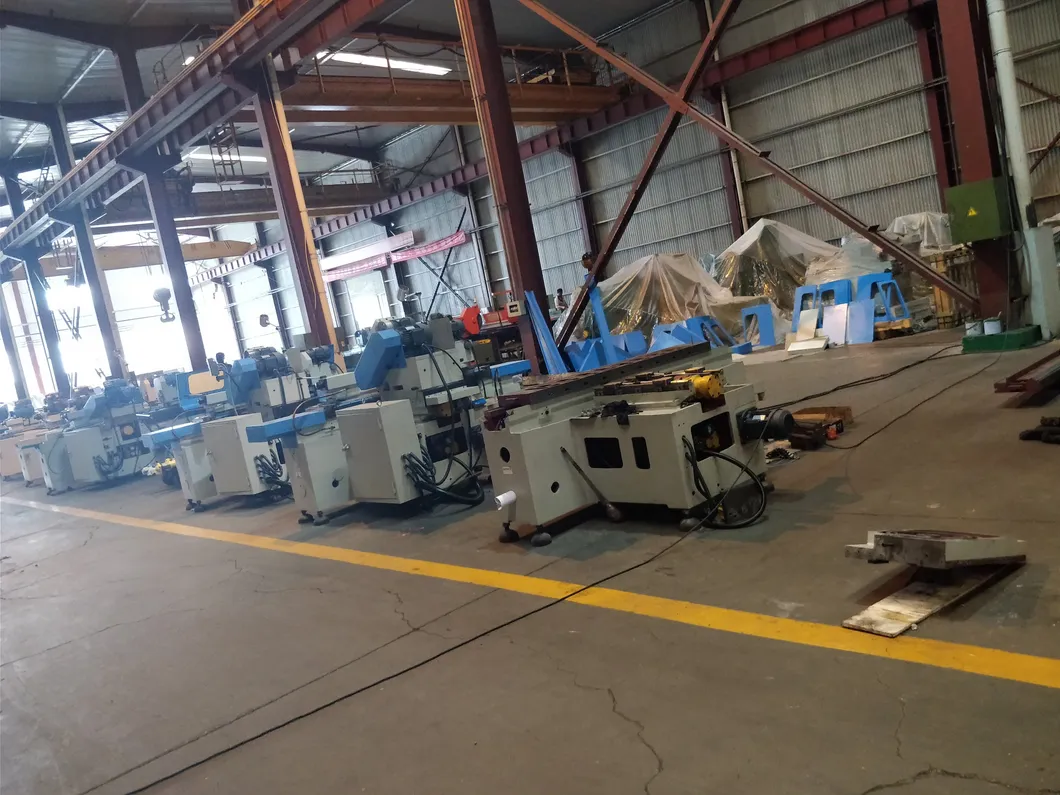

Component Detail 5

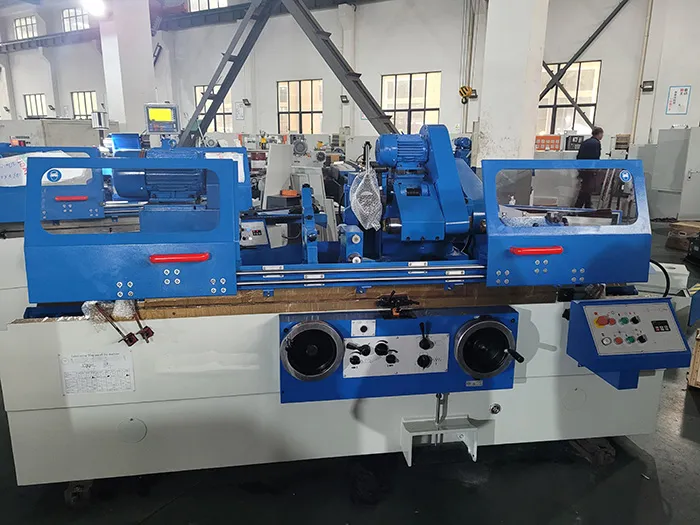

Workshop Installation
❓ Frequently Asked Questions (FAQ)
What level of precision can this cylindrical grinding machine achieve?
The machine is designed to grind cylindrical and conical external surfaces and holes with high accuracy levels of IT6 and IT5.
Is the machine operated manually or automatically?
The machine supports both modes; the longitudinal travel of the worktable and the in-feed of the wheel head can be carried out hydraulically or manually.
What brands of electrical components are used in the M1432B?
All electrical parts are designed according to CE standards, featuring world-class brands such as Siemens and Schneider.
What is the maximum weight capacity for workpieces?
The M1432B model can handle a maximum workpiece weight of up to 150kg.
Does the machine support internal grinding?
Yes, it features an internal grinding spindle with a speed of 10,000 r/min for holes ranging from 25mm to 100mm depending on the specific model.
How is the lubrication of the machine handled?
The lubrication of the worktable slide-way and the in-feed lead screw is centrally and hydraulically controlled for consistent maintenance.
