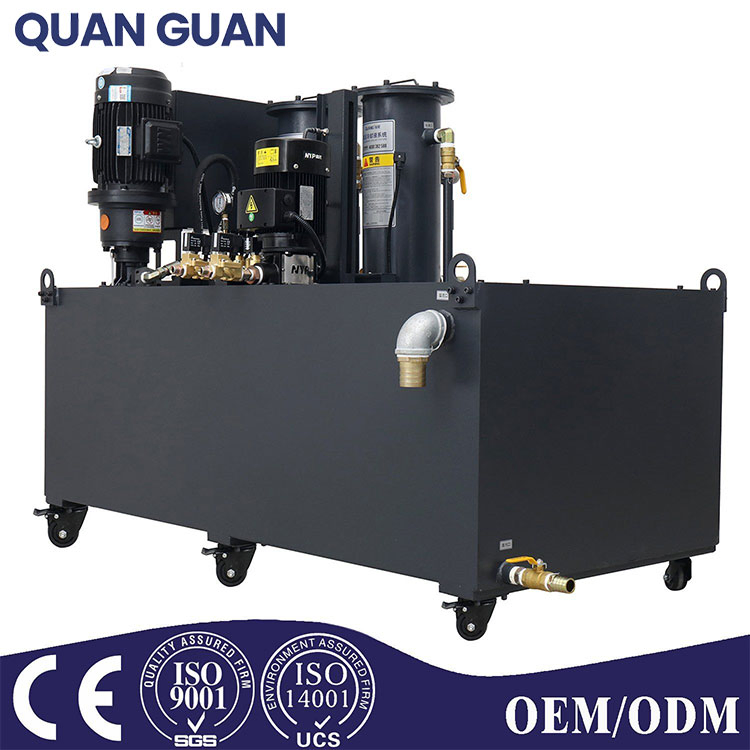

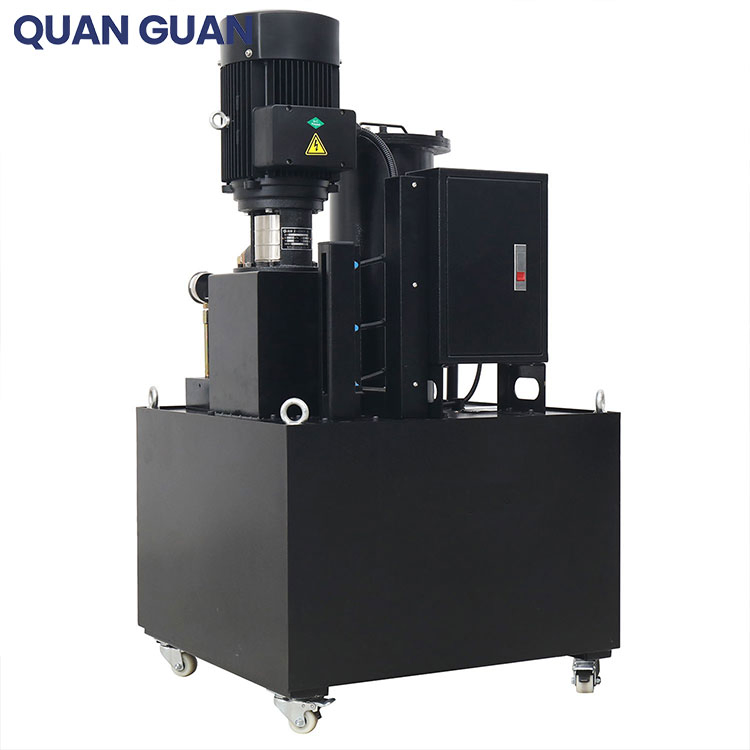

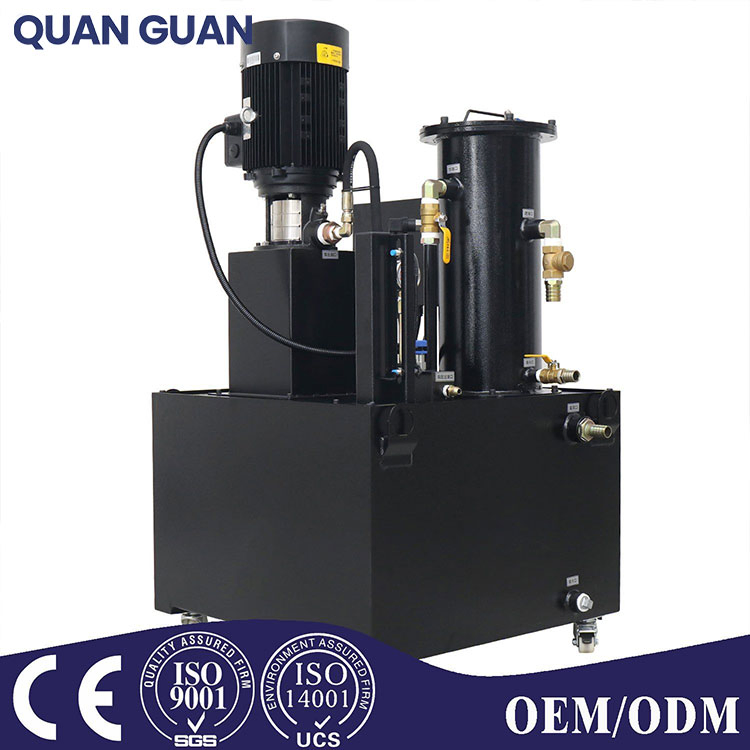

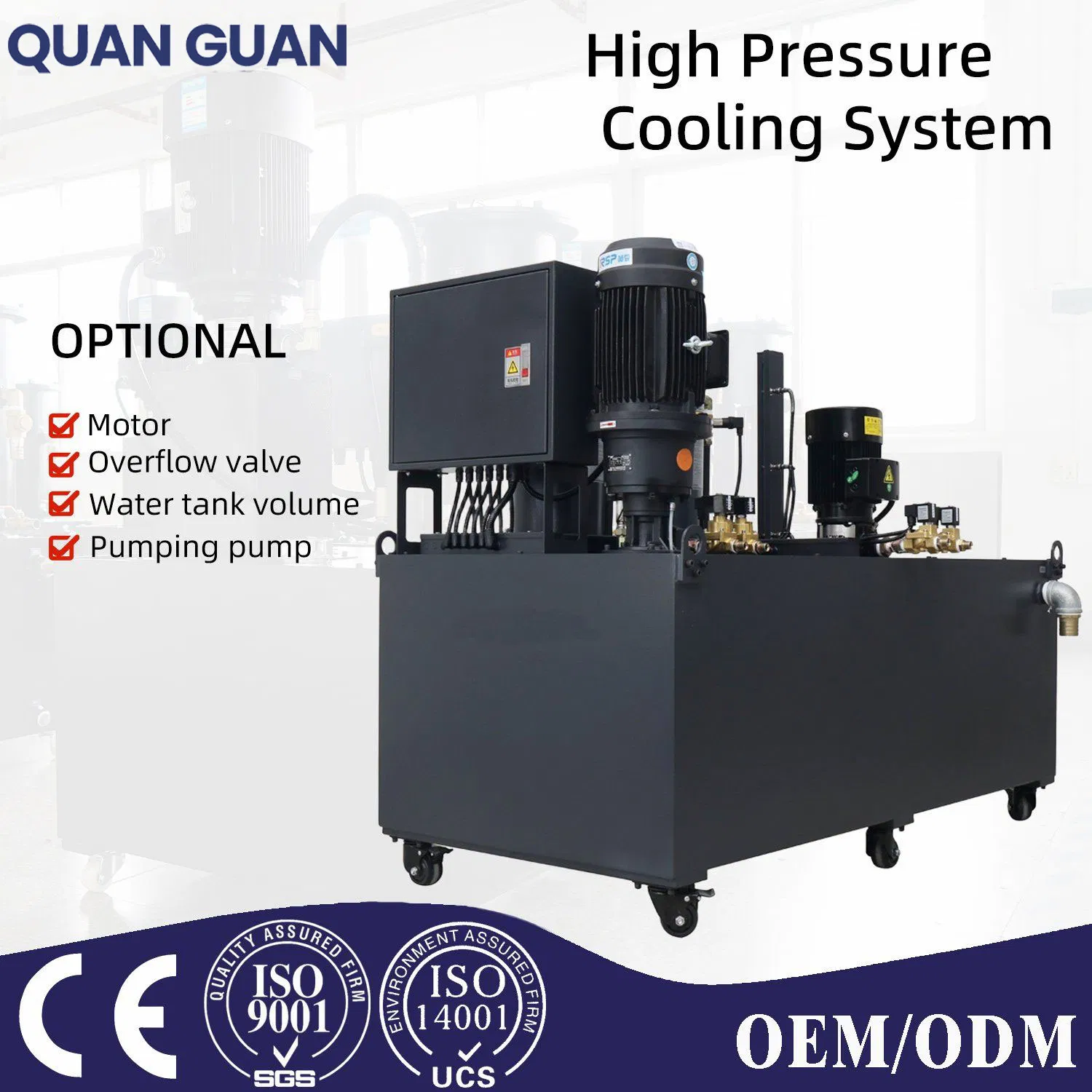

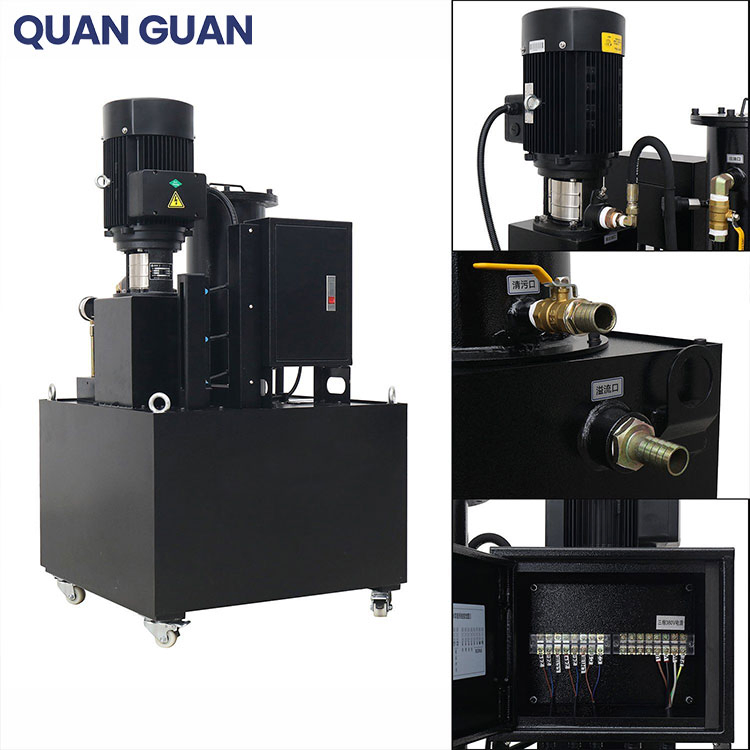

High Pressure Coolant System for Increased Speed in Cutting Milling Drilling Operations

1 / 5

High Pressure Coolant System for Increased Speed in Cutting Milling Drilling Operations

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Technical Specifications Overview

Type

Water-Cooled

Cooling Water

Industrial Water

System Type

Combined

Fans Species

Frequency Fan

Noise Level

Low

Application

Precision Machining, Turning, Milling and Drilling

Certification

ISO, CE

Condition

New

Flow Rate

35L/Min

Filter Accuracy

Less 25um

Water Outlets

Input Voltage

AC220V/AC380V

Specification

700*700*1230mm

Packaging & Delivery

Package Size

770.00cm * 880.00cm * 1390.00cm

Gross Weight

100.000kg

Transport Package

Wooden Box

Product Description

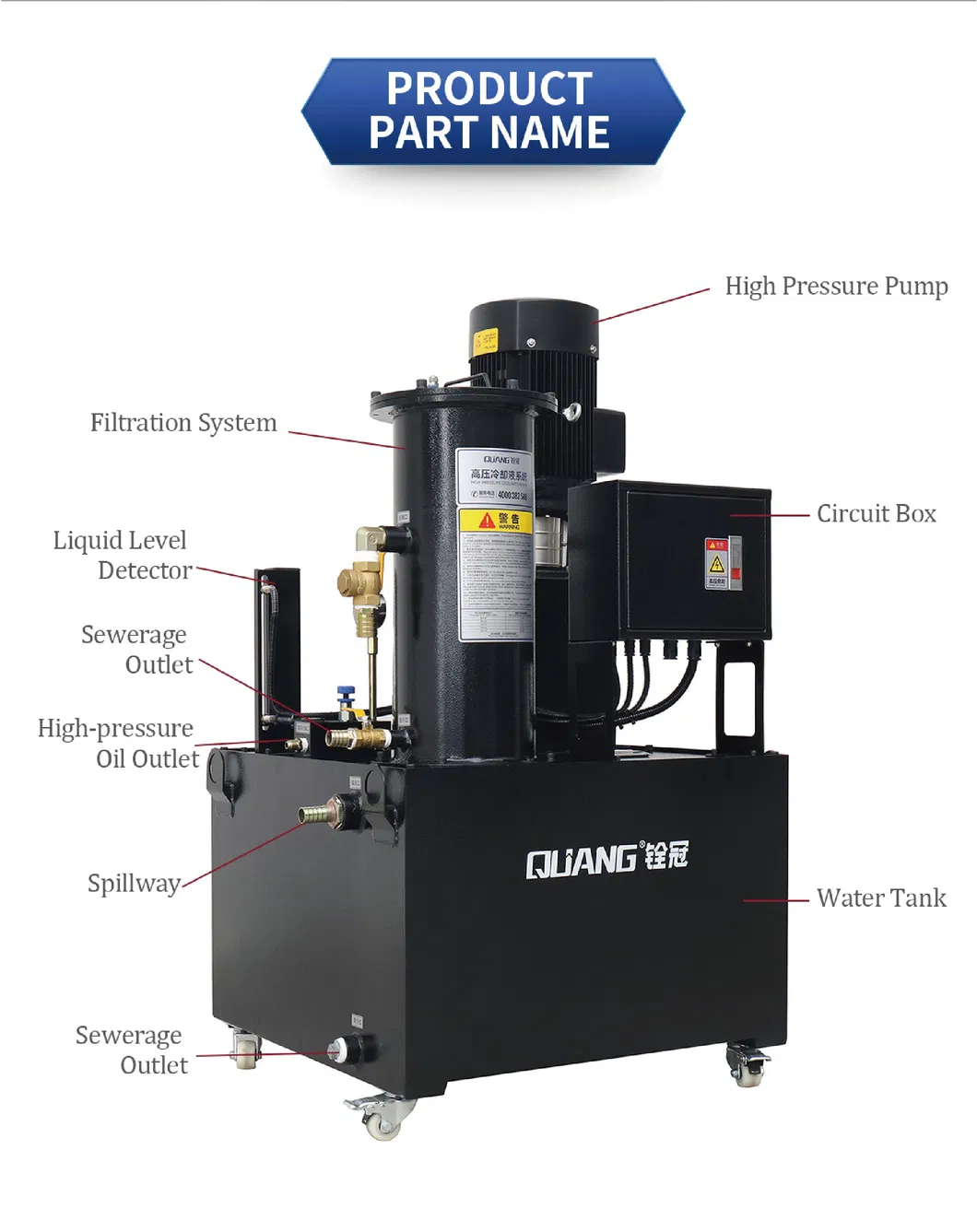

The water outlet from the center of the spindle, also known as spindle internal cooling or tool internal cooling, refers to the direct transfer of coolant through the spindle through pressure to the cutting part of the tool. In addition to timely cooling of the tool, high-pressure coolant can also be used to vigorously wash the chips milled from the workpiece.

Product Parameters

Item	QG-HPC-2MP-33LA-LX-1	QG-HPC-3MP-33LA-LX-1	QG-HPC-5MP-40LA-LG-1	QG-HPC-7MP-40LA-LG-1
Outlet pressure	20Bar	30Bar	50Bar	70Bar
Flow rate	33L/min	33L/min	40L/min	40L/min
Rated power	2.2KW	4.0KW	5.5KW	7.5KW
Input Power	220V/380V 50HZ/60HZ
Bag filtration	Min 25μm
Pump type	centrifugal pump	centrifugal/Screw pump	Screw pump	Screw pump
Size	7007001080mm	7007001080mm	7708801390mm	7708801390mm
Water tank capacity	220L	220L	350L	350L

Product Features

1 Eliminate the worry of entanglement in metal processing, avoid iron filings entangled on parts and tools.

2 Increase chip cutting speed and tap into more productivity in production.

3 Reduced tool wear and extended service life by reducing local machining temperatures.

4 Improve quality stability and the qualification rate of processed parts.

5 Improve surface smoothness of parts, enhancing market competitiveness.

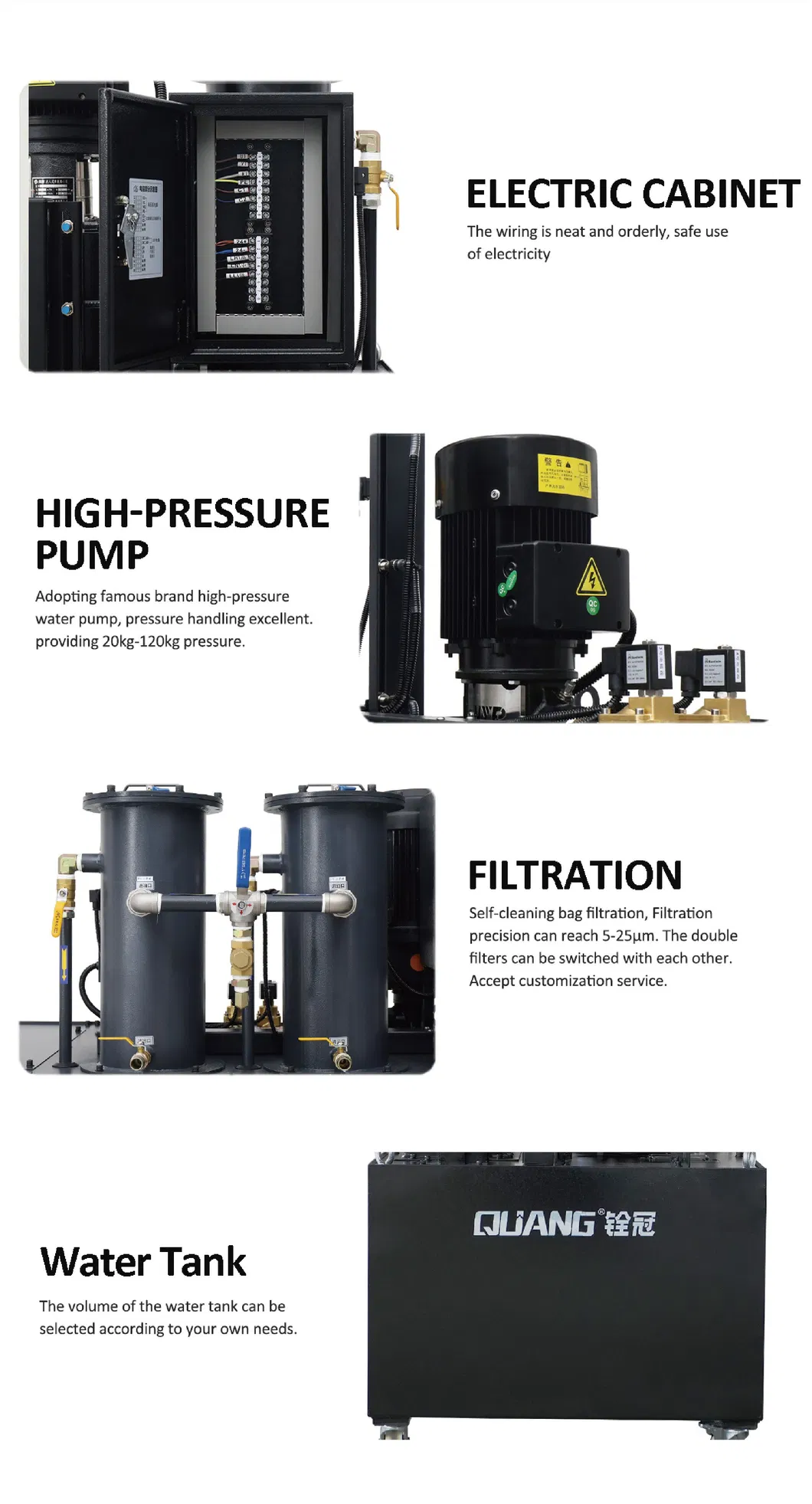

6 Automatic cleaning filter element function for easy disassembly and maintenance.

Applications

The spindle center water outlet system is mainly applicable to metal processing equipment such as CNC machining centers, deep hole drilling machines, crankshaft grinders, gear grinding machines, and CNC lathes.

Commonly used in: automotive component manufacturing, precision mechanical processing, and batch intelligent production lines for cooling, lubrication, and chip removal.

Frequently Asked Questions

What is a High Pressure Coolant System?

It is a system that delivers coolant directly through the center of the spindle or the tool under high pressure, ensuring targeted cooling and effective chip removal during machining.

How does internal cooling extend tool life?

By delivering coolant directly to the cutting edge, it significantly reduces localized high temperatures and friction, which minimizes tool wear and the frequency of replacements.

What are the main application fields?

It is widely used in automotive component manufacturing, precision mechanical machining, and high-speed CNC production lines for milling, drilling, and grinding.

What pump types are available for this system?

The system can be equipped with either centrifugal pumps (suitable for lower pressure) or screw pumps (ideal for high-pressure operations up to 70Bar).

What is the benefit of the automatic cleaning filter?

The automatic cleaning function ensures the filter element remains clear of debris with minimal manual intervention, making the system easy to maintain and more reliable.

What filtration accuracy does the system provide?

The system utilizes bag filtration with a minimum accuracy of 25μm, ensuring that the high-pressure coolant is free from harmful particles.
