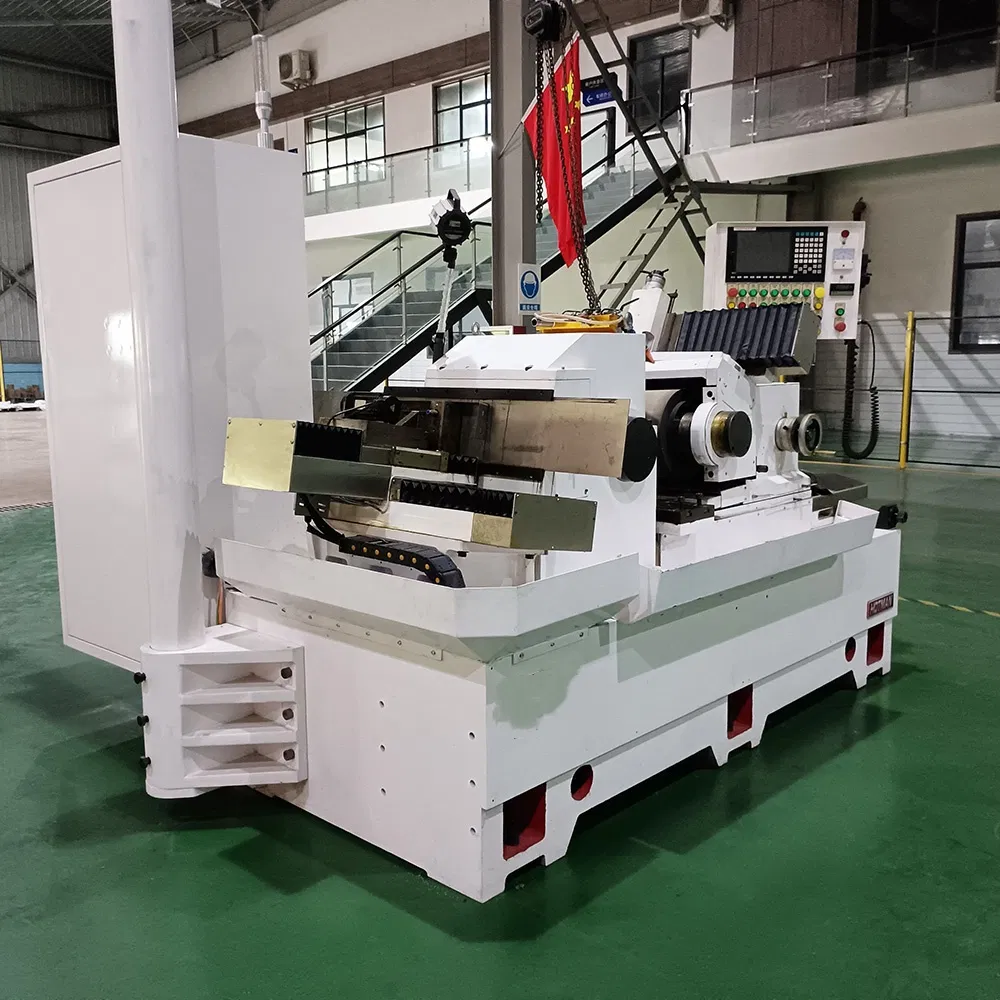

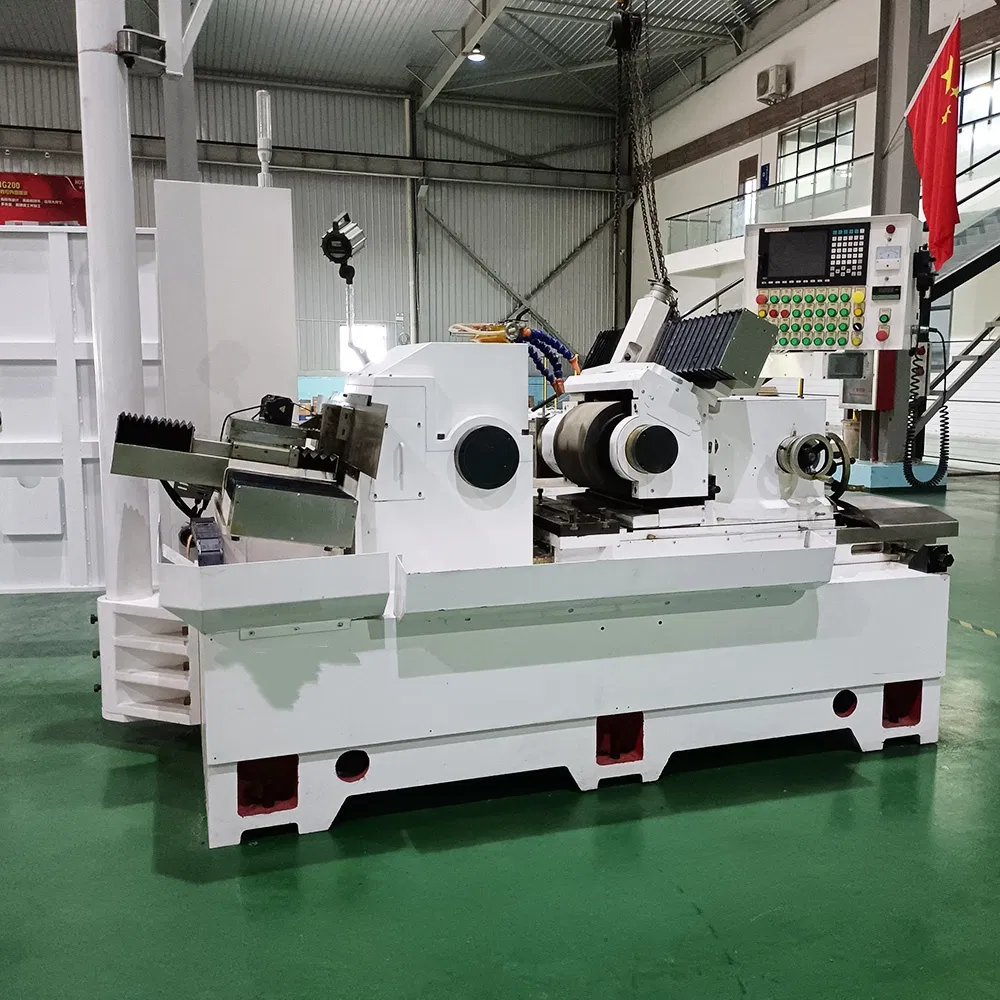

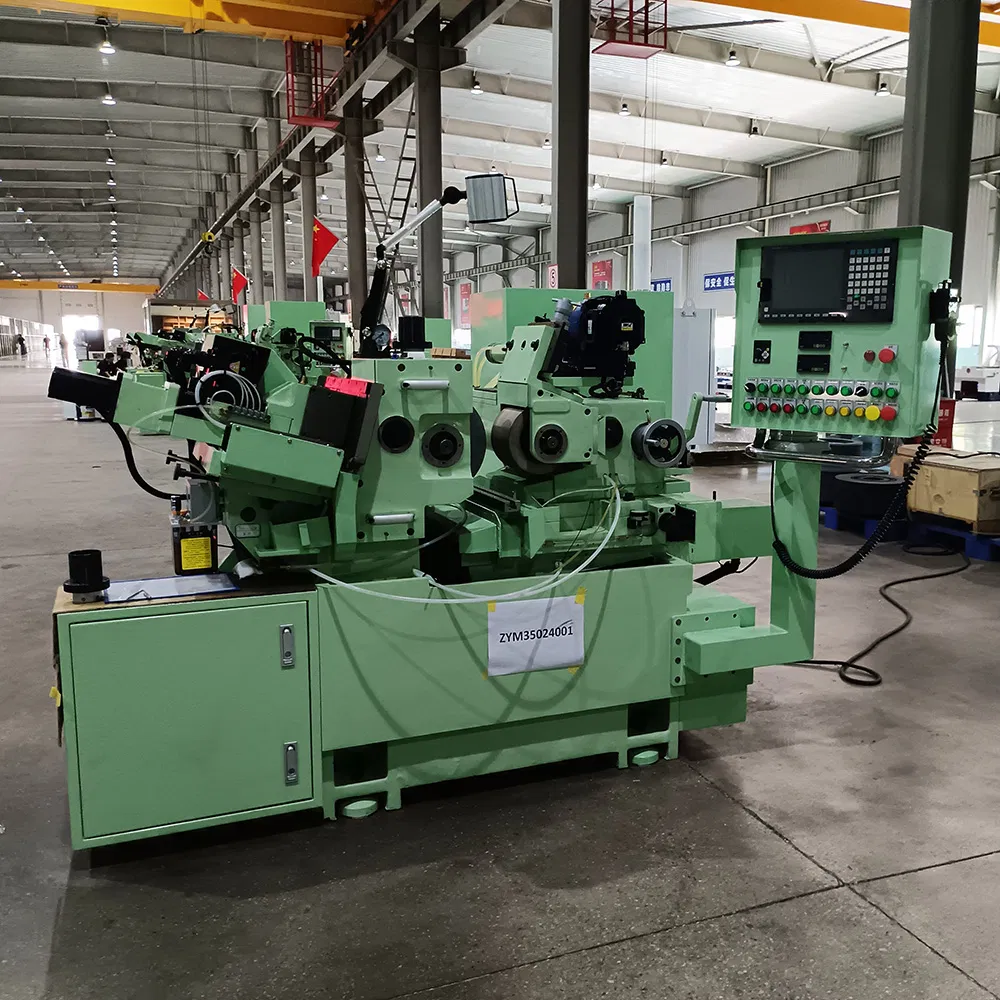

High-Precision Cylindrical Grinding Machine for Efficient Material Processing

Customization:	Available
After-sales Service:	Support
Warranty:	Support

📊 Basic Info.

Model NO.FX-18CNC

TypeCenterless Grinding Machine

Processing ObjectCylindrical Shaft

AbrasivesGrinding Wheel

Controlling ModeArtificial

Automatic GradeAutomatic

Cylindrical Grinder TypePlunge Cylindrical Grinder

PrecisionHigh Precision

CertificationISO 9001

ConditionNew

Working Diameter1-60mm

Grinding Wheel Speed1520rpm

Guide Wheel Speed0-250rpm

Grinder Wheel Motor15HP

Oil Pump Motor2HP

Guide Wheel Motor3kw

HS Code8460299000

Production Capacity40000/Pieces

🔍 Product Description

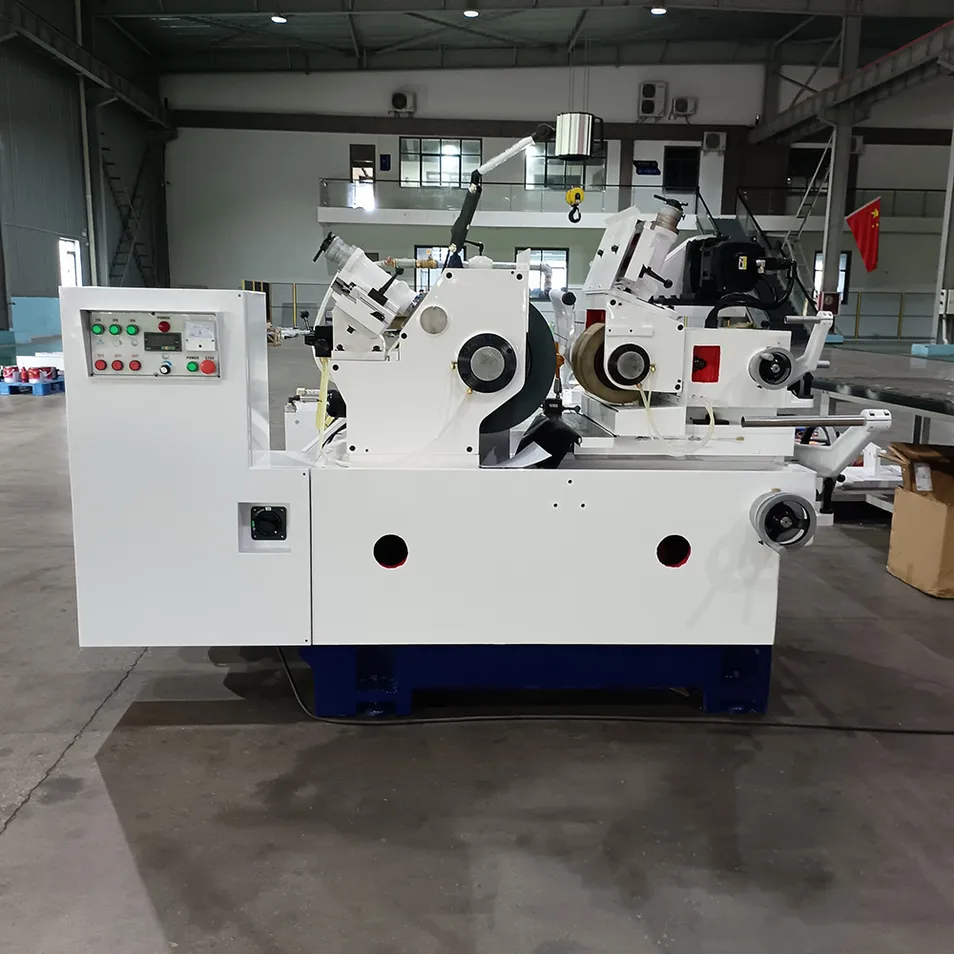

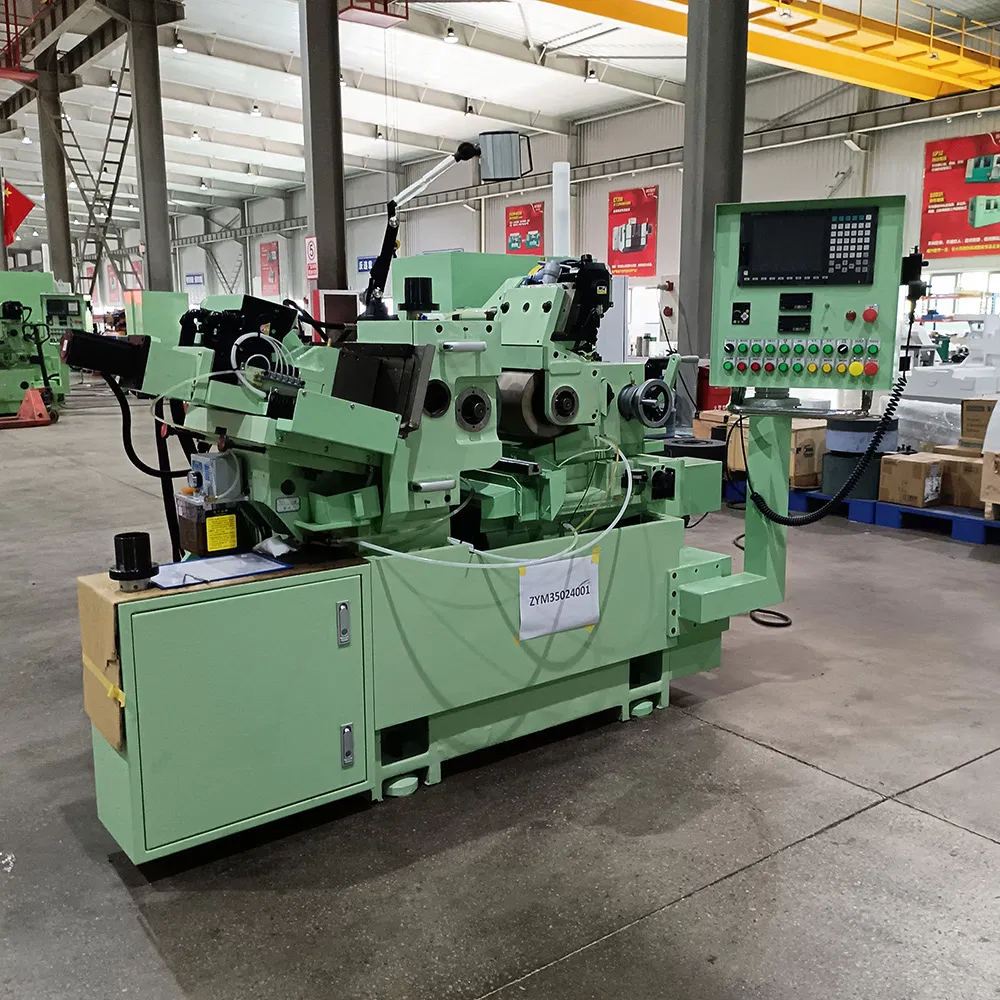

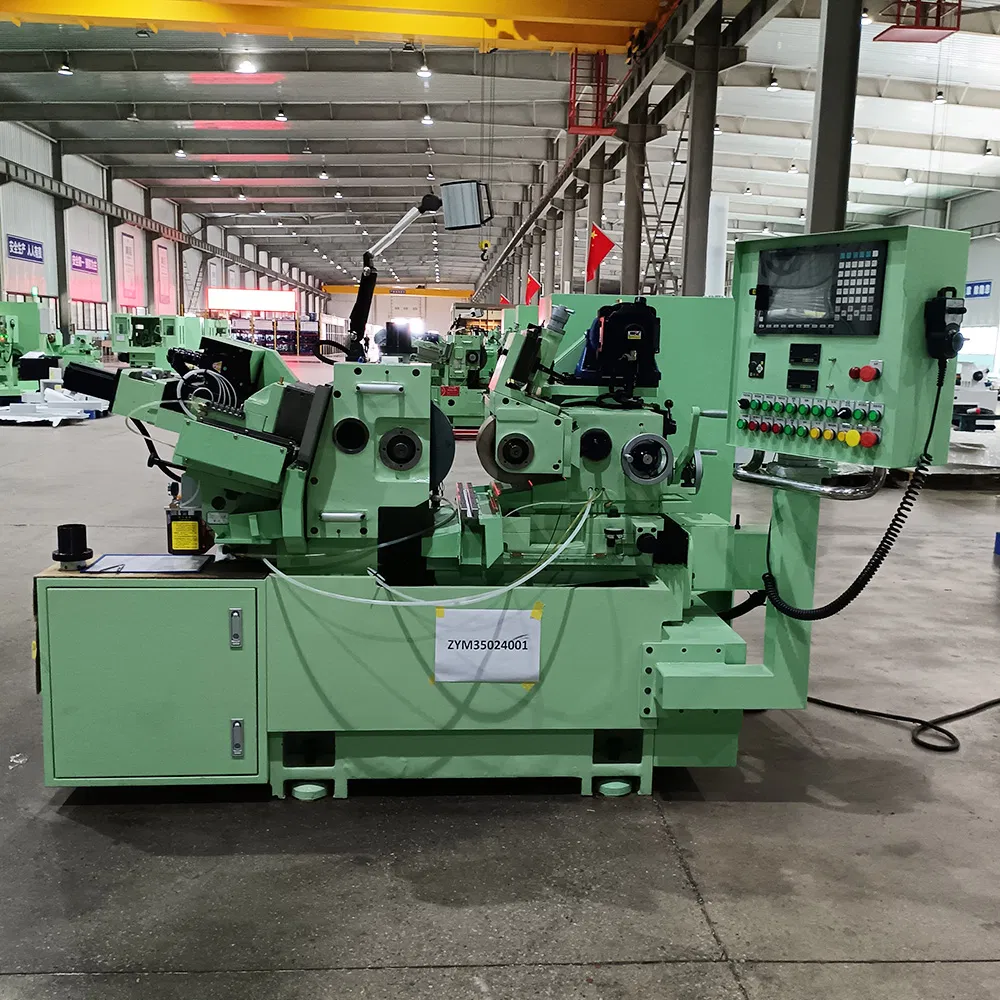

High-Precision Cylindrical Grinding Machine

Key Features

Cast iron eliminates internal stress through normalized heat treatment, maintaining long-term thermal stability and stable accuracy.
Strong grinding force effectively shortens processing time during rough grinding.
The through-type grinding method offers significant advantages for extra-long round materials.
Supports grinder connection to achieve unmanned fully automated processing and increased production.

⚙️ Technical Specifications

Parameter	Details
Worktable working diameter	1-60mm
Grinding wheel speed	1520rpm
Guide wheel speed	0-250rpm
Grinding wheel size (ODxWxID)	455x205x228.6mm

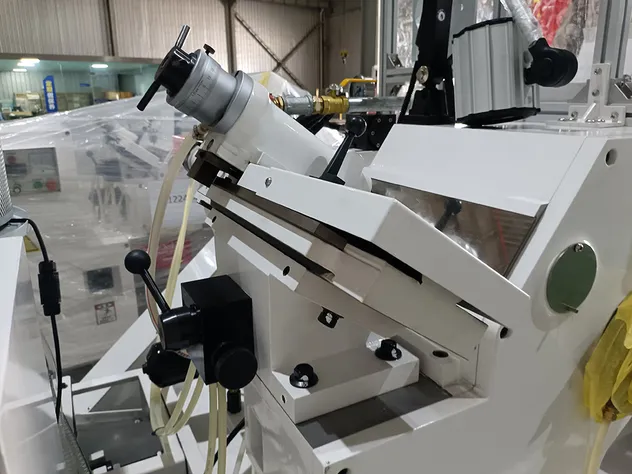

Guide wheel size (ODxWxID)	255x205x111.2mm
Oil pump drive motor	2HP
Cooling drive motor	1/4HP

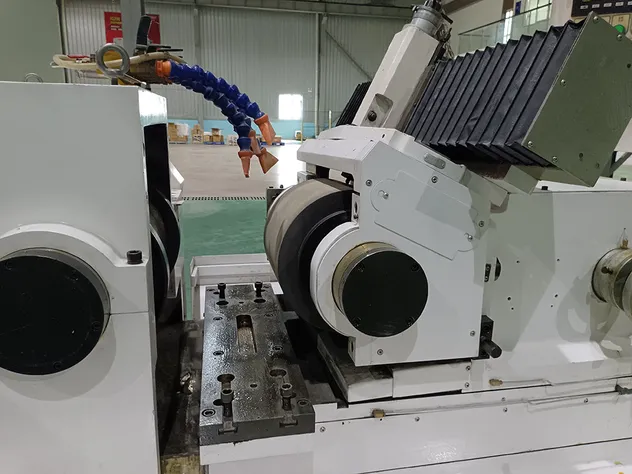

Feeding Slide

The contact surface is scraped manually with precision. Slide plate is fully lubricated by the system, ensuring feed accuracy at the μm level.

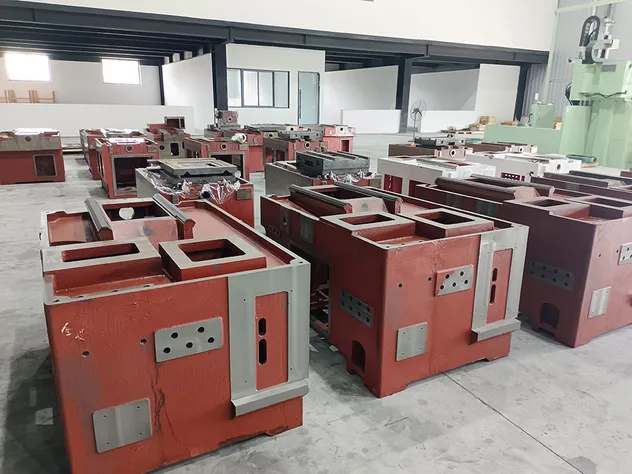

Ontology

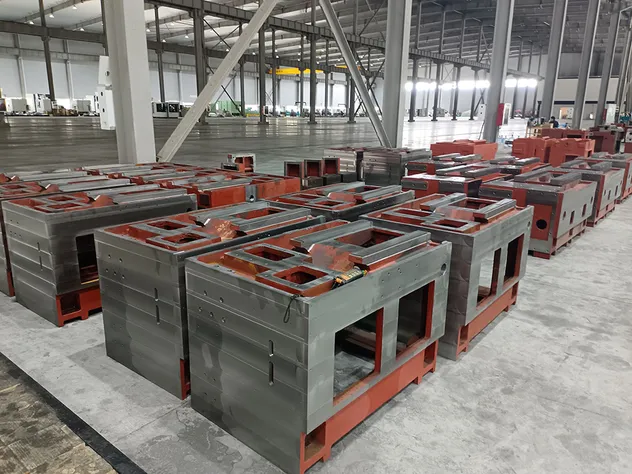

Made of honeycomb high-grade cast iron, heat-treated and aged for over 6 months. Processed by world-class equipment to ensure micron-level precision.

Transmission System

The regulating wheel spindle is directly driven by a servo motor with a synchronous belt for optimal linear speed and finish.

🛠️ Components & Accessories

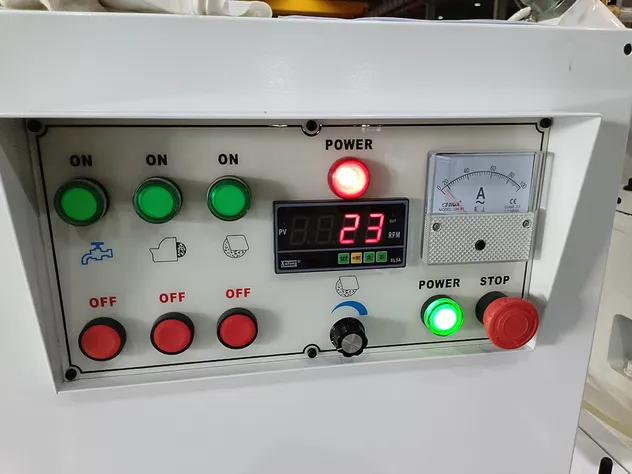

Operation Panel: Includes English indicated buttons and digital display.

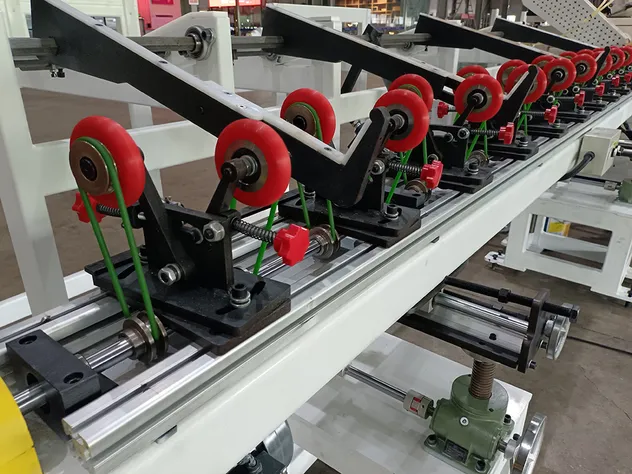

Feeding Device: Fully automatic device for feeding and receiving, supporting lengths up to 3000mm.

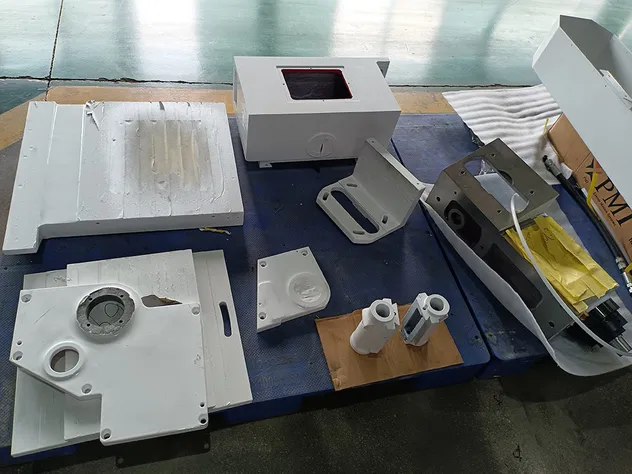

Standard Kit: Includes grinding/adjustment wheels, flanges, material return devices, and tool holders.

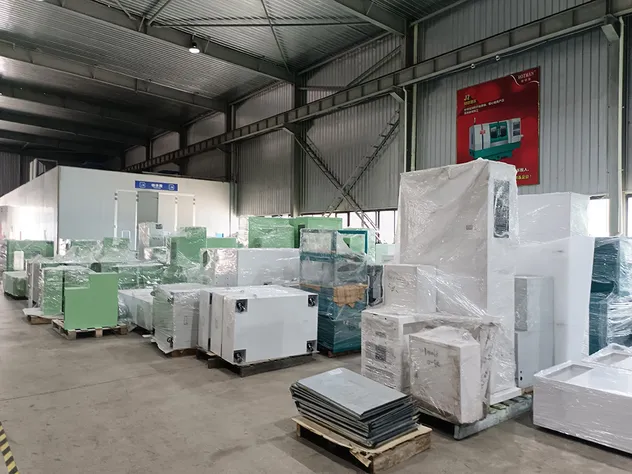

📦 Packing & Delivery

Package Size: 290.00cm * 240.00cm * 185.00cm

Gross Weight: 2850.000kg

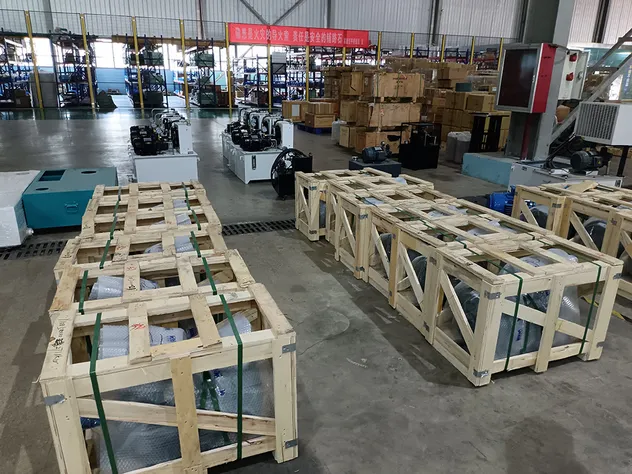

Transport Package: Professional Plywood Case for international shipping safety.

🏢 Profile

With extensive experience in exporting industrial machinery, we provide stable quality products and comprehensive services to the international market. Our product range includes Lathe machines, CNC Machining Centers, Grinding Machines, and various machine tool accessories. Our professional engineers track every production link and perform rigorous inspections before shipping to ensure equipment performance.

❓ FAQ

What is the working diameter range of the FX-18CNC?

The machine is designed to process workpieces with a working diameter ranging from 1mm to 60mm.

How does the machine ensure long-term precision?

The main body is constructed from high-grade cast iron that undergoes normalized heat treatment and natural aging for over 6 months to eliminate internal stress and maintain thermal stability.

Can this grinding machine be used for automated production?

Yes, by using the appropriate grinder connections and feeding devices, it can achieve unmanned fully automated processing to increase production efficiency.

What are the advantages of the through-type grinding method?

The through-type grinding method is particularly advantageous for processing extra-long cylindrical materials, ensuring consistent accuracy across the length.

What kind of after-sales technical support do you provide?

We have professional technical engineers with over 20 years of experience who handle quality inspections and offer professional technical guidance.

What shipping terms and payment methods are accepted?

We accept various delivery terms including FOB, CFR, CIF, EXW, and DDP. Payment can be made via T/T, L/C, Credit Card, and PayPal in multiple currencies such as USD, EUR, and CNY.
