High Accuracy CNC Thread Worm Grinding Machine Grinding Cylindrical Thread Worms
High Accuracy CNC Thread Worm Grinding Machine Grinding Cylindrical Thread Worms
High Accuracy CNC Thread Worm Grinding Machine Grinding Cylindrical Thread Worms
High Accuracy CNC Thread Worm Grinding Machine Grinding Cylindrical Thread Worms
High Accuracy CNC Thread Worm Grinding Machine Grinding Cylindrical Thread Worms
1 / 5
High Accuracy CNC Thread Worm Grinding Machine Grinding Cylindrical Thread Worms
High Accuracy CNC Thread Worm Grinding Machine Grinding Cylindrical Thread Worms
High Accuracy CNC Thread Worm Grinding Machine Grinding Cylindrical Thread Worms
High Accuracy CNC Thread Worm Grinding Machine Grinding Cylindrical Thread Worms
High Accuracy CNC Thread Worm Grinding Machine Grinding Cylindrical Thread Worms

High Accuracy CNC Thread Worm Grinding Machine Grinding Cylindrical Thread Worms

Customization: Available
After-sales Service: Video Direction
Warranty: One Year
Send Inquiry

Product Description

Basic Information
Type
Thread Grinding Machine
Processing Object
Thread
Abrasives
Grinding Wheel
Controlling Mode
CNC
Automatic Grade
Automatic
Cylindrical Grinder Type
Universal Cylindrical Grinder
Precision
High Precision
Certification
GS, CE, ISO 9001
Condition
New
Control System
Fanuc, Siemens, GSK
No. of Axis
3-5
Key Selling Points
High Efficiency and High Accuracy
Machine Bed
Integral Casting Bed
Production Capacity
500 Sets/Year
HS Code
8460211000
Machine Display

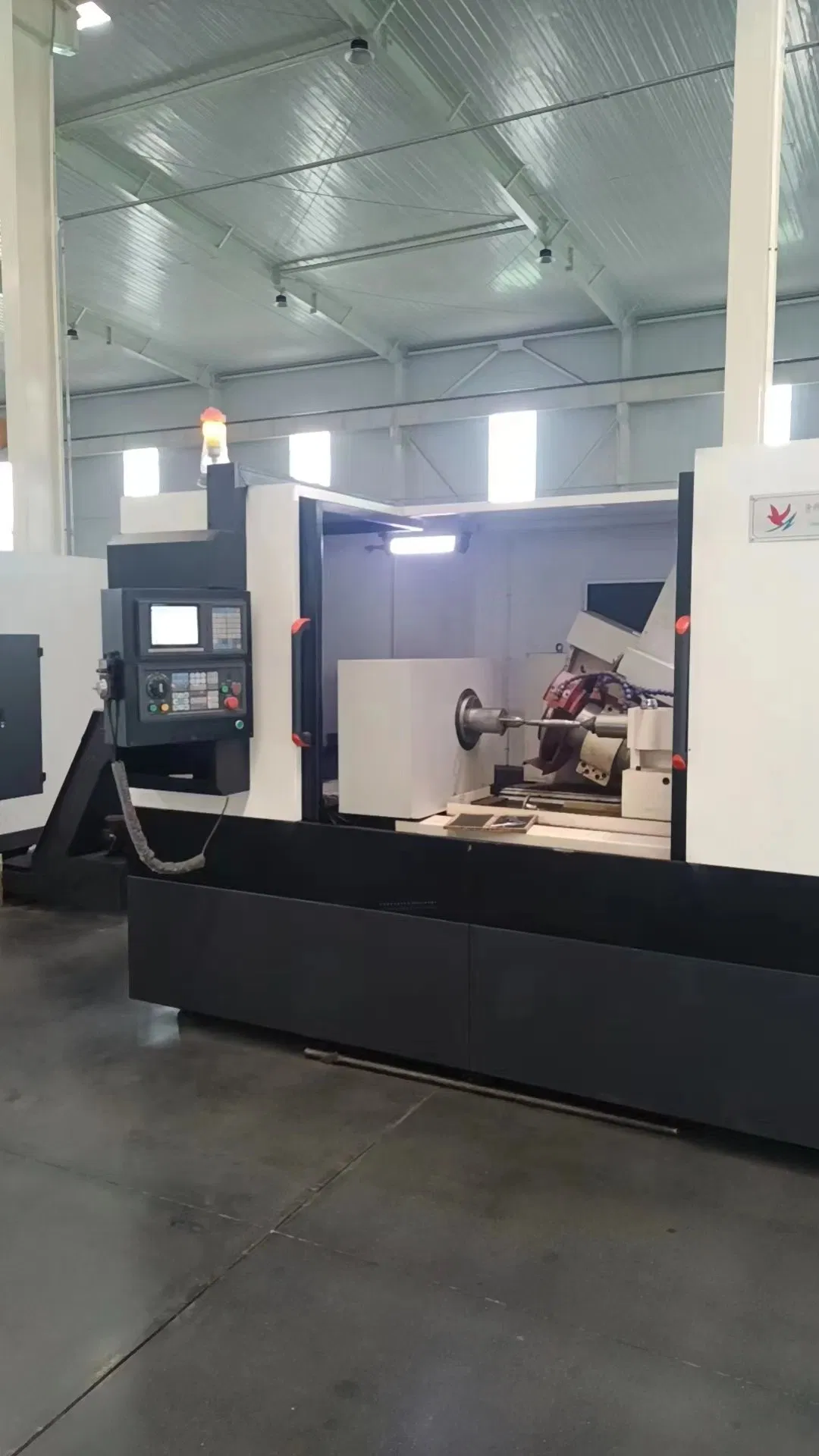

CNC Thread Worm Grinding Machine

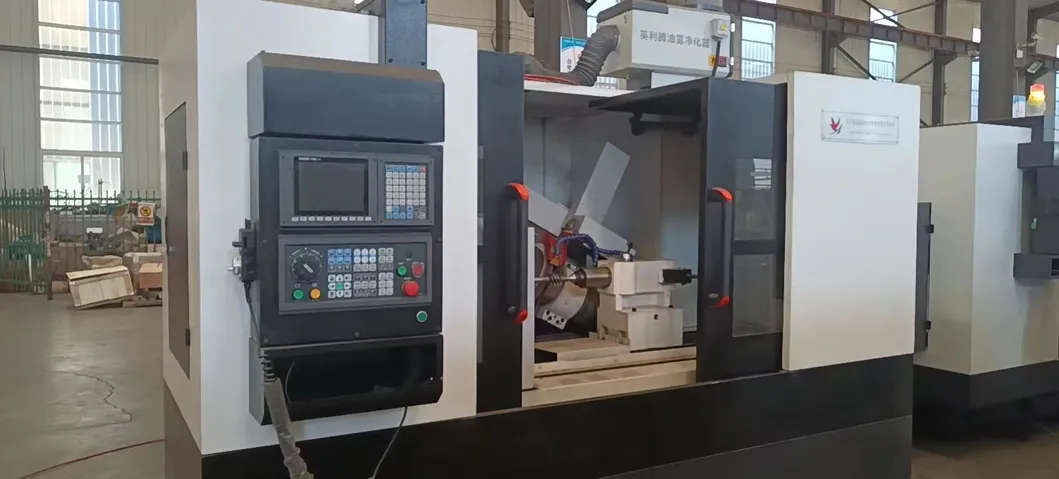

Machine Display Detailed
Product Description

WGM150×750 CNC worm grinder is a leading variety developed for high-precision grinding of cylindrical worms.

Adopts ball linear guide-rail for high rigidity, good wear resistance, and high positioning accuracy.
Headstock spindle C-axis uses a servo motor directly connected to a high-precision anti-backlash worm gear pair.
Equipped with high-power electric spindle for stepless speed change and wide-speed regulation.
CNC rotary table driven by servo motor to ensure precise grinding angle adjustment.
Diamond roller dressing wheel assembly for efficient grinding wheel maintenance.
Centralized intermittent lubrication pump ensures timely lubrication of all guide-rails.
Magnetic separator system for enhanced cooling and lubrication during processing.

Grinding Accuracy: Grade 5 | Surface Finish: 1.6mm

Technical Specification
Item Content Unit
Bed length2700mm
Bed width1050mm
Form of guide-rail"T" Shape-
Max machining diameter150mm
Max workpiece length750mm
Max grinding length500mm
Rated power of electric spindle18.5Kw
Rated revolving speed of spindle3000r/min
Max rotation angle±30degree
Max stroke of tailstock sleeve60mm
Machine weight≈6.5ton
Machine Application

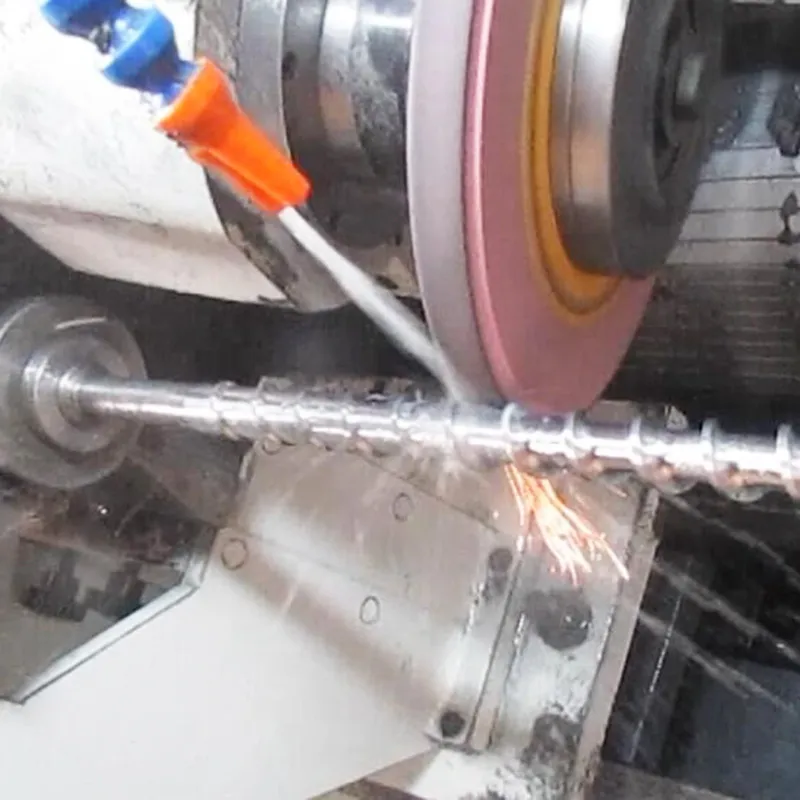

Application 1

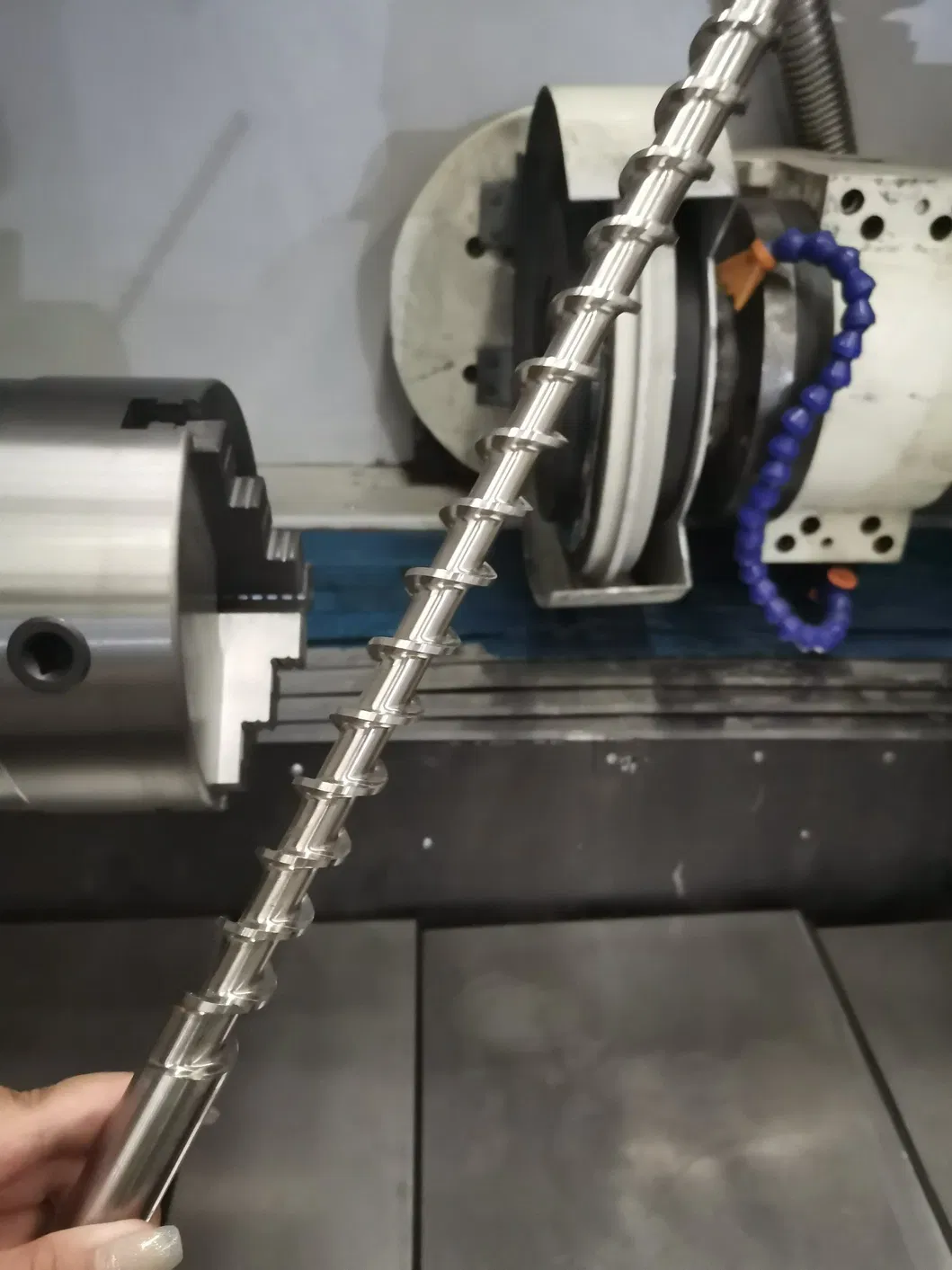

Application 2
Machine Features
High precision and high efficiency spiral rotor grinding capabilities.
First-class technical level with high rigidity design.
Versatile CNC system options: GSK, Siemens, or Fanuc.
Feature Detail 1
Feature Detail 2
Workshop Display

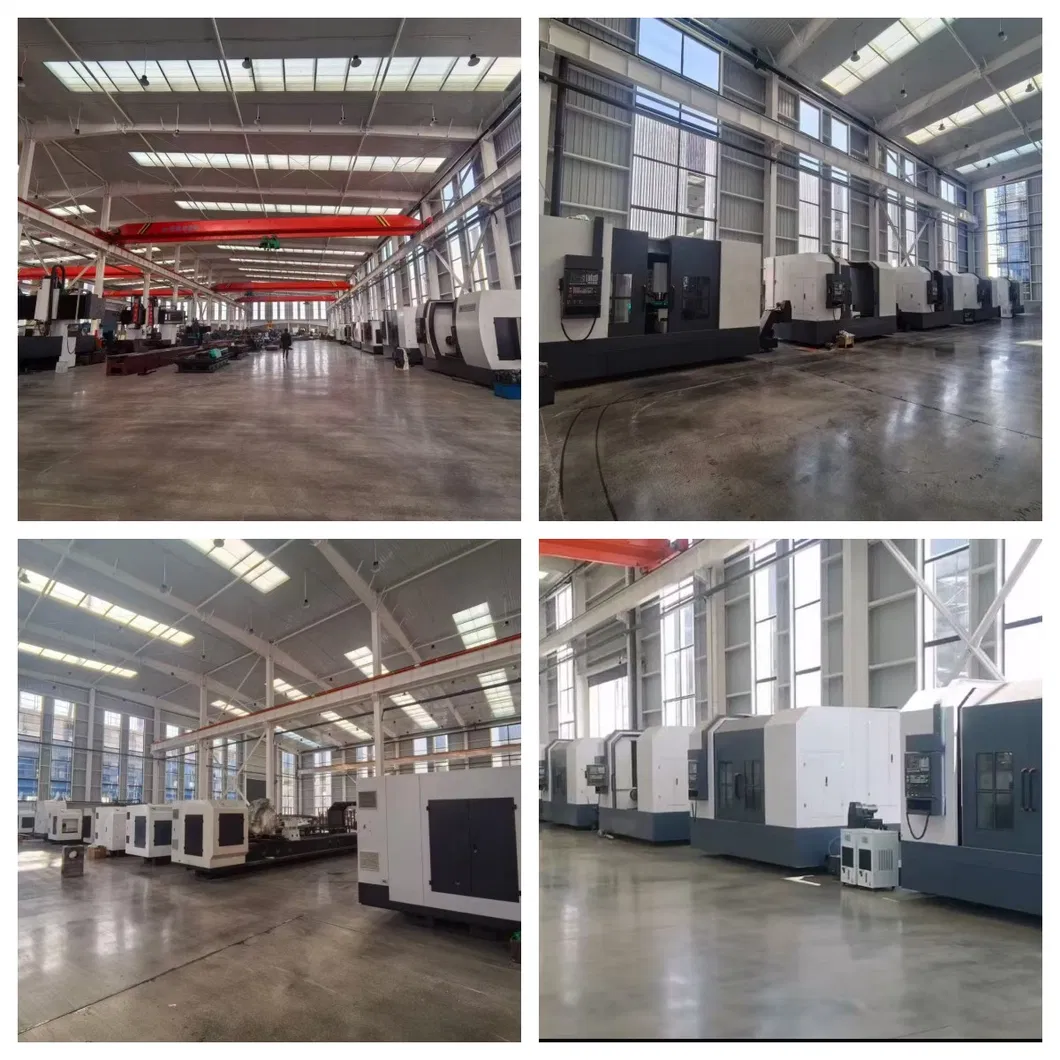

Workshop 1
Workshop 2
Workshop 3
Workshop Detail
Workshop Support
Packaging & Shipping
Packaging Detail
Frequently Asked Questions
How do I send my query?
You can contact us via email, phone, or instant messaging platforms such as WhatsApp and WeChat to discuss your specific requirements.
What is the delivery time?
If the machine is in stock, delivery occurs within 20 days. For out-of-stock items, production is typically completed within 90 days after the deposit is received.
What are the payment terms?
Standard terms are 30% by T/T as a down payment, with the remaining 70% balance by T/T before delivery. Other terms can be discussed upon inquiry.
Do you provide engineer support for installation?
Yes, our engineers are available for global travel to assist with machine installation and debugging. Round-trip flights and accommodation costs are covered by the client.
Can you help with machine programming?
Absolutely. Our engineers can program the machine based on your detailed sample drawings, or provide operation videos via U-disc to assist your team.
How do I choose the right model?
If you are unsure which model fits your needs, provide your equipment requirements or product drawings, and our engineers will recommend the most suitable solution.
