The GKZ30 Worm Wheel Gear Grinding Machine adopts the Siemens 840D SL CNC system, featuring eleven axes and five linkages. The grinding wheel tooth profile is double-sidedly dressed with a single diamond roller, enabling automatic adjustment of the pressure angle. The outer circle of the grinding wheel is dressed with a diamond blade, significantly improving dressing efficiency. It supports automatic workpiece clamping, even distribution of grinding allowance, automatic tool engagement, and utilizes multi-head grinding wheel technology. The in-phase dressing technology ensures high-precision wheel preparation.

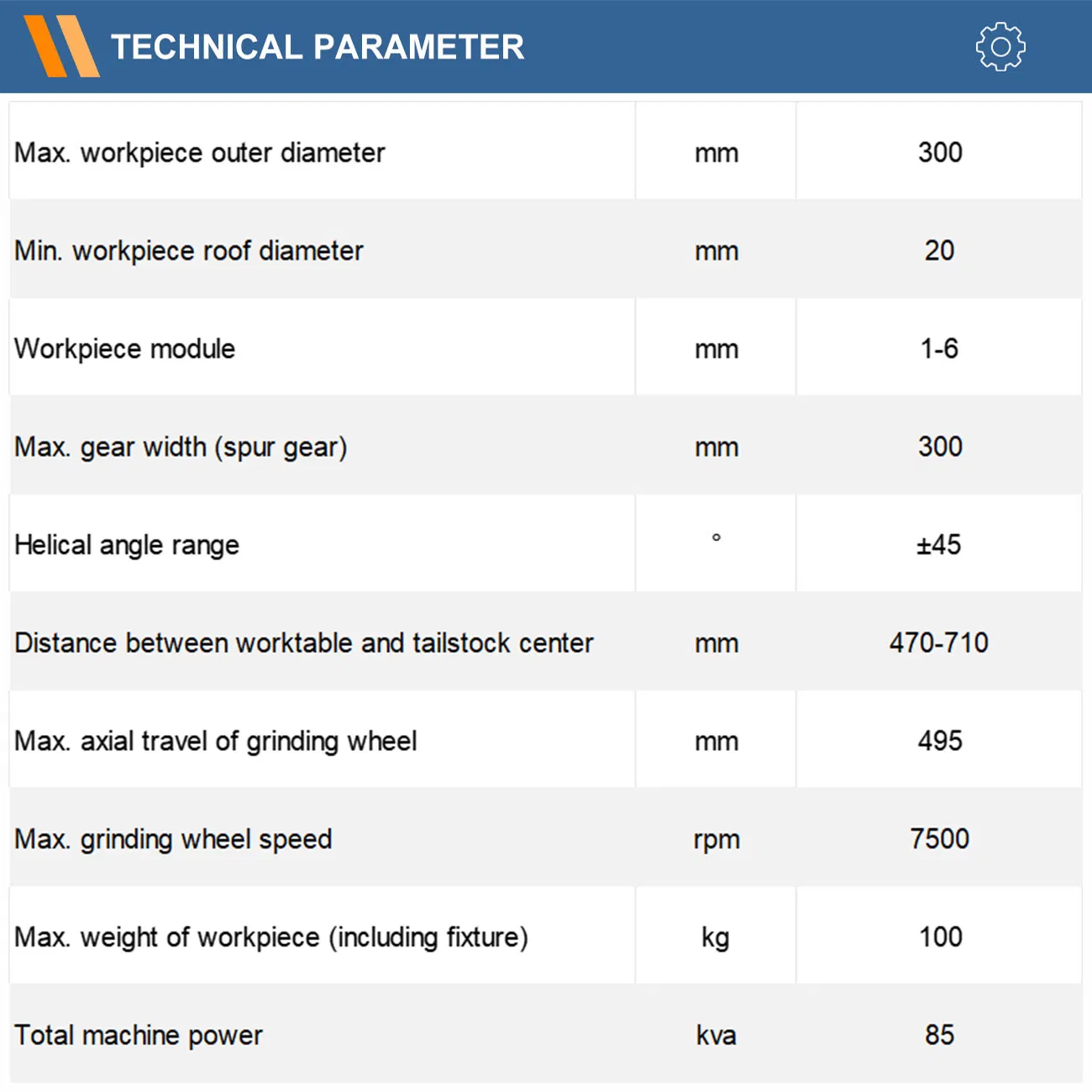

| Parameter Item | Unit | Specifications |
|---|---|---|
| Max. workpiece outer diameter | mm | 300 |
| Min. workpiece roof diameter | mm | 20 |
| Workpiece module | mm | 1-6 |
| Max. gear width (spur gear) | mm | 300 |
| Helical angle range | ° | ±45 |
| Distance between worktable and tailstock center | mm | 470-710 |
| Max. axial travel of grinding wheel | mm | 495 |
| Max. grinding wheel speed | rpm | 7500 |
| Max. weight of workpiece (including fixture) | kg | 100 |
| Total machine power | kva | 85 |
Comprehensive Gear Manufacturing Solutions
Solutions available include CNC Gear Hobbing, Profile Gear Grinding, Worm Wheel Gear Grinding, Gear Shaping, Gear Skiving, Gear Chamfering, and Gear Measuring Centers. Automatic loading/unloading systems or robotic arms are also available to enhance productivity. With over 20 years of experience, we provide strong technical capabilities and 365 days of uninterrupted professional technical support.
