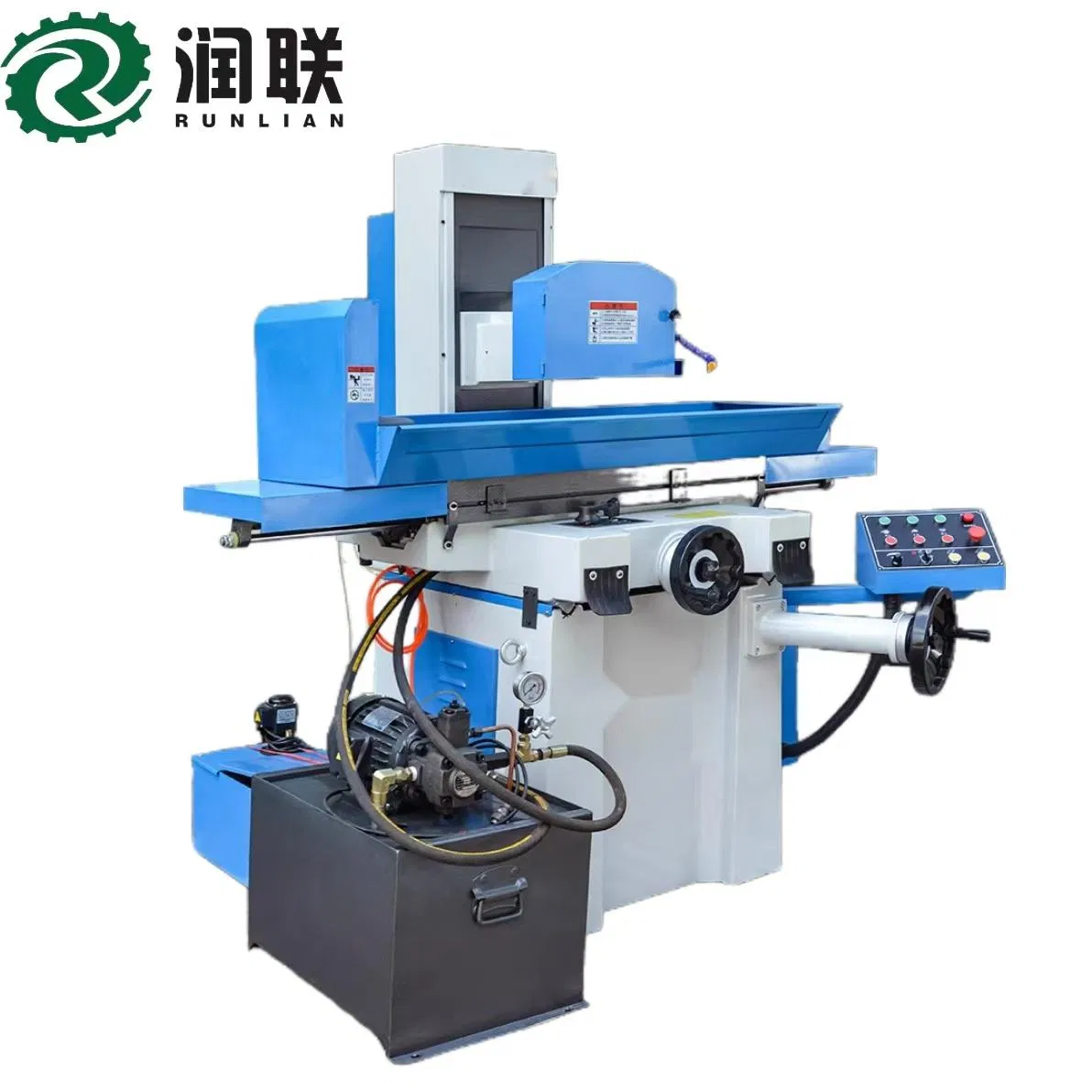

External Cylindrical Internal Coordinate Gear Honing Diamond Boring Vertical Horizontal Spherical Sursace Tool CNC Centerless Custom Grinding Machine Grinder

1 / 5

External Cylindrical Internal Coordinate Gear Honing Diamond Boring Vertical Horizontal Spherical Sursace Tool CNC Centerless Custom Grinding Machine Grinder

Customization:	Available
After-sales Service:	Online Support
Warranty:	Online Support

Send Inquiry

Product Description

Overview - Basic Information

Model

M1432B

Type

Universal Cylindrical Grinder

Precision

High Precision

Max. Length Ground

1000mm, 1500mm, 2000mm, 3000mm

Center Height

180mm

Work Piece Max Weight

150kg

Product Description

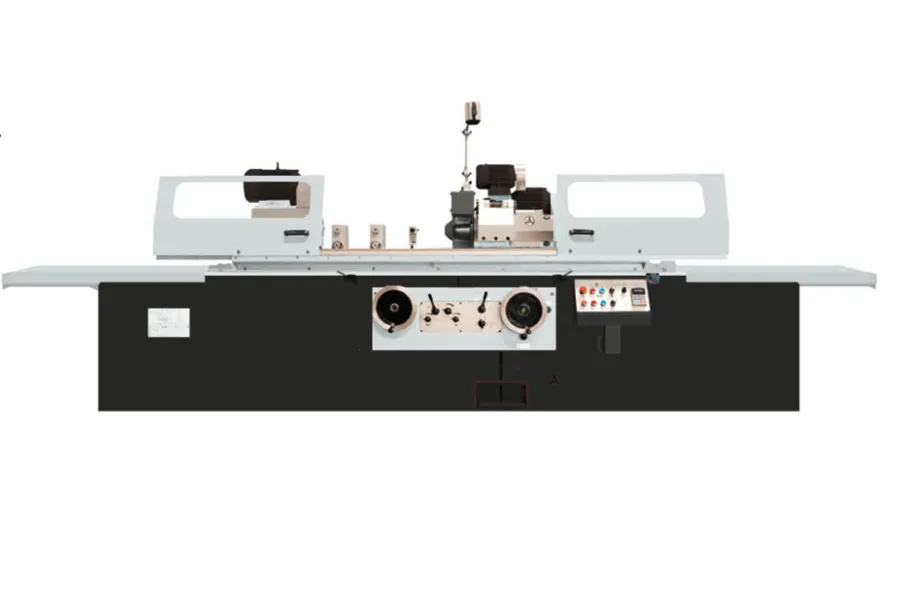

Structural Features

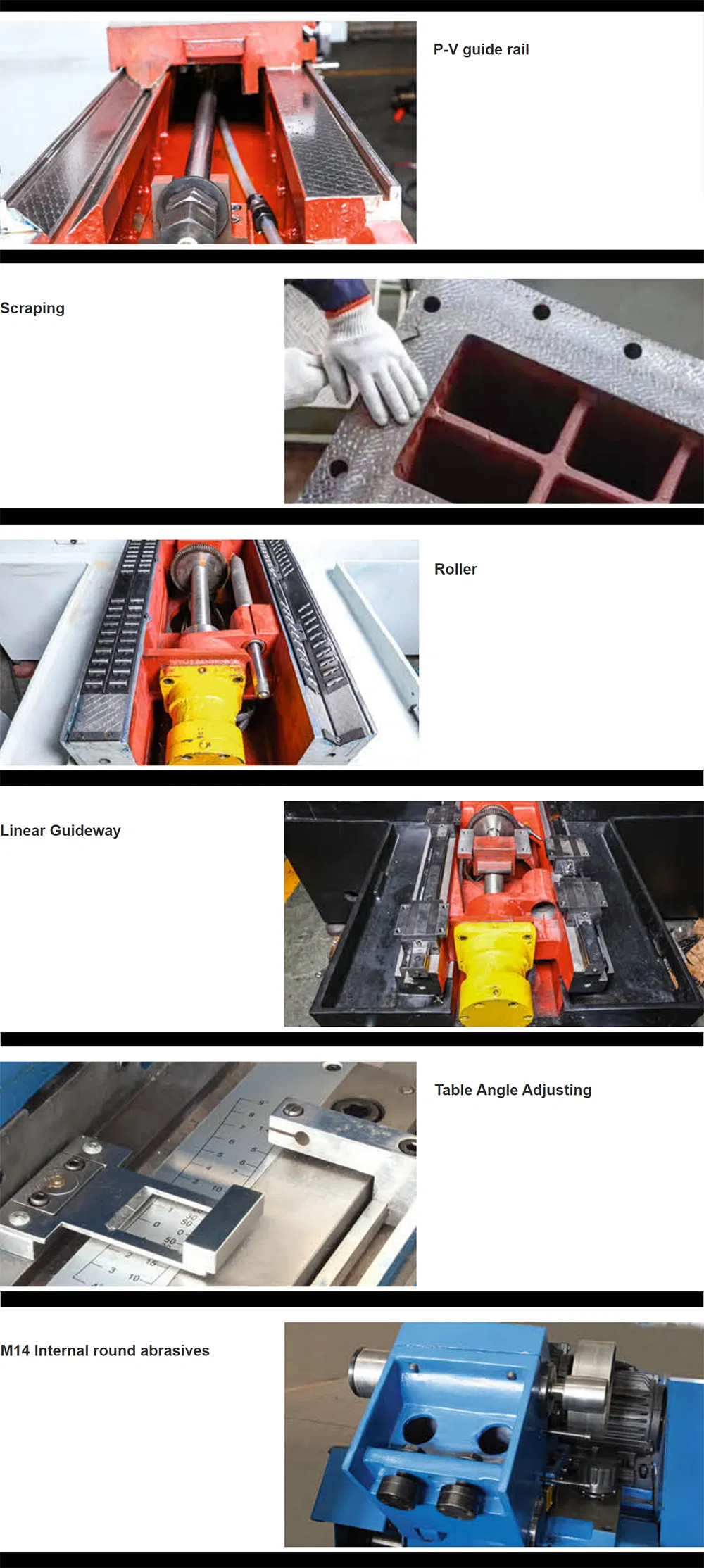

The left and right guide rail adopts P-V structure, scraped by high precision manual for high stability.
The front and rear feed guide rail of grinding wheel offers roller and wire rail structure options.
Classic control mechanism: simple, safe, and reliable operation.
Universal workhead adjustable within 90 degrees counterclockwise for chuck grinding internal and external conical workpieces.

Product Parameters

Description	Unit	M1432B
Max. length ground (O.D)	mm	1000, 1500, 2000, 3000
Center height	mm	180
Dia. Ground (O.D)	mm	8-320
Dia. Ground (I.D)	mm	30-100
Max. length ground (I.D)	mm	125
Center Taper	MT	4
Spindle Speed	r/min	26-260 (50Hz)
Wheel Peripheral Velocity	m/s	35
Internal Grinding Spindle Speed	r/min	10000
Wheelhead Motor Power	kw	5.5 / 7.5
Roundness	μm	3 - 5
Roughness	μm	Ra0.2 - Ra0.32

Detailed Photos

Production & Packaging

Frequently Asked Questions

How can I choose the most suitable machines?

Please provide your specifications or workpiece drawings. We will recommend the best model or help you select the exact model based on your specific production requirements.

What are your main product categories?

We specialize in CNC Lathe Machines, CNC Milling Machines, Vertical Machining Centers, Drilling Machines, Radial Drilling Machines, Band Saw Machines, and Sharper machines.

What is the typical delivery time for an order?

For standard machines, delivery is approximately 30 days. Non-standard or customized machines based on client specifications may require additional time.

What are the accepted trade and payment terms?

We accept FOB, CFR, and CIF terms. Payment is typically via T/T (30% deposit, 70% balance before shipment) or Irrevocable LC at sight.

What is the Minimum Order Quantity (MOQ)?

The MOQ is 1 set for most equipment. Only certain low-cost auxiliary machines may require a higher quantity.

Can I visit the production facility?

Yes, you are warmly welcomed to visit our facility to inspect the machines and discuss your requirements in person.
