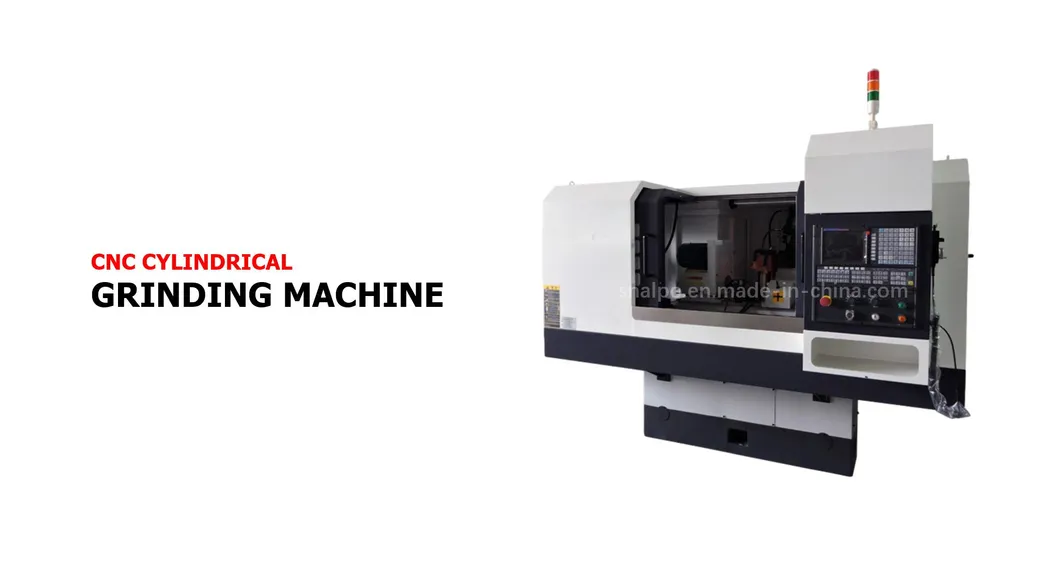

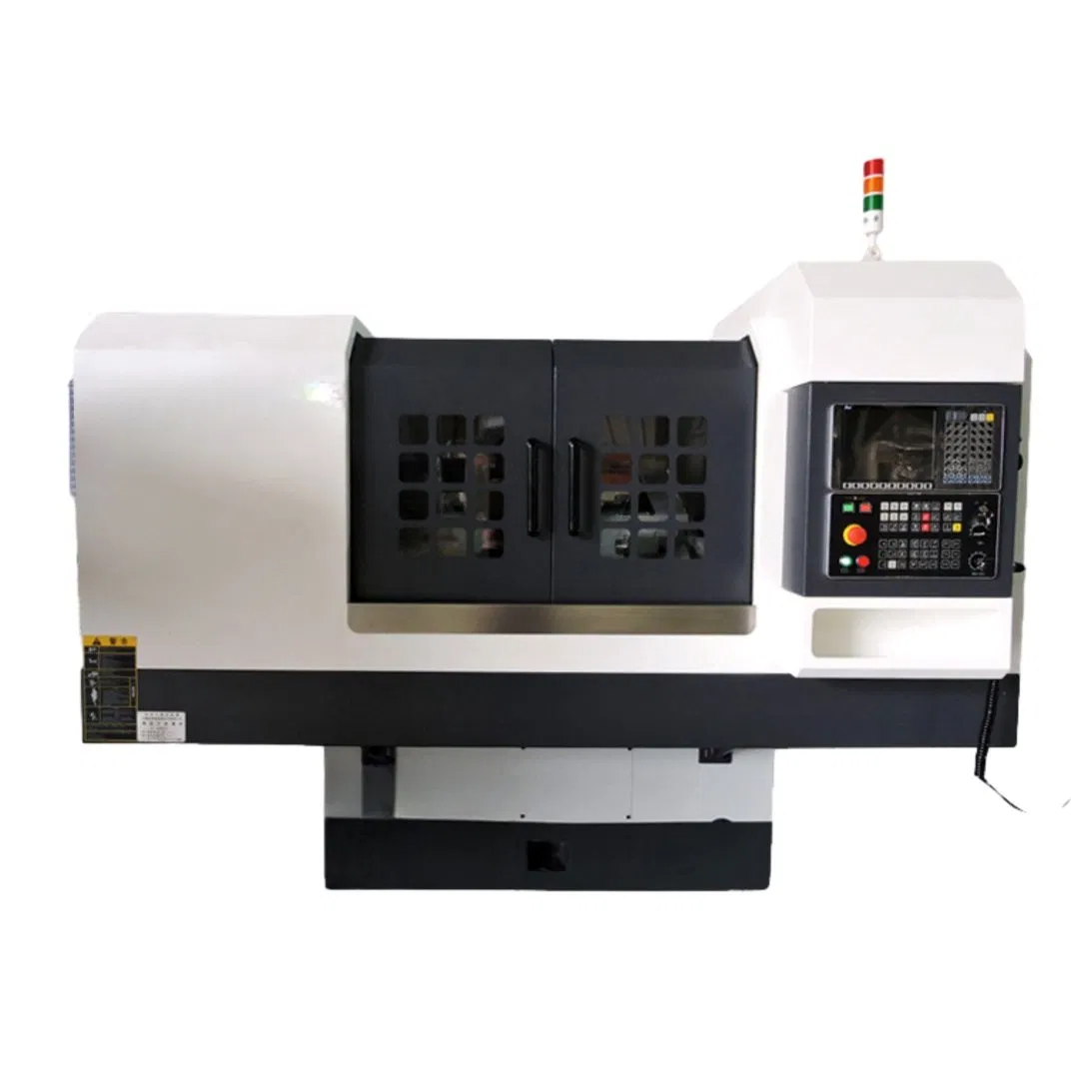

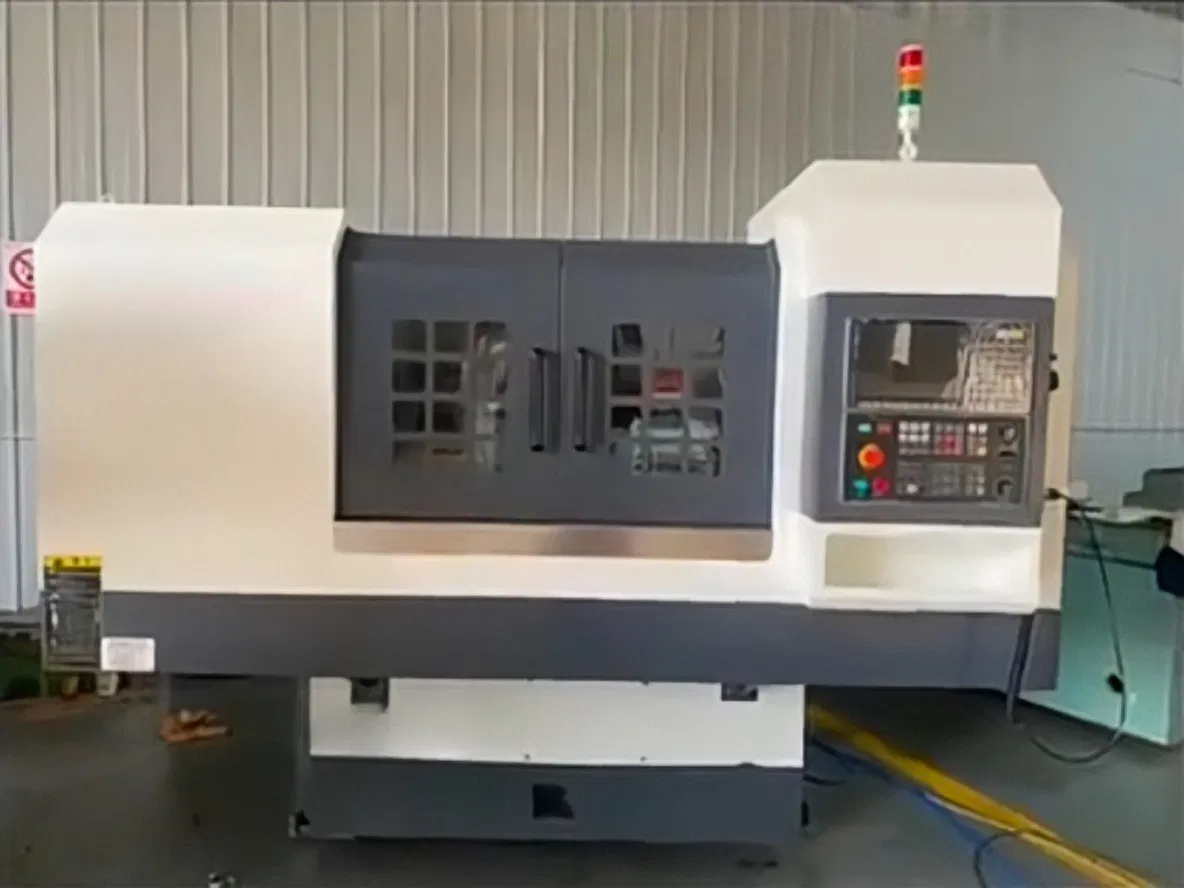

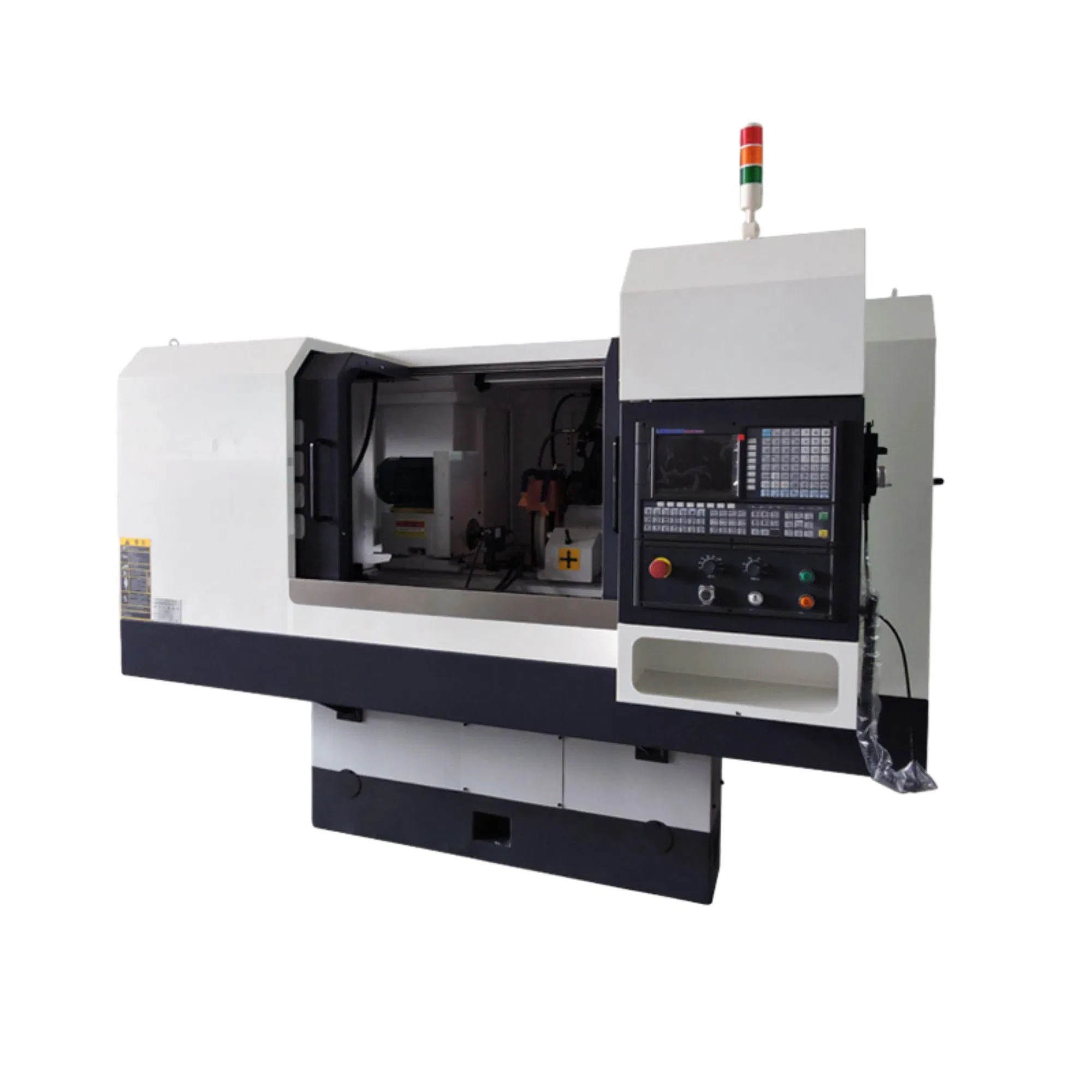

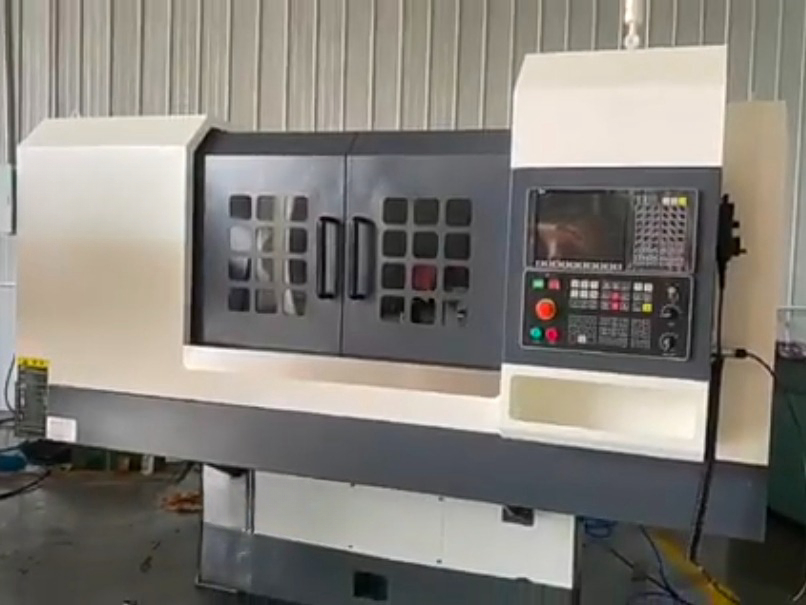

Good Price From China Rectificadora CNC Cylinder Cylindrical Grinding Grinder Machine for Metal Processing Spindle Shaft Lapping with Siemens System

Customization:	Available
After-sales Service:	Lifetime After-Sales Service
Warranty:	12months Free Maintenance

📊 Basic Information

Model NO.

MK1312/300

Type

External Grinding Machine

Processing Object

Cylinder

Abrasives

Grinding Wheel

Controlling Mode

CNC

Automatic Grade

Automatic

Precision

High Precision

Condition

New

Max. Work Diameter

200mm

Max. Workpiece Length

300mm

Center Height

105mm

Wheel Motor Power

3kw

⚙️ Product Description

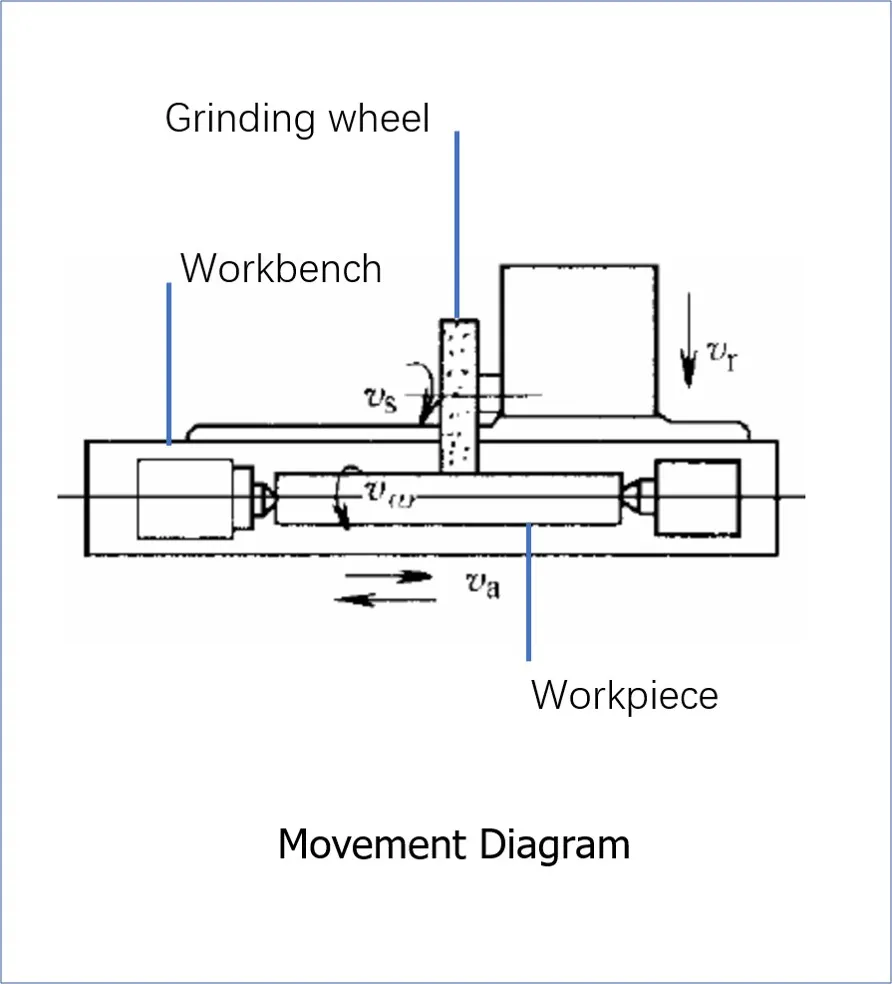

Multifunctional Equipment: Used for large-scale processing of outer circles, end faces, and arcs of shaft sleeve parts. Adopting a dedicated CNC system, the feed of the grinding wheel holder and the movement of the worktable are controlled by two axes respectively.
Automatic Cyclic Grinding: Able to complete automatic cyclic grinding of multiple outer surfaces and end faces in one installation of the workpiece.

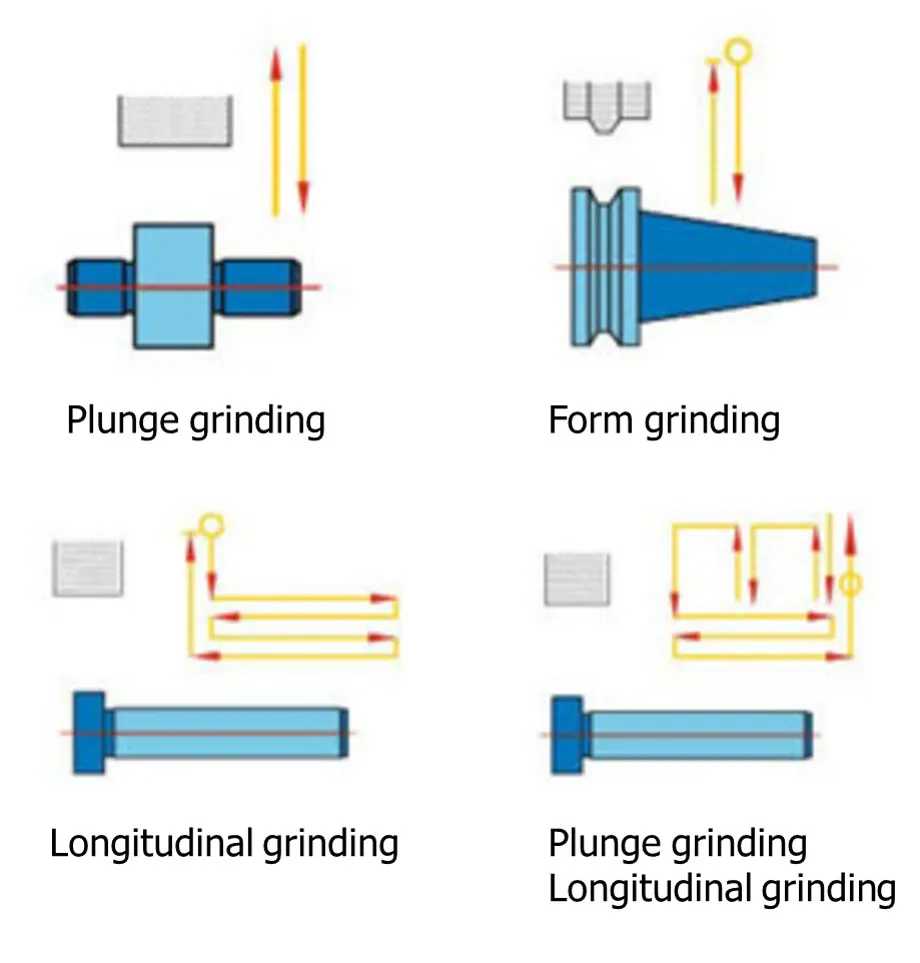

Advanced Functions: Includes automatic feeding of grinding wheels, coarse, fine, and spark-free grinding, automatic shifting of workbenches, and automatic switching of workpiece speeds.
Dedicated User Interface: Equipped with coordinate setting, grinding wheel shape parameter setting, and measuring instrument tool compensation screens to facilitate operation.

📋 Product Parameters

Items	MK1312/300	Unit
Grinding diameter	Φ8-Φ125	mm
Max. grinding length	300	mm
Center height	105	mm
Distance between centers	300	mm
Grinding wheel line speed	35	m/min
Grinding wheel size	Φ35040Φ127	mm
Grinding wheel motor power	3	kw
Max. loading	10	kg
Z axis (workbench) Servo motor power	1.8	mm
X axis (wheel head) Servo motor power	1.2	mm

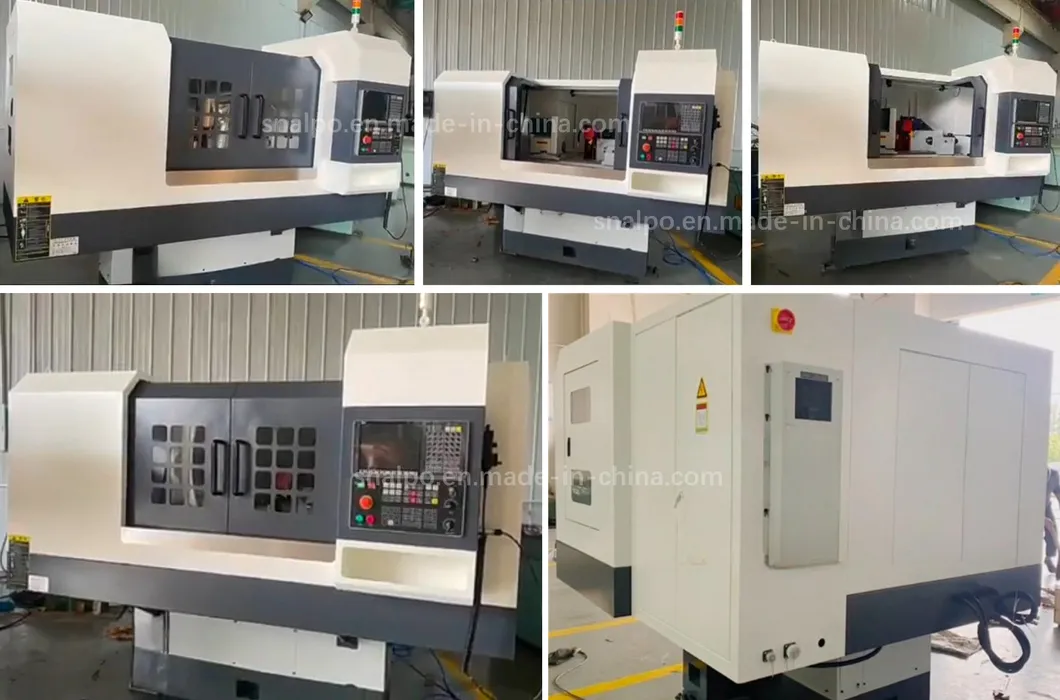

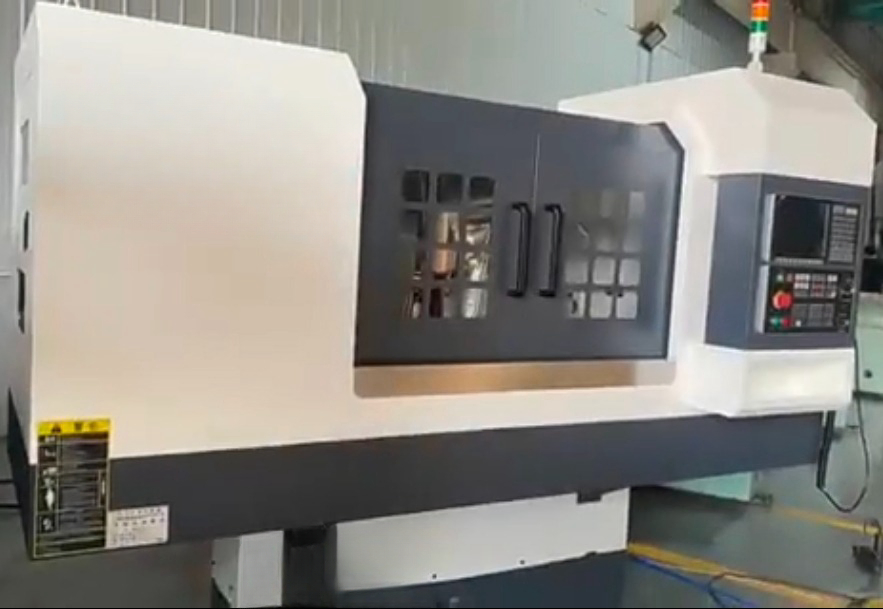

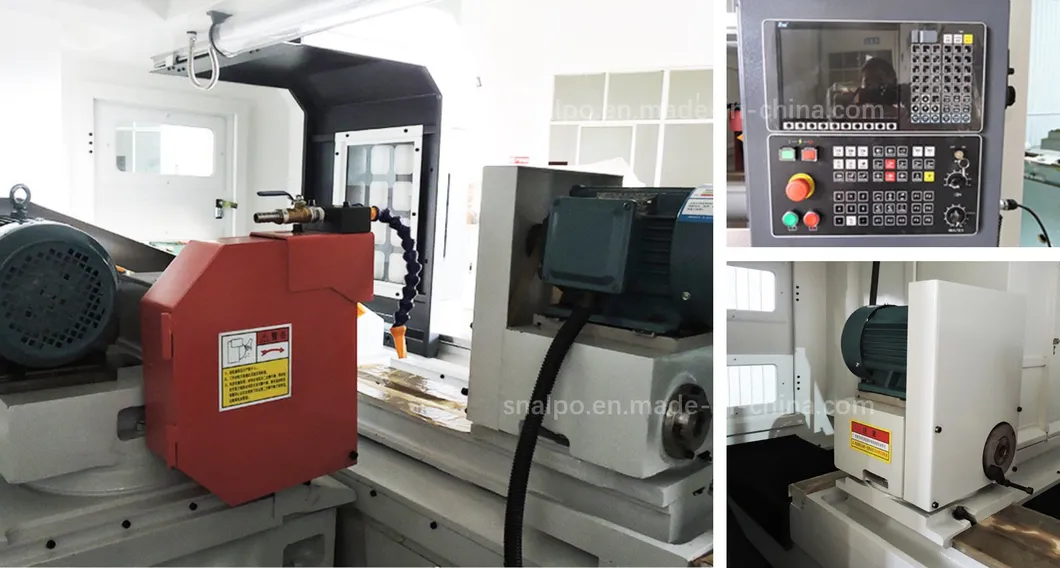

📸 Detailed Photos

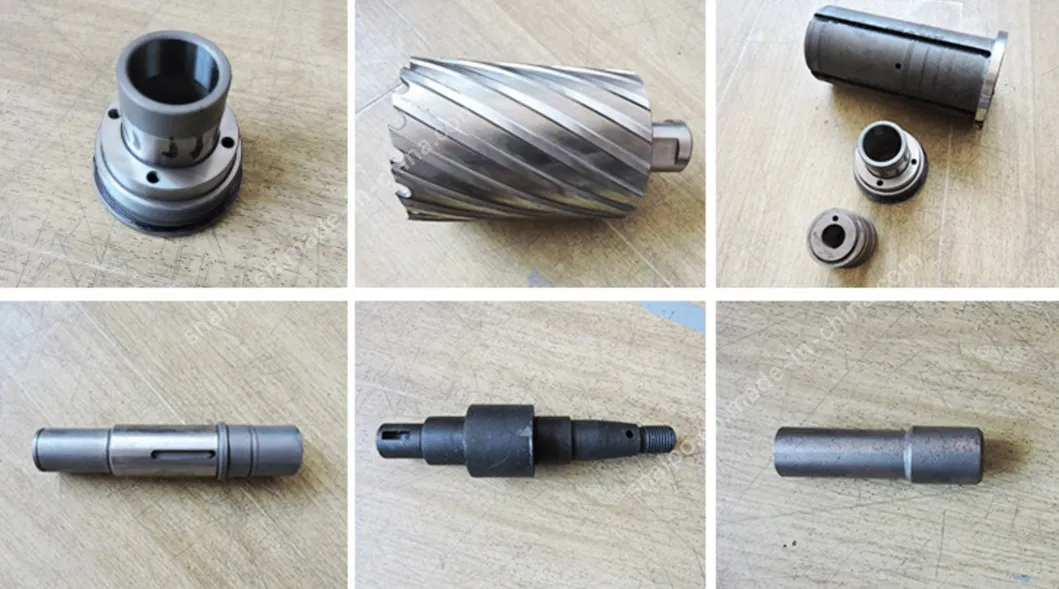

🔧 Work Piece & Application

📦 Packaging & Shipping

🔥 Related Products

❓ FAQ

What types of parts can the MK1312/300 grind?

It is specifically designed for outer circles, end faces, and arcs of shaft sleeve parts and cylindrical workpieces.

What CNC system does this machine use?

The machine is equipped with a dedicated CNC system, typically featuring Siemens or similar high-performance controllers for precise two-axis movement.

Does the machine support automatic measurement?

Yes, the machine offers optional automatic measurement instruments for real-time workpiece inspection and compensation.

Can it perform both coarse and fine grinding?

Yes, the system supports automatic feeding for coarse grinding, fine grinding, and spark-free finish grinding cycles.

What is the maximum workpiece length supported?

The maximum distance between centers is 300mm, which accommodates workpieces up to that length.

How is the machine protected during shipping?

The machine is securely packaged for transport by ship or train, with a total package weight of approximately 2800kg to ensure stability and safety.
