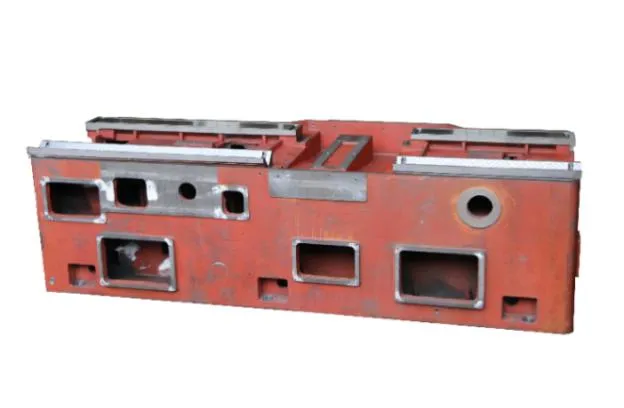

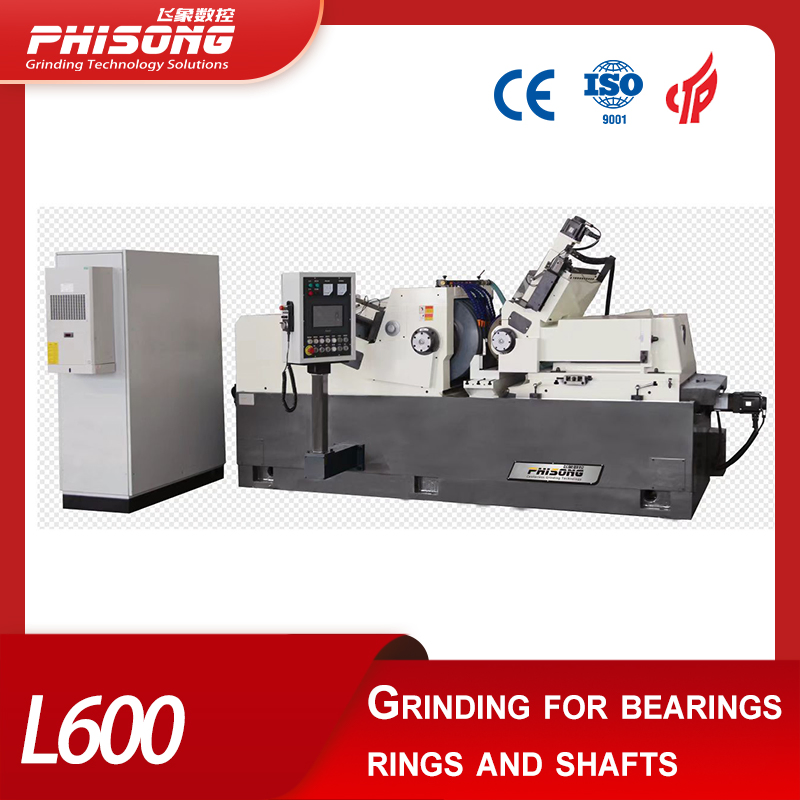

Features high-quality casting with natural aging and artificial heat treatment to ensure minimal deformation and superior long-term durability.

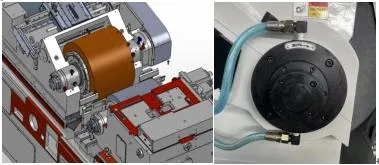

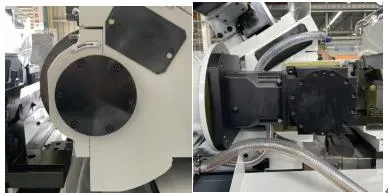

GW utilizes a double support structure with a hydrodynamic bearing design for maximum grinding rigidity. The RW spindle features a double row cylindrical roller bearing for high rotation accuracy and is lubricated by grease for a maintenance-free long life.

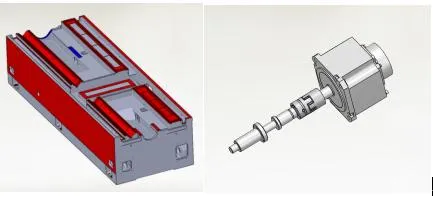

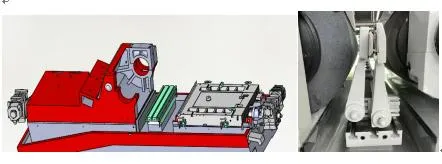

Double-sided moving layout with a fixed work rest. Driven by servo motors and high-precision ball screws, allowing a minimum feed increment of 0.001mm.

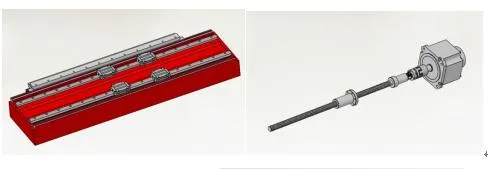

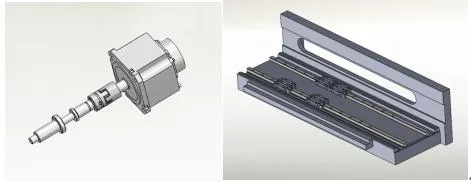

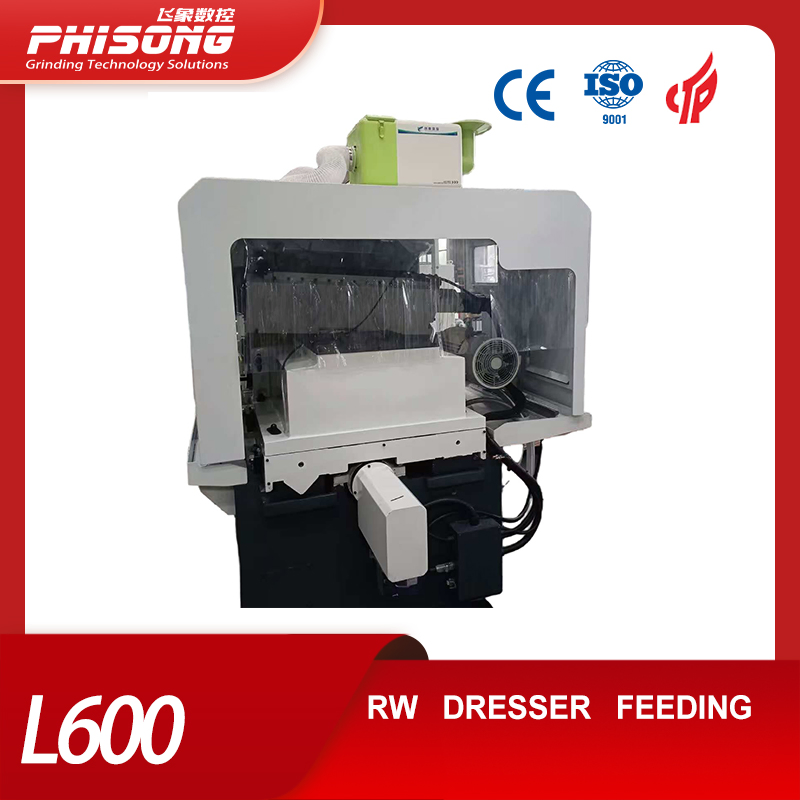

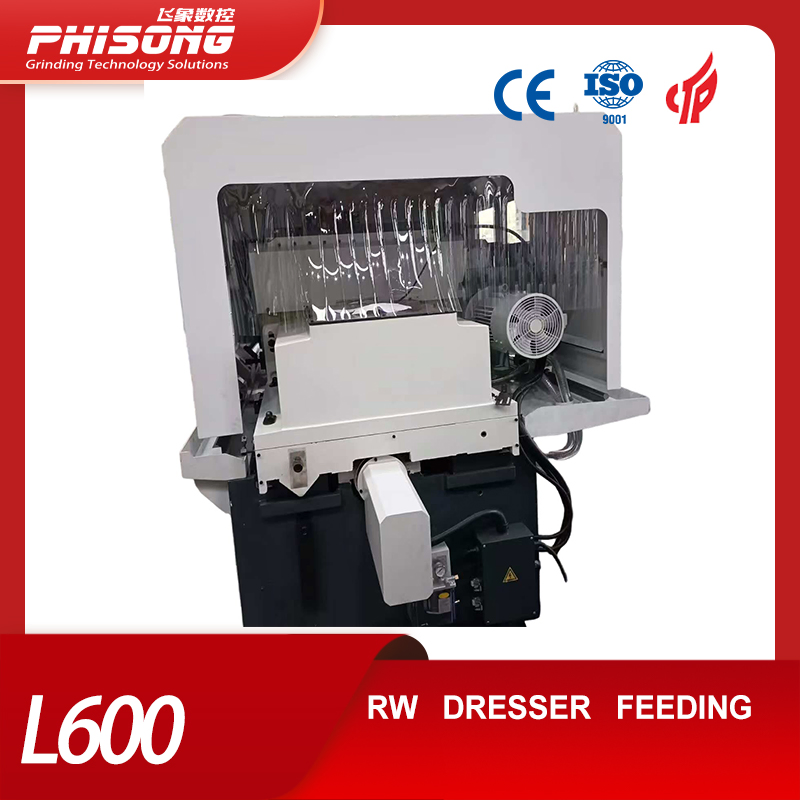

Equipped with linear guides for both GW and RW dressers. Servo motor drive ensures high precision reciprocating and feeding at 0.001mm steps.

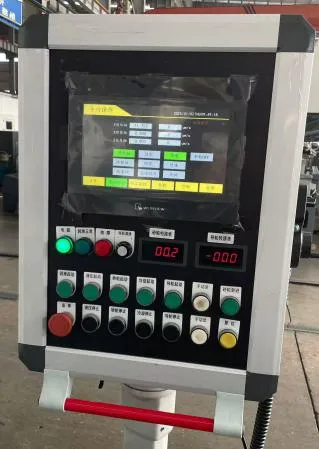

Includes a cooling tank with magnetic coolant separator and paper tape filter. The control system utilizes premium Q series PLC for stable, high-speed operations.
| Parameter Item | Sub-Category | Specifications |
|---|---|---|

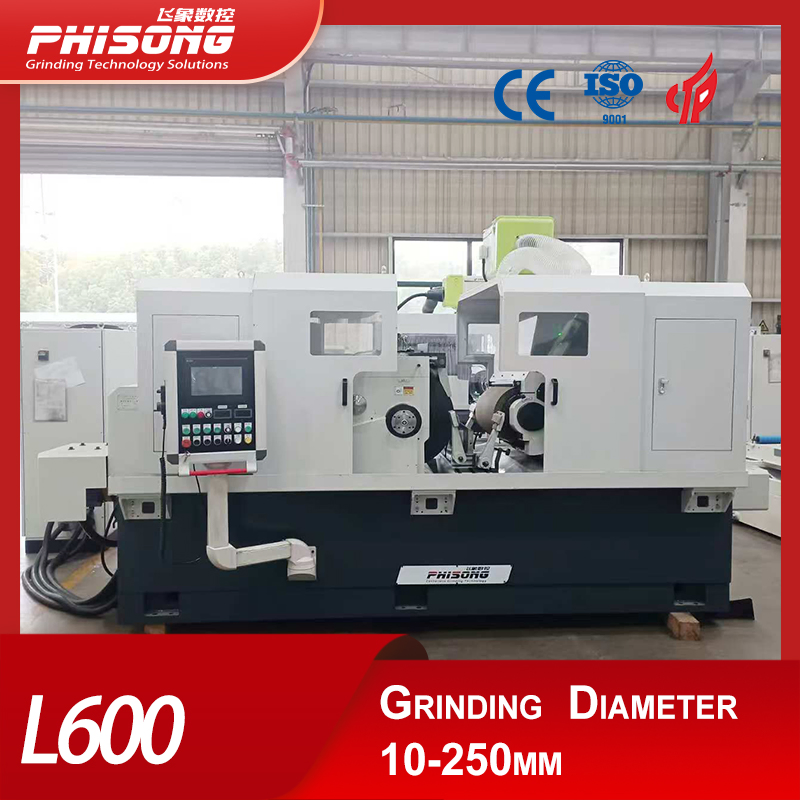

| In-feed Grinding | Dia. / Length | 10-250mm / 590mm |
| Through Grinding | Dia. / Length | 10-250mm / 300mm |
| GW SPEC. (O.D.*width*I.D.) | 600*600*305mm | |
| RW SPEC. (O.D.*width*I.D.) | 350*600*203mm | |
| GW Speed / Motor Power | 1100r/min / 45-55kw | |
| Accuracy: Roundness | 0.001mm | |
| Accuracy: Roughness | Ra 0.16μm | |
| Component Name | Specifications | Brand Origin |
|---|---|---|
| Control System PLC | Q series | International Leading Brands |
| Servo Motor | 6 Axes System | High-Performance Industrial Grade |
| Low-voltage Apparatus | Reliable Circuitry | Schneider / Equivalent |
| Ball Screw & Linear Guide | High Precision | Top Tier Manufacturing |

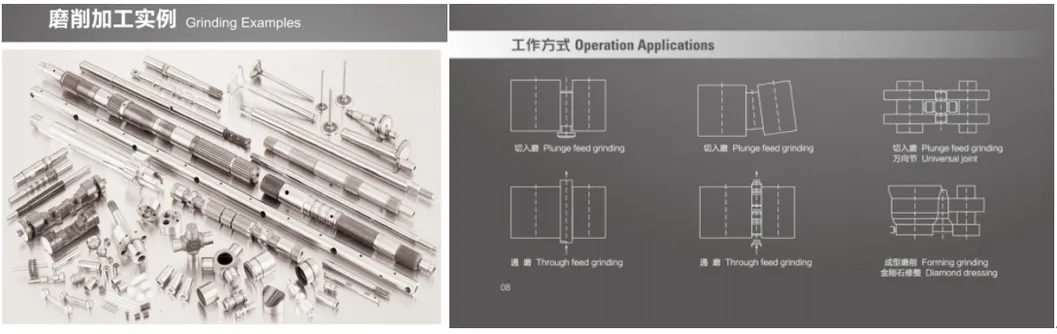

Our centerless grinding technology is widely used for micro nozzle needles, high precision pump pistons, and heavy rail shafts. We provide customized professional processing technology to improve production efficiency and accuracy.
