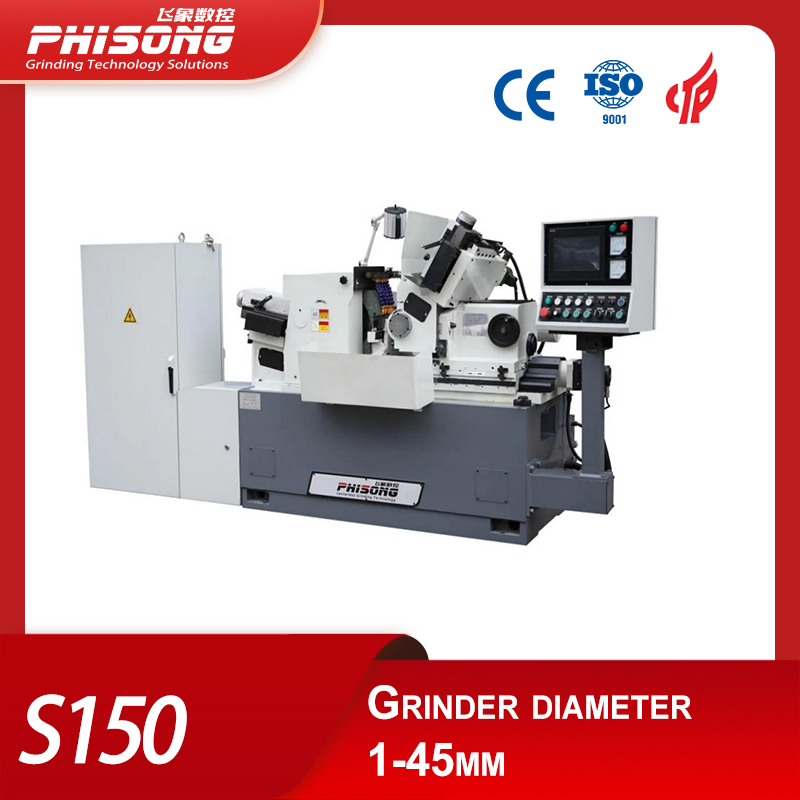

Product Features & Structure

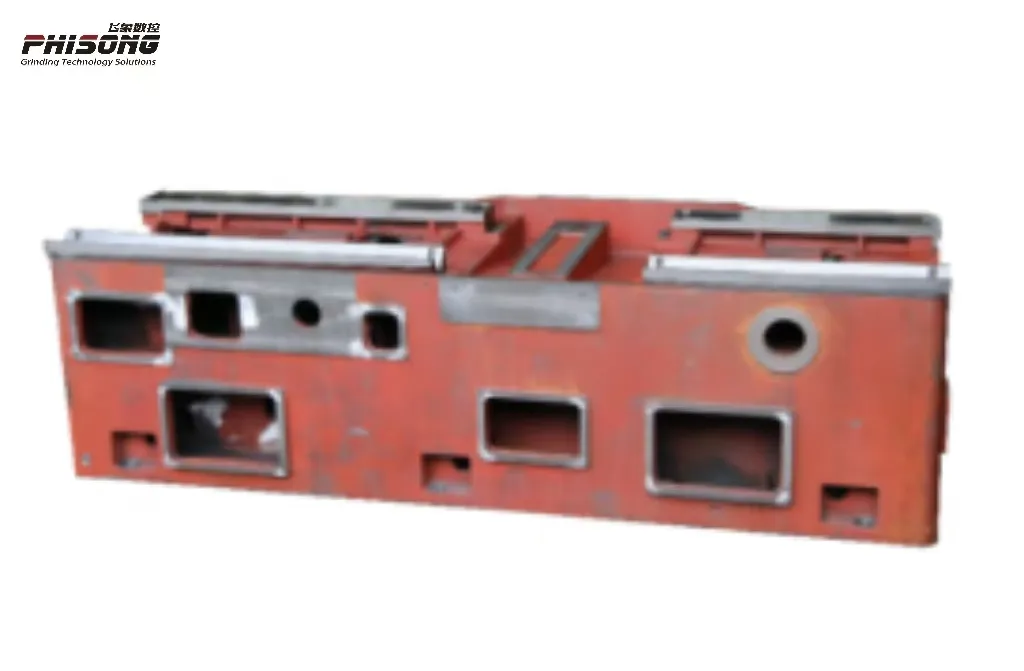

1. Machine Body
Casting, natural aging and artificial heat treatment for reasonable deformation and better durability.

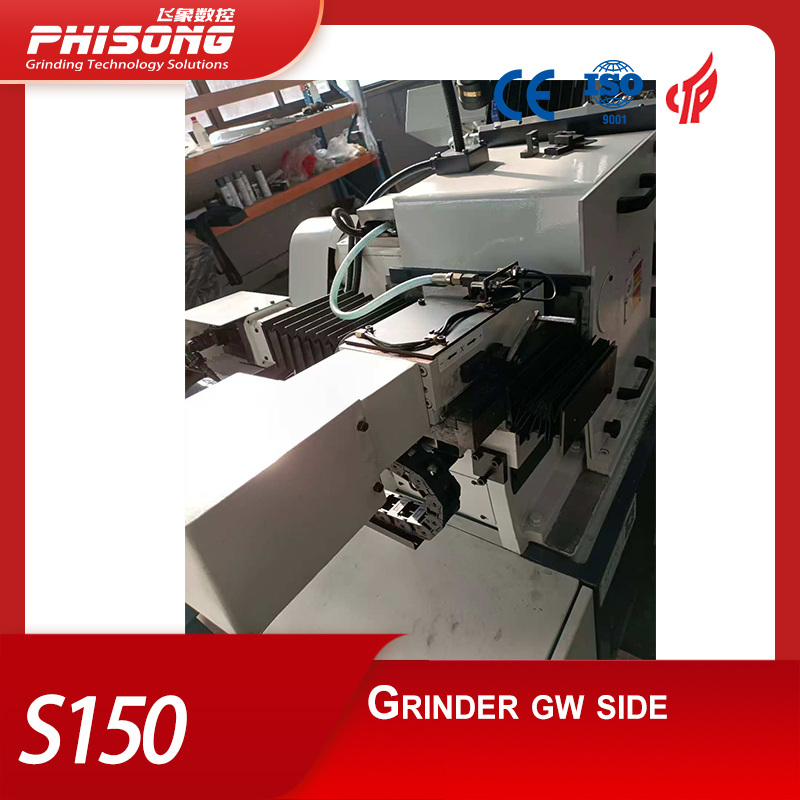

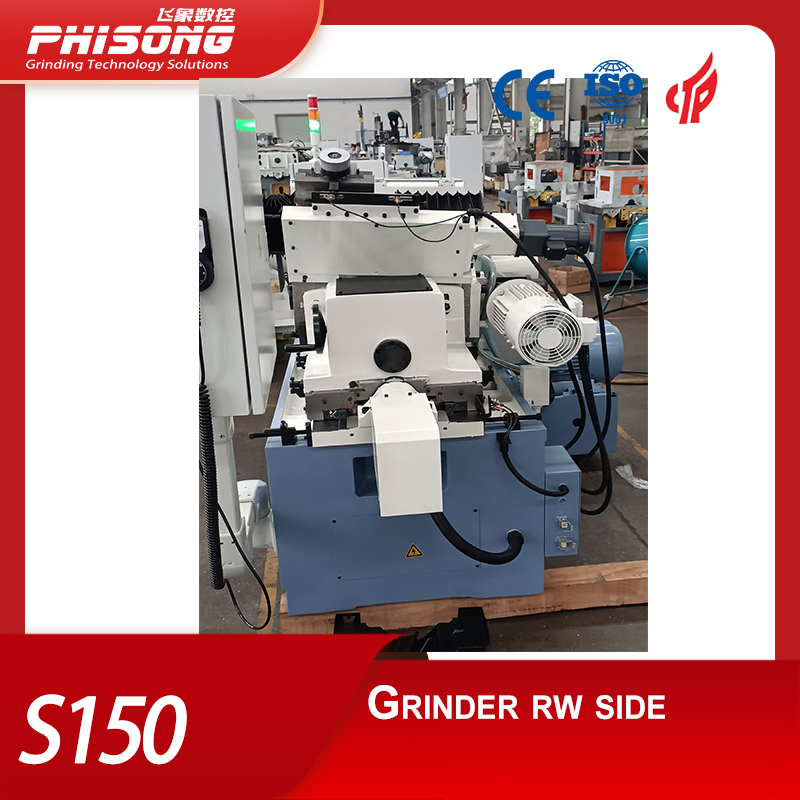

2. GW and RW (Regulating wheel)

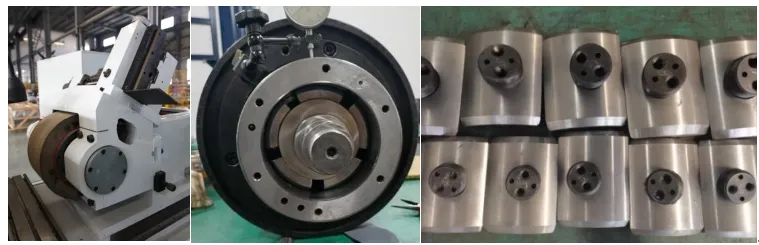

GW designed for cantilever type, while grinding bracket fixed. Spindle of GW muti-plate long bearing bushed static-hydro dynamical oil film bearing. RW double supported structure, double row cylindrical roller bearings, rotary accuracy assured.

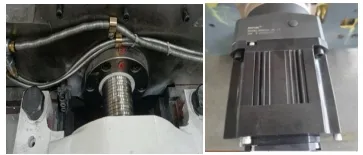

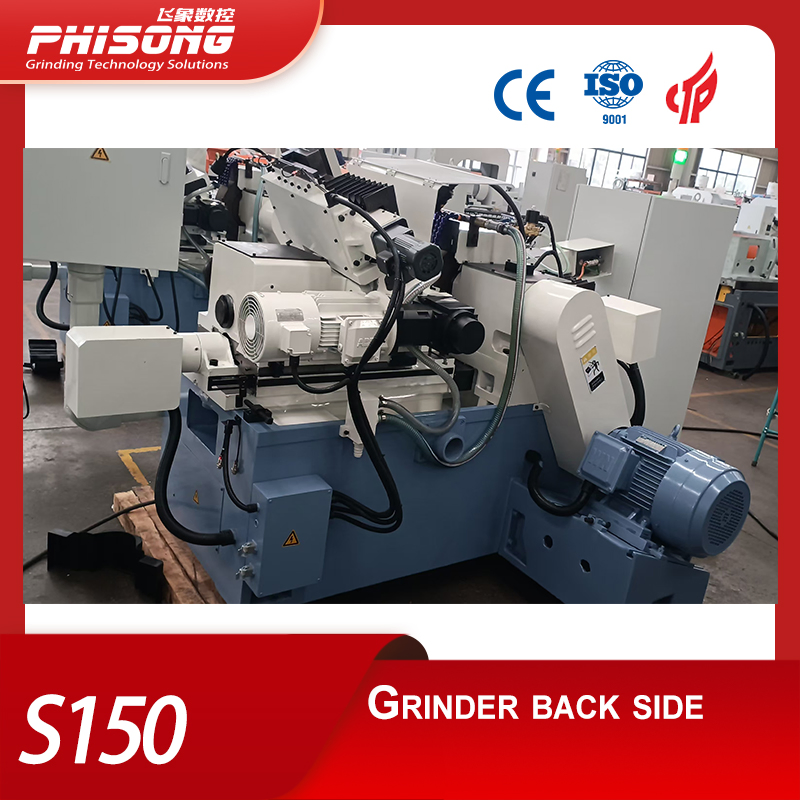

3. Feeding System
The regulating wheel feed slide is equipped double "V" roller guideway and servomotor that drives ball screws. Min. feeding amount 0.001mm.

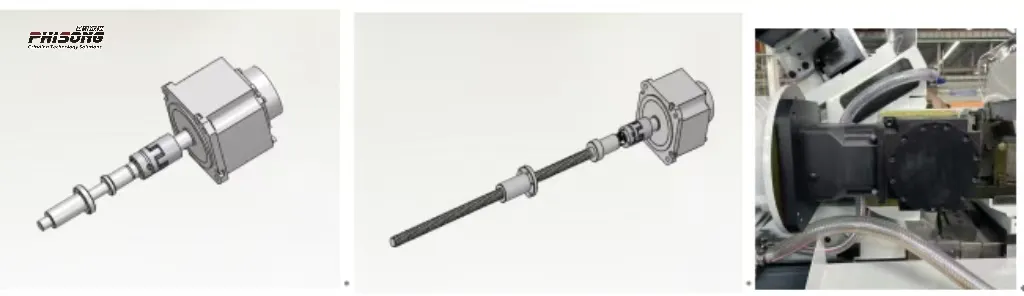

4. Dressing for GW and RW
Servo motors drive ball-screws for GW dresser feeding and reciprocating.
5. Electric & Control

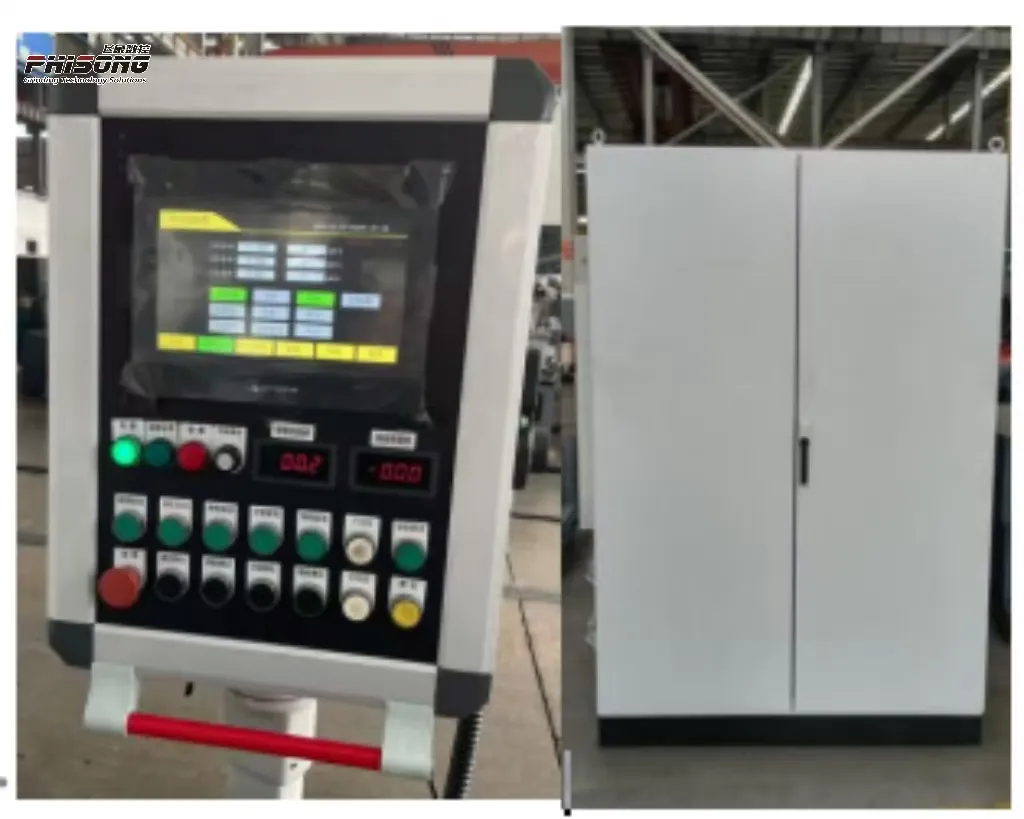

Converter for RW motor, step-less speed adjusting. Mitsubishi PLC control system (Siemens optional) with touch screen for grinding, dressing, and feeding adjustment.

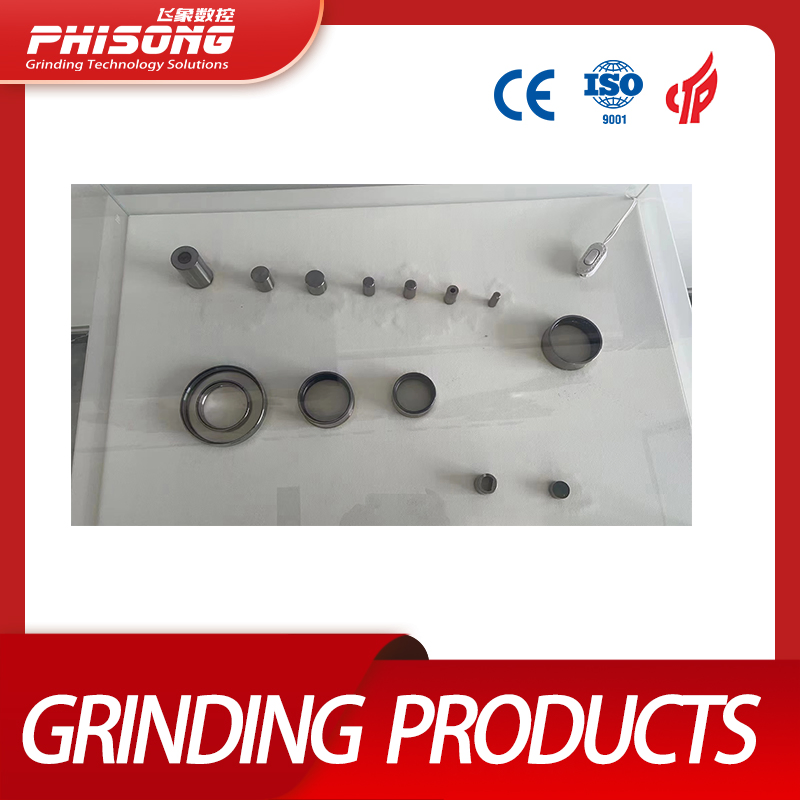

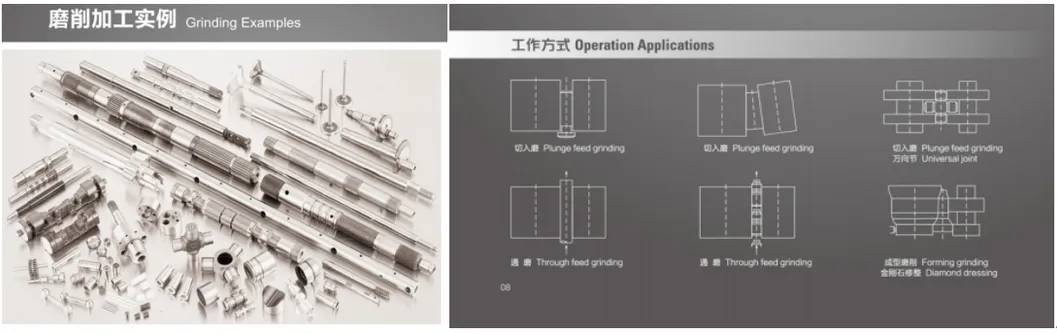

Specializing in professional centerless grinding technology, we absorb the essence of cylindrical and centerless grinding machine design and manufacturing. Our products are utilized by numerous famous enterprises and exported globally to Europe, America, Russia, and Southeast Asia.
?
Frequently Asked Questions
What is the maximum grinding diameter for this machine?
The HCGM-S150 model can process workpieces with a maximum diameter of up to 100mm, with a through-grinding range of 1-45mm.
What level of precision can be achieved?
This machine is designed for high precision, achieving a roundness of 0.001mm and a roughness of Ra 0.16μm.
What control systems are compatible with this grinder?
It comes standard with a Mitsubishi PLC control system. Siemens systems are also available as an optional configuration.
How is the feeding system driven?
The regulating wheel feed slide utilizes a double "V" roller guideway and is driven by a high-precision servo motor through ball screws.

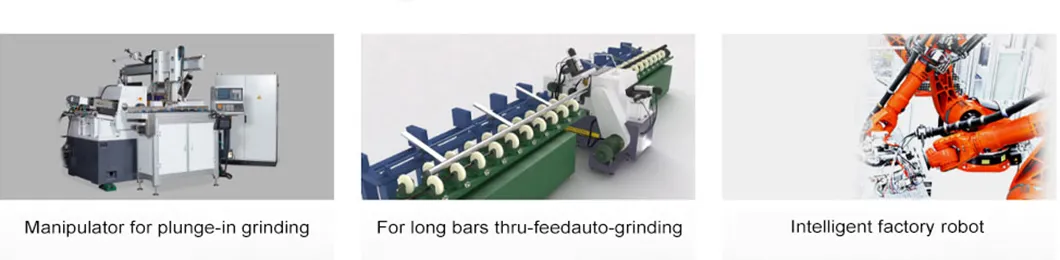

Is the machine suitable for automatic production lines?
Yes, we provide professional automatic solutions including customized loading and unloading systems to improve production efficiency.
What is the weight and dimension of the equipment?
The machine weighs approximately 3 tons and has dimensions of roughly 3200*1785*1800mm (or 1920*1681*1479mm depending on configuration).
