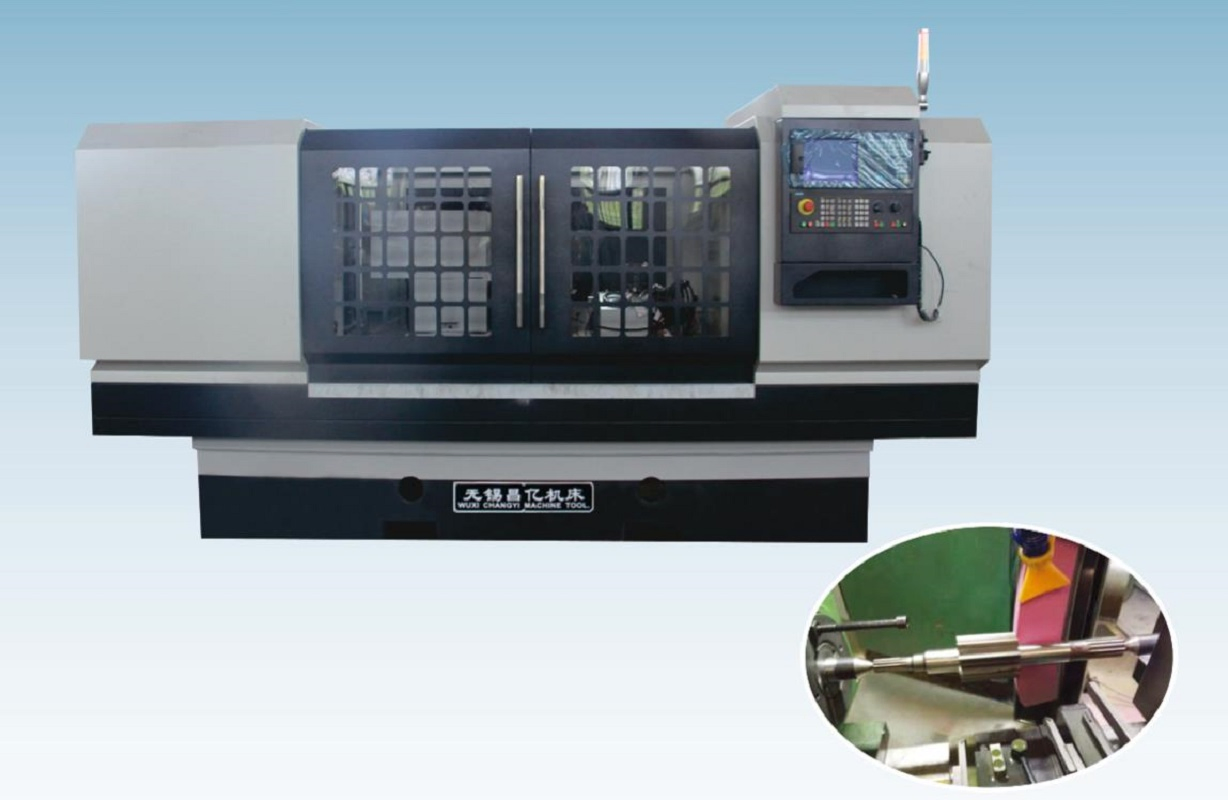

DSCUT CNC
1 / 5
| Model NO. | MK1620*500 | Type | External Grinding Machine |
|---|---|---|---|
| Processing Object | Workpiece | Abrasives | Grinding Wheel |
| Controlling Mode | CNC | Automatic Grade | Automatic |
| Grinder Type | End Cylindrical Grinder | Precision | High Precision |
| Certification | ISO 9001 | Condition | New |
| Max. Grinding OD | 6-200mm | Max. Grinding Length | 500mm |
| Center Height | 125mm | Max. Loading Weight | 50kg |
| Package | Standard Export Wooden Case | HS Code | 8460241900 |
Technical Features:

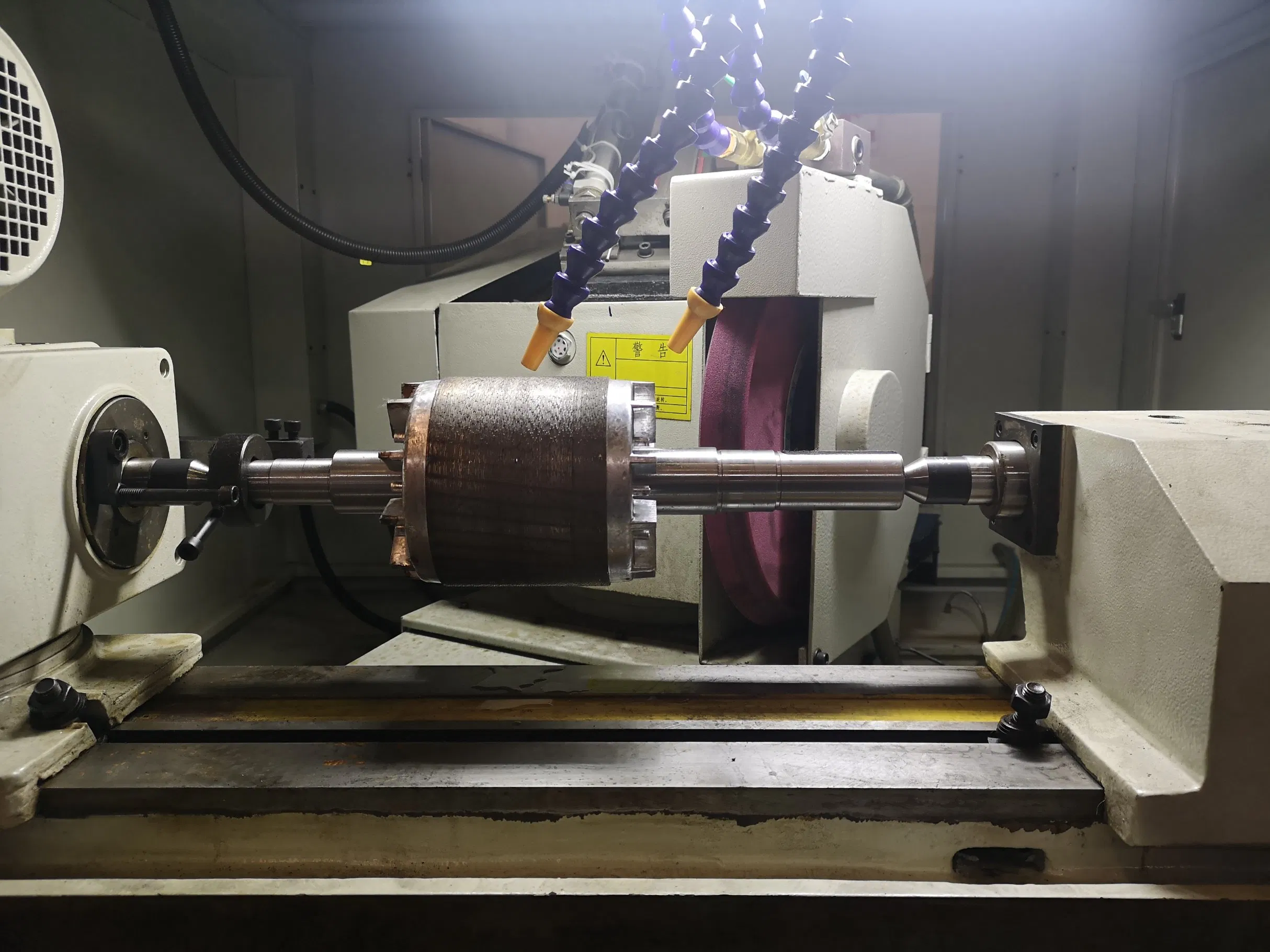

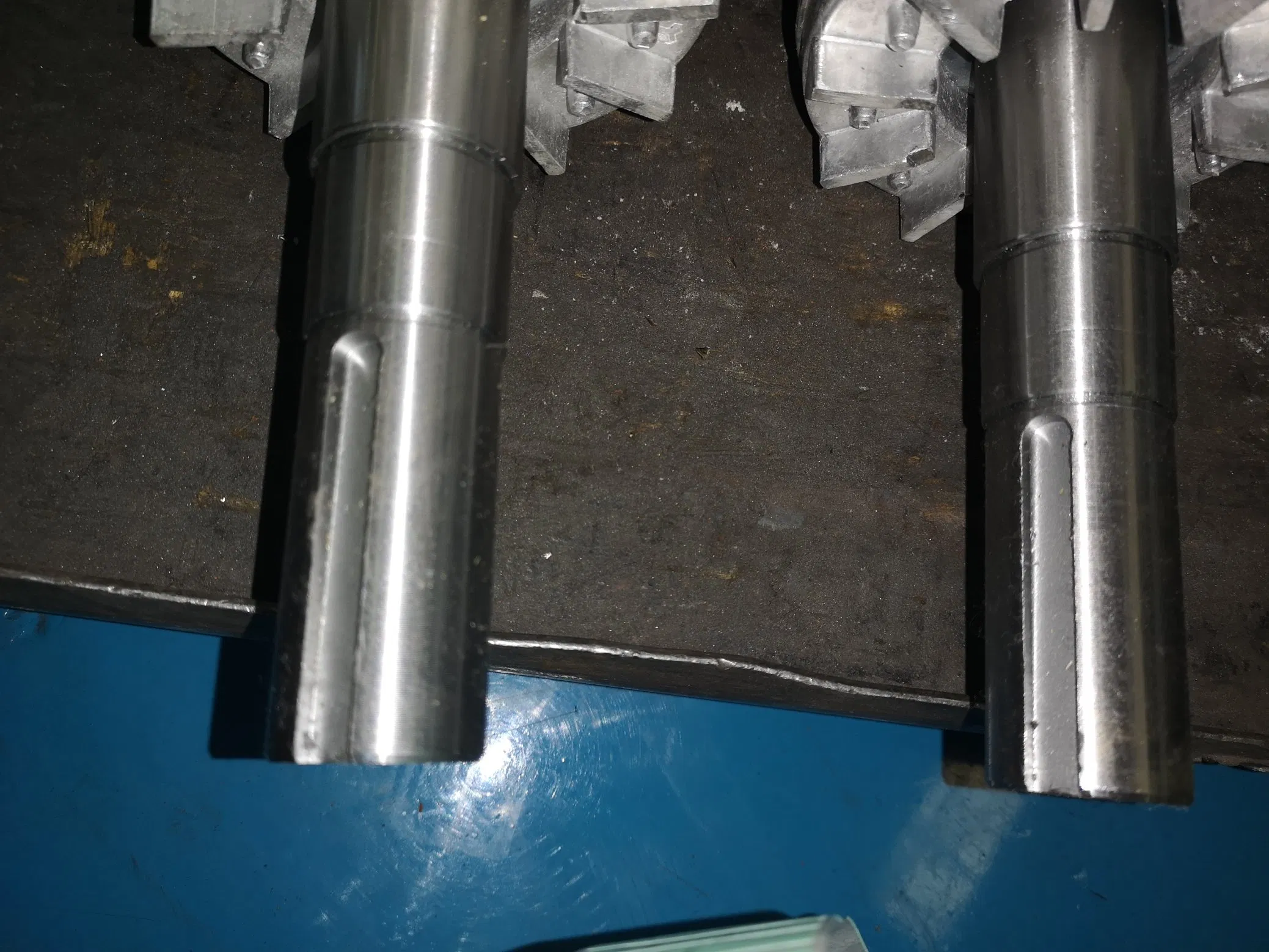

Processing Object: Suitable for outer circle machining of long shafts with diameters up to 200 mm and lengths up to 500 mm.
| No. | Parameter Name | Specification |
|---|---|---|
| 1 | Max. Grinding OD scope | 6-200mm |
| 2 | Max. grinding length of work piece | 500mm |
| 3 | Worktable rotation angle | +4 / -3 ° |
| 4 | Center height of tops | 125mm |
| 5 | Headstock Top Morse | 4# |
| 6 | Tailstock Top Morse | 4# |
| 7 | Max. Loading weight | 50kg |
| 8 | OD roundness | 1.5μm |
| 9 | OD cylindricity | 3μm |
| 10 | Surface roughness | Ra0.32μm |
| 11 | End face flatness | 3μm |
Our organization specializes in a wide range of high-precision grinding machines, including CNC centerless, internal, external, vertical, and specialized crankshaft/camshaft grinding systems. Our machinery is designed to meet the rigorous demands of sectors such as national defense, aerospace, shipbuilding, and automotive manufacturing.
With a commitment to "quality first and customer satisfaction," we serve a global market including Southeast Asia and Europe. Our products offer a competitive cost-performance ratio, matching international standards for precision and reliability.
