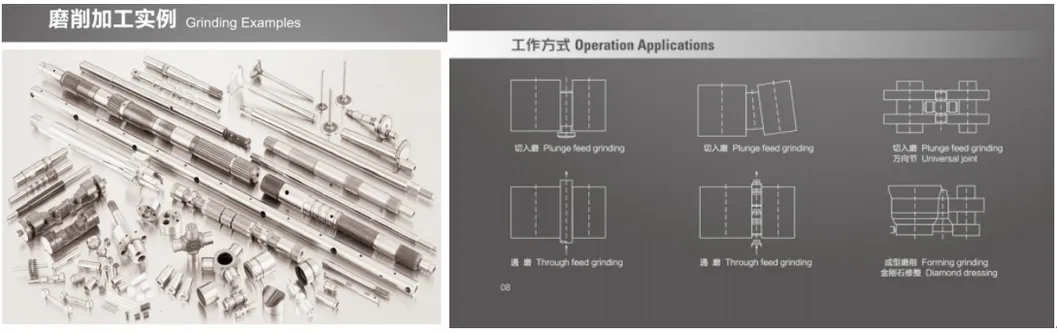

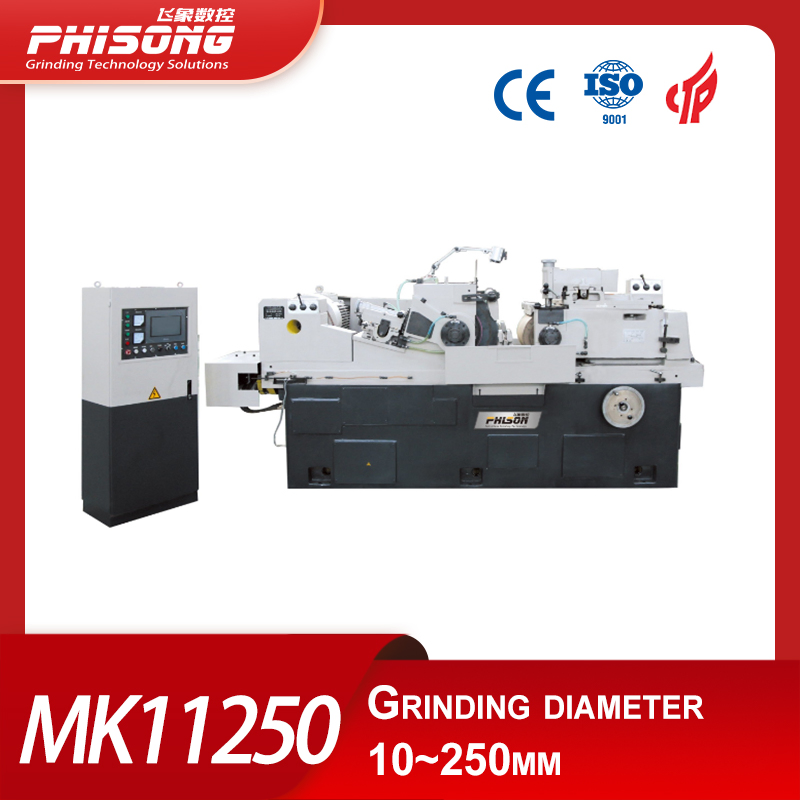

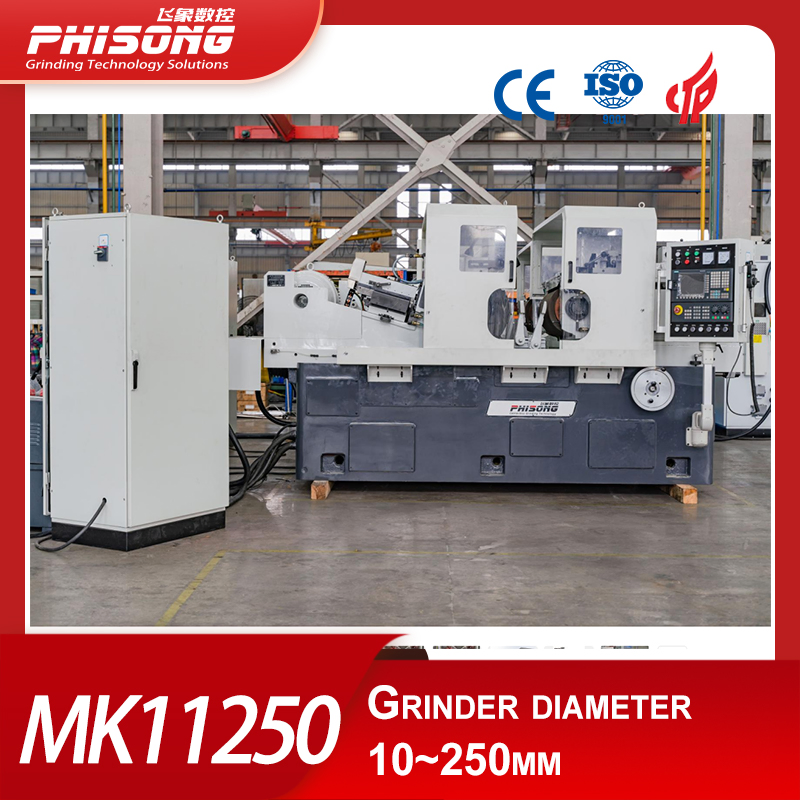

| Model NO. | MK11250 | Type | Centerless Grinding Machine |
| Processing Object | Splined Shaft | Abrasives | Grinding Wheel |
| Controlling Mode | CNC | Automatic Grade | Automatic |
| Precision | High Precision | Accuracy | 0.002mm |
| Grinding Wheel | P600*400*305mm | Max Diameter | 200mm |

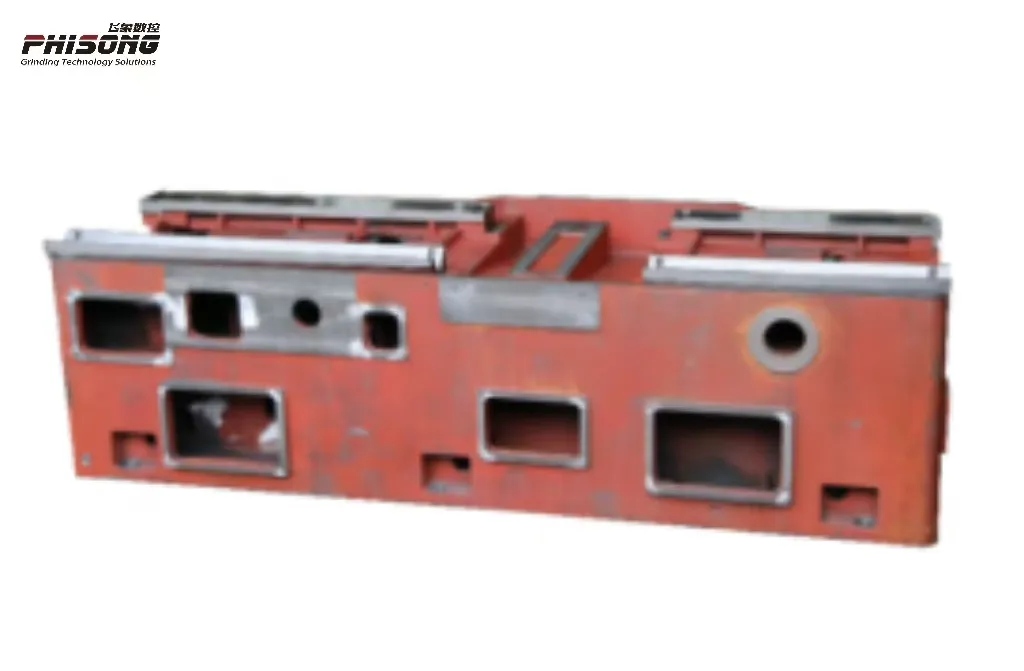

Structural Integrity: Casting, natural aging and artificial heat treatment ensure reasonable deformation and superior durability for long-term industrial use.

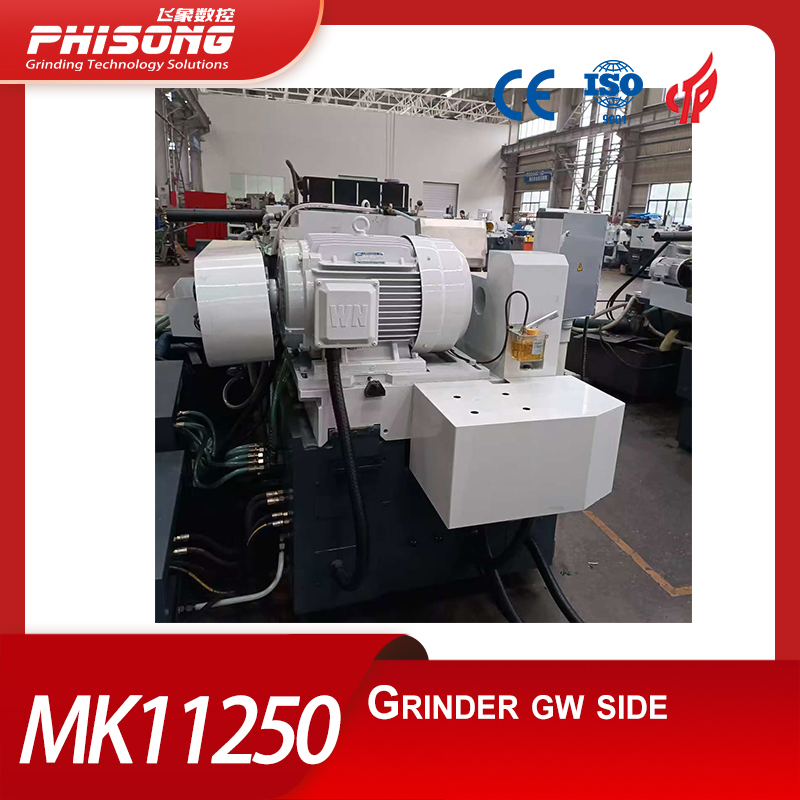

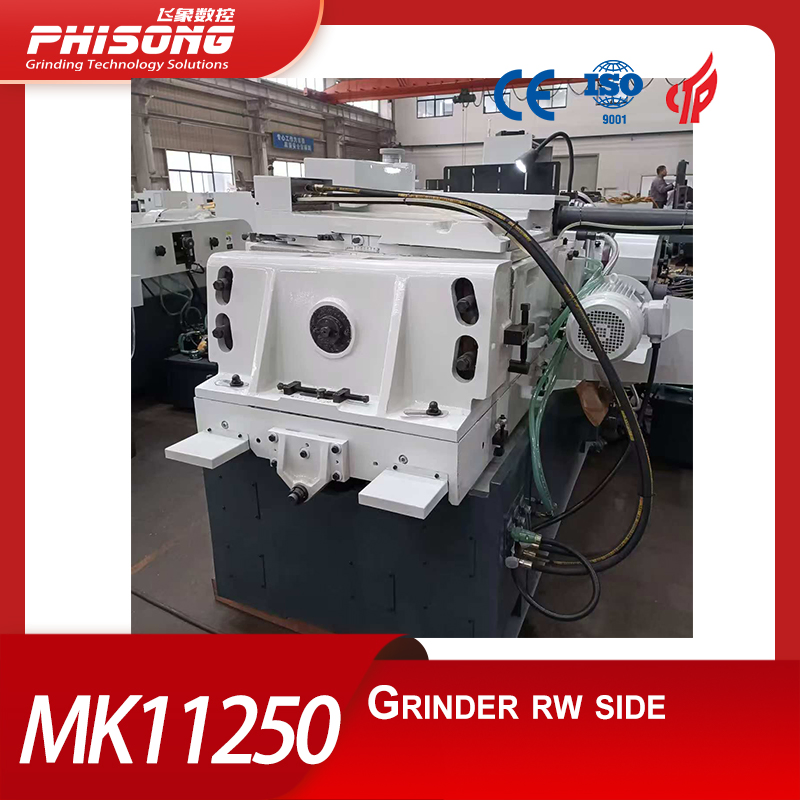

1.2 GW and RW (Regulating Wheel):
GW 600mm in diameter and 600mm width allows for larger grinding amounts and significantly higher efficiency. Both GW and RW feature a movable, double-supported structure for enhanced reliability and stability during heavy-duty operations.
1.3 Feeding System:

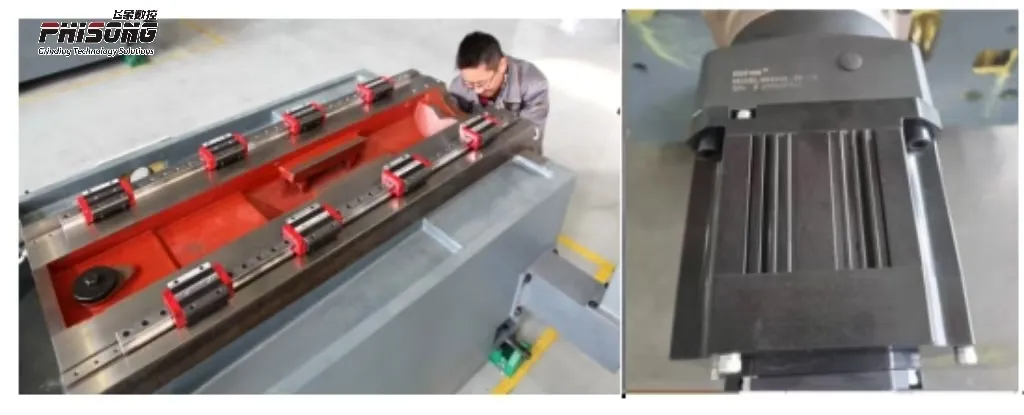

Equipped with high-precision linear guide-rails for motion sensitivity and easy micron feeding. The servo motor drives the ball-screw through a shaft coupling, achieving a minimum feeding amount of 0.001mm.

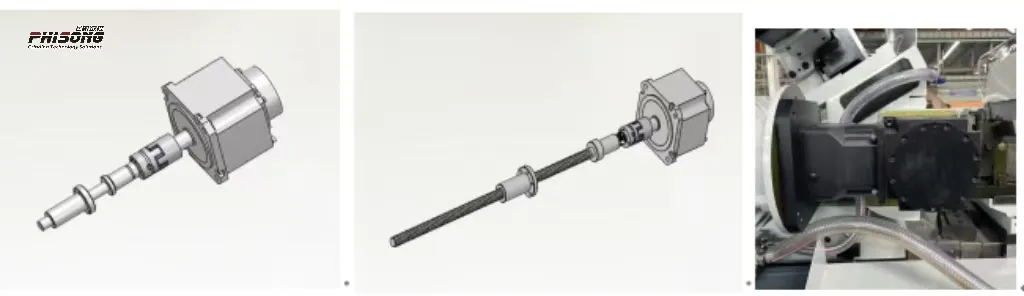

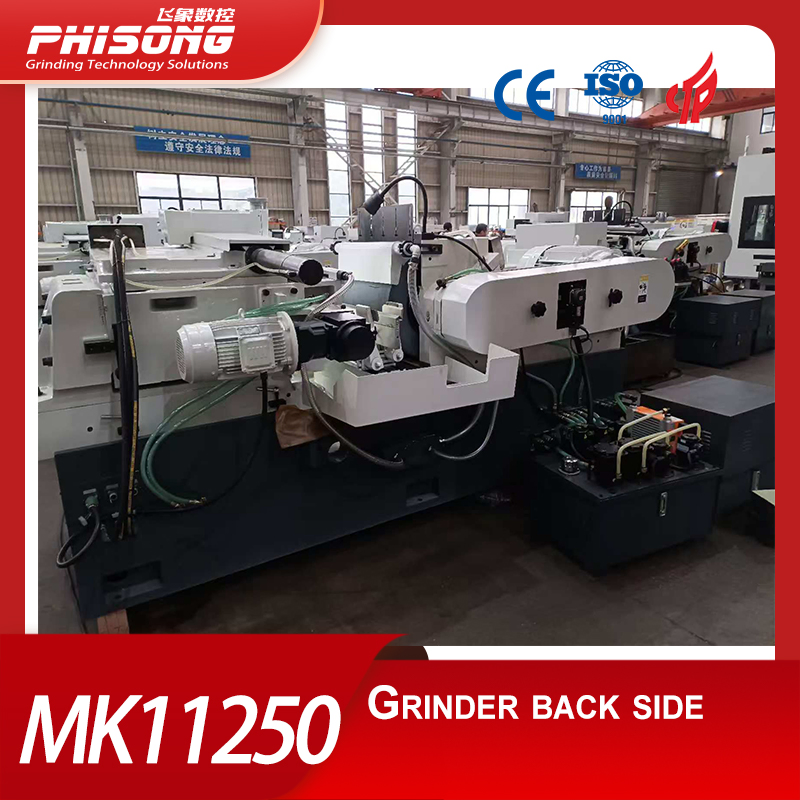

1.4 Dressing for GW and RW:
The GW dresser utilizes servo motors to drive ball-screws for feeding and reciprocating. The RW dresser employs hydraulic transmission for reciprocating with step-less speed adjustment and manual dial feeding.
1.6 Electrical Control:

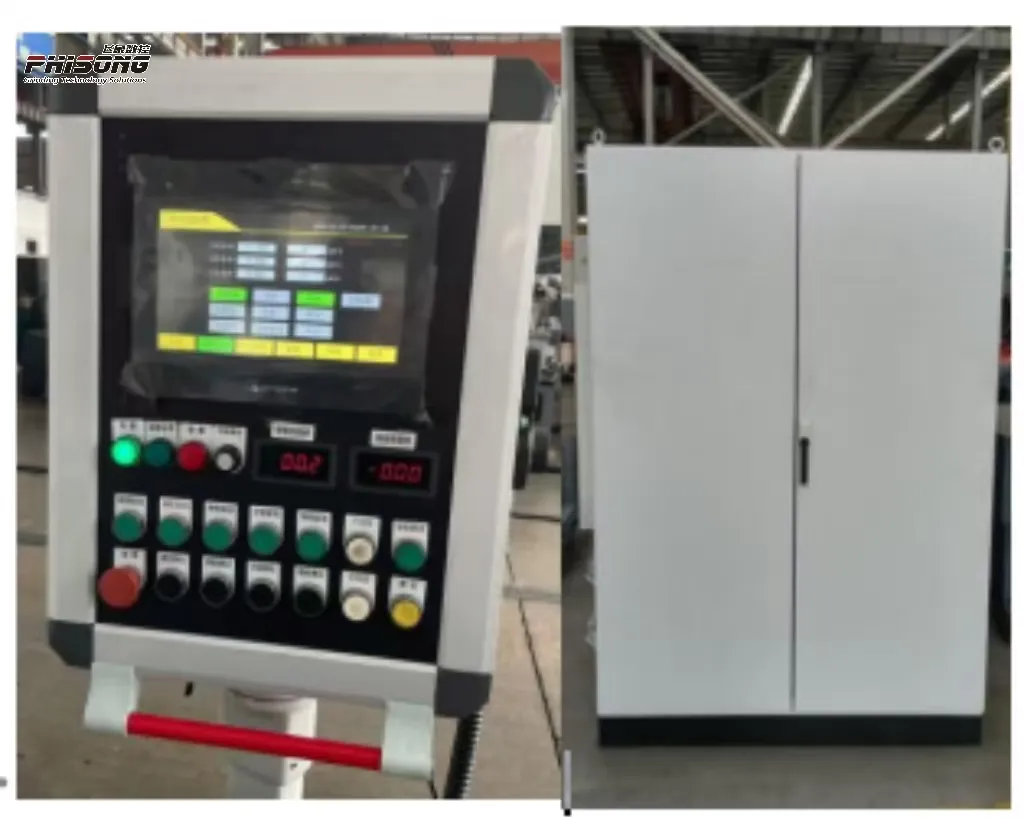

Features a Mitsubishi PLC control system (Siemens optional) with a user-friendly touch screen for managing grinding, dressing, and feeding adjustments. Includes a converter for RW motor step-less speed control.
| Parameter | Details |
|---|---|
| In-feed Grinding Diameter | 10-250mm |
| Through Grinding Diameter | 10-250mm |
| GW Specification (O.D.*Width*I.D.) | 600*600*305mm |
| RW Specification (O.D.*Width*I.D.) | 350*600*203mm |
| GW Speed / RW Speed | 1110 r/min / 10-200 r/min |
| Accuracy (Roundness) | 0.002mm |
| Accuracy (Cylindricity) | 0.005mm |
| GW Motor Power | 45kw |
| Machine Weight | Approx. 11 Tons |
| Component | Brand | QTY |
|---|---|---|
| Control System PLC | Mitsubishi | 1 Set |
| Servo Motor | Mitsubishi | 3 Sets |
| Operation Display | Weilun (10") | 1 Set |
| Ball Screw | Nanjing | 3 Sets |
| Low-voltage Apparatus | Schneider | 1 Set |

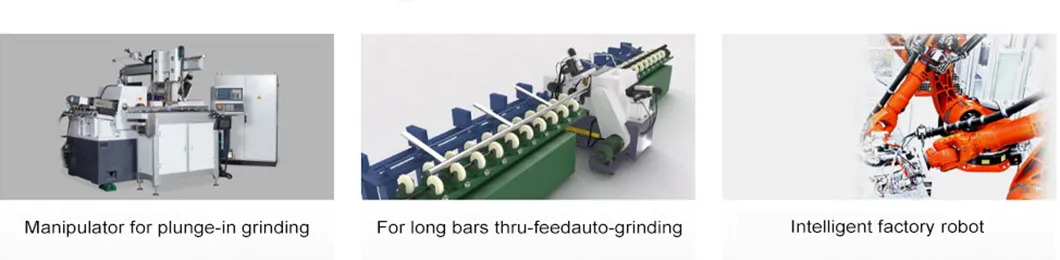

Specializing in professional centerless grinding technology, we inherit and absorb the essence of cylindrical grinding machine design and manufacturing. Our products are utilized by numerous global enterprises and exported across Europe, America, Russia, and Southeast Asia. We implement advanced production technologies and adopt the ISO9001 international quality management system to ensure high-standard processing efficiency for our customers.
