💡 Product Features

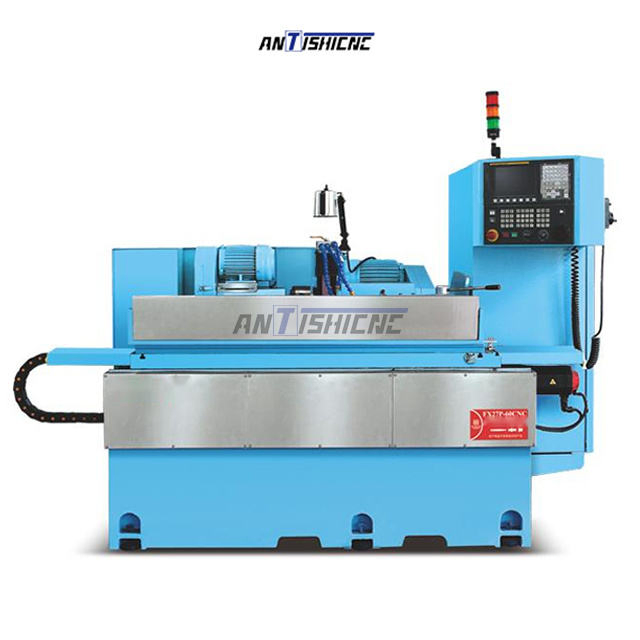

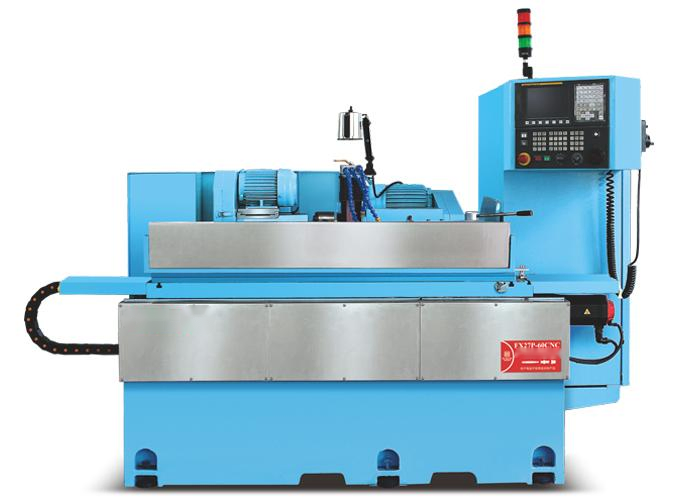

CNC Automatic Cylindrical Grinder Tool: High precision external universal metal grinding machine designed for professional industrial applications.
High-Grade Construction: The main body and components are made of high-grade cast iron FC-30, ensuring stability and micron-level precision.
Automatic Lubrication: Continuous lubrication system for guide rails and ball screws to ensure longer service life and peak accuracy.
Siemens 828D System: Equipped with a CNC automatic grinding system for intuitive man-machine dialogue and convenient operation.

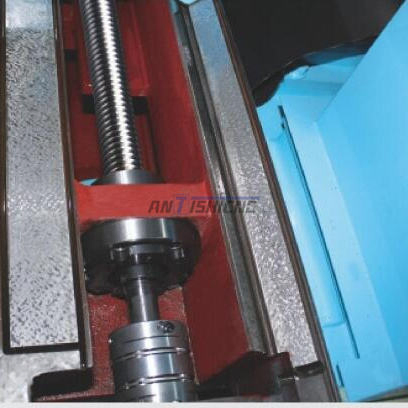

Precision Feed System: Precision V-flat track with C3 level grinding screws provides excellent repeat positioning accuracy.
Superior Spindle: Adopts high-precision bearings with a rigid structure. Grinding wheel speeds can be adjusted up to 3500 RPM.
Rigid Tail-stock: Hardened alloy steel slide tube designed for MT4 top center with adjustable tightening force.
❓ Frequently Asked Questions
1. What is the maximum grinding length and diameter?
The FX27P 60 CNC supports a maximum grinding length of 600mm and a maximum grinding diameter of 270mm.
2. Which CNC control system does this machine use?
It is equipped with the high-performance Siemens 828D CNC system as standard.
3. What level of precision can I expect?
The machine offers high precision with a roundness accuracy of 0.0015mm and a surface roughness of 0.2 Um.
4. What are the installation power requirements?
The machine requires a voltage of 380V with a total installed power of approximately 10KW.
5. Does the machine support automatic dressing?
Yes, the Siemens control system includes automatic sand dressing and automatic compensation functions to ensure stability.
6. Are there optional attachments available?
Yes, optional components include an inner hole grinding device, Marposs automatic measuring instruments, and full cover sheet metal.
