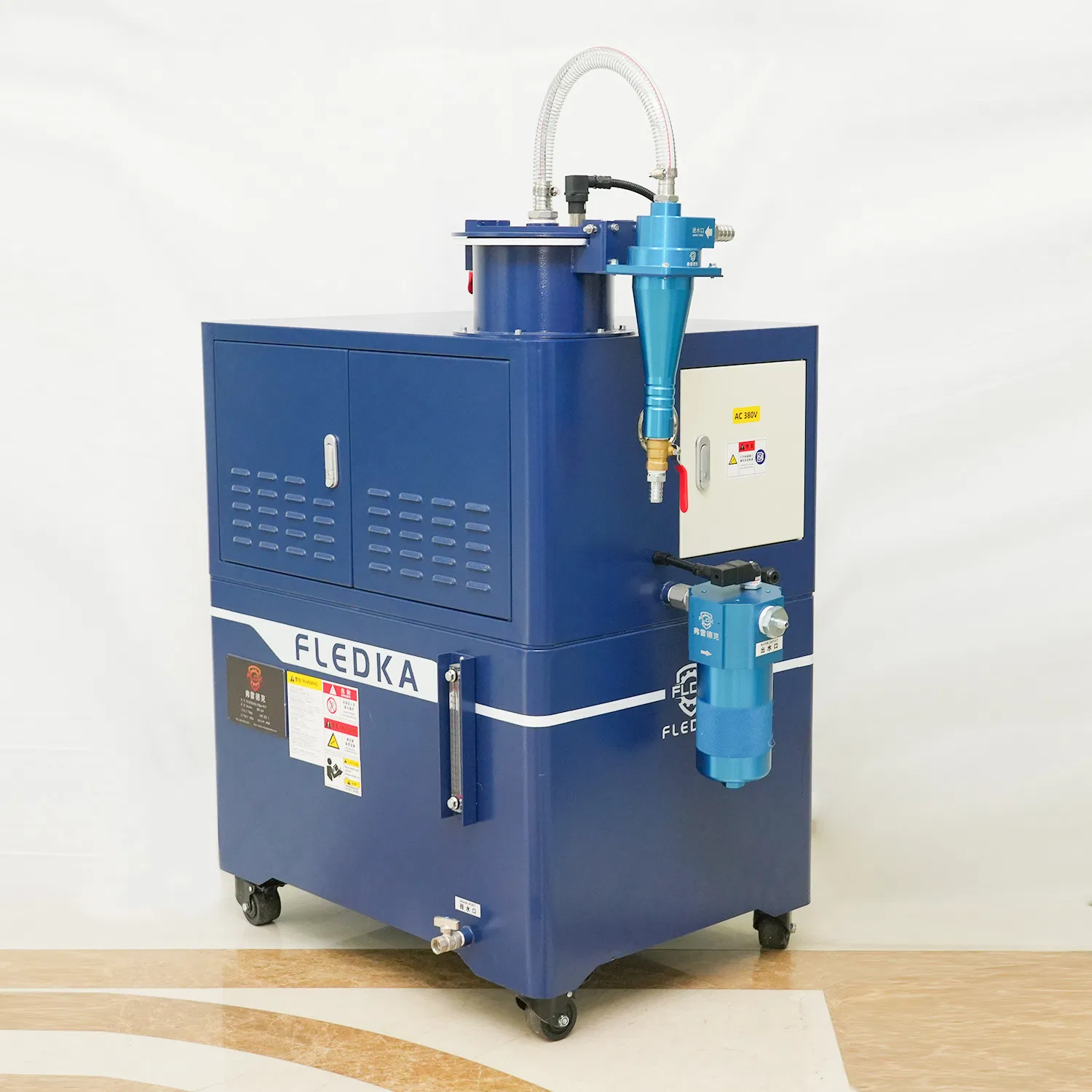

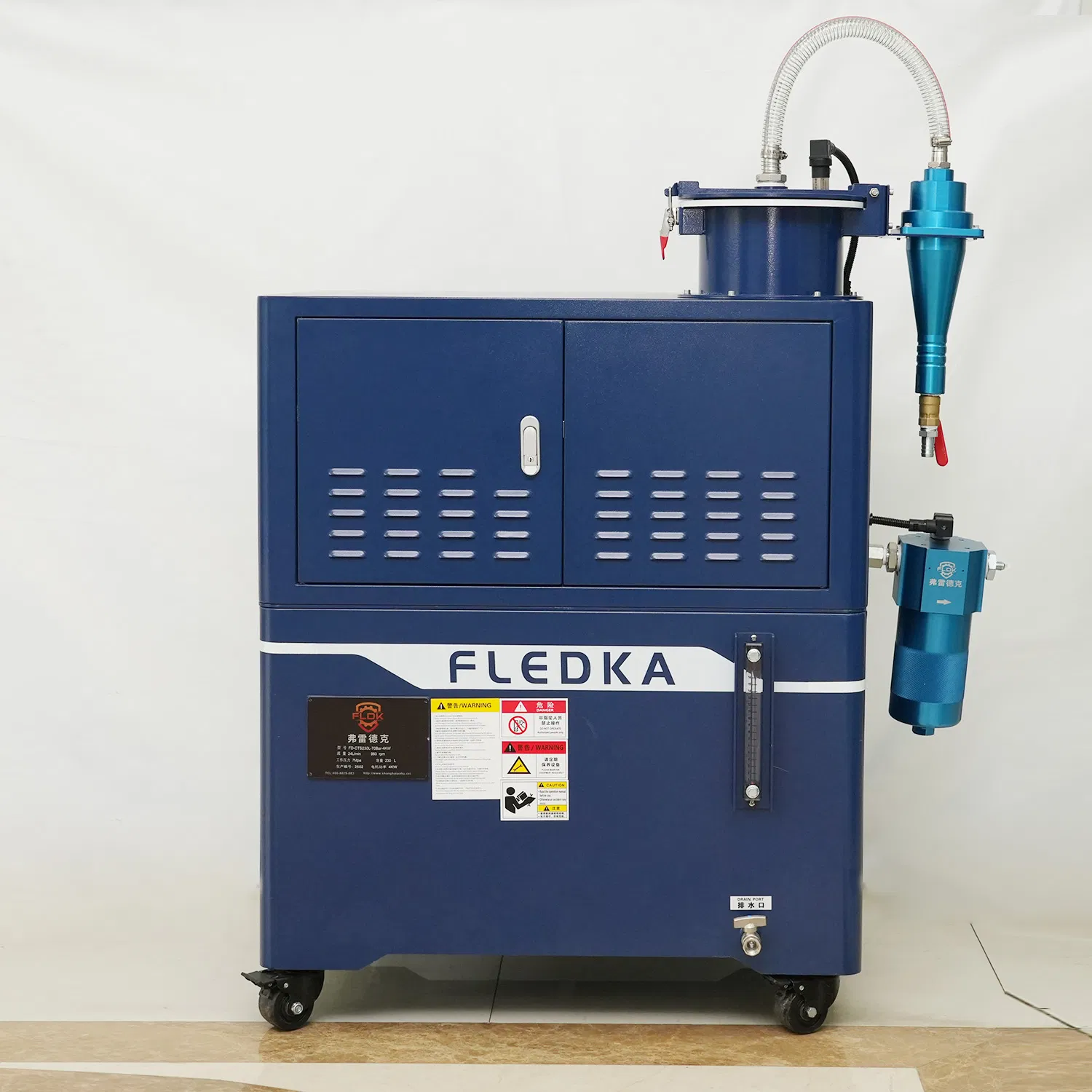

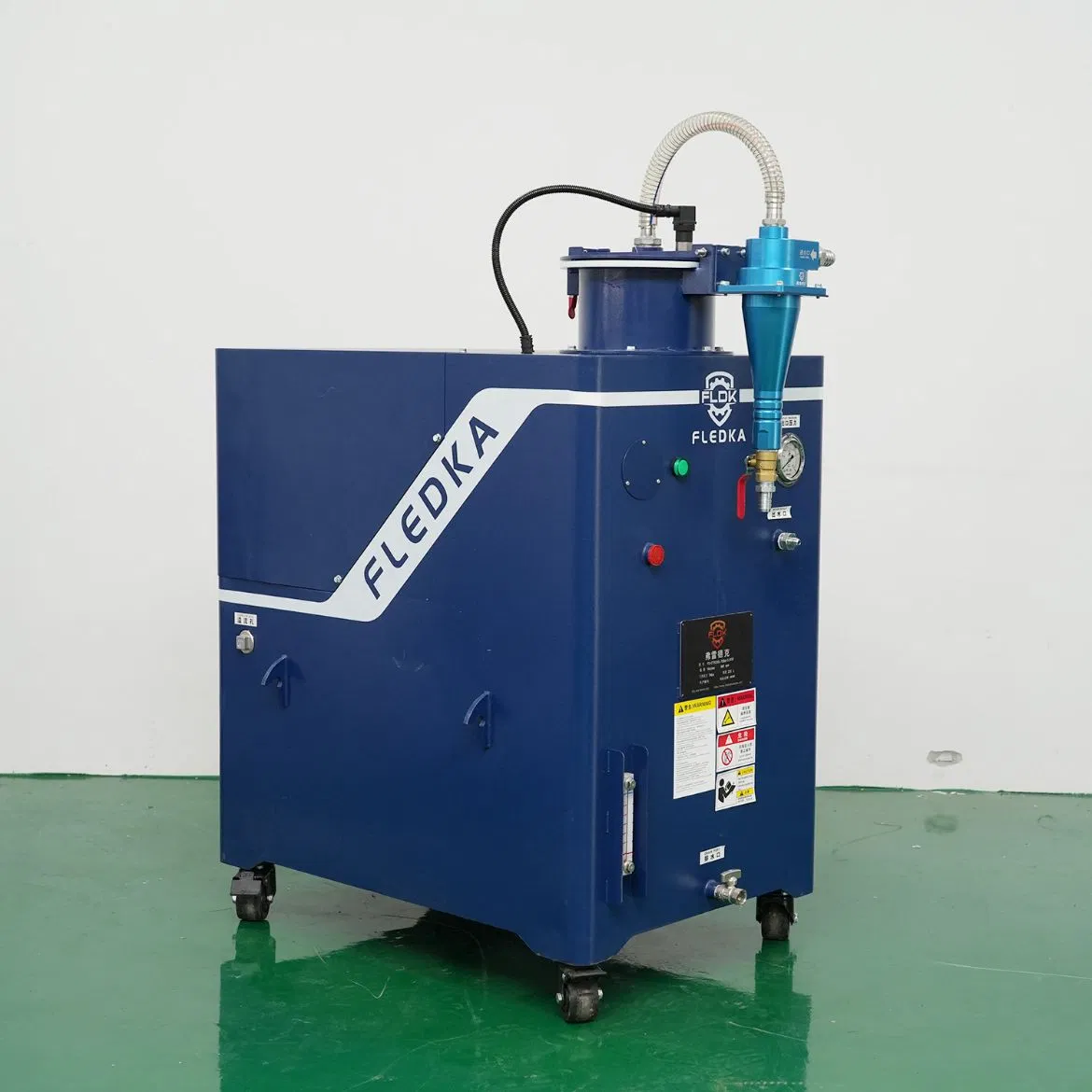

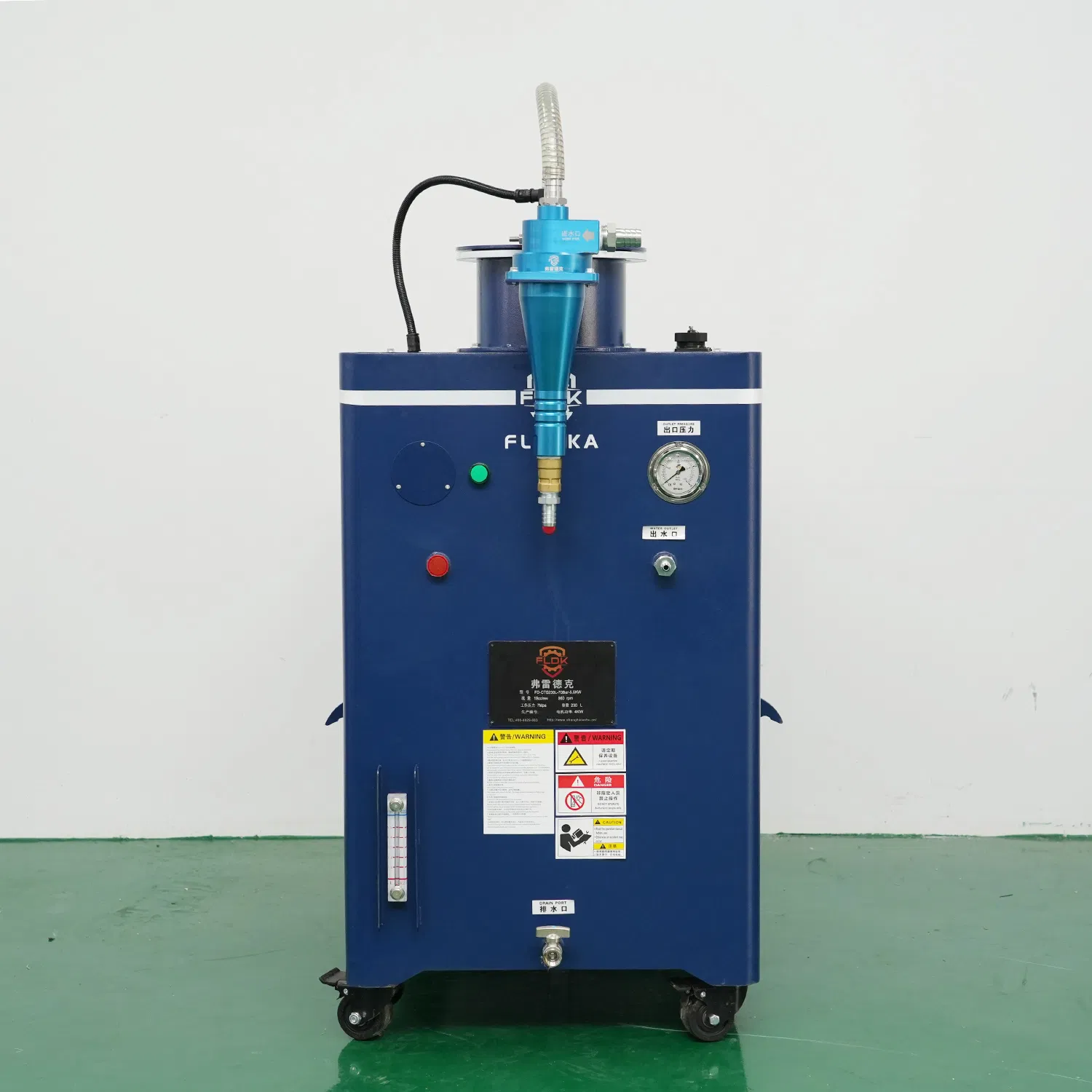

Advanced 4kw CNC Spindle for Enhanced Coolant Filtration System

1 / 5

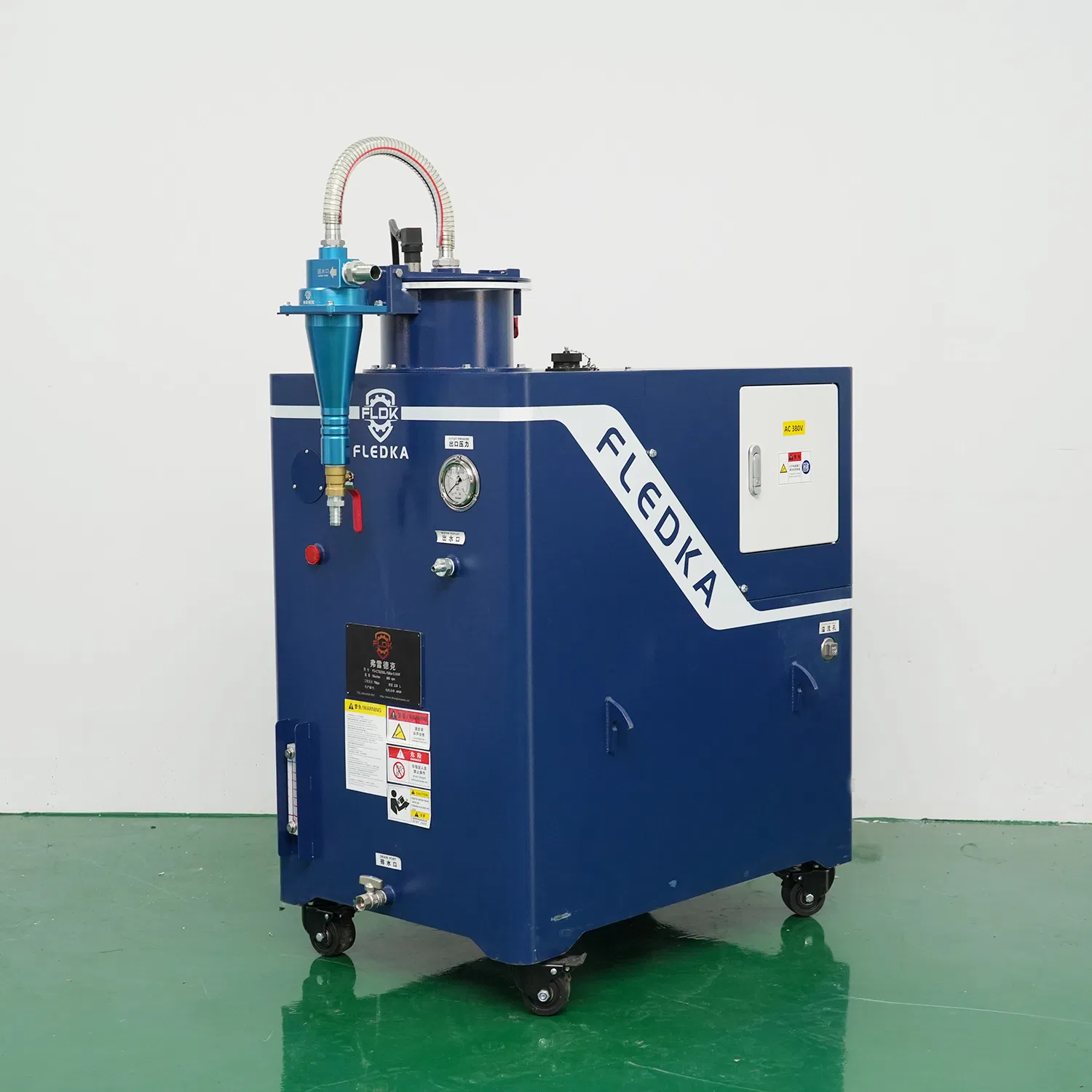

Advanced 4kw CNC Spindle for Enhanced Coolant Filtration System

Customization:	Available
After-sales Service:	7*24h Service
Warranty:	1 Year

Send Inquiry

Product Description

Basic Info

Model NO.	FD-CTS230L70Bar-4KW
Type	High-Pressure Through-Spindle Coolant
Cooling Water	Industrial Water
System Type	Closed System
Fans Species	Single-speed Fan
Noise Level	Low
Application Fields	Precision Machining, Turning, Milling and Drilling
Certification	CE / ISO
Weight	250kg
Specification	75012001650

Product Description

During product processing and over cutting and hot cutting, the steam barrier is formed and the chip liquid is unevenly distributed, so that the tool tip cannot obtain the required cooling. In the case of insufficient cooling of the cutting tool, the iron chips will return to the cutting point. Therefore, repeated processing of chips will shorten the tool life and damage the surface finish of the workpiece.

The high-pressure Through spindle coolant filtration system high-pressure centralized aiming chip liquid can penetrate the steam barrier, smoothly reduce the high temperature generated during cutting, effectively supply chip liquid, significantly improve the tool life, sufficient lubrication, and improve the surface finish and accuracy of the workpiece.

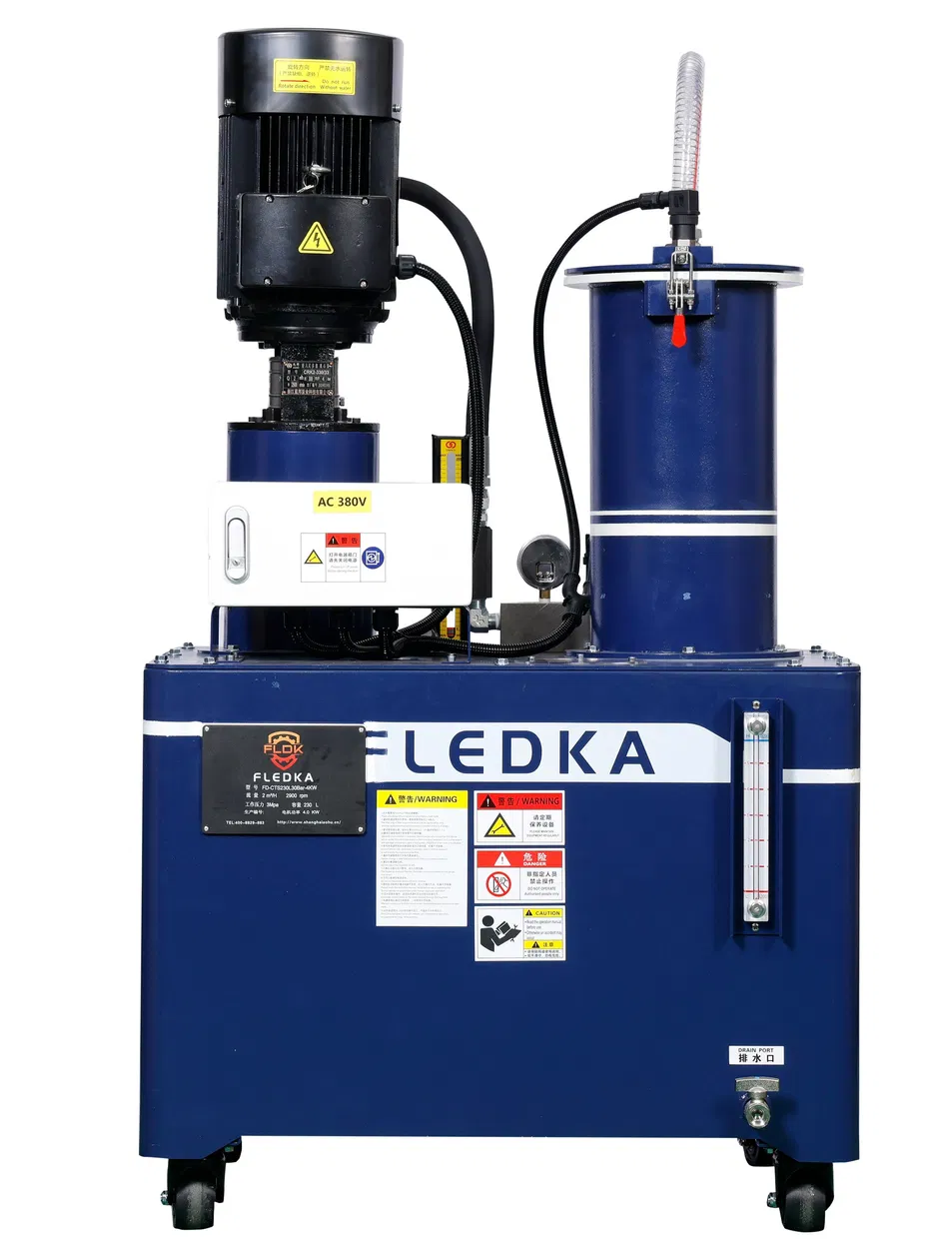

1. Superior Heat Management

By delivering high-pressure coolant straight to the cutting edge, our system rapidly dissipates heat generated during machining. This reduces thermal deformation of the workpiece and tool, ensuring tighter tolerances and consistent part quality.

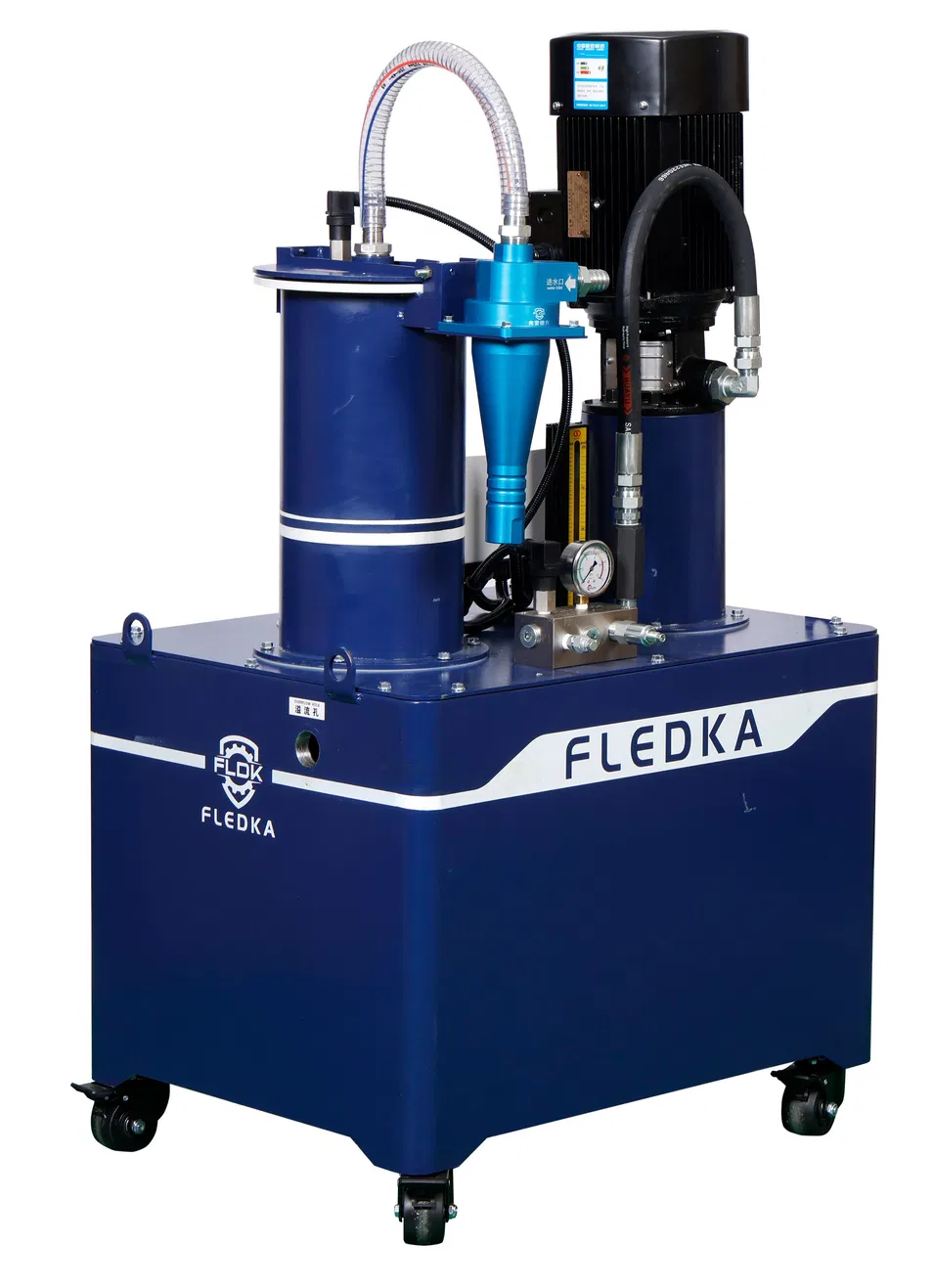

2. Efficient Chip Evacuation

The high-pressure coolant flow effectively flushes away chips from the cutting zone. It prevents chip re-welding, entanglement, and accumulation, which can lead to tool breakage and surface finish defects. For deep-hole drilling and milling, this ensures unobstructed cutting paths.

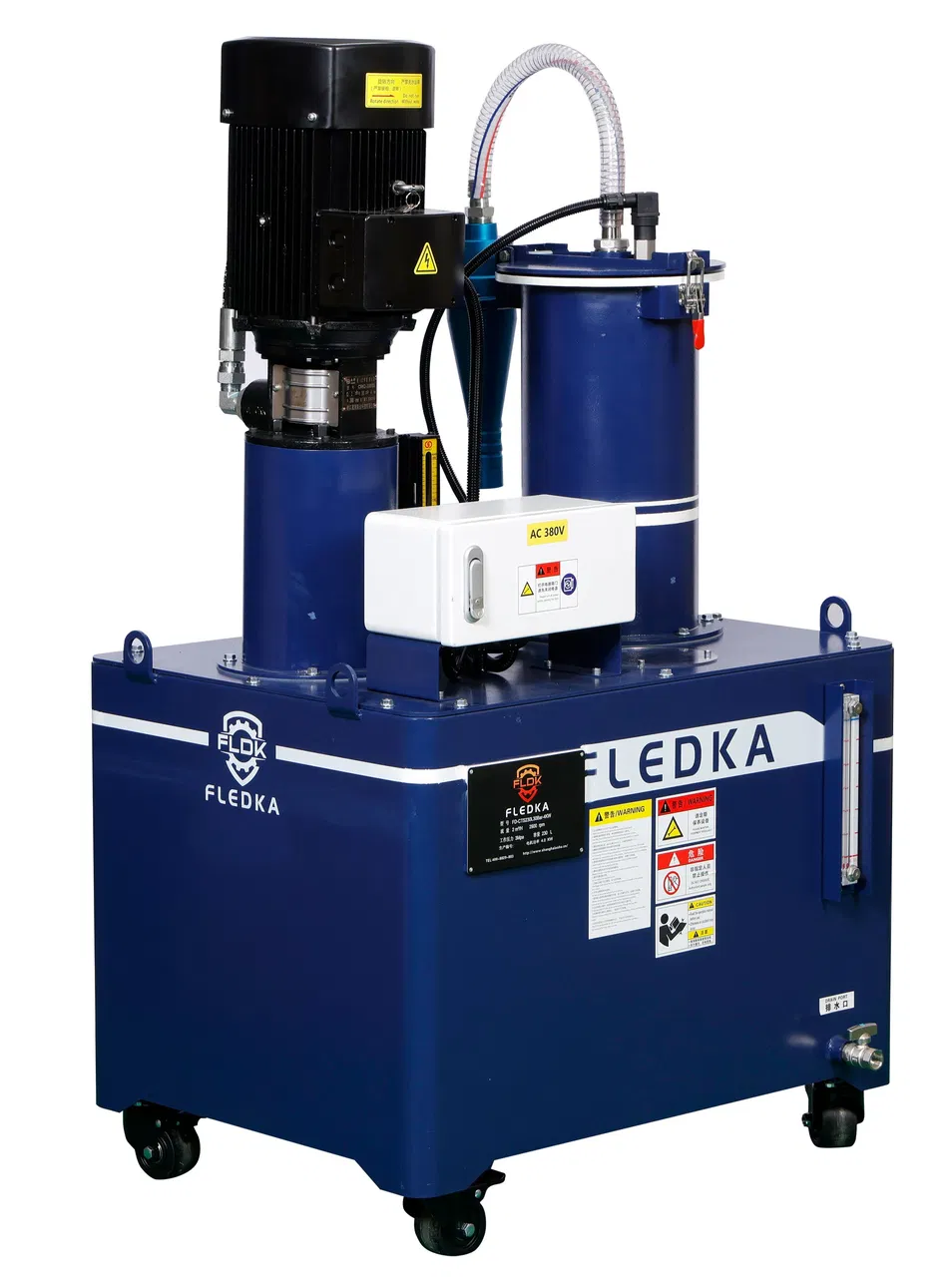

3. Efficient Force Transmission

Equipped with advanced sealing technology and optimized hydraulic/pneumatic pathways, the cylinder ensures efficient force transmission with minimal energy loss. Fast response times enable quick blade actuation, reducing cycle times in high-speed cutting operations.

Manufacturing Excellence

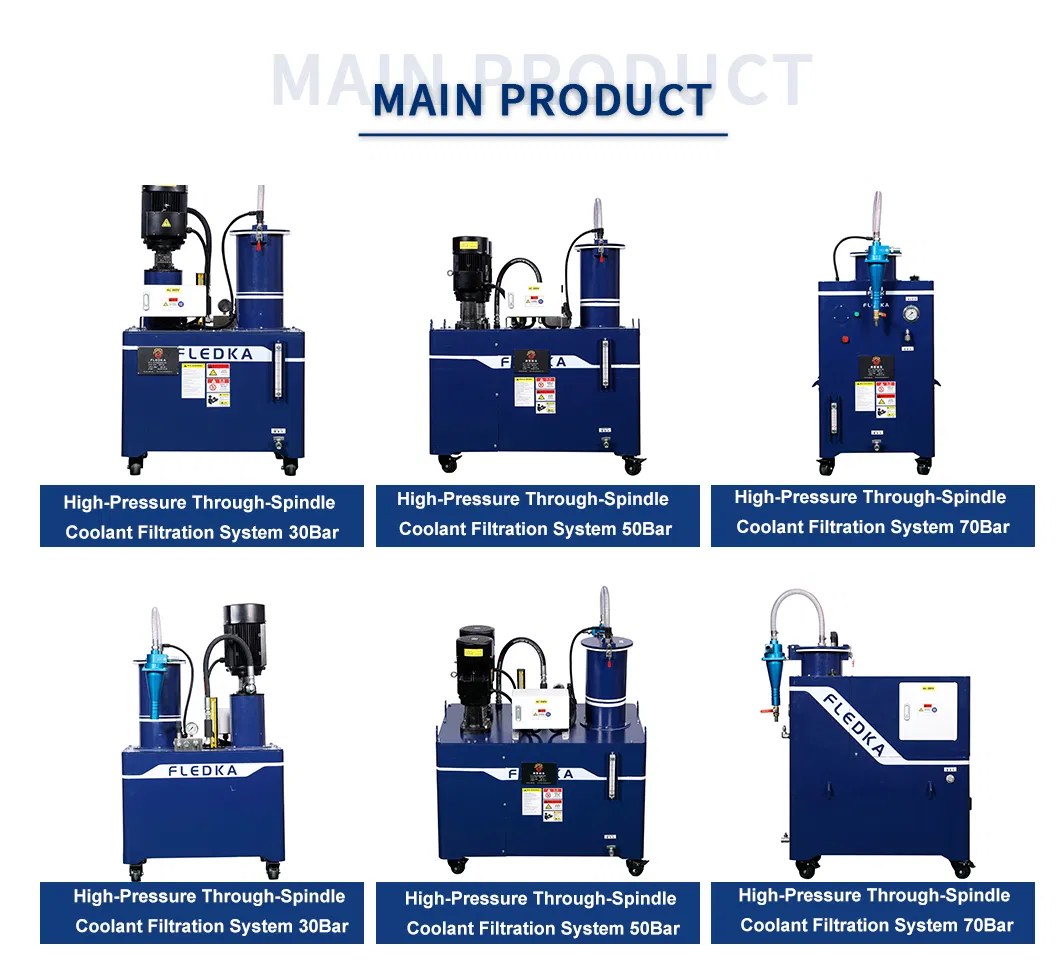

As a full-solution provider of core CNC machine tool components, we offer a complete product lineup and one-stop sourcing service. Our portfolio includes 4th-Axis Motor Drives, Energy-Saving Hydraulic Systems, CNC Spindle Tool Release Cylinders, and High-Pressure Through-Spindle Coolant Systems.

Frequently Asked Questions

Q1. Can I get samples for testing? Due to the high technical specification and low quotation margin, we are unable to provide free samples. However, for large subsequent orders, the cost of the initial unit can be deducted from the total cooperation value.

Q2. Do you support OEM/ODM customization? Yes, we provide comprehensive OEM/ODM services. Your logo and specific designs can be applied to the products, and we specialize in non-standard customization to fit your machinery.

Q3. What is your manufacturing scale? We operate a 4,000-square-meter professional facility. Our production lines are mature across four major categories, including cables, hydraulic units, and high-pressure coolant systems.

Q4. What is the annual production capacity for coolant systems? Our current annual capacity for high-pressure through-spindle coolant systems is 2,000 sets, alongside 5,000 hydraulic power units and 70,000 sets of axis cables.

Q5. What are the typical shipping lead times? Standard products are kept in stock for immediate shipment. For non-standard or customized products, the lead time typically ranges between 2 to 4 weeks depending on the complexity and core component selection.

Q6. Are your products certified? Yes, our systems are manufactured to high quality standards and carry certifications such as CE and ISO to ensure safety and performance in industrial environments.
