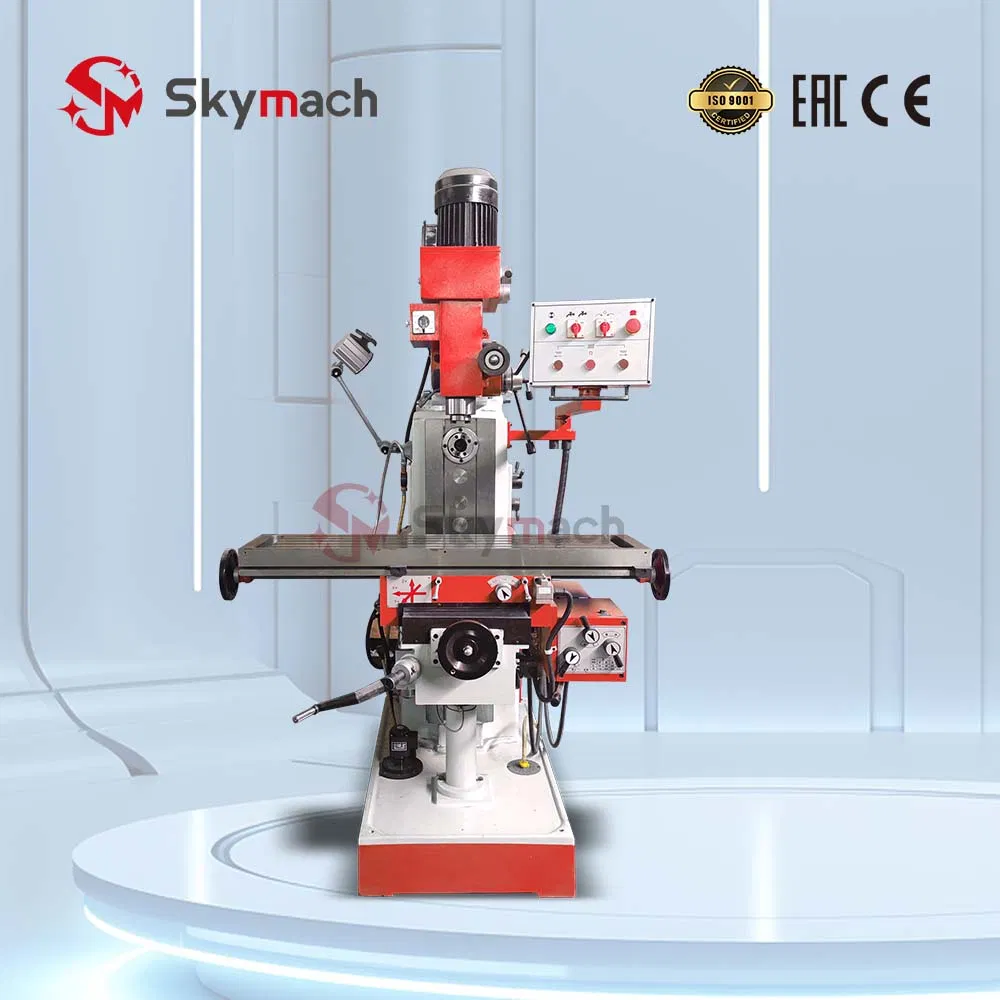

Zx6350 Vertical Manual Milling Machine with R8 Spindle and Dovetail Column for General Machining and Toolroom Work

Customization:	Available
After-sales Service:	2 Years
Warranty:	2 Years

Basic Information

Model NO.

ZX6350

Type

Tool Milling Machine

Object

Tool

Milling Cutter Type

Vertical Milling Cutter

Controlling Mode

Artificial

Precision

High Precision

Spindle Taper

MT4

Table Size

1120*280mm

Spindle Speed

115-1750(8 step)

Certification

GS, CE, RoHS, ISO 9001

Product Description

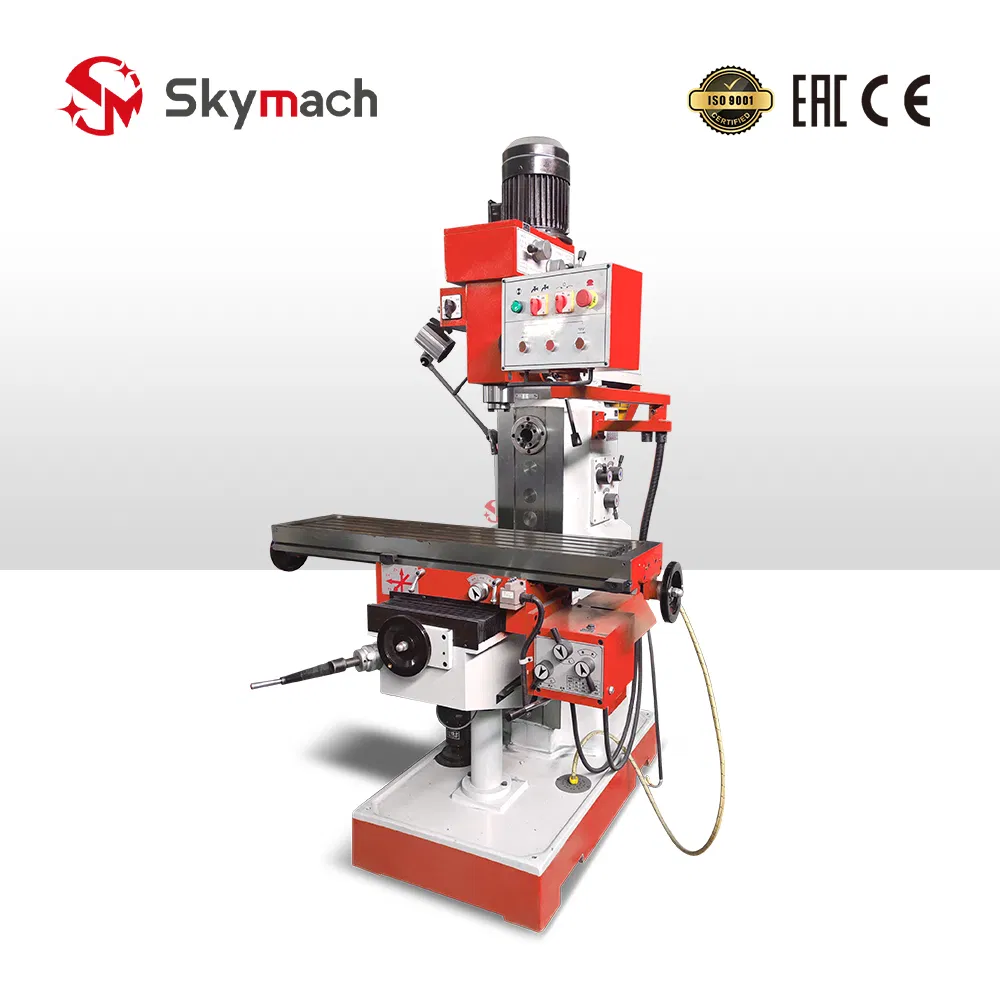

ZX6350 Manual Vertical Milling Machine

Suitable for processing a variety of small parts including planes, inclined planes, grooves, holes, and gears. Ideal for mechanical manufacturing, mold making, instruments, automobiles, and motorcycle industries.

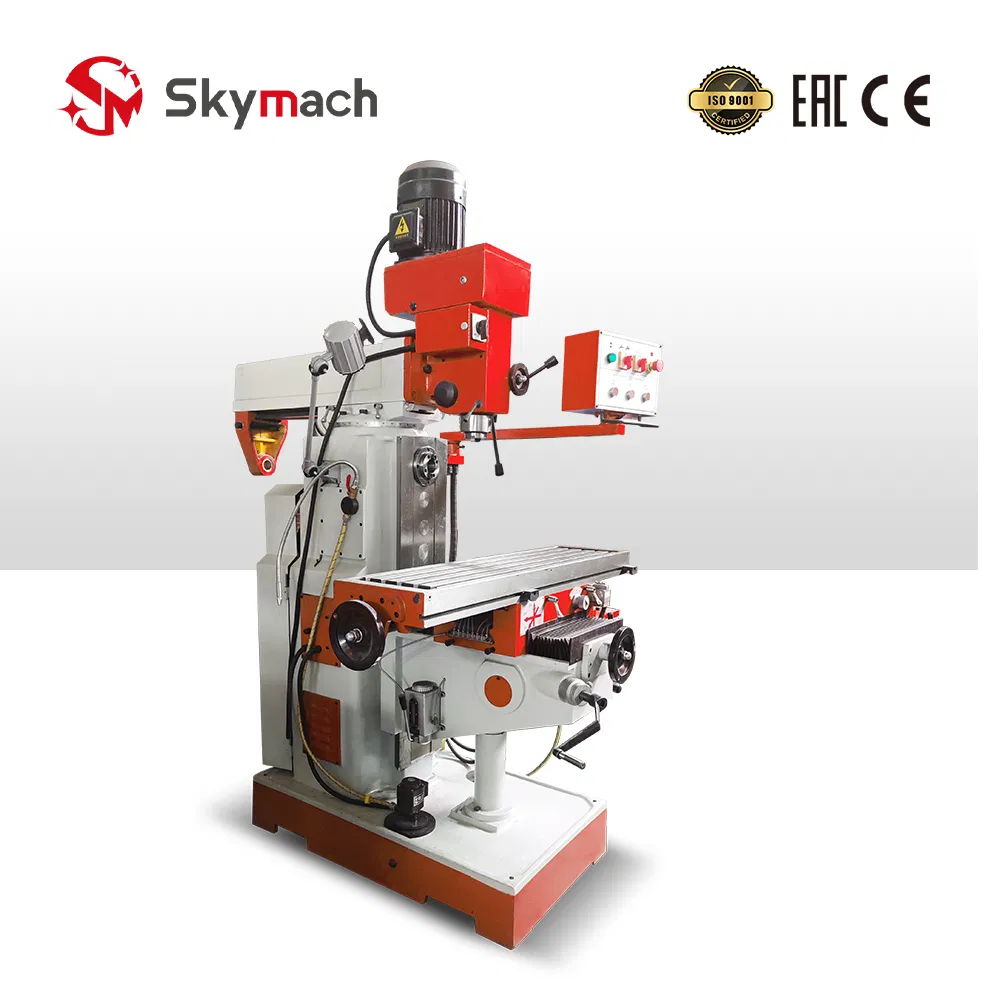

ZX6350 Vertical Manual Milling Machine Side View

Main Features

Milling head micro-feed capability for drilling
Integrated milling and tapping functions
Worktable equipped with gear transmission power feed

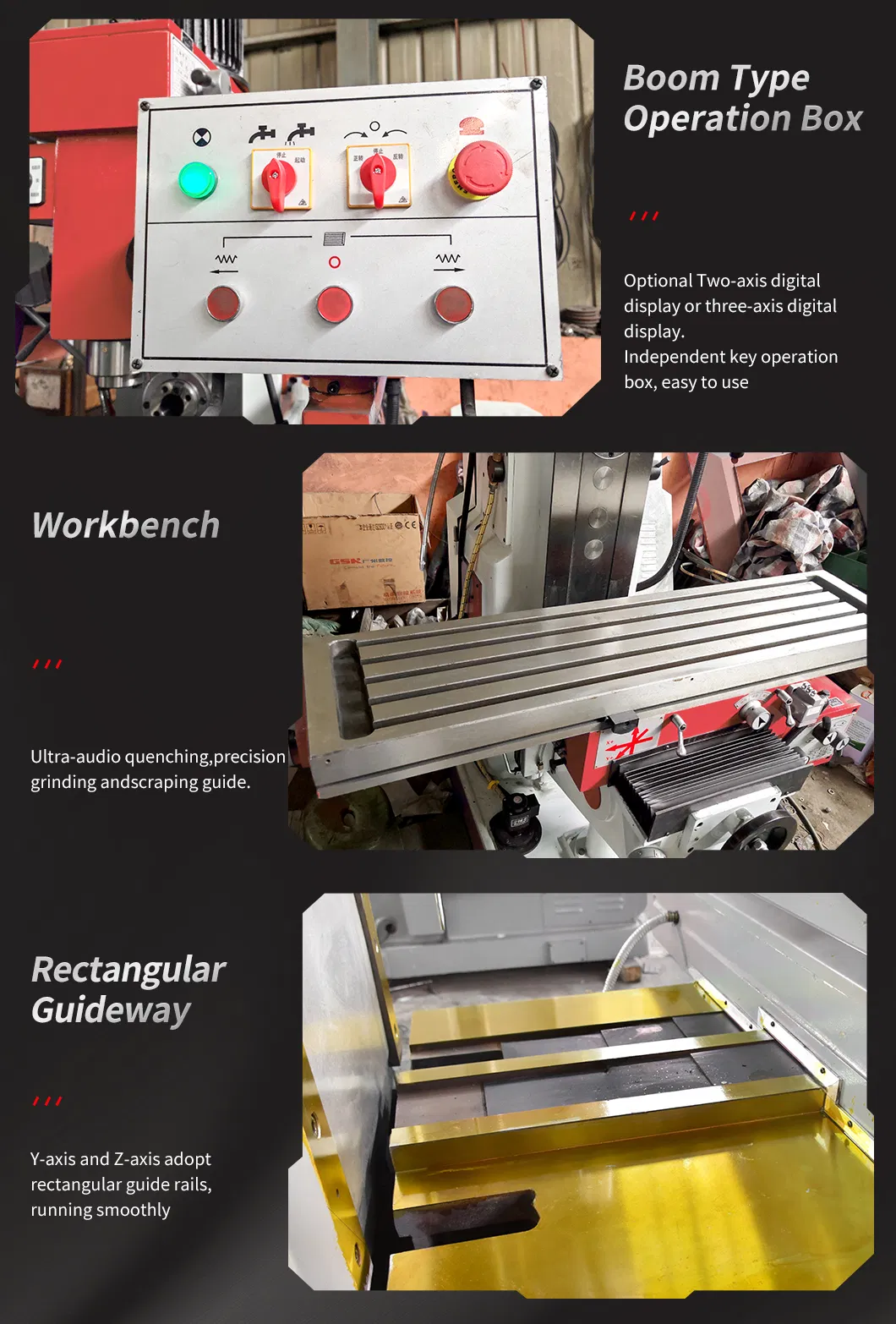

Hardened guideways via Supersonic Frequency Quenching (2-4mm depth)
High-strength cast iron table (HT200-250)
Dovetail table guideways for stability

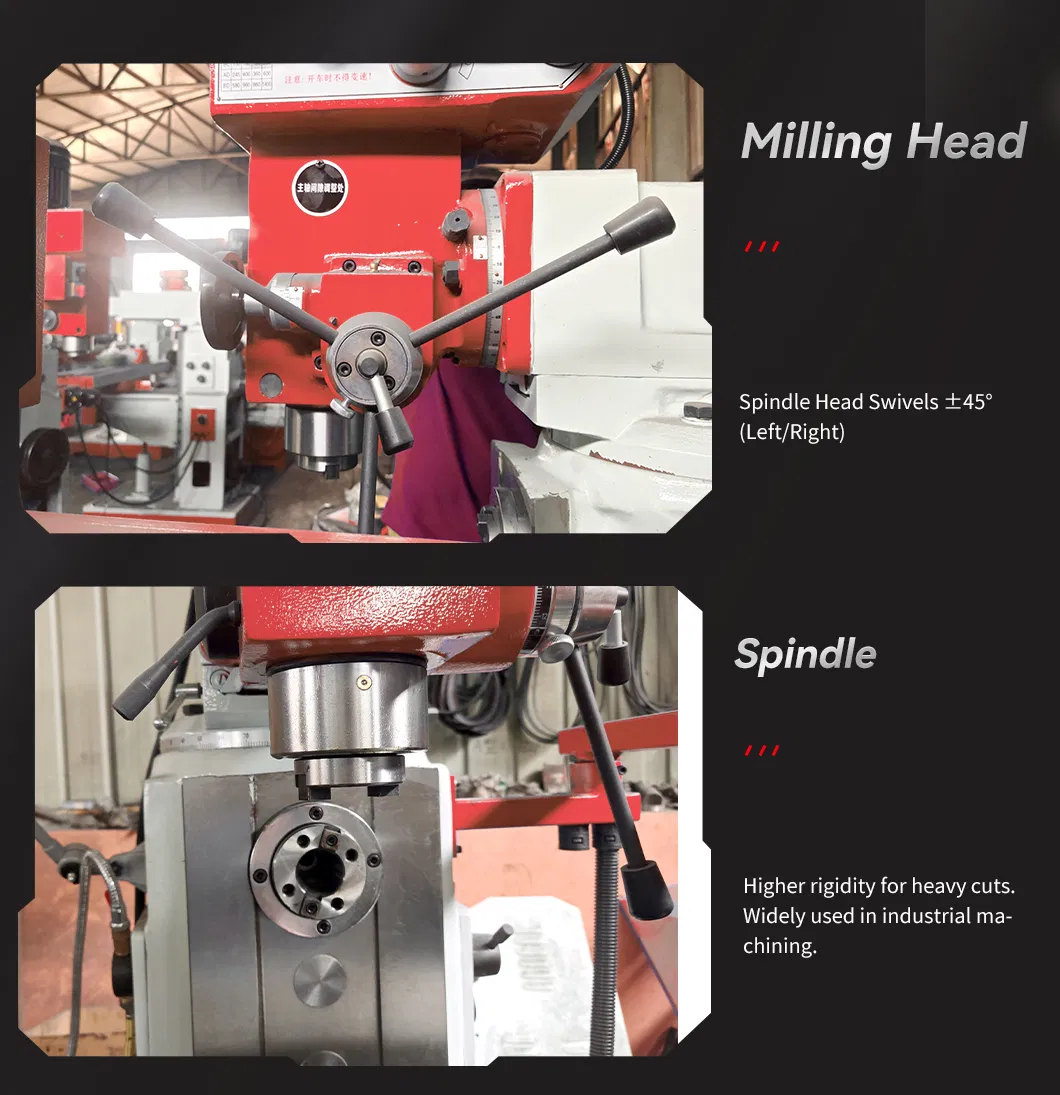

Gear drive milling head with ±45° swivel

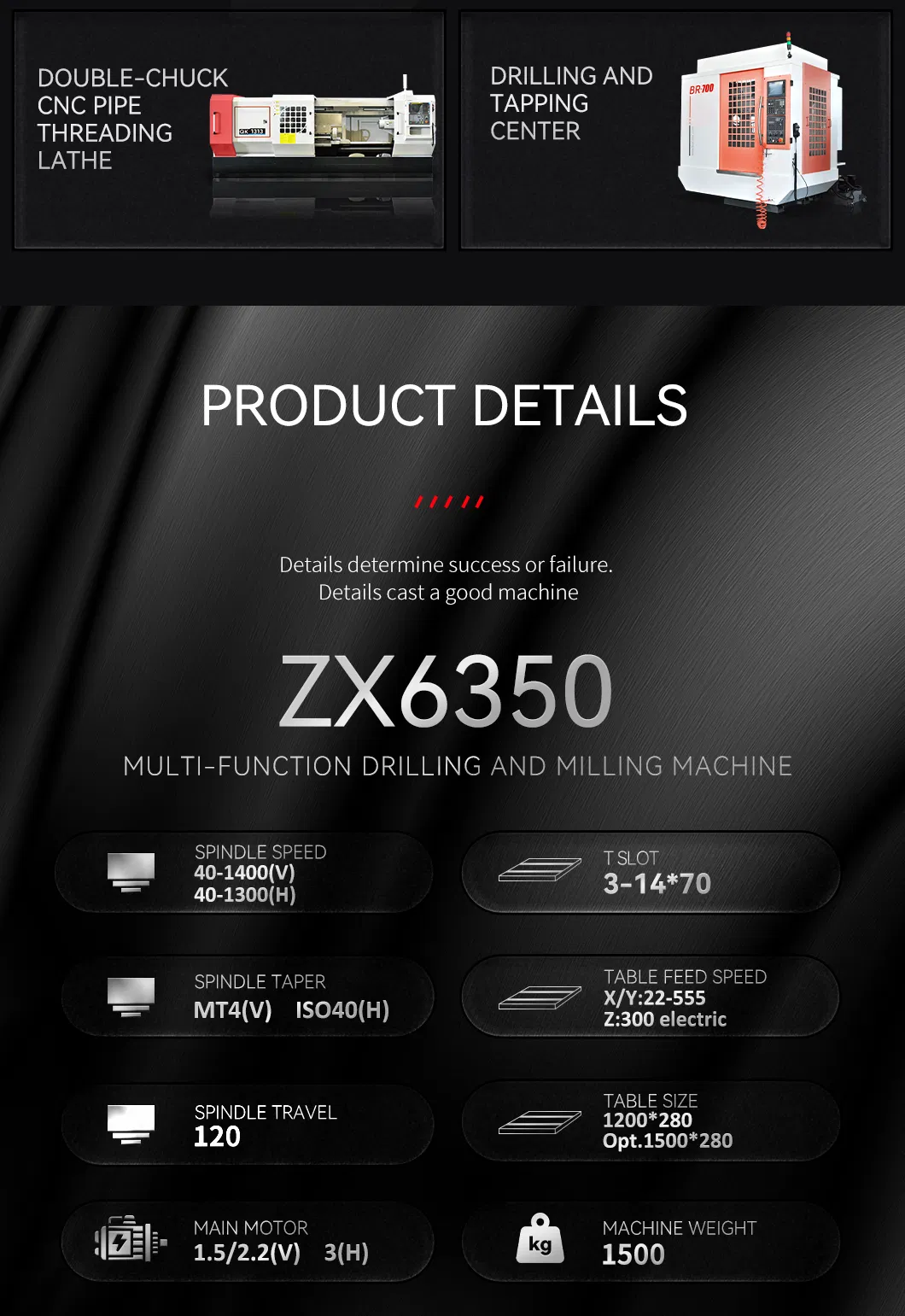

Technical Parameters

Specifications	Units	ZX6350C	ZX6350D	ZX6350S	ZX6350ZA
Table size	mm	1200x280	1200x280	1200x280	1200x280
Table stroke	mm	600x230	600x230	600x270	600x270
Spindle to table surface	mm	110-470	110-470	100-400	100-400
Spindle travel	mm	120	120	120	120
Max. drilling dia.	mm	50	50	50	50
Spindle speed range	rpm	115-1750(V)	115-1750(V)	115-1750(V)	115-1750(V)
Machine weight	Kg	1350	1350	1500	1500

Accessories

Standard Accessories

Drill chuck & Mill chuck
Inner hexagon spanner & Wrench
Work light
Reduction sleeve & Draw bar
Machine vice

Optional Accessories

DRO on X, Y, Z Axis
Clamping kit
Universal dividing head
Rotary work table

Quality Assurance & Experience

Strict QC control with over 24 testing steps
Over 10 years of manufacturing expertise
Partnerships with SIEMENS, FANUC, SYNTEC, and GSK
Certified by CE, EAC, and ISO standards
12-month standard warranty period
Multilingual technical support and fast parts response

Frequently Asked Questions

How can I choose the most suitable machine?

Please provide your required specifications or product drawings. Our technical team will analyze your needs and recommend the most efficient model for your specific processing requirements.

What are your primary product categories?

We specialize in a comprehensive range of machinery, including CNC Lathes, CNC Milling Machines, Vertical Machining Centers, Drilling Machines, Radial Drilling Machines, and Gear Hobbing Machines.

Where is the production facility located?

The manufacturing facility is located in Tengzhou City, Shandong Province, China. We welcome international visitors to inspect our production lines and quality control processes.

What are the accepted trade and payment terms?

We accept FOB, CFR, and CIF terms. Payment is typically handled via T/T (30% initial deposit and 70% balance before shipment) or Irrevocable LC at sight.

What is the Minimum Order Quantity (MOQ)?

The standard MOQ is 1 set. For certain low-cost auxiliary machines, the MOQ might differ, but for primary milling machines, we support single-unit orders.

Do you offer customization for specific production needs?

Yes, we provide flexible customization options to ensure that the machine tools perfectly meet your unique production requirements and technical standards.
