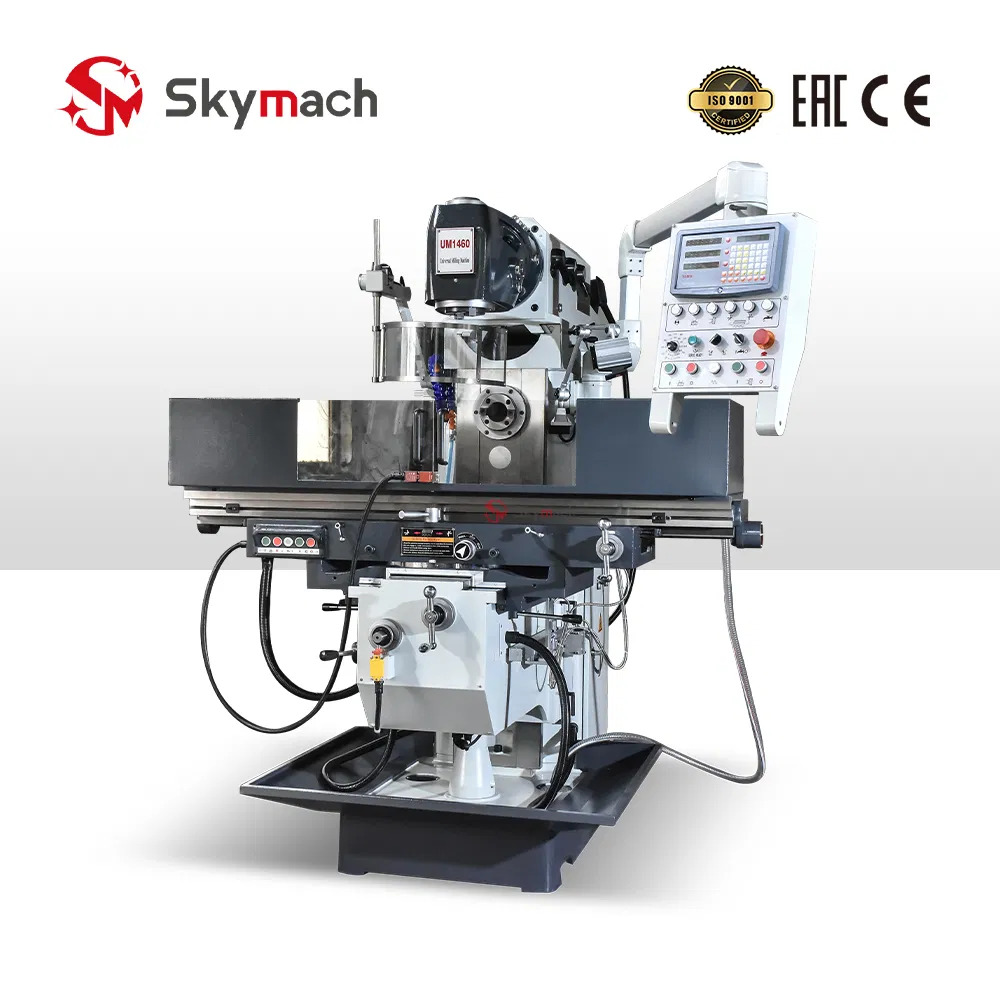

Um1460 Universal Manual Milling Machine with Geared Head and Swiveling Column for Precision Face Milling and Slotting in Toolroom and Maintenance Works
Um1460 Universal Manual Milling Machine with Geared Head and Swiveling Column for Precision Face Milling and Slotting in Toolroom and Maintenance Works
Um1460 Universal Manual Milling Machine with Geared Head and Swiveling Column for Precision Face Milling and Slotting in Toolroom and Maintenance Works
Um1460 Universal Manual Milling Machine with Geared Head and Swiveling Column for Precision Face Milling and Slotting in Toolroom and Maintenance Works
Um1460 Universal Manual Milling Machine with Geared Head and Swiveling Column for Precision Face Milling and Slotting in Toolroom and Maintenance Works
1 / 5
Um1460 Universal Manual Milling Machine with Geared Head and Swiveling Column for Precision Face Milling and Slotting in Toolroom and Maintenance Works
Um1460 Universal Manual Milling Machine with Geared Head and Swiveling Column for Precision Face Milling and Slotting in Toolroom and Maintenance Works
Um1460 Universal Manual Milling Machine with Geared Head and Swiveling Column for Precision Face Milling and Slotting in Toolroom and Maintenance Works
Um1460 Universal Manual Milling Machine with Geared Head and Swiveling Column for Precision Face Milling and Slotting in Toolroom and Maintenance Works
Um1460 Universal Manual Milling Machine with Geared Head and Swiveling Column for Precision Face Milling and Slotting in Toolroom and Maintenance Works

Um1460 Universal Manual Milling Machine with Geared Head and Swiveling Column for Precision Face Milling and Slotting in Toolroom and Maintenance Works

Customization: Available
After-sales Service: 2 Years
Warranty: 2 Years
Send Inquiry

Product Description

Basic Information

Model NO.
UM1460
Type
Tool Milling Machine
Object
Sheet
Structure
Rocker
Milling Cutter
Angle Milling Cutter
Controlling Mode
Artificial / Manual
Precision
Precision
Certification
GS, CE, ISO 9001
Table Stroke (X)
1300mm
Table Stroke (Y)
400mm
Table Stroke (Z)
600mm
Spindle Taper
ISO 150
HS Code
8458110090
Capacity
500 Sets

Packaging & Delivery

Package Size
240.00cm * 330.00cm * 240.00cm
Gross Weight
3600.000kg
Package Type
Polywood Case

Product Description

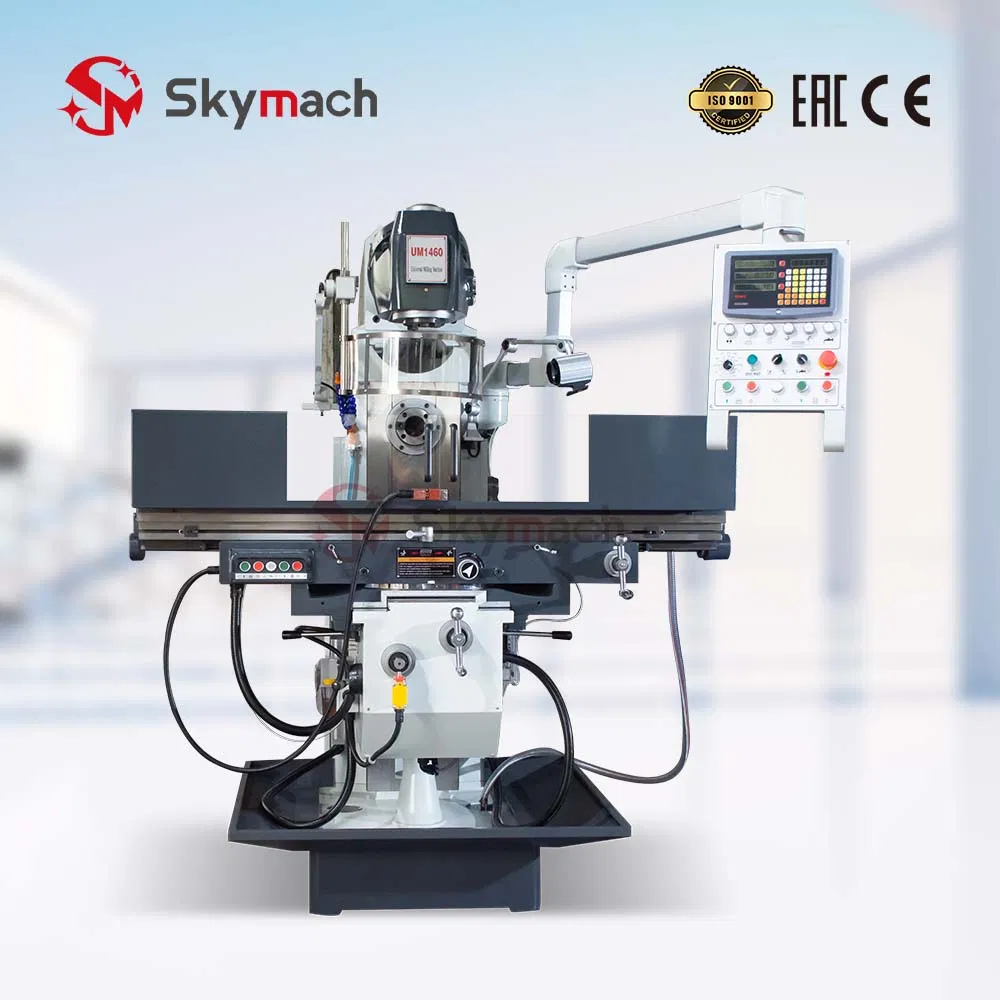

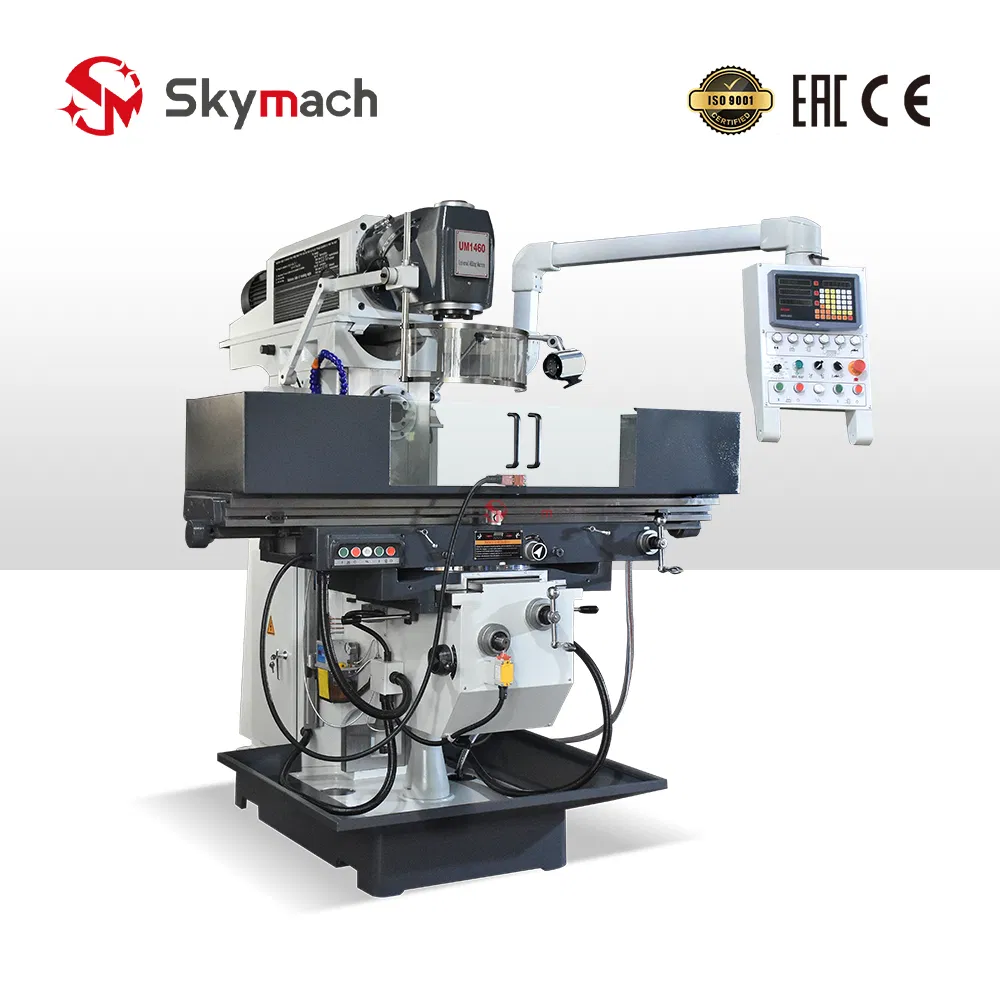

Universal Vertical Bed Type Milling Machine UM1460

Universal Milling Machine
Milling Machine Swiveling Column
Precision Face Milling

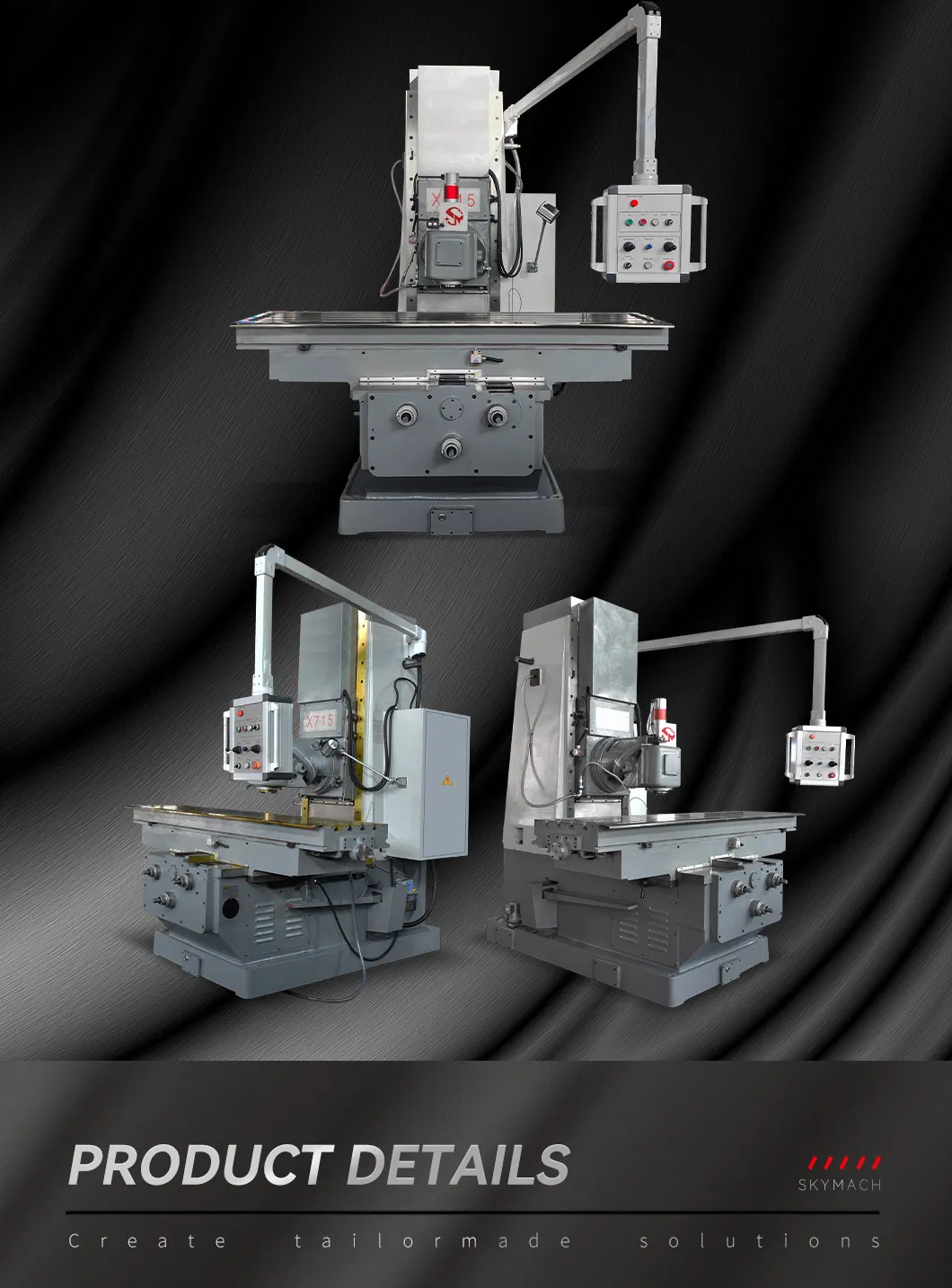

UM1460 Details

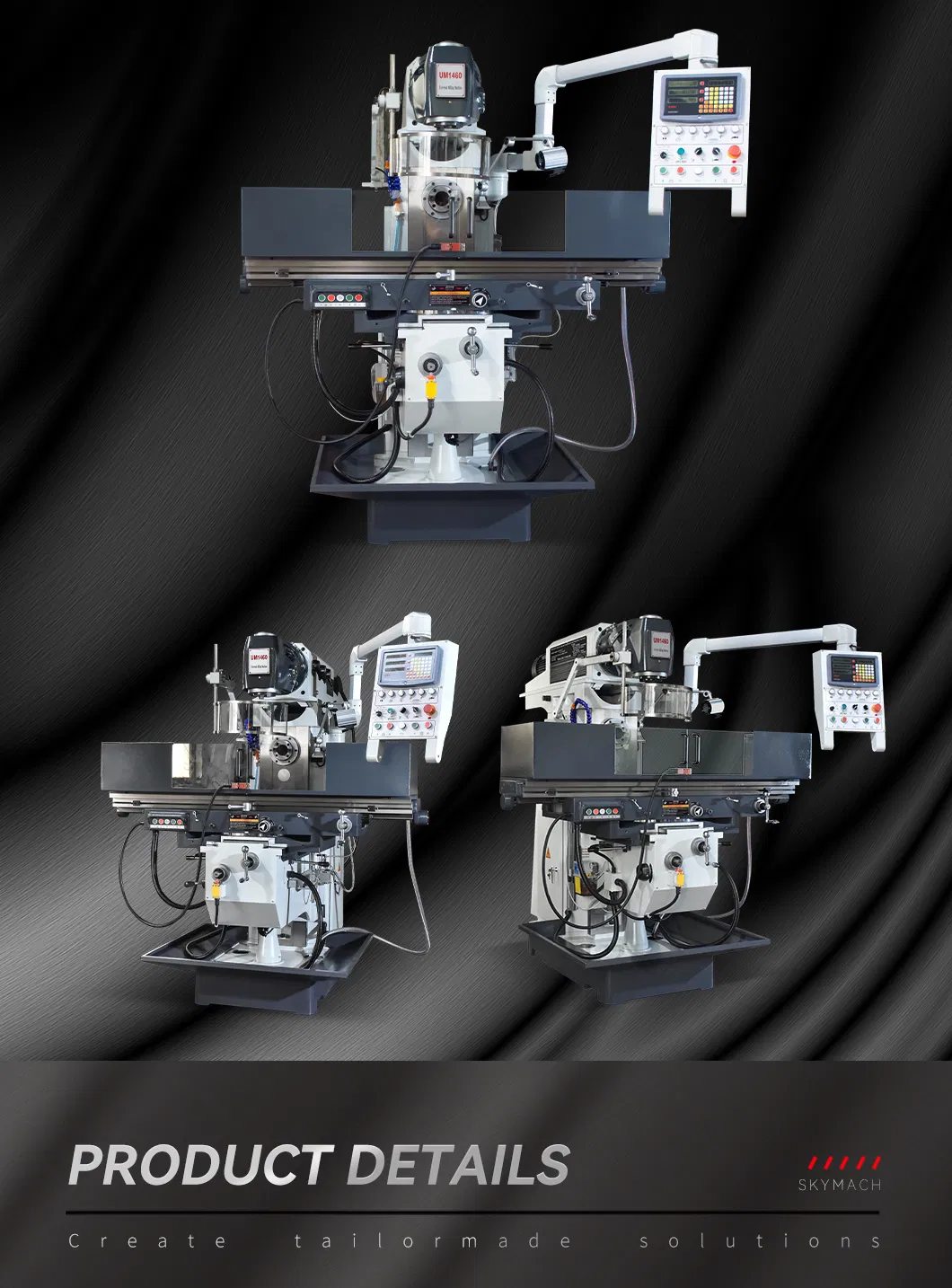

Maintenance Works Machine
Universal Manual Milling
Toolroom Milling Machine

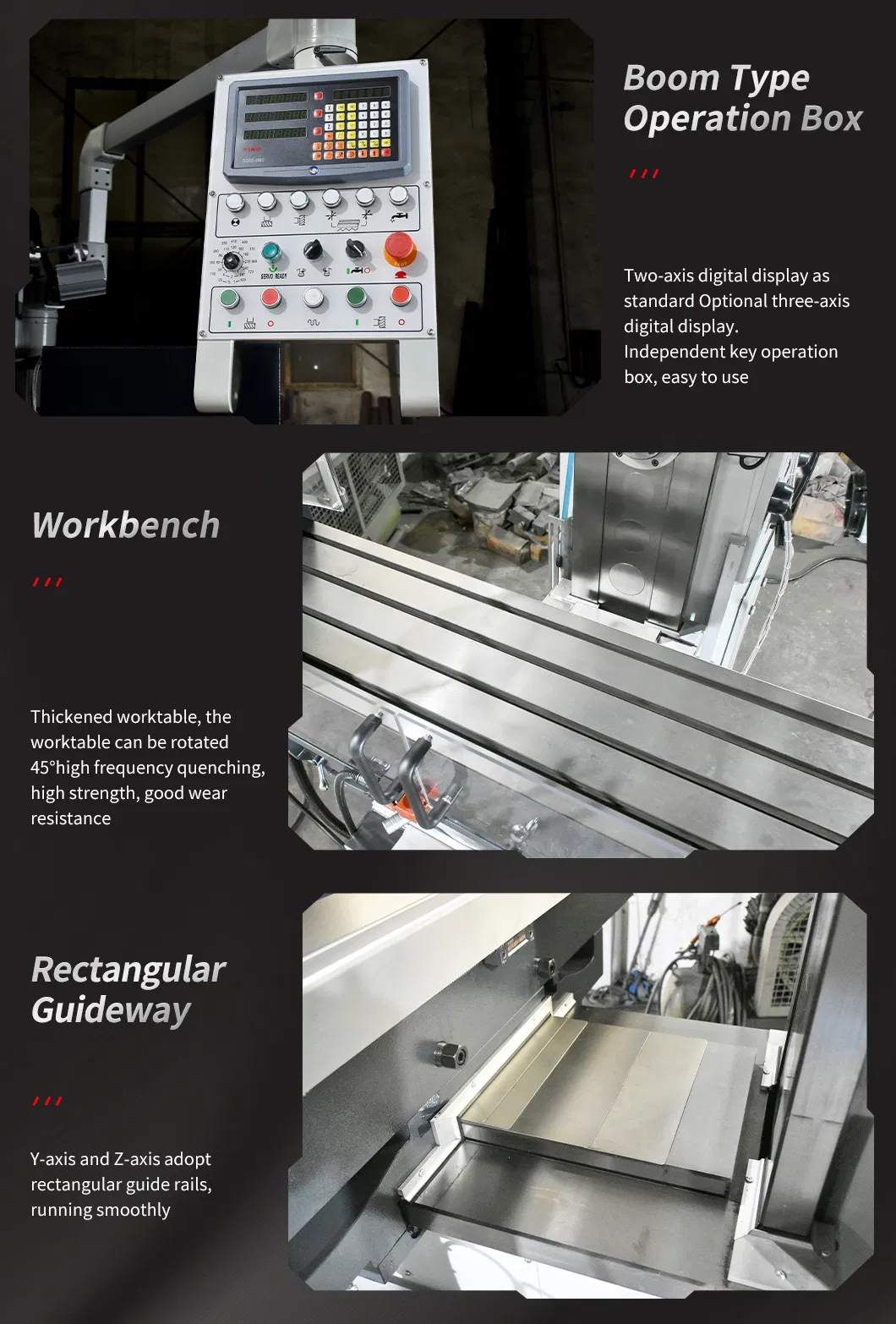

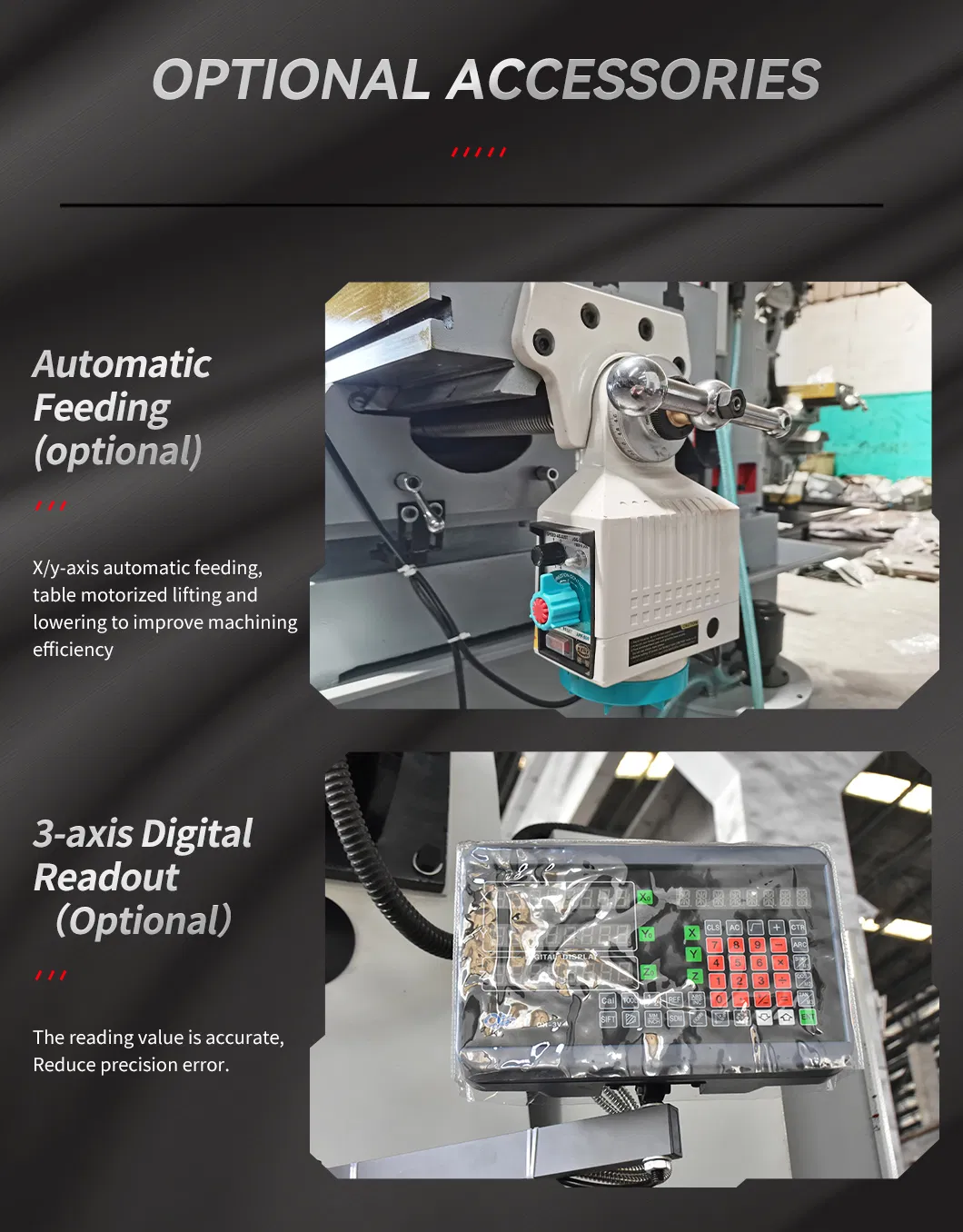

Milling Machine Controls
Bed Type Milling Machine
UM1460 Component

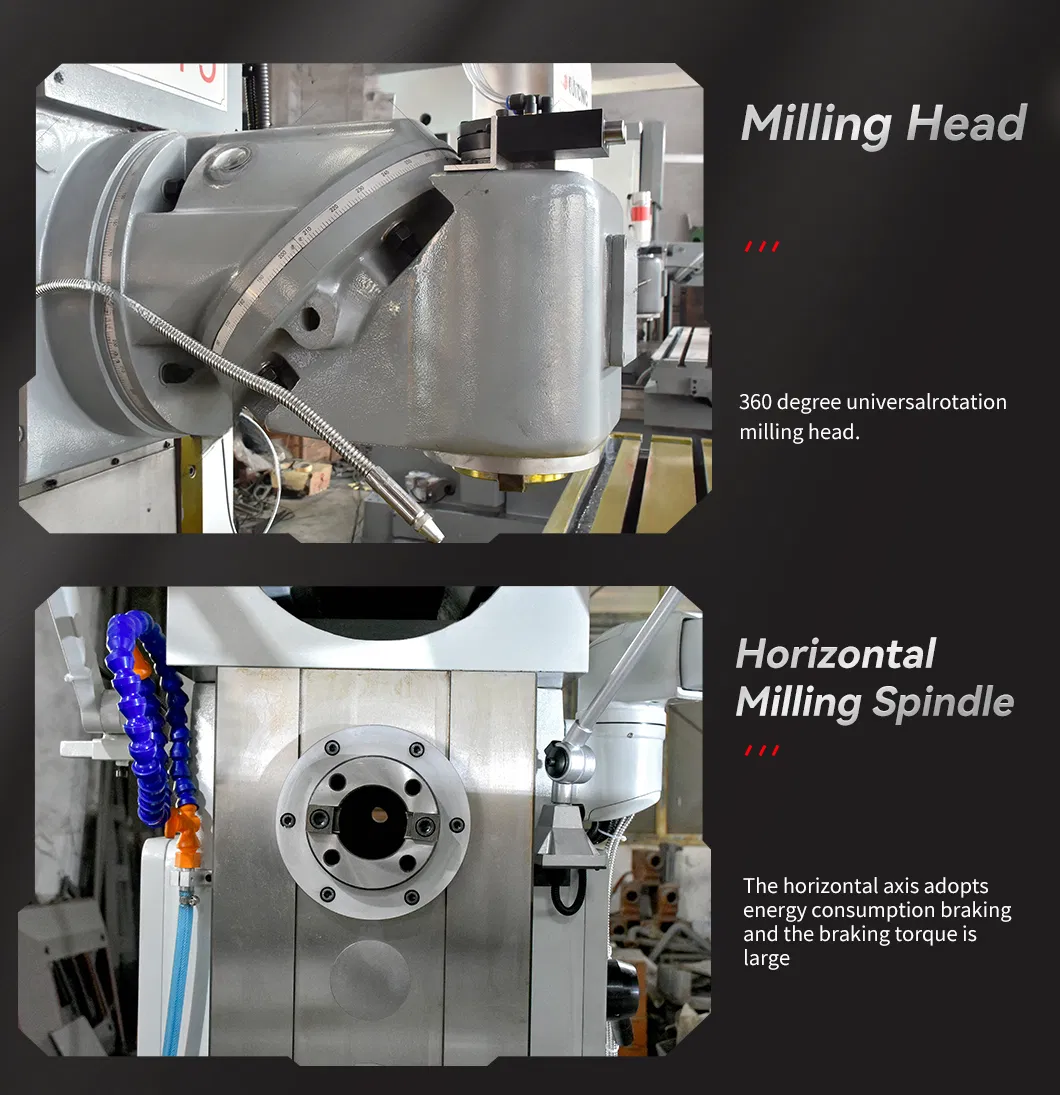

Geared Head Details
Industrial Milling Equipment

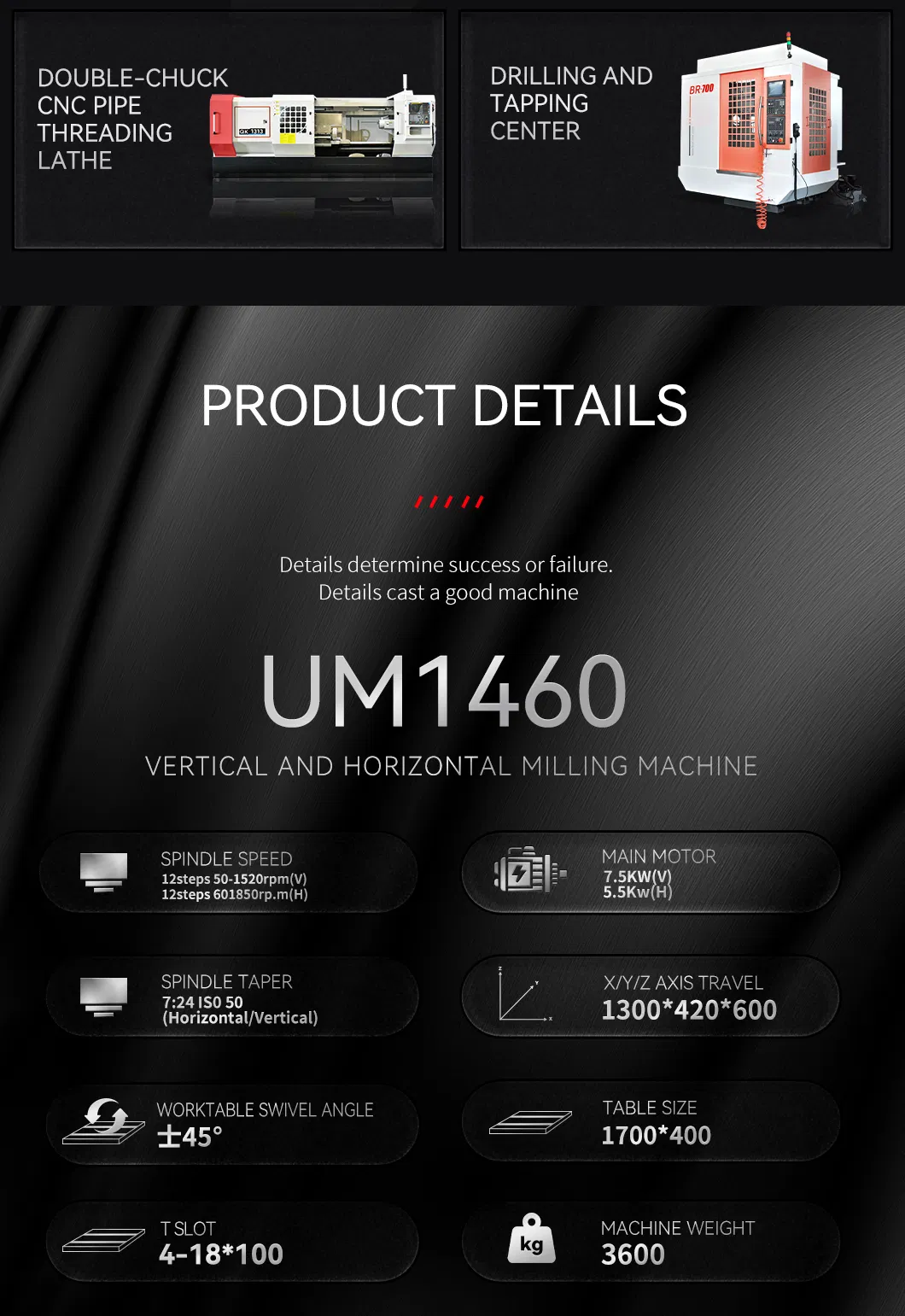

Technical Parameters

Parameter Value
Spindle taper7:24 ISO 150 (Horizontal/Vertical)
Table size1700 × 400 mm
Worktable swivel angle±45°
Number of T-slots4
T-slot width / distance18 mm / 100 mm
Spindle speed (Vertical)12 steps, 50-1520 rpm
Spindle speed (Horizontal)12 steps, 60-1850 rpm
Travel (X/Y/Z)1300 / 420 / 600 mm
X/Y-axis feed rate25-800 mm/min
Z-axis feed rate8-267 mm/min
Main motor power7.5 kW
Machine dimensions2300 × 3200 × 2270 mm
Machine weightapprox. 3600 kg

Frequently Asked Questions

How can I choose the most suitable machine?
Please provide your technical specifications or workpiece drawings. Our engineering team will evaluate your requirements and recommend the most suitable model for your production needs.
What are the primary types of machines you provide?
We specialize in a wide range of industrial equipment, including CNC Lathes, CNC Milling Machines, Vertical Machining Centers, Drilling Machines, Radial Drills, Sawing Machines, and Shapers.
What are the accepted trade and payment terms?
We accept standard international trade terms including FOB, CFR, and CIF. Payment terms generally involve a 30% initial deposit via T/T, with the 70% balance due before shipment, or irrevocable L/C at sight.
What is the Minimum Order Quantity (MOQ)?
The MOQ is typically 1 set. For certain smaller, low-cost auxiliary machines, the MOQ might differ, but for heavy milling machines, we support single-unit orders.
What information is needed for a CIF price quote?
To provide an accurate CIF quote, please specify your destination port. Additionally, providing your industrial voltage requirements and workpiece dimensions will help us ensure the machine is compatible with your local standards.
Are the machines certified for international standards?
Yes, our machines come with major international certifications including CE, GS, and ISO 9001, ensuring compliance with global safety and quality standards.
