Customization: Available
After-sales Service: 2 Years
Warranty: 2 Years
Send Inquiry

Product Description

Overview & Basic Information

Model NO.
X6336CW
Type
Tool Milling Machine
Structure
Rocker
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
Precision
Table Stroke (X/Y/Z)
1000mm / 320mm / 450mm
Spindle Taper
ISO140
Certification
GS, CE, ISO 9001
HS Code
8458110090

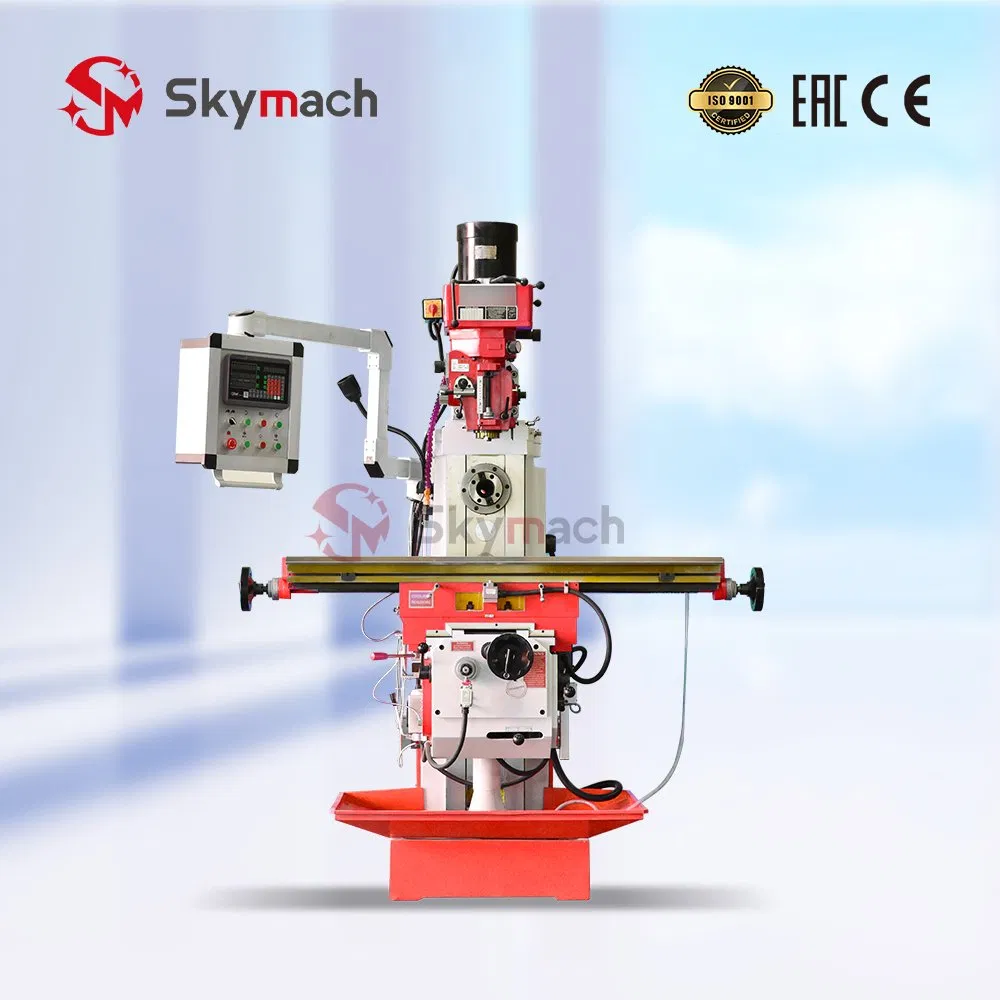

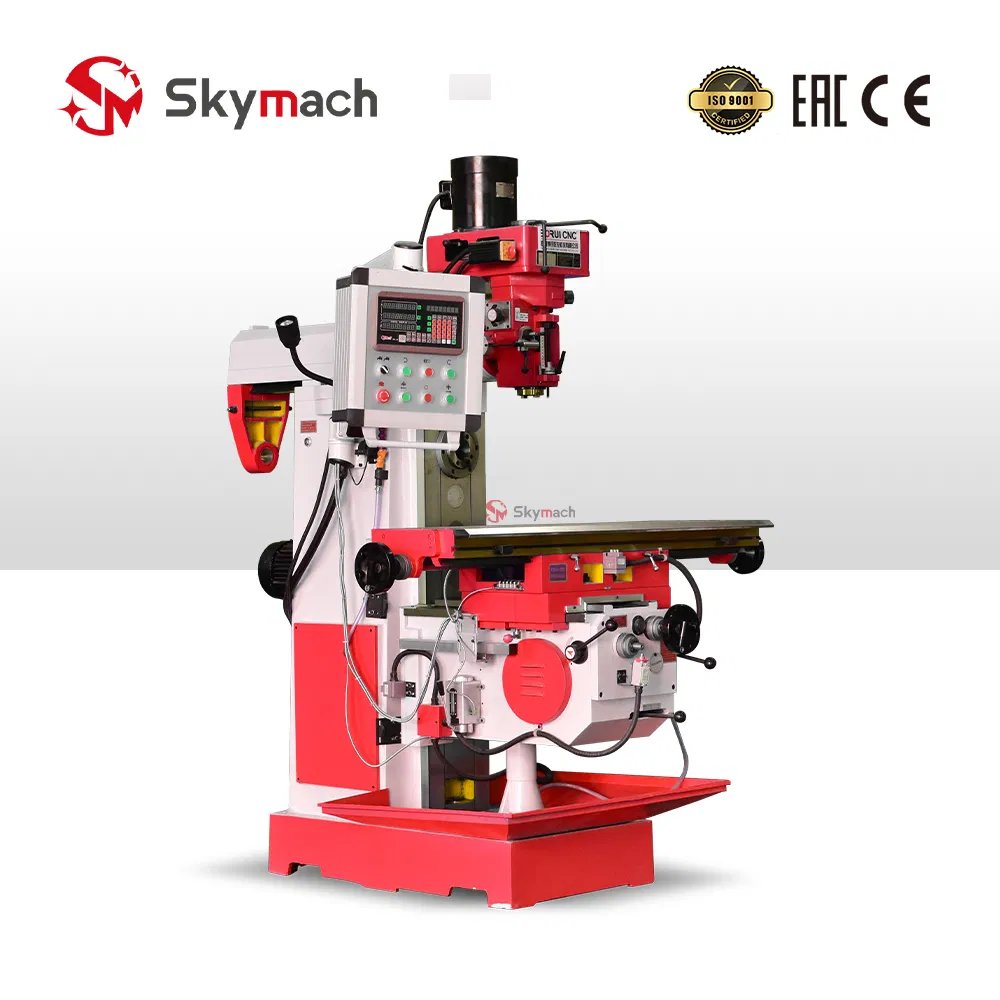

Universal Vertical Bed Type Milling Machine X6336CW

High Precision Manual Milling Machine with Ground Ball Screws and Dovetail Slides for Accurate Toolroom, Prototype, and Light Production Work.

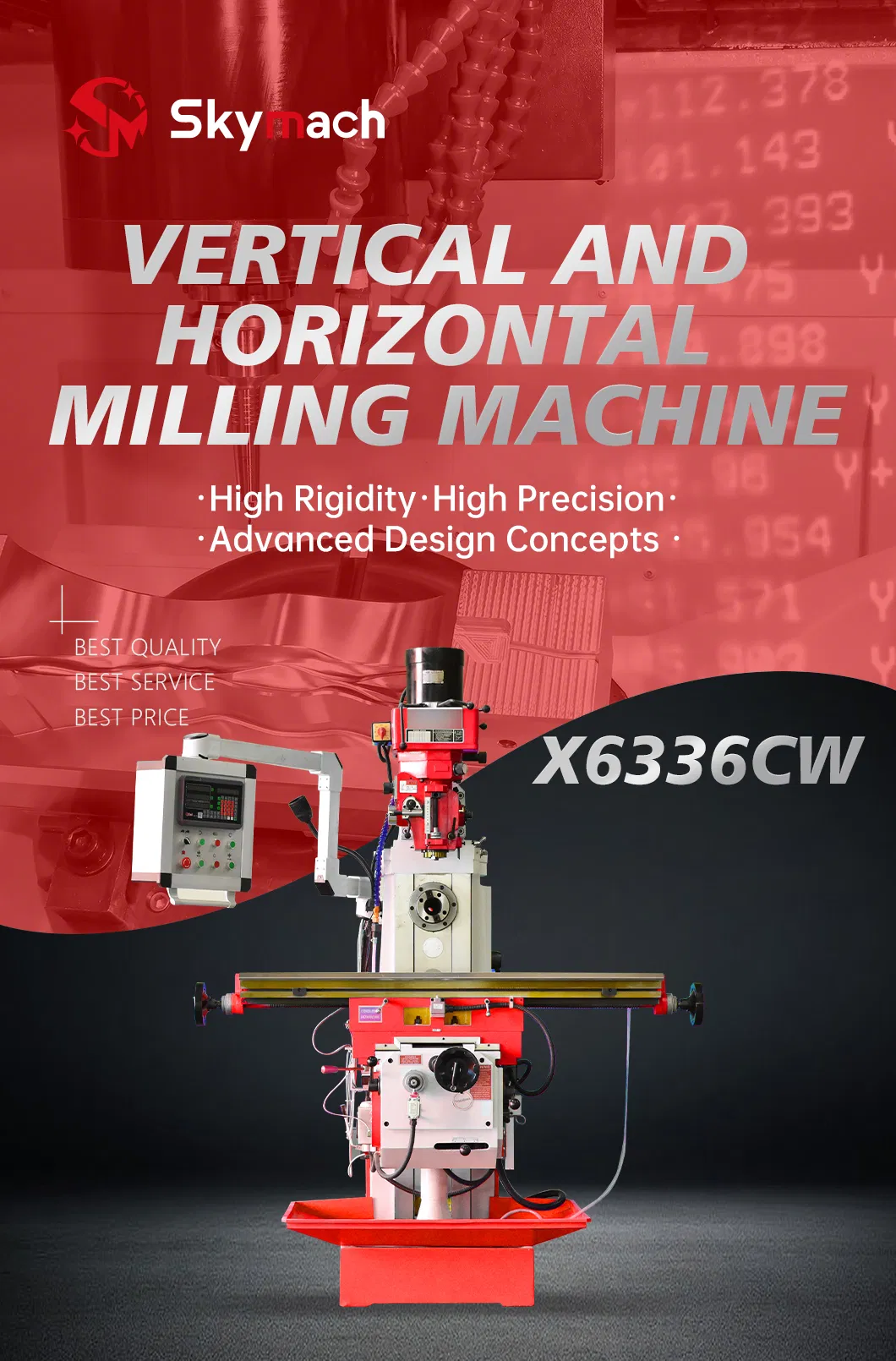

X6336cw High Precision Manual Milling Machine
X6336cw Milling Machine Details

Product Parameters

Spindle Taper7:24 ISO 40 vertical / 7:24 ISO 50 horizontal
Milling Head TiltLeft/Right: 90 degree
Dist. Horizontal Axis Center to Worktable0-400 mm
Spindle Speed Range(Level 16) 60-4540 (vertical) / (Level 12) 60-1800 (horizontal)
Worktable Size1500 × 360 mm
Worktable Stroke1000 / 320 / 400 mm
Main Motor Power3.7 kw (Vertical) / 4 kw (Horizontal)
Dimensions2220 × 1790 × 2360 mm
Net / Gross Weight2340 kg / 2500 kg

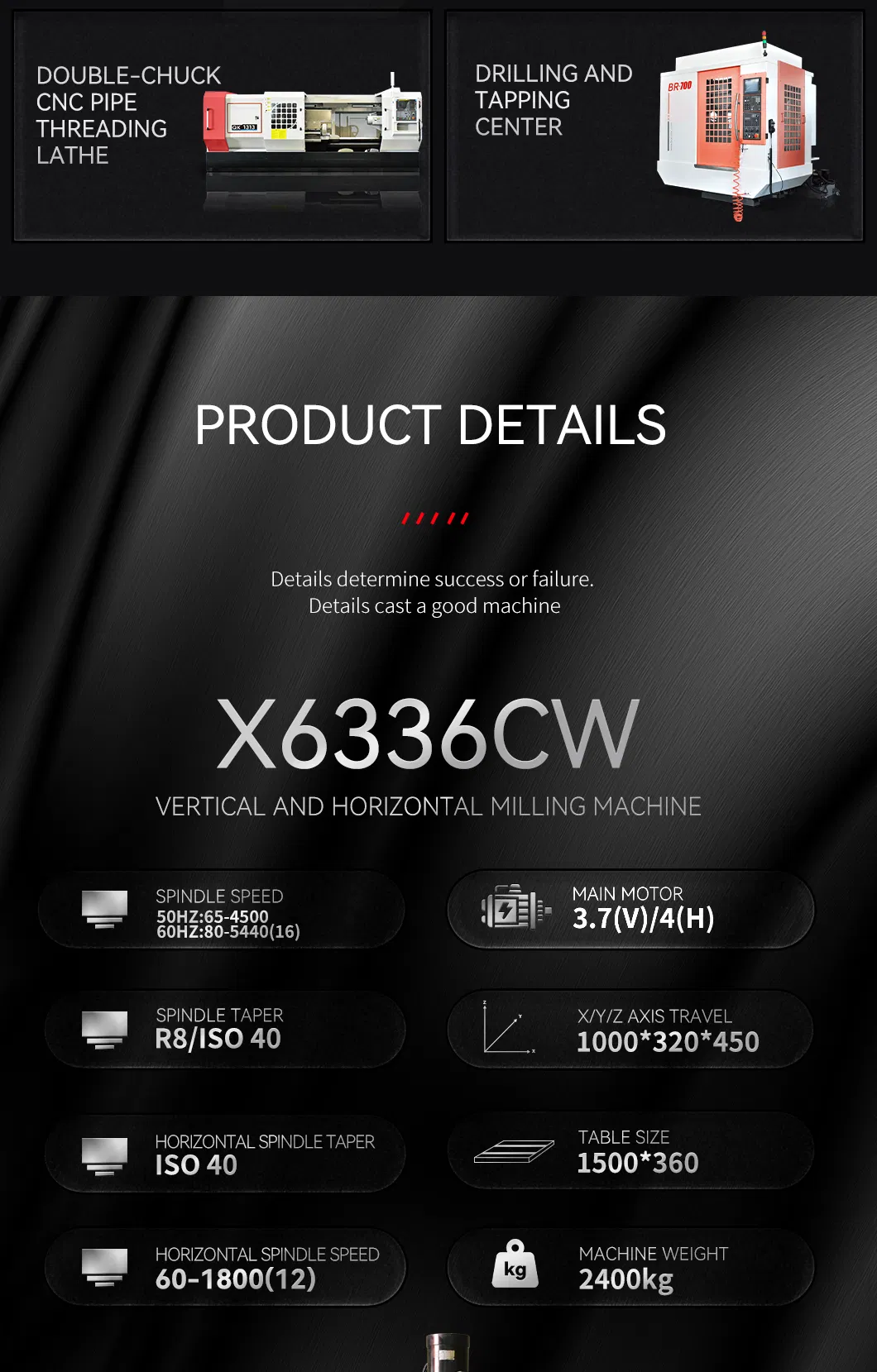

Milling Machine Part 1

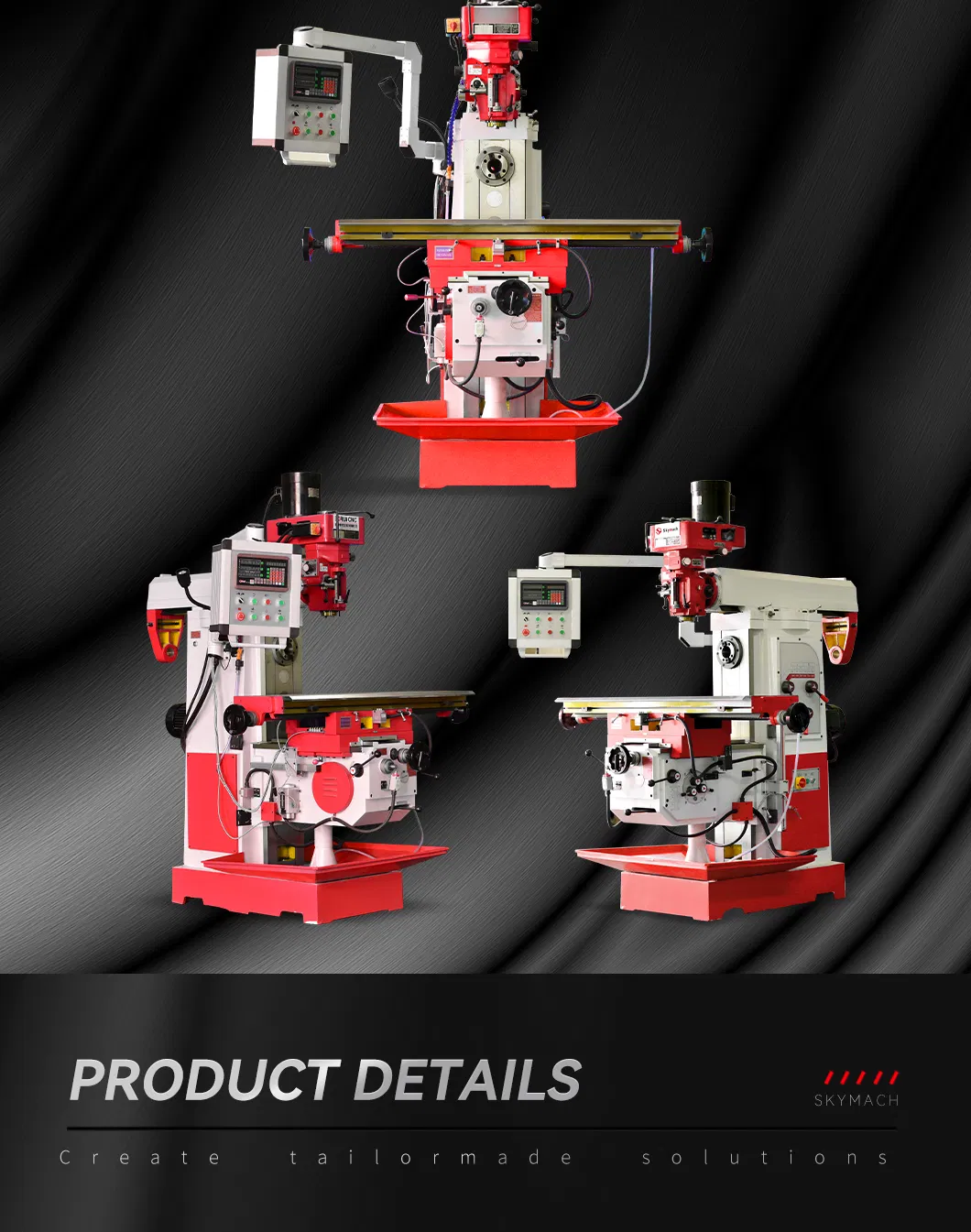

Milling Machine Part 2

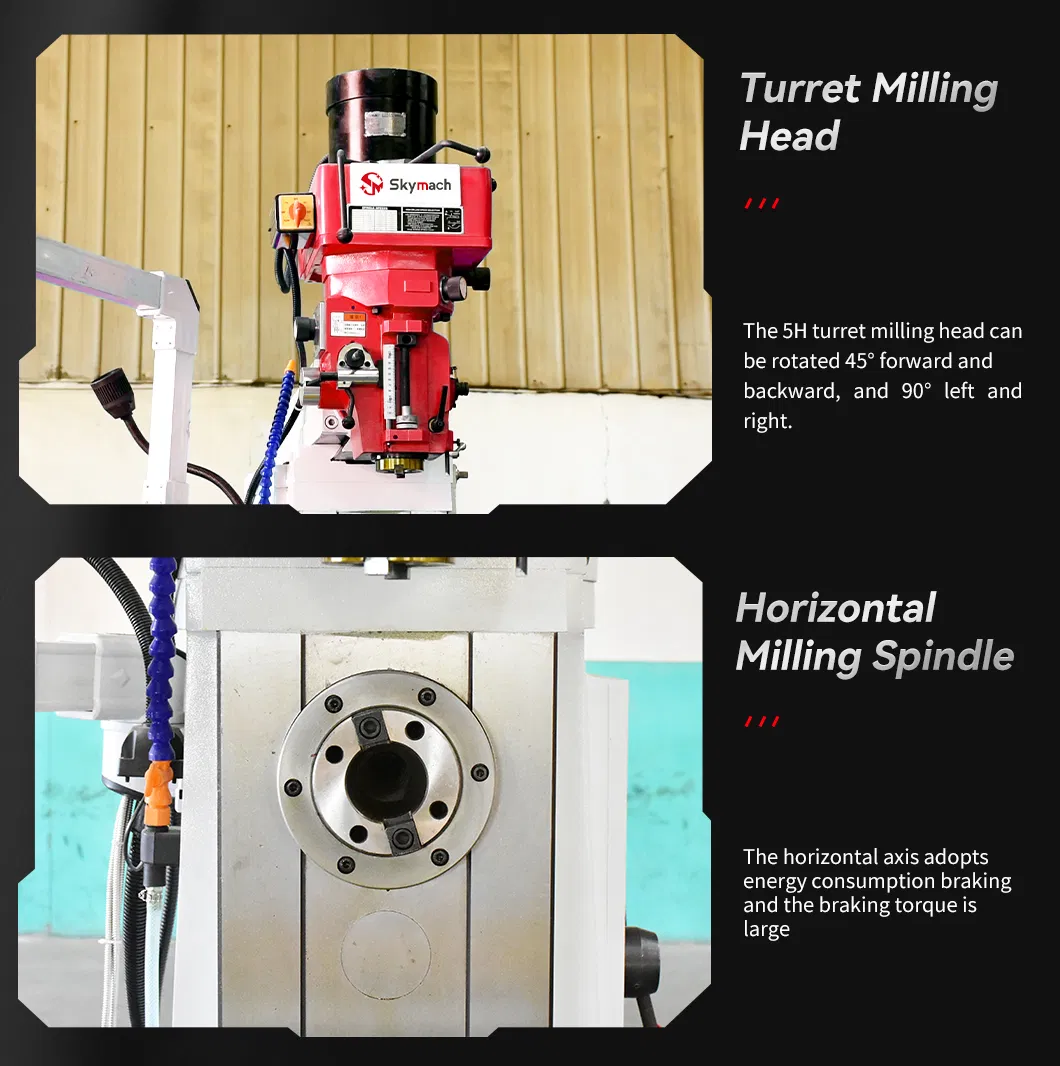

Milling Machine Part 3
Milling Machine Part 4
Milling Machine Part 5
Milling Machine Part 6
Milling Machine Part 7
Milling Machine Part 8
Milling Machine Part 9
Milling Machine Full Overview

Frequently Asked Questions

1. How can I choose the most suitable machine?
Please provide your technical specifications or product drawings. We will evaluate your requirements and recommend the most suitable model for your specific production needs.
2. What types of machines are available in your range?
We specialize in a wide range of industrial machinery, including CNC Lathes, CNC Milling Machines, Vertical Machining Centers, Drilling Machines, Radial Drilling Machines, Sawing Machines, and Shapers.
3. What are the standard trade and payment terms?
We accept FOB, CFR, and CIF trade terms. For payment, we typically require a 30% initial deposit upon ordering, with the 70% balance due before shipment. Irrevocable LC at sight is also accepted.
4. What is the Minimum Order Quantity (MOQ)?
The standard MOQ is 1 set for most machinery. Some low-cost auxiliary machines may require a higher quantity.
5. What information is required for an accurate evaluation?
To provide the best recommendation, please inform us of your industrial voltage, the dimensions and material of your workpiece, and your preferred destination port if a CIF price is required.
