High Precision Surface Grinding Machine for Toolroom and Mold Manufacturing
High Precision Surface Grinding Machine for Toolroom and Mold Manufacturing
High Precision Surface Grinding Machine for Toolroom and Mold Manufacturing
High Precision Surface Grinding Machine for Toolroom and Mold Manufacturing
High Precision Surface Grinding Machine for Toolroom and Mold Manufacturing
1 / 5
High Precision Surface Grinding Machine for Toolroom and Mold Manufacturing
High Precision Surface Grinding Machine for Toolroom and Mold Manufacturing
High Precision Surface Grinding Machine for Toolroom and Mold Manufacturing
High Precision Surface Grinding Machine for Toolroom and Mold Manufacturing
High Precision Surface Grinding Machine for Toolroom and Mold Manufacturing

High Precision Surface Grinding Machine for Toolroom and Mold Manufacturing

Customization: Available
Type: Surface Grinding Machine
Processing Object: Gear
Send Inquiry

Product Description

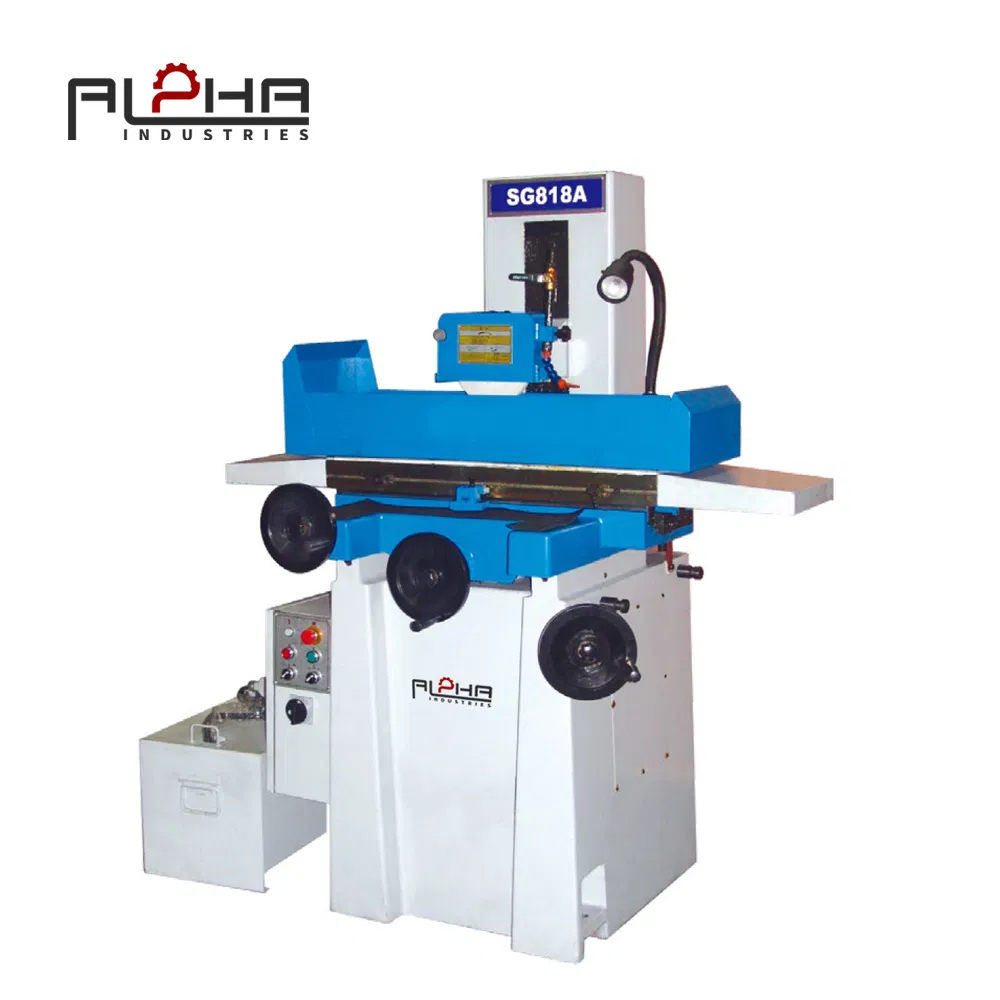

Surface Grinding Machine View 1

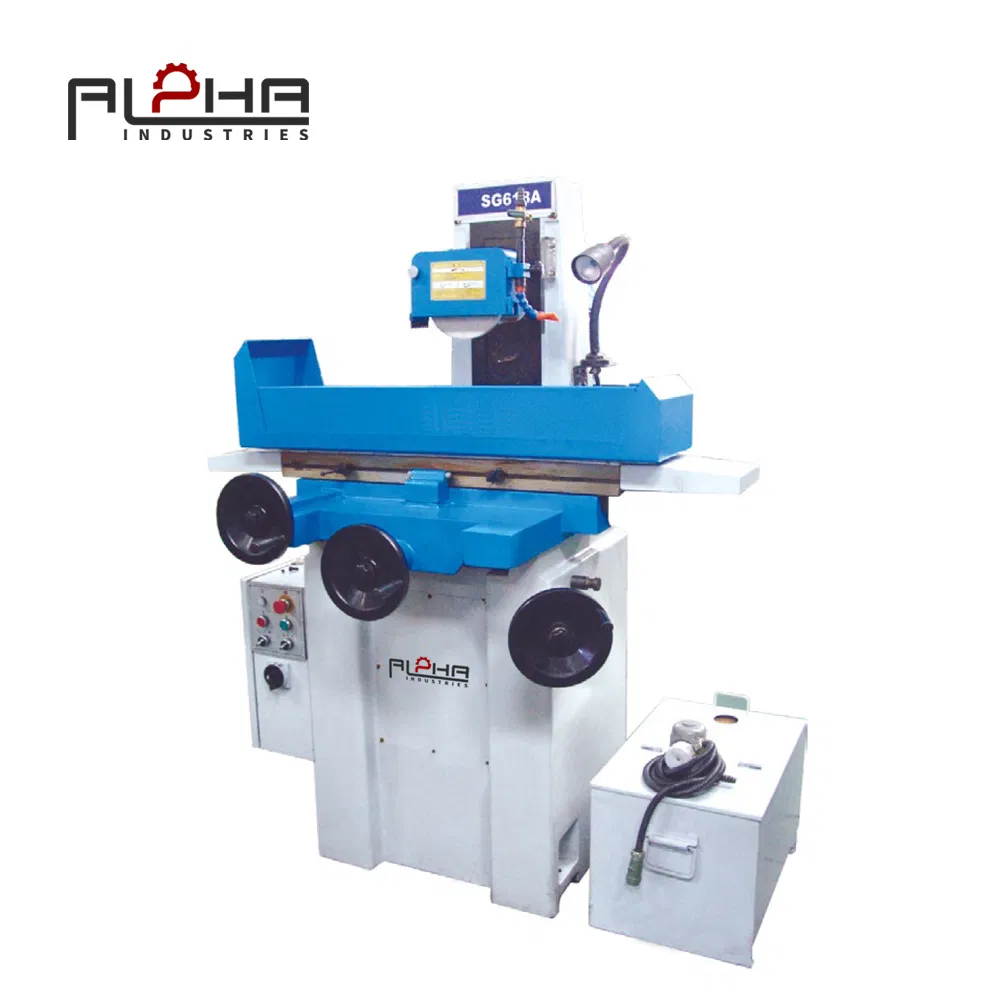

Surface Grinding Machine View 2

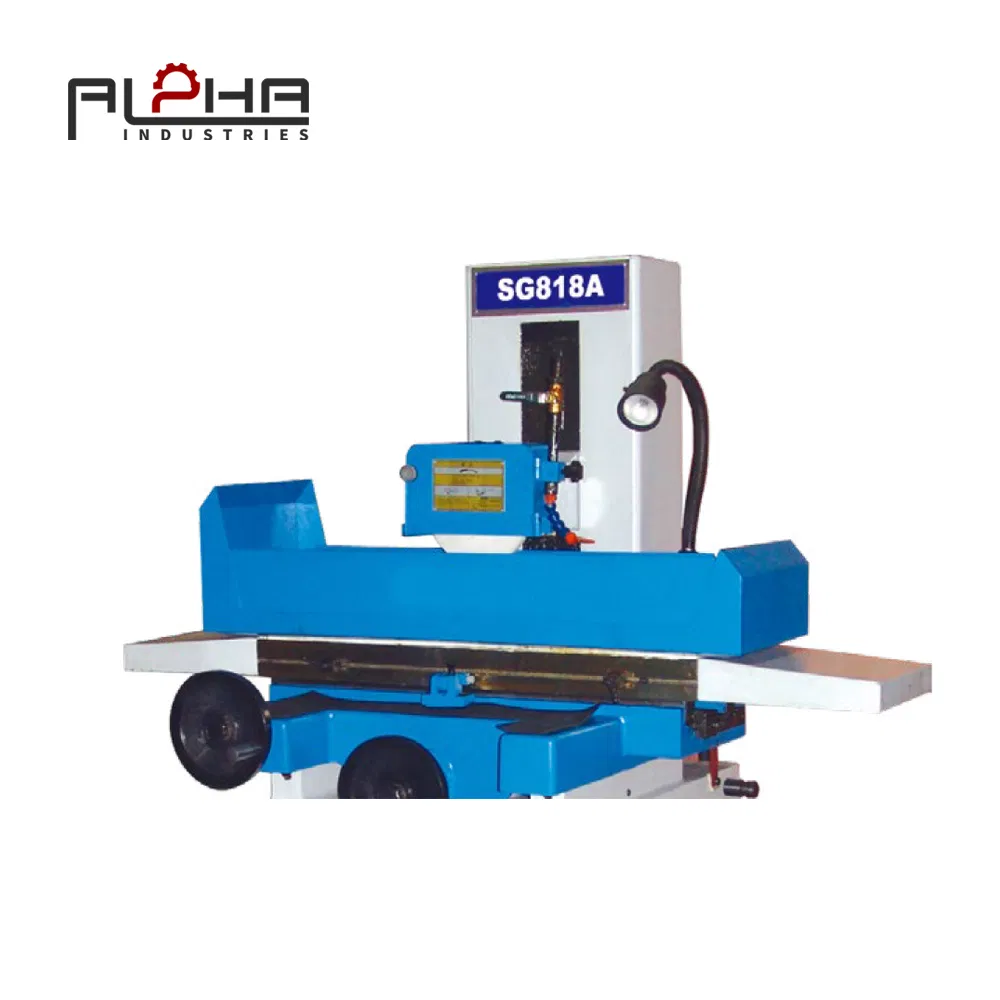

Surface Grinding Machine View 3
📋 Basic Info.
Model NO.
SG818A
Abrasives
Grinding Wheel
Controlling Mode
PLC
Automatic Grade
Semiautomatic
Grinder Type
Surface Grinder
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Specification
1400x1120x1985mm
Origin
China
Capacity
200 Sets/Year
⚙ Product Parameters
Model No. Unit SG618A SG818A
Max. width to be groundmm165220
Max. length to be groundmm470470
Max. height to be groundmm350350
Work table sizemm155×460210x450
Permanent magnetic chuck sizemm150×400200x450
Max. longitudinal travelmm500500
Max. cross travelmm185240
Max. distance from spindle to tablemm450450
Feed of vertical handwheel-1 per rev.1 per rev.
Grinding wheel size (ODxWxlD)mm200×13×31.75200x13x31.75
Spindle speedr/min3450(60Hz)/2850(50Hz)3450(60Hz)/2850(50Hz)
Power of spindle headkw1.51.5
Max. load capacitykg97128
Packing sizemm1340×1120×19301400x1120x1985
N.W.kg720800
🔍 Standard Accessories
Wheel Balancing Arbor Hoisting Set Spanner Wheel Chuck Wheel Dresser Levelling Screw & Block Tool Box & Wrench Halogen Lamp Coolant System
✚ Optional Accessories
Permanent Magnetic Chuck Dust Collector Wheel Balancing Stand Cooling and Dust Collecting Equipment
🏭 Profile & Manufacturing
Manufacturing Facility 1

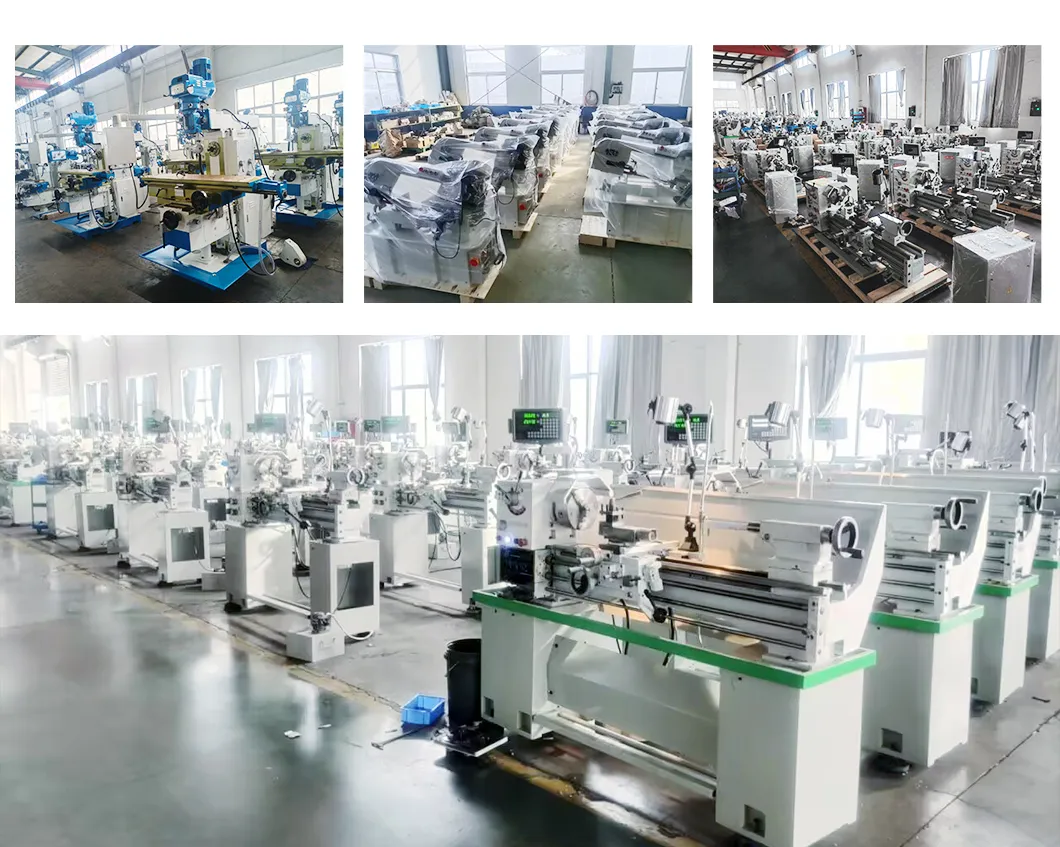

Manufacturing Facility 2
Manufacturing Facility 3
🎖 Certifications
Certificates
🎏 Exhibition

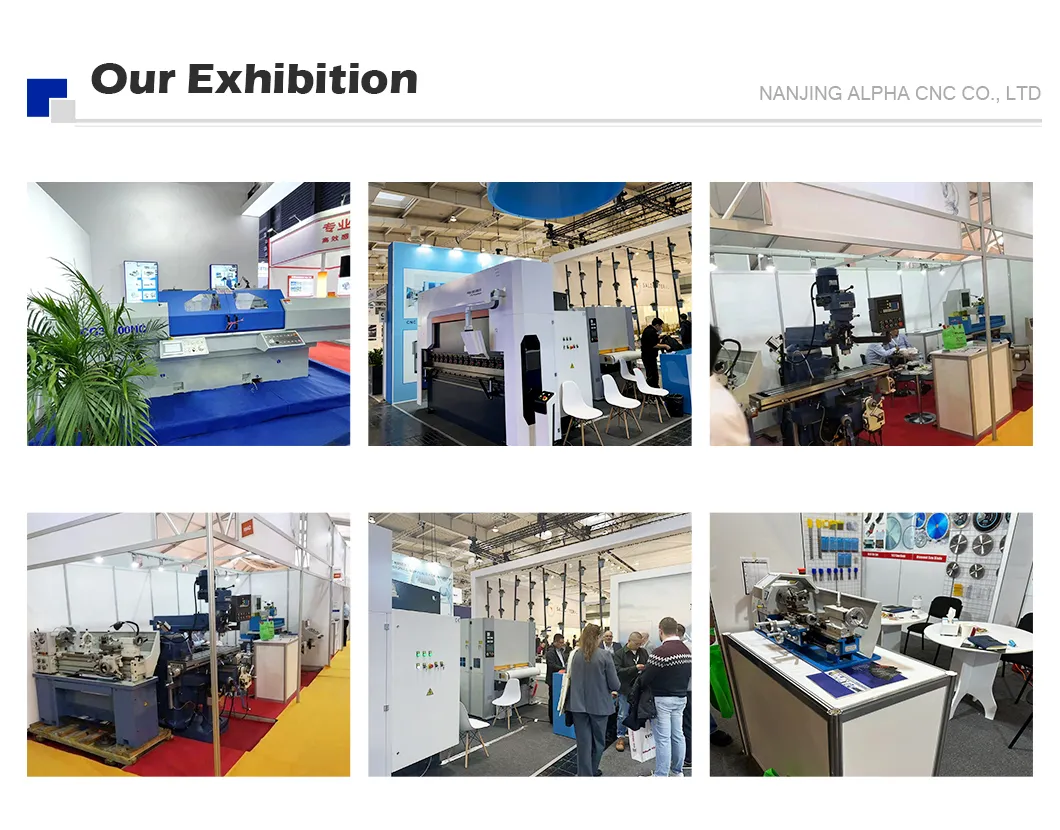

Exhibition Presence
📦 Packaging & Shipping

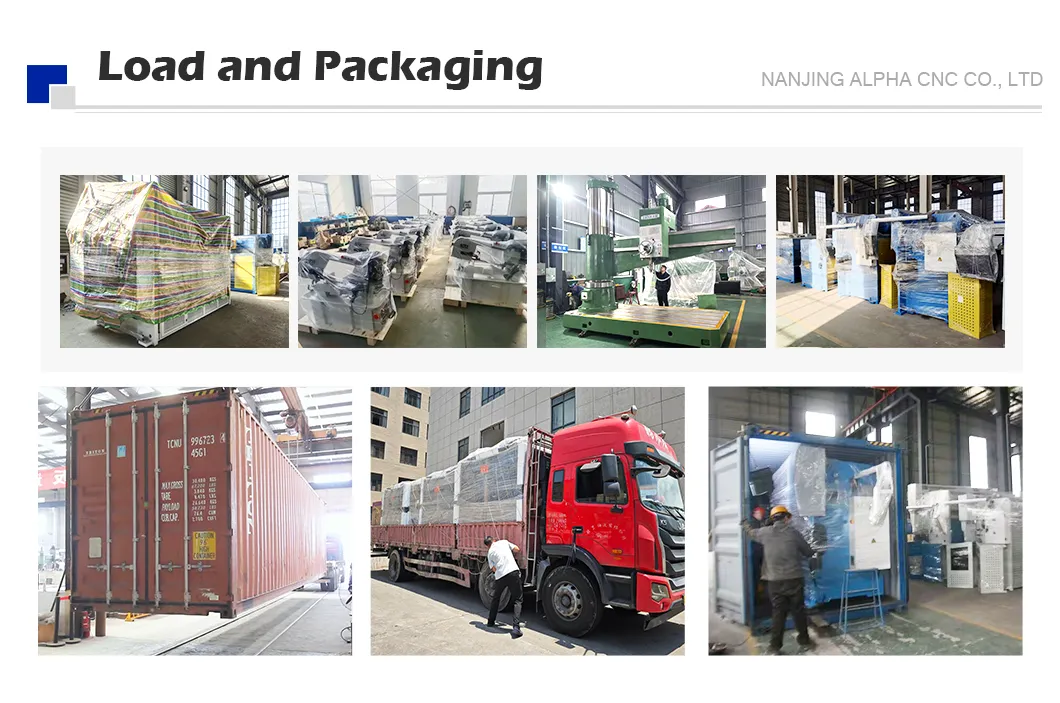

Packaging Detail
❓ FAQ
Q1: How is the warranty?
A1: Warranty time is 15 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure. All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: We have stock for popular models, we produce according to order.
Q4: What's the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system, ISO14001 Environmental management system, and OHSAS18001. Most products meet European and American safety standards, including CE, GS, EMS & UL. 90% of our products are exported to more than 40 countries, winning a high reputation.
Q6: Can you provide customized machines?
A6: Yes, we can design and manufacture according to your specific requirements.
