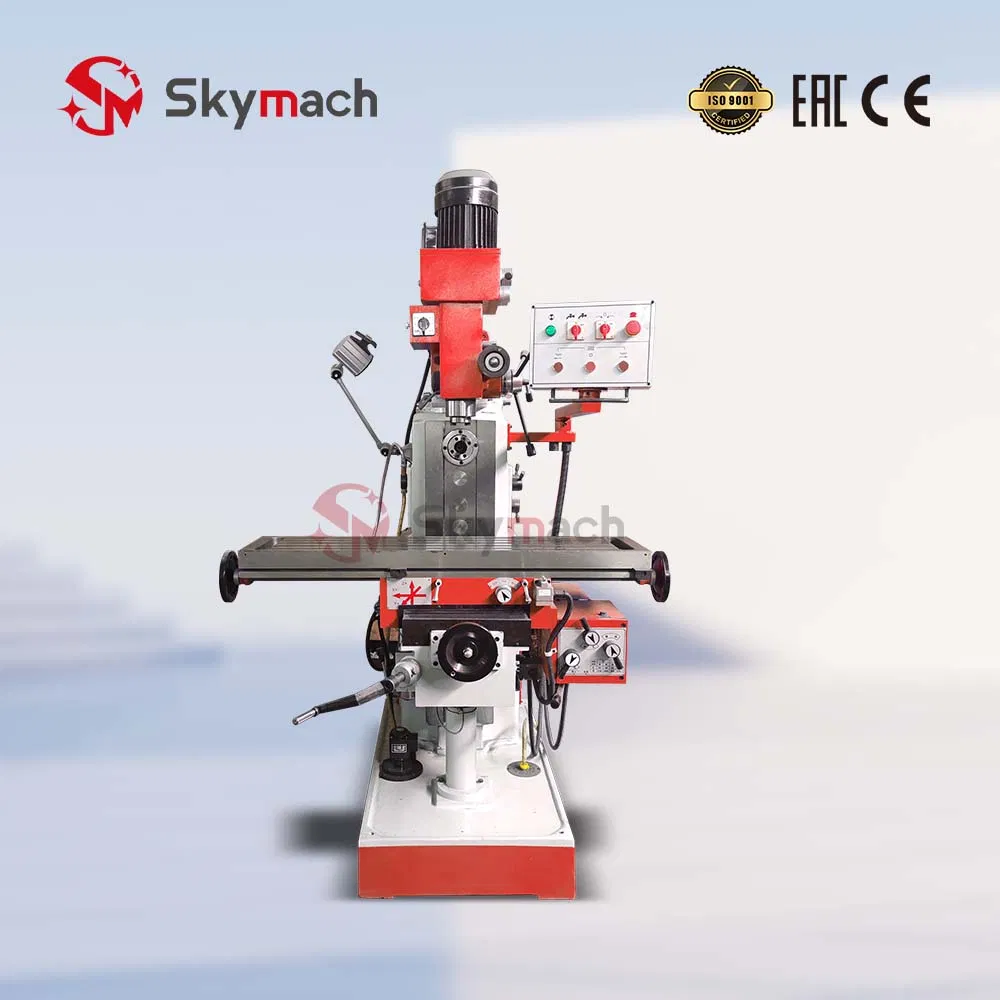

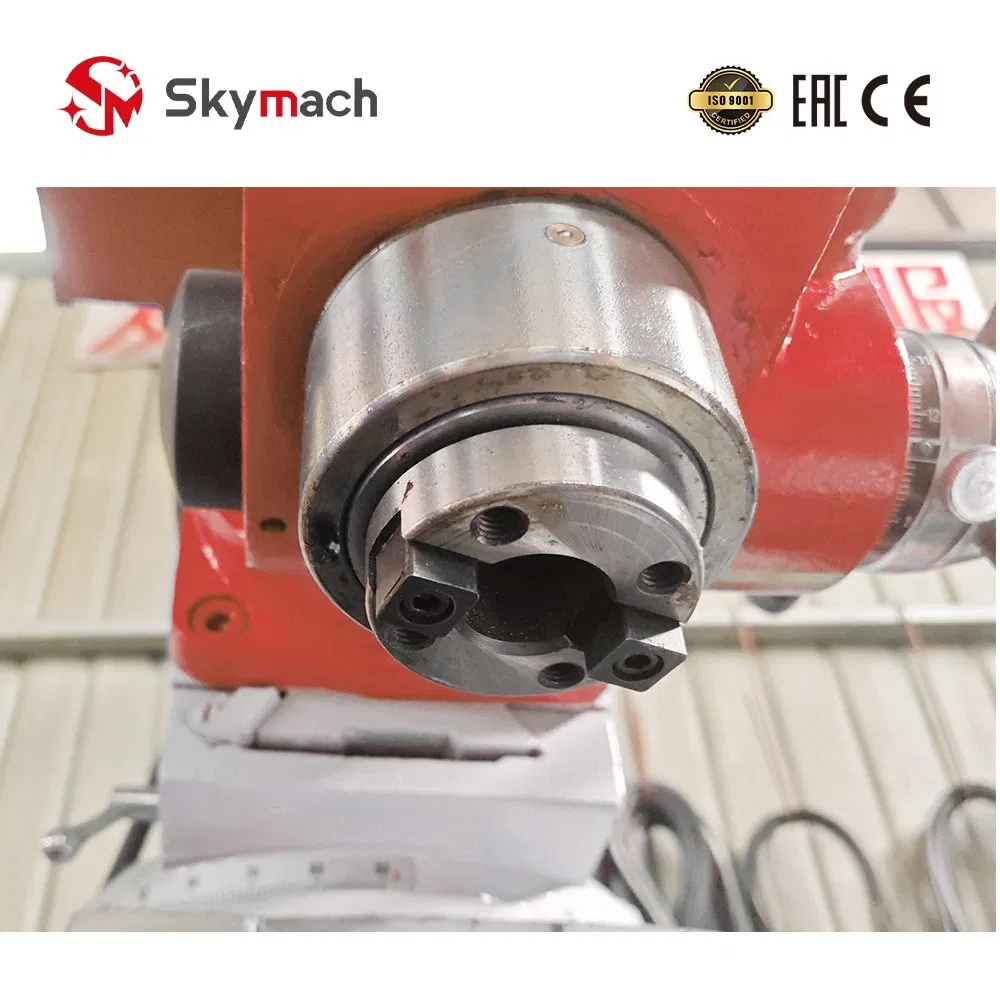

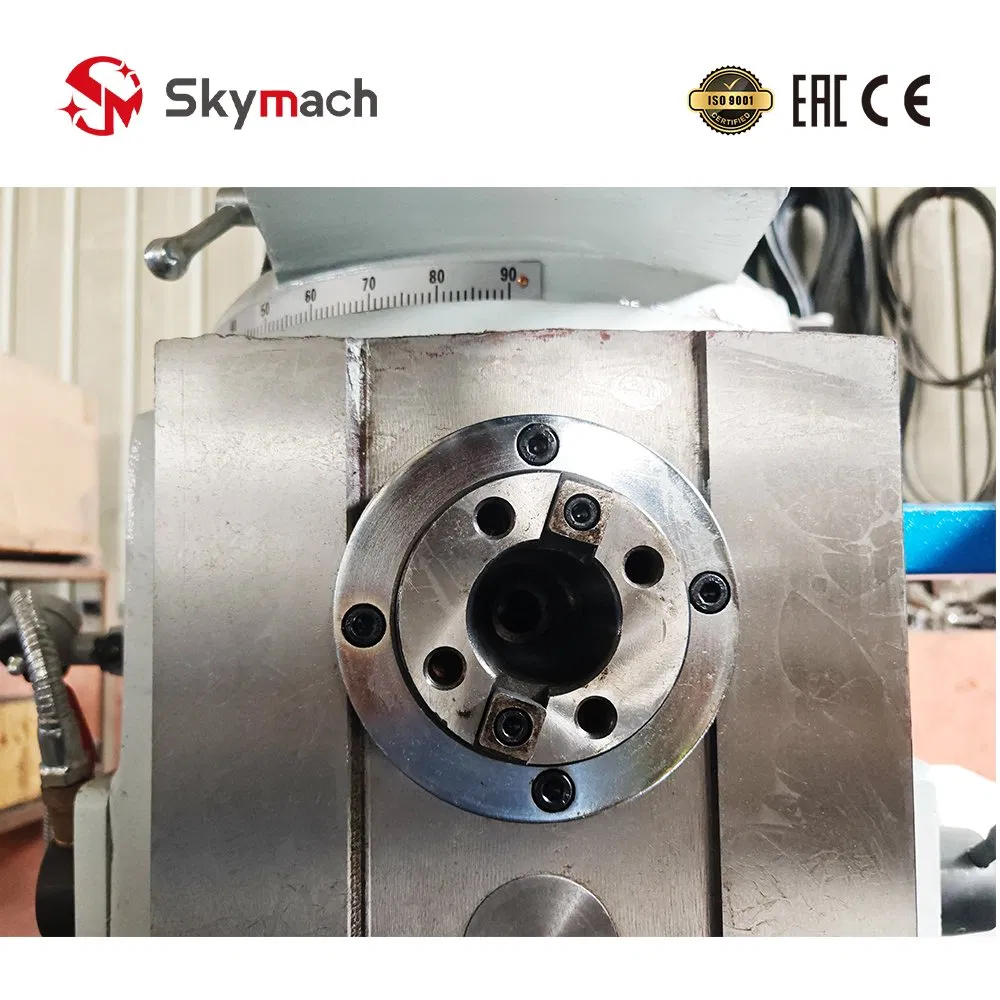

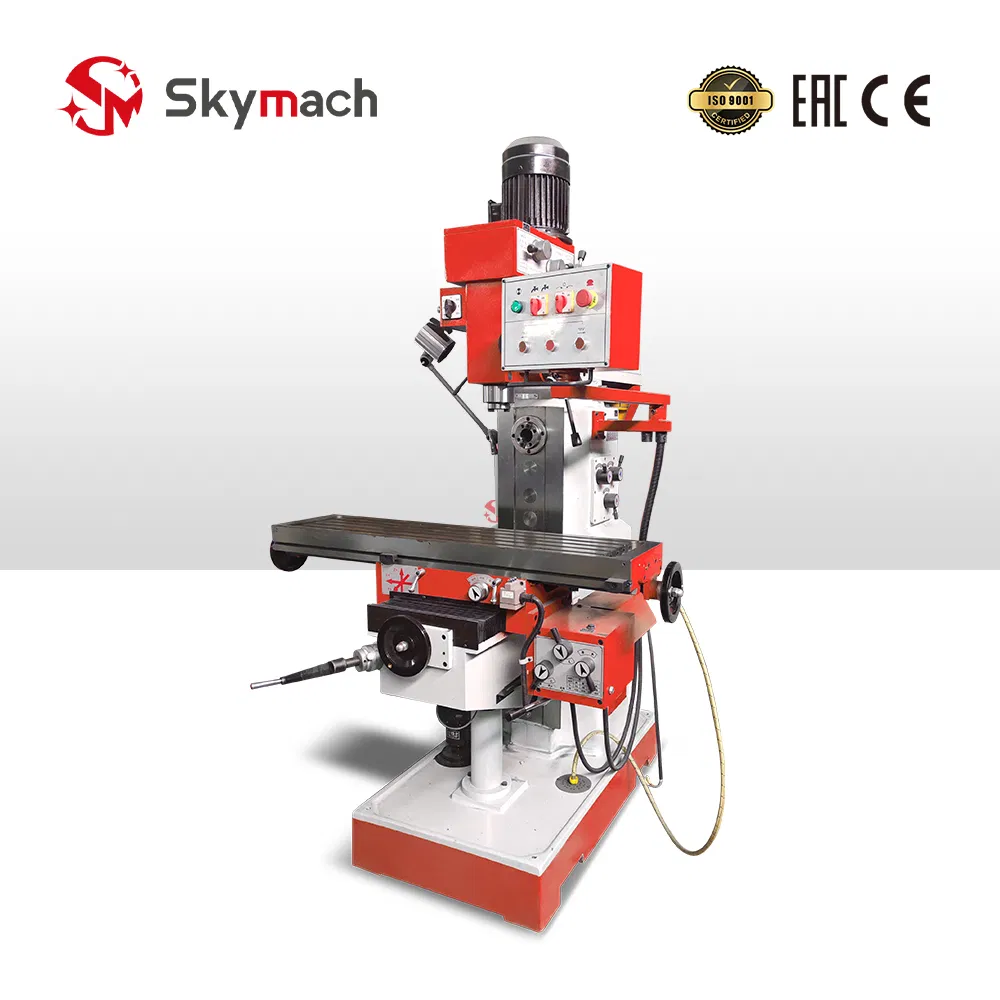

Zx6350 Industrial Mill Drill Machine Featuring R8 Spindle, Dovetail Column and Variable Speed for Workshop Toolroom
Zx6350 Industrial Mill Drill Machine Featuring R8 Spindle, Dovetail Column and Variable Speed for Workshop Toolroom
Zx6350 Industrial Mill Drill Machine Featuring R8 Spindle, Dovetail Column and Variable Speed for Workshop Toolroom
Zx6350 Industrial Mill Drill Machine Featuring R8 Spindle, Dovetail Column and Variable Speed for Workshop Toolroom
Zx6350 Industrial Mill Drill Machine Featuring R8 Spindle, Dovetail Column and Variable Speed for Workshop Toolroom
1 / 5
Zx6350 Industrial Mill Drill Machine Featuring R8 Spindle, Dovetail Column and Variable Speed for Workshop Toolroom
Zx6350 Industrial Mill Drill Machine Featuring R8 Spindle, Dovetail Column and Variable Speed for Workshop Toolroom
Zx6350 Industrial Mill Drill Machine Featuring R8 Spindle, Dovetail Column and Variable Speed for Workshop Toolroom
Zx6350 Industrial Mill Drill Machine Featuring R8 Spindle, Dovetail Column and Variable Speed for Workshop Toolroom
Zx6350 Industrial Mill Drill Machine Featuring R8 Spindle, Dovetail Column and Variable Speed for Workshop Toolroom

Zx6350 Industrial Mill Drill Machine Featuring R8 Spindle, Dovetail Column and Variable Speed for Workshop Toolroom

Customization: Available
After-sales Service: 2 Years
Warranty: 2 Years
Send Inquiry

Product Description

i

Basic Information

Model NO.
ZX6350
Type
Tool Milling Machine
Object
Tool
Structure
Dedicated
Milling Cutter Type
Vertical Milling Cutter
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Precision
High Precision
Condition
New
Spindle Taper
Mt4
Table Size
1120*280mm
Spindle Speed
115-1750(8setp)
D

Product Description

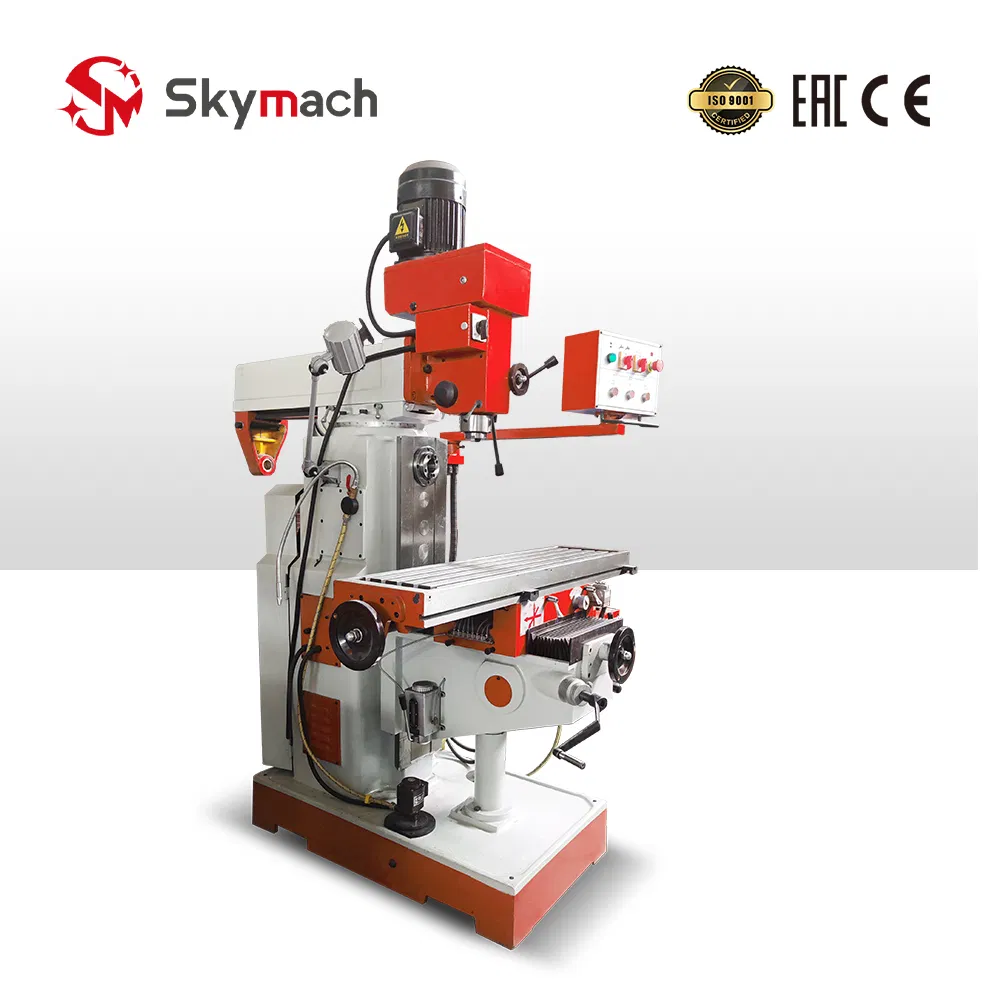

ZX6350 Manual Vertical Milling Machine

The spindle taper hole of the machine can directly or via attachments accommodate all cylindrical milling cutters, disc cutters, molding cutters, and end milling tools. It is ideal for processing various small parts involving planes, inclined planes, grooves, holes, and gears. This equipment is widely utilized in mechanical manufacturing, mold making, instrument production, and the automotive and motorcycle industries.

ZX6350 Vertical Milling Machine
Manual Milling Machine Features

Main Features

  • Milling head with micro-feed for precise drilling
  • Integrated milling and tapping functions
  • Worktable equipped with gear transmission power feed
  • Full-featured, flexible and easy to operate
  • Optional plug and swivel table compatibility

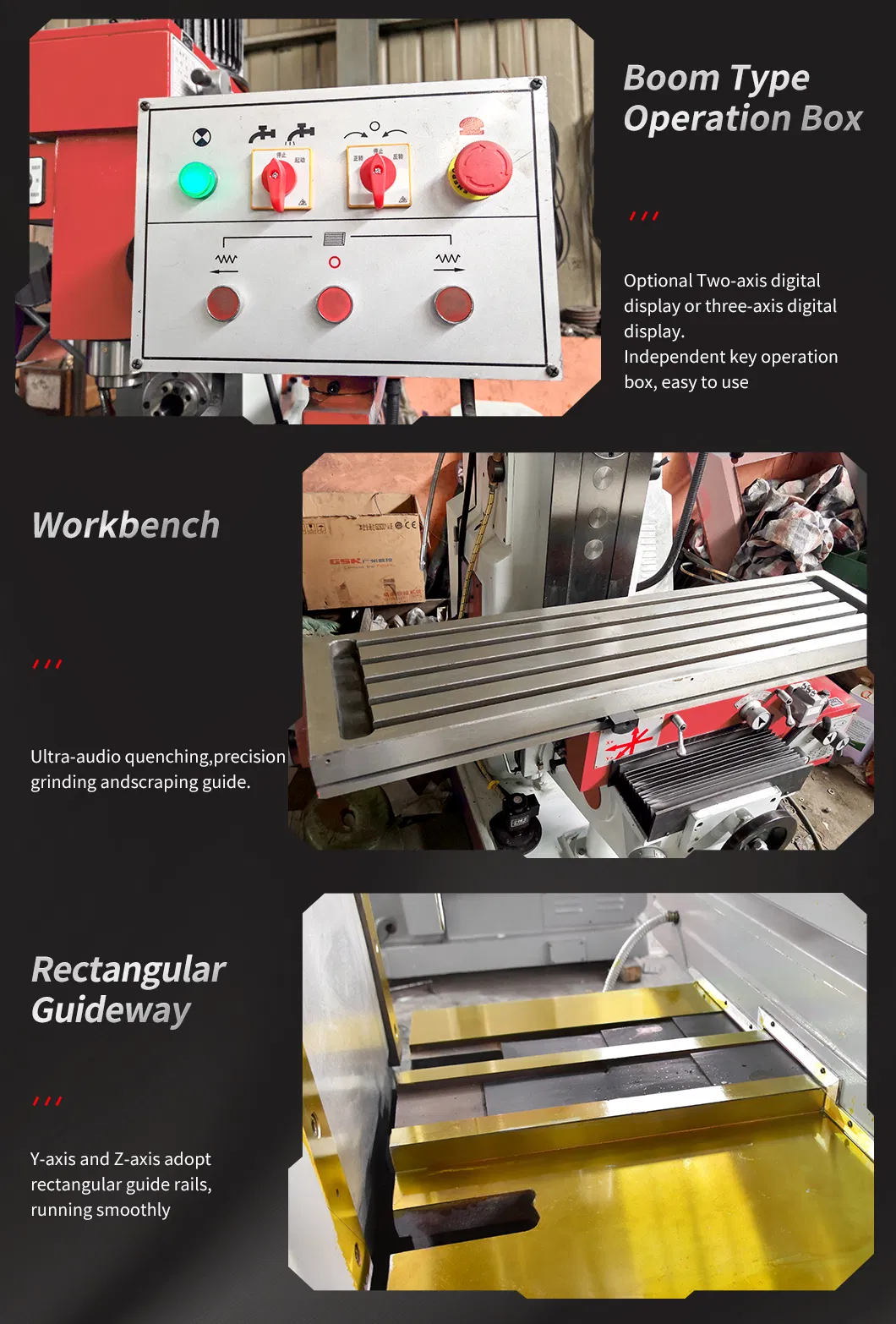

  • Surface and guideways hardened by Supersonic Frequency Quenching (2-4MM depth)
  • Table constructed from HT200-250 High Strength Cast Iron
  • Dovetail guideways for high overturning moment resistance
  • Robust Gear Drive Milling Head

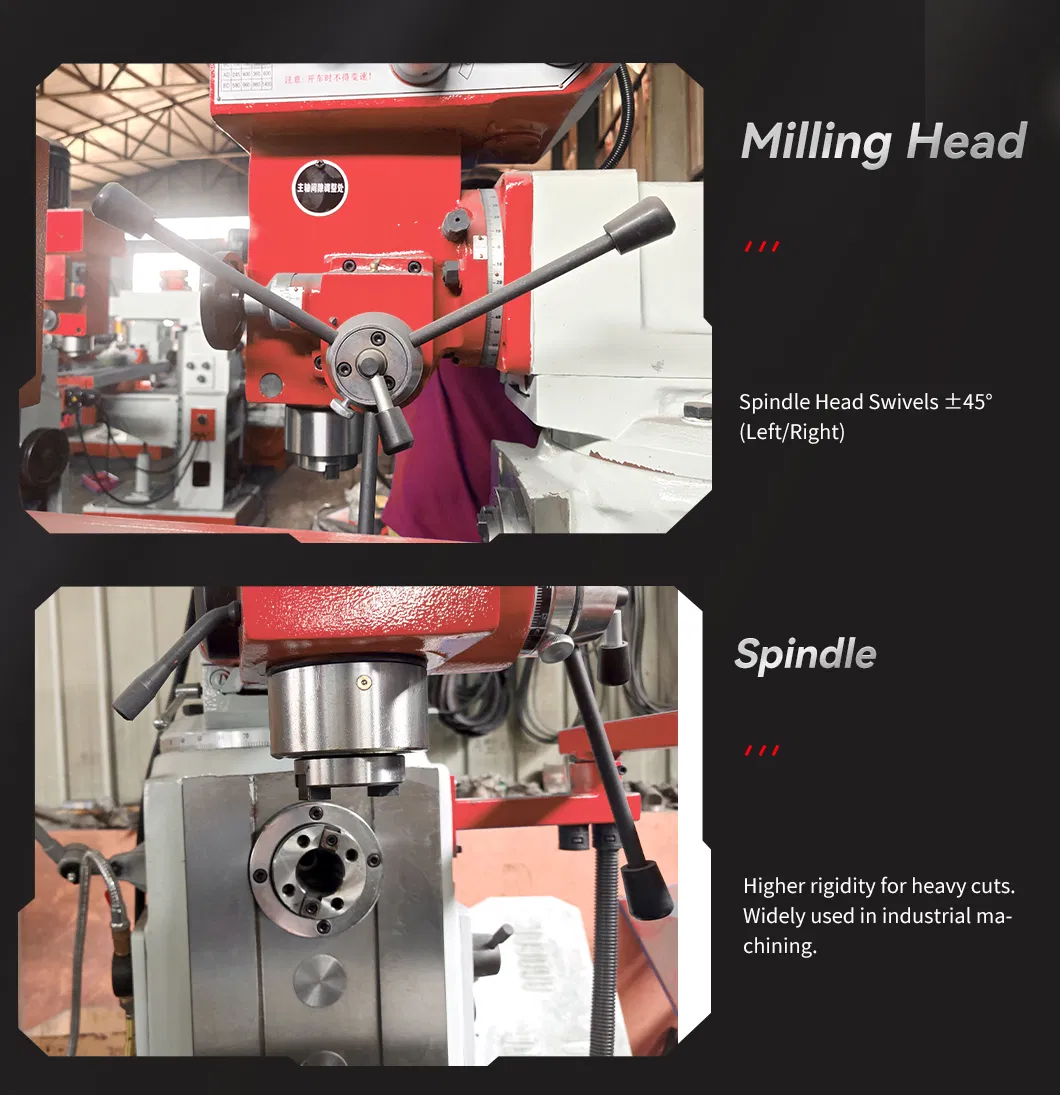

  • Headstock swivels ±45° for versatile machining
Industrial Mill Detail
P

Product Parameters

Specifications Units ZX6350C ZX6350D ZX6350S ZX6350ZA
Table sizemm1200x2801200x2801200x2801200x280
Table strokemm600x230600x230600x270600x270
Spindle travelmm120120120120
Max. drilling dia.mm50505050
Spindle speed rangerpm115-1750(V)115-1750(V)115-1750(V)115-1750(V)
Machine weightKg1350135015001500
A

Accessories

Standard Accessories

1. Drill chuck
2. Mill chuck
3. Inner hexagon spanner
4. Work light
5. Reduction sleeve
6. Draw bar
7. Spindle arbor
8. Wrench
9. Machine vice
10. Horizontal milling arbor

Optional Accessories

1. DRO on X,Y,Z-Axis
2. Clamping kit
3. Universal dividing head
4. Rotary work table

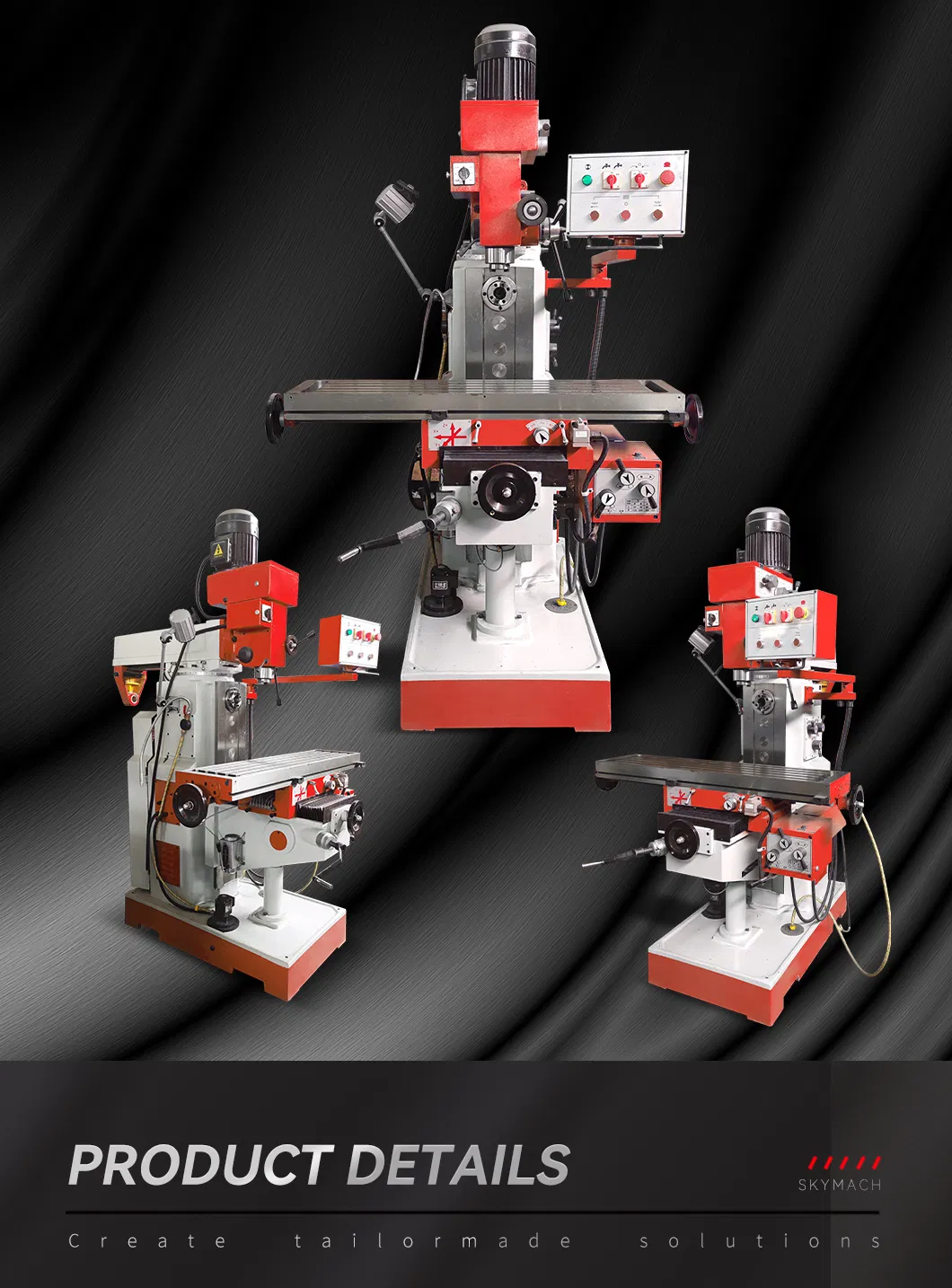

Standard Equipment
Workroom Setup
Milling Tool Details
Q

Manufacturing & Quality

  • Strict QC control with over 24 testing steps
  • Over 10 years of professional manufacturing experience
  • 7*24 technical support available
  • Products exported to Europe, America, Asia, and Africa
  • Compatible with SIEMENS, FANUC, SYNTEC, and GSK systems
  • Certified by CE, EAC, and ISO standards
  • 12-month standard warranty period
  • High-tech enterprise integrating R&D and international trade
  • Flexible customization to meet unique production needs
  • Strategic partnerships with top global component suppliers
Factory Testing
Precision Control
?

Frequently Asked Questions

1. How can I choose the most suitable machine?
Please provide your specific requirements or product drawings. Based on your technical specifications, we will recommend the best model or help you select the exact equipment for your needs.
2. What types of machines are available in your range?
We specialize in a wide variety of industrial machinery, including CNC Lathes, CNC Milling Machines, Vertical Machining Centers, Drilling Machines, Radial Drilling Machines, and Sawing Machines.
3. What are the accepted trade and payment terms?
We accept FOB, CFR, and CIF terms. Payment is typically handled via T/T (30% deposit, 70% balance before shipment) or Irrevocable LC at sight.
4. What is the Minimum Order Quantity (MOQ)?
The standard MOQ is 1 set. For certain low-cost auxiliary machines, the MOQ may vary, but for all primary milling machines, a single unit order is welcome.
5. Do you provide technical support for international customers?
Yes, we offer multilingual technical support and have a fast-response system for spare parts to ensure minimal downtime for your operations globally.
6. Is customization available for specific production needs?
Absolutely. We provide flexible customization options to ensure that the machine tool alignment, control systems, and accessories perfectly meet your unique production requirements.
