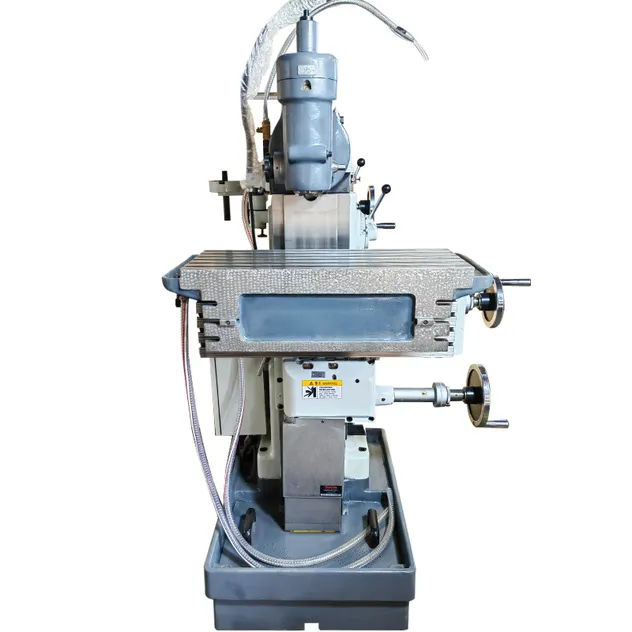

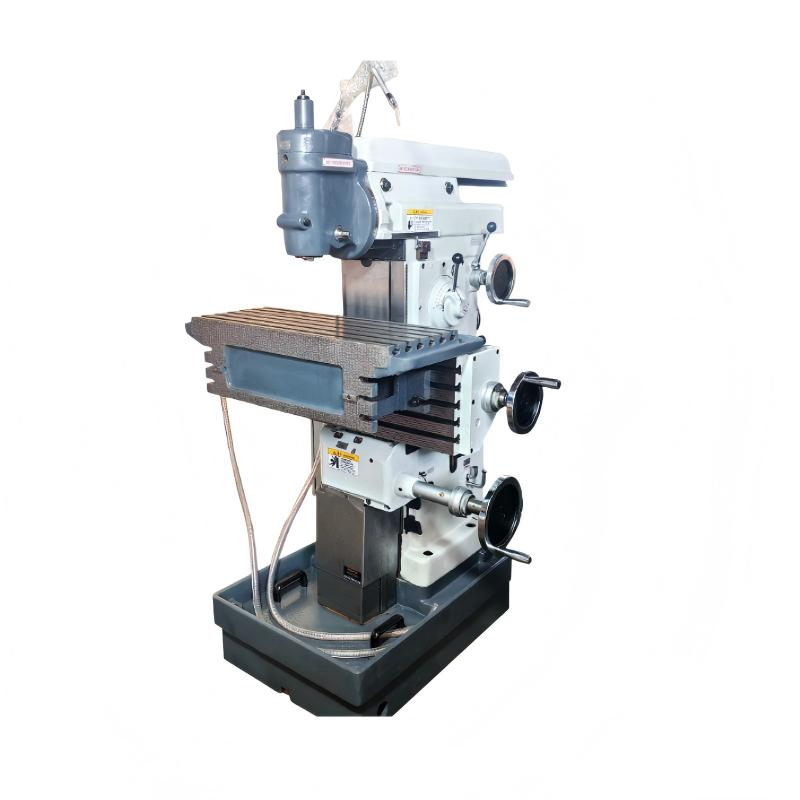

The X8126 universal tool milling machine is a compact and powerful metalworking machine designed for tool manufacturing, mold processing, mechanical repair, and small to medium-batch parts production. This machine integrates multiple functions such as vertical milling, horizontal milling, drilling, and boring, offering exceptional process adaptability and operational flexibility.

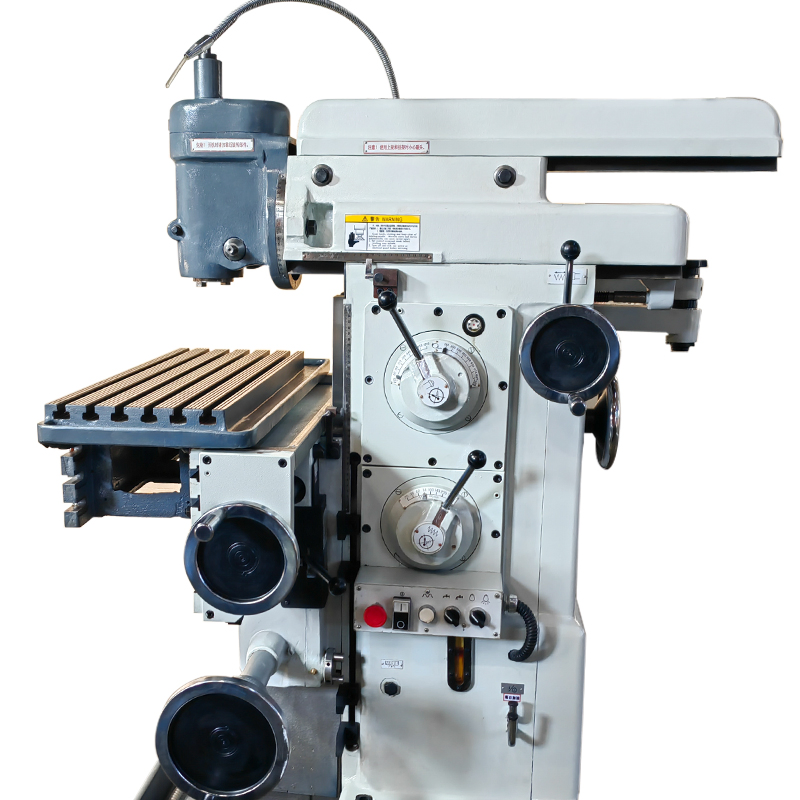

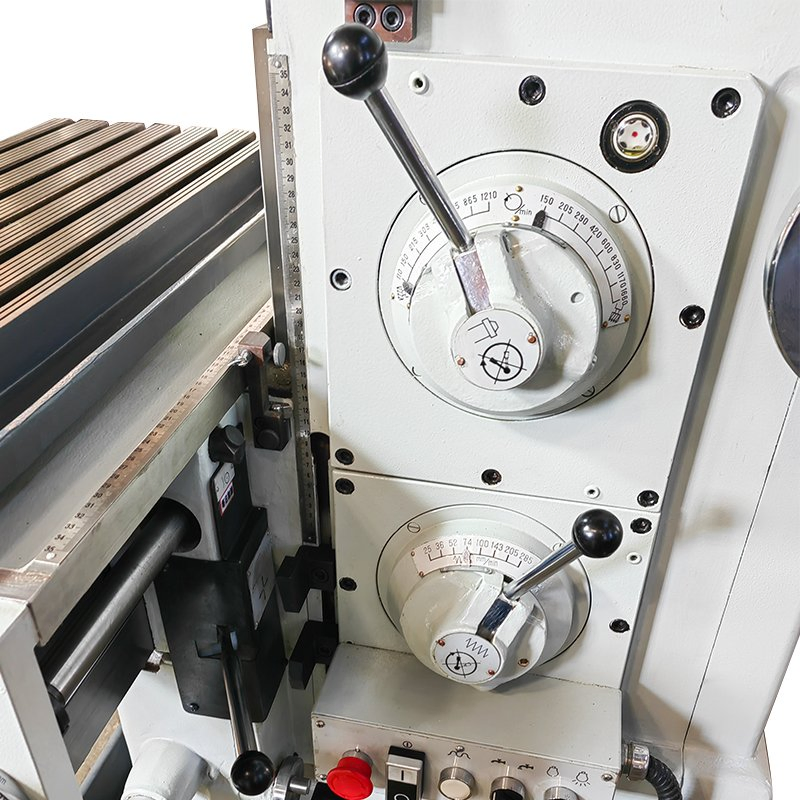

The control center of the milling machine's feed system, primarily used to adjust the feed speed and direction of the worktable. Features upper and lower dials for multi-stage feed speed switching.

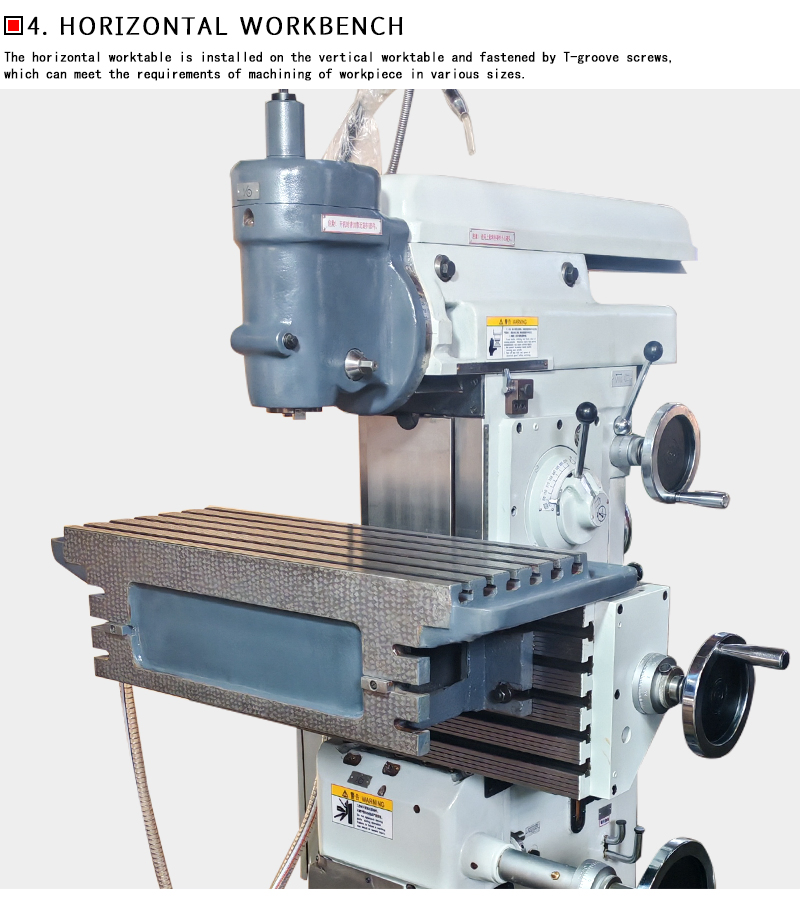

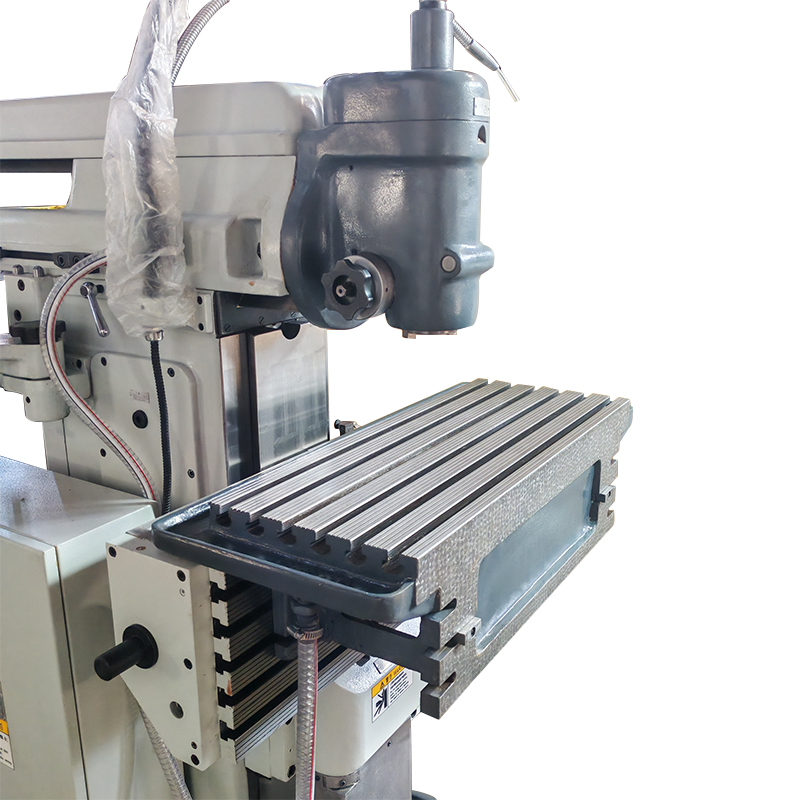

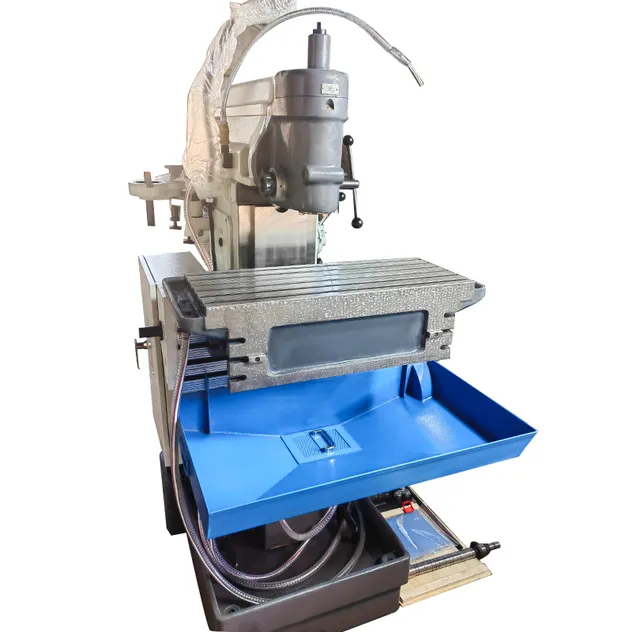

Equipped with T-slots for secure workpiece clamping. Supports manual or motorized feeding in longitudinal, transverse, and vertical directions for complex operations.

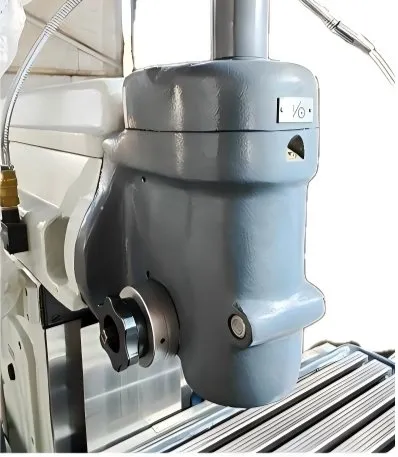

Supports vertical-horizontal conversion and ±45° angle adjustment. Enables processing at different angles for bevels and grooves with high-precision positioning.
| Parameter | Specification |
|---|---|
| Table longitudinal travel | 350 mm |
| Table vertical (lifting) travel | 350 mm |
| Number of table feed steps | 8 Steps |
| Table longitudinal & vertical feed range | 25–285 mm/min |
| Table rapid traverse rate | 1000 mm/min |
| Table size (Length × Width) | 750 × 260 mm |
| Spindle taper | 7:24 ISO40 |
| Spindle lateral movement stroke | 200 mm |
| Spindle speed range (Horizontal) | 110–1230 r/min |
| Spindle speed range (Vertical) | 150–1660 r/min |
| Main motor power | 3 kW |
| Overall Machine Dimensions | 1450 × 1445 × 1650 mm |
| Package Gross Weight | 1180.00 kg |
