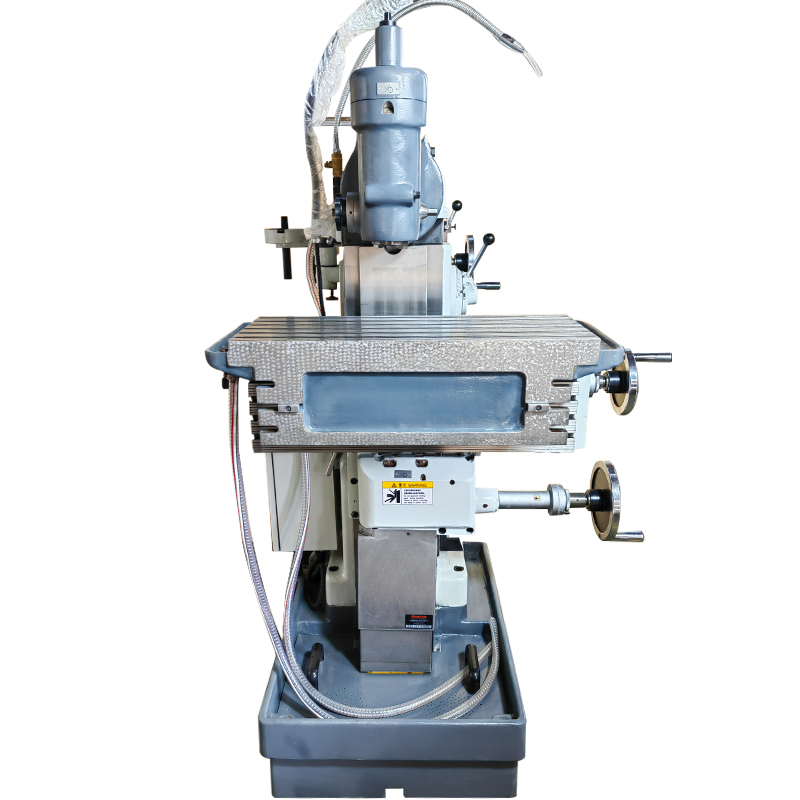

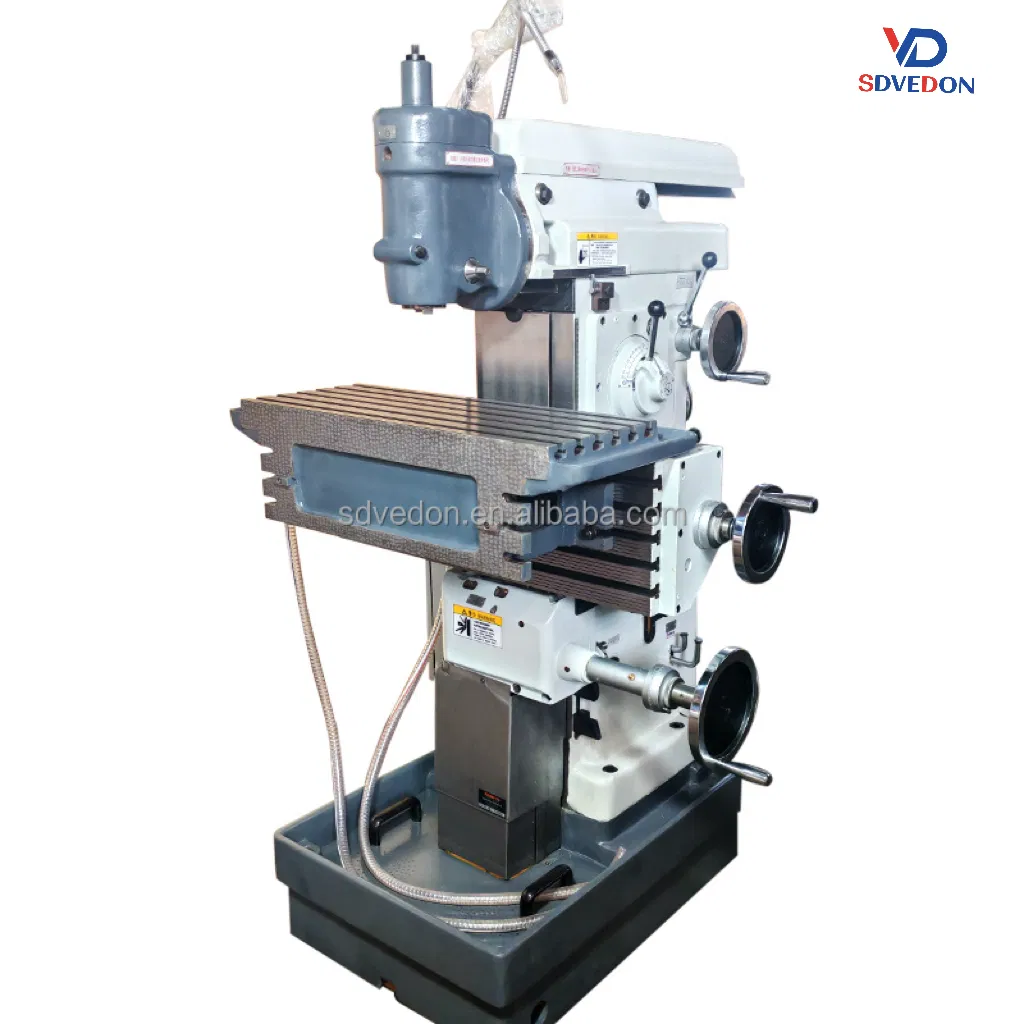

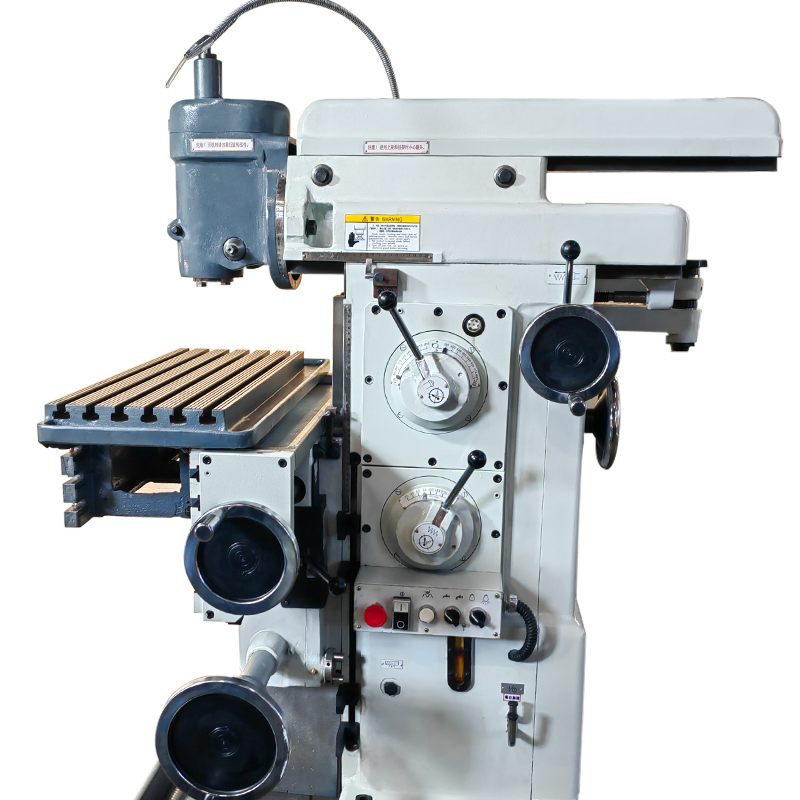

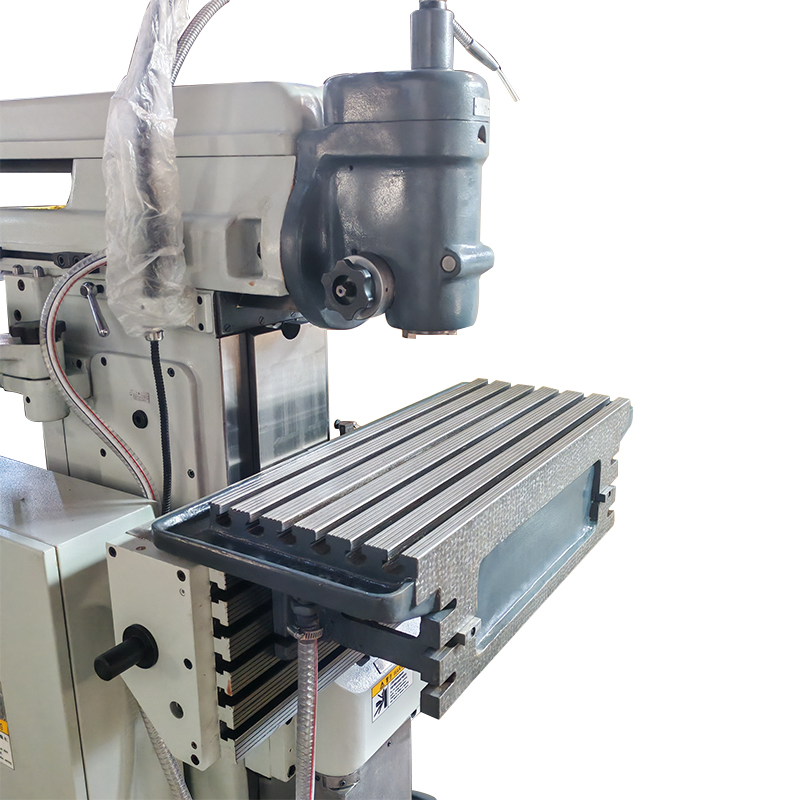

All-Round Toolroom Machining Machine X8126 for Small Parts
All-Round Toolroom Machining Machine X8126 for Small Parts
All-Round Toolroom Machining Machine X8126 for Small Parts
All-Round Toolroom Machining Machine X8126 for Small Parts
All-Round Toolroom Machining Machine X8126 for Small Parts
1 / 5
All-Round Toolroom Machining Machine X8126 for Small Parts
All-Round Toolroom Machining Machine X8126 for Small Parts
All-Round Toolroom Machining Machine X8126 for Small Parts
All-Round Toolroom Machining Machine X8126 for Small Parts
All-Round Toolroom Machining Machine X8126 for Small Parts

All-Round Toolroom Machining Machine X8126 for Small Parts

Customization: Available
After-sales Service: on-Line/off-Line Service
Warranty: 2 Year
Send Inquiry

Product Description

Basic Specifications
Model NO.
X8126
Type
Worktable Milling Machine
Object
Gear
Structure
Bed type
Milling Cutter Type
Vertical Milling Cutter
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
Precision
Certification
CE, ISO 9001
Condition
New
Longitudinal Stroke (mm)
350
Table Size (mm)
750X260
Spindle Speed Range
110-1230r/Min
HS Code
8459290000
Toolroom Machining Machine X8126
Product Overview
X8126 and X8126A are versatile and high-precision universal tool milling machines, ideal for machining tools, fixtures, gauges, dies, and small-to-medium complex parts. They are widely used in tool rooms, mold shops, general machine shops, and maintenance workshops. The X8126A is an upgraded version with enhanced performance and expanded capabilities.

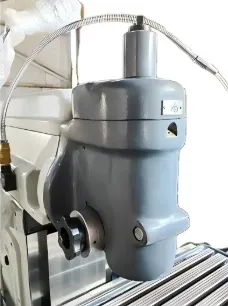

Spindle head
Precision Spindle Head

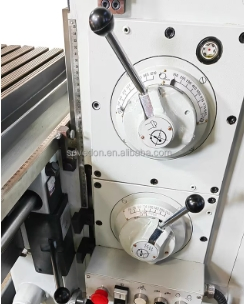

Operation control area
Operation Control Area

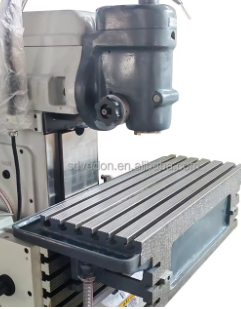

Workbench
Heavy-duty Workbench
Machine Detail
Technical Parameters
Parameter Specification
Table longitudinal travel350 mm
Table vertical (lifting) travel350 mm
Number of table feed steps8 Steps
Table longitudinal & vertical feed range25–285 mm/min
Table rapid traverse rate1000 mm/min
T-slot width / spacing14 mm / 45 mm
Table size (Length × Width)750 × 260 mm
Spindle taper7:24 ISO40
Spindle lateral movement stroke200 mm
Spindle speed range (Horizontal)110–1230 r/min
Spindle speed range (Vertical)150–1660 r/min
Main motor power3 kW
Overall Dimensions (L × W × H)1450 × 1445 × 1650 mm
Machine component
Machine component
Machine component
Machine component
Full machine view
Frequently Asked Questions
What are the primary uses for the X8126 milling machine?
The X8126 is designed for high-precision machining of tools, fixtures, gauges, dies, and small-to-medium complex parts. It is ideal for tool rooms and maintenance workshops.
What is the spindle taper specification for this model?
The X8126 utilizes a 7:24 ISO40 spindle taper, which is standard for various high-precision milling applications.
Does the machine support both horizontal and vertical milling?
Yes, the machine features different speed ranges for both horizontal (110–1230 r/min) and vertical (150–1660 r/min) milling operations.
What is the table size and travel capacity?
The workbench size is 750 × 260 mm, with a longitudinal and vertical travel of 350 mm each, providing ample space for precision parts.
Is the machine easy to maintain?
Yes, its manual controlling mode and robust bed-type structure make it straightforward to operate and maintain in general machine shop environments.
What kind of precision can I expect?
The X8126 is built for precision work and holds CE and ISO 9001 certifications, ensuring high-quality manufacturing standards.
