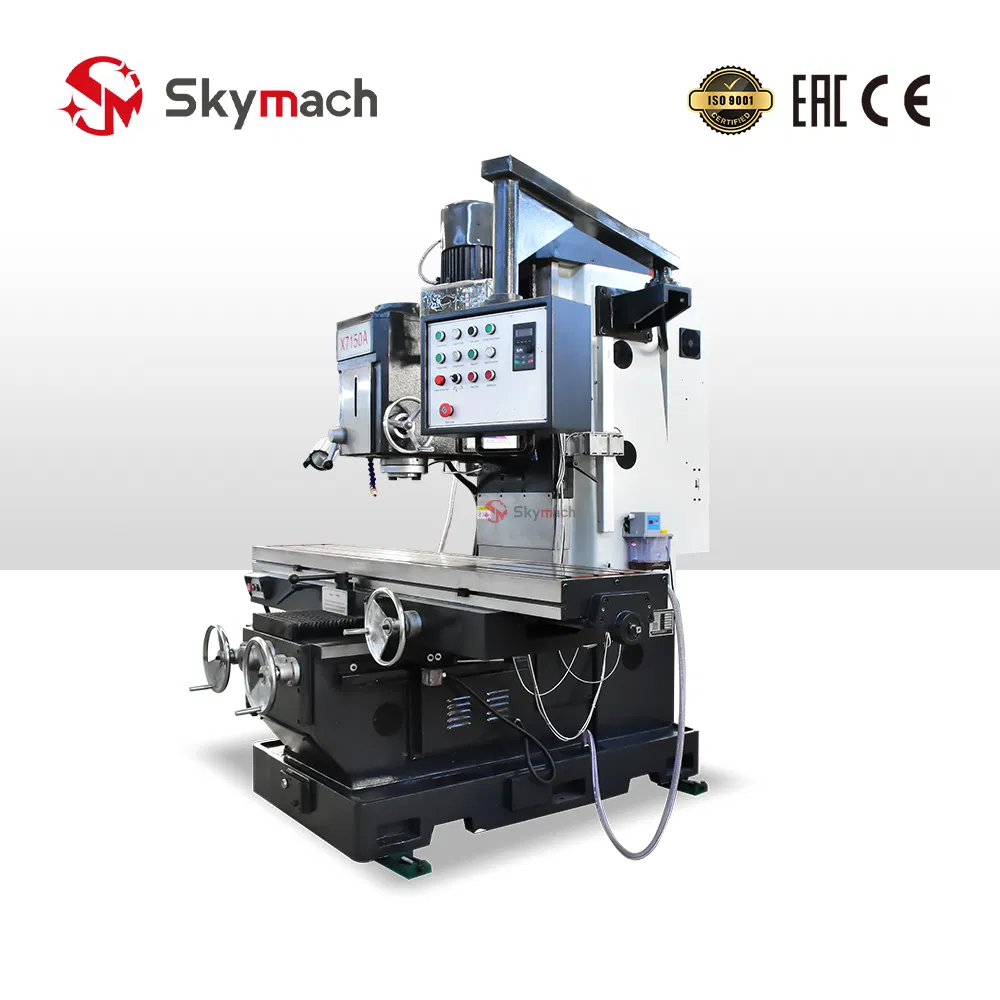

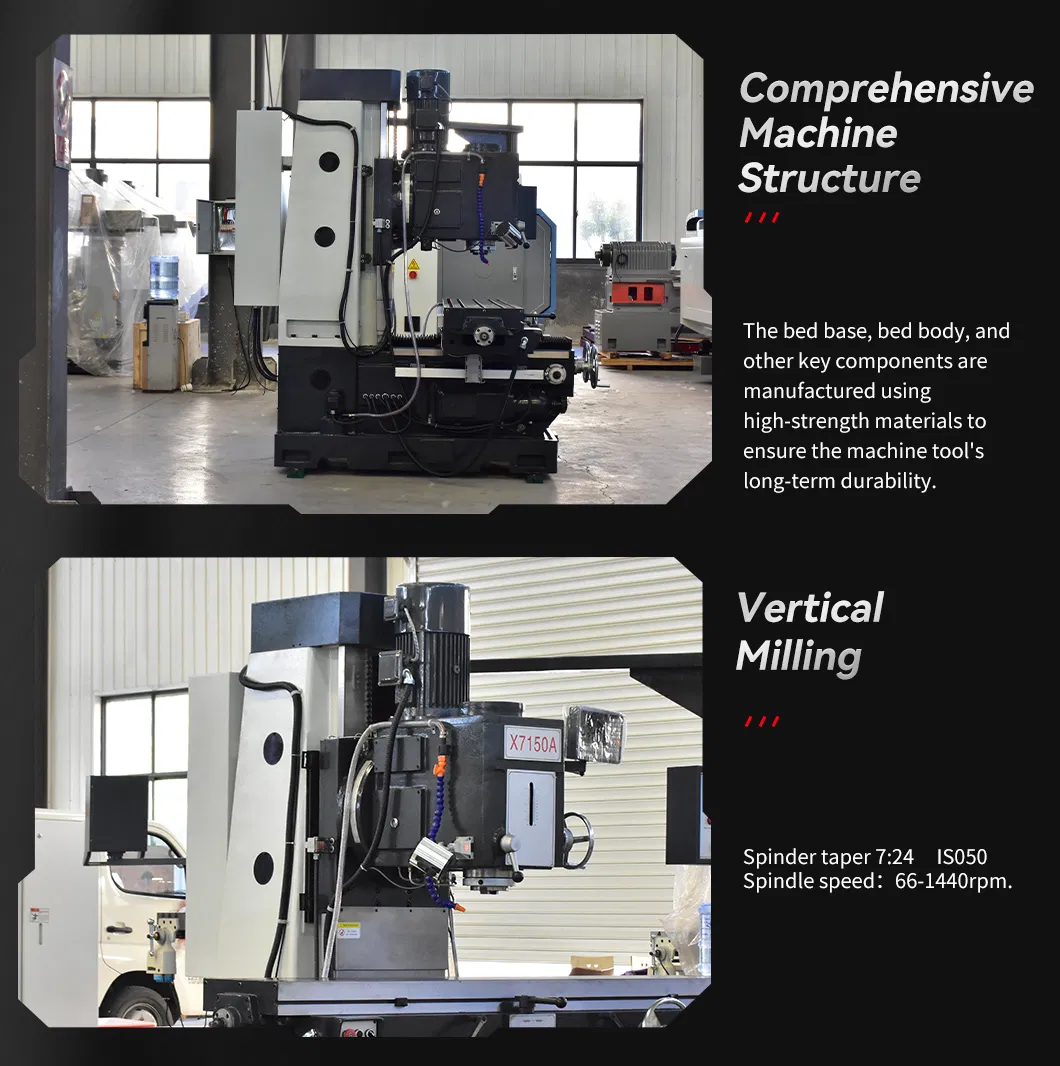

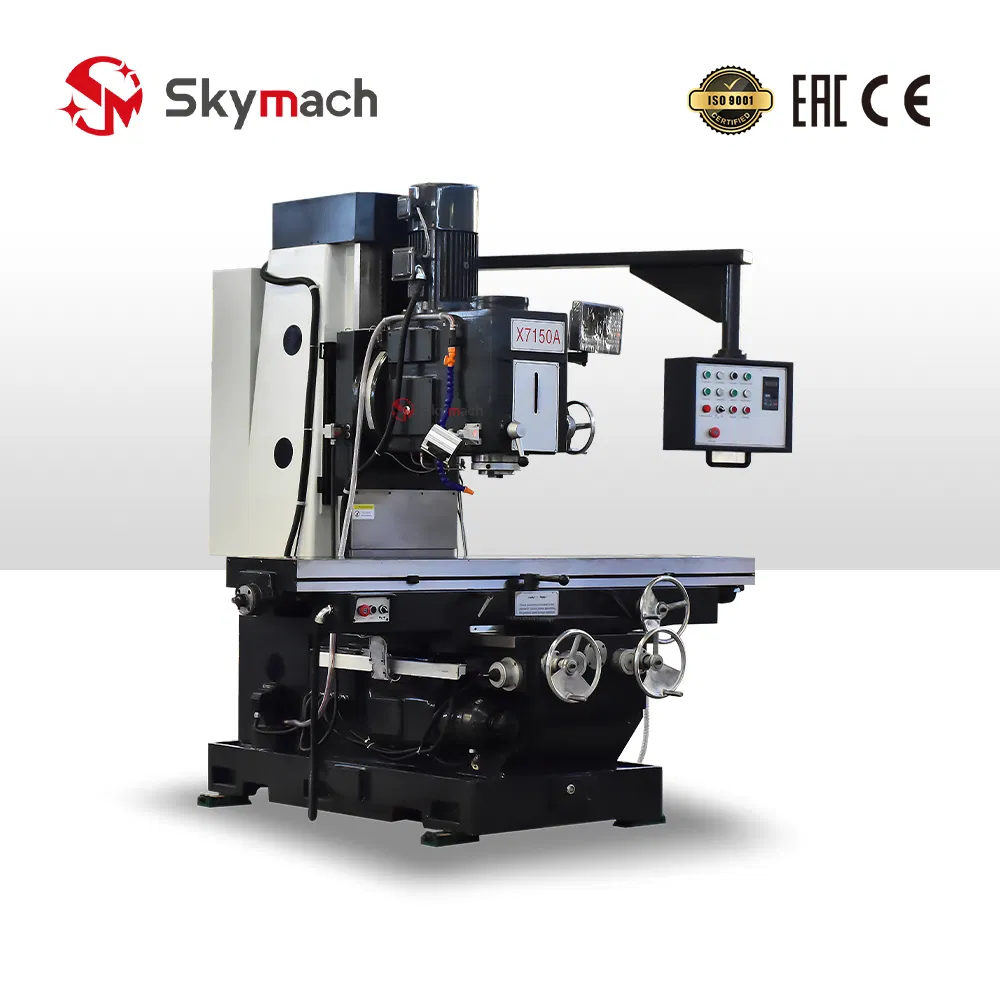

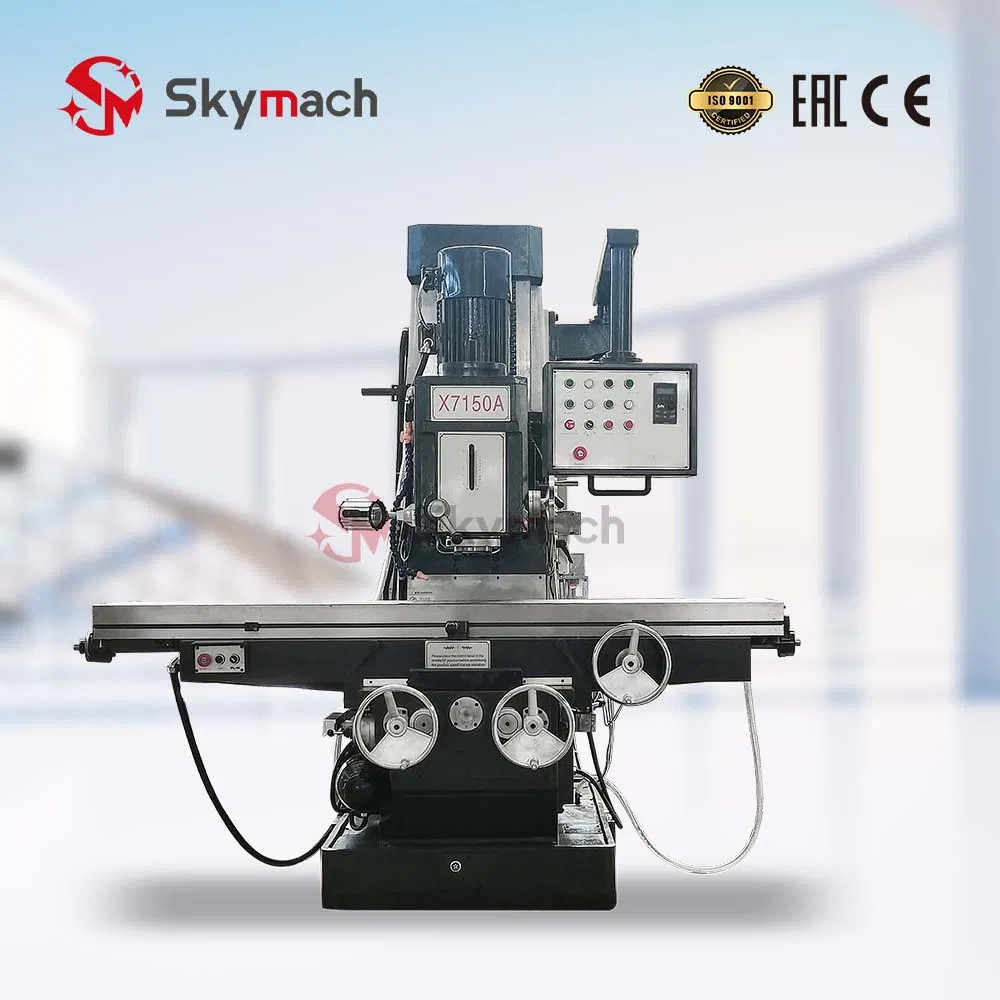

X7150A Vertical Bed Type Milling Machine
📋Basic Specifications
Type
Tool Milling Machine
Controlling Mode
Artificial
Certification
GS, CE, ISO 9001
Application
Metal Machining
📊Technical Parameters
| SPECIFICATIONS |
X7140A |
X7150A |
| Table size (mm) |
1400*400 |
2000*400 |
| Table travel (mm) |
800*400 |
1500*500 |
| T slot (number-width*pitch) |
3-18*100 |
3-18*100 |

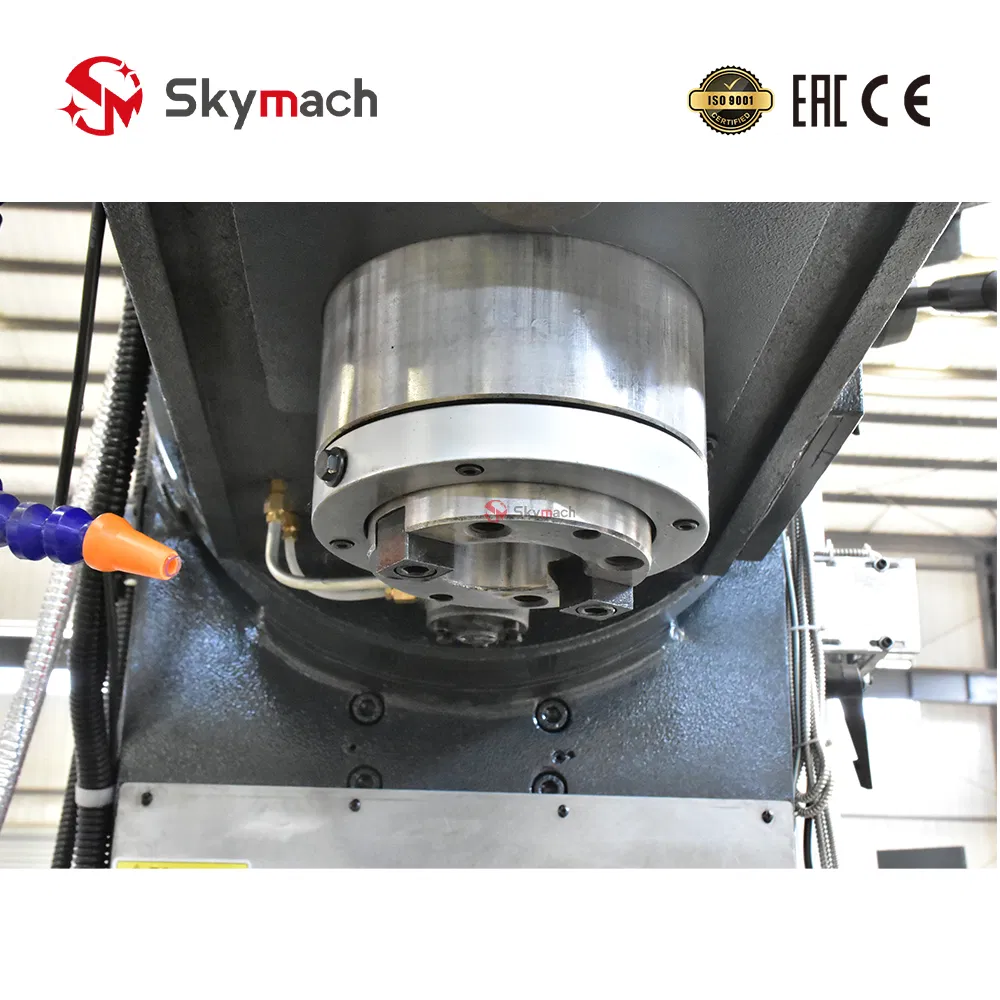

| Spindle taper |
ISO50 |
ISO50 |
| Spindle travel (mm) |
105 |
- |
| Spindle speed range (rpm) |
18-1800 |
66-1440 |
| Distance from spindle axis to column surface (mm) |
520 |
600 |
| Main motor power (kW) |
7.5 |
7.5 |
| Machine weight (kg) |
3860 |
5000 |
📦Packaging & Delivery
Package Size
340.00cm * 250.00cm * 285.00cm
💡Frequently Asked Questions
1. How can I choose the most suitable machine?
Please provide your technical specifications or workpiece drawings. Our engineering team will evaluate your requirements and recommend the most suitable model for your specific production needs.
2. What are your main product categories?
We specialize in a wide range of industrial machinery, including CNC Lathes, CNC Milling Machines, Vertical Machining Centers, Radial Drilling Machines, Sawing Machines, and Shapers.
3. What are the standard trade terms?
We accept standard international trade terms including FOB (Free on Board), CFR (Cost and Freight), and CIF (Cost, Insurance, and Freight).
4. What are the accepted payment terms?
Our standard payment terms are 30% initial payment via T/T upon order placement, with the remaining 70% balance due before shipment. We also accept Irrevocable LC at sight.
5. What is the Minimum Order Quantity (MOQ)?
The MOQ is 1 set for most large machinery. Certain low-cost auxiliary machines may require a higher quantity.
6. What information is needed for a precise evaluation?
To provide the best recommendation, please confirm your industrial voltage, the size and material of your workpiece, and your destination port if a CIF price is required.
