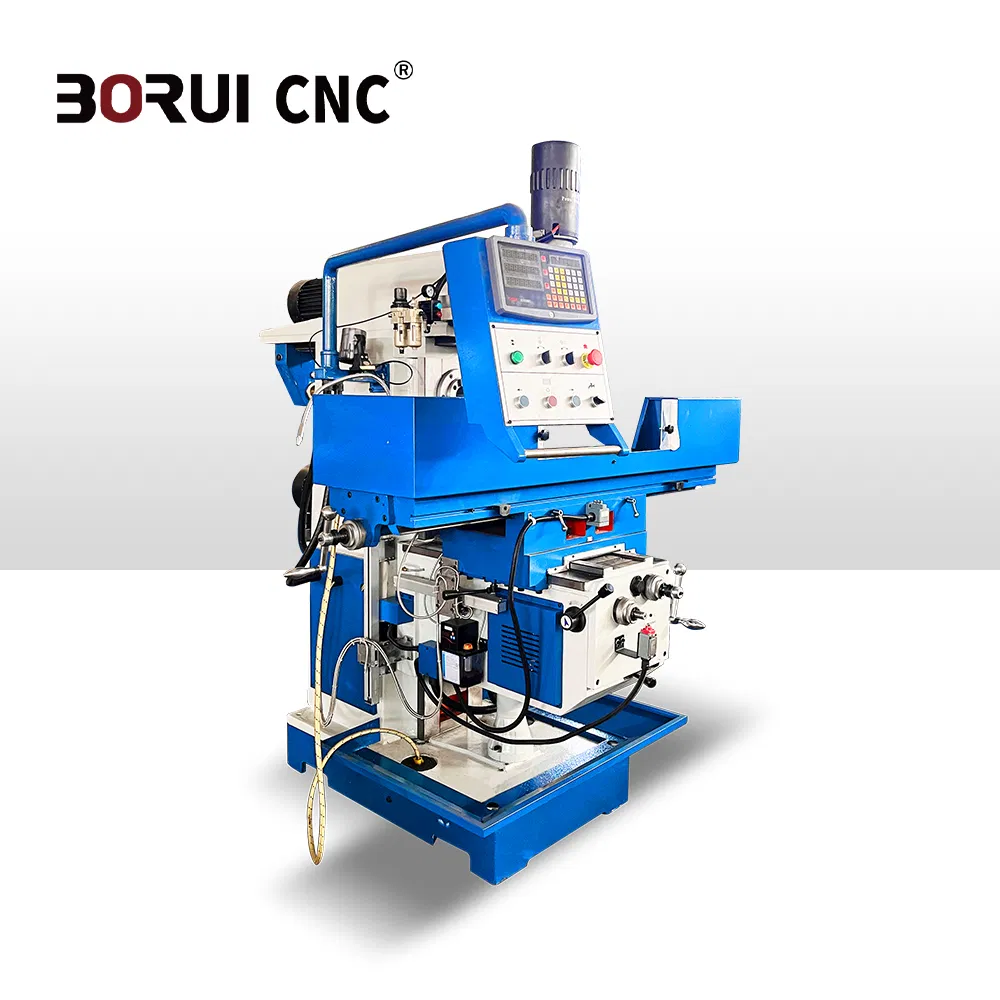

X6436 Universal Toolroom Milling Machine Manual Knee Type Turret Milling Machine
X6436 Universal Toolroom Milling Machine Manual Knee Type Turret Milling Machine
X6436 Universal Toolroom Milling Machine Manual Knee Type Turret Milling Machine
X6436 Universal Toolroom Milling Machine Manual Knee Type Turret Milling Machine
X6436 Universal Toolroom Milling Machine Manual Knee Type Turret Milling Machine
1 / 5
X6436 Universal Toolroom Milling Machine Manual Knee Type Turret Milling Machine
X6436 Universal Toolroom Milling Machine Manual Knee Type Turret Milling Machine
X6436 Universal Toolroom Milling Machine Manual Knee Type Turret Milling Machine
X6436 Universal Toolroom Milling Machine Manual Knee Type Turret Milling Machine
X6436 Universal Toolroom Milling Machine Manual Knee Type Turret Milling Machine

X6436 Universal Toolroom Milling Machine Manual Knee Type Turret Milling Machine

Customization: Available
Type: Knee-and-Column Milling Machine
Object: Tool
Send Inquiry

Product Description

📋 Basic Information
Model NO.
X6436
Structure
Desktop
Milling Type
Cylindrical Milling Cutter
Controlling Mode
Artificial/Manual
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Machine Type
Swivel Head Milling Machine
Spindle Speed
35-1600 Rpm
HS Code
845959000
⚙️ Product Description

Universal 360 Degree Rotary Head Milling Machine X6436 for Metal

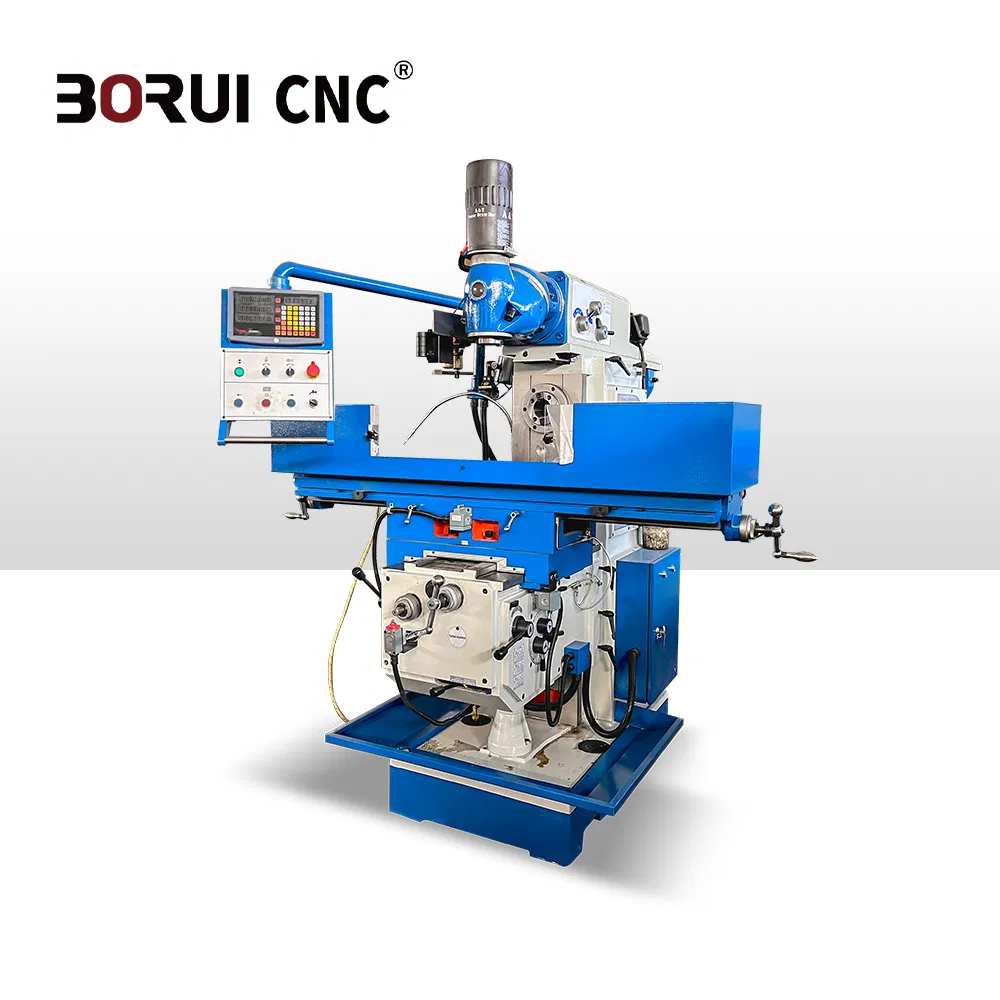

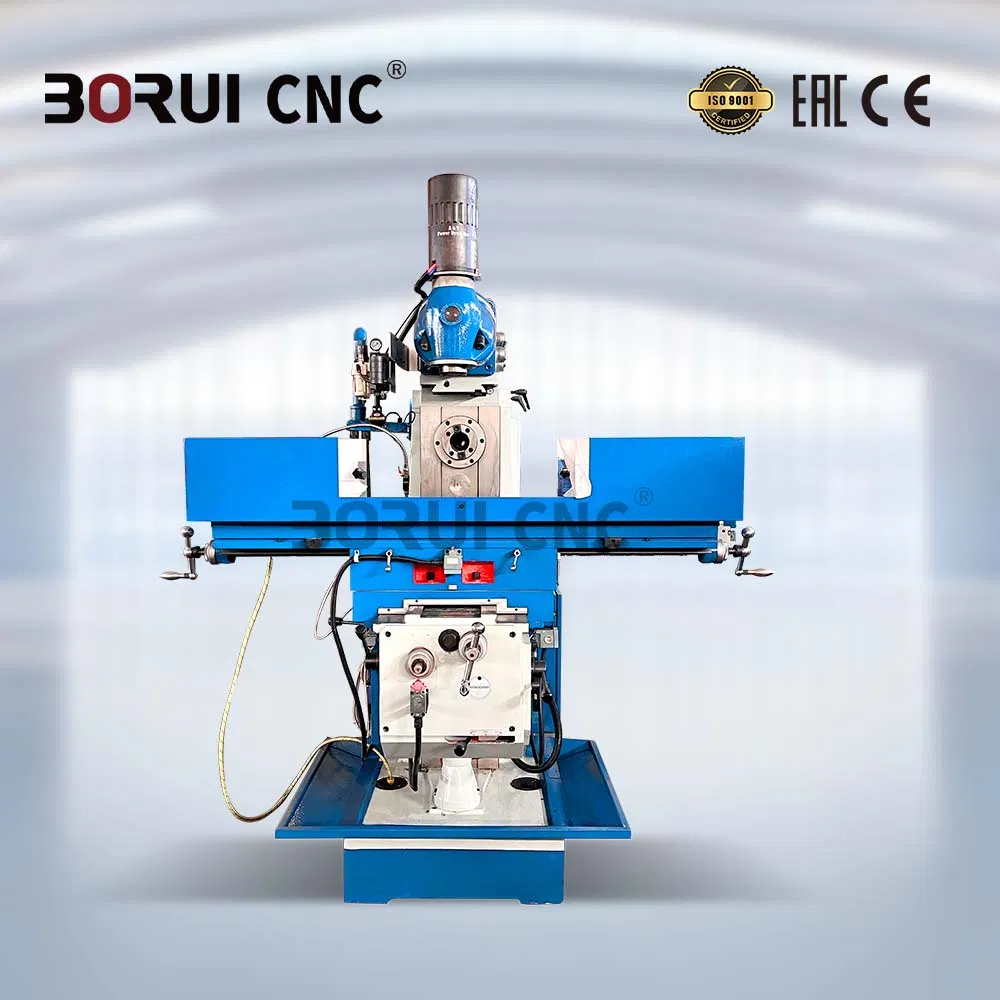

X6436 Universal Toolroom Milling Machine

Main Performance Characteristics:

  • Realizes both vertical and horizontal milling processing functions.
  • Two rotary milling heads allow the spindle to adjust to any rotating angle.
  • Ideal for processing molds and shell components.

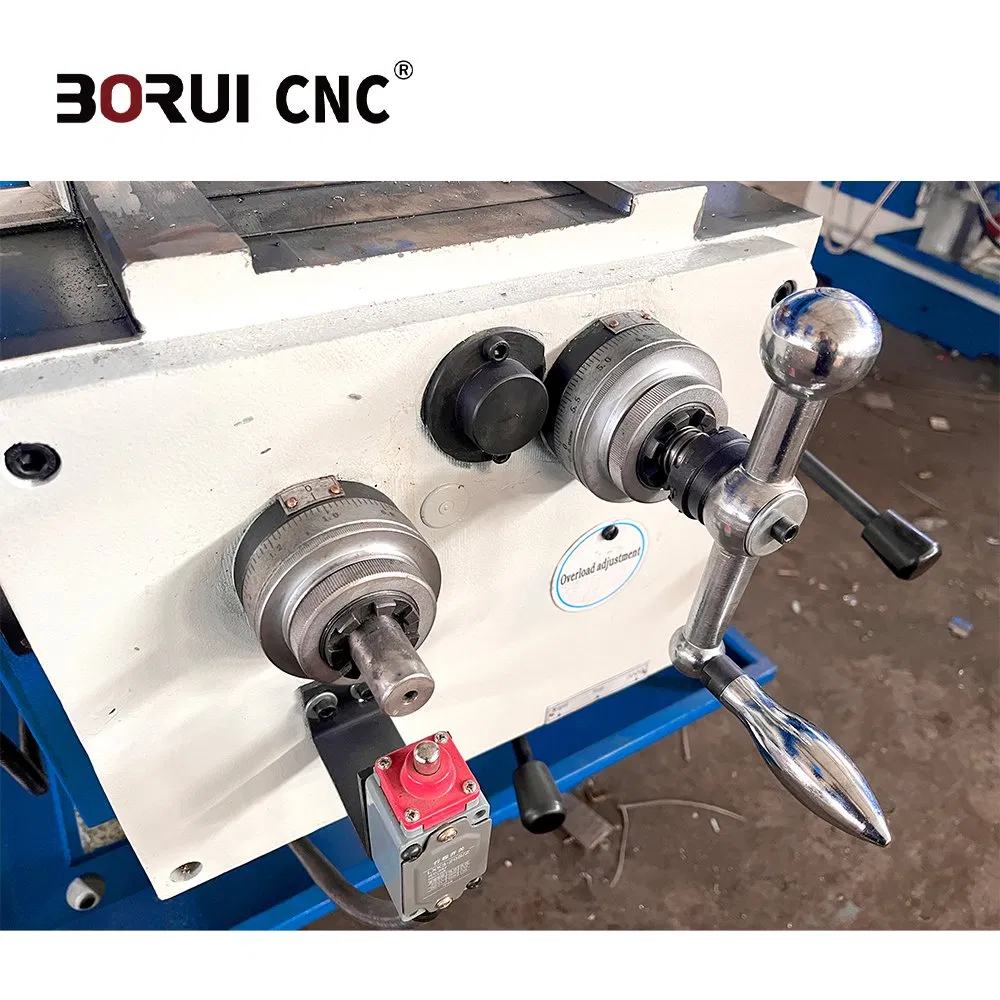

  • Work bench X and Y axes feature gear drive automatic feed; Z axis features electric lift.
  • Symmetrical layout with high-frequency quenching rail surfaces for high hardness and durability.
  • Low noise operation with precision gear grinding.

Application:

The universal rotary head milling machine is a versatile metal cutting tool suitable for both horizontal and vertical milling. Its spindle taper can accommodate various cutters including cylindrical, disc, molding, and end milling tools. It is an ideal processing solution for mechanical manufacturing, mold making, instrumentation, and the automotive industry for handling planes, inclined surfaces, grooves, and gears.

📊 Technical Parameters
Specifications Units X6436 Data
Table sizemm1500x360
Table travelmm1000x320x500
T-type slot (numbers / width / space)mm3-18-80
Horizontal spindle center to table surfacemm0-450
Spindle taper-ISO50
Spindle speed range (steps)rpm48-1660(V), 60-1800(H)
Table power feed speed rangemm/min22-420(X) 22-393(Y) 10-168(Z)
Swivel angle of milling head°360
Table rotate angle°35
Spindle motor powerKW4
Machine sizemm2070x2025x2020
Machine weightKg2480
🔍 Details Display

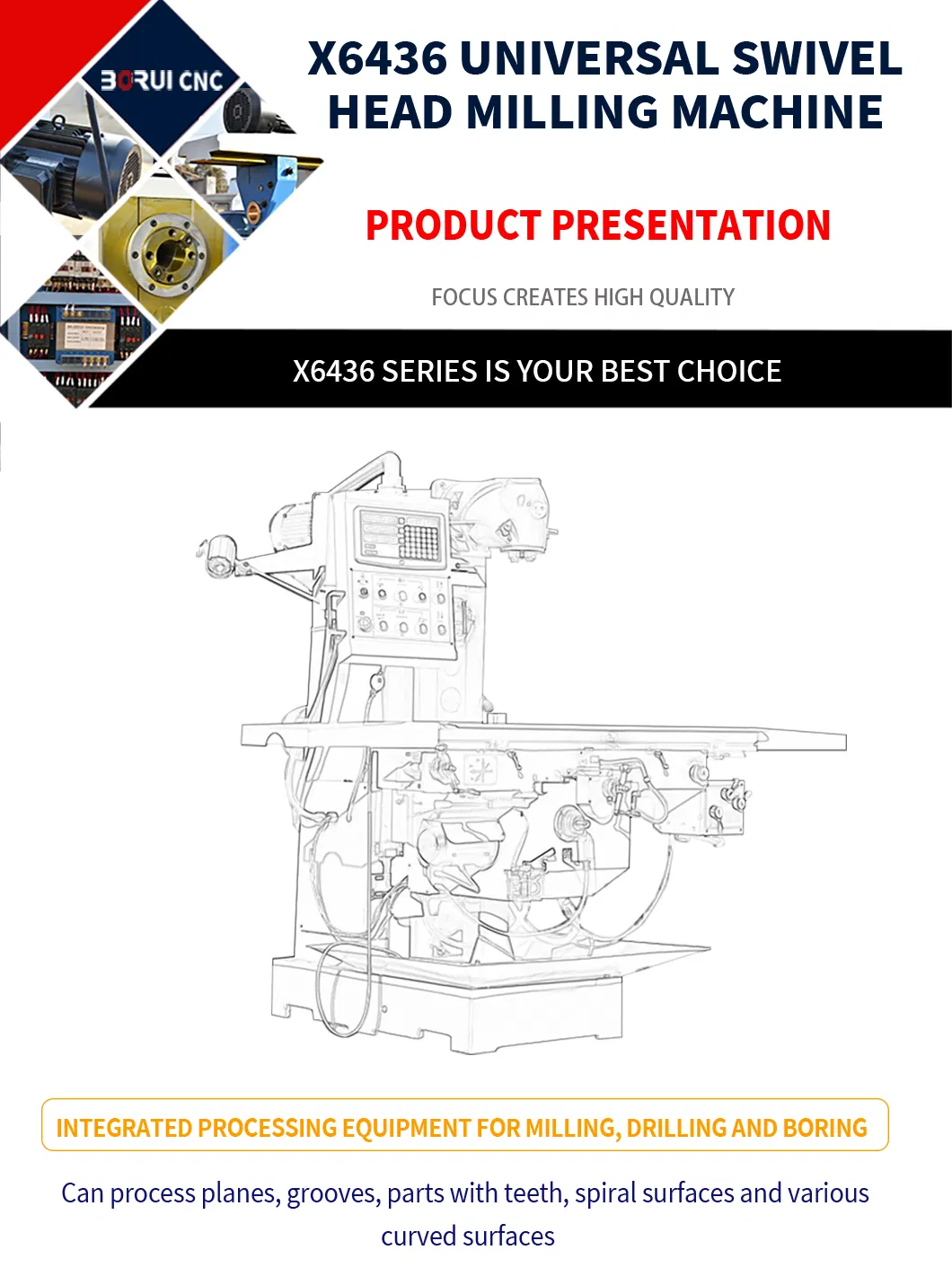

Detail 1

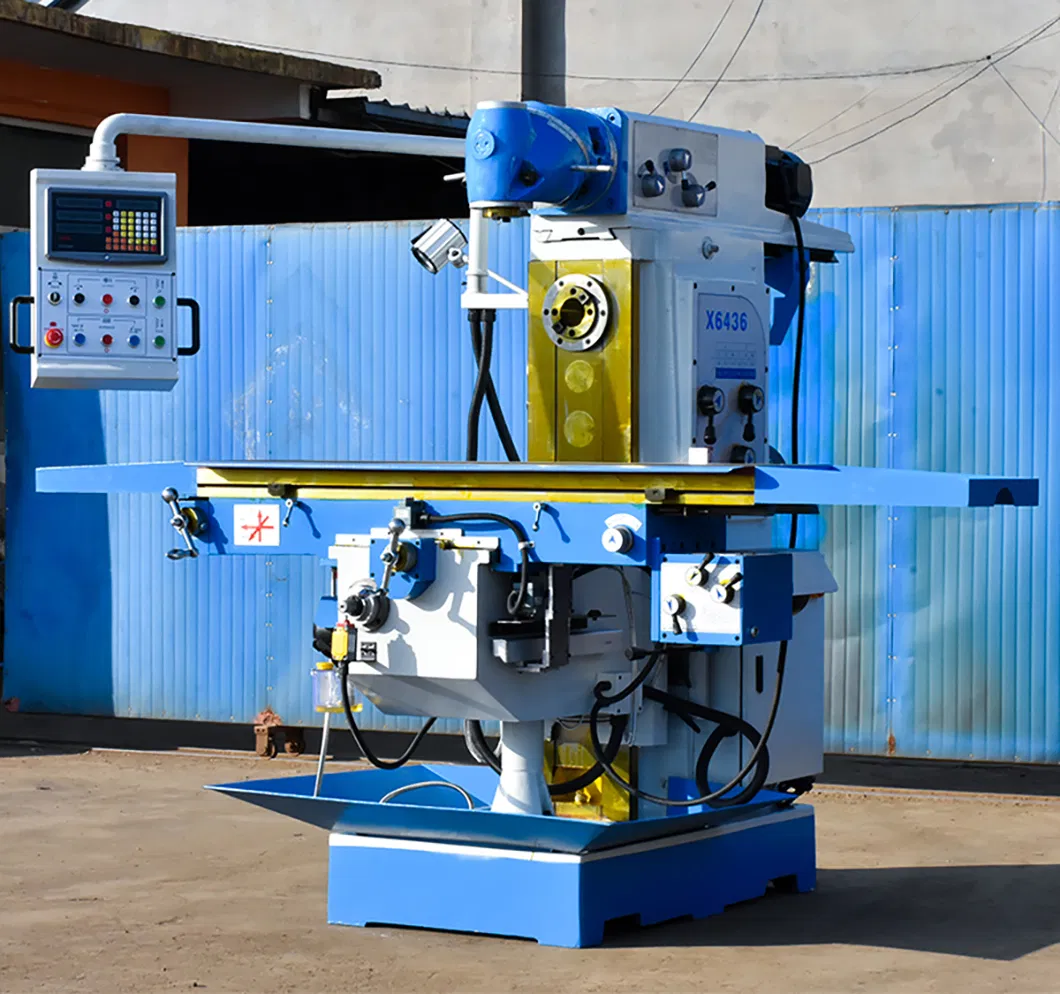

Detail 2

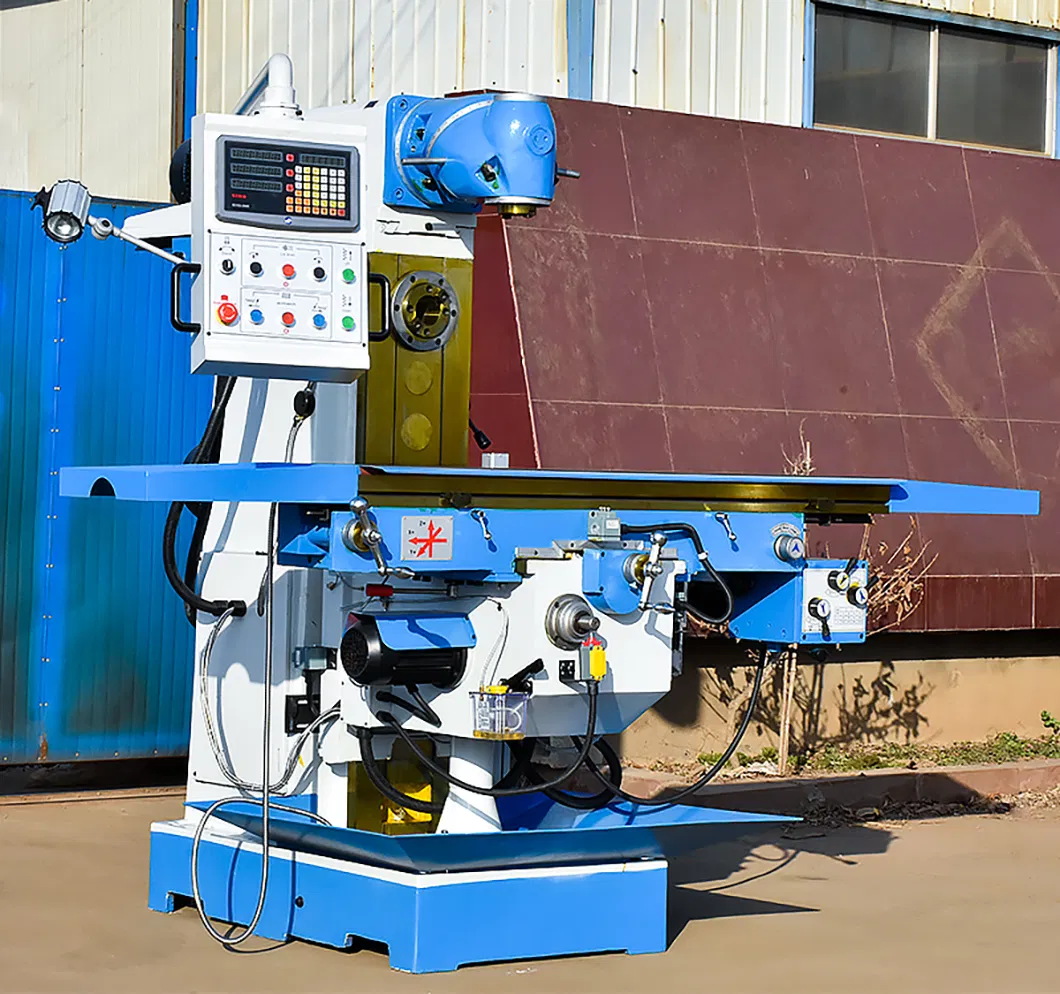

Detail 3

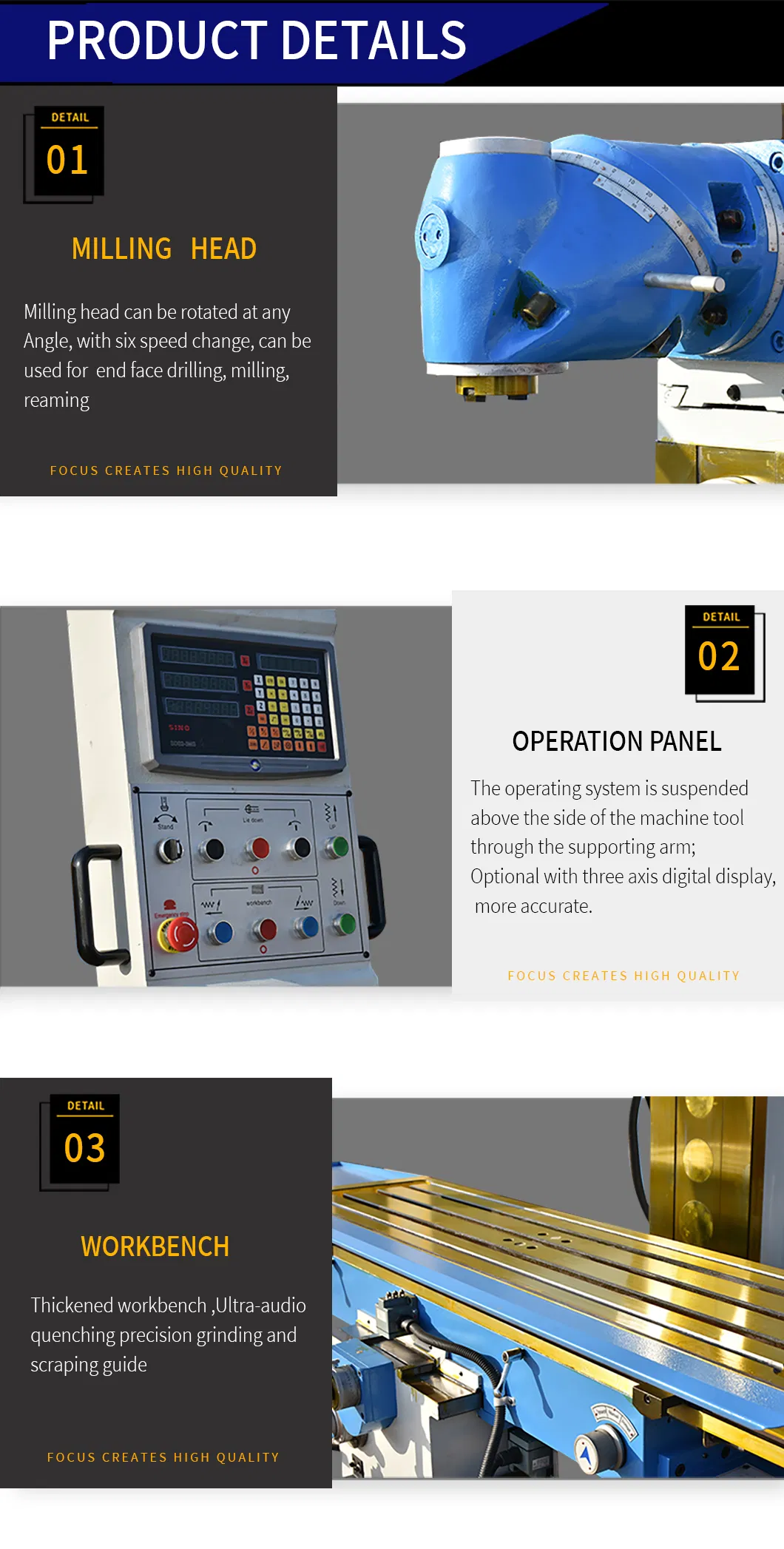

Detail 4

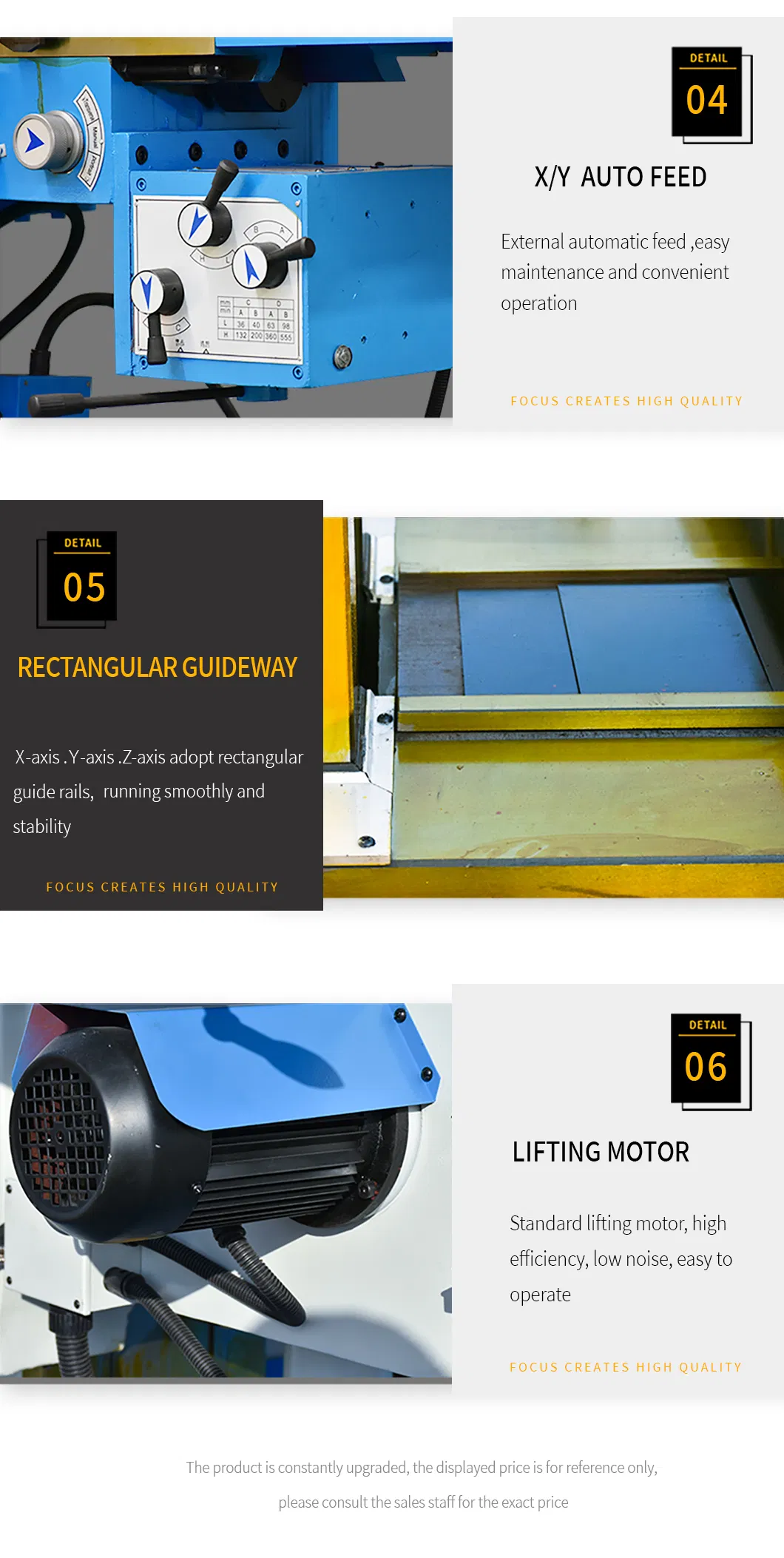

Detail 5
🛠️ Professional Service & Support
  • Technical Support: Online technical service provided for troubleshooting.
  • Documentation: Complete technical files and machine operation videos included.
  • Training: On-site training services available to ensure smooth operation.
  • Maintenance: Spare parts replacement and repair services provided.
  • Inquiry Response: All technical questions replied to within 8 hours.
  • Custom Development: Ability to work out products based on custom specifications.
Service Support Details
❓ Frequently Asked Questions
What are the primary functions of the X6436 milling machine?
The X6436 is a universal milling machine that supports both vertical and horizontal milling, making it highly versatile for various metal processing tasks.
Does the milling head rotate?
Yes, the machine features a 360-degree rotary head, allowing for precision adjustments and milling at any required angle.
What type of feed system does the workbench use?
The X and Y axes utilize a gear drive automatic feed system for consistent precision, while the Z axis is equipped with an electric lift for ease of operation.
What is the spindle taper specification?
The X6436 model is equipped with a standard ISO50 spindle taper, compatible with a wide range of industrial milling cutters.
Is this machine suitable for mold manufacturing?
Absolutely. Due to its high precision, sturdy construction, and rotary head flexibility, it is an ideal piece of equipment for mold and shell processing.
How durable is the machine's guide rail?
The guide rails undergo high-frequency quenching heat treatment, ensuring high hardness, wear resistance, and long-term durability even under heavy use.
