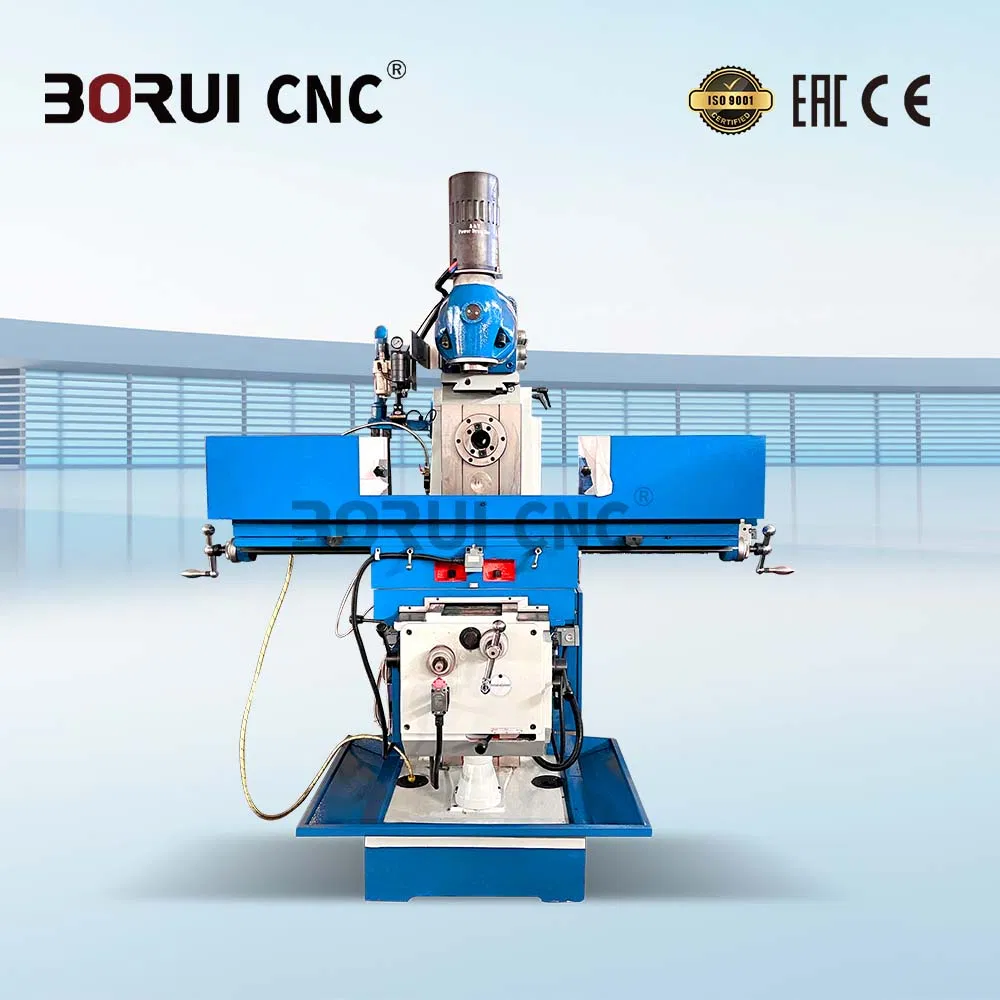

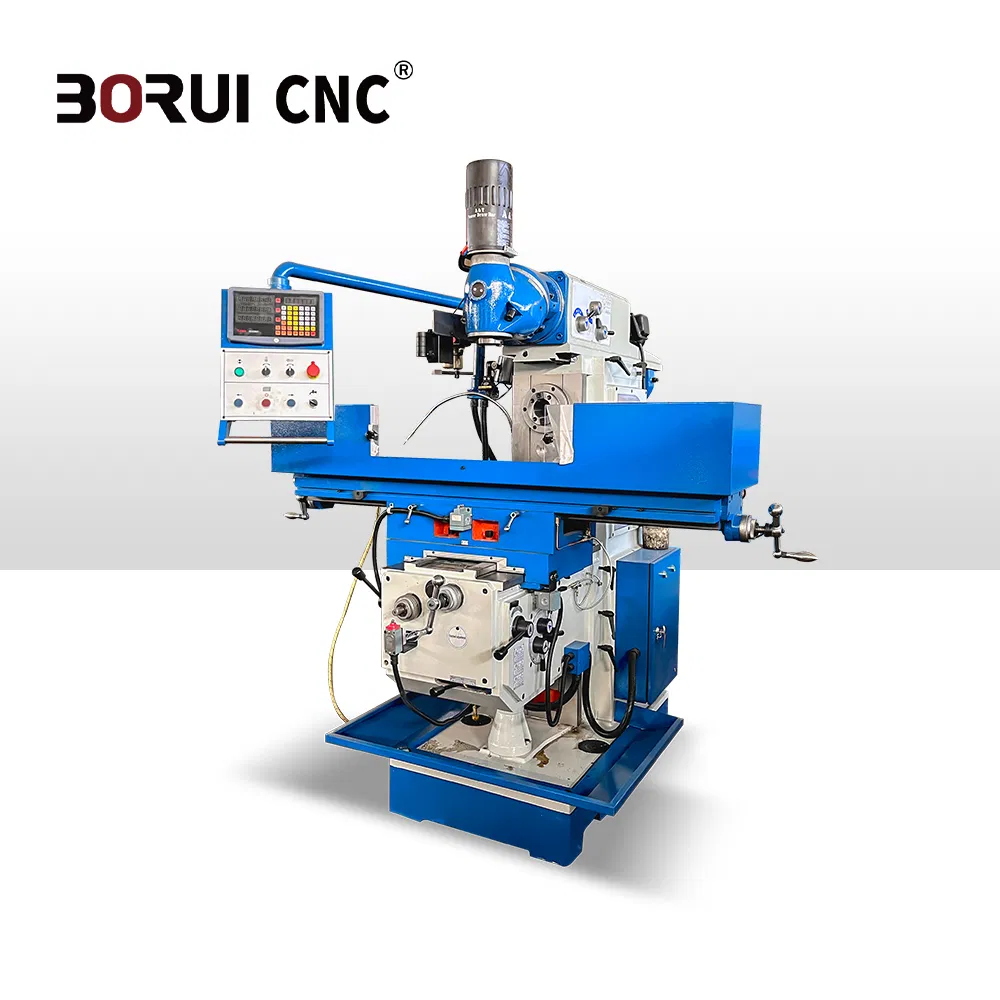

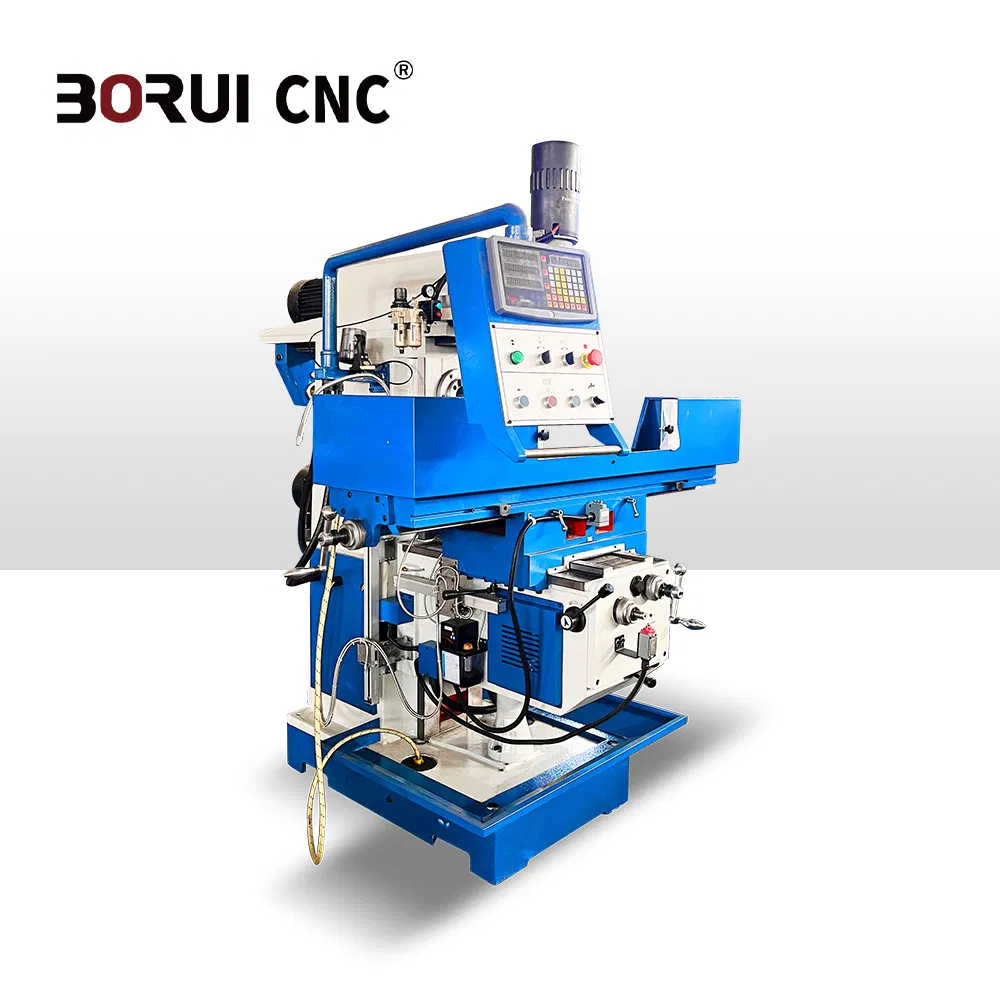

X6436 Universal Toolroom Mill Manual Knee Type Turret Milling Machine

Customization:	Available
Type:	Knee-and-Column Milling Machine
Object:	Tool

Send Inquiry

Product Description

Basic Specifications

Model NO.:X6436

Structure:Desktop / Knee Type

Milling Cutter Type:Cylindrical Milling Cutter

Controlling Mode:Artificial / Manual

Precision:High Precision

Certification:GS, CE, RoHS, ISO 9001

Spindle Speed:35-1600 Rpm

Automatic Grade:Manual with Power Feed

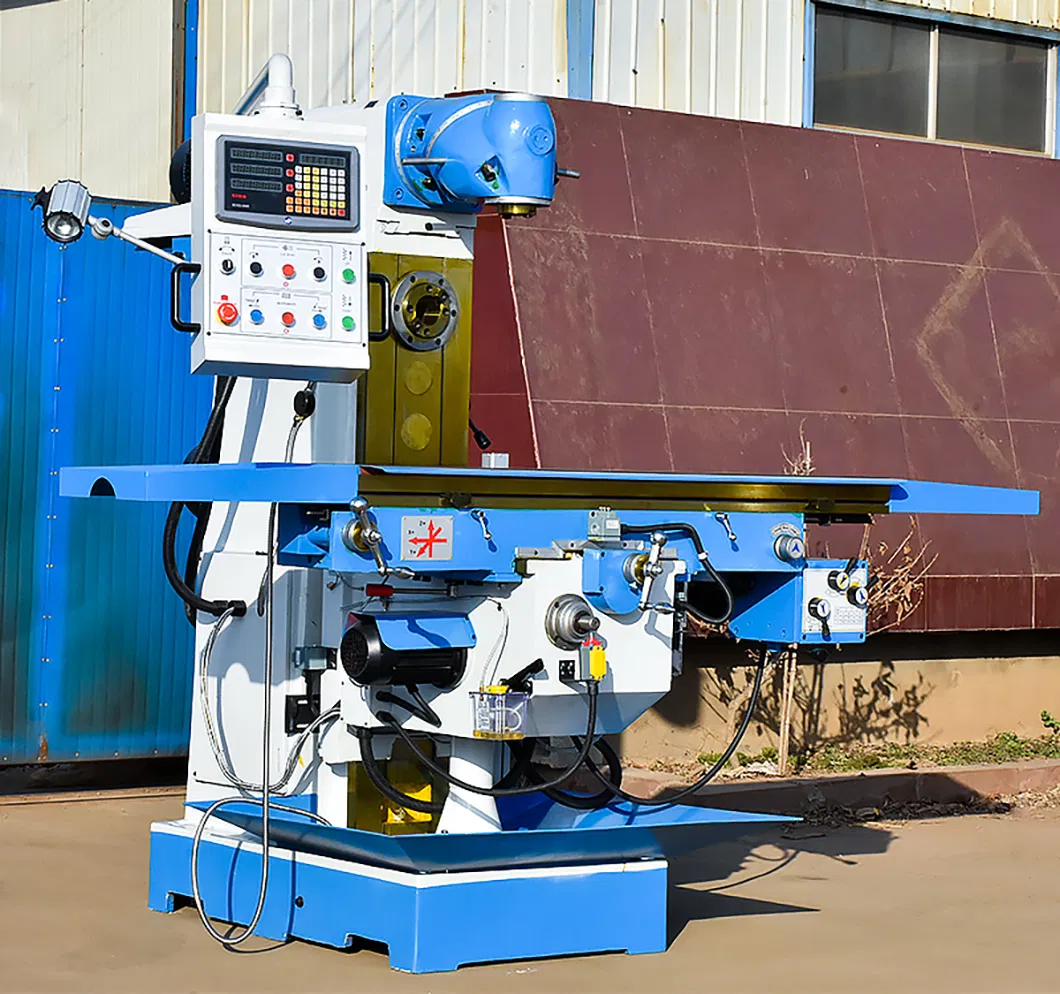

Universal 360 Degree Rotary Head Milling Machine

Key Performance Characteristics:

Dual Functionality: Realizes both vertical and horizontal milling processing.

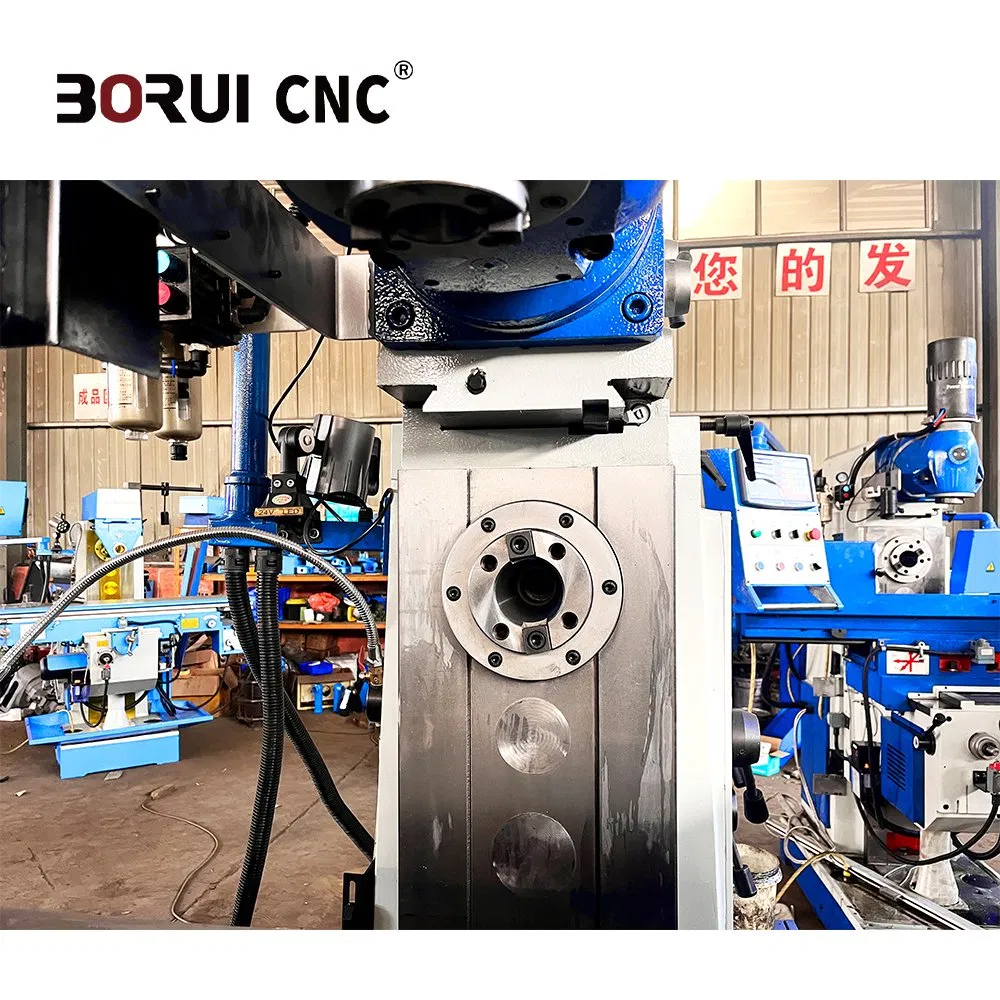

Rotary Milling Head: Two rotary milling heads allow spindle adjustment at any angle.
Versatile Processing: Ideal for processing molds and complex shells.

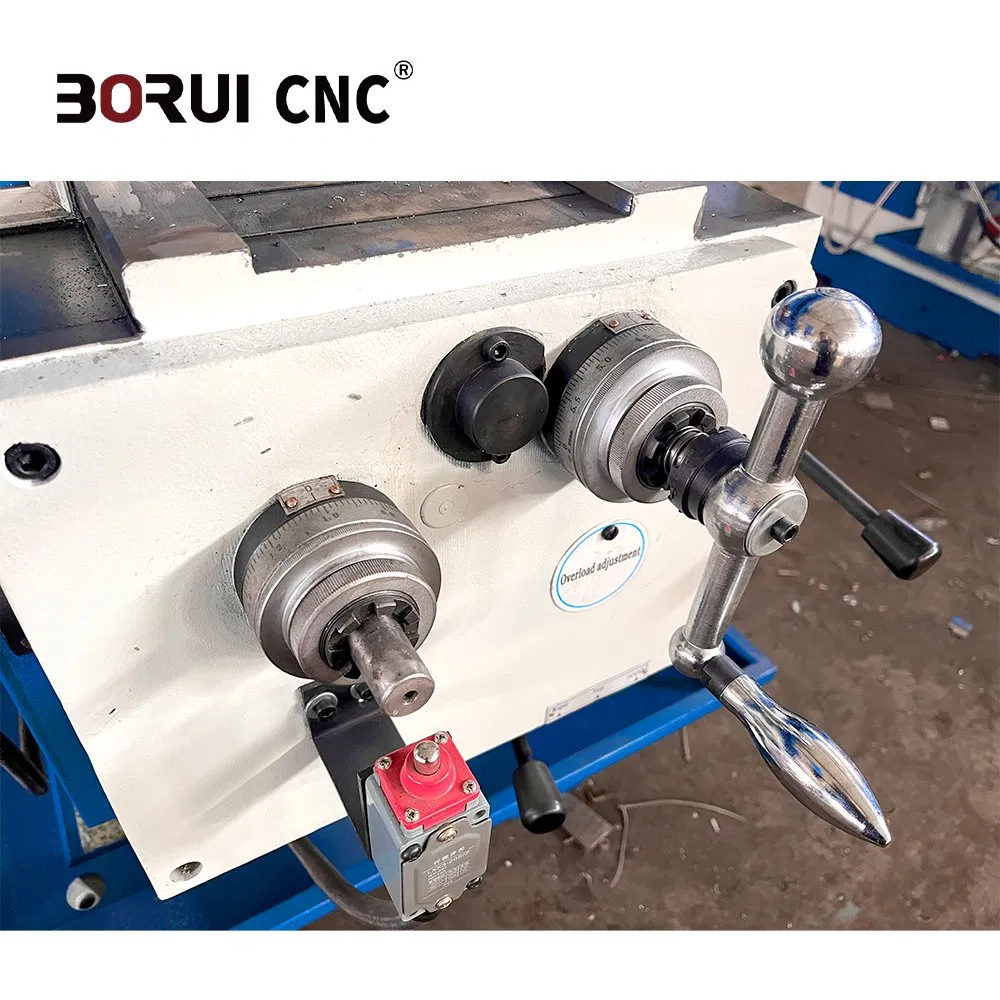

Automatic Feed: Workbench X and Y axes feature gear drive automatic feed; Z-axis includes electric lift.
Robust Construction: Symmetric layout with heat-treated rail surfaces for high hardness and durability.
Low Noise Operation: High-frequency quenching gear grinding ensures strong steel performance and quiet operation.

Application Areas

The X6436 universal rotary head milling machine is a versatile metal cutting tool suitable for small and medium parts. It can accommodate cylindrical milling cutters, disc cutters, molding cutters, and end milling tools.

It is widely used in:
• Mechanical Manufacturing • Mold Making • Instrumentation • Automotive & Motorcycle Industries

Technical Parameters

Specifications	Units	X6436 Data
Table size	mm	1500x360
Table travel	mm	1000x320x500
T-type slot (No./Width/Space)	mm	3-18-80
Horizontal spindle center to table	mm	0-450
Spindle taper	-	ISO50
Spindle speed range	rpm	48-1660(V) / 60-1800(H)
Table feed speed range	mm/min	X:22-420, Y:22-393, Z:10-168
Swivel angle of milling head	°	360
Table rotate angle	°	35
Spindle motor power	KW	4
Machine weight	Kg	2480

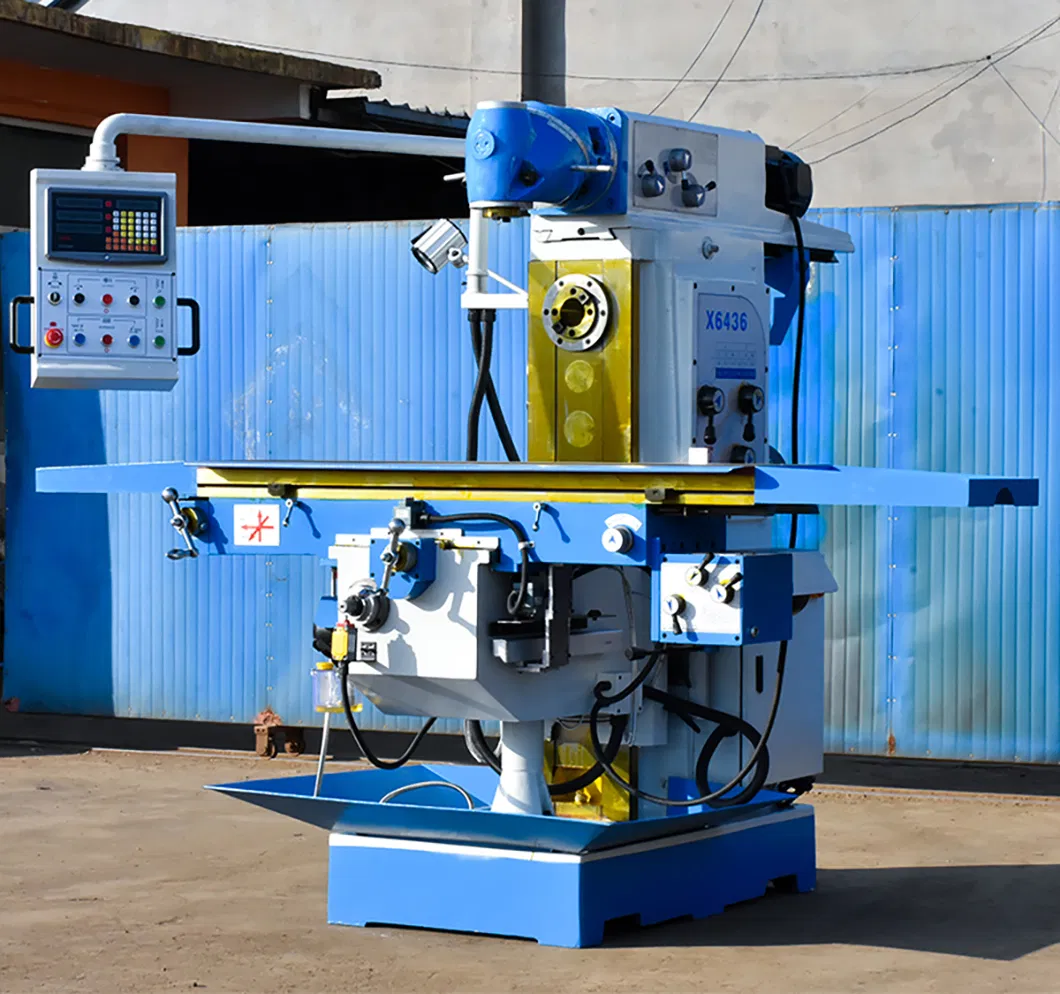

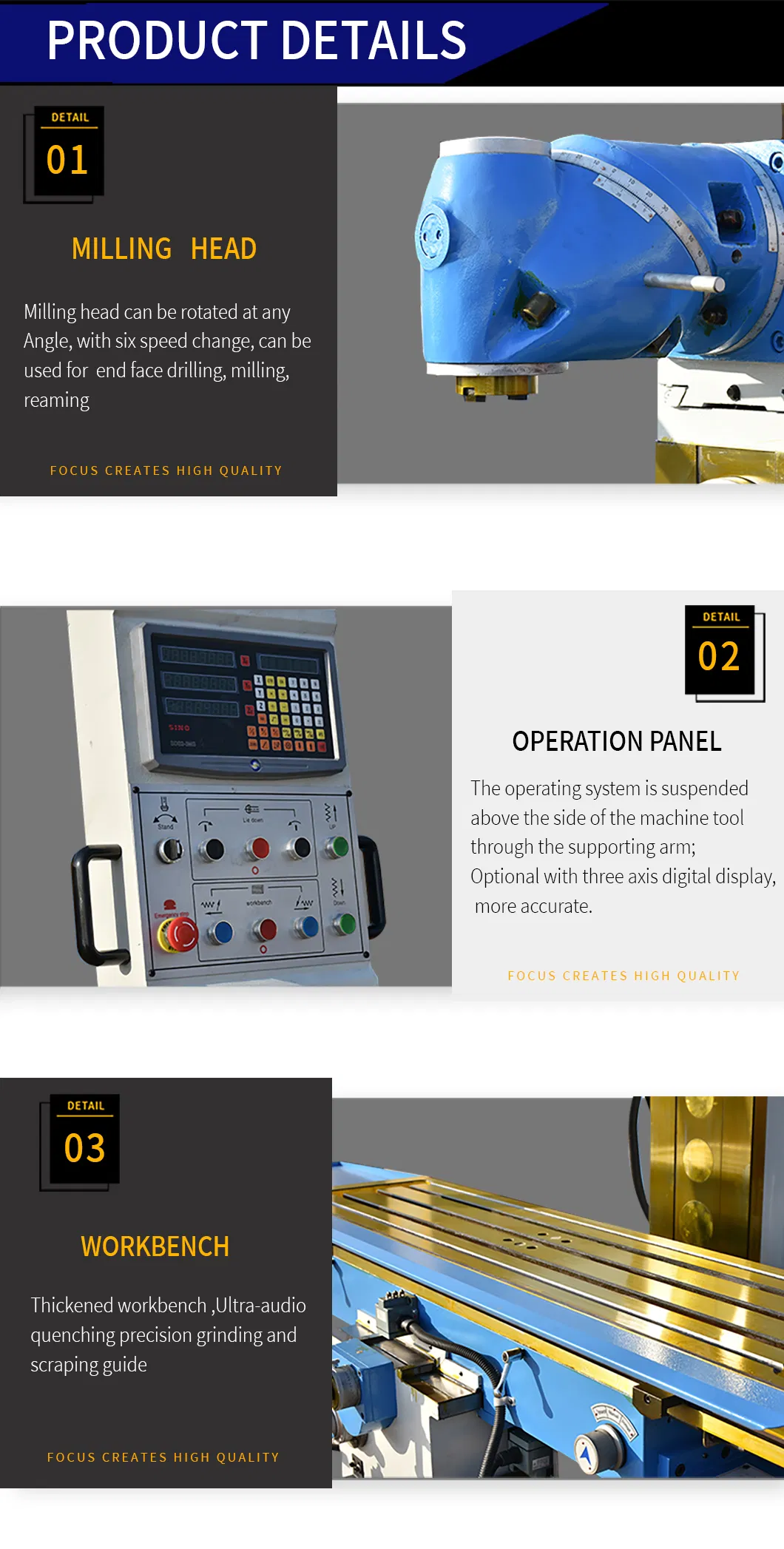

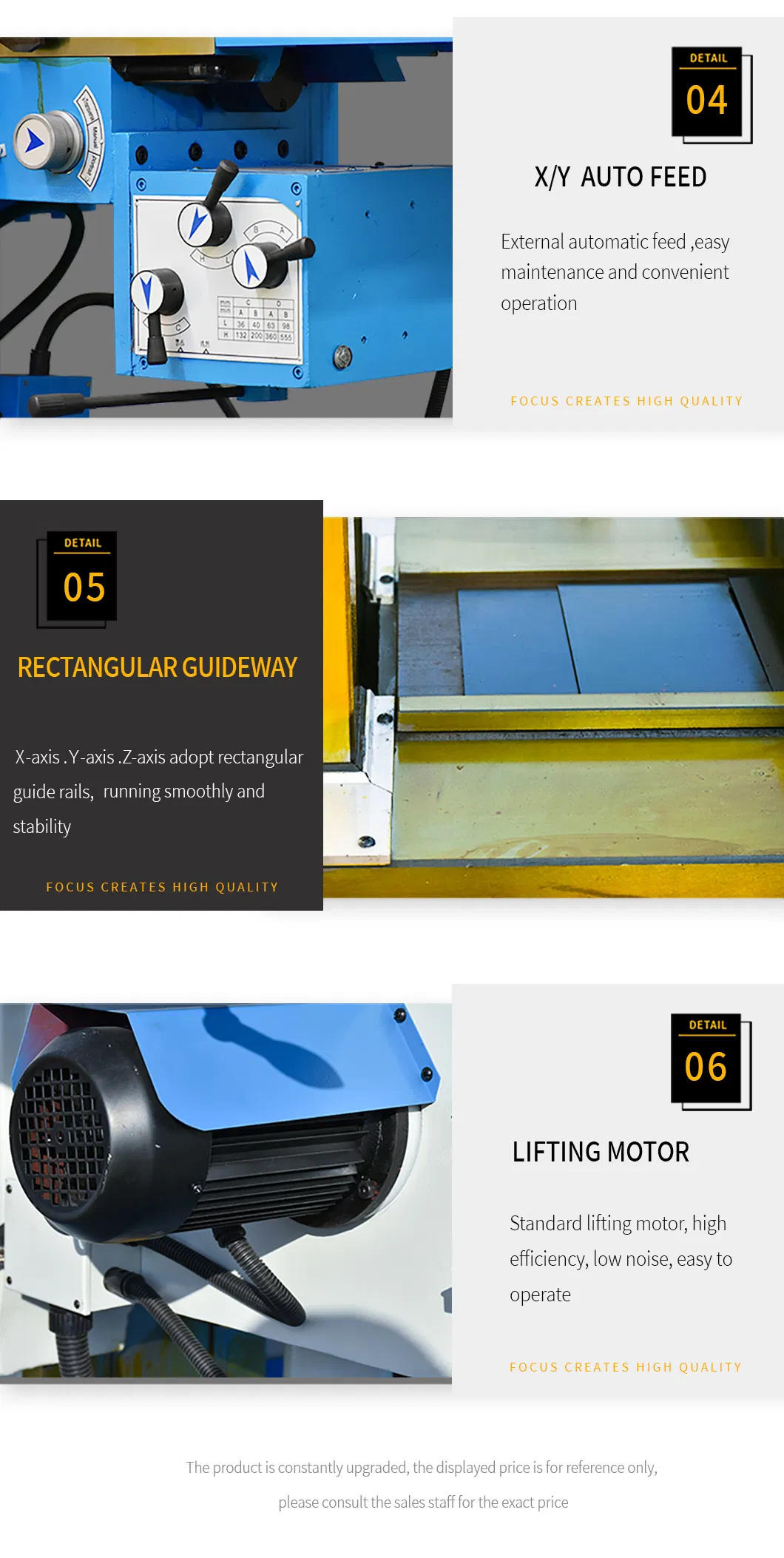

Details Display

Our Service Commitment

Technical Support: Professional online technical assistance.
Documentation: Comprehensive technical files provided.
Visual Guides: Machine operation videos for easy setup.
Training: On-site training services available.
Maintenance: Spare parts replacement and repair services.
Efficiency: All inquiries replied to within 8 hours.
Customization: Capability to develop products to your specific requirements.
Integrity: Honest communication and factual product declarations.

Frequently Asked Questions (FAQ)

1. Can the X6436 handle both horizontal and vertical milling? Yes, the X6436 is designed as a universal milling machine that can perform both vertical and horizontal milling operations efficiently.

2. What is the rotation capability of the milling head? The machine features a 360-degree rotary head, allowing for spindle adjustment and machining at any required angle.

3. Is the table movement automatic or manual? The X and Y axes utilize gear drive for automatic feed, while the Z axis is equipped with an electric lift for easier operation.

4. What type of spindle taper does this machine use? The X6436 universal milling machine uses an ISO50 spindle taper, providing high rigidity for heavy-duty cutting.

5. What industries is this milling machine suitable for? It is ideal for mechanical manufacturing, mold making, instrument assembly, and automotive/motorcycle parts processing.

6. What is the spindle speed range for vertical and horizontal modes? The vertical spindle speed range is 48-1660 rpm, and the horizontal spindle speed range is 60-1800 rpm.
