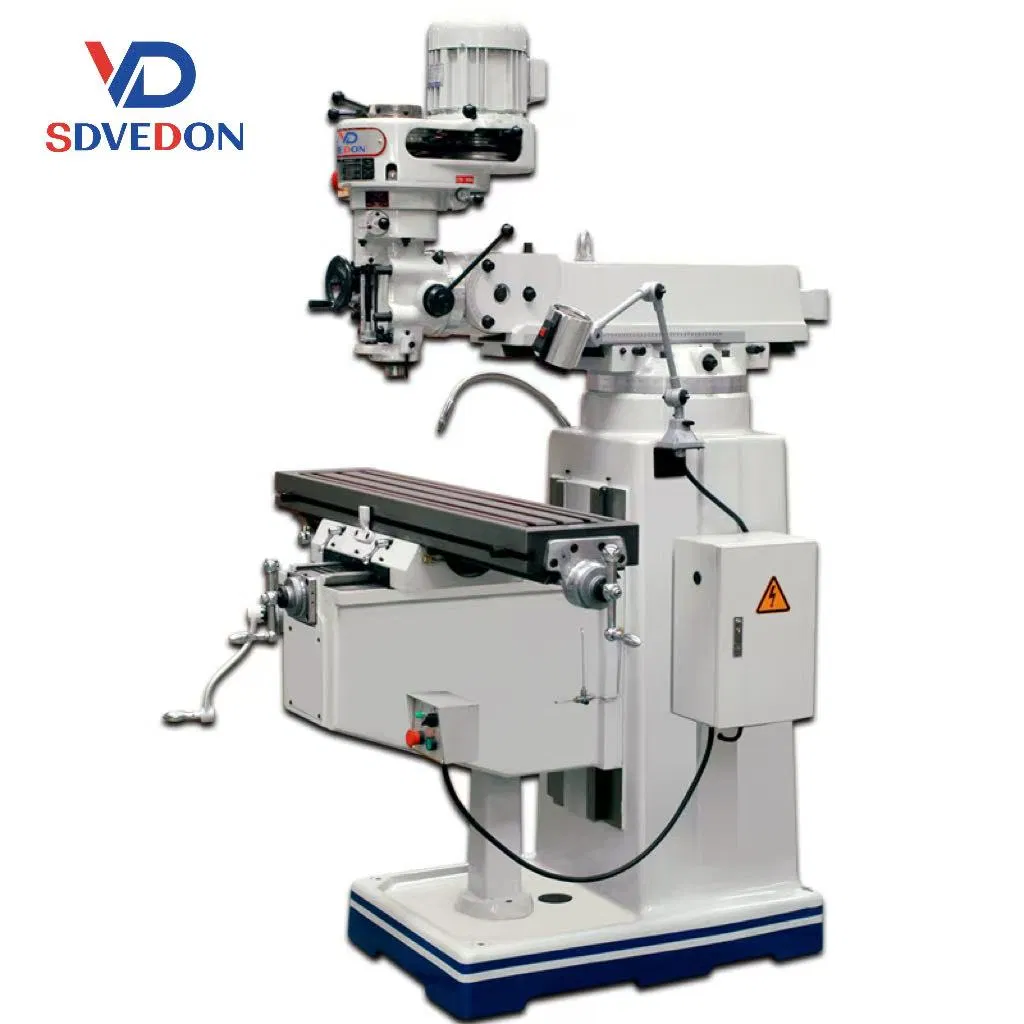

X6325 Universal Turret Milling Machine for Toolroom

1 / 5

X6325 Universal Turret Milling Machine for Toolroom

Customization:	Available
After-sales Service:	on-Line/off-Line Service
Warranty:	1 Year

Send Inquiry

Product Description

Basic Information

Model NO.

X6325

Type

Worktable Milling Machine

Object

Gear

Structure

Vertical

Milling Cutter Type

End Mill

Controlling Mode

Artificial

Automatic Grade

Manual

Precision

Normal Precision

Certification

CE, ISO 9001

Condition

New

Table Size

254X1270mm(10"X50")

Longitudinal Travel

850mm

Spindle Taper

Standard: R8, Optional: ISO30/ISO40

Spindle Motor Power

2.25kw (3HP)

Origin

China

HS Code

8459619000

Product Overview

X6325 Milling machines are capable of processing planes, grooves, gear teeth, threads, curved surfaces and workpieces with complex shapes. They can complete various processing operations such as milling, drilling and boring, and are widely used in mechanical manufacturing, mold processing, aerospace and other fields.

Key Components & Systems

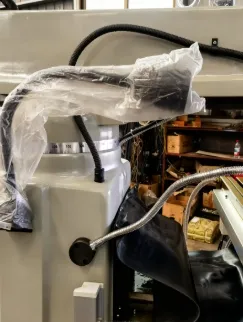

Cooling system

Cutting fluid reduces high temperatures and flushes away chips, improving machining accuracy and surface finish.

Electrical control cabinet

Integrates circuit breakers and relays for safe, stable control of spindle and worktable operations.

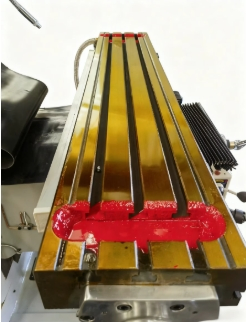

Workbench

Features T-slots and gold coating for stable clamping and flexible movement during complex milling processes.

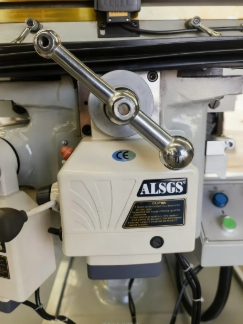

Feed control handle

Precision manual controls for adjusting feed rates and managing machine tool movements.

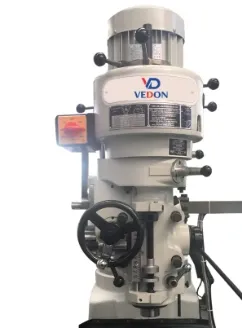

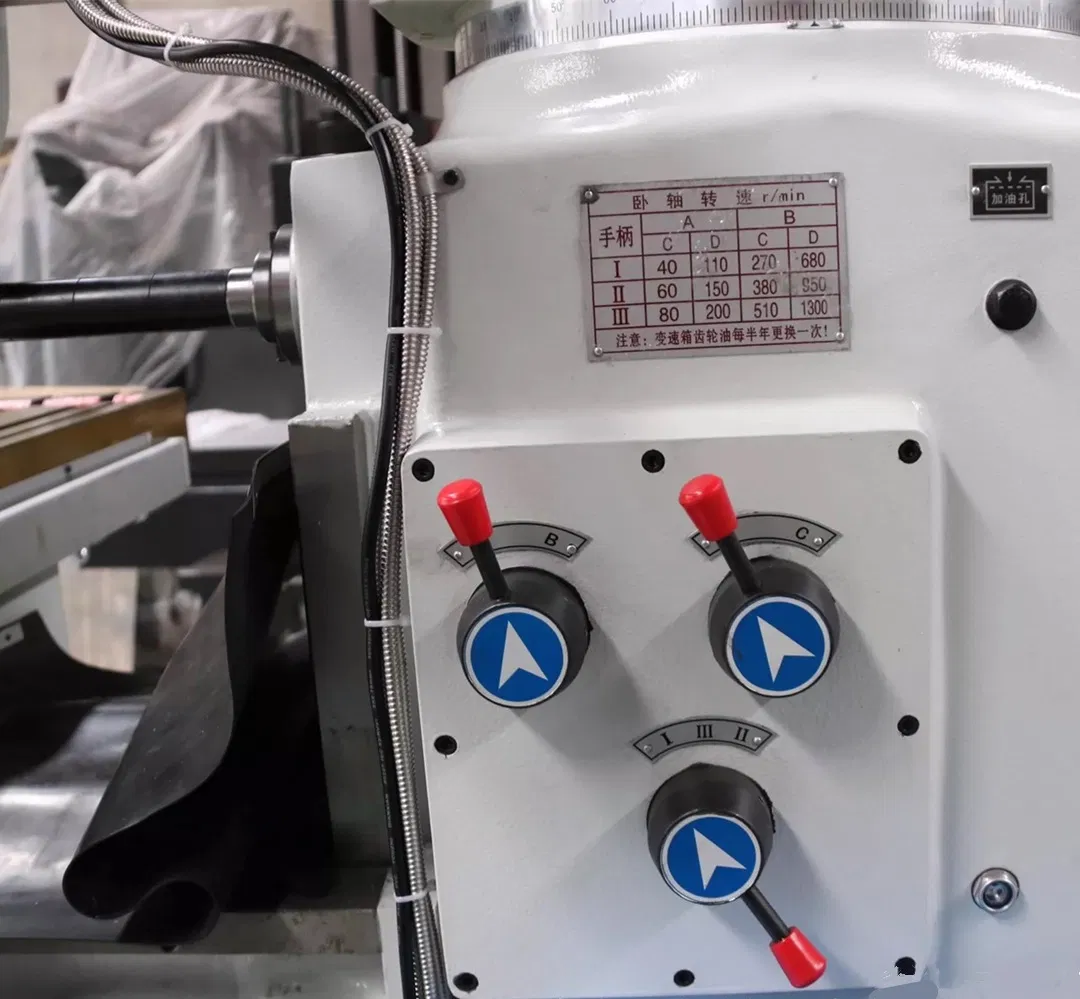

Milling head

Supports angular oscillation and tilting, allowing for high-speed spindle rotation at various milling angles.

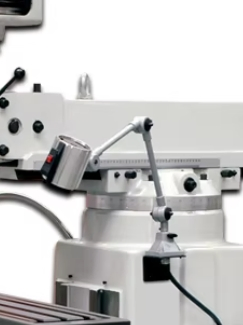

Work light

Adjustable illumination providing high visibility to the processing area for safe and accurate monitoring.

Technical Specifications

Specification	Unit	X6325 Value
Table Size	mm	1270 x 254
Table Travel (X/Y/Z)	mm	780 / 400 / 400
T-Slots (Width x Spacing)	-	3-16 x 50
Spindle Taper	-	R8 (Optional: ISO 40)
Spindle Speed Range	rpm	50Hz: 65-4500 / 60Hz: 80-5440
Spindle Travel	mm	127
Main Motor Power	kW	2.2 (Optional: 3.7 kW)
Head Swivel (L/R)	-	±90°
Head Tilt (F/B)	-	±45°
Machine Weight	kg	1400
Overall Dimensions	mm	1550 x 1650 x 2250

Packaging & Delivery

Package Size

165.00cm * 175.00cm * 217.00cm

Package Gross Weight

1550.000kg

Transport Package

Wood Box

Frequently Asked Questions

What materials can the X6325 milling machine process?

The X6325 is versatile and can process a wide range of materials used in mechanical manufacturing, mold processing, and aerospace, including various metals for planes, grooves, and gear teeth.

What are the spindle taper options available?

The standard spindle taper is R8. However, optional tapers such as ISO30 or ISO40 are available to meet specific toolroom requirements.

Can the milling head be adjusted for angled work?

Yes, the milling head supports a swivel of ±90° (left/right) and a tilt of ±45° (front/back), making it ideal for complex angled milling operations.

What is the table size and travel capacity?

The machine features a 1270 x 254 mm (10" x 50") table with a longitudinal travel of 850mm and cross/vertical travels of 420mm respectively.

How is the machine protected during shipping?

The machine is securely packed in a specialized wooden box with package dimensions of approximately 165cm x 175cm x 217cm to ensure safety during transport.

Is the machine suitable for automated production?

The X6325 is a manual, artificial-control machine with normal precision, designed primarily for toolrooms, mold processing, and manual mechanical manufacturing tasks.
