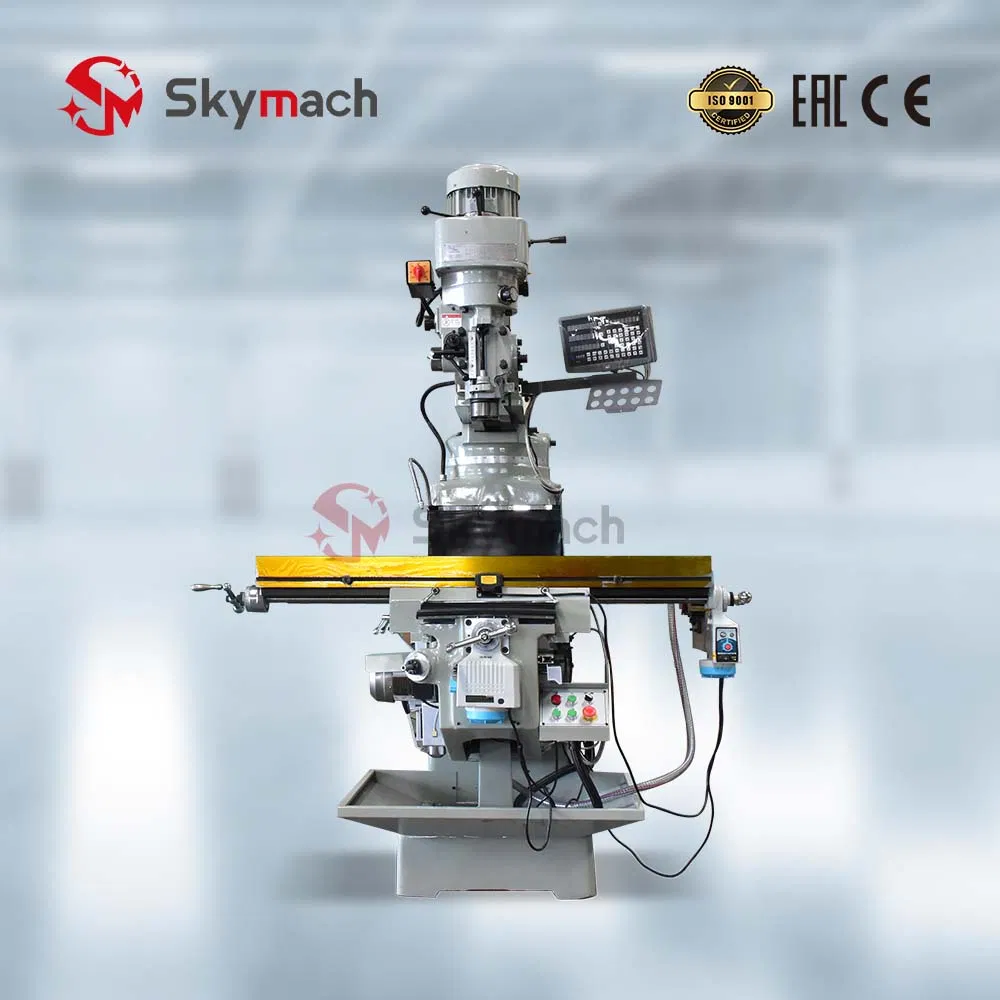

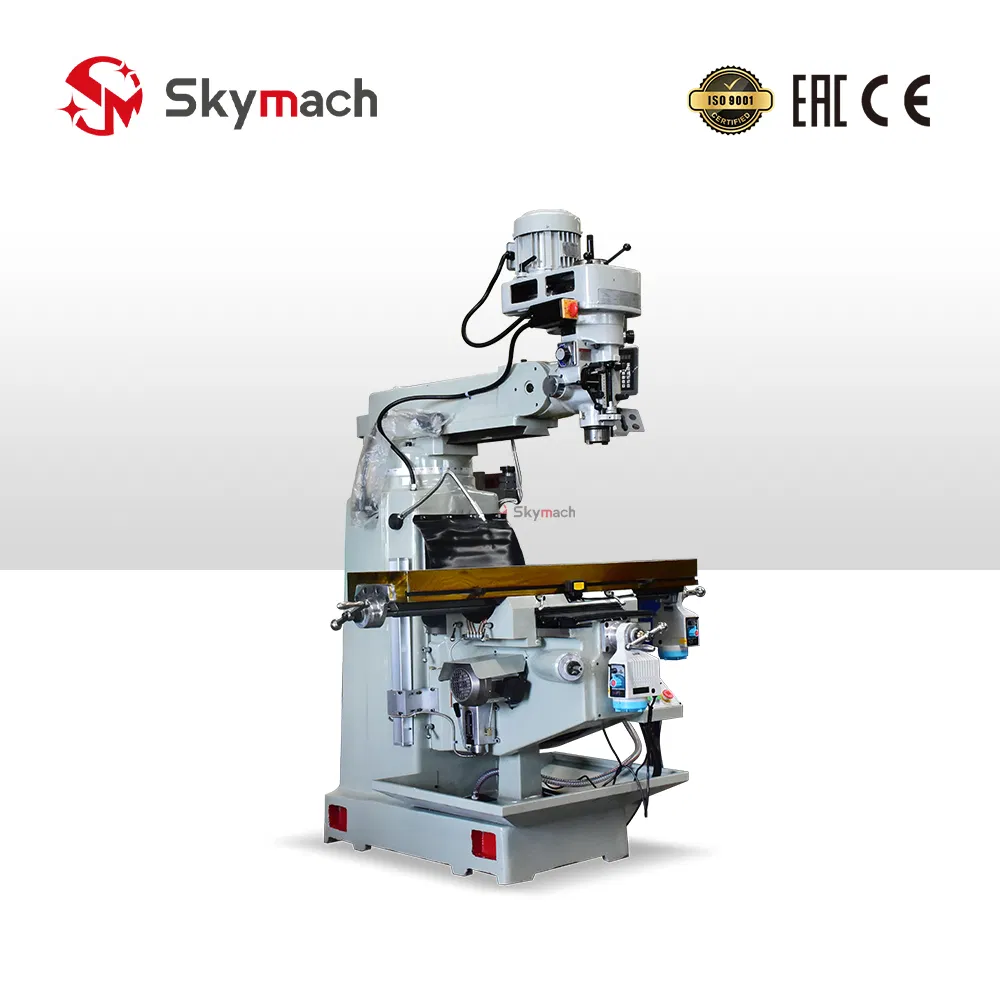

X6325 Precision Manual Milling Machine Featuring Ground Leadscrews and Dovetail Ways for Accurate Toolroom and Light Production Work
X6325 Precision Manual Milling Machine Featuring Ground Leadscrews and Dovetail Ways for Accurate Toolroom and Light Production Work
X6325 Precision Manual Milling Machine Featuring Ground Leadscrews and Dovetail Ways for Accurate Toolroom and Light Production Work
X6325 Precision Manual Milling Machine Featuring Ground Leadscrews and Dovetail Ways for Accurate Toolroom and Light Production Work
X6325 Precision Manual Milling Machine Featuring Ground Leadscrews and Dovetail Ways for Accurate Toolroom and Light Production Work
1 / 5
X6325 Precision Manual Milling Machine Featuring Ground Leadscrews and Dovetail Ways for Accurate Toolroom and Light Production Work
X6325 Precision Manual Milling Machine Featuring Ground Leadscrews and Dovetail Ways for Accurate Toolroom and Light Production Work
X6325 Precision Manual Milling Machine Featuring Ground Leadscrews and Dovetail Ways for Accurate Toolroom and Light Production Work
X6325 Precision Manual Milling Machine Featuring Ground Leadscrews and Dovetail Ways for Accurate Toolroom and Light Production Work
X6325 Precision Manual Milling Machine Featuring Ground Leadscrews and Dovetail Ways for Accurate Toolroom and Light Production Work

X6325 Precision Manual Milling Machine Featuring Ground Leadscrews and Dovetail Ways for Accurate Toolroom and Light Production Work

Customization: Available
After-sales Service: 2 Years
Warranty: 2 Years
Send Inquiry

Product Description

🔹 Basic Specifications

Model NO.X6325
TypeTool Milling Machine
ObjectSheet
StructureRocker
Milling CutterAngle Milling Cutter
Controlling ModeArtificial / Manual
PrecisionHigh Precision
CertificationGS, CE, ISO 9001
Table Stroke (X/Y/Z)800 / 500 / 481 mm
Spindle TaperISO140
Machine TypeUniversal Swivel Head
HS Code8458110090

📷 Product Gallery

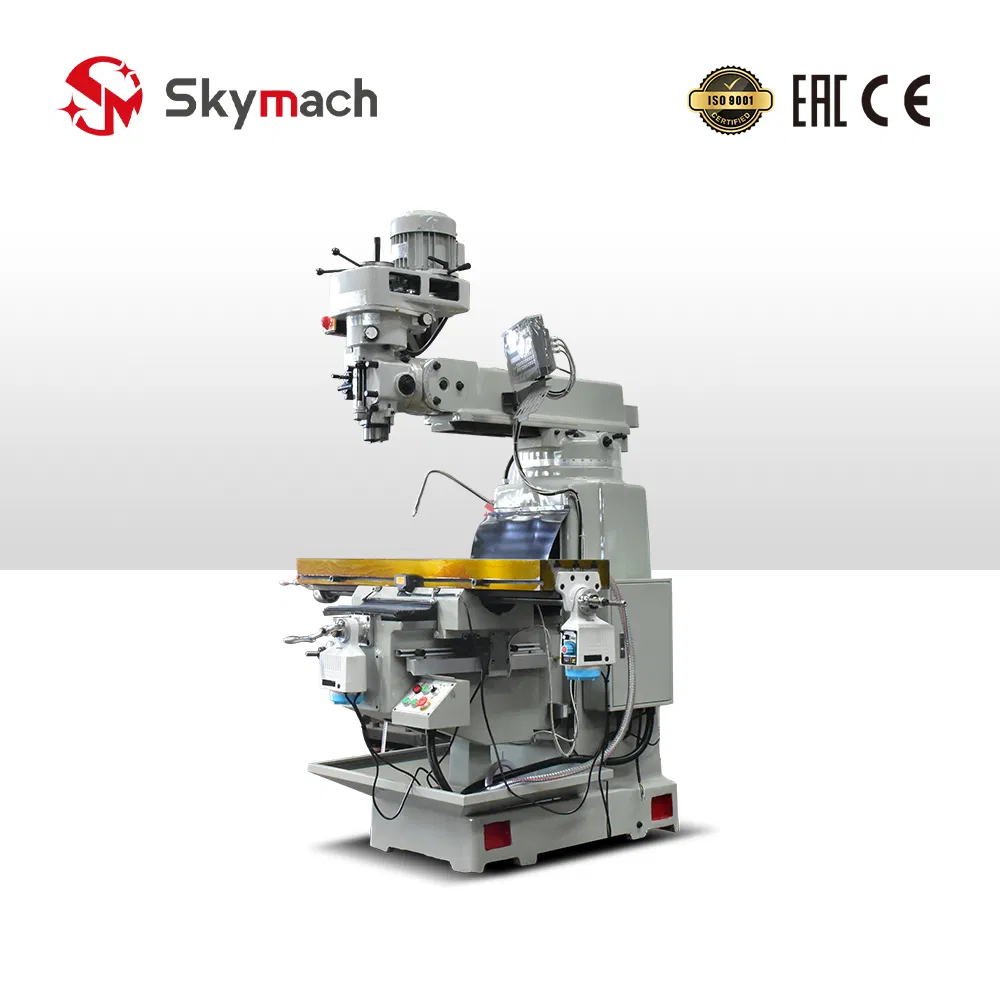

Vertical Milling Machine X6325

Precision Manual Milling Machine Featuring Ground Leadscrews and Dovetail Ways

Vertical Milling Machine X6325
Manual Milling Machine

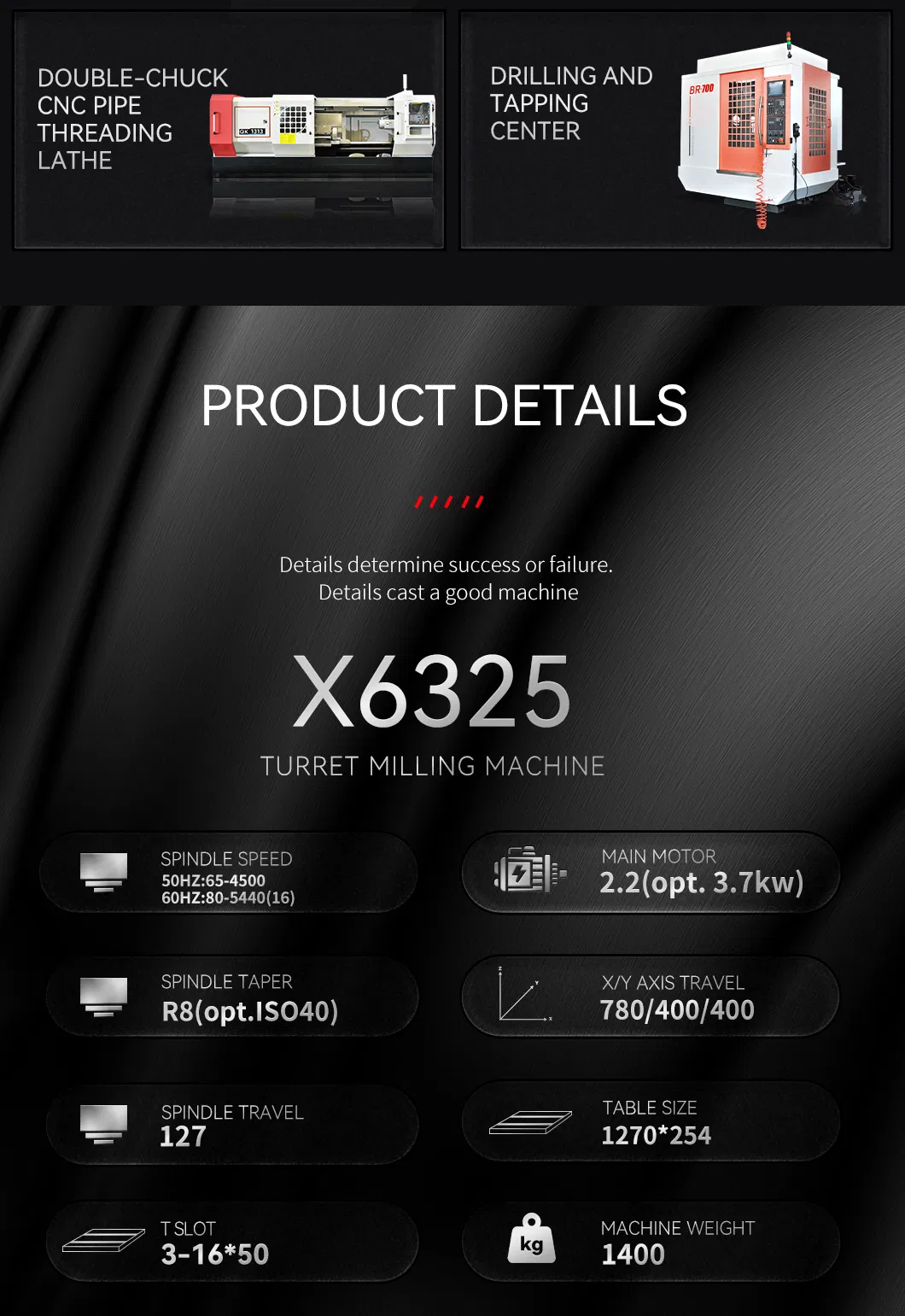

X6325 Details
Precision Toolroom Work

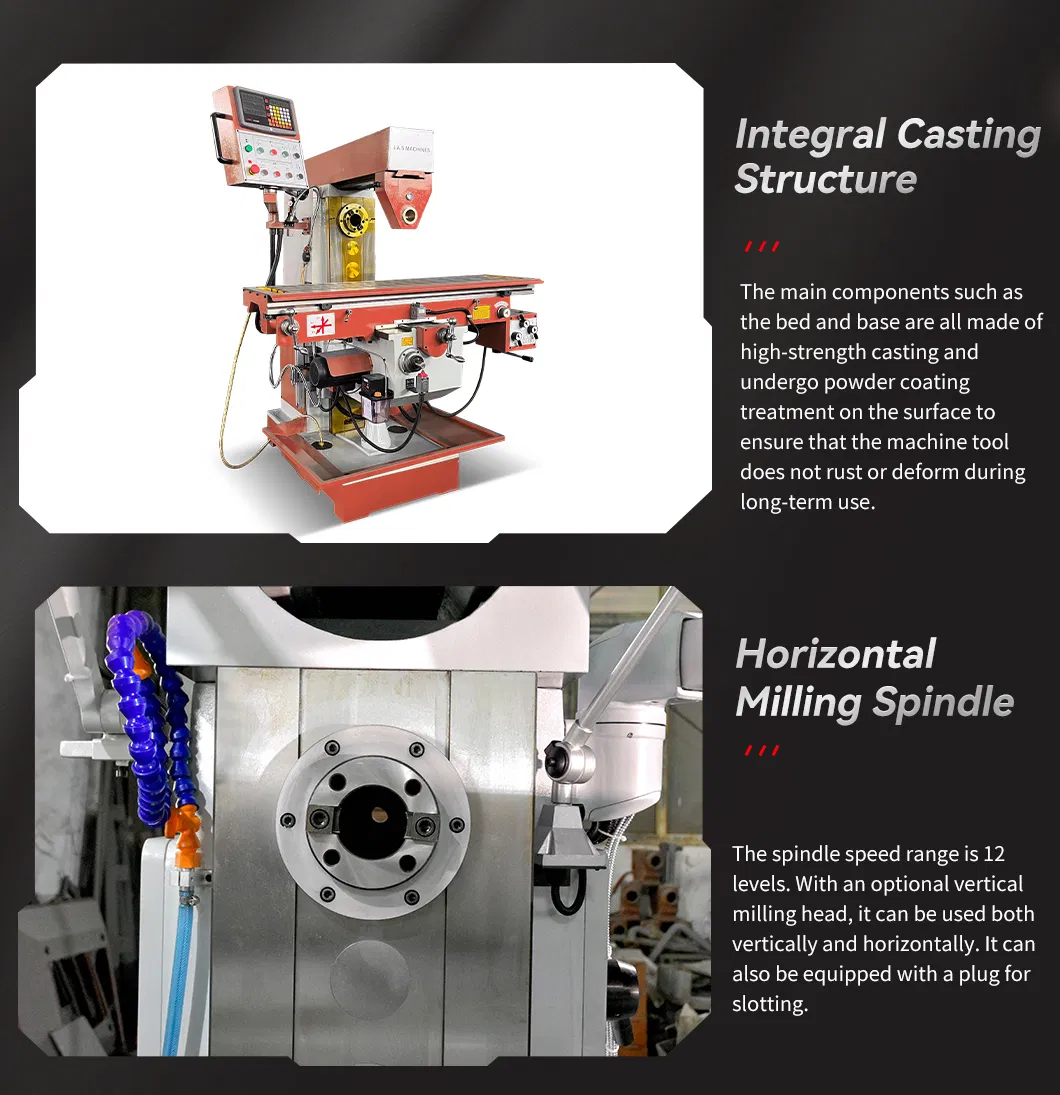

Universal Milling Machine

📊 Technical Parameters

Parameter Item Specification
ModelX6325
Table size (mm)1270 X 254
Long travel (mm)780
Cross travel (mm)400
Vertical travel (mm)500
T-slot No. and size3 x 16
Ram travel (mm)470
Spindle nose to table surface (mm)0 - 405
Spindle hole taperR8
Spindle travel (mm)127
Spindle speed16 steps (50HZ: 65-4500 / 60HZ: 80-5440)
Auto quill feedThree steps: 0.04/0.08/0.15 mm/rev
Spindle Motor2.2KW / 3hp

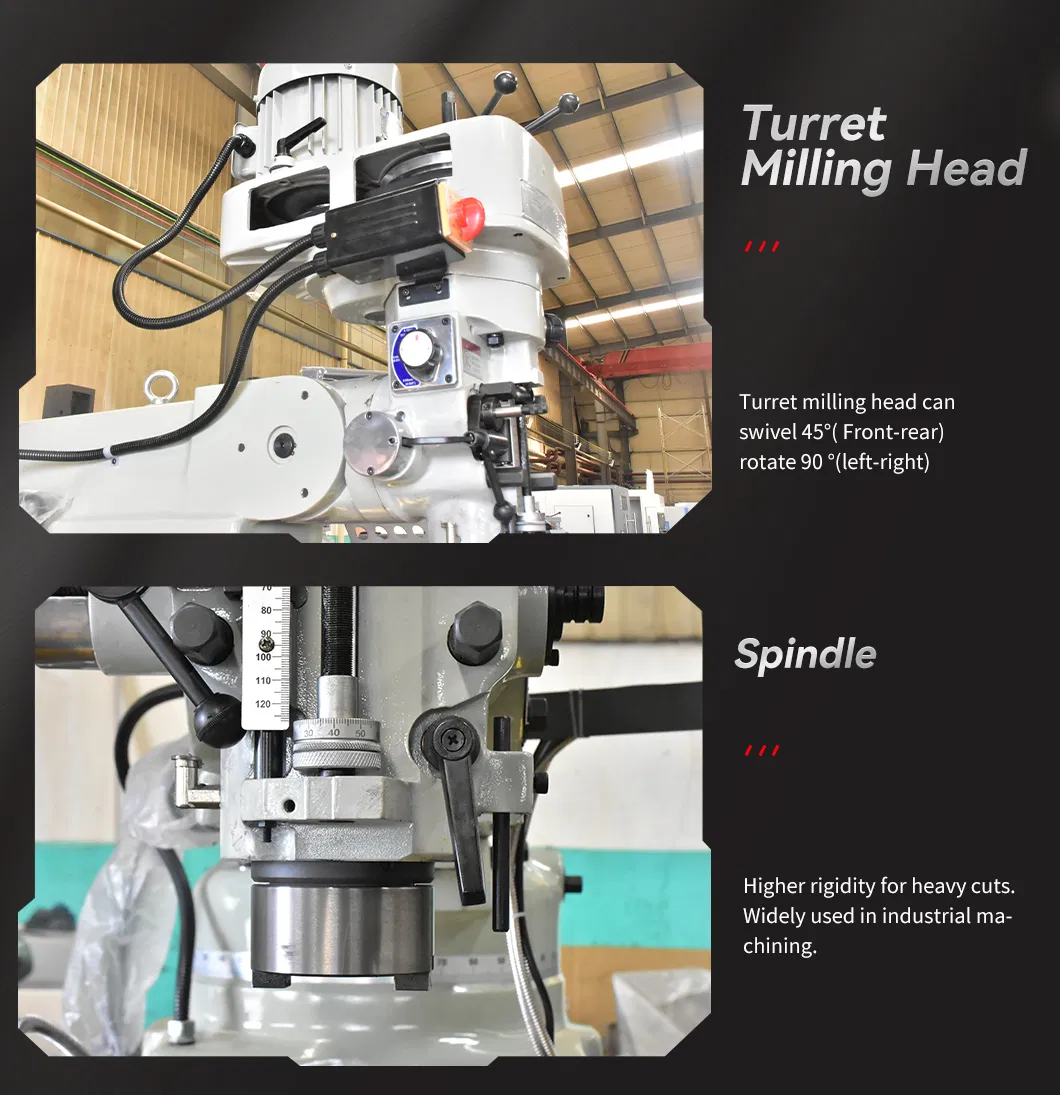

Head swivel / Head tilting90° / 45°
G.W./N.W. (kg)1200 / 1100

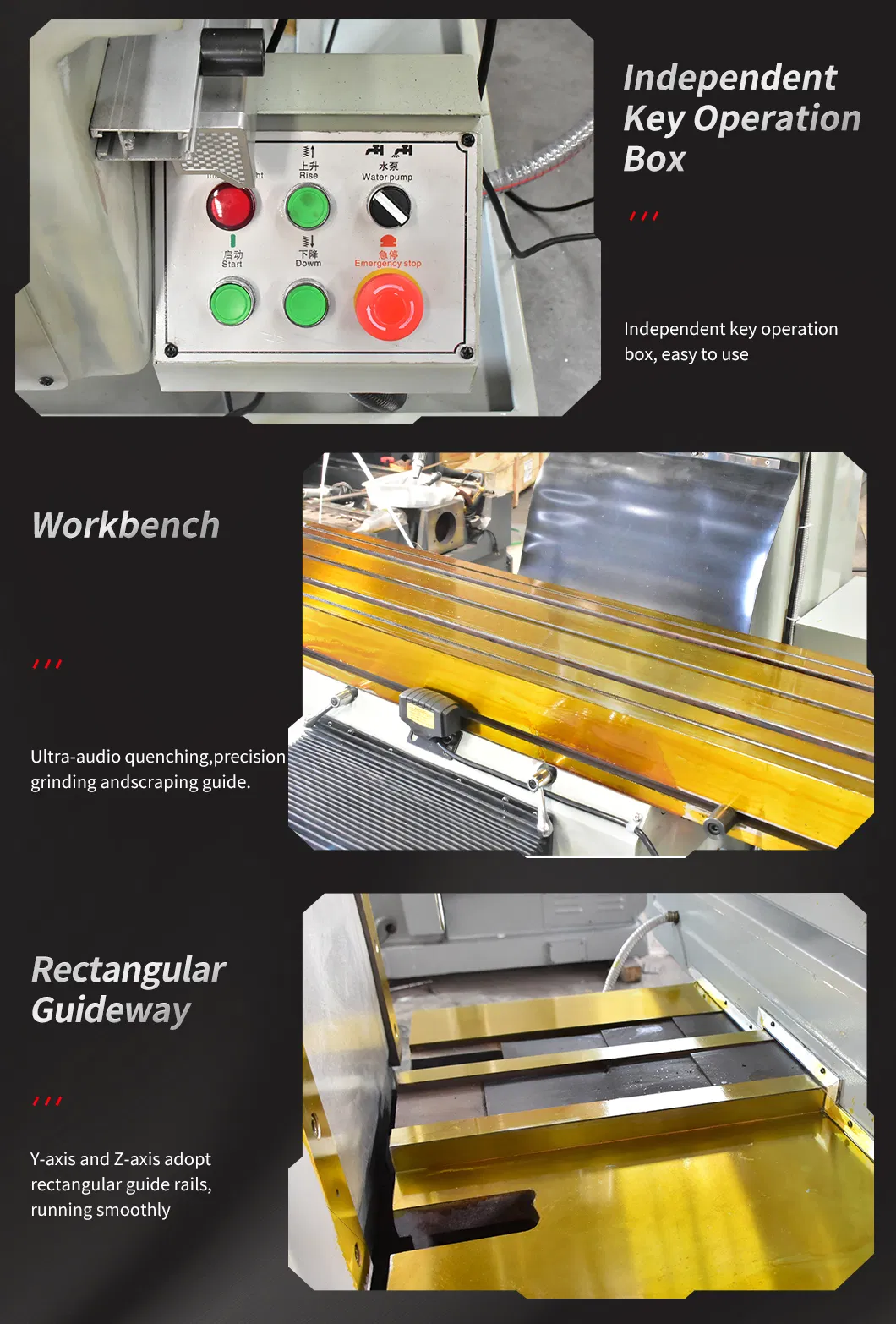

Workpiece View

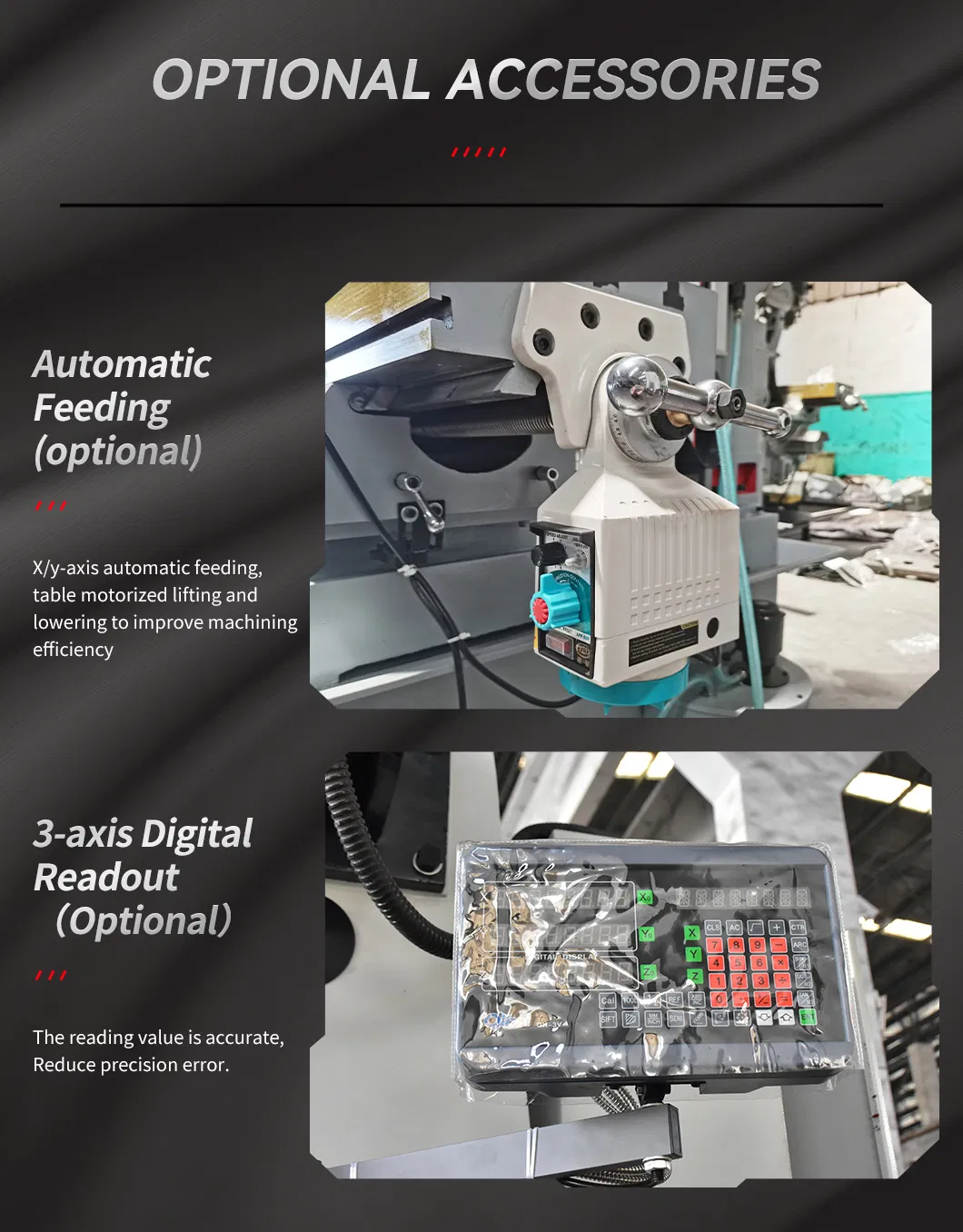

Control System
Base Structure
Milling Process

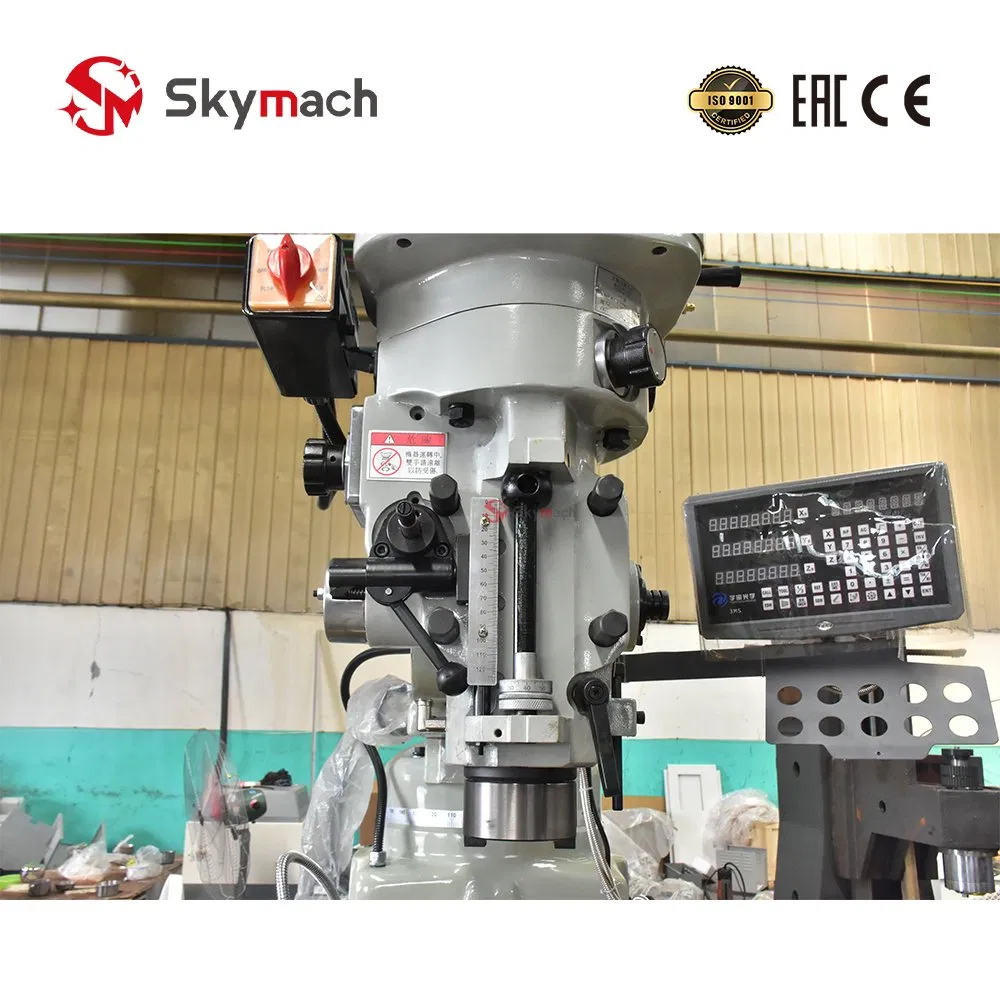

Machine Head
Full Machine View

💡 Frequently Asked Questions

How can I choose the most suitable machine?
Please provide your required specifications or product drawings. Our technical team will evaluate your needs and recommend the best model for your specific production requirements.
What are the main types of machinery available?
We specialize in a wide range of industrial equipment, including CNC Lathes, CNC Milling Machines, Vertical Machining Centers, Drilling Machines, Radial Drilling Machines, and Shaper machines.
What are the standard trade and payment terms?
We accept FOB, CFR, and CIF terms. Payment is typically handled via T/T (30% deposit, 70% balance before shipment) or irrevocable LC at sight.
What is the Minimum Order Quantity (MOQ)?
The MOQ is 1 set for most professional machinery. Some low-cost auxiliary equipment may have different requirements.
What information is needed for an accurate quote?
Please specify your industrial voltage, the material and dimensions of your workpiece, and your destination port if you require CIF pricing.
Are the machines certified for international standards?
Yes, our machines carry GS, CE, and ISO 9001 certifications, ensuring they meet high-quality and safety standards for global toolroom and production work.
