Vmc850 Vertical Machining Center Configuration Optional GSK/Fanuc/Knd System with Large Stroke

Customization: Available
After-sales Service: on Line
Warranty: 2 Years

Product Description

Basic Information
Model NO.
VMC850
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Linear Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Certification
GS, CE, ISO 9001
Condition
New
X Axis Itinerary
800mm
Y Axis Itinerary
500mm
Z Axis Itinerary
500mm
Workbench Area
1000*500 mm
Spindle Power
7.5kw
Machine Weight
5200 Kg
📦
Packaging & Delivery
Package Size
260.00cm * 238.00cm * 240.00cm
Gross Weight
5200.000kg
Transport Package
Wood Case
🖼️

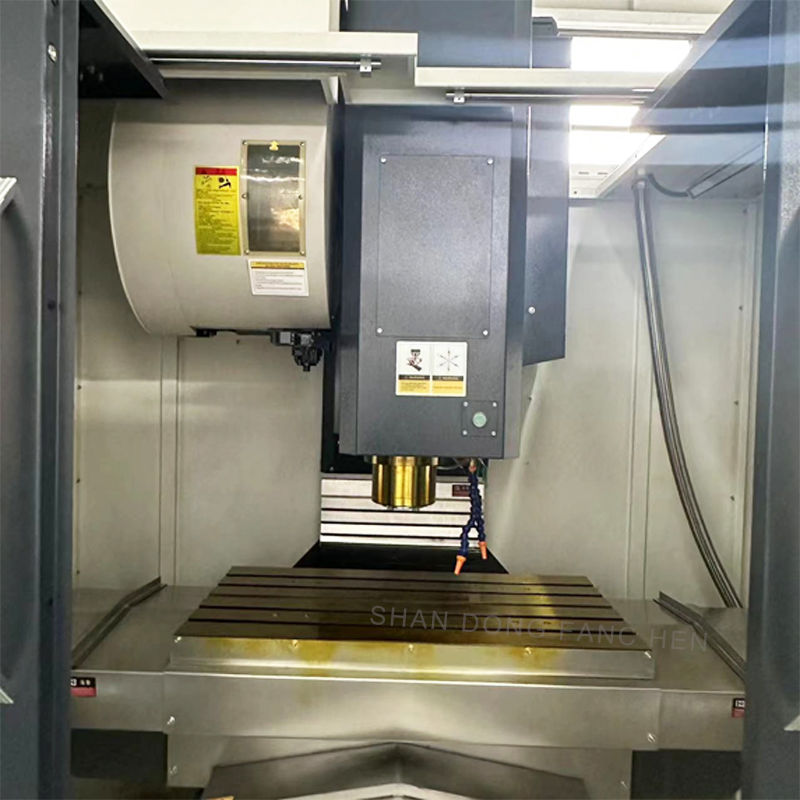

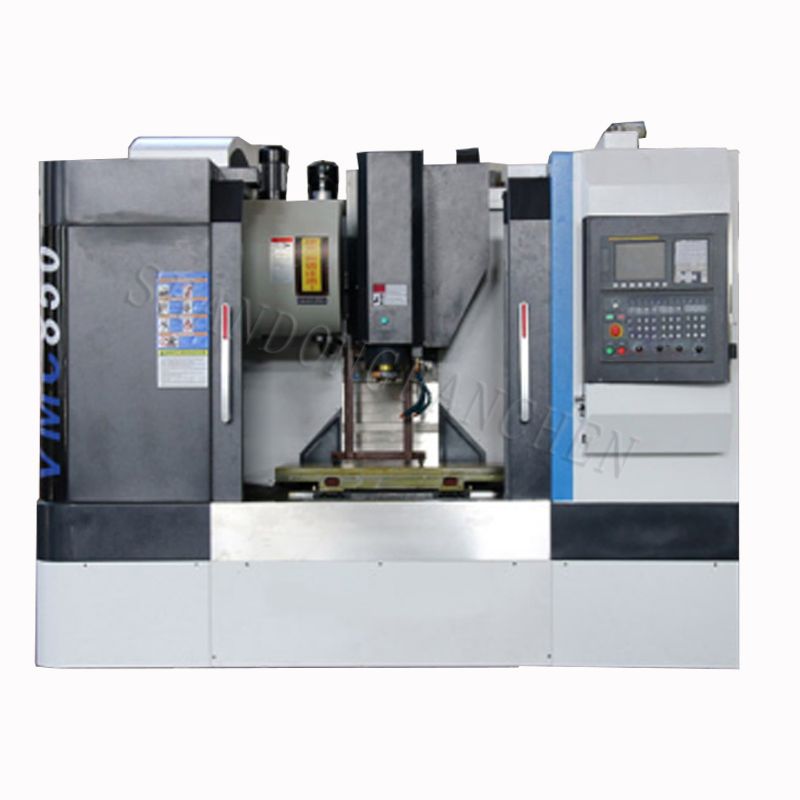

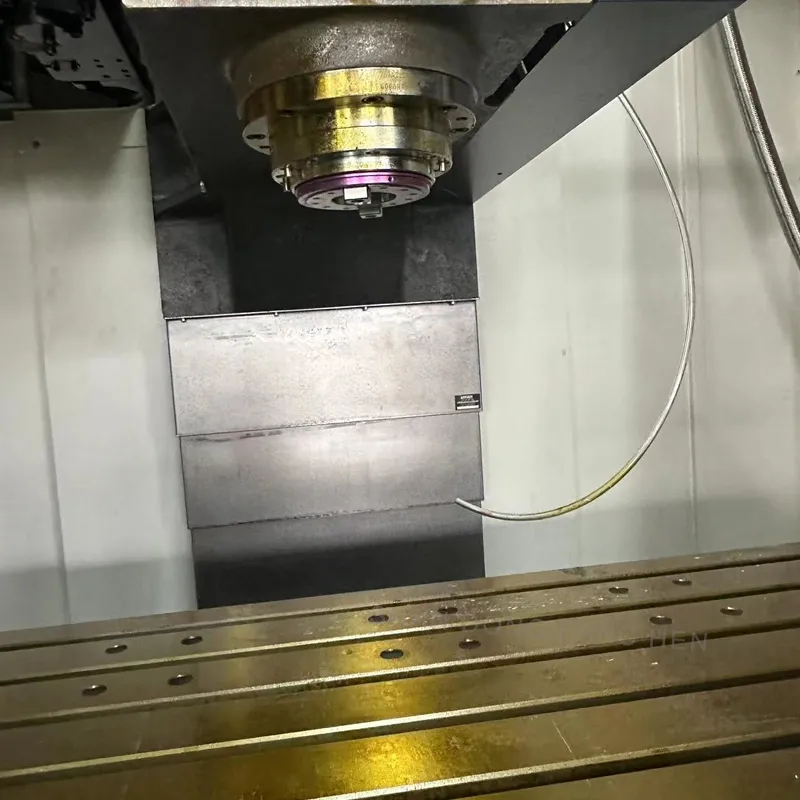

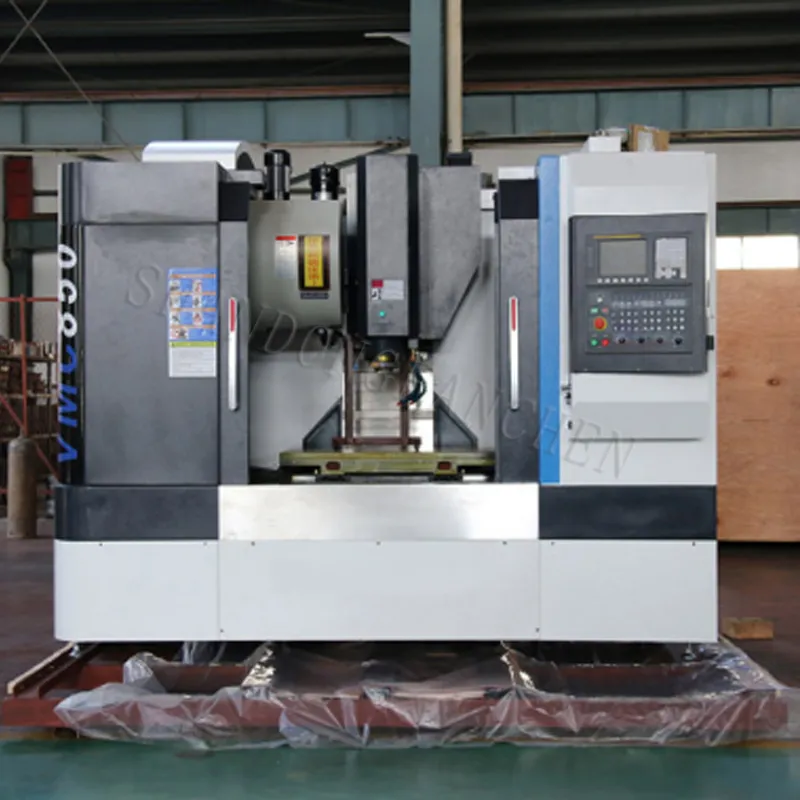

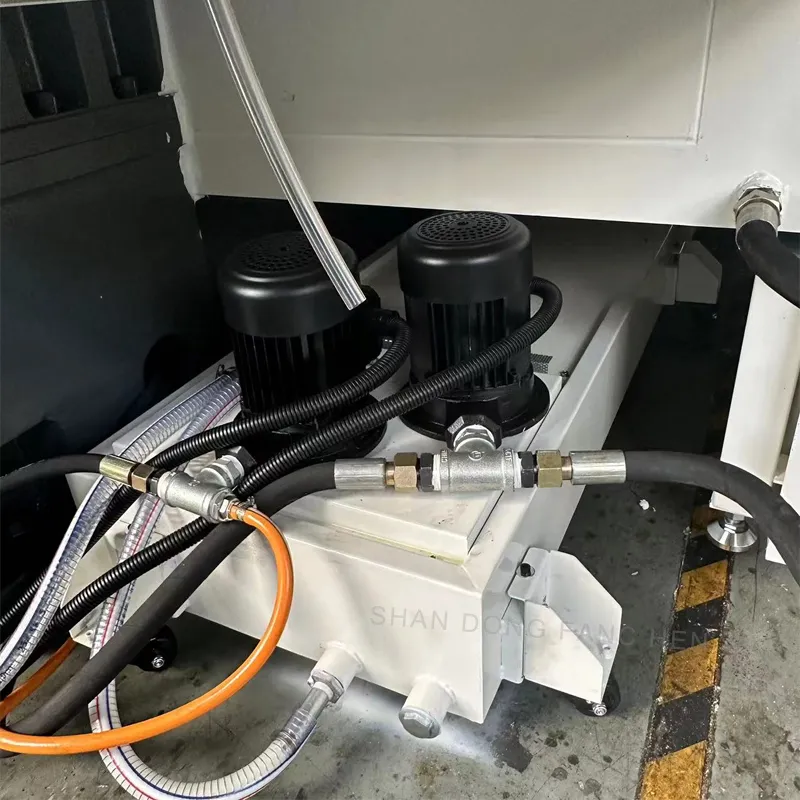

Product Visuals
📊
Technical Specifications
Project Unit VMC850 Value
X axis itinerarymm800
Y axis itinerarymm500
Z axis itinerarymm500
Distance from spindle end face to workbench centermm110-610
Spindle speedrpm8000/10000
Spindle powerKW7.5
Spindle taper-BT40-150 / BT50
Workbench areamm1000×500
Maximum load of the workbenchkg400
X/Y/Z-axis rapid displacementm/min36 / 36 / 24
Tool magazine capacitypcs24
Tool change times2.5
X / Y / Z axis accuracymm±0.008
Repeat positioning accuracymm±0.005
⚙️
Optional Configuration
Component Optional Details
SpindleElectric spindle 18000-24000 turn with turning function

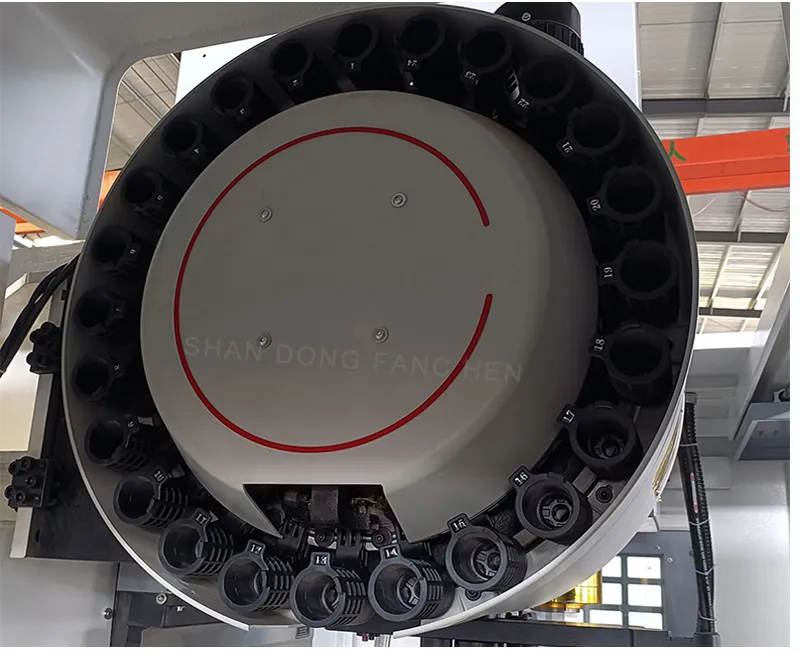

Tool magazineDisk type 24 tools
Rotating platform4th axis platform, Cradle turn, Cradle with turning function transfer table

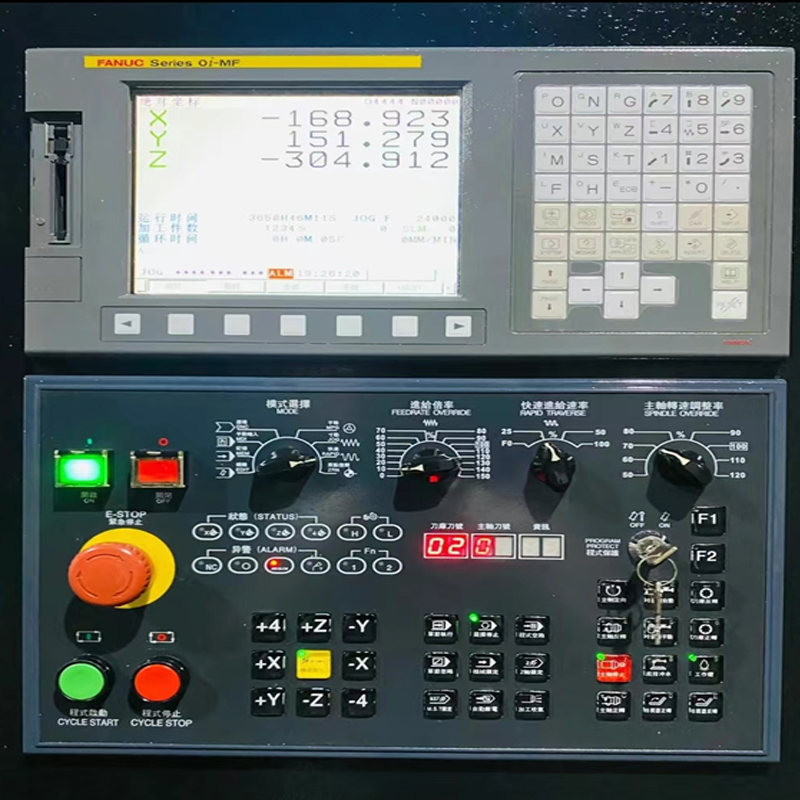

Controller systemFANUC, Siemens 840, KND, Mitsubishi, Syntec, GSK, HNC
Frequently Asked Questions
How can I choose the most suitable machine?
Please share your specific requirements and workpieces specifications. We can recommend the best model or help you select the exact configuration based on your product drawings.
What are the primary types of machines available?
We offer a wide range of CNC equipment, including CNC Lathes, CNC Milling Machines, Vertical Machining Centers, Drilling Machines, Radial Drilling Machines, and Sawing Machines.
What are the standard trade terms for purchase?
We accept standard international trade terms including FOB (Free on Board), CFR (Cost and Freight), and CIF (Cost, Insurance, and Freight).
What are the accepted payment terms?
Our standard terms are T/T with a 30% initial payment upon order and the 70% balance before shipment. We also accept irrevocable LC at sight.
What is the Minimum Order Quantity (MOQ)?
The MOQ is 1 set for most machining centers. Some smaller, low-cost auxiliary machines may require a higher quantity.
Can I customize the control system for the VMC850?
Yes, the VMC850 supports multiple control systems including FANUC, Siemens, Mitsubishi, GSK, KND, and Syntec to meet your operational preferences.
