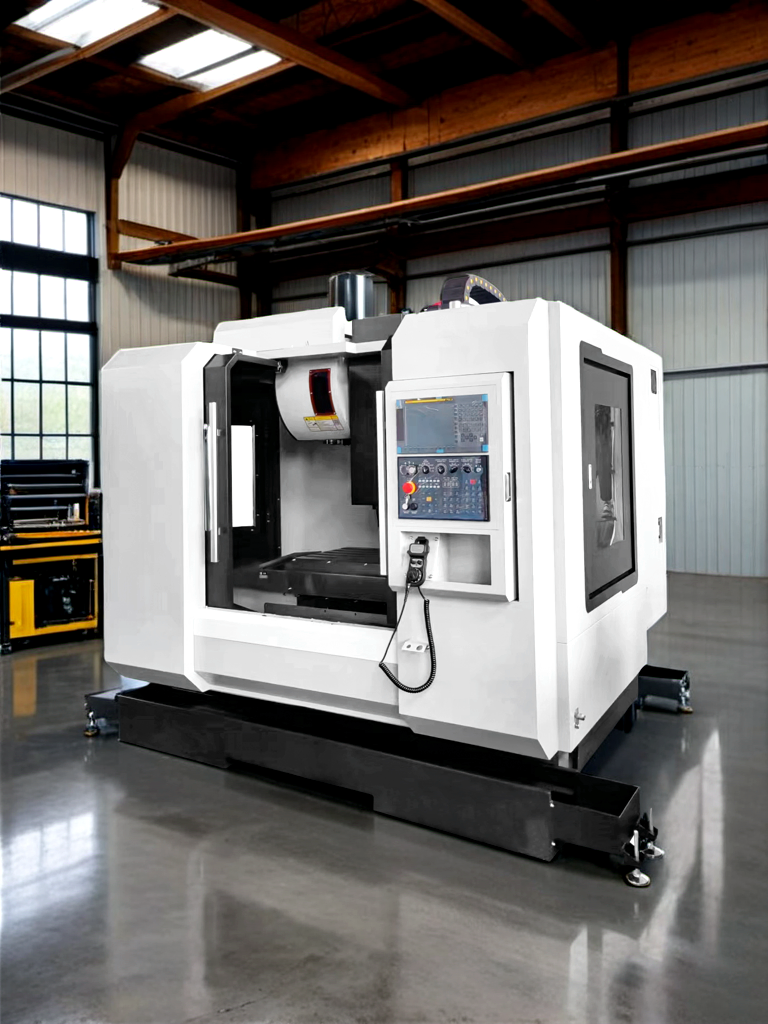

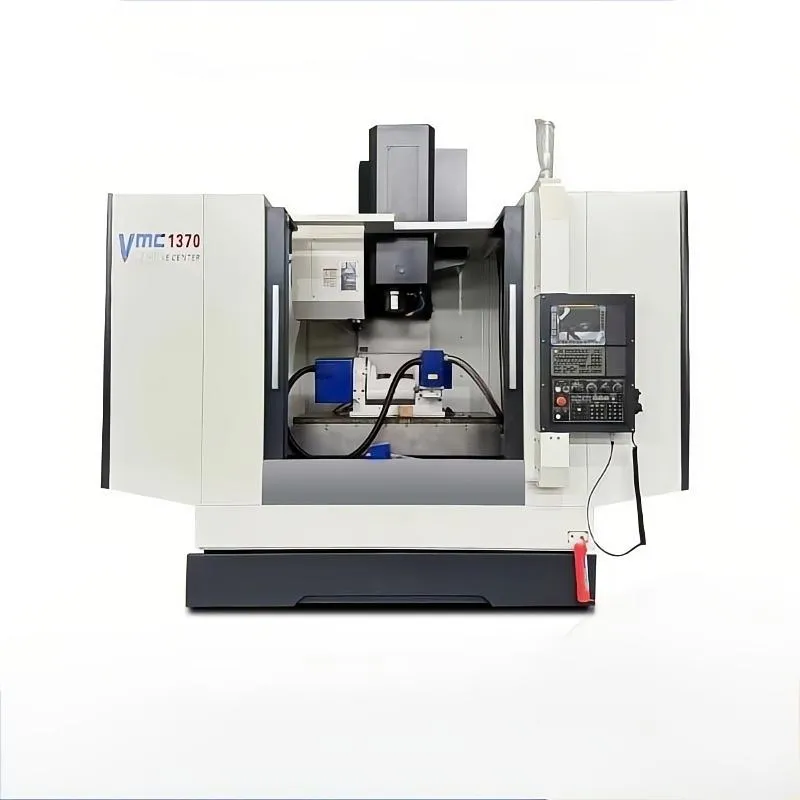

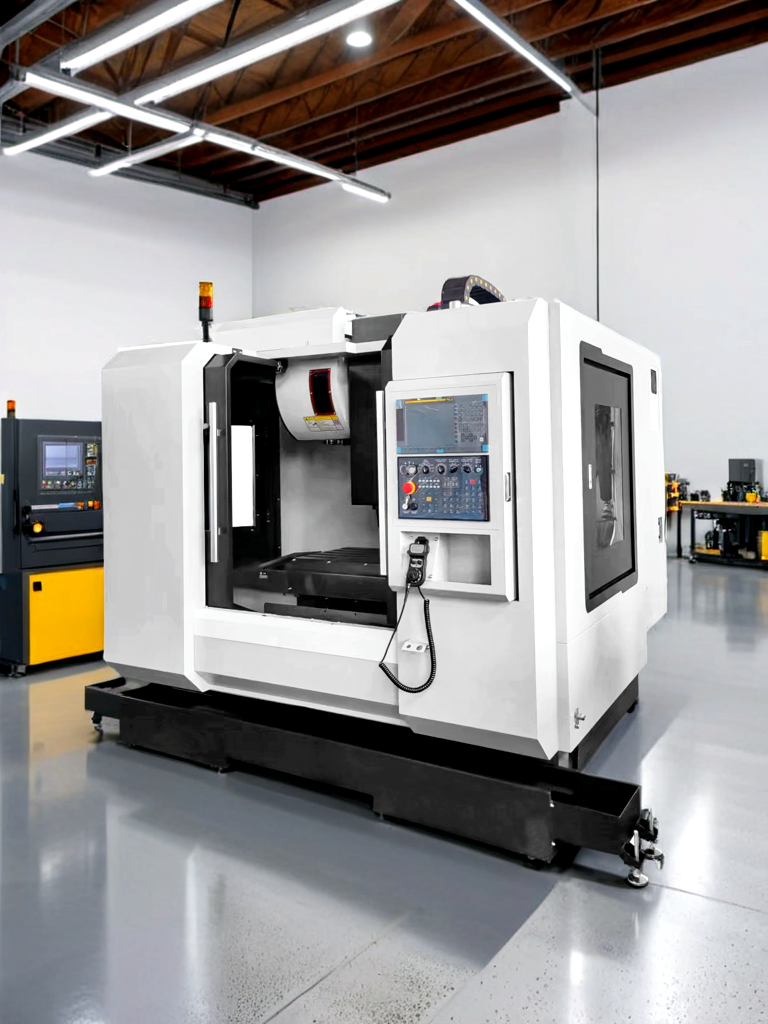

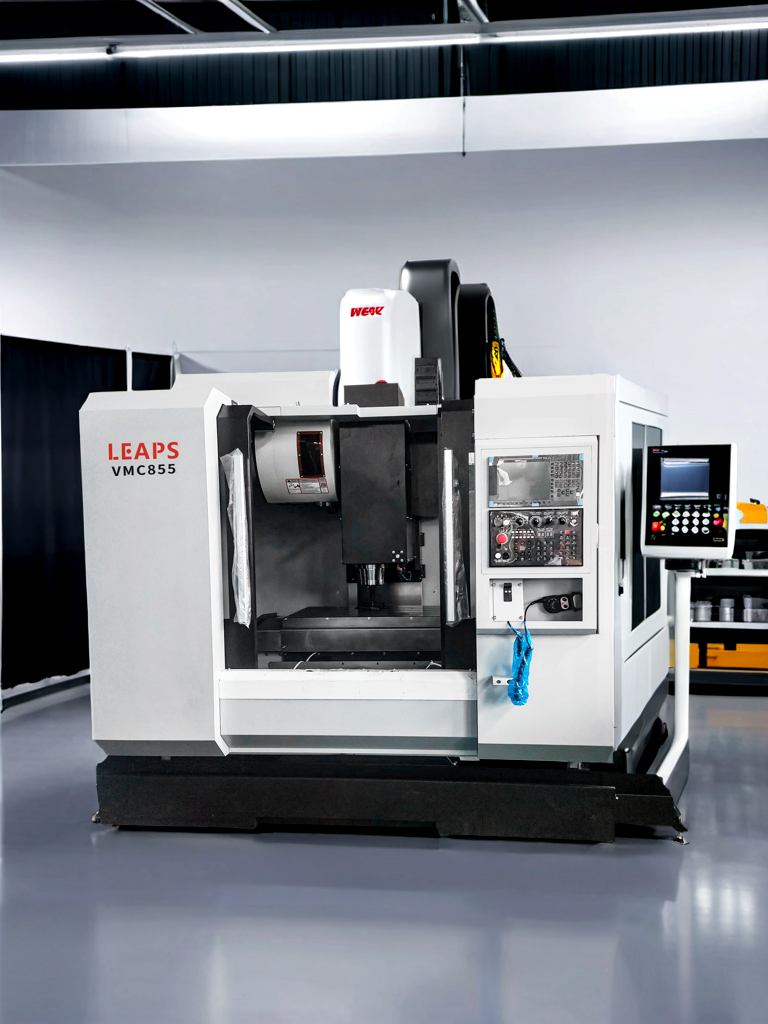

Introducing our High Rigidity Vertical Machining Center, a powerhouse machine designed for the most demanding applications! Whether you are involved in mold manufacturing, crafting cemented carbide parts, developing automation equipment, producing auto parts, or exploring the vast expanse of aerospace, our Vertical Machining Center is engineered to deliver exceptional performance and precision in every industry.

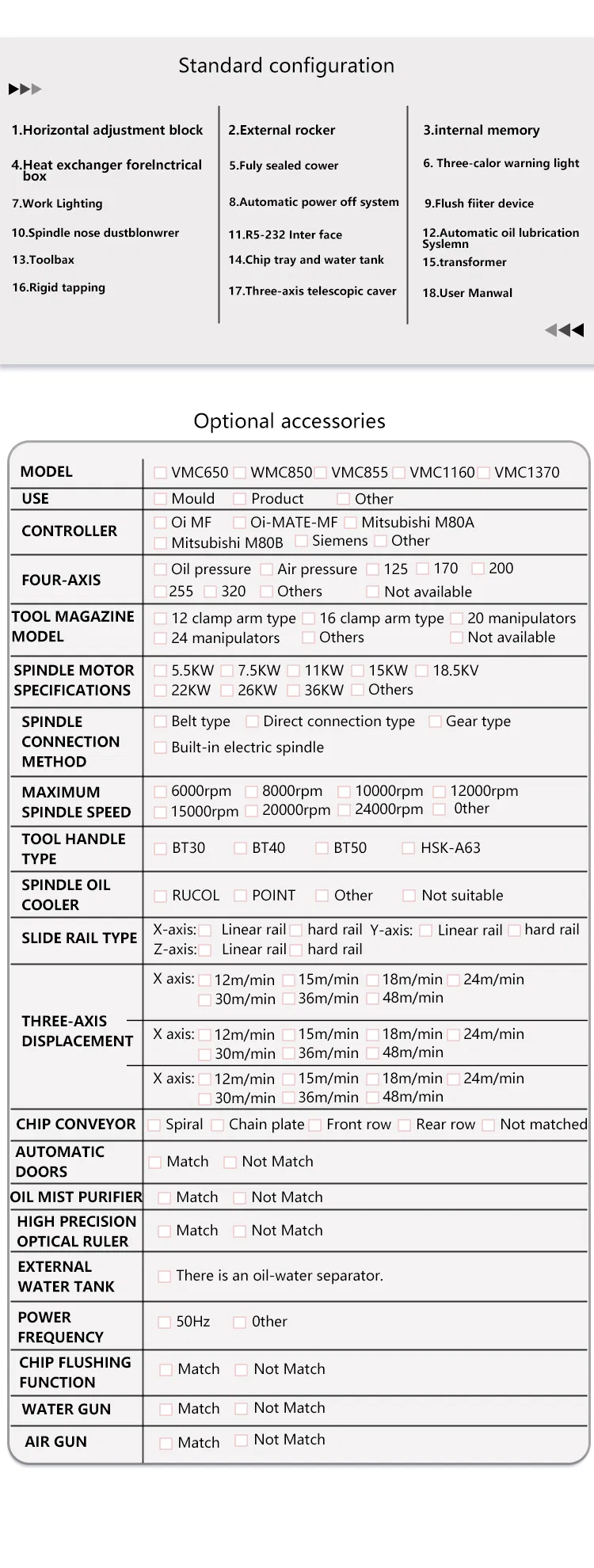

| Item Model | Unit | VMC850 | VMC855 | VMC866 | |
| Worktable | Size | mm | 1000X500 | 1000X550 | 1000X600 |
| T-slot | mm | 5-18X102 | 5-18X100 | 5-18X100 | |
| Max Load | kg | 400 | 550 | 550 | |
| Screw & Rail | Rail Width | mm | 35/35/35 | 35/45/4 | 35 or 45/45/4 |
| Ball Screw | mm | 3616/3616/3616 | 4016/4016/4016 | 4016/4016/4016 | |
| Stroke | X/Y/Z Stroke | mm | 800X500X500 | 800X550X550 | 800X600X600 |
| Motor Torque | NM | 15/15/22 | 15/15/22 | 18/18/220 | |
| Spindle to Table | mm | 110-610 | 120-670 | 120-720 | |
| Dist. to Column | mm | 524 | 590 | 626 | |
| Servo Shaft | Feed Rate | mm/min | 1-8000 | 1-8000 | 1-8000 |
| Fast Feed | m/min | 48/48/36 | 48/48/36 | 48/48/48 | |
| Spindle | End Taper | mm | BT40-150 | BT40-150 | BT40-150 |
| Motor Power | kw | 7.5 | 7.5 | 7.5/11 | |
| Max Speed | rpm | 8000-12000 | 8000-12000 | 8000-12000 | |
