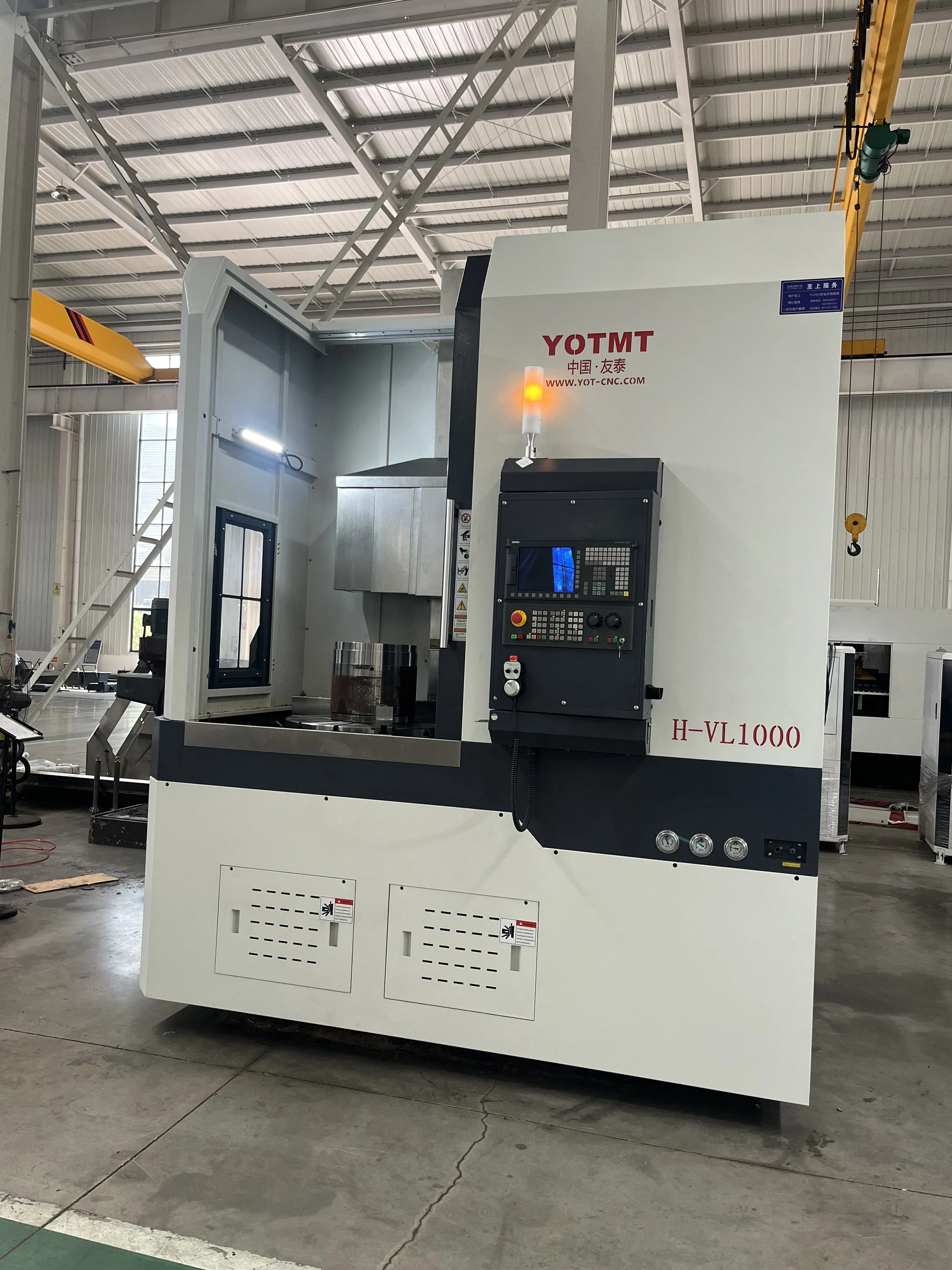

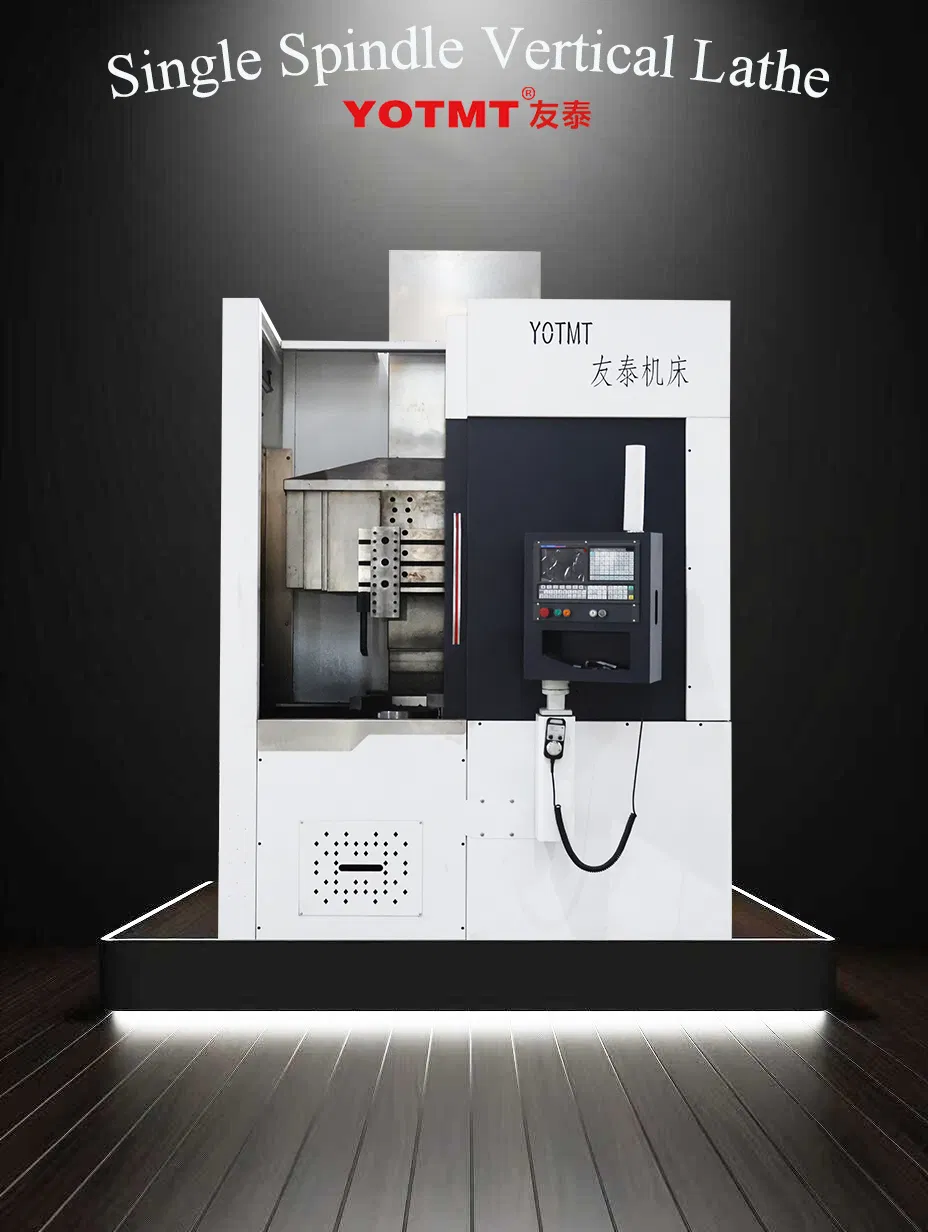

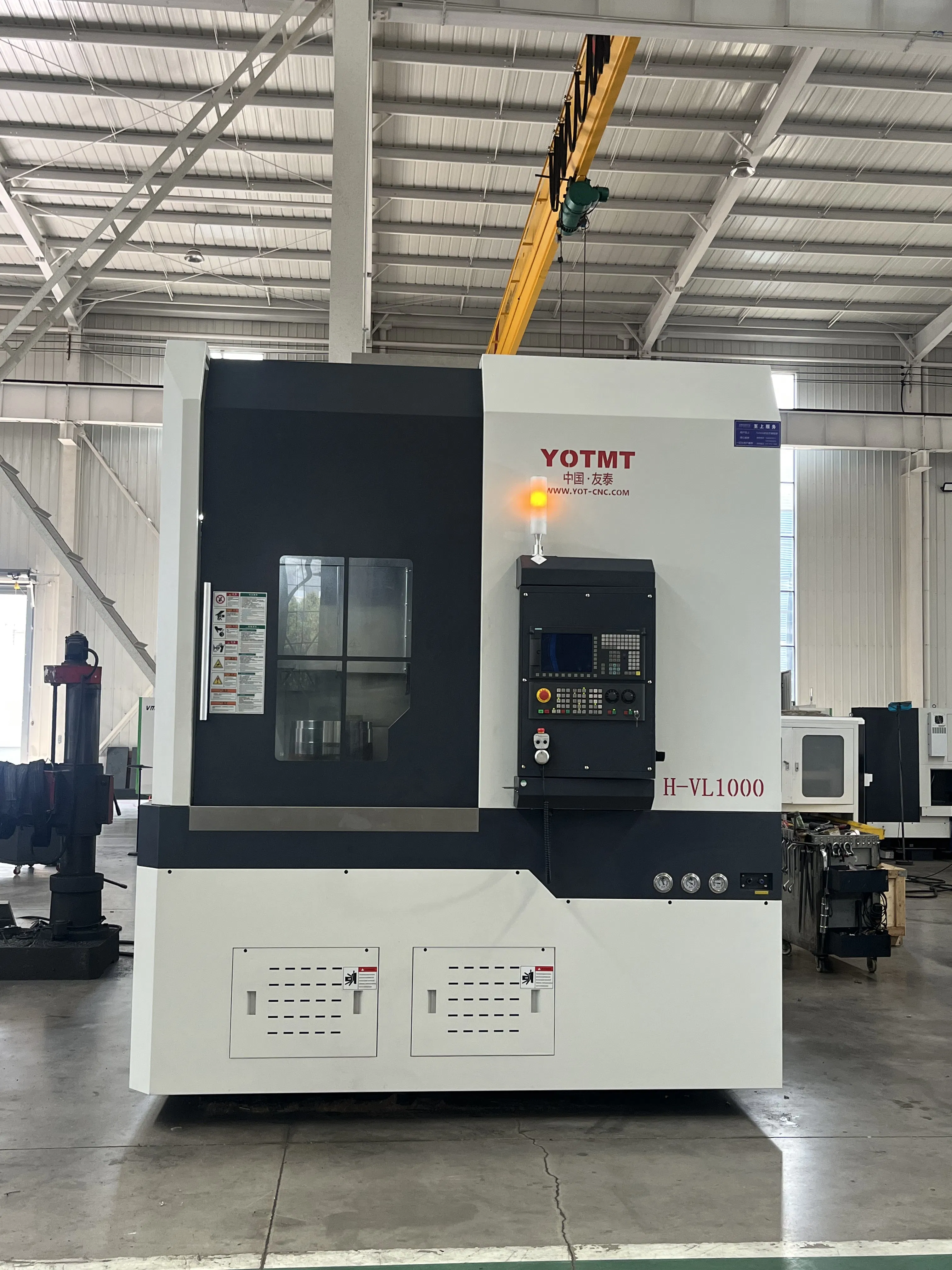

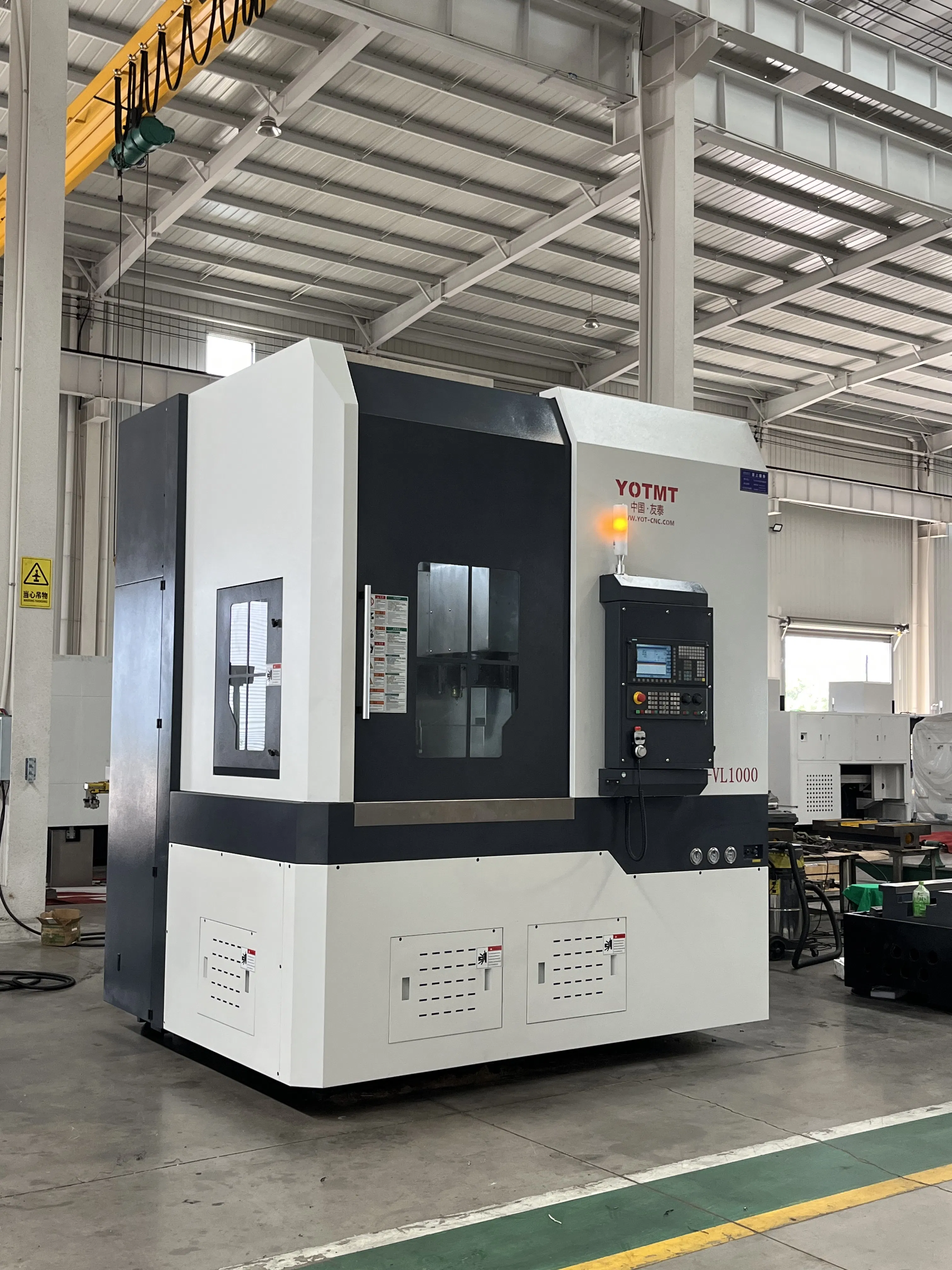

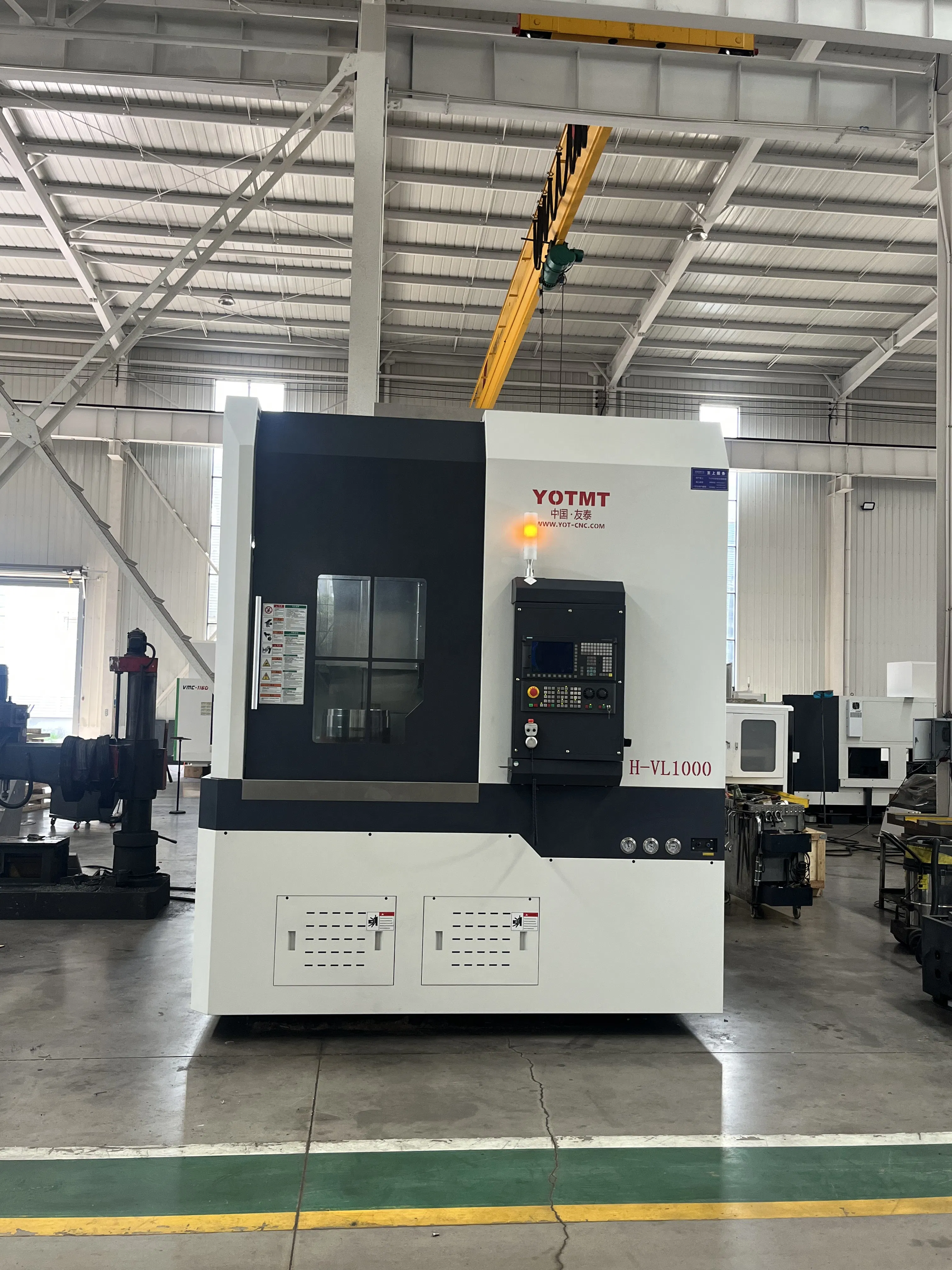

Unleash Precision with the Premium H-Vl700 Vertical Turning Lathe Tool, engineered specifically for unparalleled precision machining excellence.
Ingeniously adopting the A2-11 high-precision spindle unit, coupled with a high-rigidity series combination bearing assembly method to elevate performance to new heights.
Impressive Spindle Output Torque Range: 560-1000 N.m for powerful performance. The X/Z axis integrates advanced technology with a torque specification of 23/27 N.m.

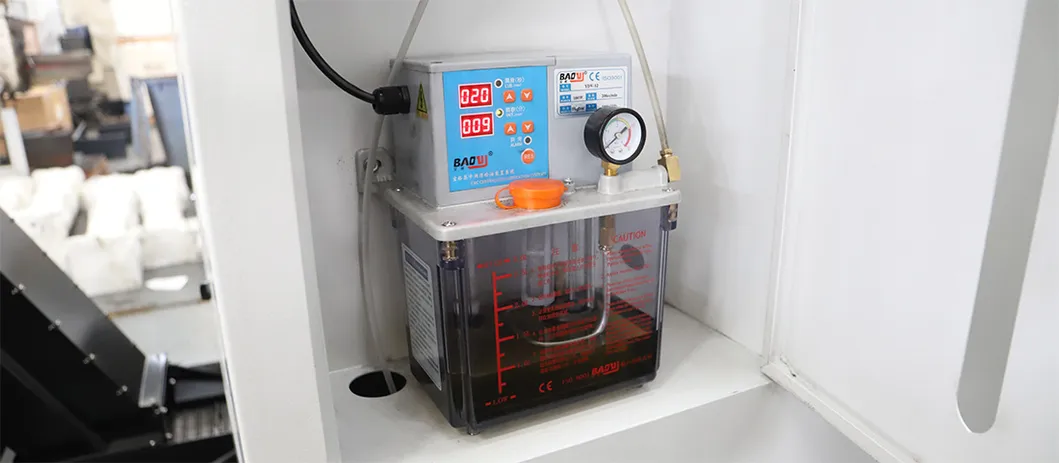

Positive displacement lubrication pump, free from lubrication distance constraints, ensuring more convenient lubrication at all times.
| ITEM | UNIT | H-VL700 | H-VL850 | H-VL1000 |
|---|---|---|---|---|
| MAX. rotation diameter | mm | 770 | 920 | 1100 |
| MAX. machining diameter | mm | 700 | 850 | 1000 |
| MAX. part height | mm | 650 | 650 | 800 |
| MAX. spindle speed | r/min | 1500 | 1000 | 800 |
| XZ positioning accuracy | mm | ±0.008 | ±0.008 | ±0.008 |
| XZ repeat accuracy | mm | ±0.005 | ±0.005 | ±0.006 |
| Processing accuracy | - | IT5~IT6 | IT5~IT6 | IT6~IT7 |
| Linear rail width | mm | 55 | 55 | 55 |
| Spindle motor power | kw | 18.5 | 22 | 30 |
