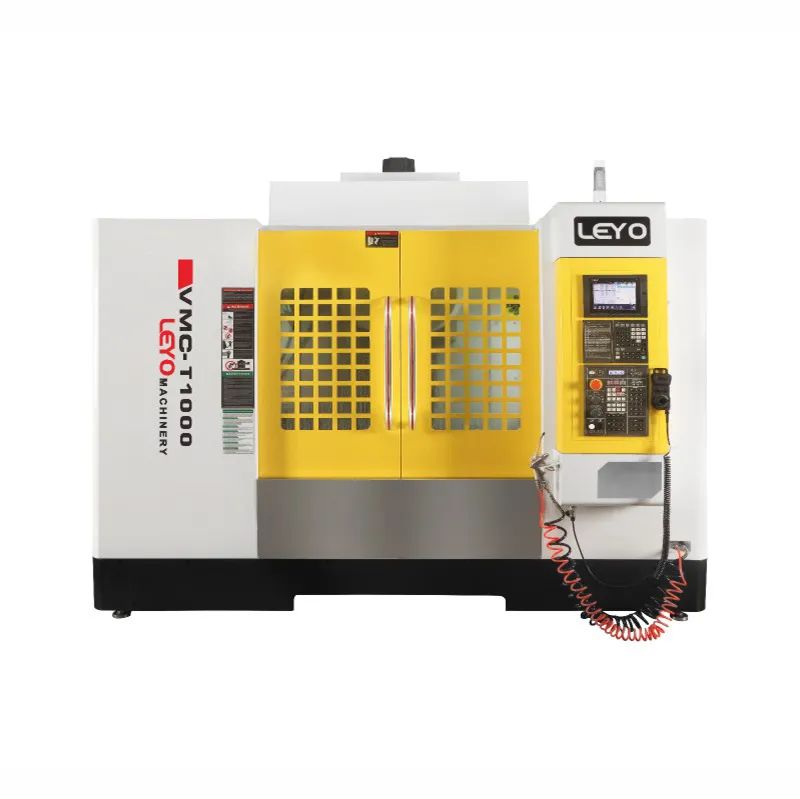

Advanced High-Precision CNC Vertical Machining Axis System for Compact Engineering
The COMPACT MACHINING center is a high-performance system designed for high-speed precision. It integrates a high-rigidity structure, high-speed spindle, and intelligent control system, achieving up to 20,000 RPM and ±0.005mm positioning accuracy. Its compact design conserves space and supports multi-axis linkage and automation integration, ideal for flexible production.
| Items | Unit | T600 | T700 | T800 | T1000 |
|---|---|---|---|---|---|
| X/Y/Z travel | mm | 600/400/350 | 700/400/350 | 800/500/450 | 1000/500/450 |
| Rapid moving speed | m/min | 48/48/48 | 48/48/48 | 48/48/48 | 48/48/48 |
| Working table size | mm | 700*420 | 800*420 | 1000*500 | 1200*500 |
| Max load | kg | 300 | 350 | 800 | 1000 |
| Spindle speed | rpm | 20000/12000 | 20000/12000 | 20000/12000 | 20000/12000 |
| Positioning accuracy | mm | ±0.005 | |||
| Machine weight | kg | 3500 | 3800 | 4000 | 4500 |
We are a professional CNC machine manufacturer specializing in high-quality 3-5 axis milling machines, machining centers, and lathes. Our products are exported to 20+ countries, recognized for high cost-effectiveness, quality, and stability in 3C electronics and automotive industries.
✓ Warranty
13 months post B/L. Free part replacements for quality issues under normal operation.
✓ Support
24/7 expert support and online technical solutions via video and direct instructions.
