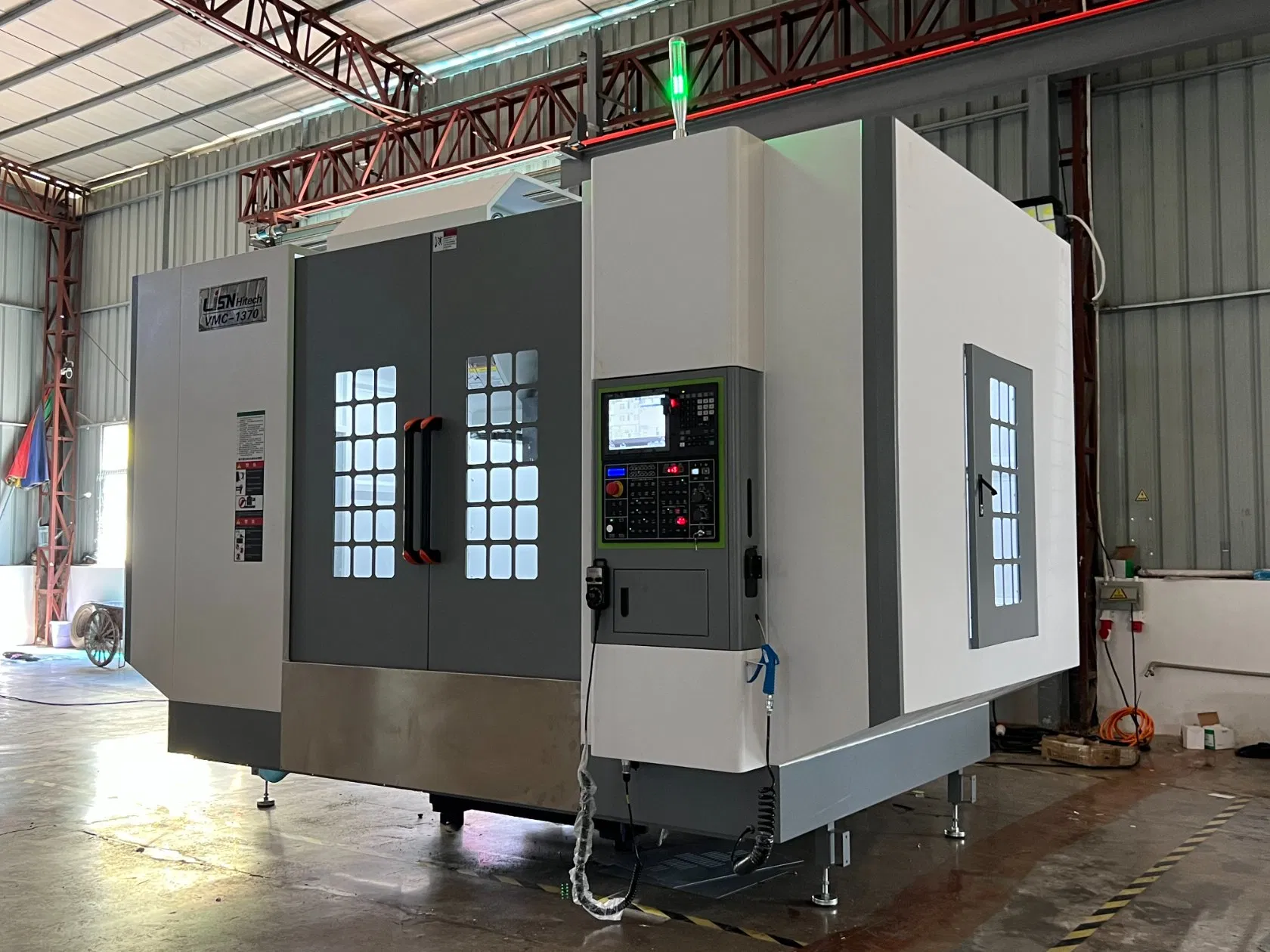

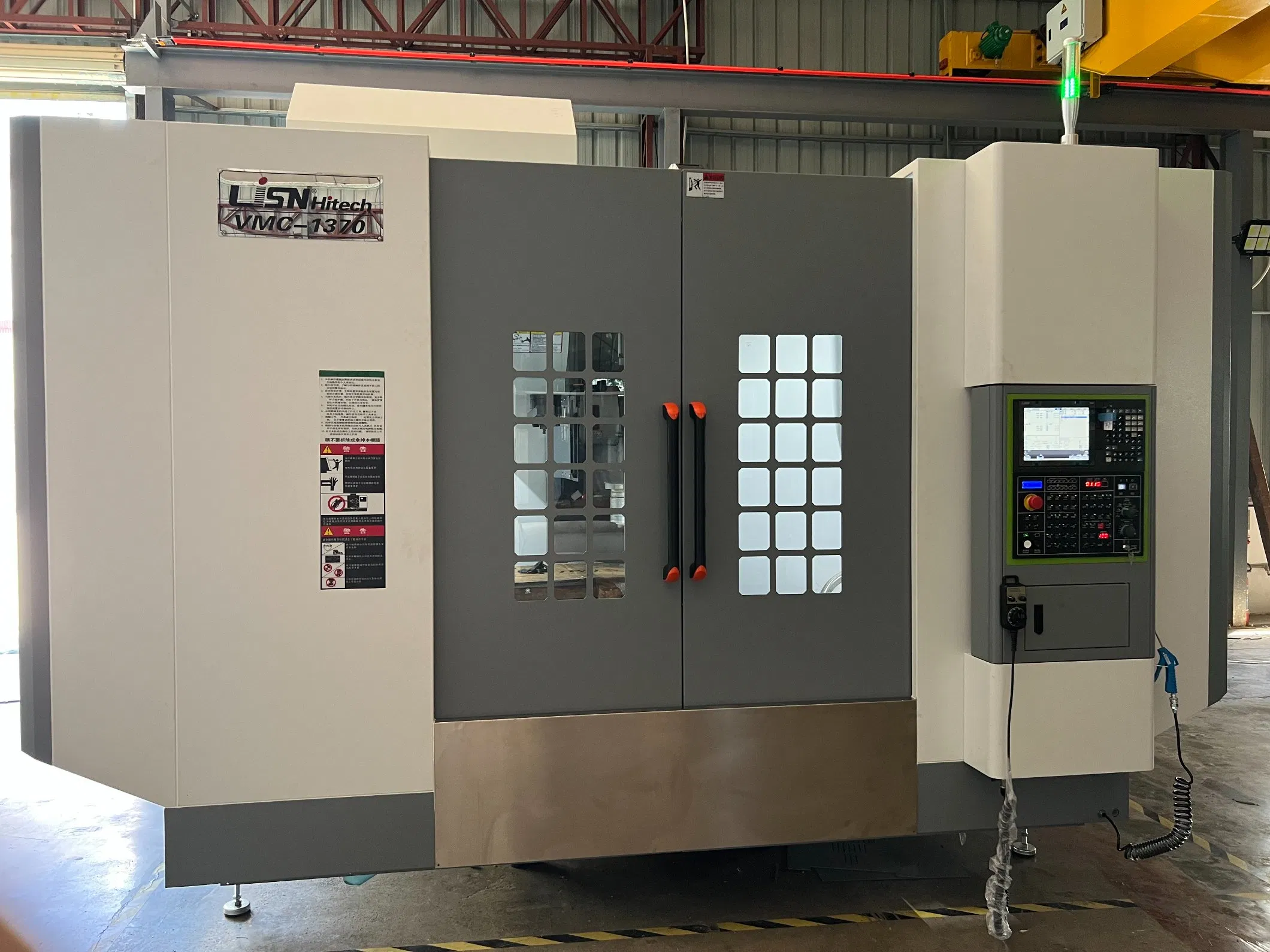

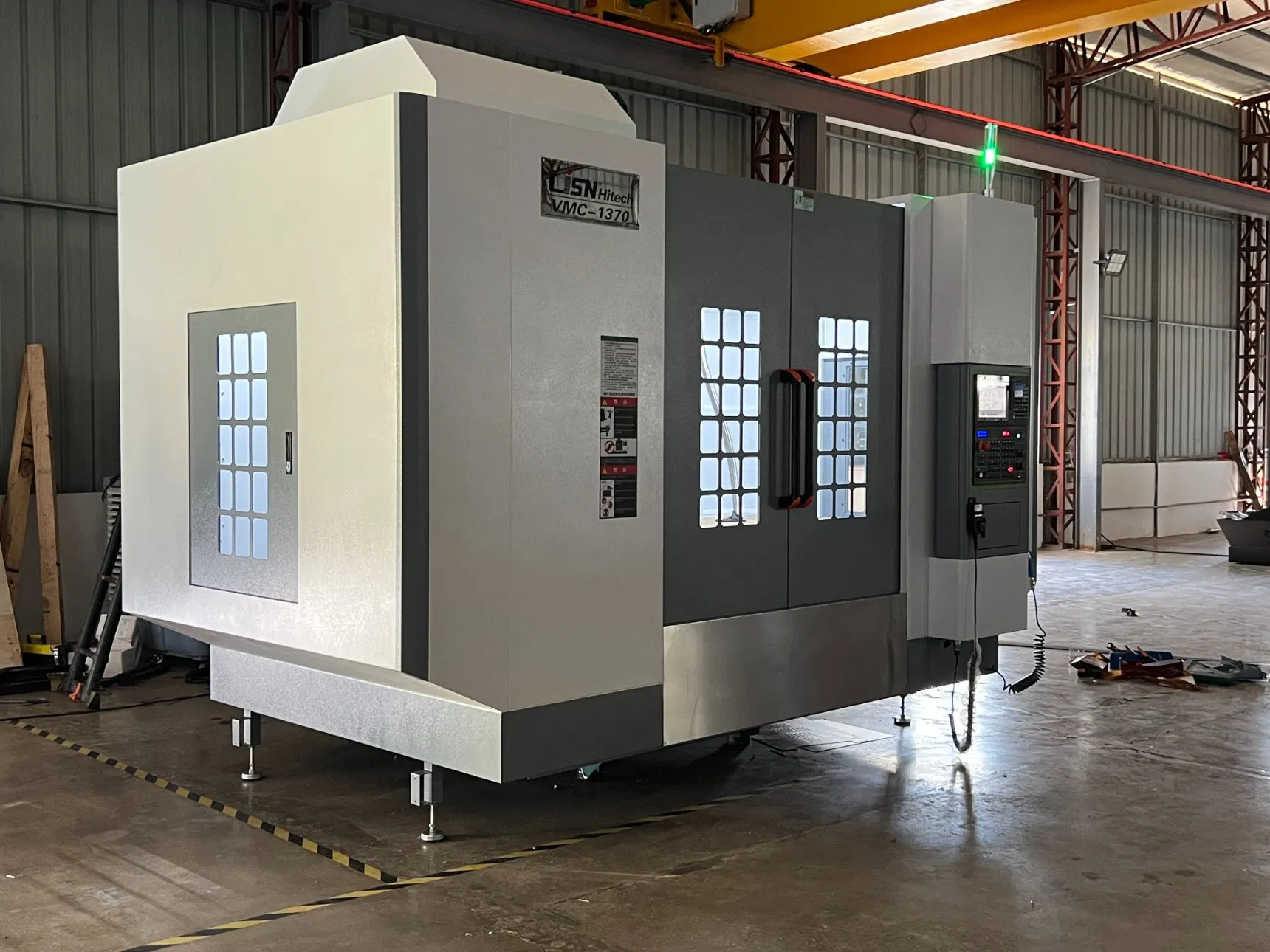

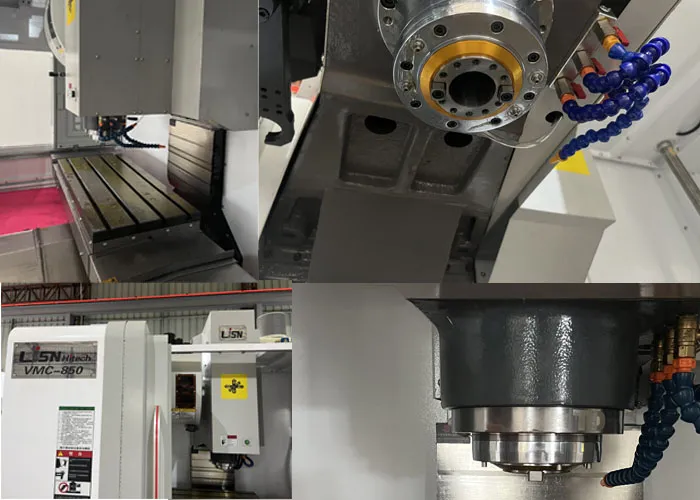

The worktable size of this machine is 800*1700. The overall rigidity of the fuselage is excellent, the structure is reasonable and the rigidity is extremely high. All the castings of this machine have been secondary tempered to provide high stability and high rigidity for the overall machine. The maximum load-bearing capability is also very excellent, it is up to 1500kg. This machine equips a high-performance and high-precision spindle. The speed range of the spindle is 8000RPM and the maximum cutting feed speed is from 1 till 10000RPM. The rigidity of the spindle is good. The materials of the spindle can absorb vibration which can effectively avoid accuracy problems.
| ITEM | UNIT | VMC1580 |
|---|---|---|
| WORKTABLE (WIDTH*LENGTH) | mm | 1700x800 |
| MAX LOAD BEARING | kg | 1500 |
| X/Y/Z AXIS TRAVEL | mm | 1500/800/700 |
| SPINDLE HOLE TAPER | - | BT50 |
| SPINDLE SPEED RANGE | r/min | 8000 |
| SPINDLE MOTOR POWER | kW | 15 |
| POSITION ACCURACY | mm | 0.008 |
| RE-POSITION ACCURACY | mm | 0.005 |
| MACHINE WEIGHT | kg | 12800 |
