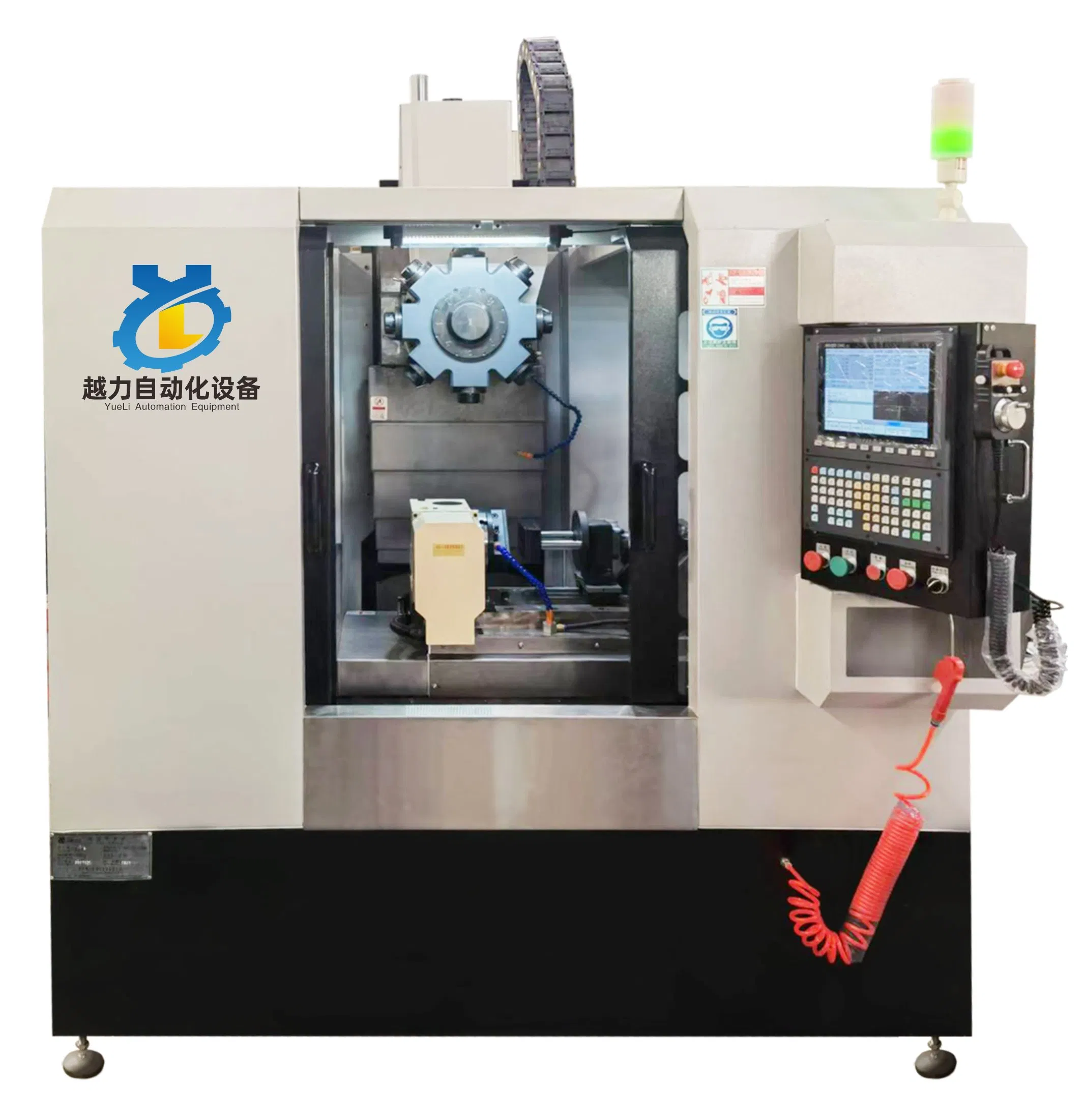

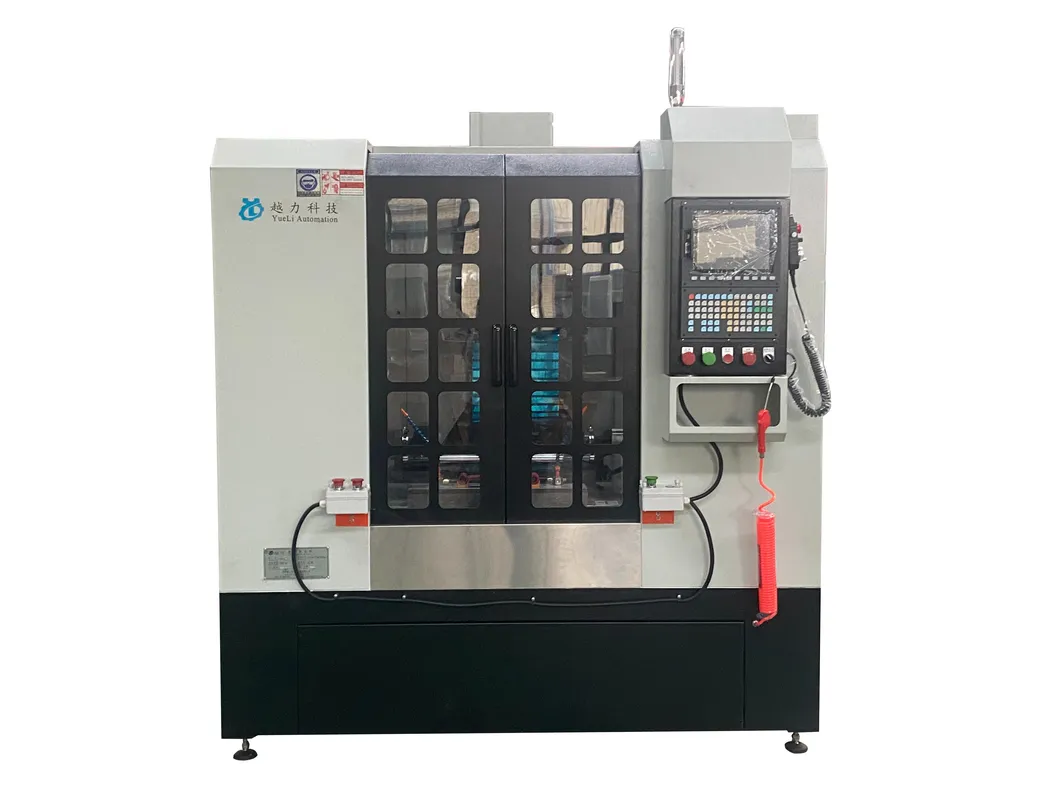

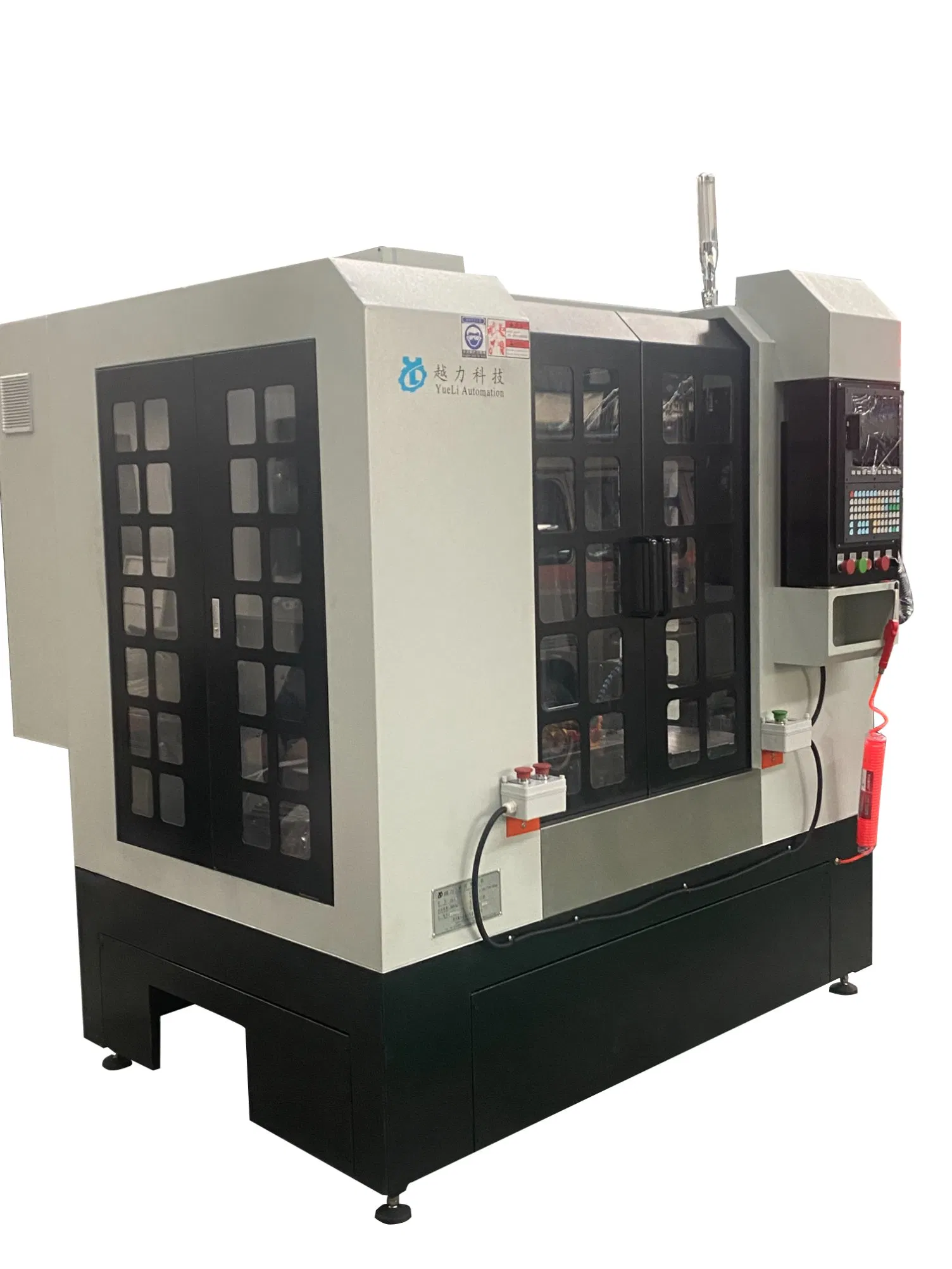

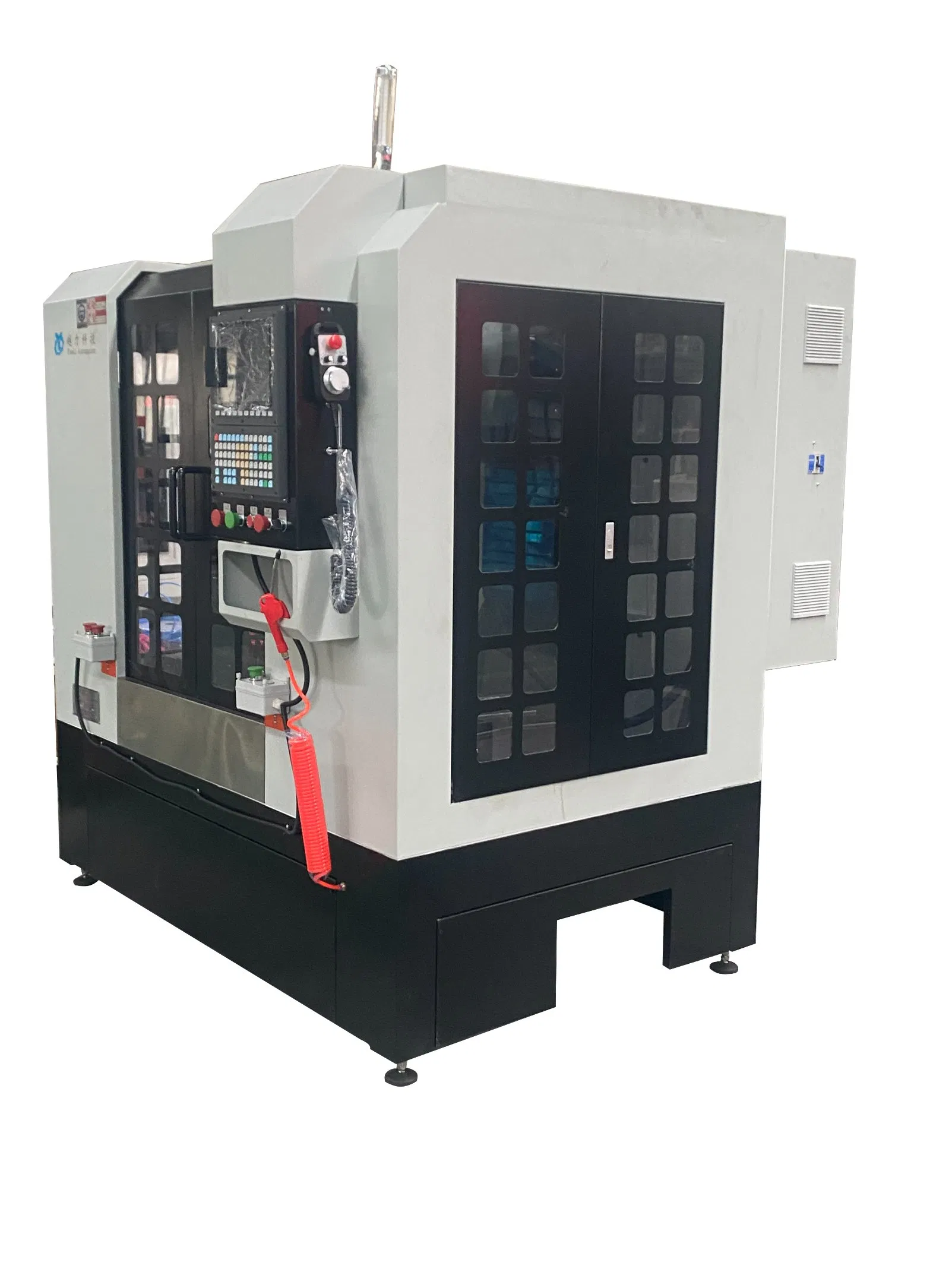

Vertical Drilling Tapping Center Machine Tool

Customization:	Available
After-sales Service:	Technical Support
Warranty:	Technical Support

Send Inquiry

Product Description

Basic Specifications

Model NO.ZSK580

StructureVertical Drilling Machine

LayoutVertical

Controlling ModeCNC

Number of Shaft8

Hole Diameter<50mm

Automatic GradeAutomatic

PrecisionHigh Precision

CertificationCE

Tool ChangingTurret Type Tool Change

Net Weight3500KG

Package Size2200x2200x2000cm

Product Description & Features

The spindle motor and the spindle are directly driven to reduce the error of high-speed tapping, providing high output force for heavy-duty cutting.

Mechanical tool change greatly increases speed. Taiwan Hust CNC system realizes simultaneous tool change and workpiece positioning.

Large inclined chip removal angle and automatic chip volume effectively improve cleaning and speed up cutting fluid return.

High-speed PLC engine improves response speed, shortens cycles, and optimizes processing parameters for smoother feed.

Technical Parameters

No.	Name	Specification(mm)
1	X-axis maximum stroke (screw)	700
2	Y-axis maximum travel (screw)	500
3	Z axis maximum travel	340
4	Rapid moving speed X/Y/Z	30 m/min
5	Repeat positioning accuracy	0.008mm

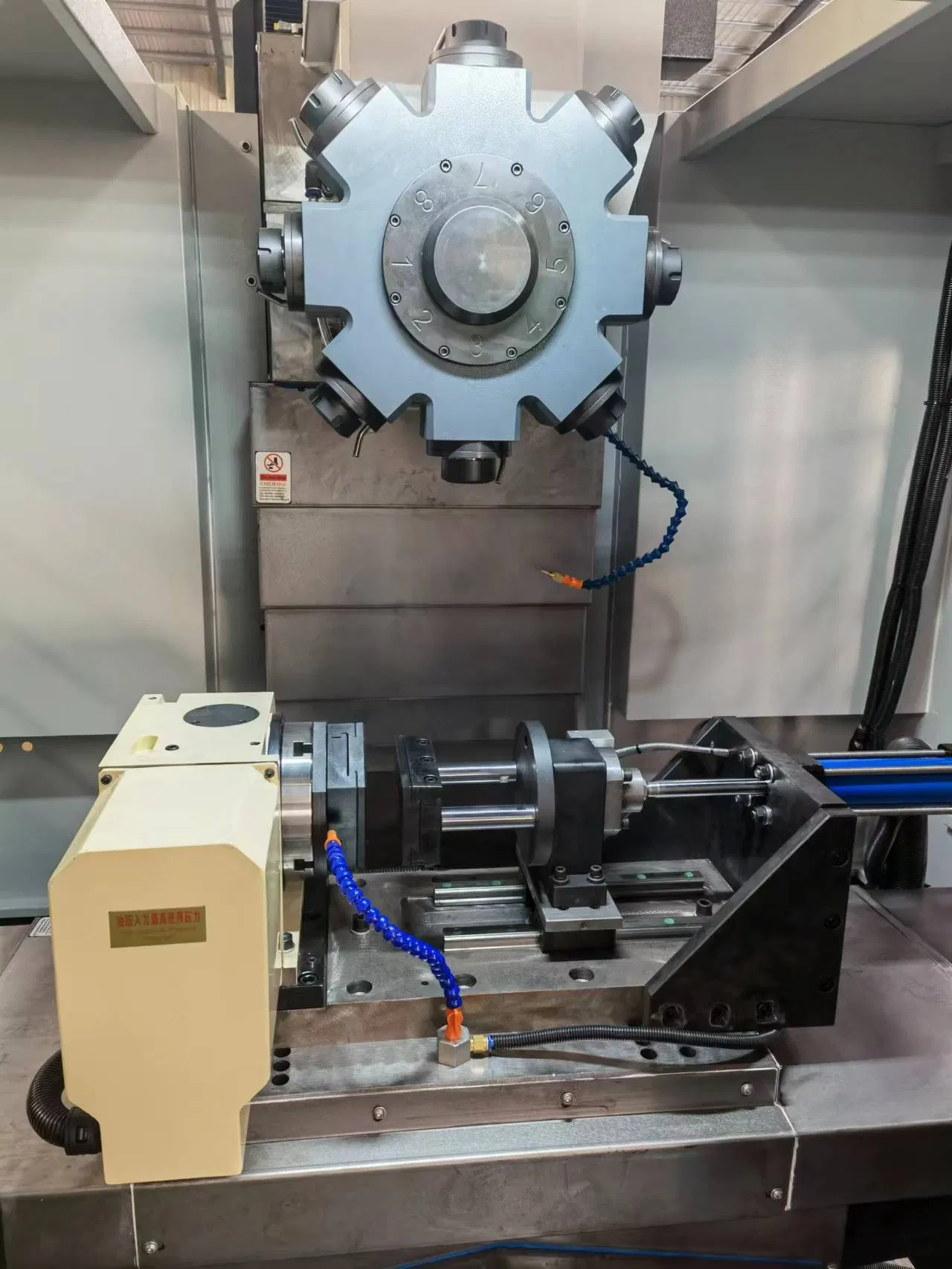

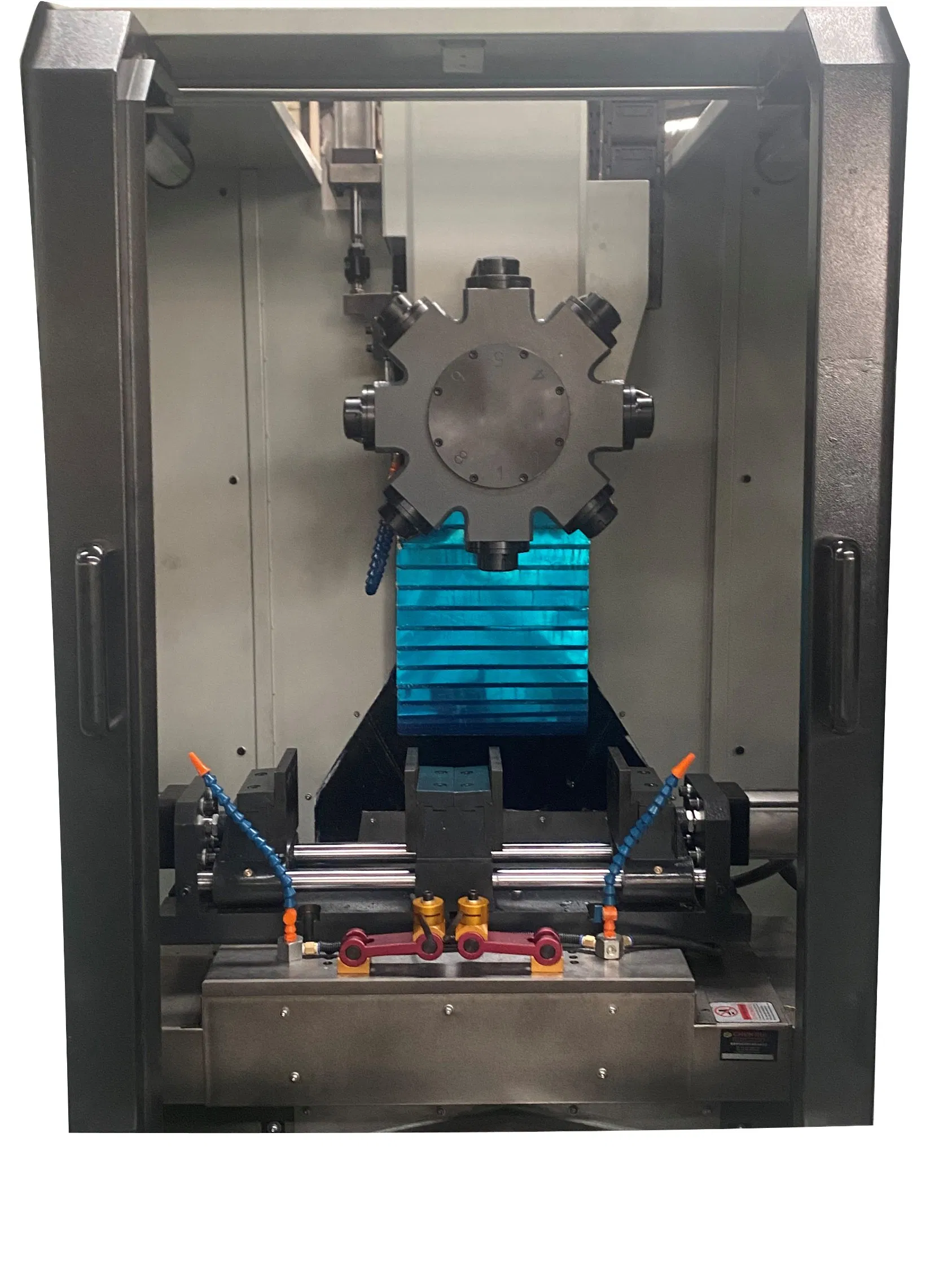

6	Rotary Turret	8 spindles
7	Servo spindle motor power	5.5KW
8	Spindle revolutions	0-6000rpm
9	Spindle interface	ER40
10	Drilling capacity (copper)	Ф60mm
11	Max tapping (copper)	50X3mm
12	Turret tool change time	0.8s/180°
13	Workbench size	600×420

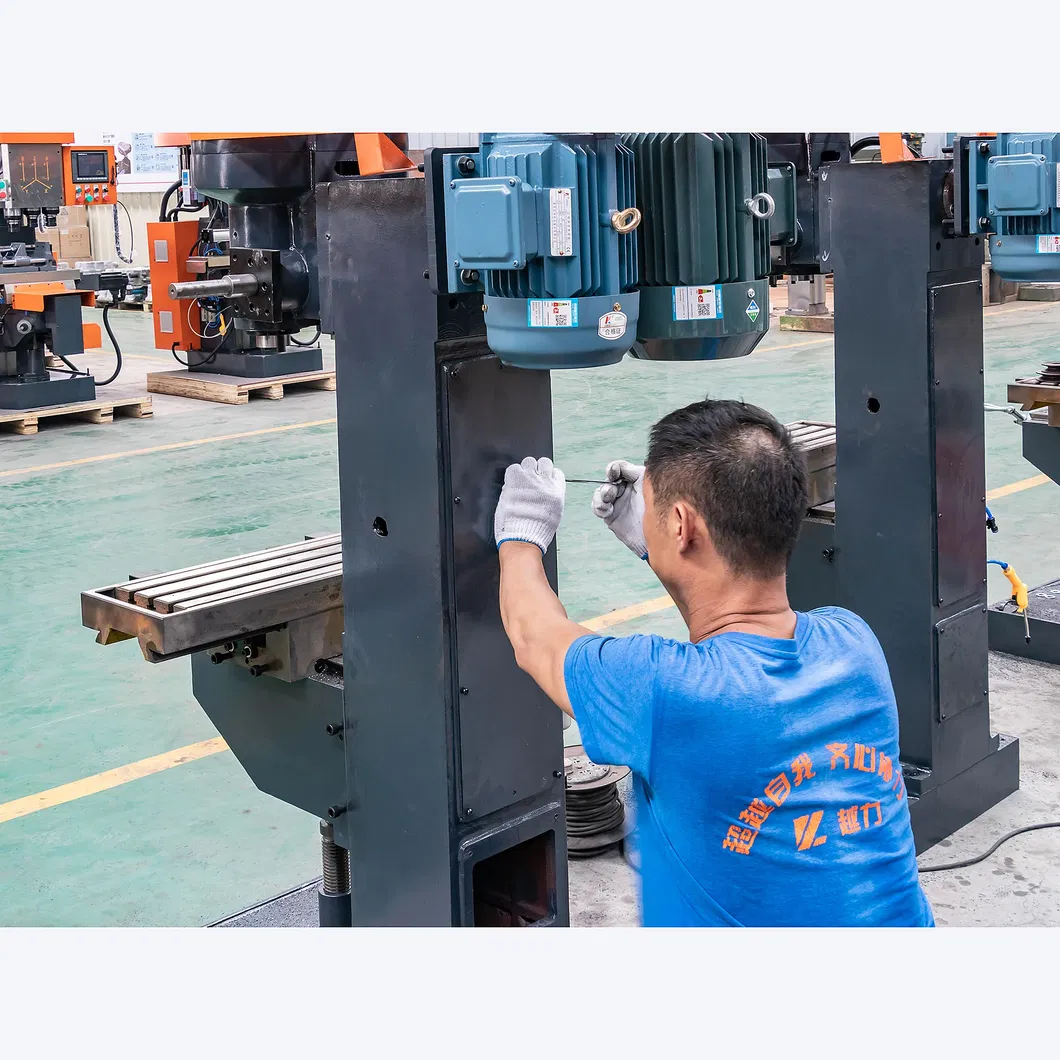

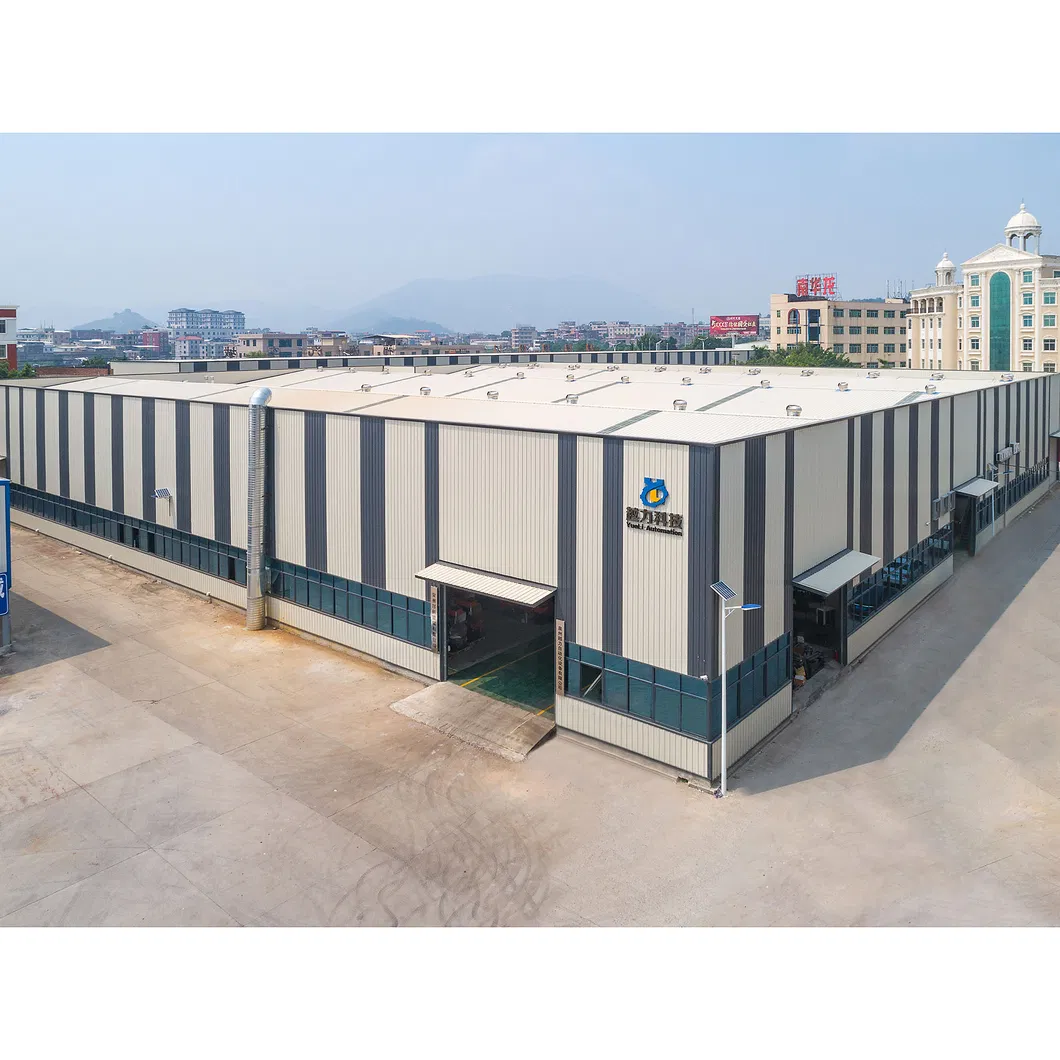

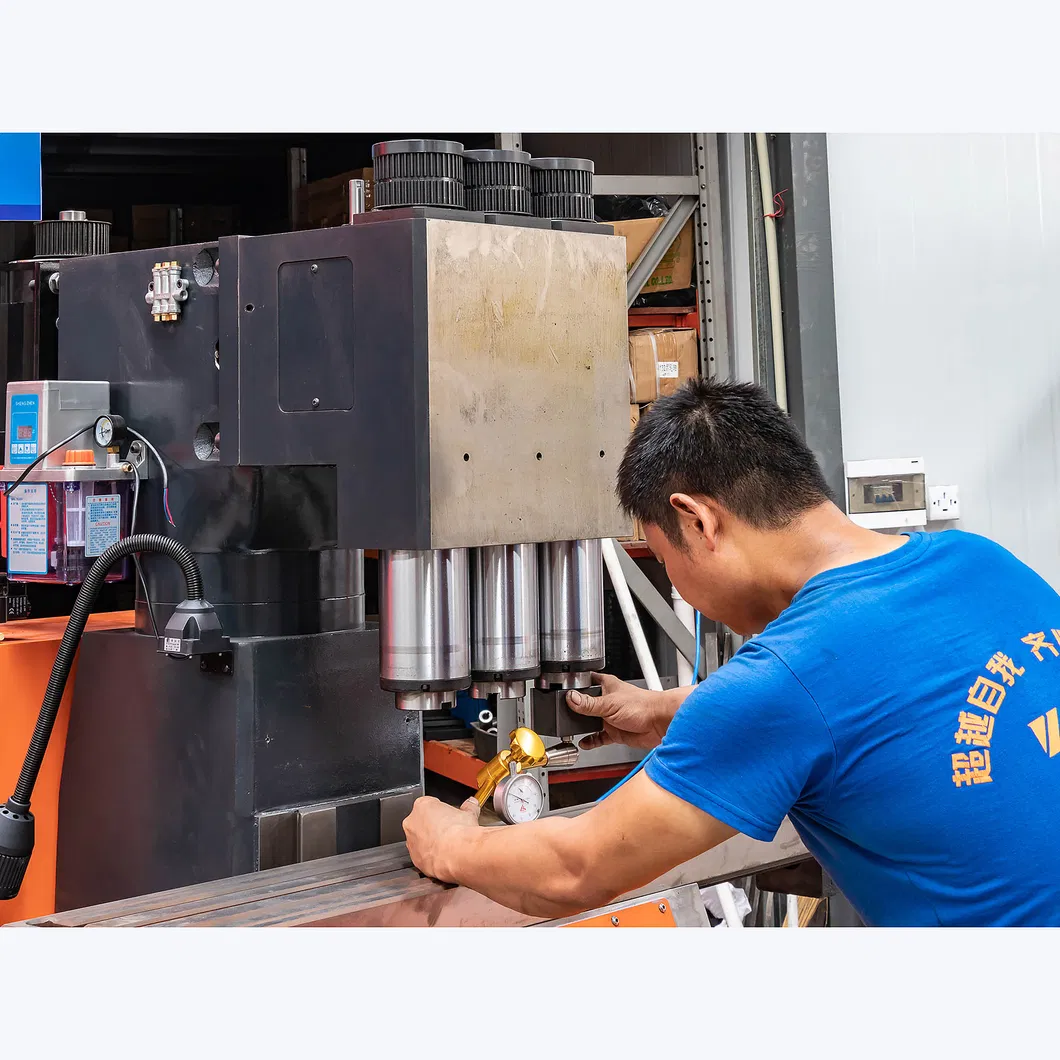

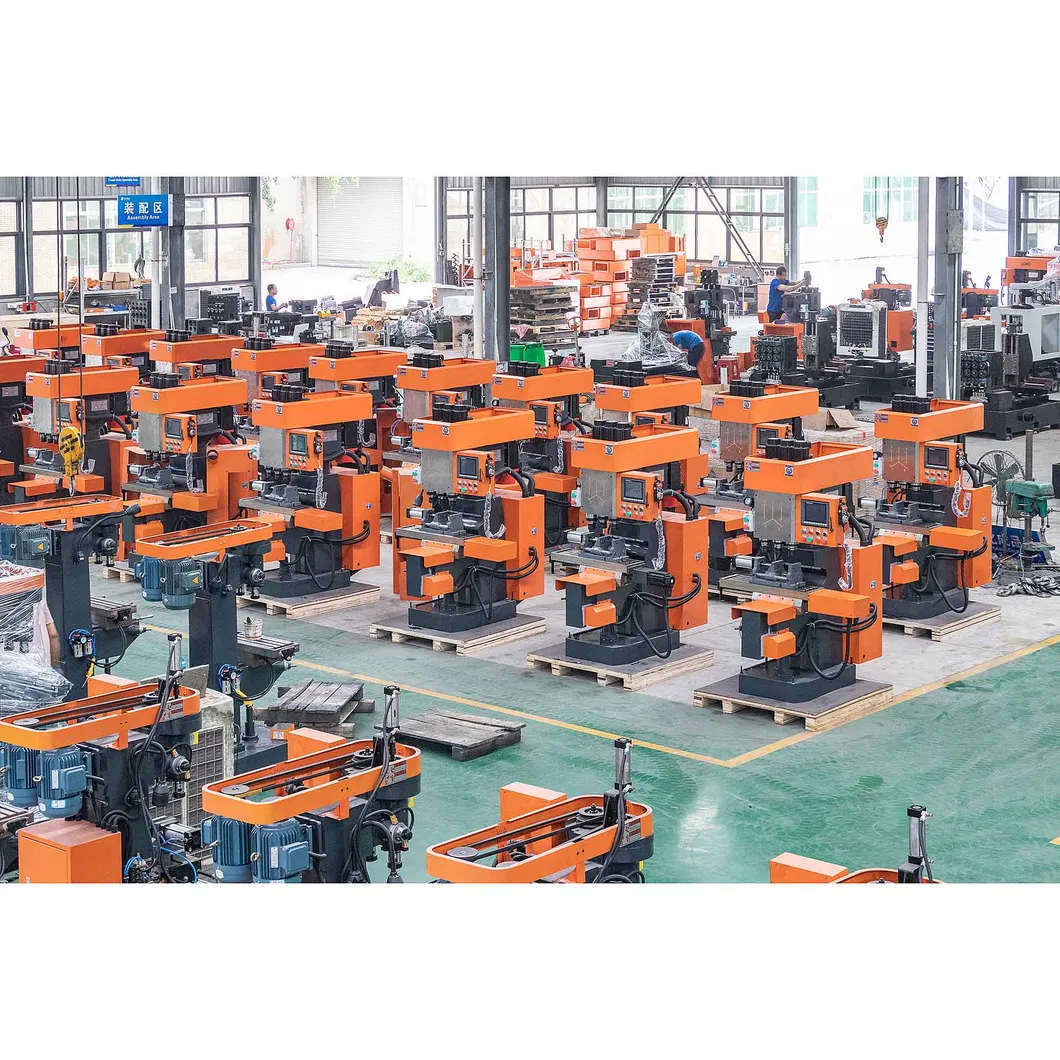

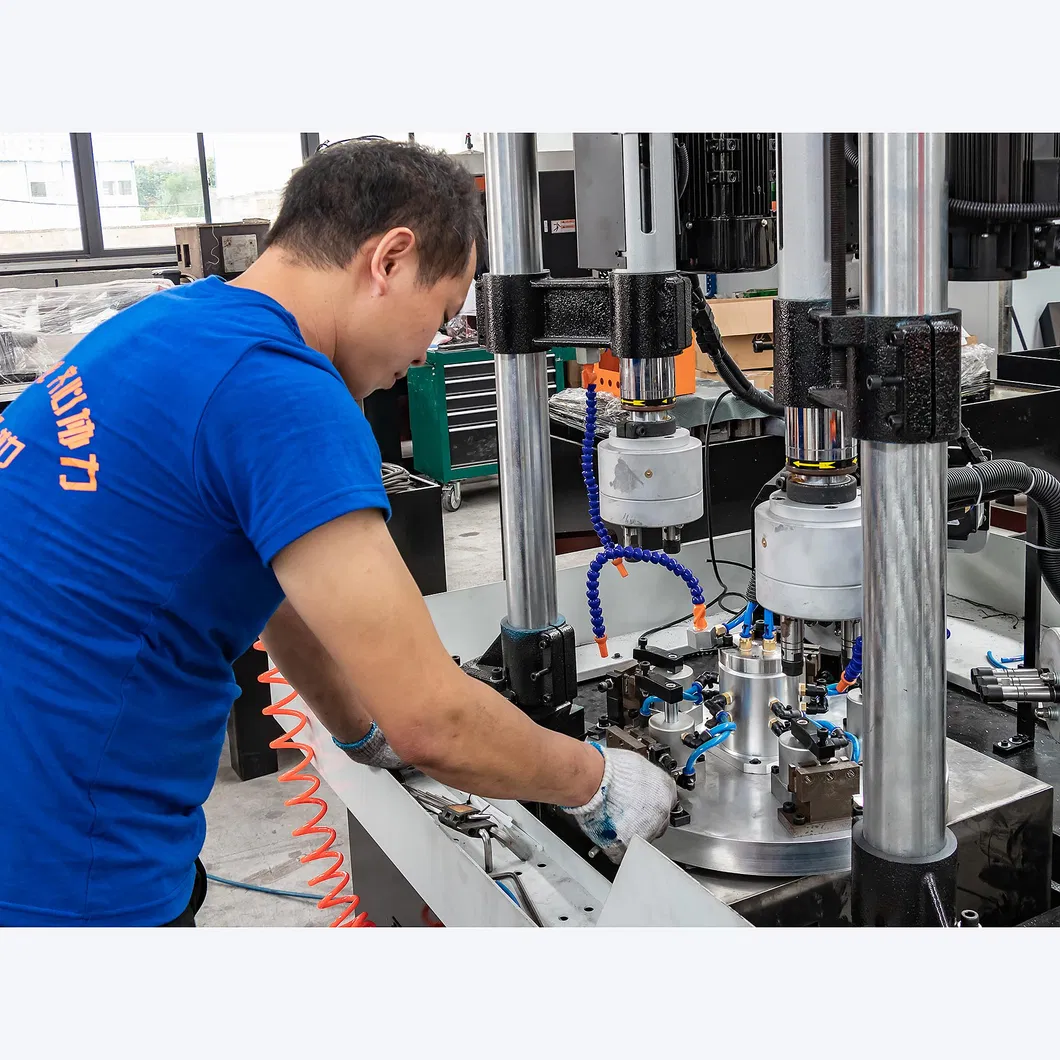

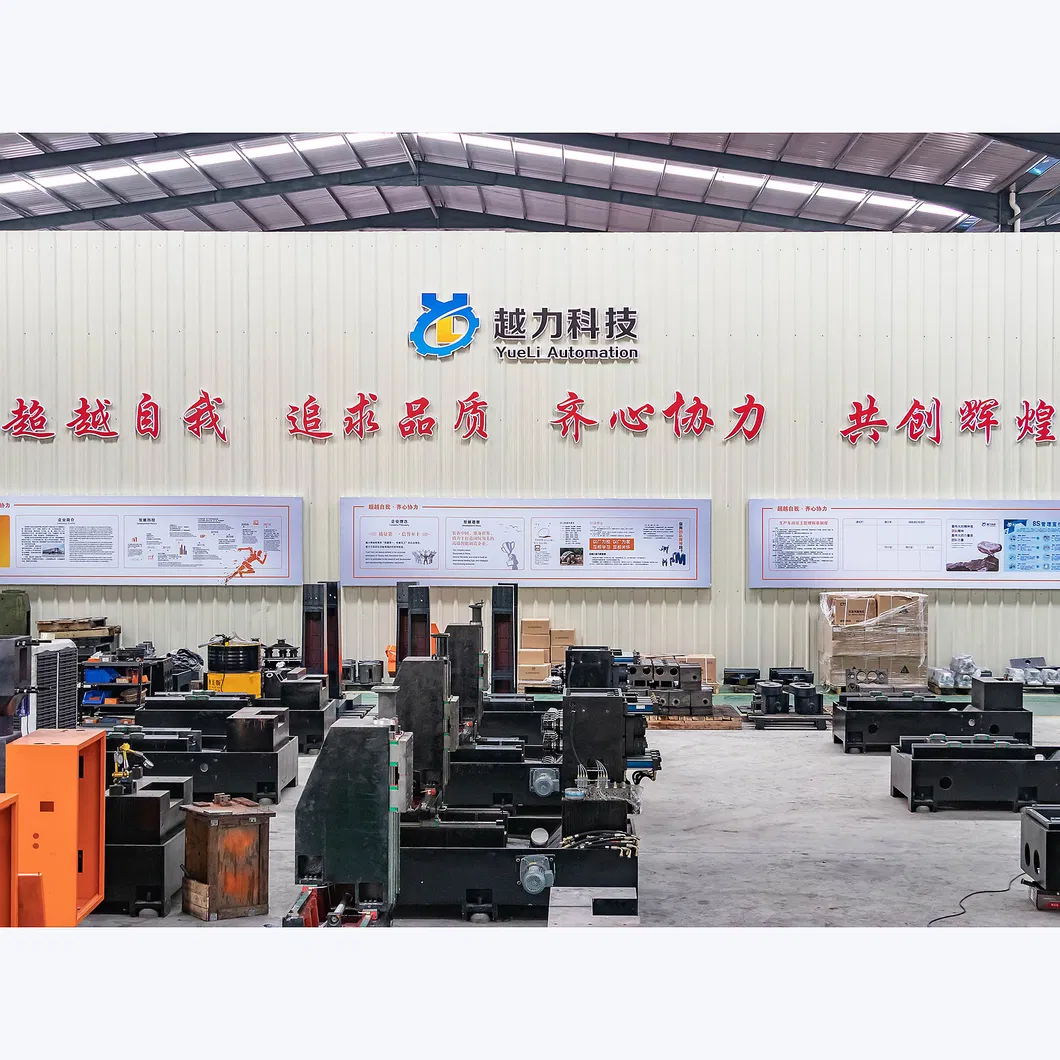

Production Workshop

Certification

Frequently Asked Questions

What is the tool change speed of the ZSK580?

The ZSK580 features a high-speed turret tool change system with a change time of approximately 0.8 seconds for a 180° rotation.

What is the repeat positioning accuracy for this CNC machine?

The machine offers high precision with a repeat positioning accuracy of 0.008mm across the X, Y, and Z axes.

How many spindles are available in the turret?

The rotary turret is equipped with 8 spindles, allowing for versatile drilling, milling, and tapping operations.

What is the maximum drilling capacity for copper materials?

The machine can handle a maximum through-hole drilling diameter of Φ60mm in copper parts.

Which industries is this equipment suitable for?

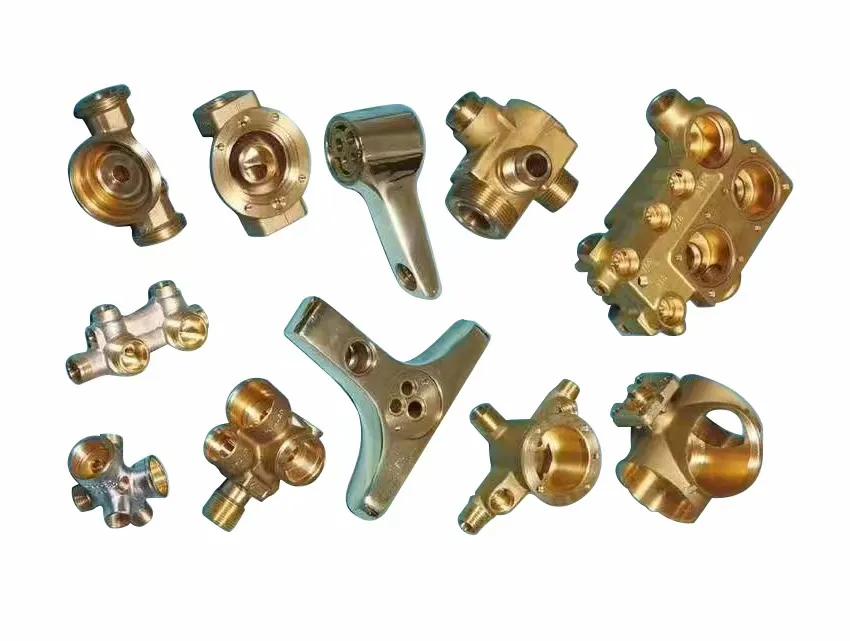

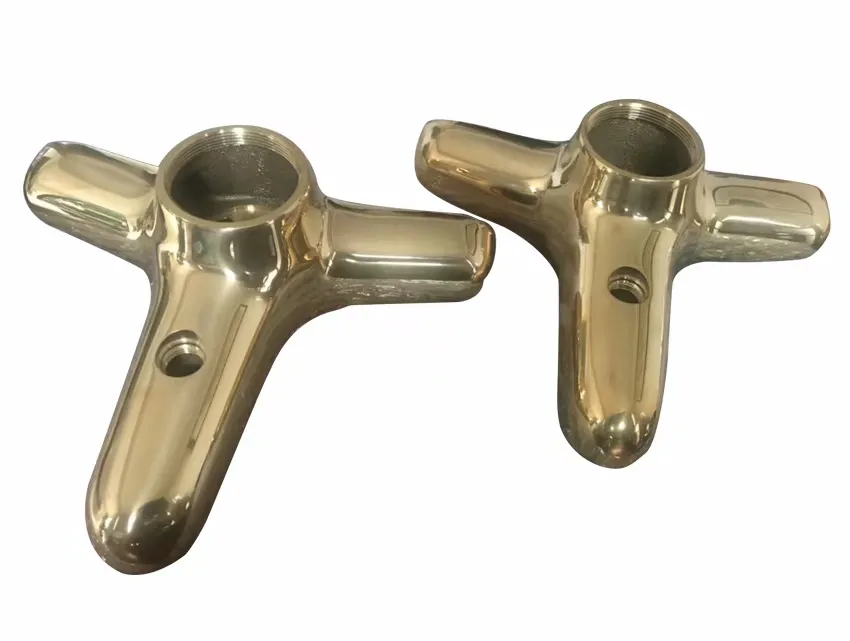

This drilling and tapping center is ideal for sanitary ware, fire protection valves, hardware, electrical hardware, aerospace, and general machine manufacturing.

What are the power requirements for the spindle?

The machine is powered by a 5.5KW servo spindle motor, providing robust performance for heavy-duty cutting.
