CNC Milling Drilling Tapping Machine Center

Customization:	Available
After-sales Service:	24 Hours
Warranty:	1 Year

📊

Basic Specifications

Model NO.

VMC640

Application

Metal

Process Usage

Metal-Cutting CNC Machine Tools

Numerical Control

CNC/MNC

Processing Precision

0.01~0.02(mm)

Certification

GS, CE, ISO 9001

Table Size

900X400mm

Production Capacity

1000PCS/Year

⚙️

Product Description

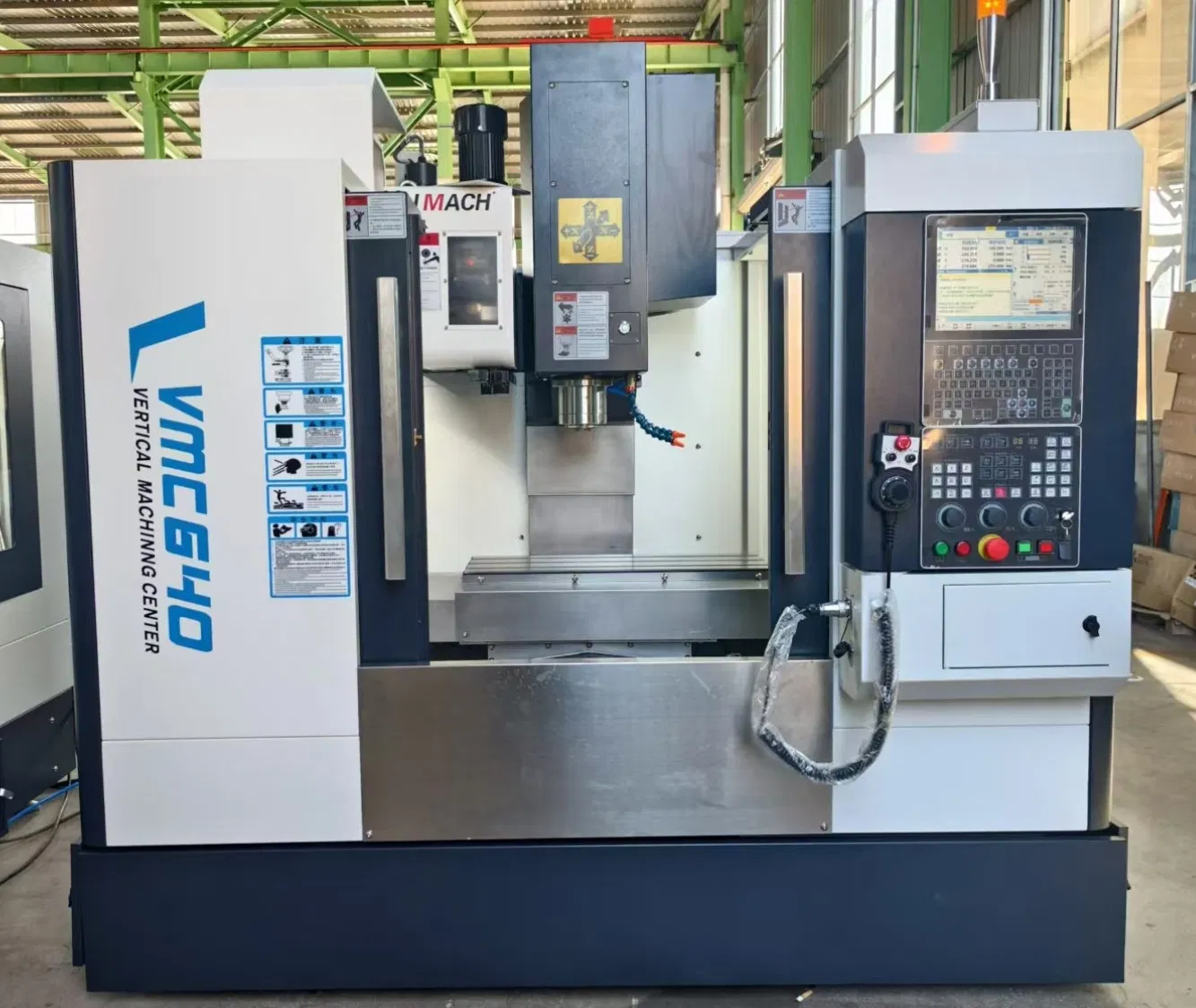

This vertical machining center features X, Y, Z three-axis servo control half-closed loop. The structure and overall size are compact and reasonable, with the spindle driven by a high-performance servo motor. It is designed to process complex parts such as discs, plates, shells, cams, and molds. A single clamping operation allows for drilling, milling, boring, expansion, reaming, tapping, and other processes. This machine is ideal for medium or small batch production, demonstrating superior performance in high-precision part processing.

Technical Parameter Name		Specification	Unit

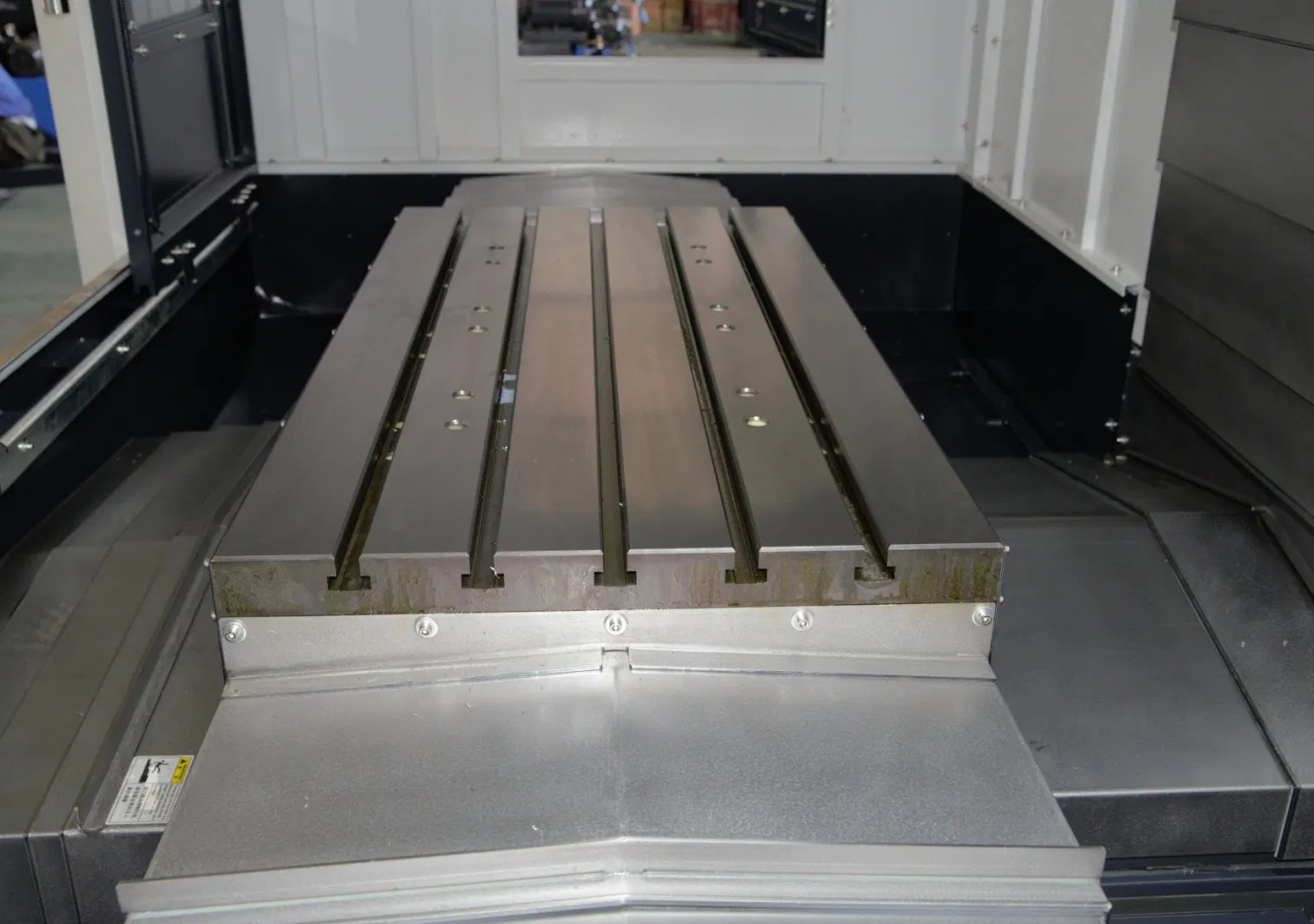

Worktable	Size	800 × 300	mm
	Max. Loading capacity	300	kg
	T-Slot	16 × 3 × 90	mm×No.s
Travel Capacity	X axis travel	600	mm
	Y axis travel	400	mm
	Z axis travel	460	mm

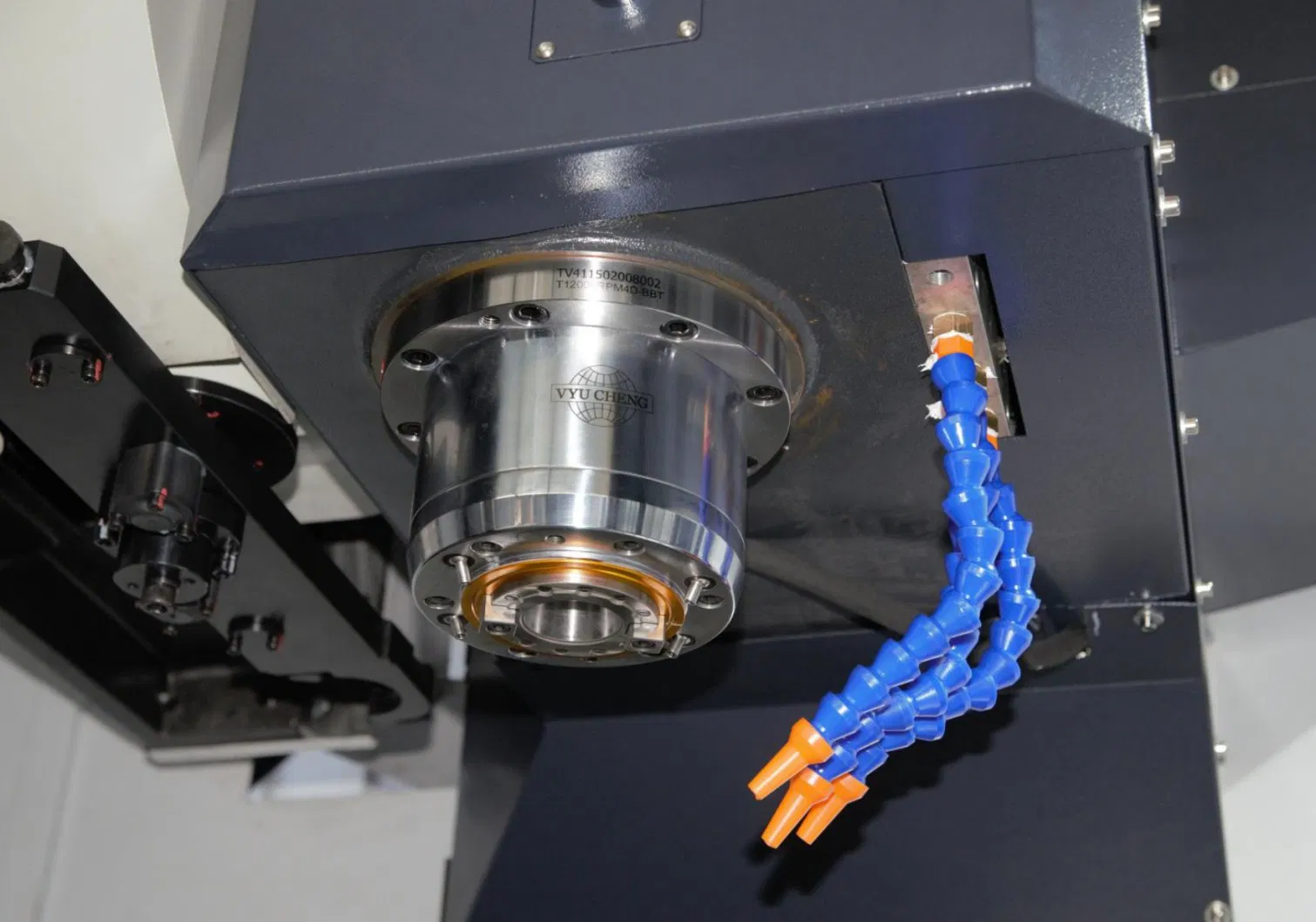

Spindle	Taper	BT 40	7:24
Spindle	Speed	80 ~ 8000	r/min
Feeding Speed	Rapid X/Y axis	24	m/min
	Rapid Z axis	20	m/min
	Cutting Feed Rate	1 - 10000	mm/min

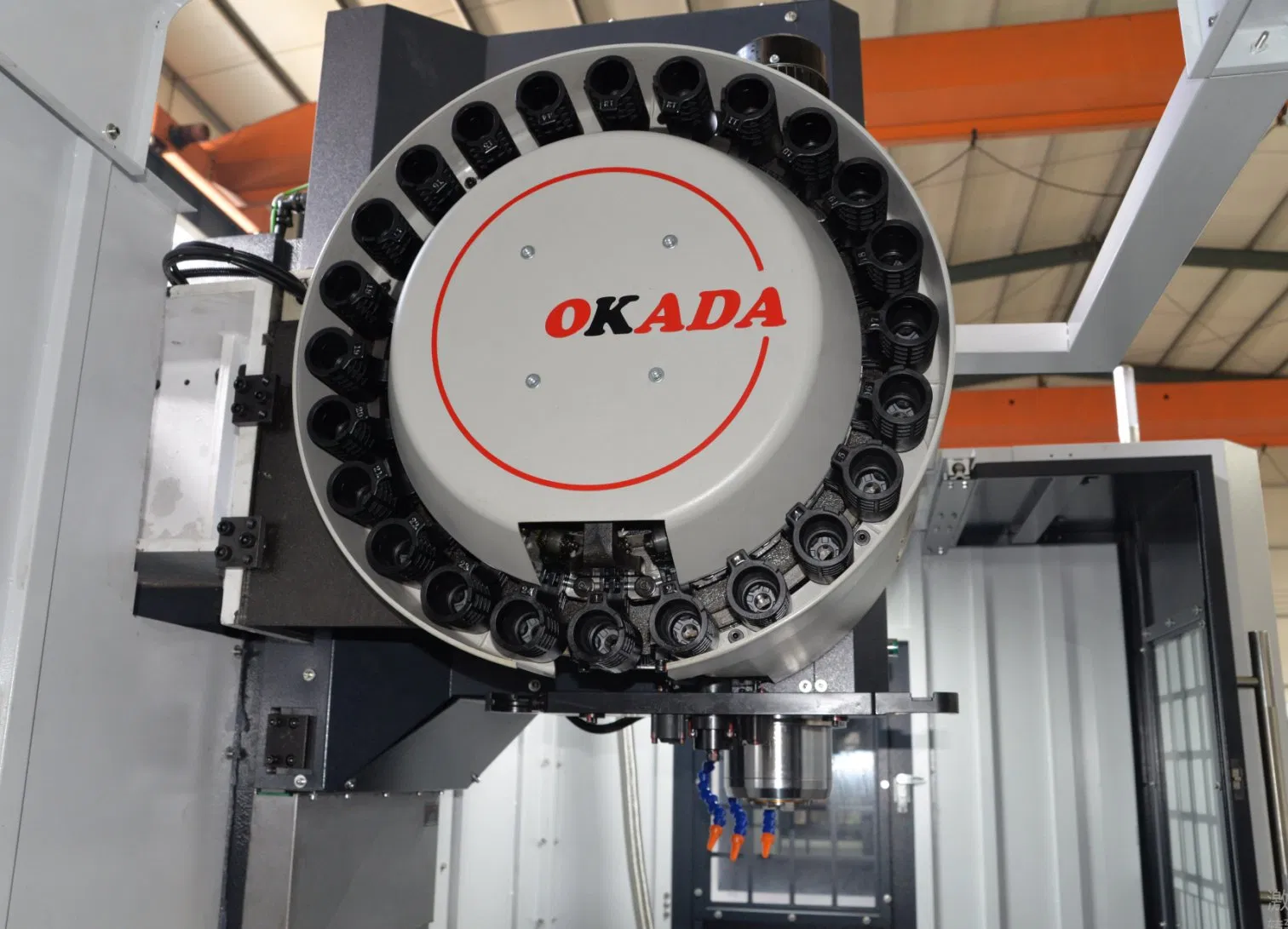

ATC (Tool Changer)	Type / Tool numbers	Umbrella / 16	pcs
ATC (Tool Changer)	Tool change time	7	s
Accuracy	Positioning Accuracy	0.010	mm
Accuracy	Re-positioning Accuracy	0.006	mm

CNC Milling Drilling Tapping Machine Center

❓

Frequently Asked Questions

What materials can the VMC640 process?

The VMC640 is primarily designed for high-precision metal cutting, including steel, aluminum, copper, and various alloy materials.

What type of tool magazine is equipped with this machine?

It comes with an umbrella-type Automatic Tool Changer (ATC) that holds up to 16 tools, with a tool change time of approximately 7 seconds.

How precise is the VMC640 machining center?

The machine offers a positioning accuracy of 0.010mm and a re-positioning accuracy of 0.006mm, ensuring high-end manufacturing standards.

Is the spindle speed adjustable?

Yes, the spindle speed ranges from 80 to 8000 r/min, driven by a 5.5kw servo motor for optimal torque and speed control.

What are the main applications for this model?

It is widely used for processing complex parts like molds, cams, shells, and plates in industries requiring medium to small batch production with high precision.

Does the machine support multiple operations in one setup?

Absolutely. After a single clamping, the VMC640 can complete milling, drilling, boring, reaming, and tapping operations sequentially.
