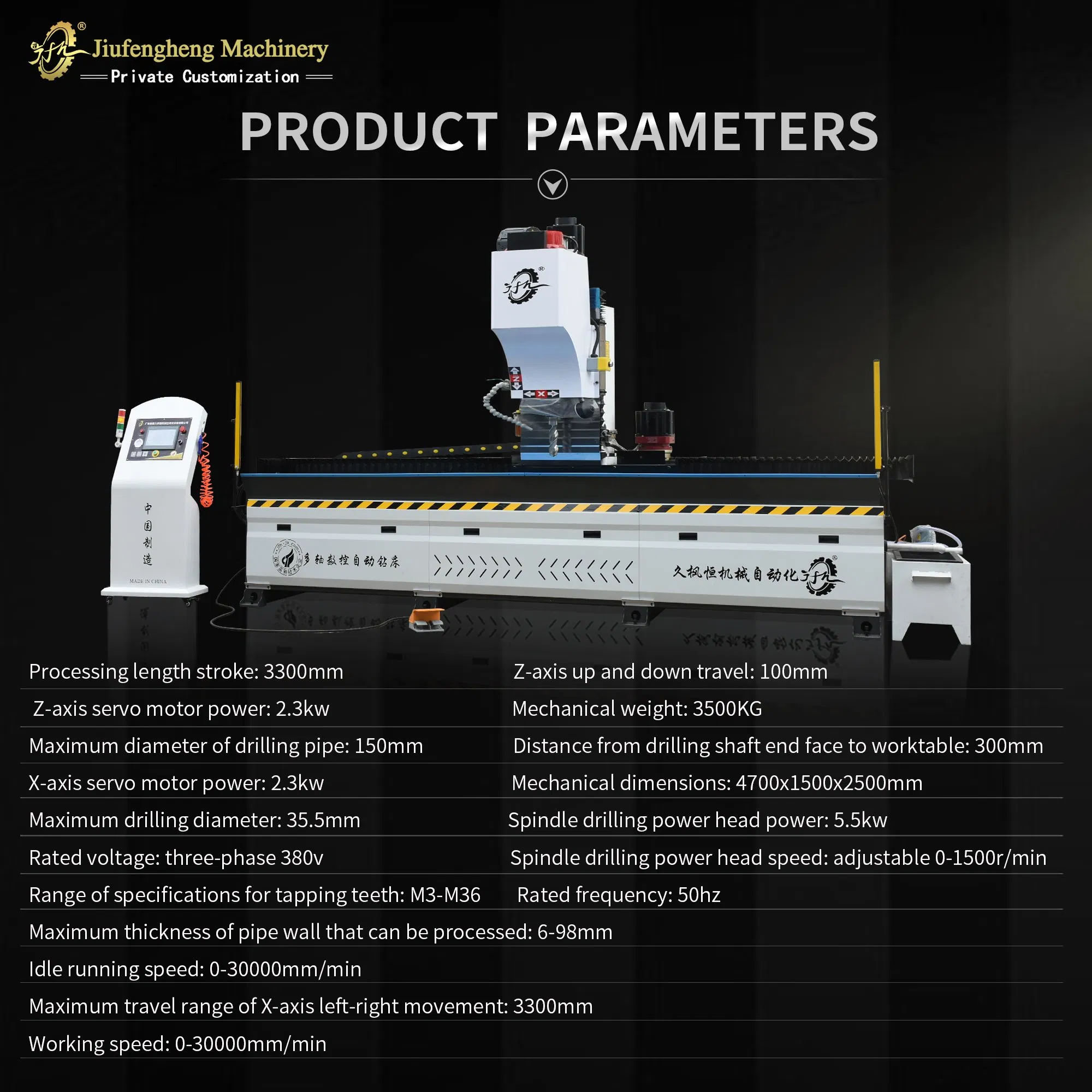

Product Overview

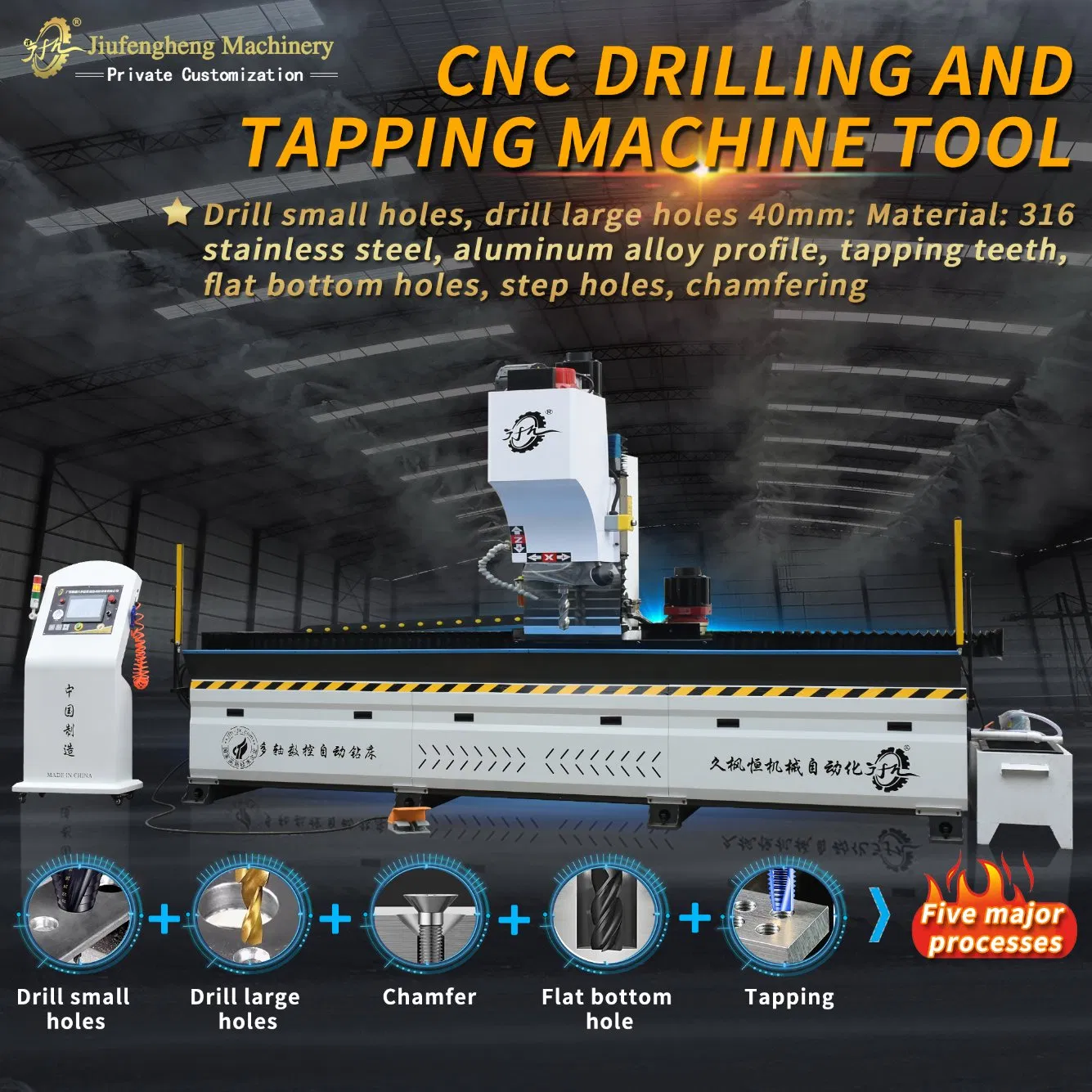

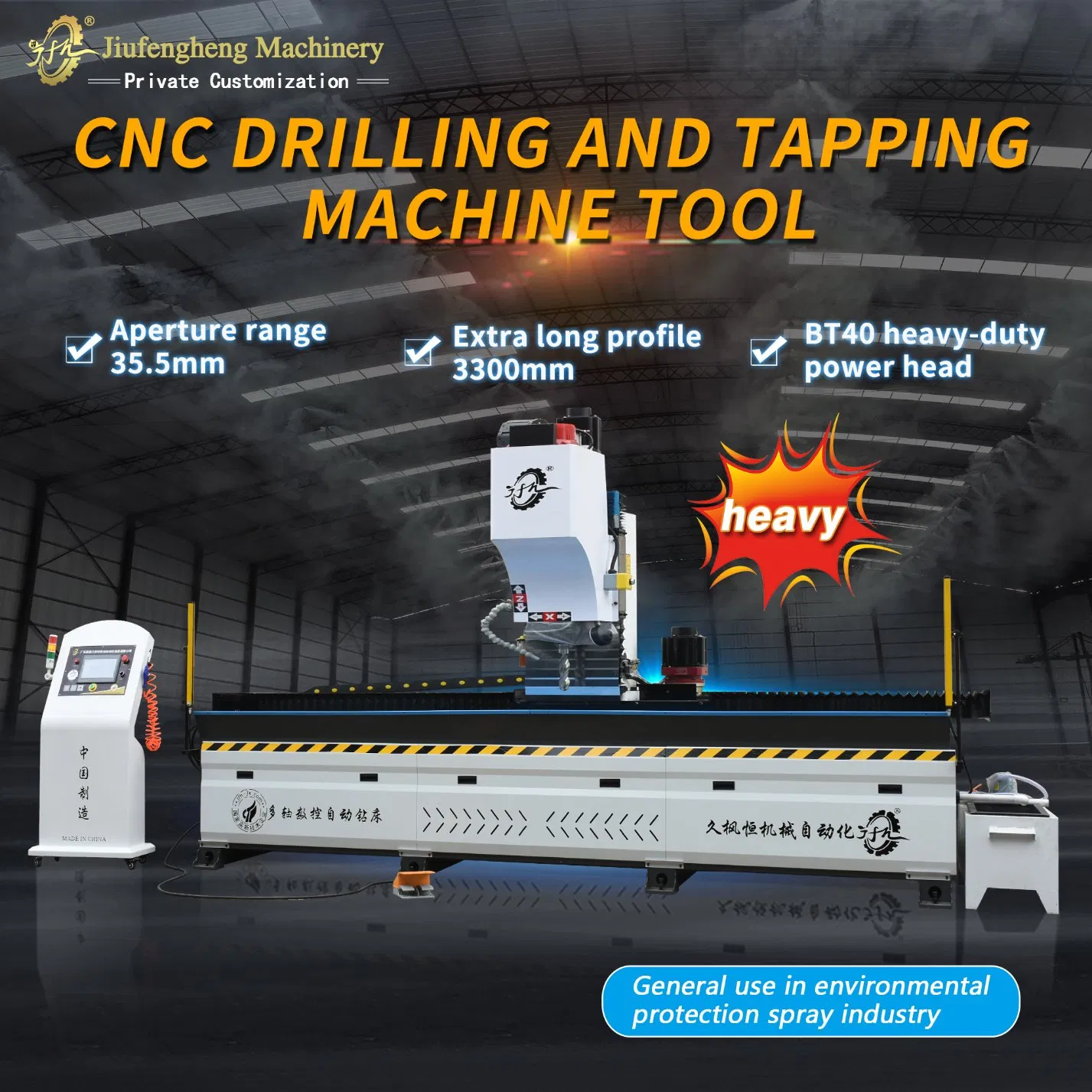

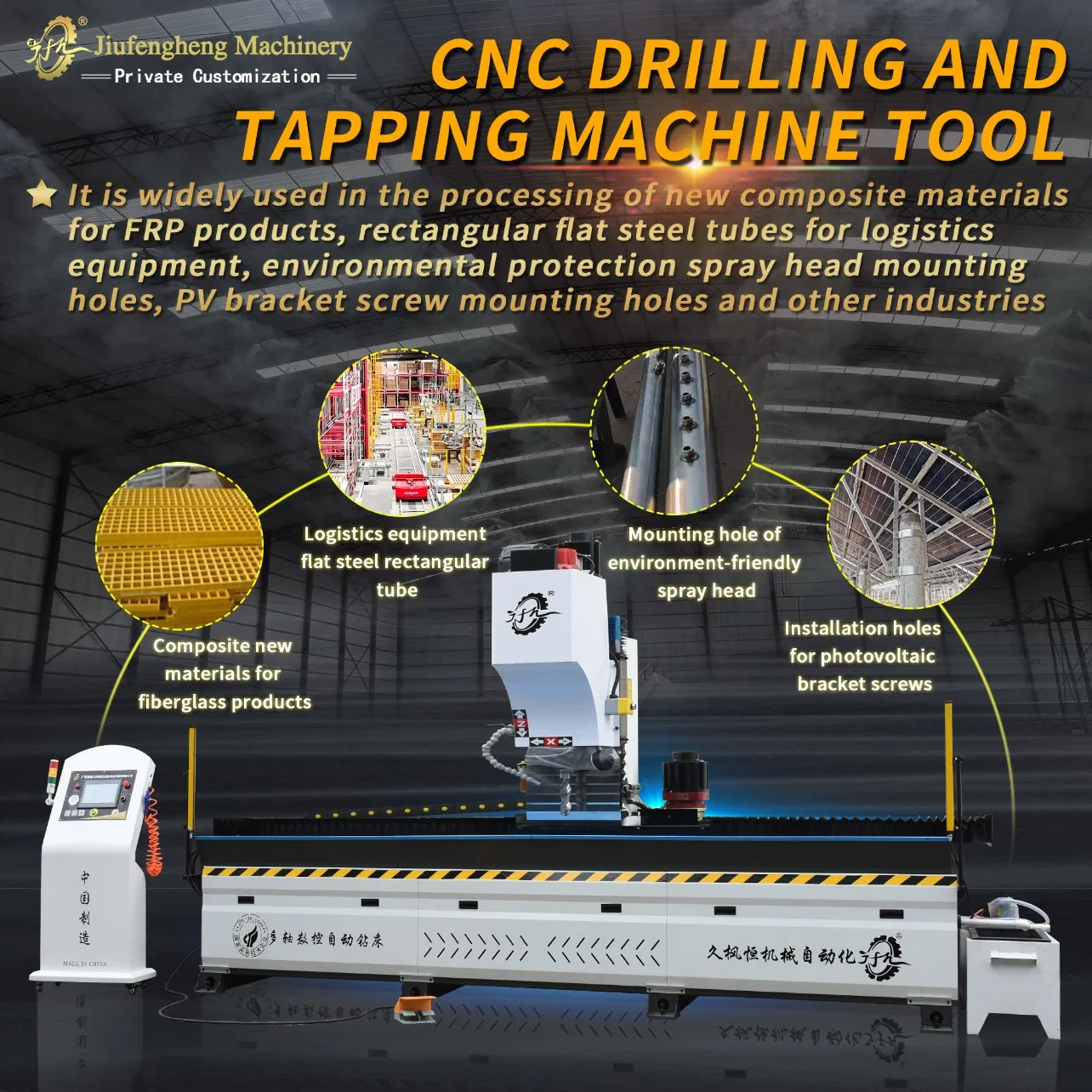

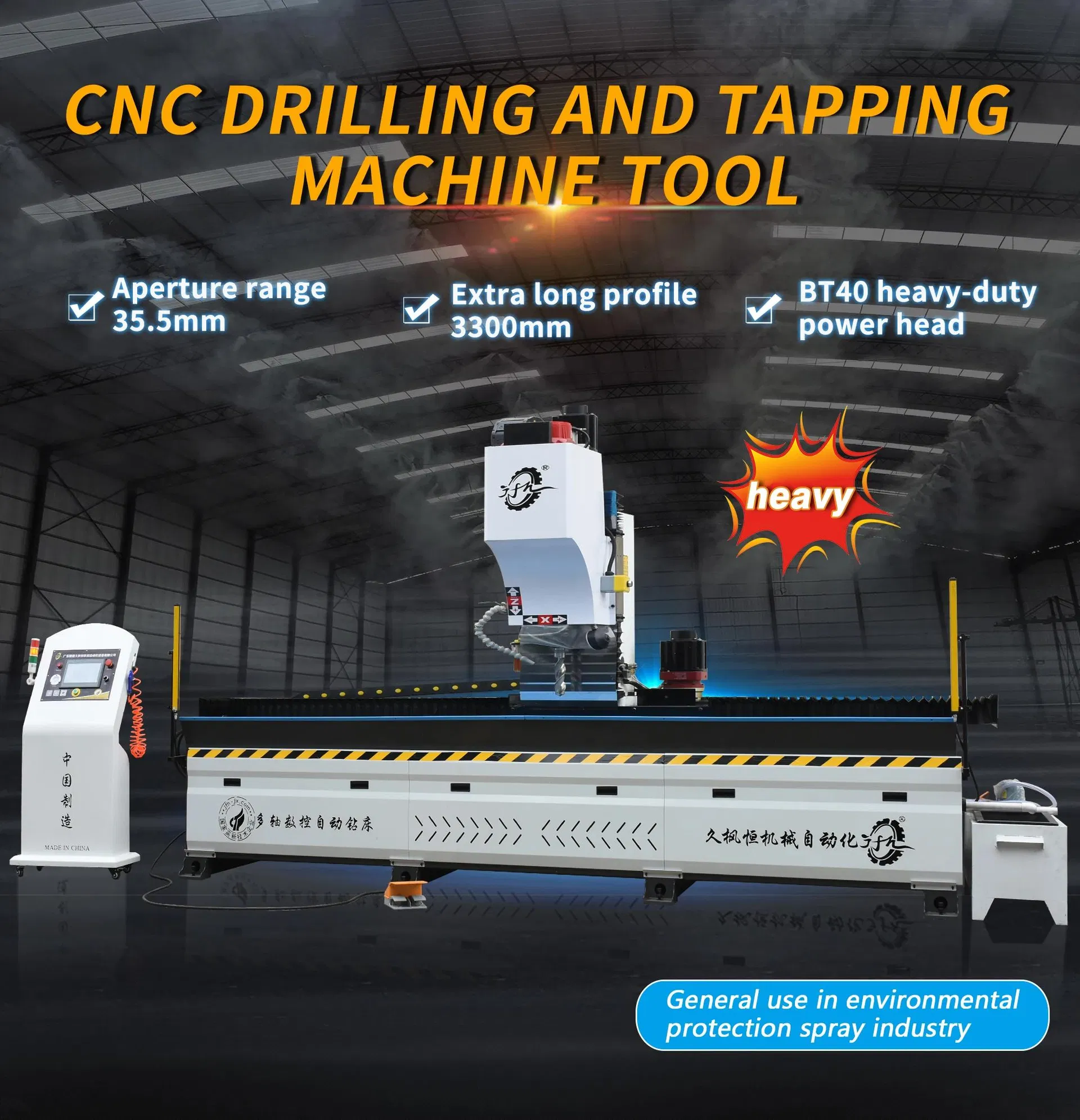

The JFH-JX-ZG01-L3500 CNC drilling and tapping machine is an industrial-grade solution designed for complex workpiece machining. It is widely utilized in building steel structures, rail transit vehicle frames, new energy vehicle chassis, and specialized environmental protection equipment.

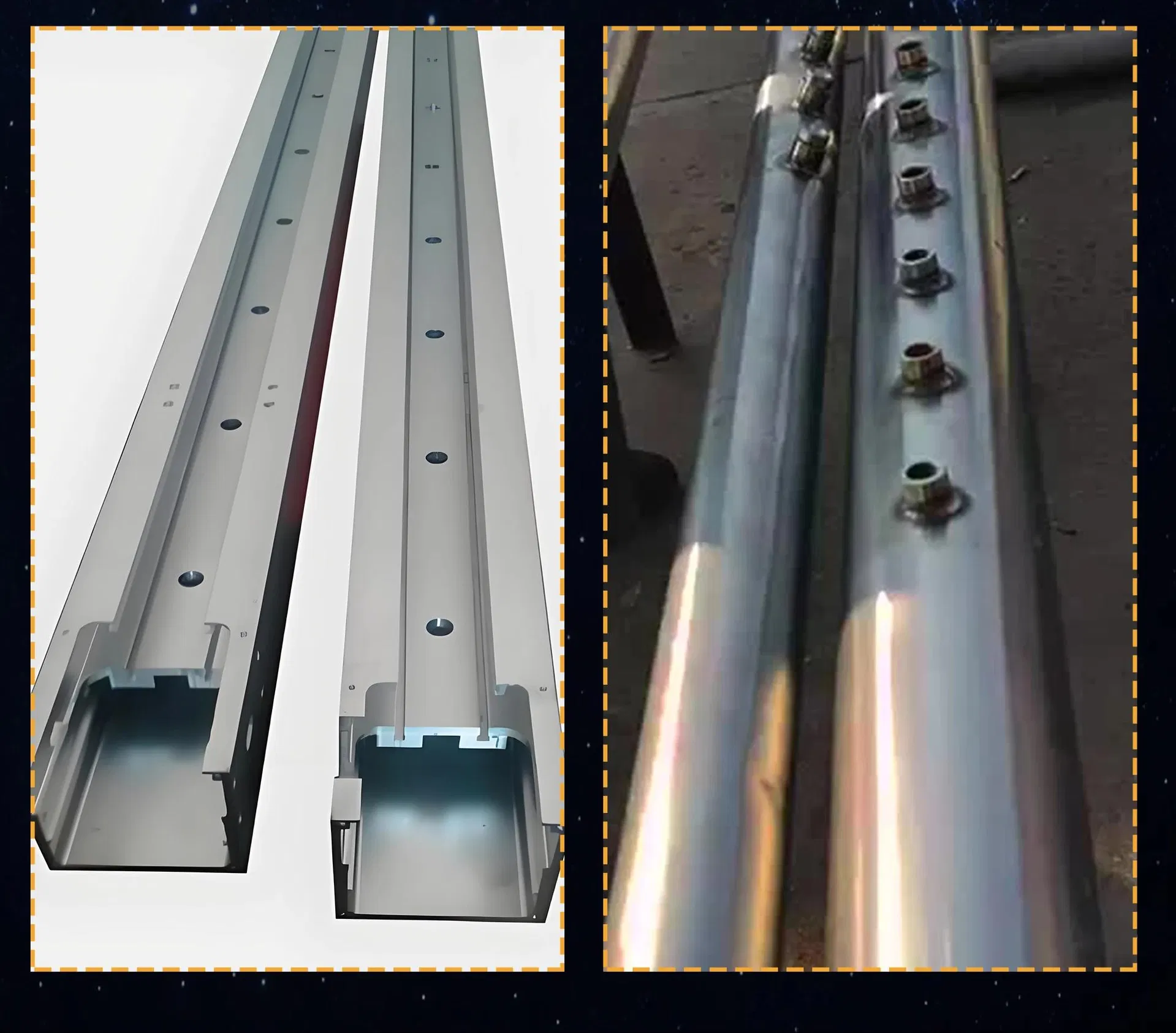

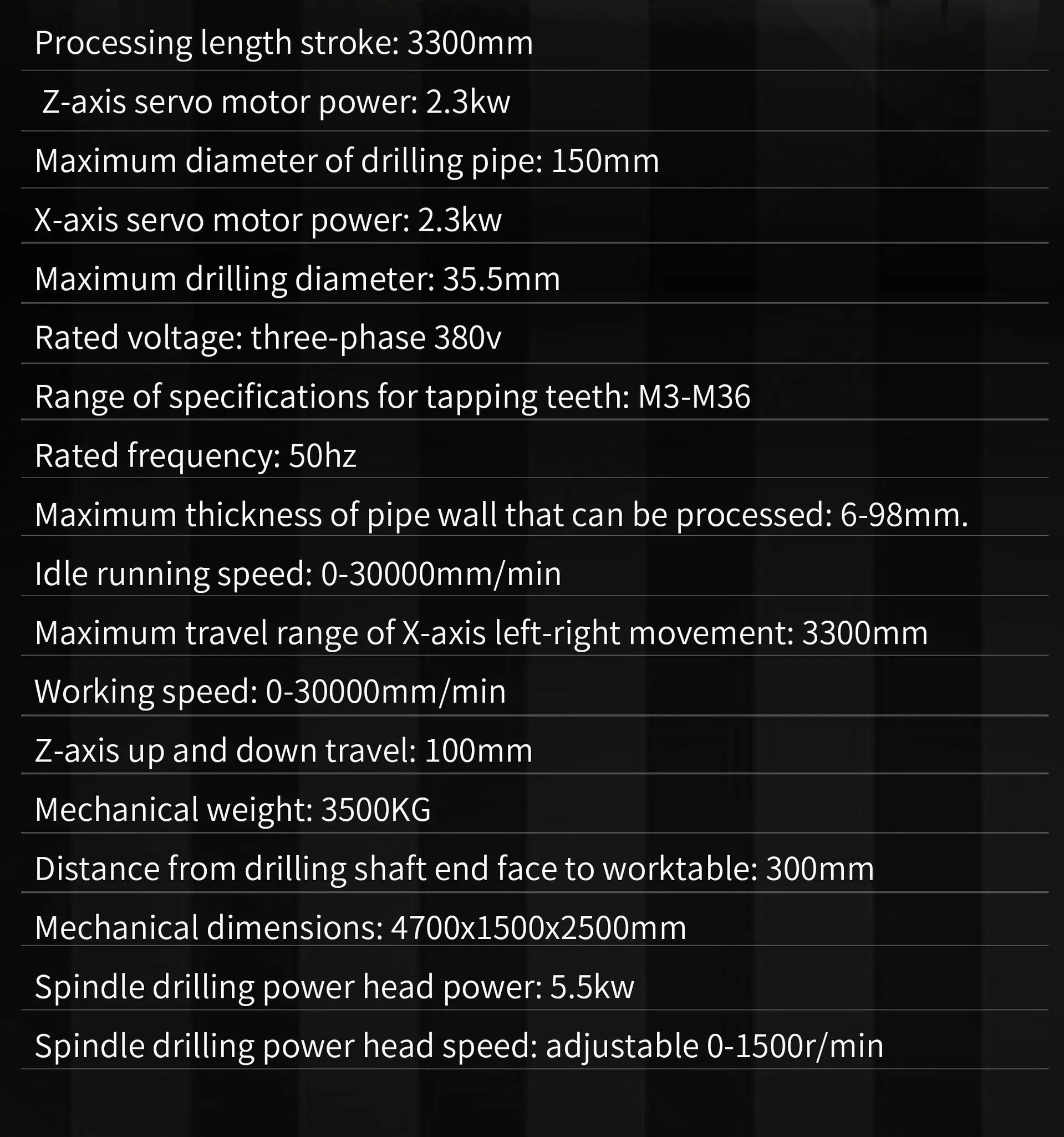

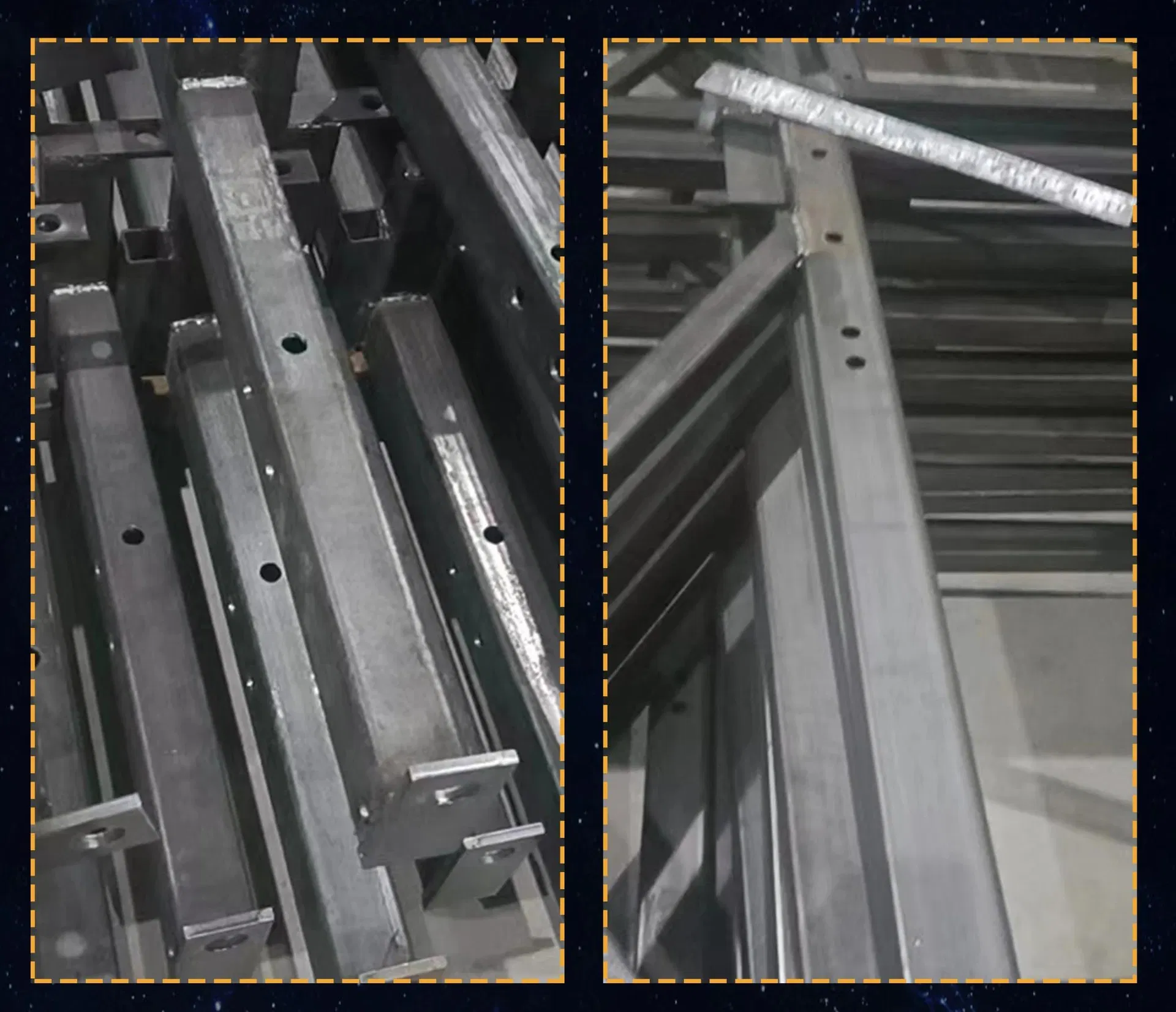

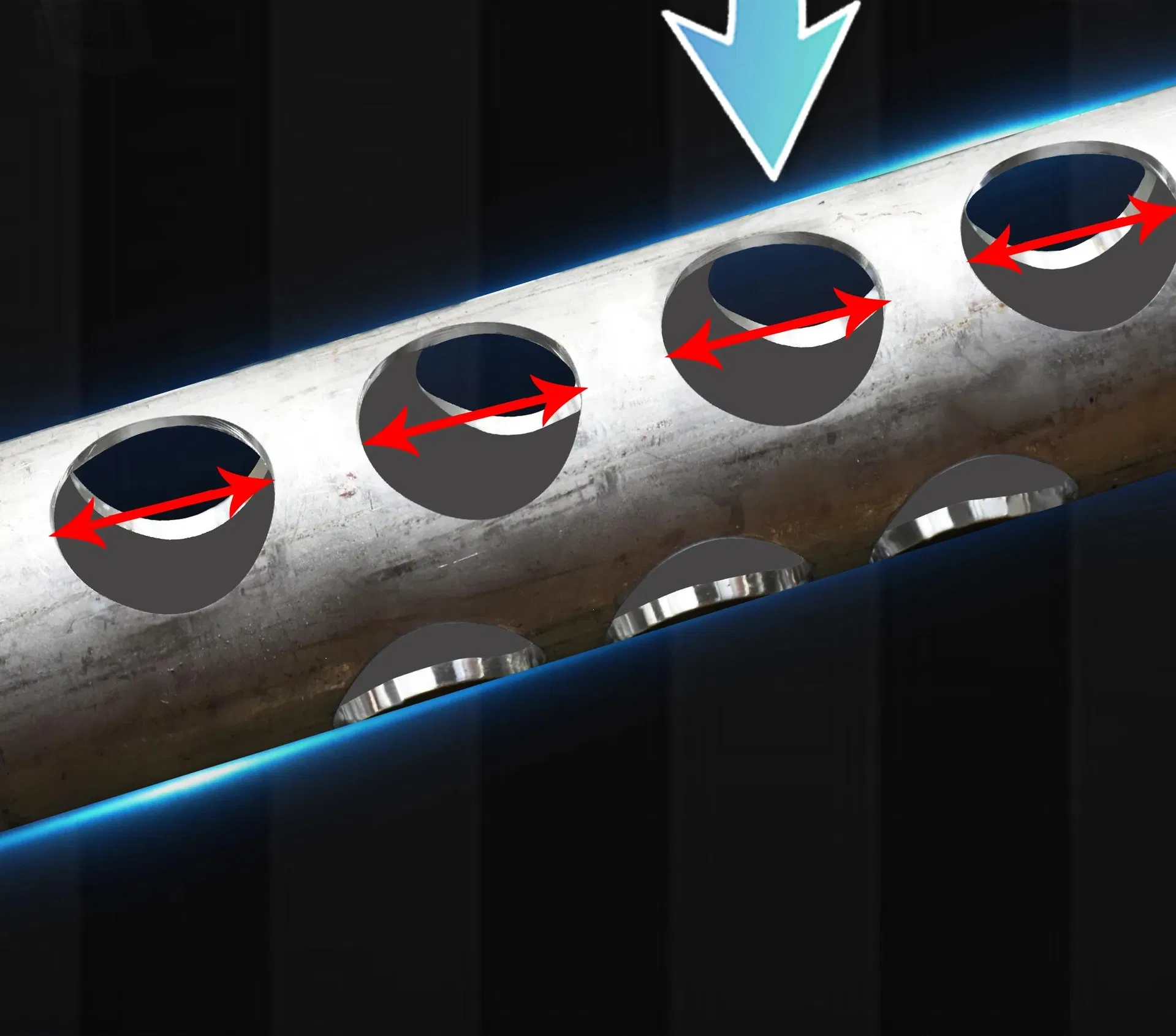

Specifically engineered for high-performance drilling and tapping of steel round tubes (diameter ≤ 150mm), aluminum profiles, stainless steel (303/316/310), Teflon, and silicon carbide. It supports vertical surface operations with a hole diameter range of 3-35.5mm and tapping sizes covering M3-M36.
Key Advantages

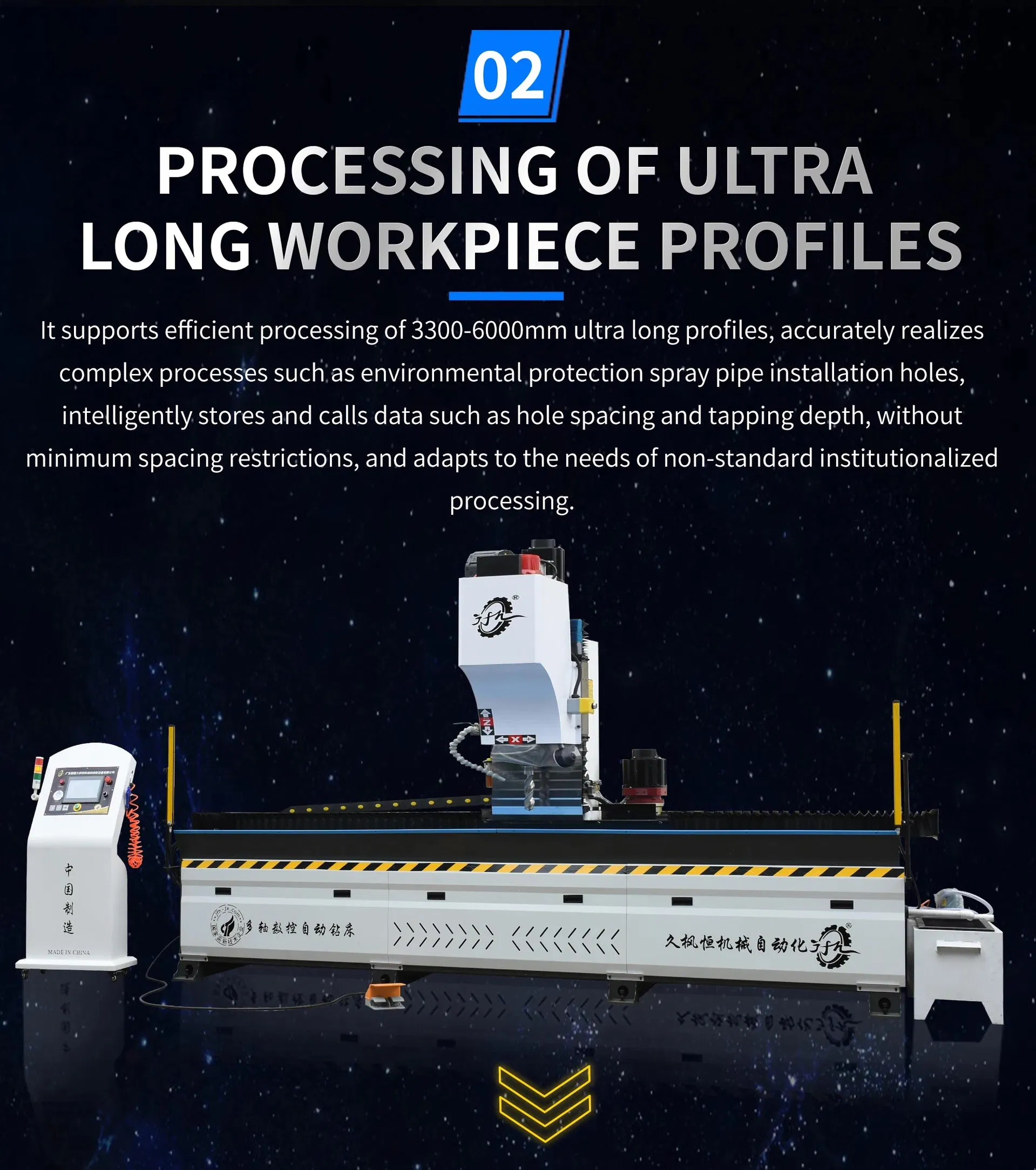

- Ultra-Long Workpiece Processing: Supports an effective machining stroke of 3300mm with the capability for unlimited lengths via manual movement.

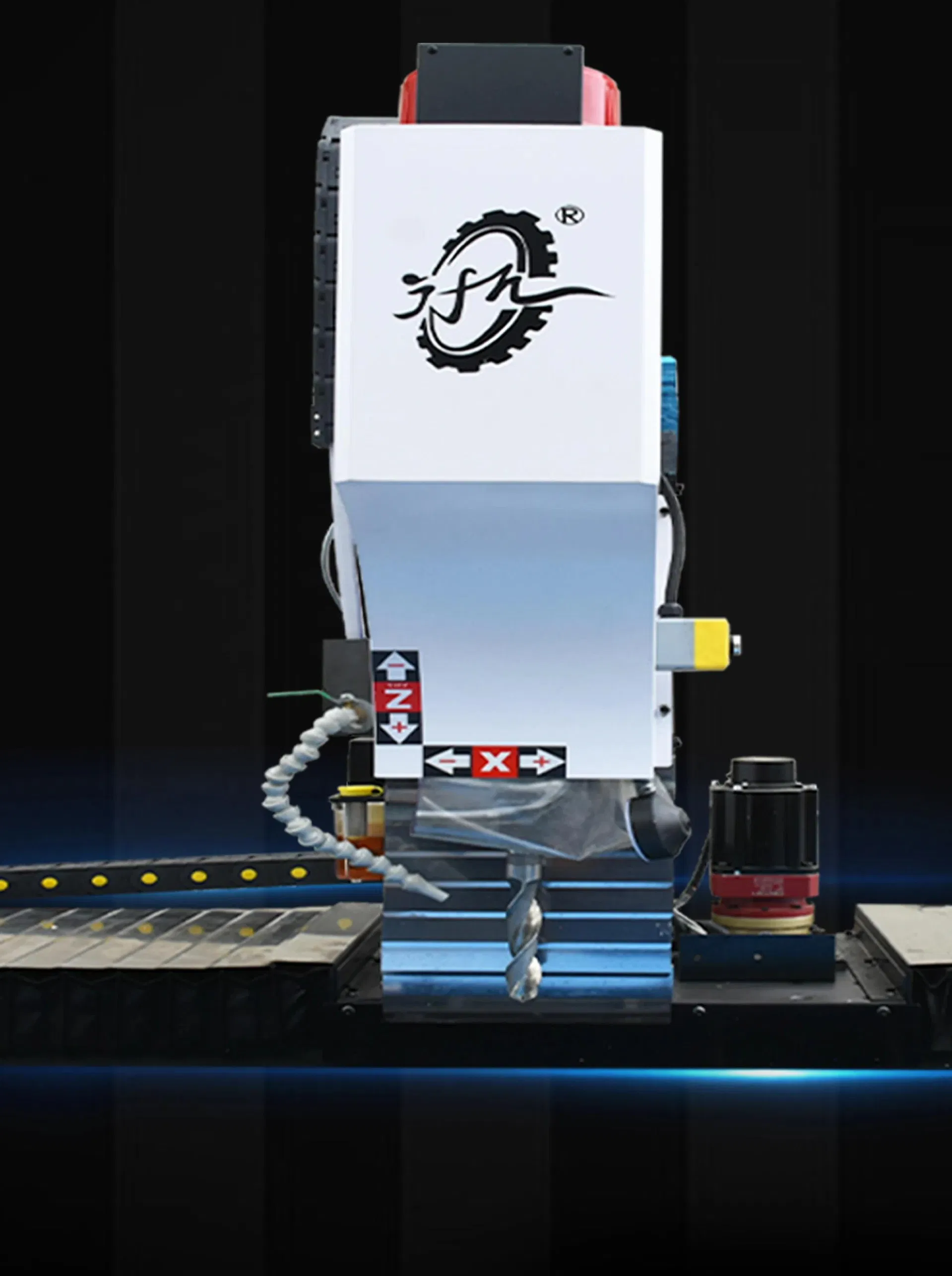

- Core Power System: Features a BT40 taper shank clamping system and a 5.5kW variable frequency spindle for high-intensity metal processing.

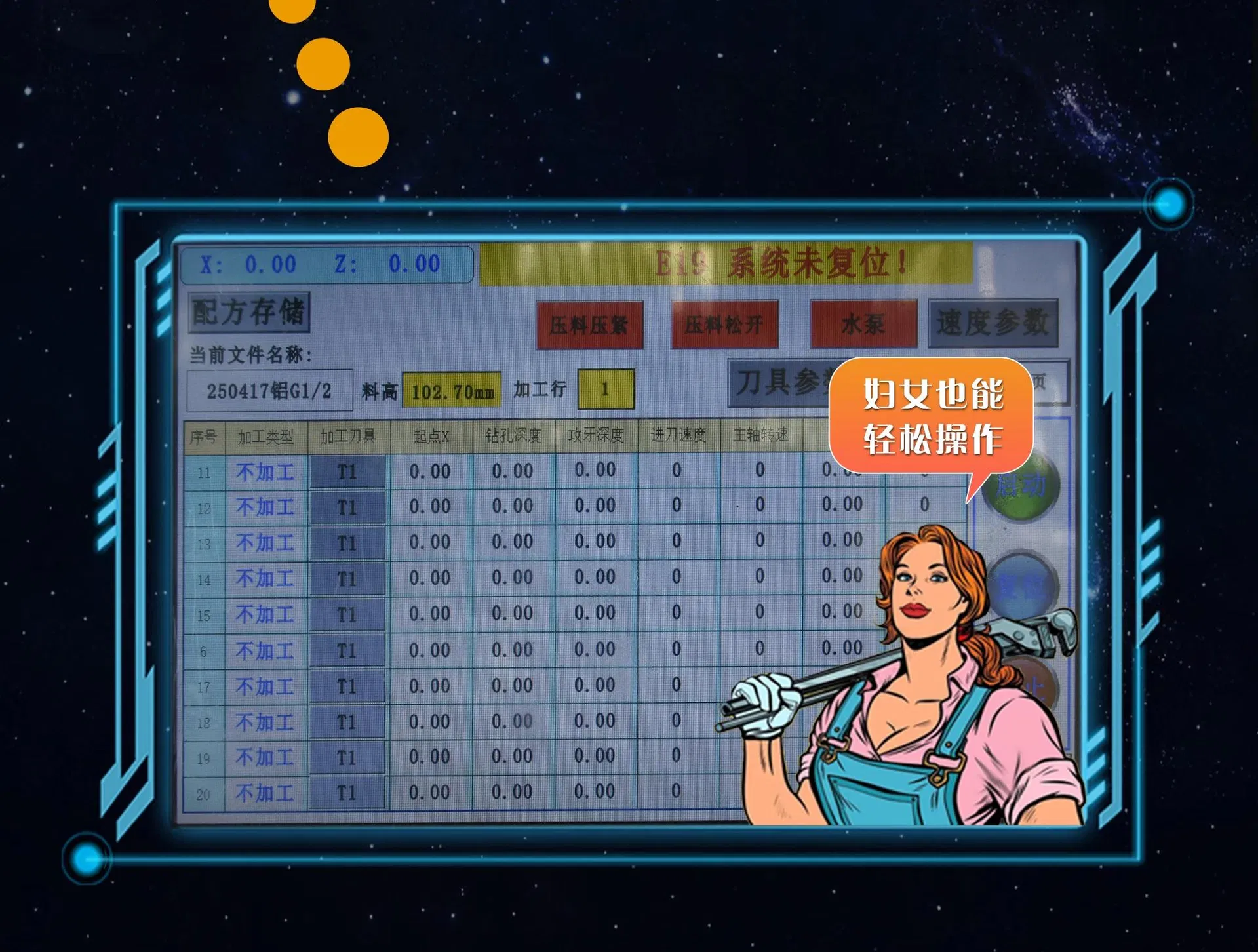

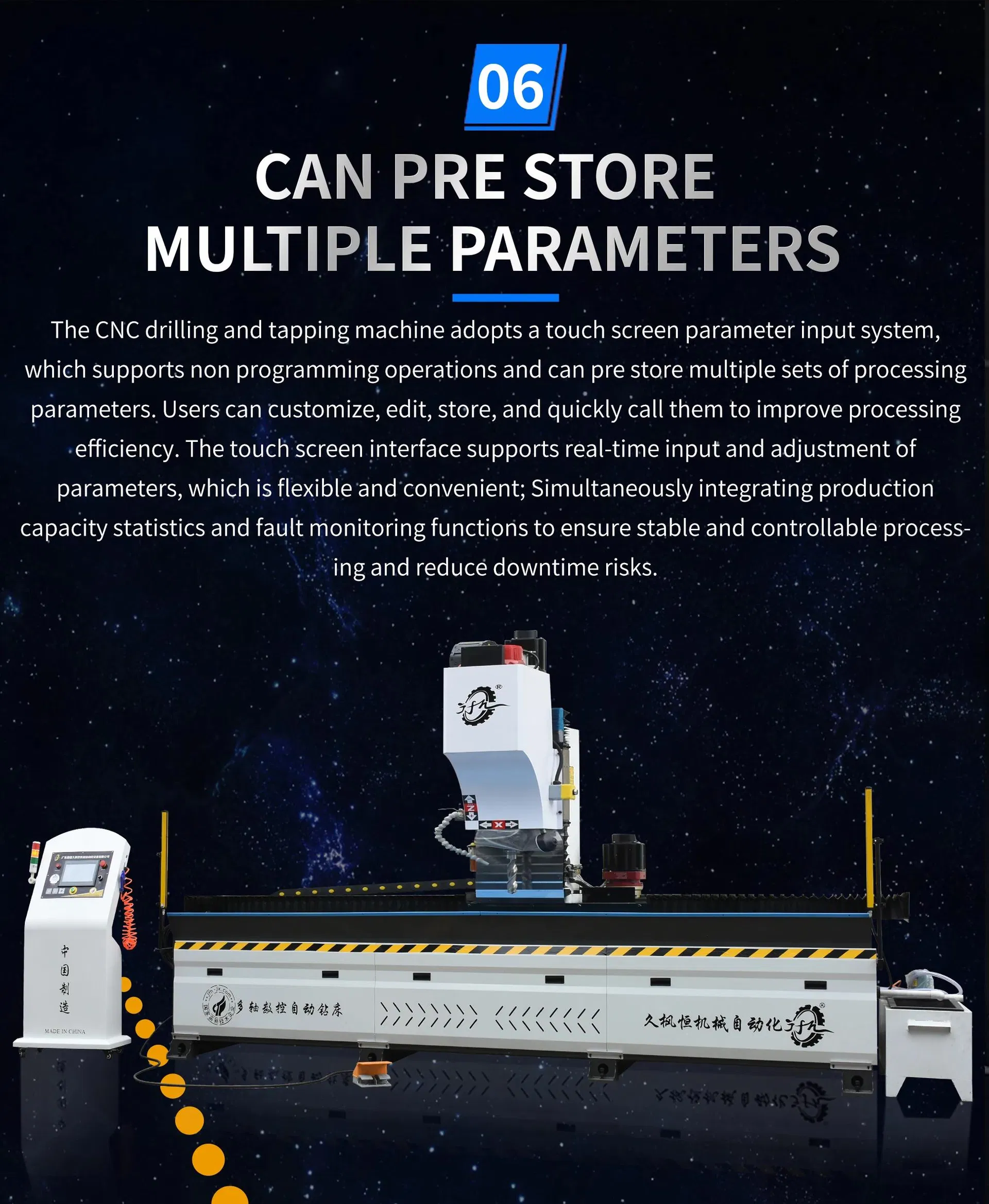

- Intelligent Control: Parameter storage for hole spacing and tapping depth, integrated one-button start/stop, and automatic hydraulic clamping.
- Industrial Stability: Equipped with adjustable positioning supports and high-clamping force (≥ 5 tons) to ensure zero-shake processing.
- Safety Standards: Fully compliant with CE safety standards, including emergency stop switches and protective covers.
Frequently Asked Questions (FAQ)
What materials can the JFH-JX-ZG01-L3500 process?
It is designed for drilling and tapping steel round tubes, aluminum profiles, stainless steel (303/316/310), Teflon, and silicon carbide materials.
What is the maximum workpiece length supported?
The machine has an effective machining stroke of 3300mm, but it supports continuous machining of unlimited lengths through manual pipe movement.
What are the drilling and tapping specifications?

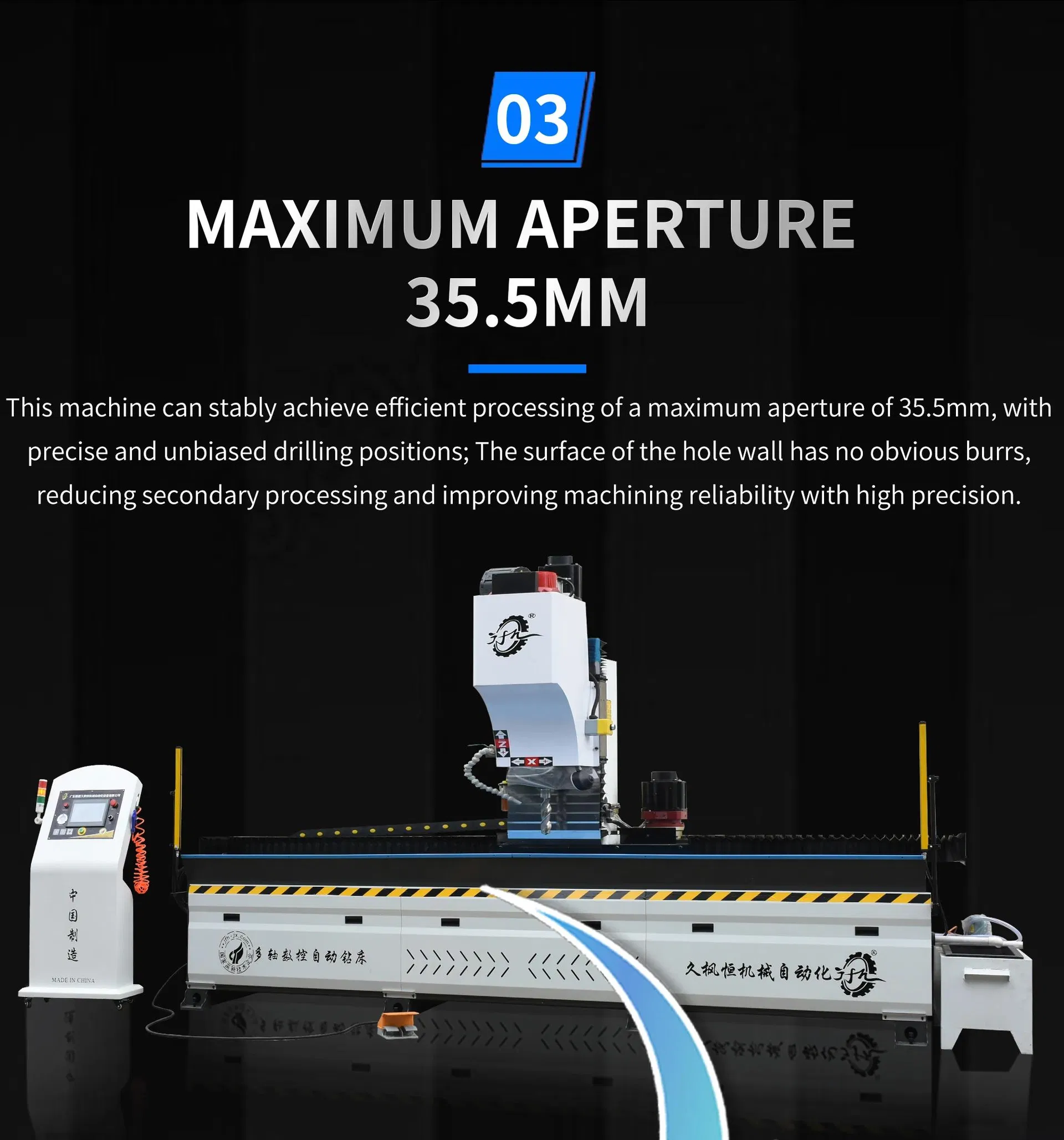

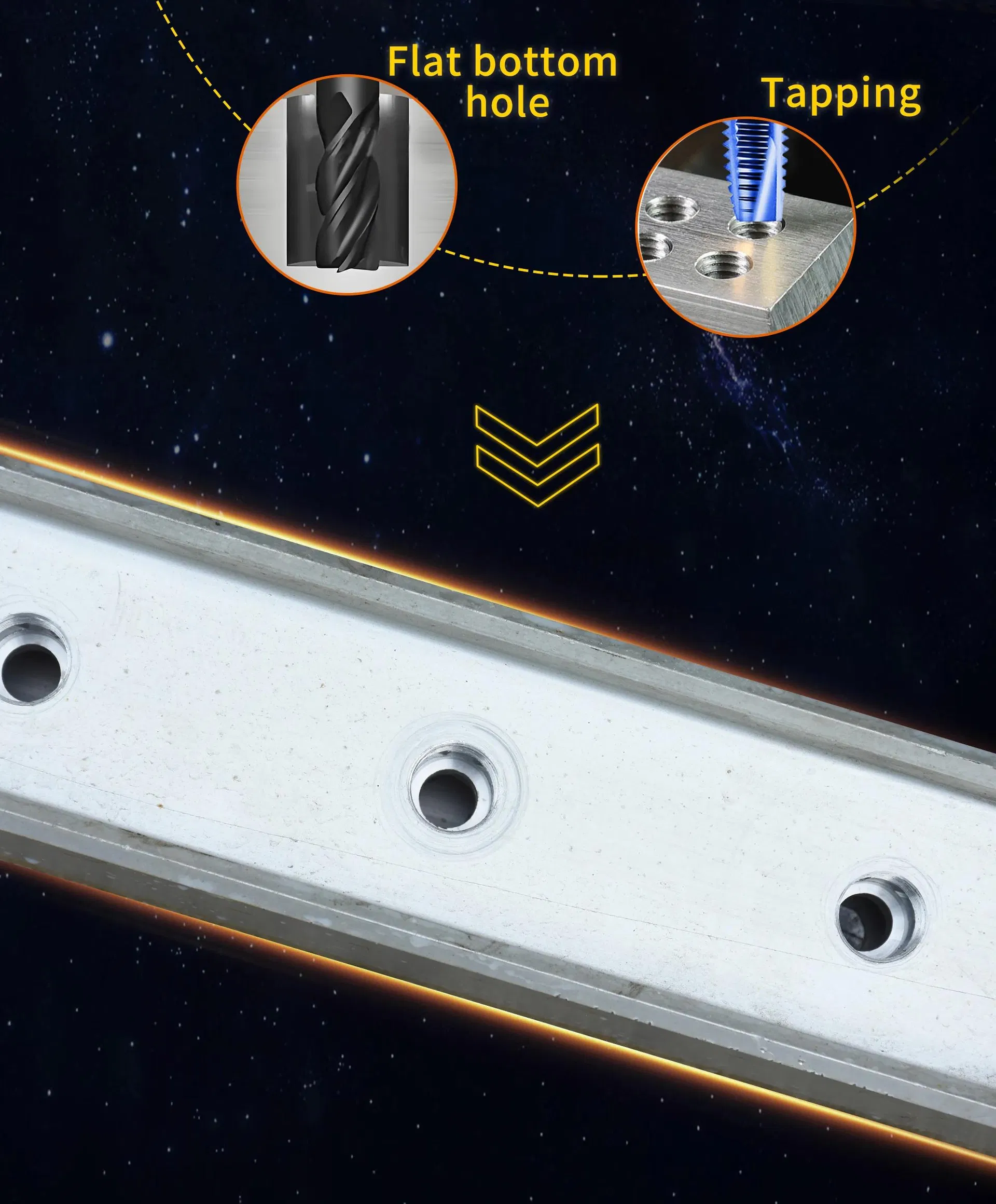

The machine supports hole diameters from 3mm to 35.5mm and tapping sizes ranging from M3 to M36.
How does the intelligent control system improve efficiency?
It supports parameter storage for hole spacing and tapping depth, features a one-button start/stop function, and includes automatic hydraulic clamping to reduce manual intervention.
What safety standards does this machine meet?

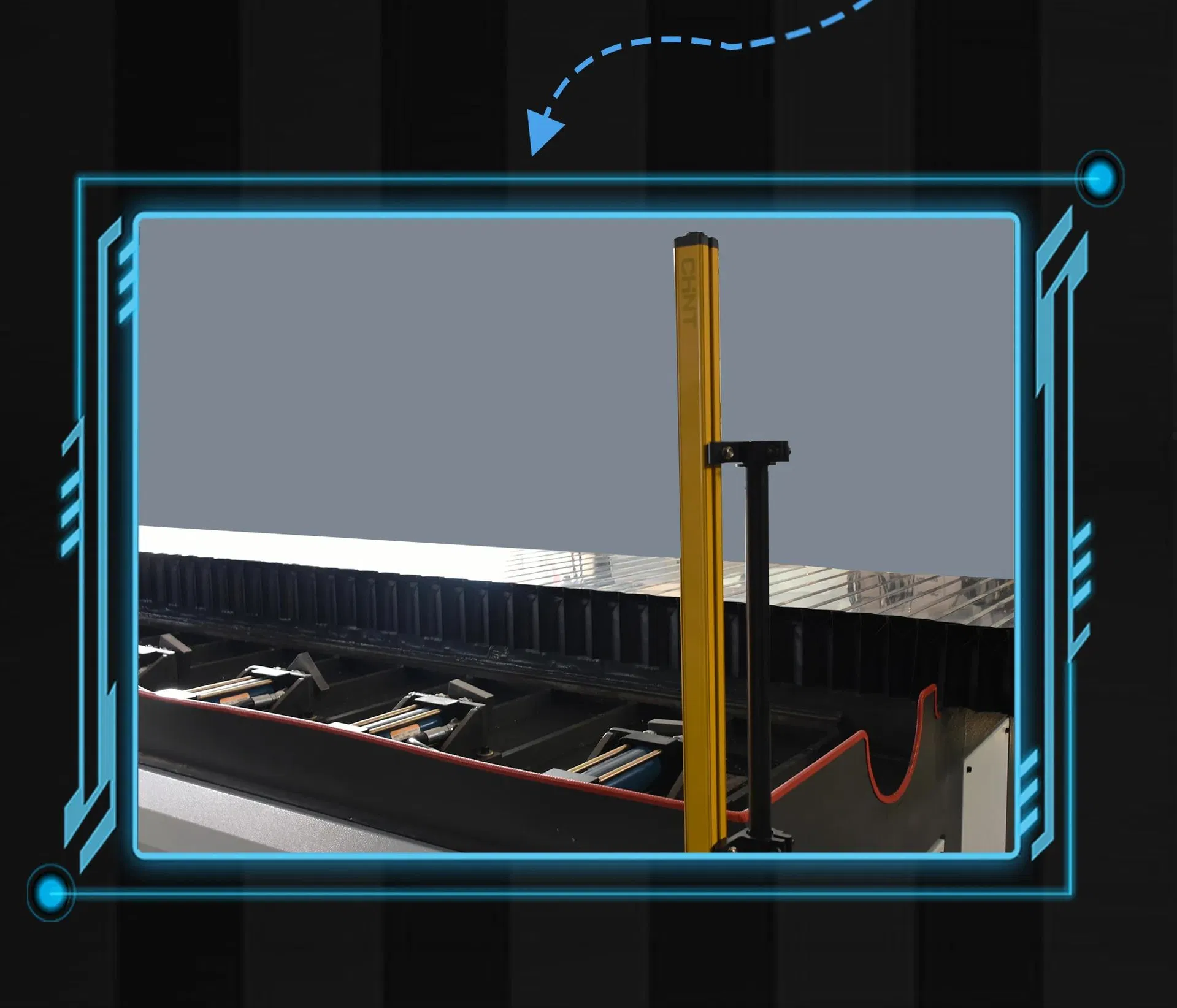

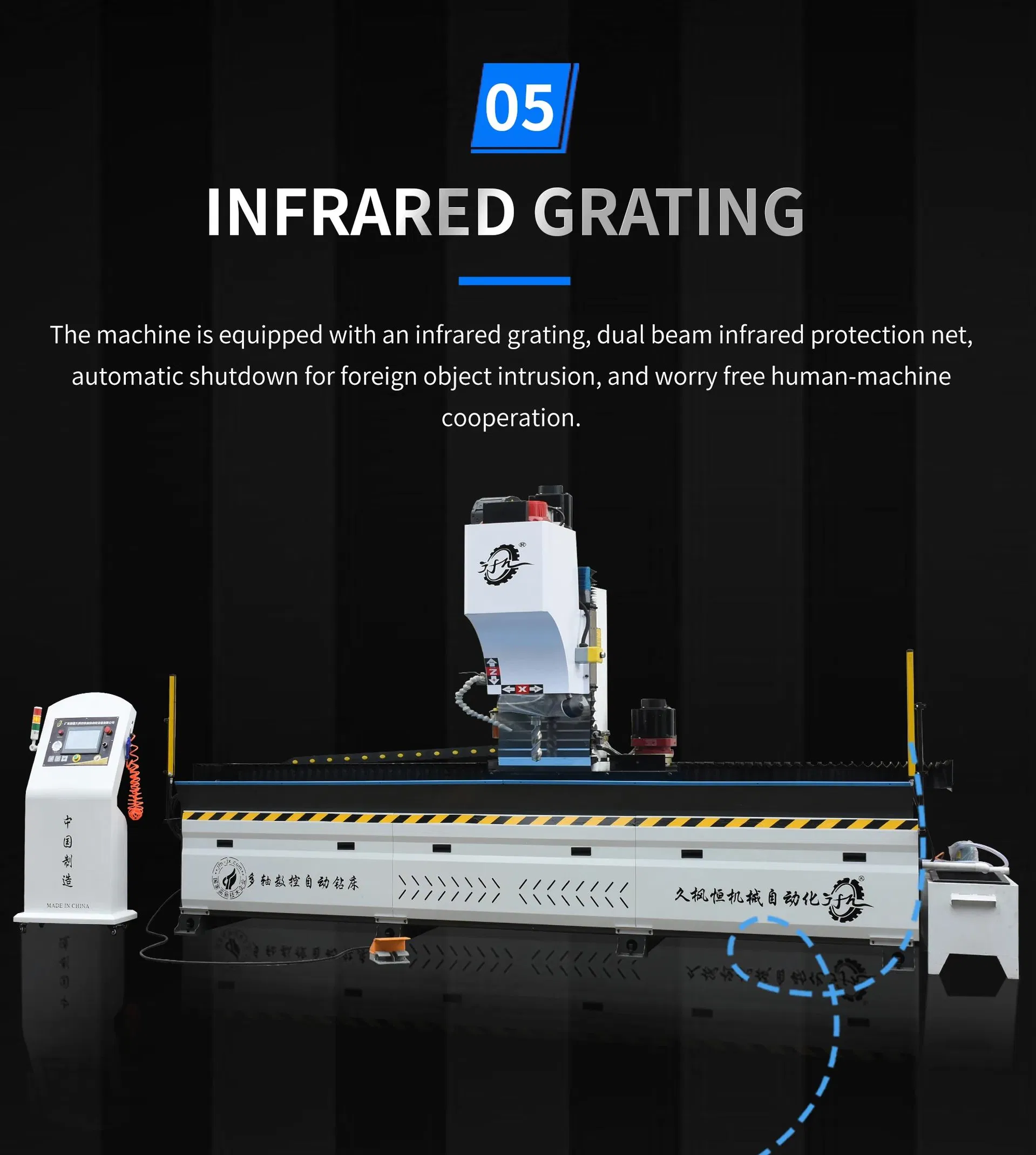

The machine complies with CE safety standards, featuring emergency stop switches, protective covers, and safety light barriers to protect the operator.
Is the spindle speed adjustable for different materials?
Yes, the 5.5kW spindle is equipped with a variable frequency drive, allowing the speed to be adjusted from 0 to 1500 rpm to suit various drilling and tapping requirements.
