DSCUT CNC
1 / 5
| Model NO. | HMDB | Type | Double Side Spindle CNC Milling Machine |
|---|---|---|---|
| Object | Hardware | Structure | Horizontal CNC Machining Center |
| Milling Cutter Type | Vertical Milling Cutter | Automatic Grade | Automatic |
| Controlling Mode | CNC | Precision | Precision |
| Certification | GS, CE, RoHS, ISO 9001 | Condition | New |
| Function | Double Ends Hole Drilling, Tapping, Face Milling | Core Advantage | Double Side CNC Drilling Milling with ATC |
| Processing Details | Drilling/Milling/Tapping/Turning Metal Shaft | Machine Bed | Horizontal Milling Drilling CNC Machine |

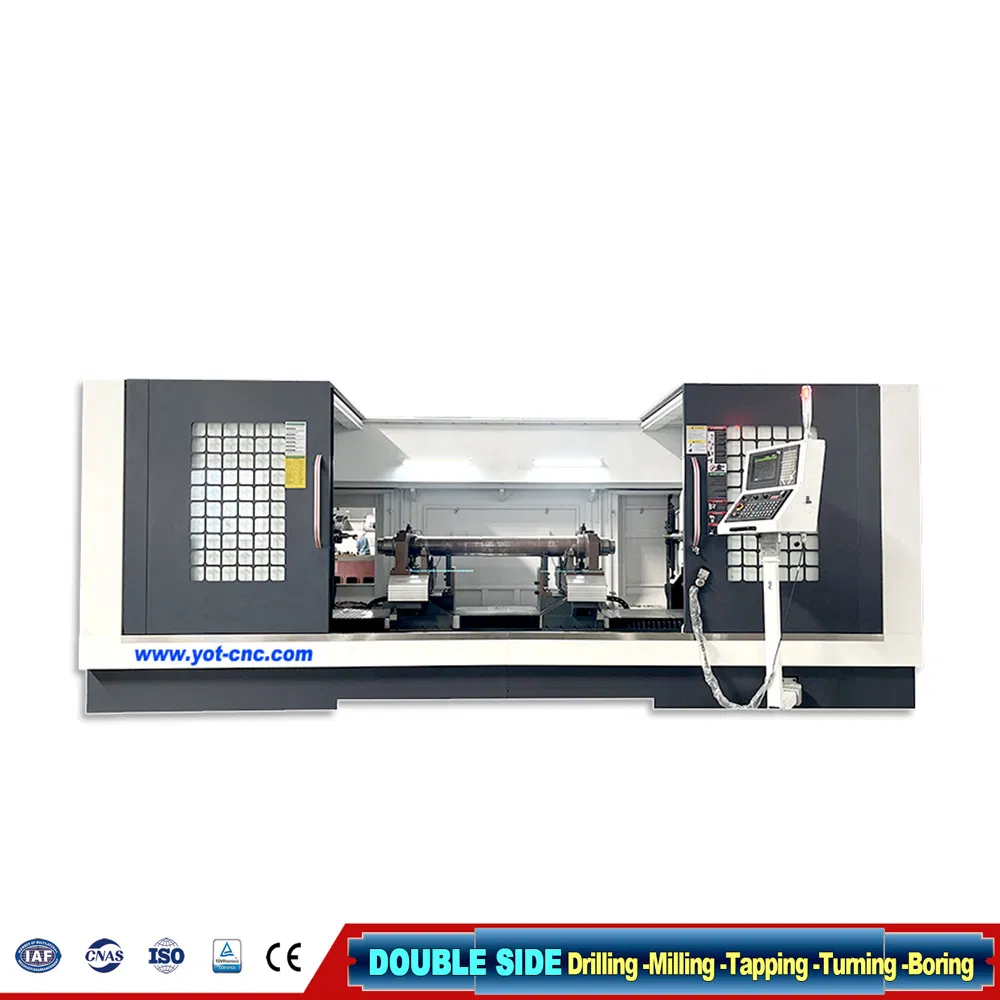

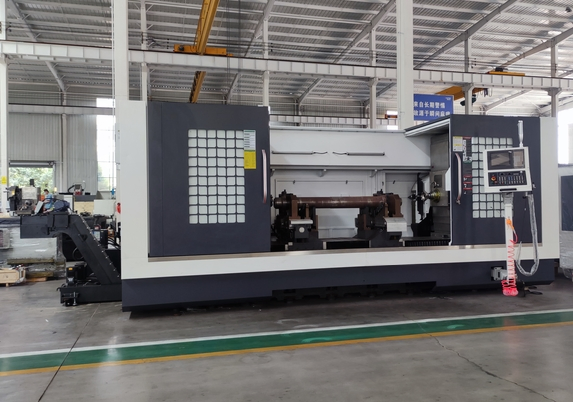

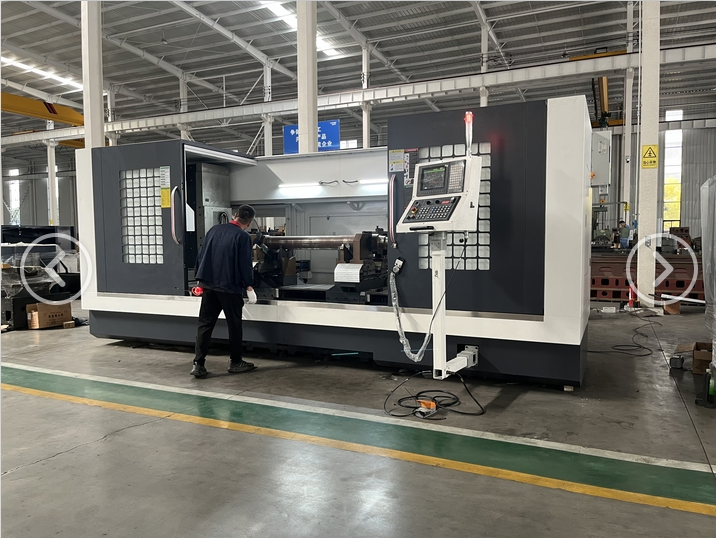

Double side spindles CNC milling machine with drilling tapping automatic cutting tool change
| Project | Unit | Parameter |
|---|---|---|
| Workpiece diameter | mm | 30~150 |
| Workpiece length | mm | 500~1000 |
| Process details | - | Heavy milling, edge hole drilling, tapping, boring, turning for ends |
| Tool magazine | P | 16/32 |
| Machine size | mm | 6200×2100×2400 |
| Total power | kw | 60 |

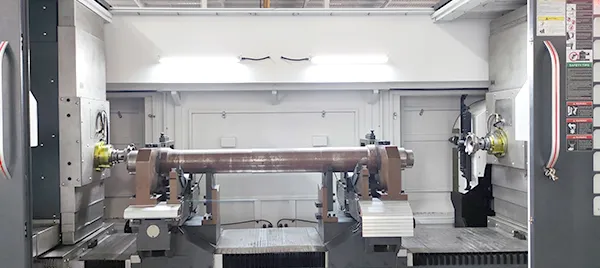

STRUCTURAL DESIGN

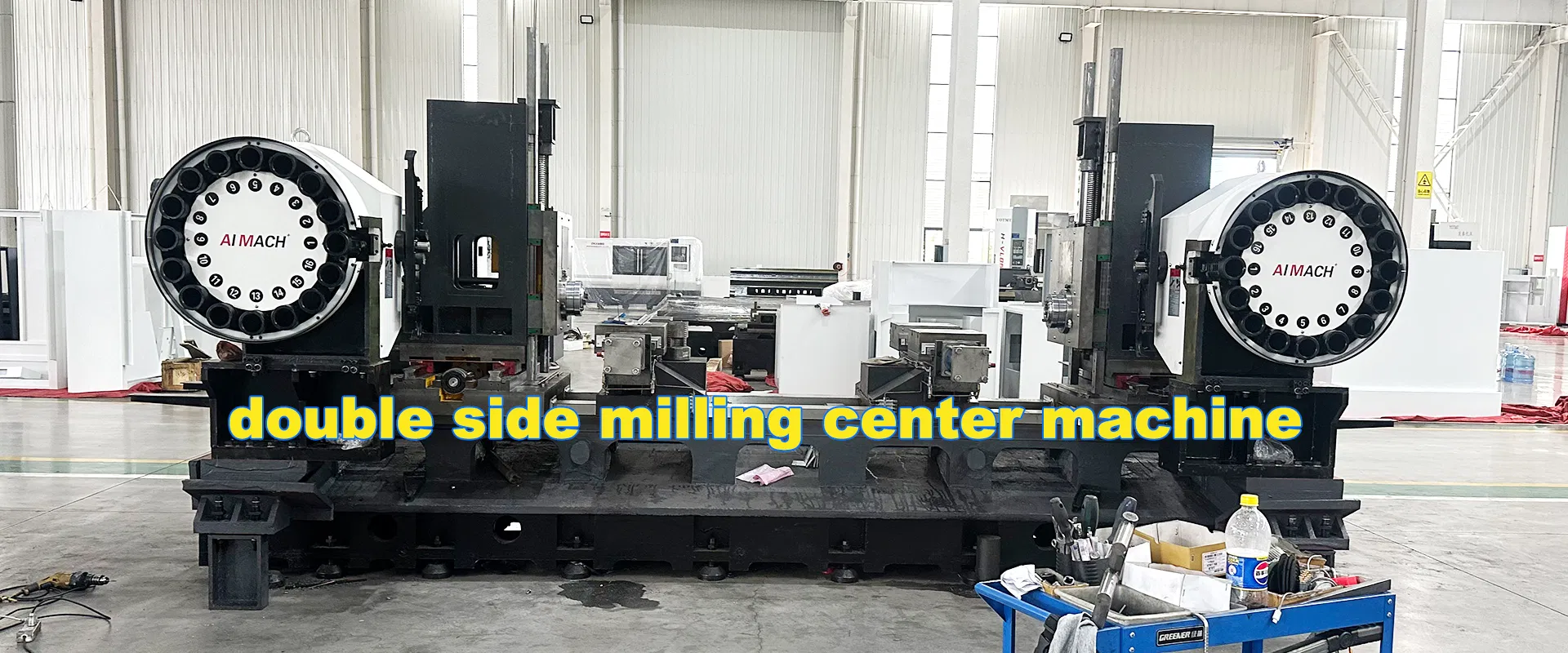

Featuring an innovative double-ended spindle design, our machine integrates a horizontal spindle box layout with three dynamic moving axes on each side, enabling the simultaneous execution of milling, drilling, and tapping on two sections of the workpiece.
HARDWARE & SPINDLE DESIGN

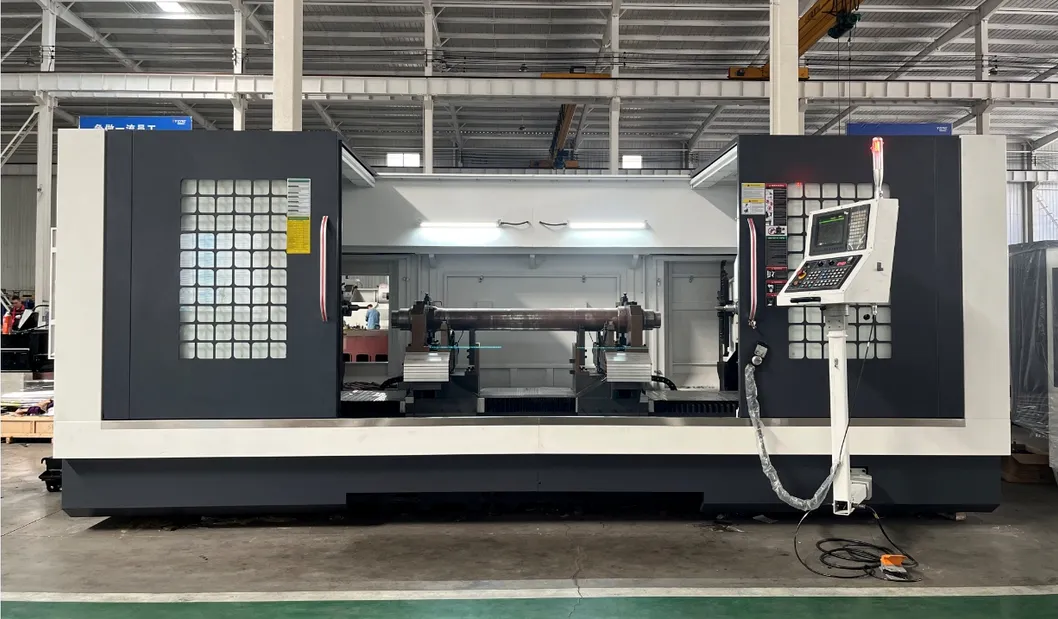

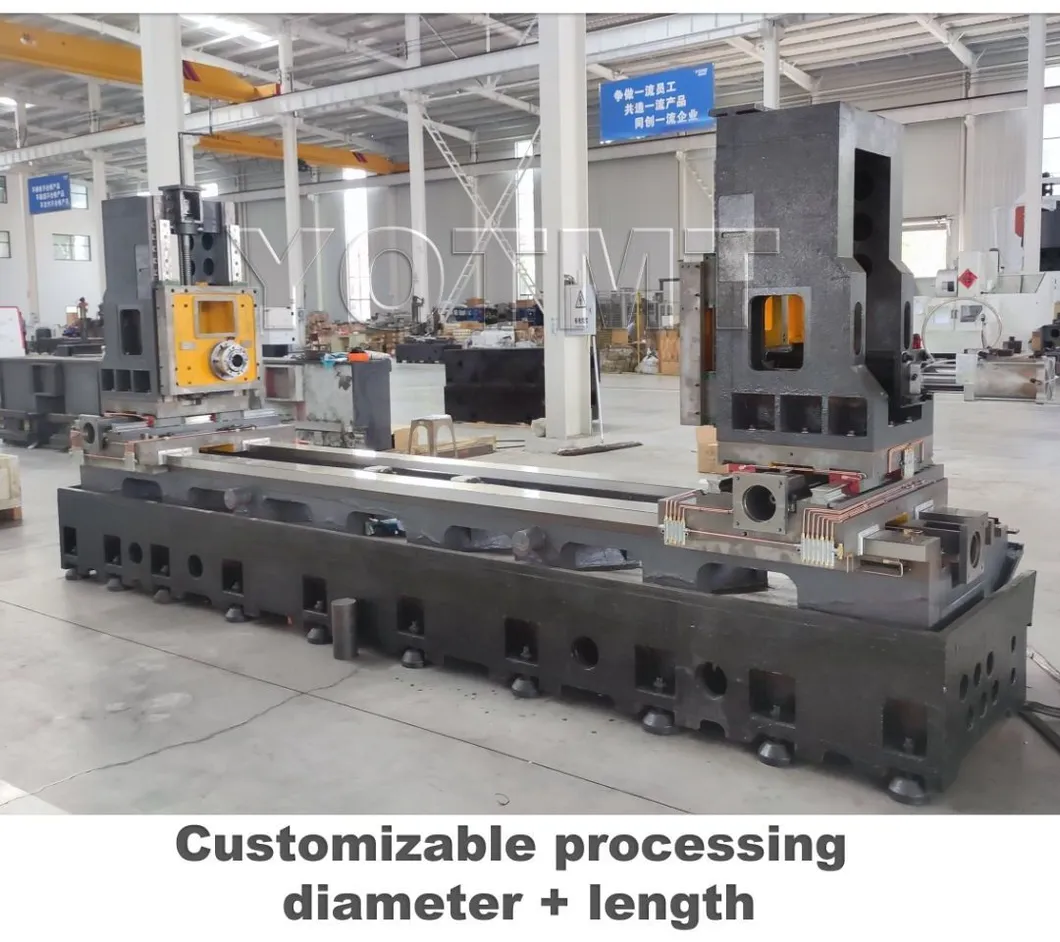

The machine boasts an integrated casting base and spindle box, complemented by an enclosed double-layer protective design. Each side is equipped with a sophisticated automatic tool change magazine, accommodating various drilling and tapping needs with ease and flexibility.

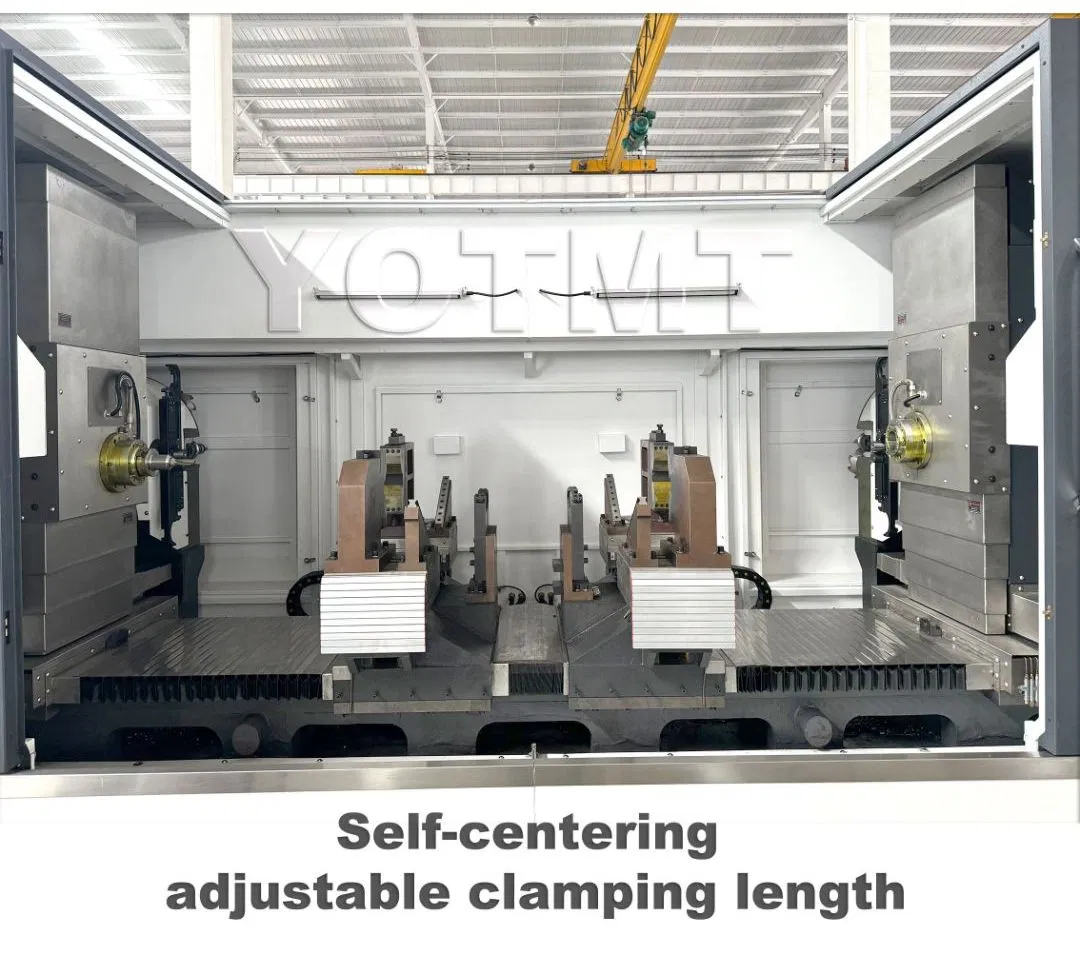

Utilize robust BT50 spindles, incorporating a dual-channel CNC system for enhanced precision, coupled with an adjustable self-centering hydraulic clamp.
Recognized as a leading manufacturer of CNC machine tools for double-sided processing, backed by hundreds of technical patents, specializing in drilling, milling, and turning shaft parts with exceptional precision.
Our Advantages

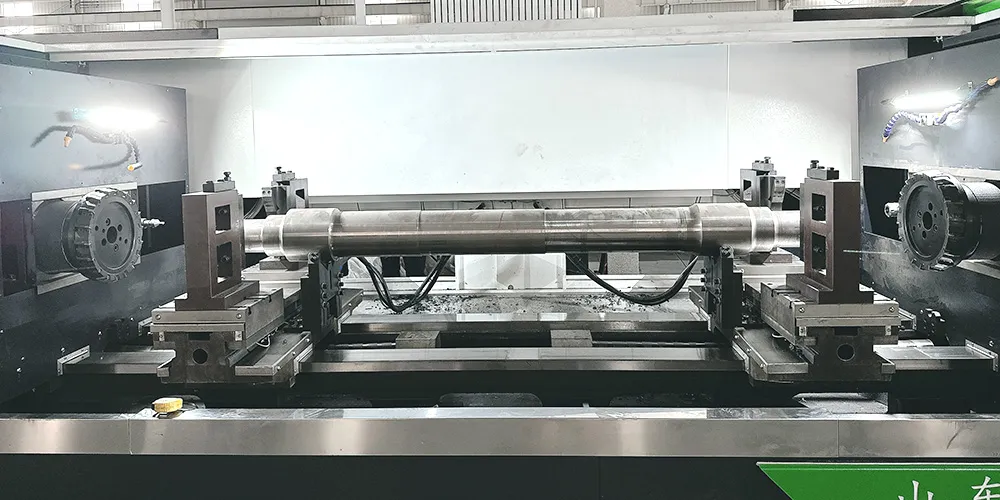

Facing and Centering Machine

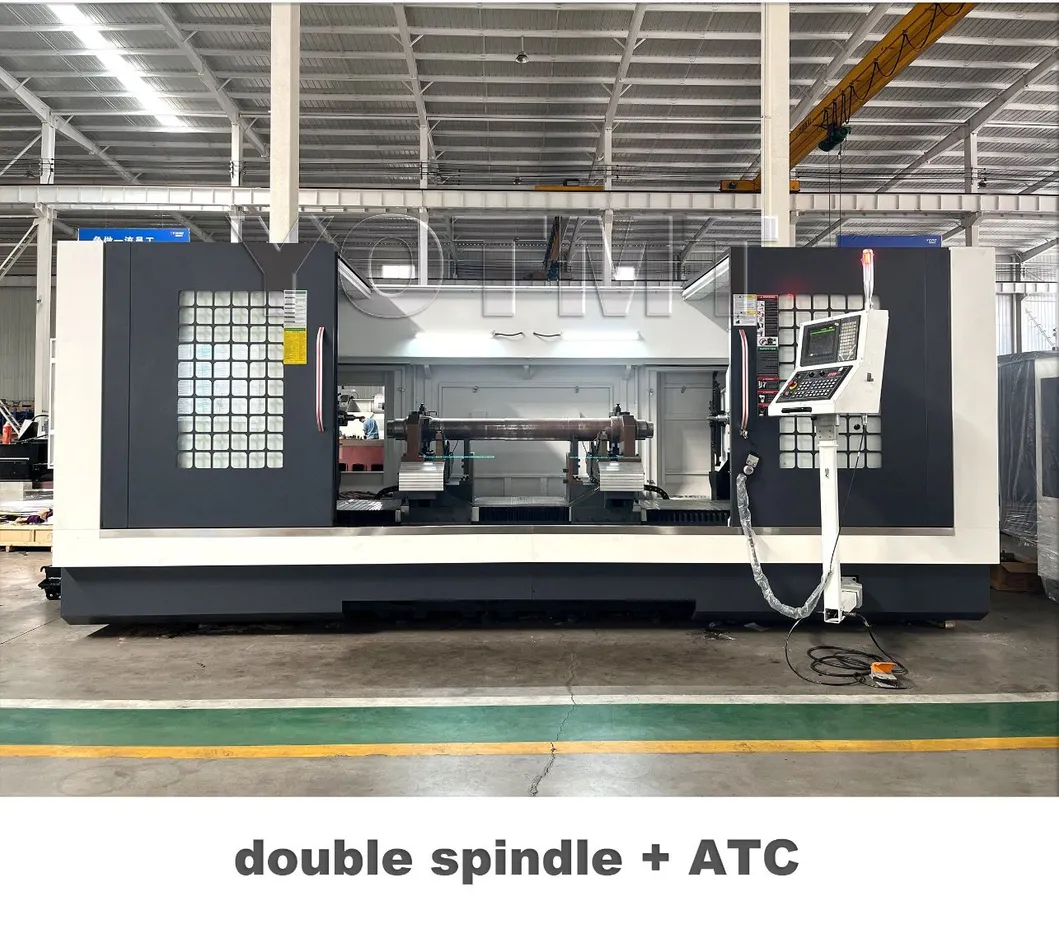

Double Side Machining Center with ATC

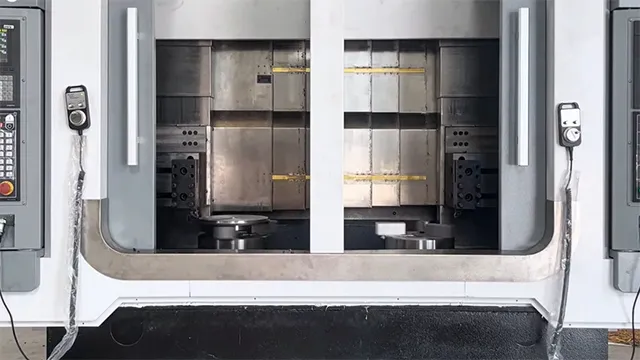

Double Spindle / Turret CNC Lathe
