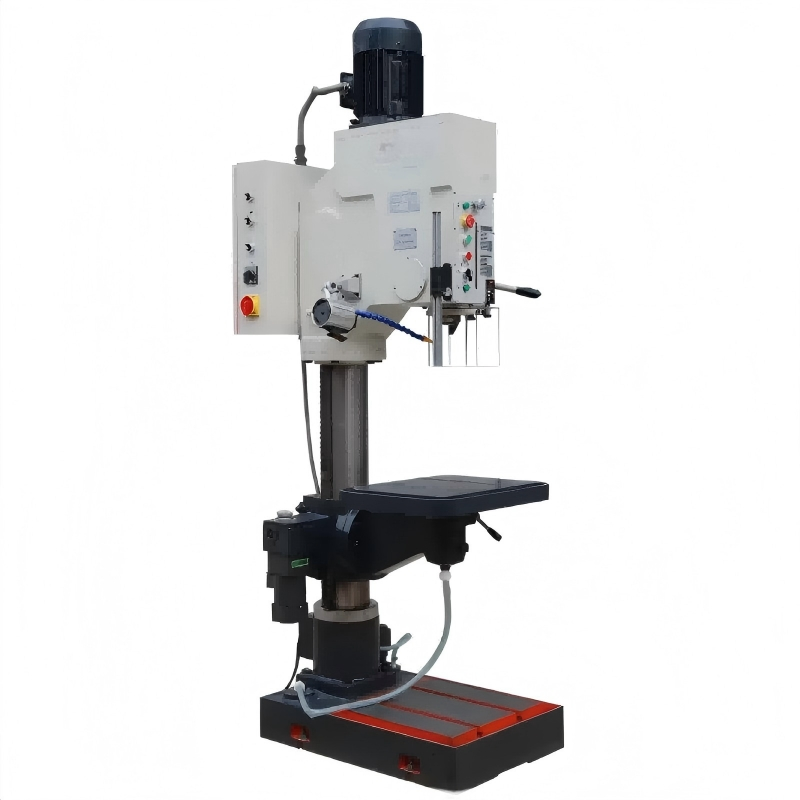

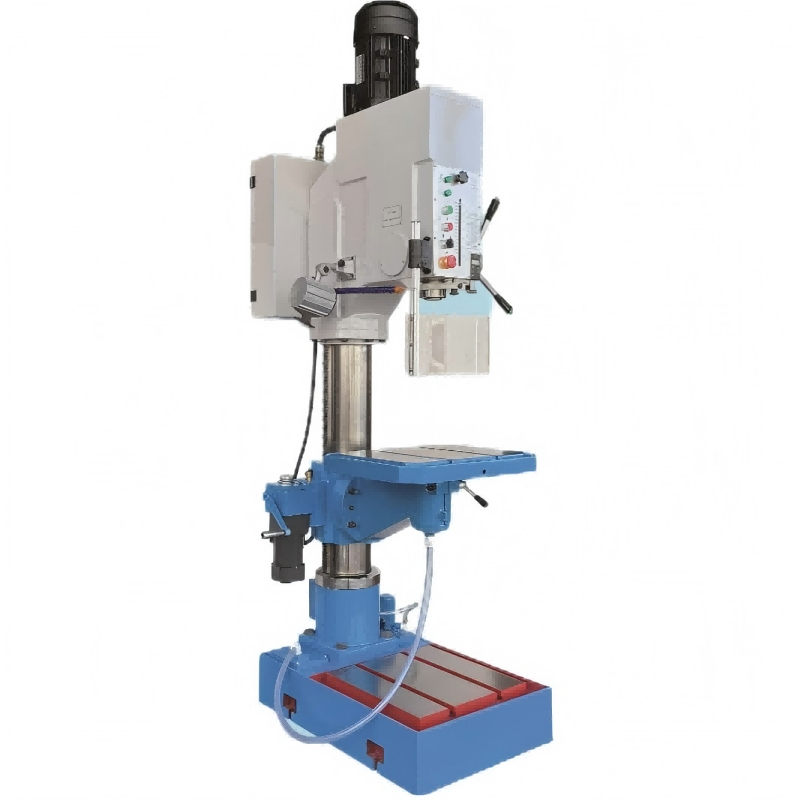

Small Metal Press Industrial Vertical Bench Z5040 40mm Tapping Diameter M24 Drilling Machine
Small Metal Press Industrial Vertical Bench Z5040 40mm Tapping Diameter M24 Drilling Machine
Small Metal Press Industrial Vertical Bench Z5040 40mm Tapping Diameter M24 Drilling Machine
Small Metal Press Industrial Vertical Bench Z5040 40mm Tapping Diameter M24 Drilling Machine
Small Metal Press Industrial Vertical Bench Z5040 40mm Tapping Diameter M24 Drilling Machine
1 / 5
Small Metal Press Industrial Vertical Bench Z5040 40mm Tapping Diameter M24 Drilling Machine
Small Metal Press Industrial Vertical Bench Z5040 40mm Tapping Diameter M24 Drilling Machine
Small Metal Press Industrial Vertical Bench Z5040 40mm Tapping Diameter M24 Drilling Machine
Small Metal Press Industrial Vertical Bench Z5040 40mm Tapping Diameter M24 Drilling Machine
Small Metal Press Industrial Vertical Bench Z5040 40mm Tapping Diameter M24 Drilling Machine

Small Metal Press Industrial Vertical Bench Z5040 40mm Tapping Diameter M24 Drilling Machine

Customization: Available
After-sales Service: 0ne Year
Warranty: 0ne Year
Send Inquiry

Product Description

Basic Info.
Model NO.
Z5040
Structure
Vertical Drilling Machine
Layout
Vertical
Controlling Mode
Electric
Automatic Grade
Automatic
Precision
High Precision
Certification
CE
Max. Drilling Capacity
40mm
Max. Taping Capacity
M24
Max. Spindle Travel
180mm
Spindle Steps
12
HS Code
84592900
Product Description
  • Suitable for drilling, enlarging, reaming, and automatic screw-driving operations.
  • Novel design with unique worktable (cross slide table) rotating 180° or tilting 45°.
  • Wide range of applications; automatic feed, limit switches, and convenient operation.
  • Equipped with cooling device, screw-driving device, and milling function.
  • Main motor adopts dual-speed motor with large power output and 12-level speed adjustment.
  • Electrical system complies with "CE" standards with overload and short-circuit protection.
  • Unique protective device ensures maximum safety and reliability.
Technical Specifications
Model Z5030A Z5035A Z5040A Z5050A
Max. drilling capacity(mm)30354050
Max. taping capacity(mm)M18M20M24M24
Distance from spindle axis to column(mm)315330360360
Max. distance from spindle nose to table(mm)520610600600
Max. distance from spindle nose to base(mm)1080115012151205
Max. spindle travel(mm)135150180180
Spindle speed(r/min)70-260070-260042-205042-1685
Spindle feed range(mm/r)0.1,0.2,0.30.1,0.2,0.30.07-0.40.07-0.4
Power(kW)1.1/1.51.5/2.22.2/2.82.2/2.8
Product Gallery
Vertical Bench Z5040 Drilling Machine

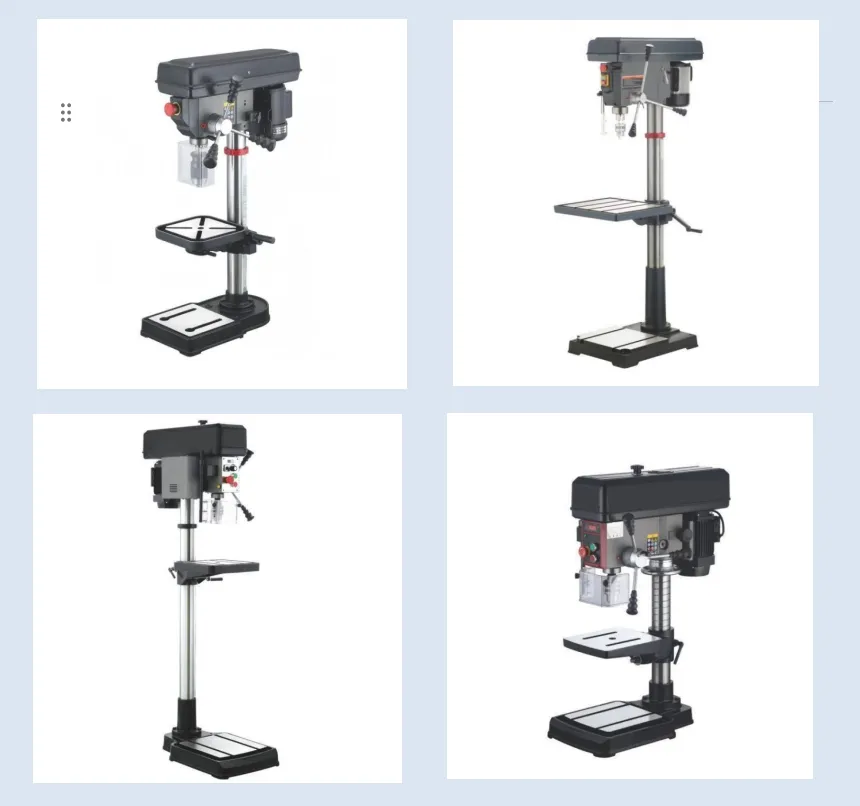

Drilling Series

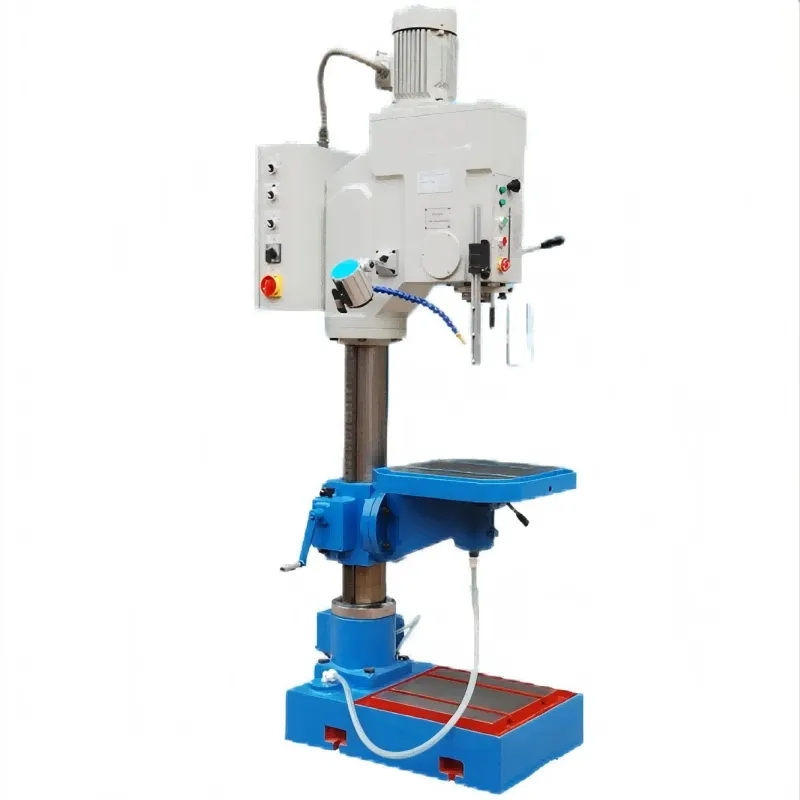

Drilling Machine Details

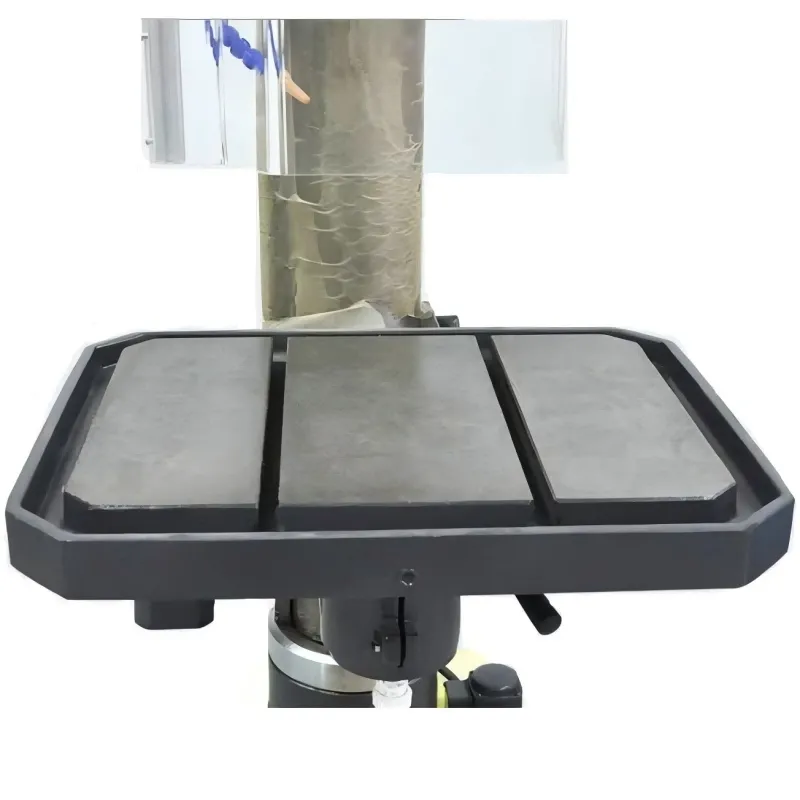

Industrial Vertical Bench

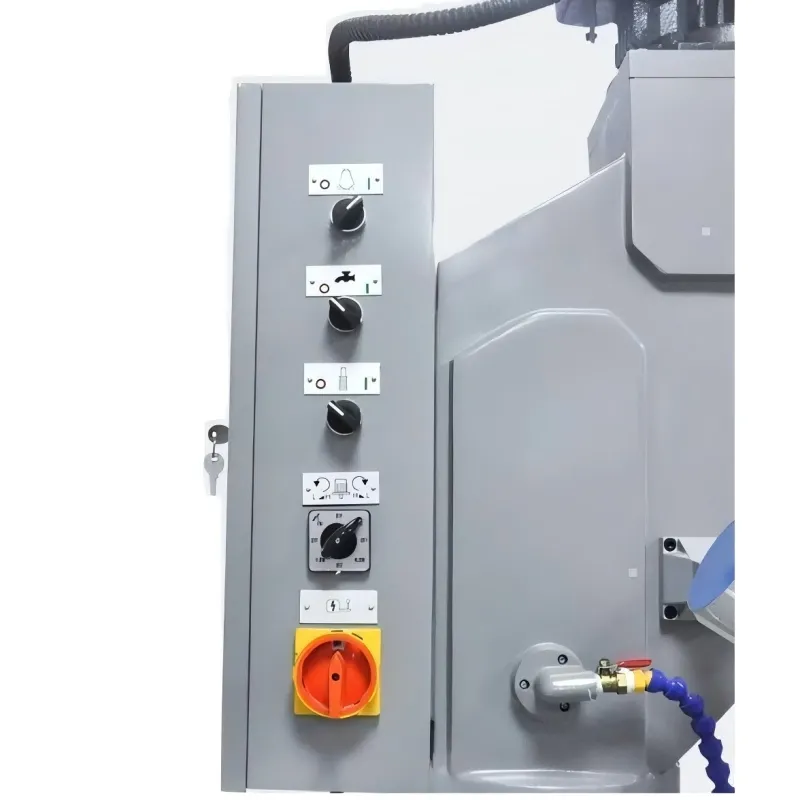

Tapping Diameter M24

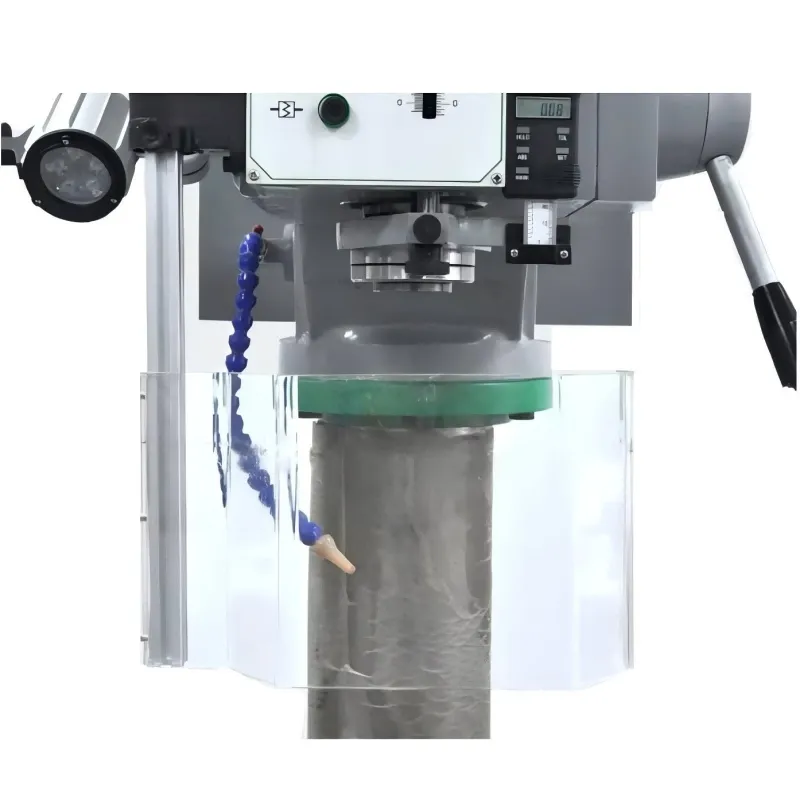

Metal Press Details

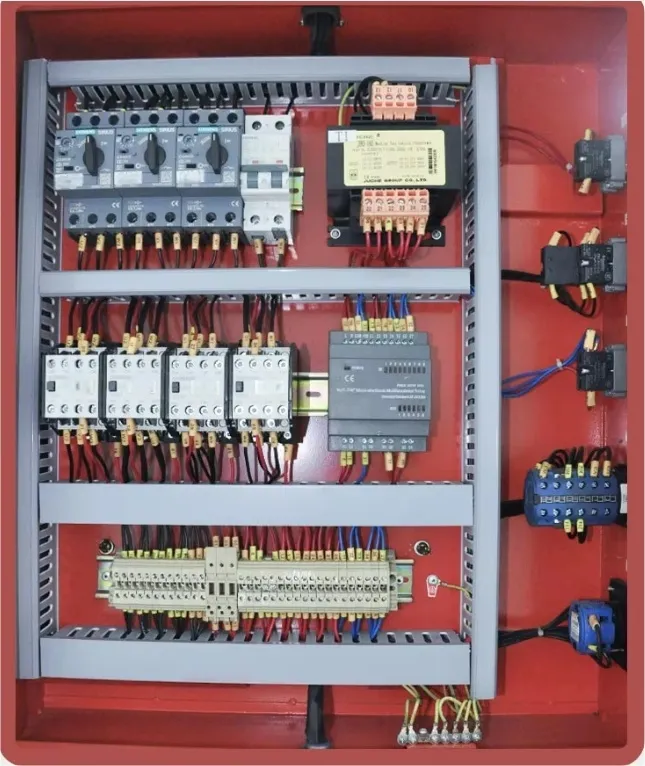

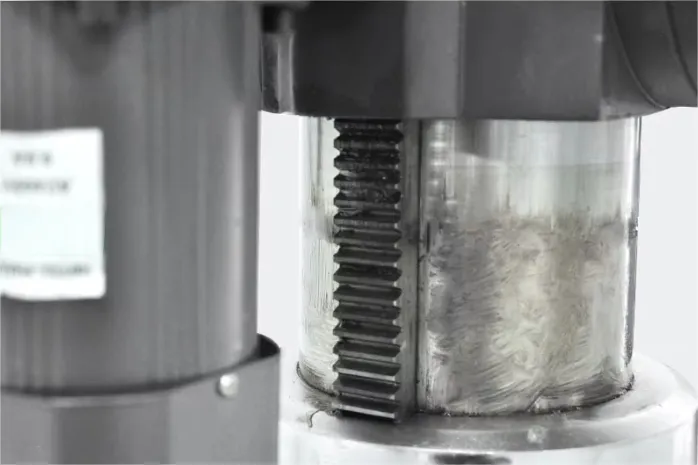

Machine Operation Machine Structure
Certificates
Certificate 1
Certificate 2
Frequently Asked Questions
What are the available trade terms?
Basically, we ship under FOB, CIF, and CFR terms.
What is the product warranty period?
We provide a one-year quality warranty for our machinery.
What are the standard payment terms?
The standard term is a 30% T/T deposit upon order confirmation.
How long does it take to receive a quote?
We usually provide a formal quotation within 24 hours after receiving your inquiry.
Are sample orders for lighting or components supported?
Yes, sample orders to test and check quality are welcomed. Mixed samples are also acceptable.
Does the machine meet safety standards?
Yes, the electrical system and safety devices comply with CE standards, featuring overload and short-circuit protection.
