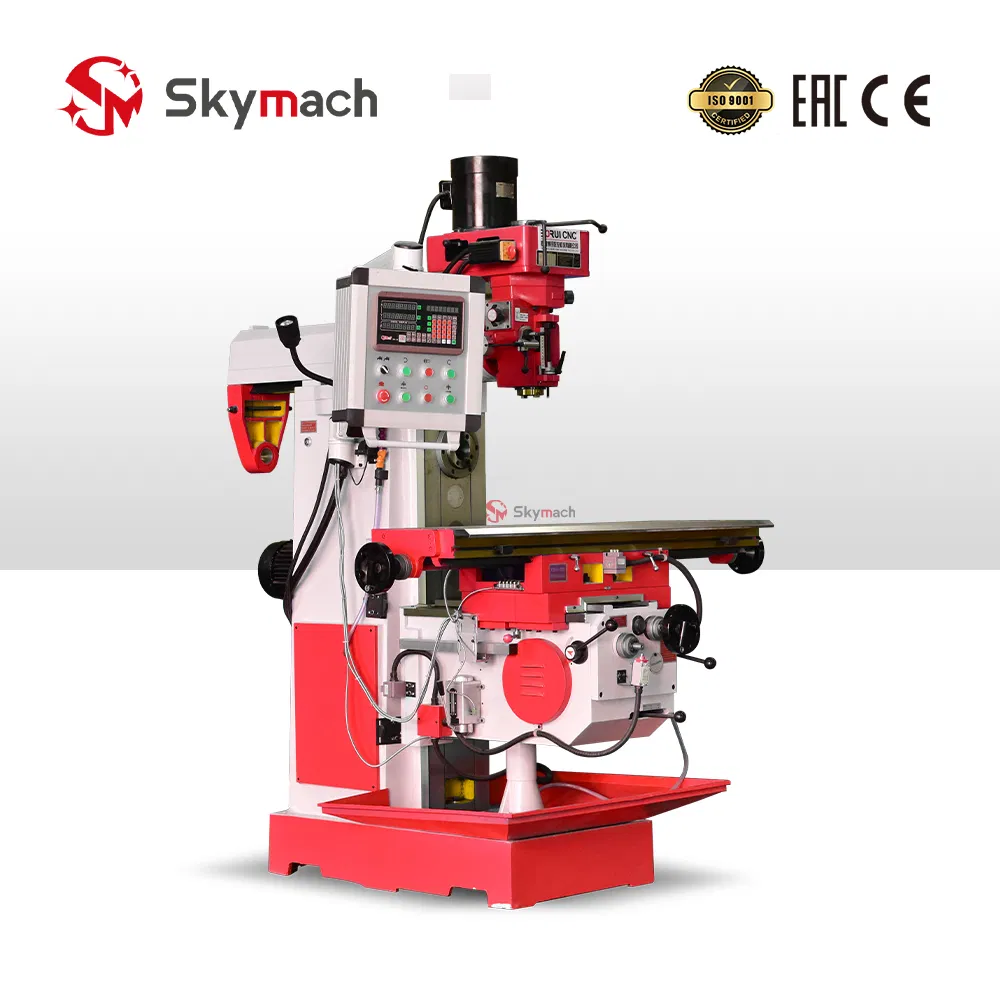

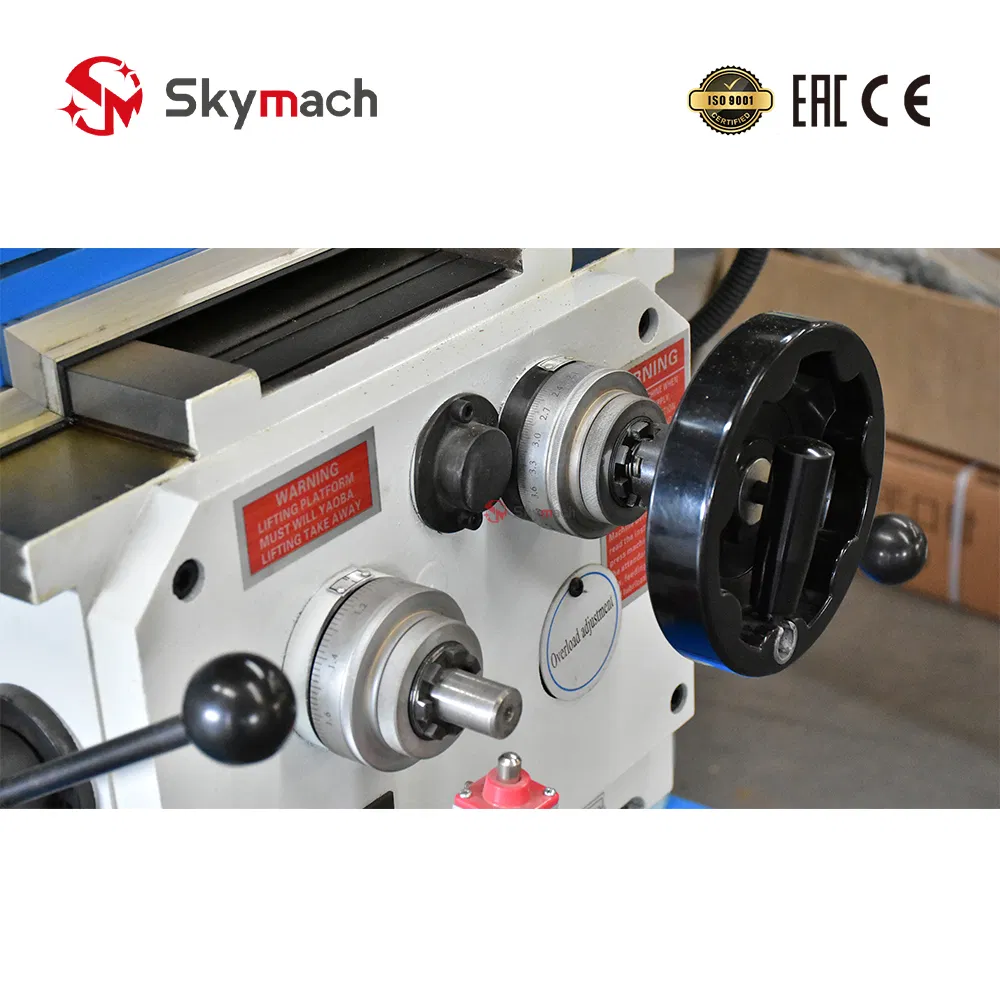

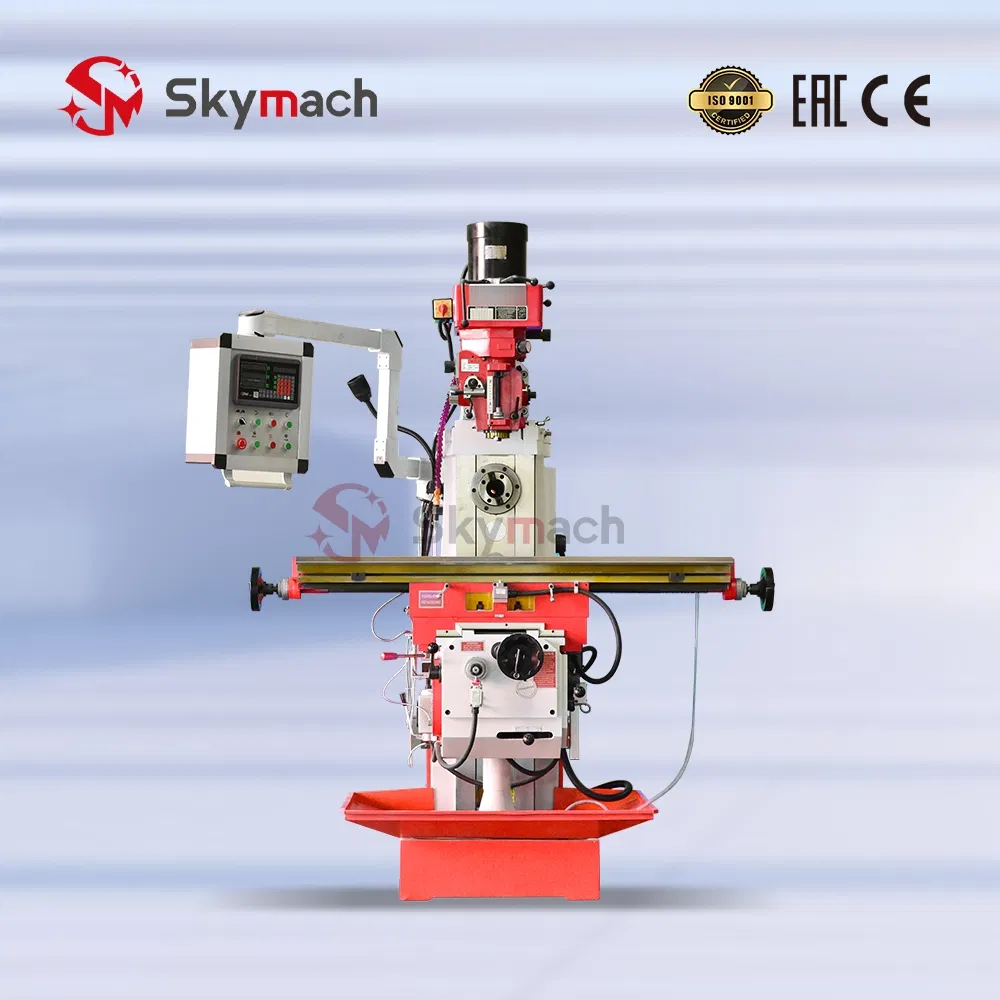

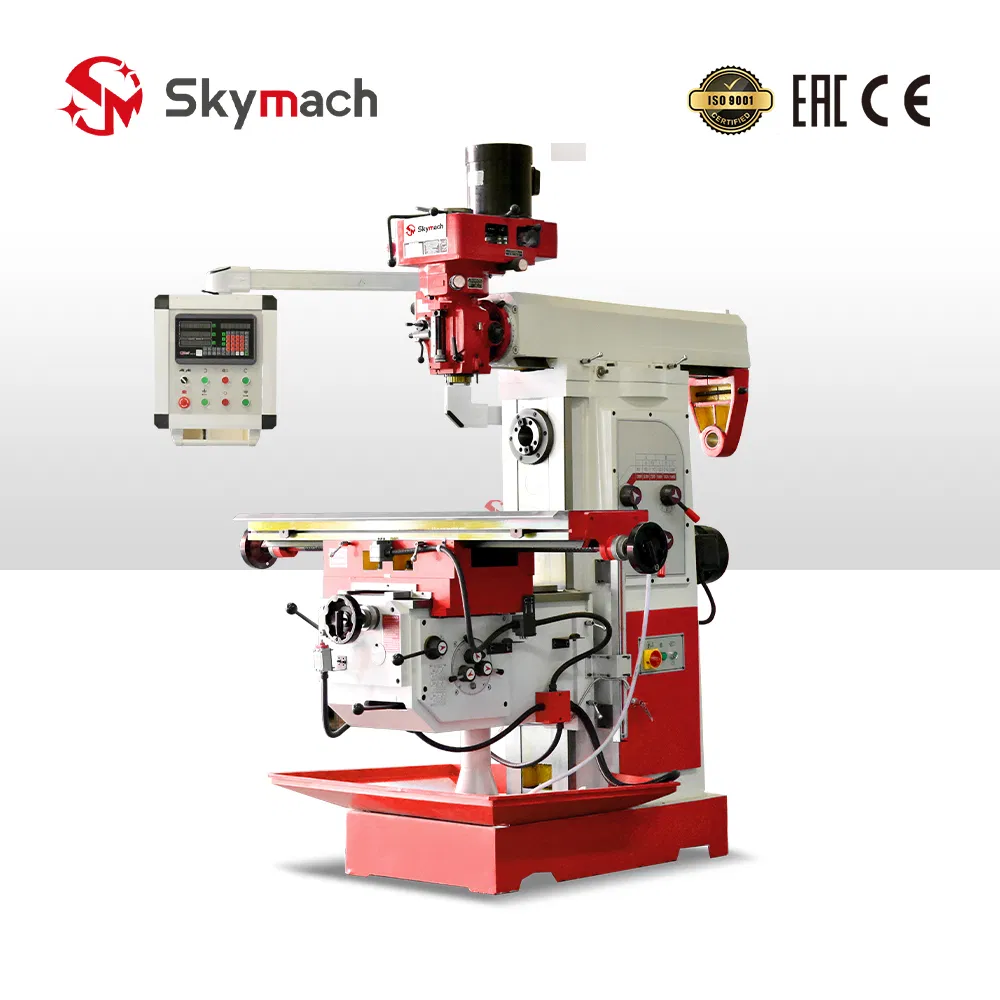

X6336cw Universal Manual Turret Milling Machine for General Workshop and Toolroom Applications
X6336cw Universal Manual Turret Milling Machine for General Workshop and Toolroom Applications
X6336cw Universal Manual Turret Milling Machine for General Workshop and Toolroom Applications
X6336cw Universal Manual Turret Milling Machine for General Workshop and Toolroom Applications
X6336cw Universal Manual Turret Milling Machine for General Workshop and Toolroom Applications
1 / 5
X6336cw Universal Manual Turret Milling Machine for General Workshop and Toolroom Applications
X6336cw Universal Manual Turret Milling Machine for General Workshop and Toolroom Applications
X6336cw Universal Manual Turret Milling Machine for General Workshop and Toolroom Applications
X6336cw Universal Manual Turret Milling Machine for General Workshop and Toolroom Applications
X6336cw Universal Manual Turret Milling Machine for General Workshop and Toolroom Applications

X6336cw Universal Manual Turret Milling Machine for General Workshop and Toolroom Applications

Customization: Available
After-sales Service: 2 Years
Warranty: 2 Years
Send Inquiry

Product Description

Universal Vertical Bed Type Milling Machine X6336CW

Basic Information

Model NO.
X6336CW
Type
Tool Milling Machine
Object
Sheet
Structure
Rocker
Milling Cutter Type
Angle Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
Precision
Certification
GS, CE, ISO 9001
Condition
New
Table Stroke (X/Y/Z)
1000mm / 320mm / 450mm
Spindle Taper
ISO140
HS Code
8458110090

Product Showcase

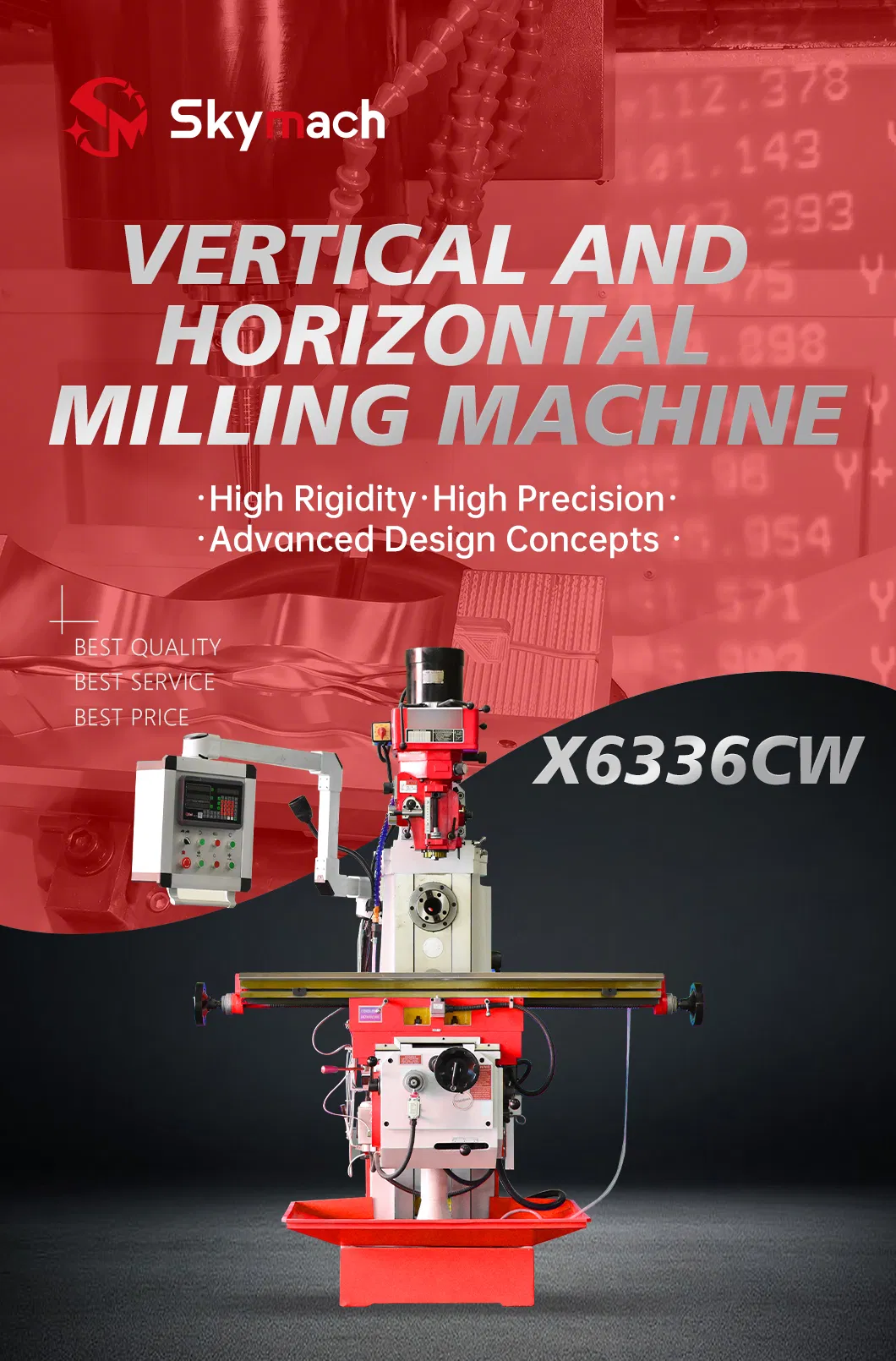

Milling Machine View 1
Milling Machine View 2

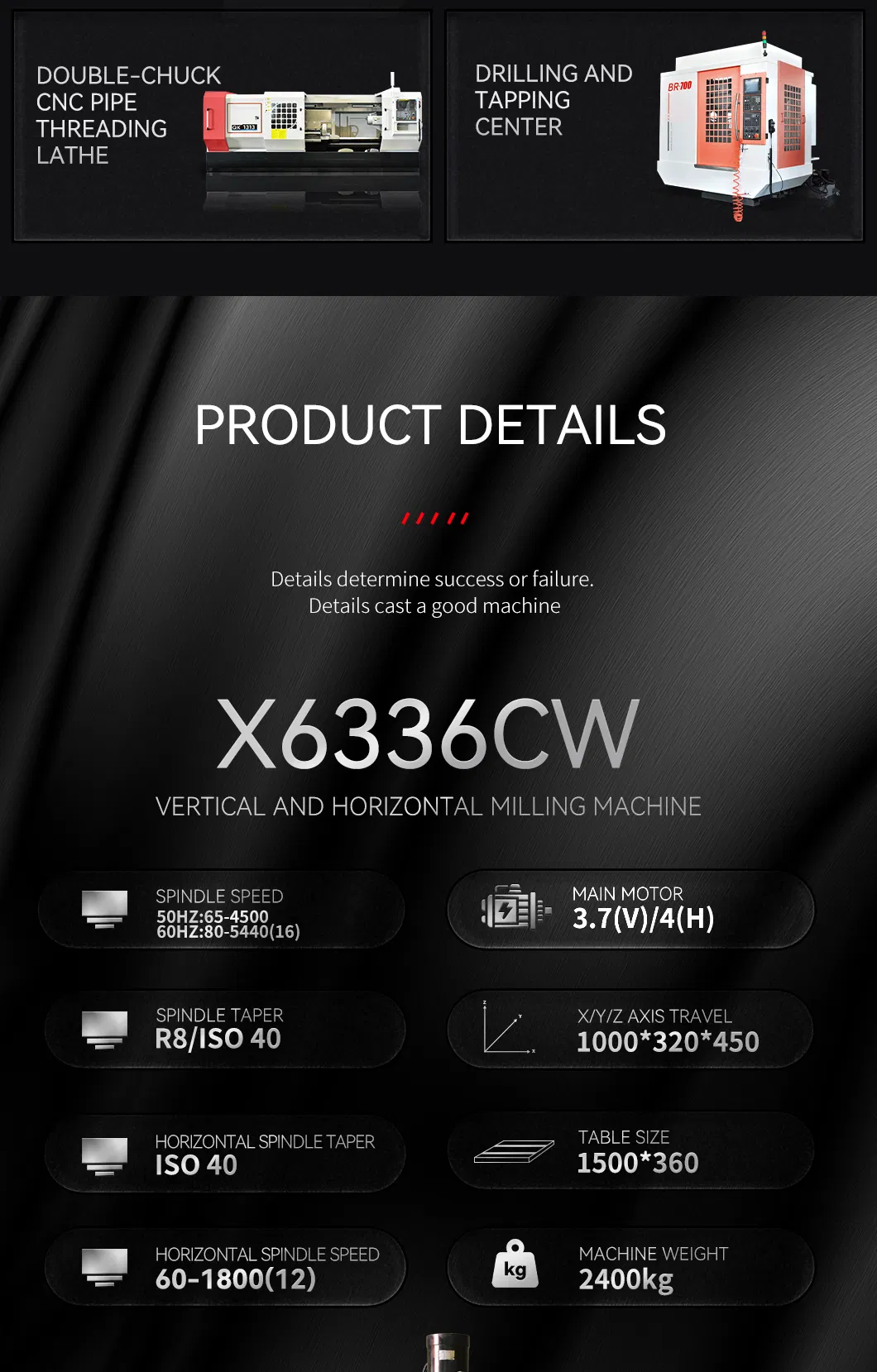

Milling Machine Detail 1

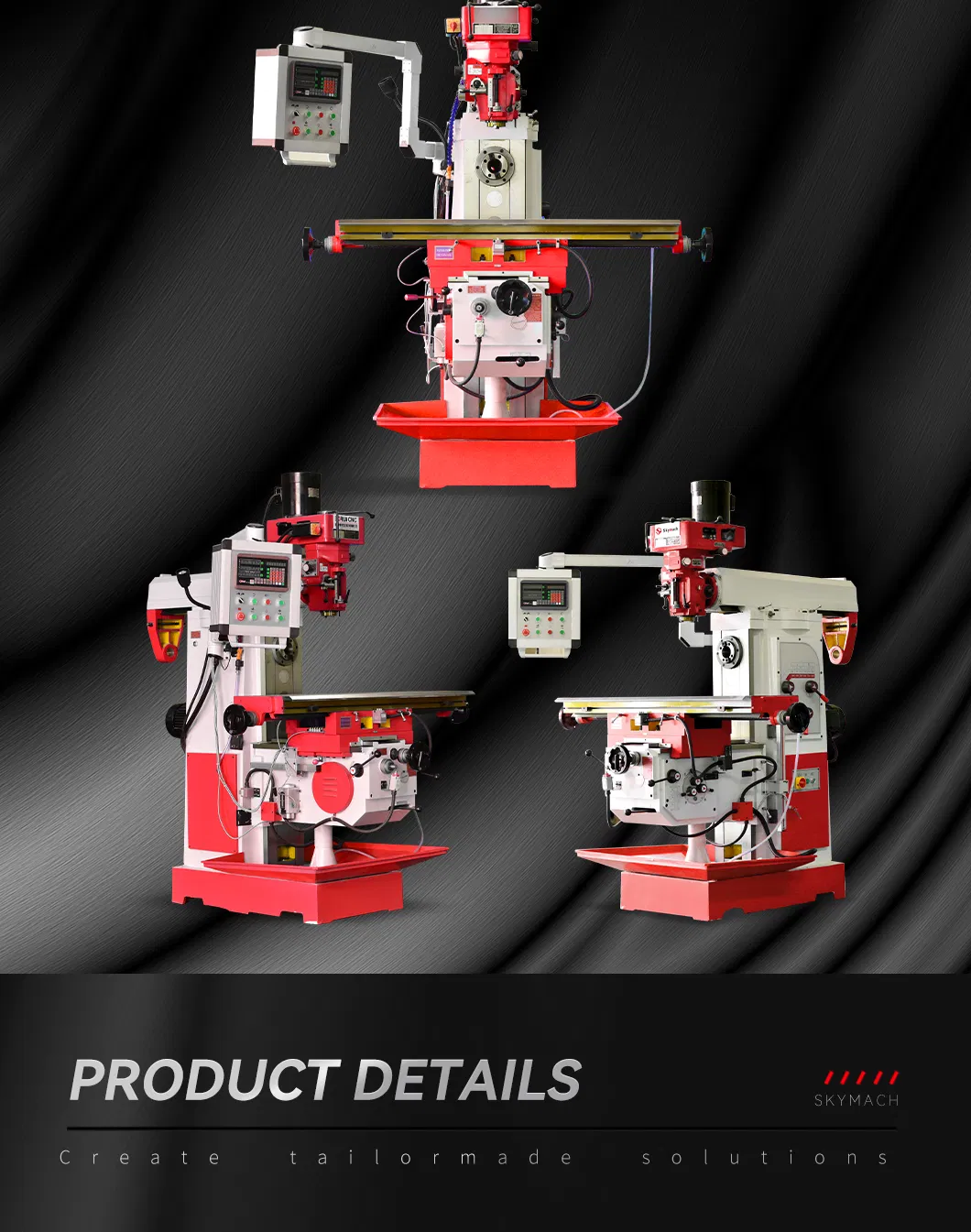

Milling Machine Detail 2

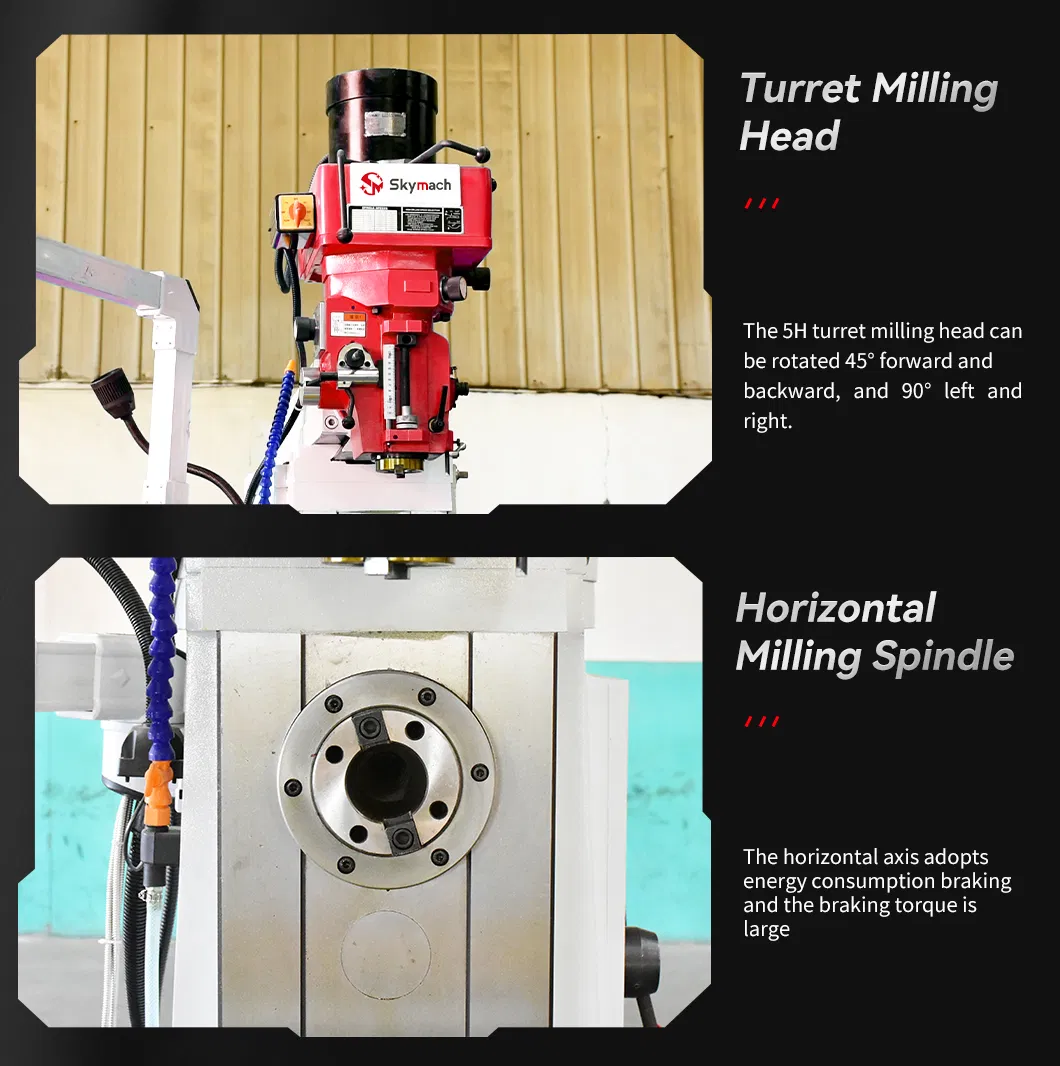

Milling Machine Detail 3

Technical Parameters

SpecificationX6336CW
Spindle taper7:24 ISO 40 vertical / 7:24 ISO 50 horizontal
Milling head tiltLeft/Right: 90 degree
Distance from horizontal axis center to worktable0-400 mm
Spindle speed range (r/min)(Level 16) 60-4540 (vertical) / (Level 12) 60-1800 (horizontal)
Worktable size (mm)1500×360
Worktable stroke (mm)1000 / 320 / 400
Main motor power (kw)3.7 (stand) / 4 (horizontal)
Dimensions (mm)2220×1790×2360
Gross weight (kg)2500

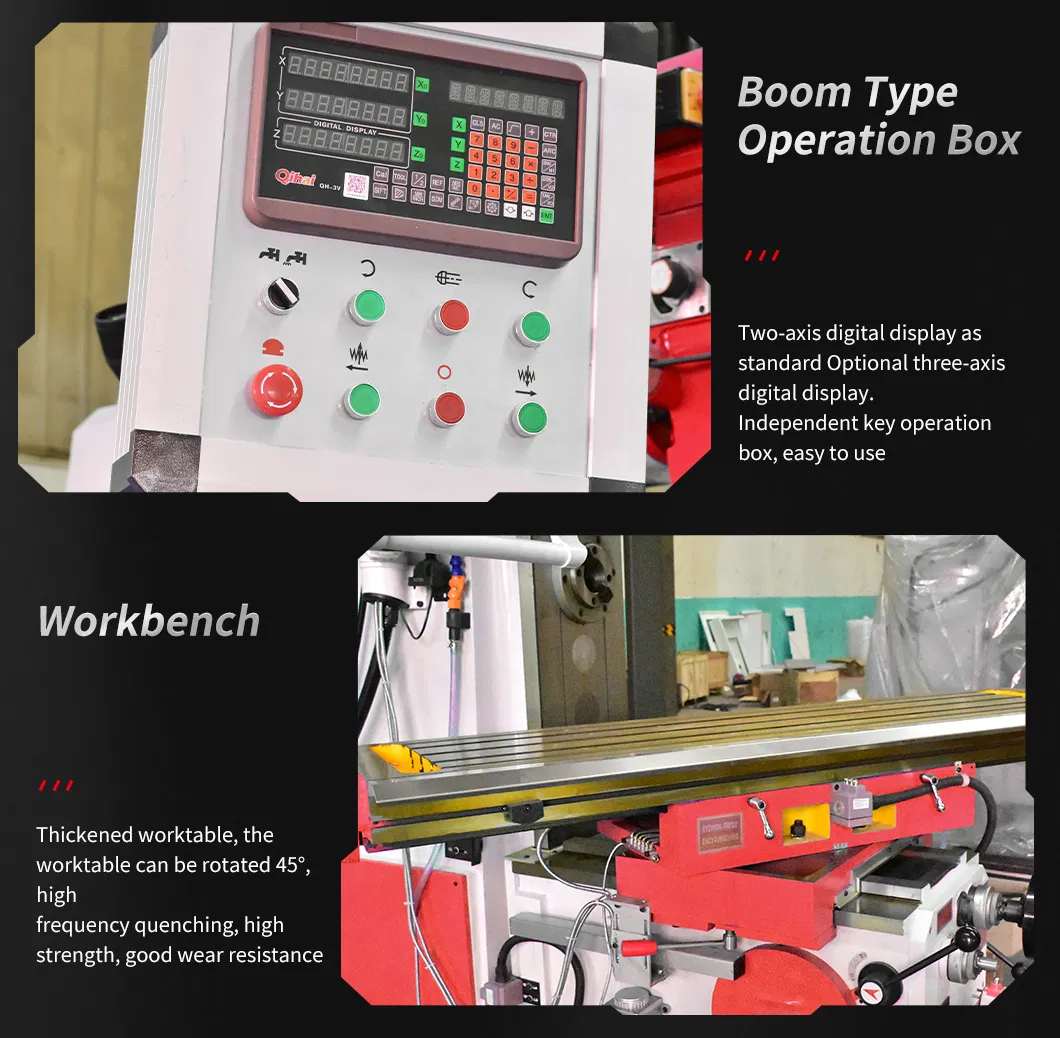

Machine Part 1

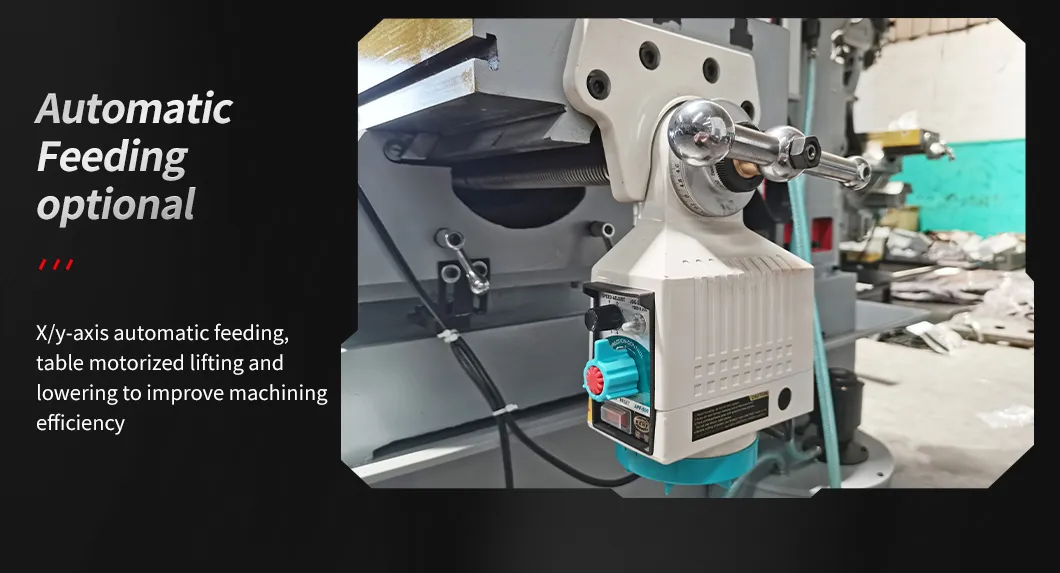

Machine Part 2

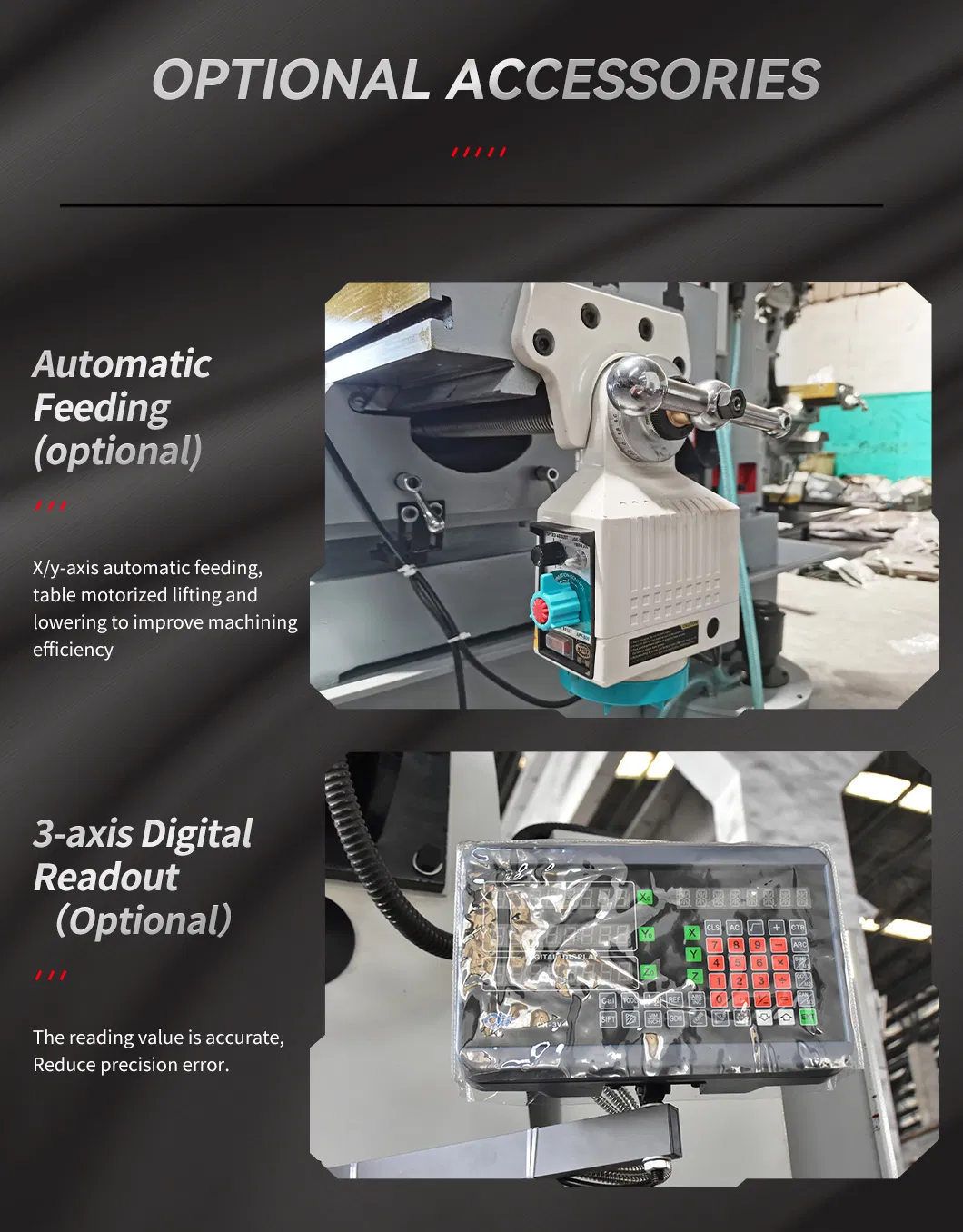

Machine Part 3
Machine Part 4
Machine Part 5
Machine Part 6

Frequently Asked Questions

1. How can I choose the most suitable machine?
Please provide your technical specifications or product drawings. We will evaluate your requirements and recommend the best model or help you choose the exact configuration for your needs.
2. What are your main machine products?
We specialize in a wide range of machinery, including CNC Lathe Machines, CNC Milling Machines, Vertical Machining Centers, Manual Lathes, Radial Drilling Machines, Sawing Machines, and Shaper Machines.
3. What are the accepted trade terms?
We accept standard international trade terms including FOB (Free on Board), CFR (Cost and Freight), and CIF (Cost, Insurance, and Freight).
4. What are the payment terms for an order?
Typically, we require a 30% initial payment at the time of order via T/T, with the remaining 70% balance paid before shipment. Irrevocable LC at sight is also accepted.
5. What is the Minimum Order Quantity (MOQ)?
The MOQ is generally 1 set. For some specific low-cost auxiliary machines, the MOQ might be higher.
6. What information is needed for a CIF price quote?
If you require a CIF price, please kindly provide the specific port of destination so we can calculate the shipping and insurance costs accurately.
