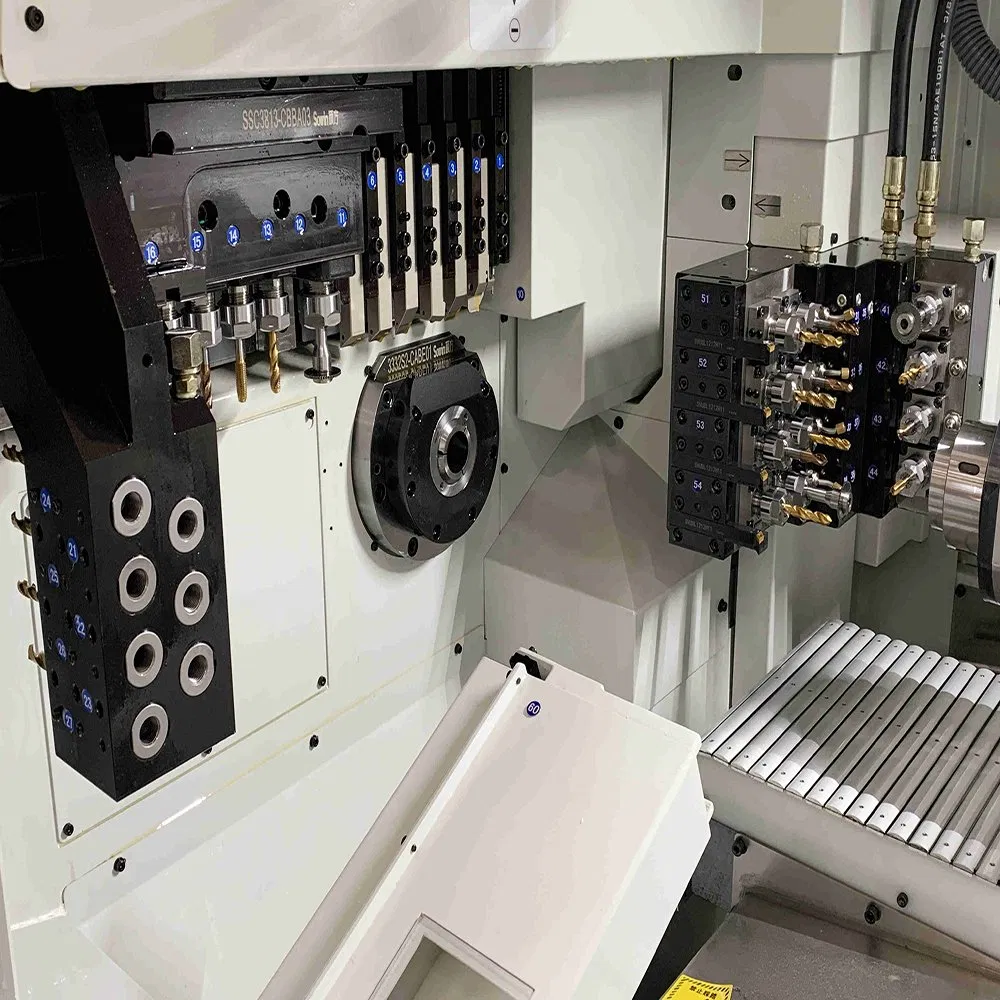

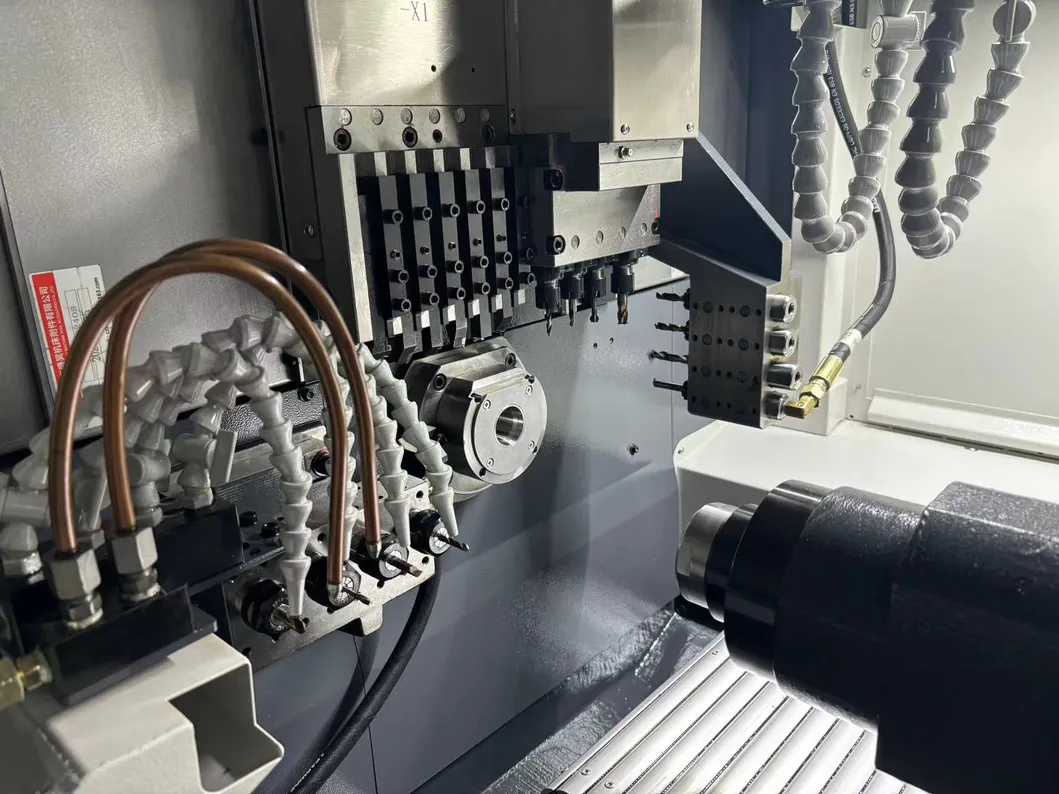

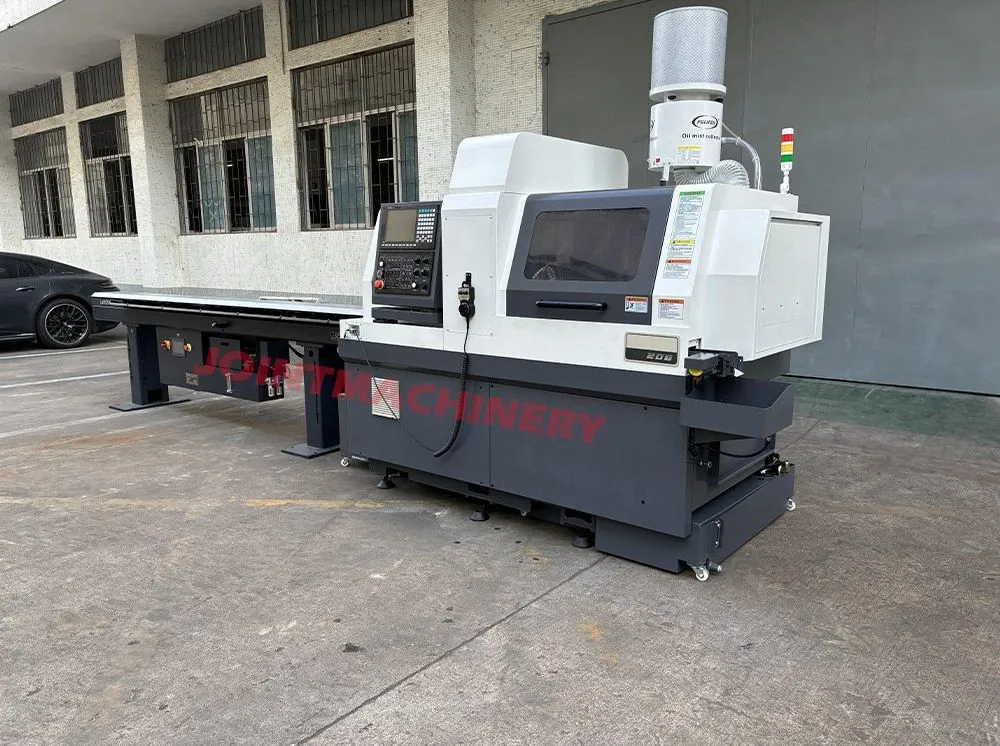

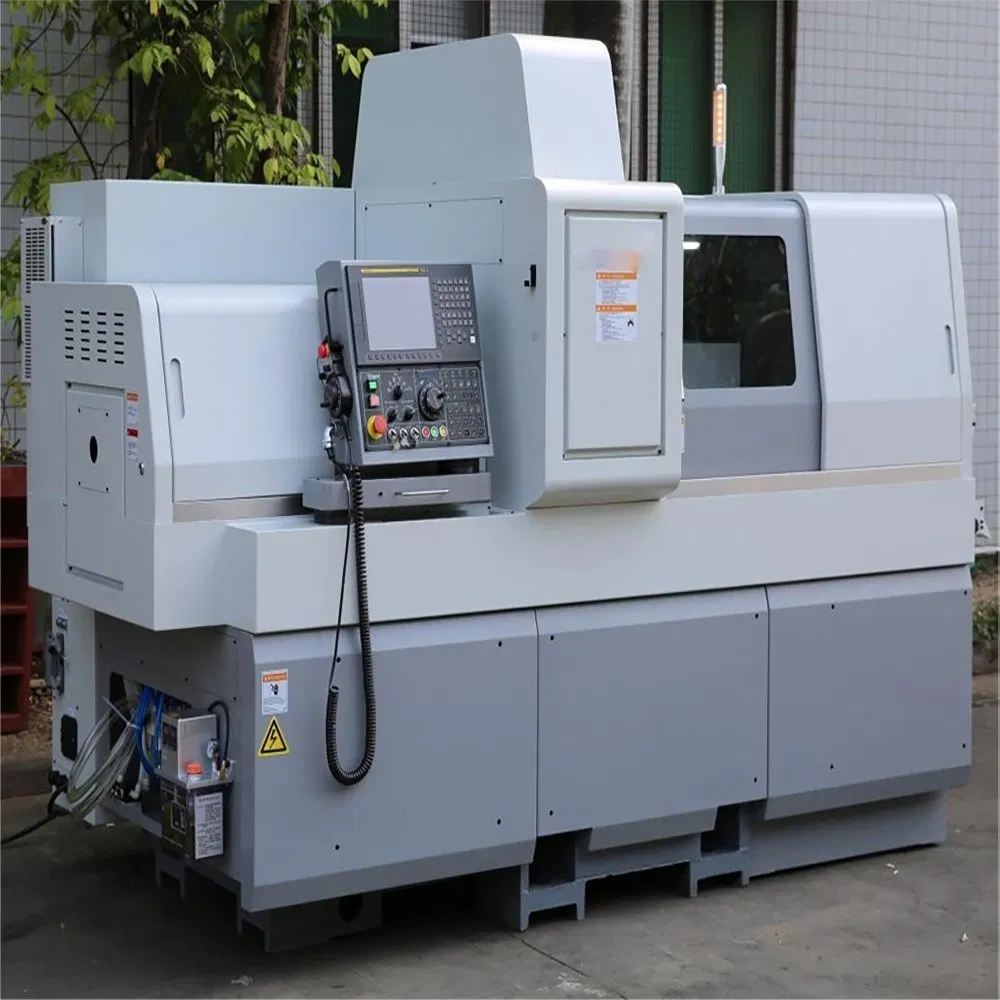

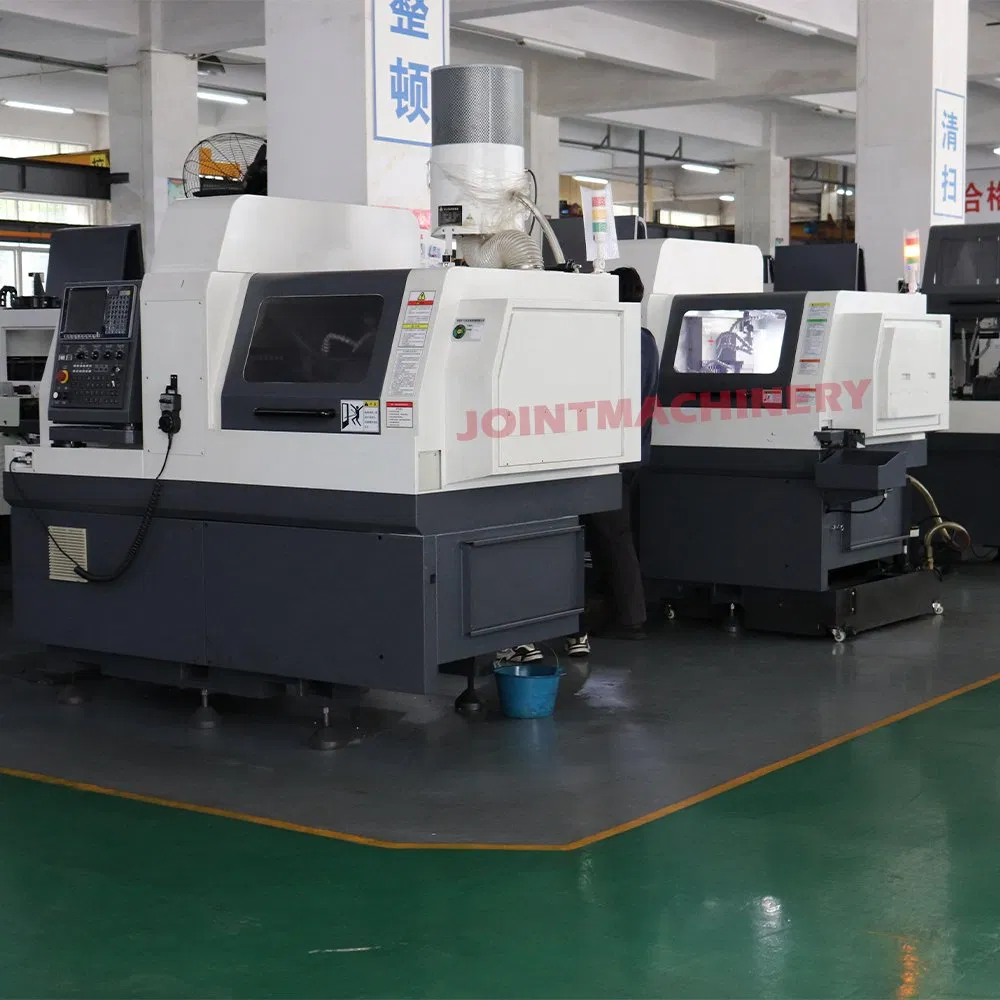

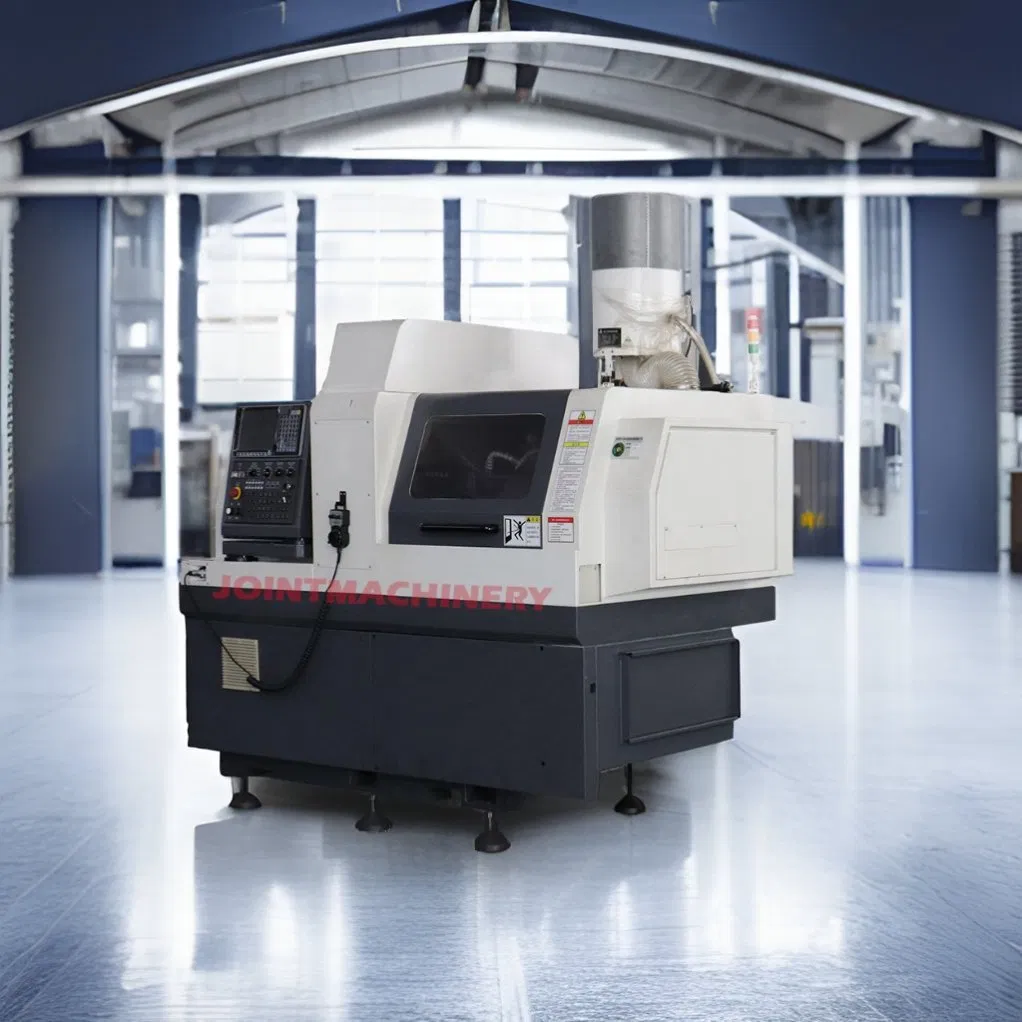

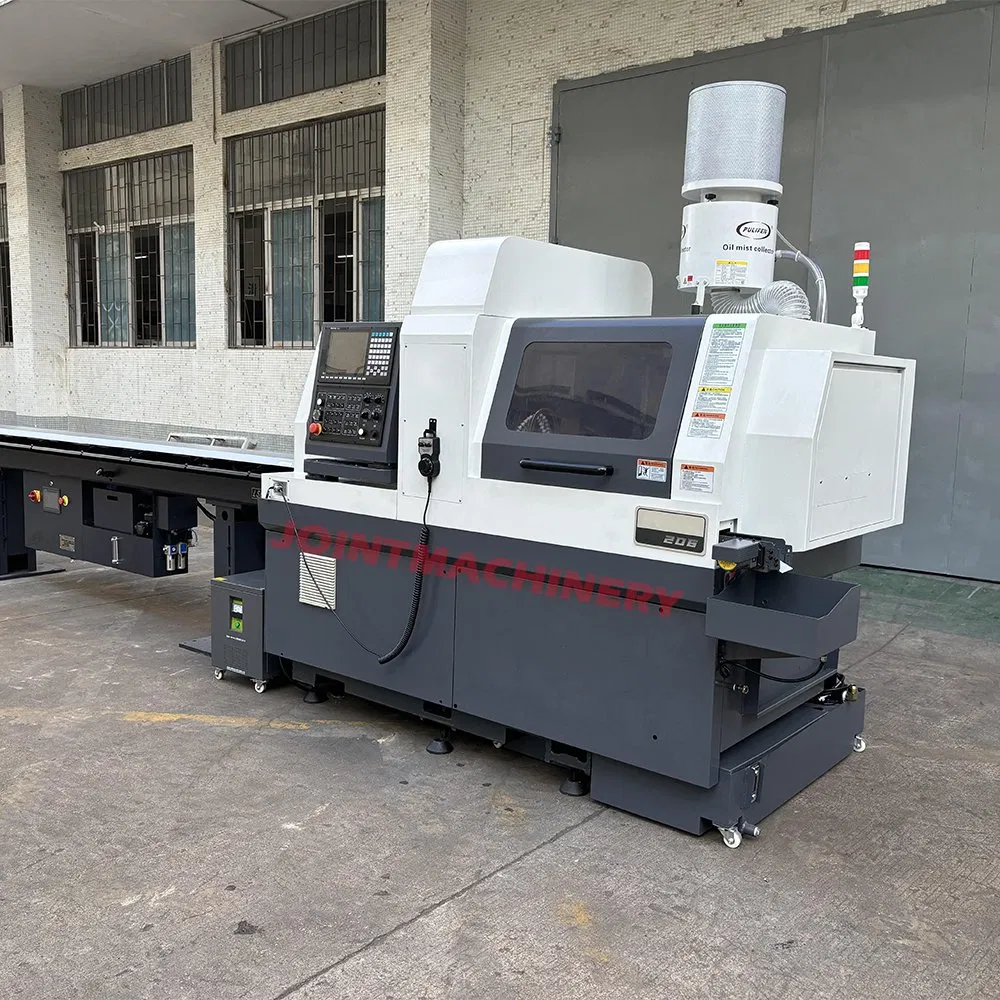

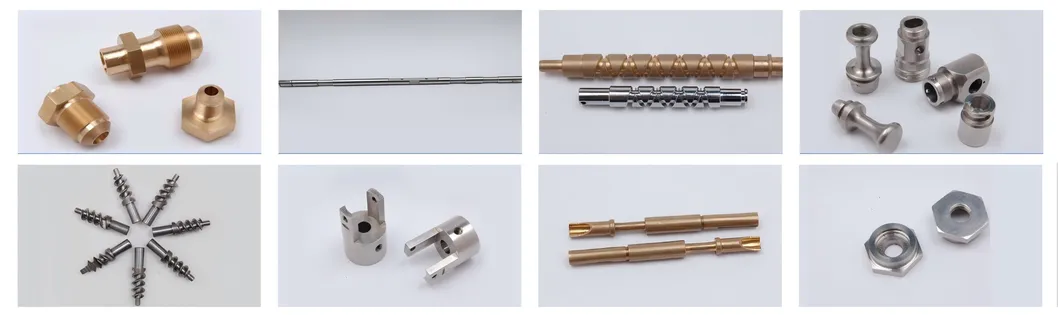

This sophisticated series of machines is designed for precision processing, capable of performing composite tasks like turning, milling, drilling, boring, tapping, and engraving simultaneously. Ideal for batch processing of precision hardware and uniquely shaped non-standard shaft parts.
High Precision: Each axis uses imported high-precision linear guides, ball screws, and precision bearings.
Flexible Modes: Synchronous guide bush structure with flexible switching between guide bush and non-guide bush modes.
Durability: Key components feature gas sealing structures for oil and slag prevention, extending service life.
| Parameter | Unit | SLM266M-4 Specification |
|---|---|---|
| Configuration | - | 6 axis, dual spindle |
| NC System | - | SYNTEC 220TB |
| Max Machining Diameter | mm | Φ26 |
| Max Machining Length (With Guide Bush) | mm | 310 |
| Main/Sub Spindle Rev Speed | rpm | 6000/6000 |

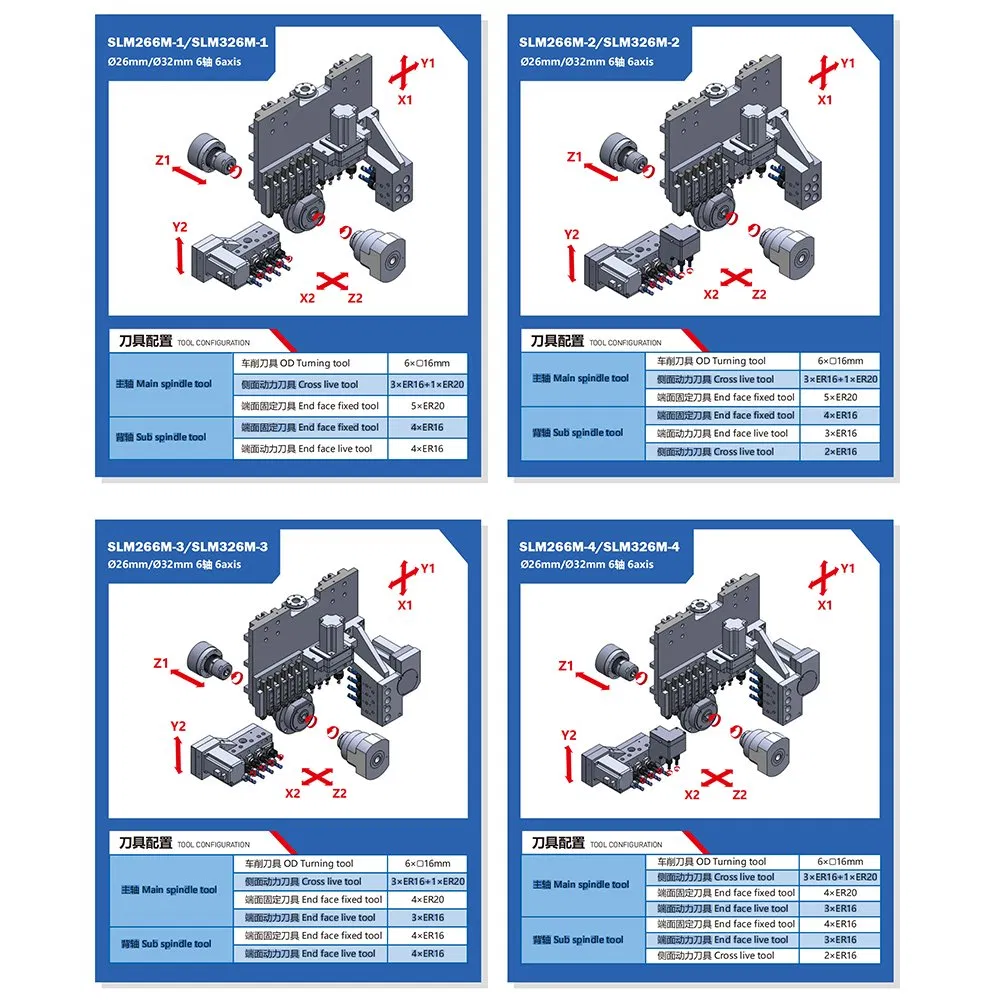

| Max Tool Installed Qty | pcs | 26 |
| Cross Live Tool | mm | 3*ER16 + 1*ER20 |
| Rapid Feed Speed | m/min | 18(X1/Y2), 24(X2/Y1/Z1/Z2) |
| Air Pressure Device | mpa | 0.6 |
Standard Configuration:
Optional Configuration:
| Diameter Range | Φ3 - Φ26 mm | ||
| Magazine capacity | - | Φ5mm * 52pcs | |
| Max bar length | mm | 2600 / 3200 / 3750 / 4100 | |
| Spindle height | mm | 900 ~ 1200 | |
| Air pressure | kg/cm² | 5 ~ 7 | |
