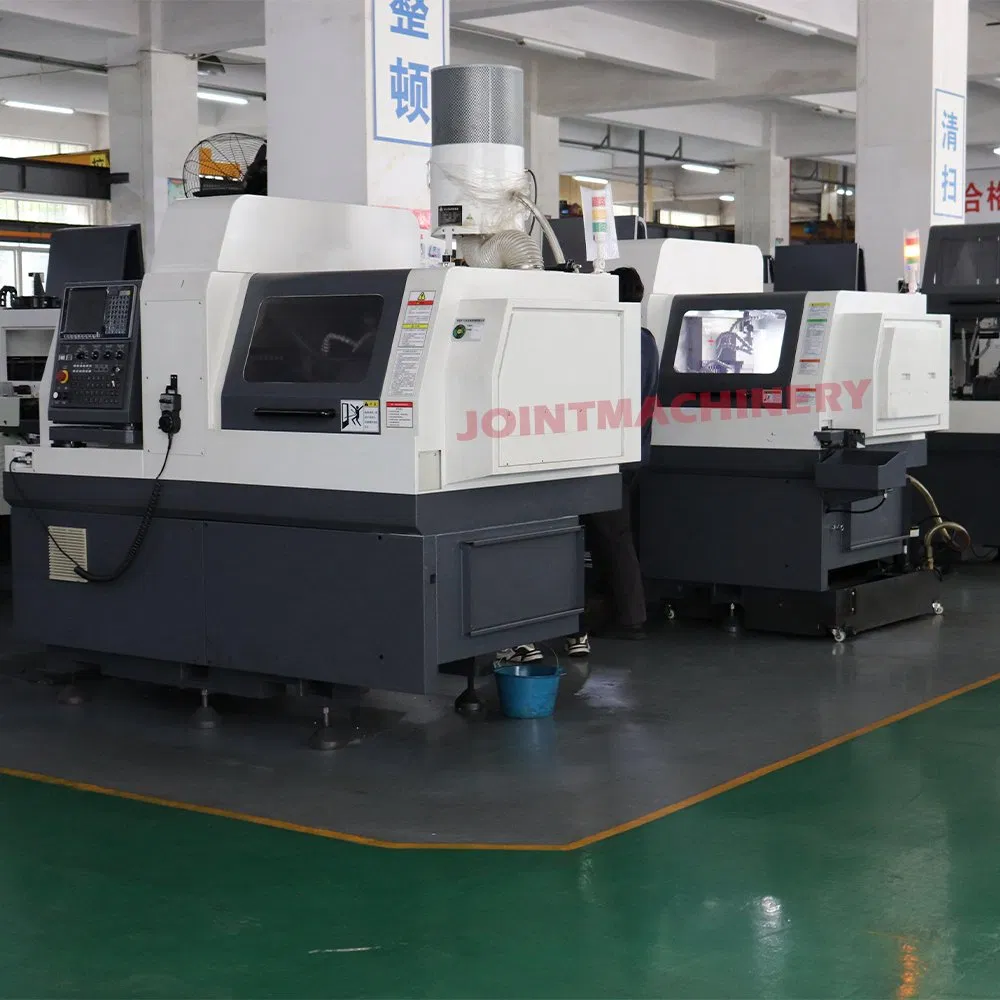

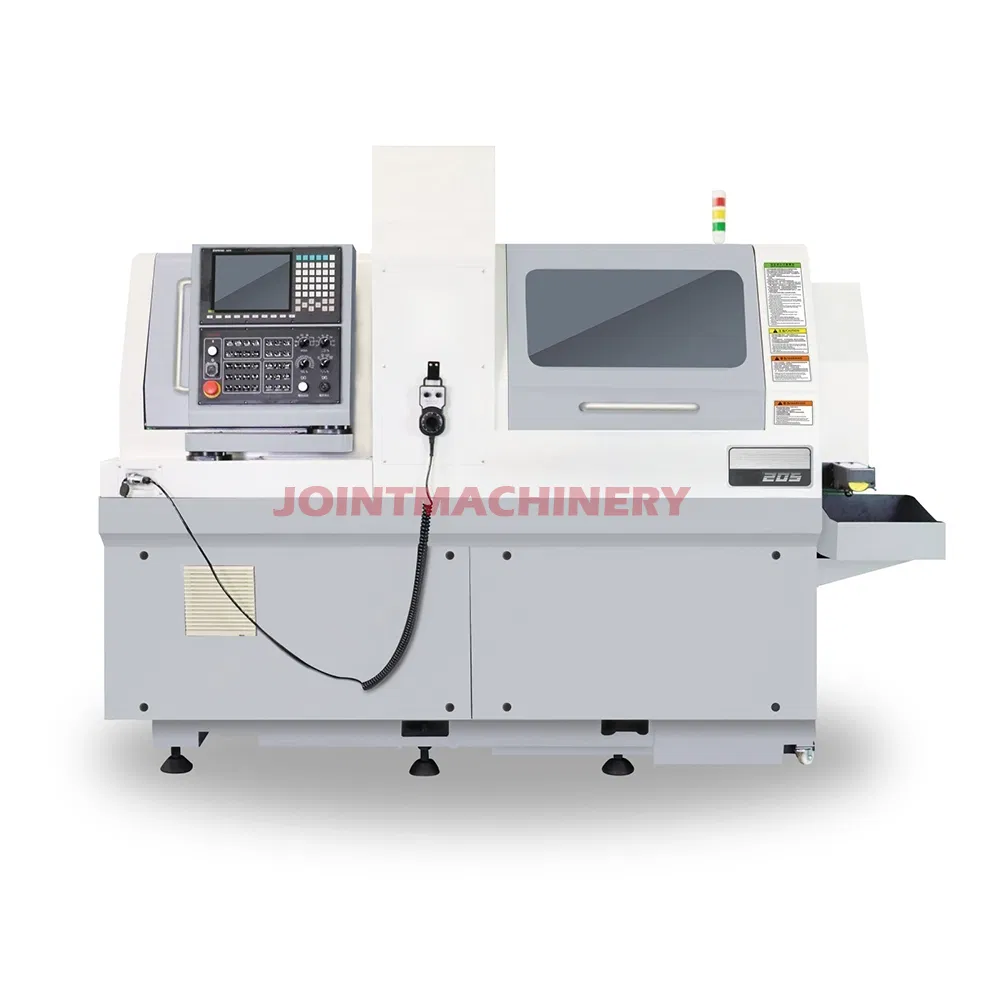

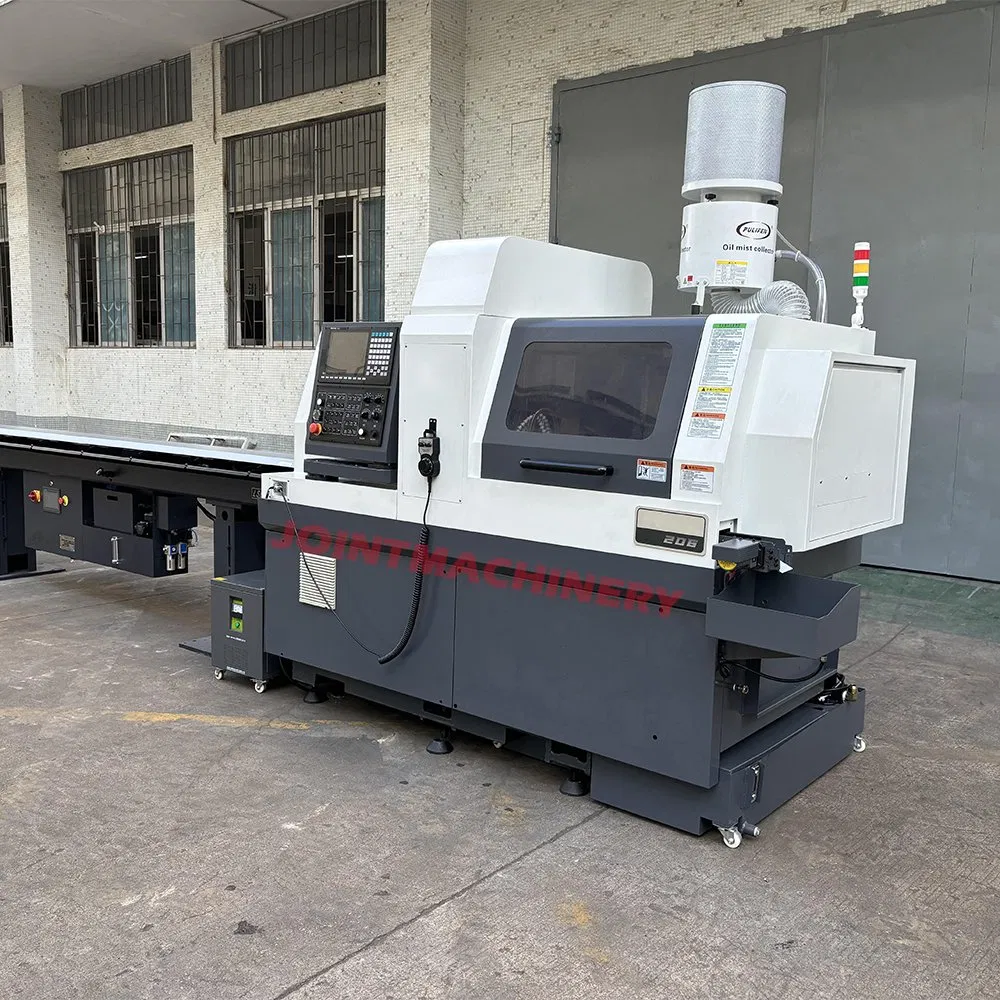

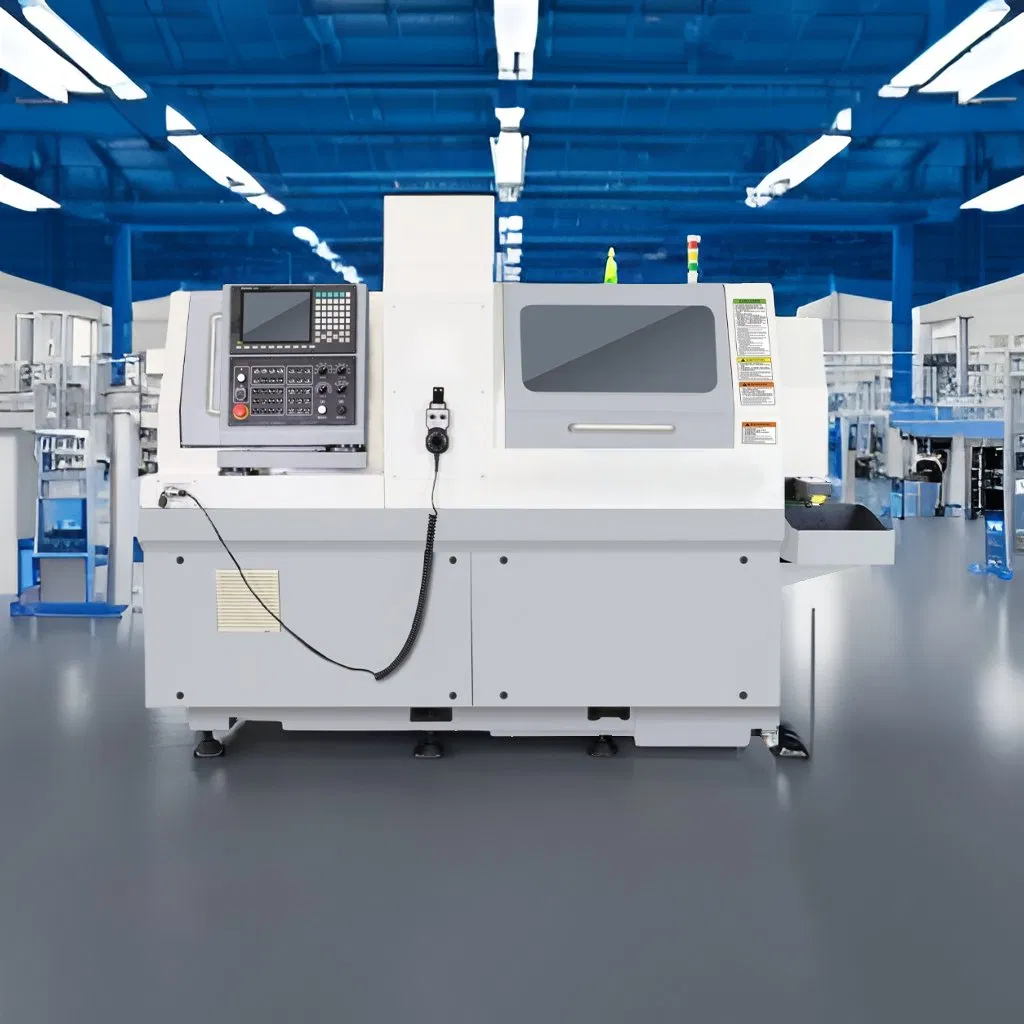

Factory Price Swiss Type CNC Turning Bench Lathe Automatic Swiss Lathe Machine SLM205-2
| Model Details | Unit | SLM205-2 | |
|---|---|---|---|
| System / Configuration | - | 5 axis, dual spindle, SYNTEC 22TB | |
| Lathe Rated Power | kw | 15 | |
| Machining Range | |||
| Max machining diameter | mm | Φ20 | |

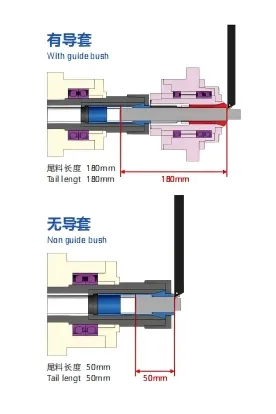

| Max machining length (With guide bush) | mm | 230 | |
| Main/Sub Spindle Power | kw | 2.2/3.7 | |
| Main/Sub Spindle Rev Speed | rpm | 10000/10000 | |
| Max Tool Installed Qty | pcs | 20 | |

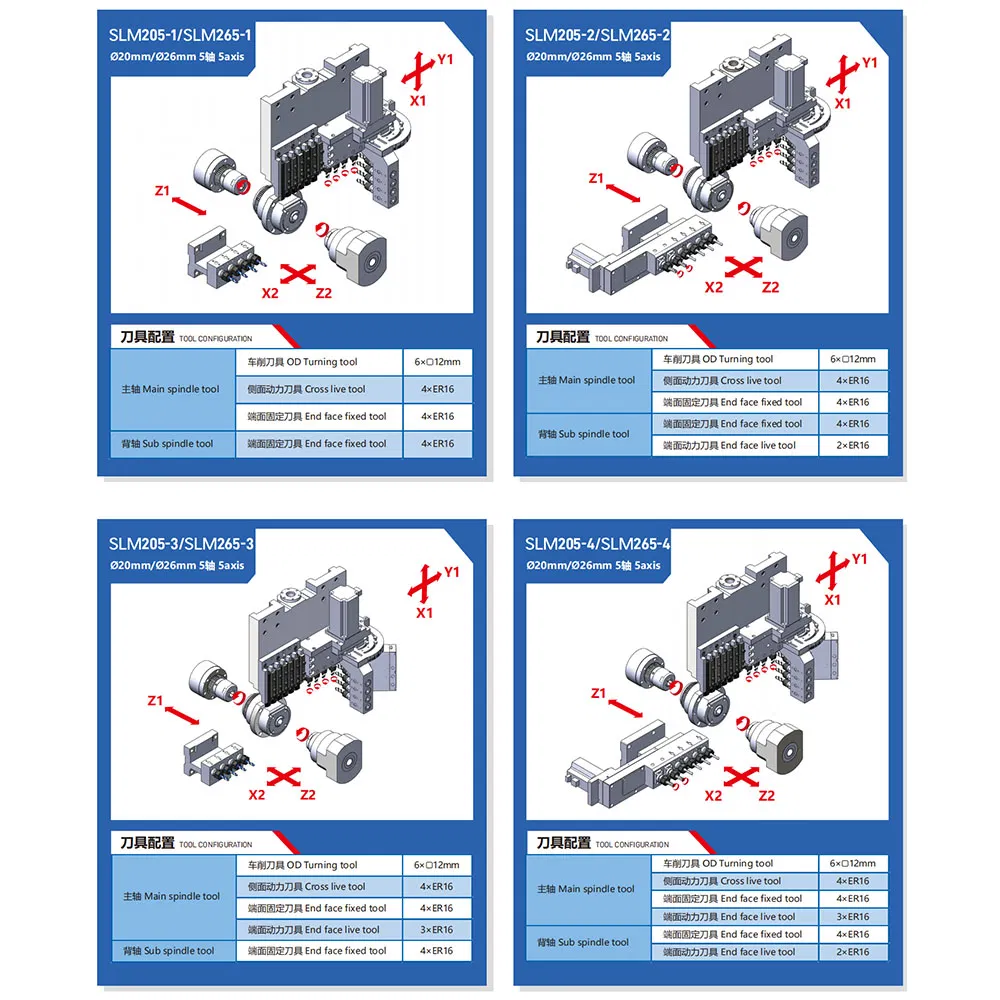

| Tooling & Feed | |||

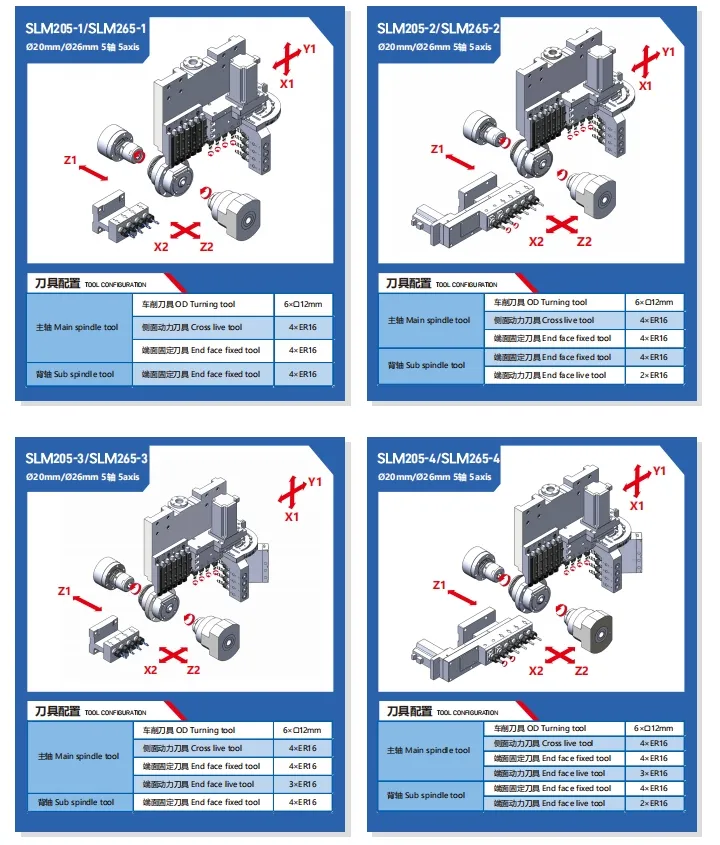

| OD Turning Tool Qty | mm | 6*12 | |
| Cross Live Tool | mm | 4*ER16 | |
| Rapid Feed Speed | m/min | 18(X1) / 24(X2/Y1/Z1/Z2) | |
Standard Configuration:
Optional Configuration:

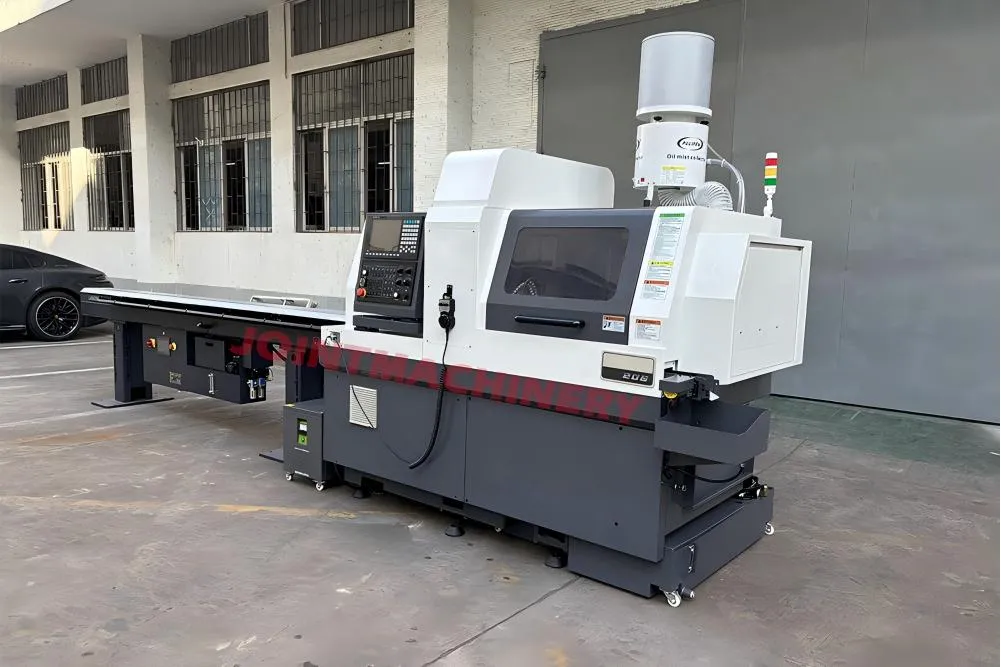

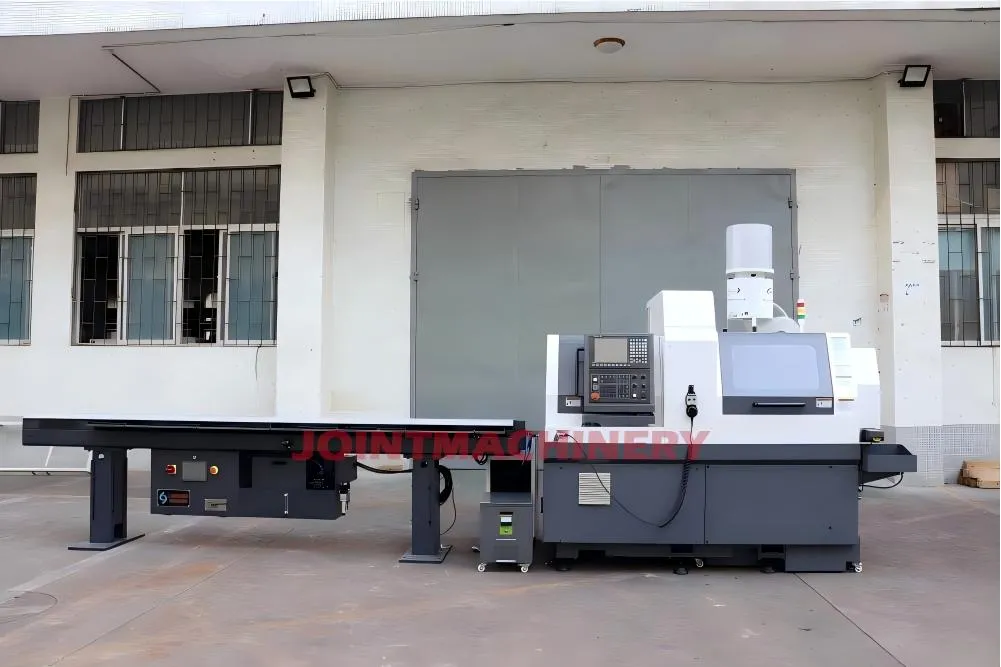

| Bar Feeder SLM-320/S2 Technical Data | |||||
| Diameter Range | Φ3- Φ26 mm | ||||
| Model Length (m) | 2.5 | 3.2 | 3.7 | 4.0 | Units |
| Overall Length | 3355 | 3949 | 4505 | 4855 | mm |
| Max Bar Length | 2600 | 3200 | 3750 | 4100 | mm |
| Weight | 378 | 393 | 435 | 440 | kg |
A1: We are a professional factory manufacturing CNC and Swiss-type automatic lathes.
A2: Usually, 30% as a deposit is required, and the remaining 70% should be paid before delivery.
A3: Please provide your specific requirements or product drawings. Our engineers will analyze your needs and recommend the most suitable model for your application.
A4: Machines are packed using export-standard packaging, including waterproofing and anti-rust treatments. The structures are reinforced to withstand long-distance overseas transportation.
A5: The warranty period is 12 months. We provide free repair parts during this period for any quality-related issues.
A6: Yes, this series is designed for composite processing including turning, milling, drilling, boring, tapping, and engraving simultaneously.
