Product Description

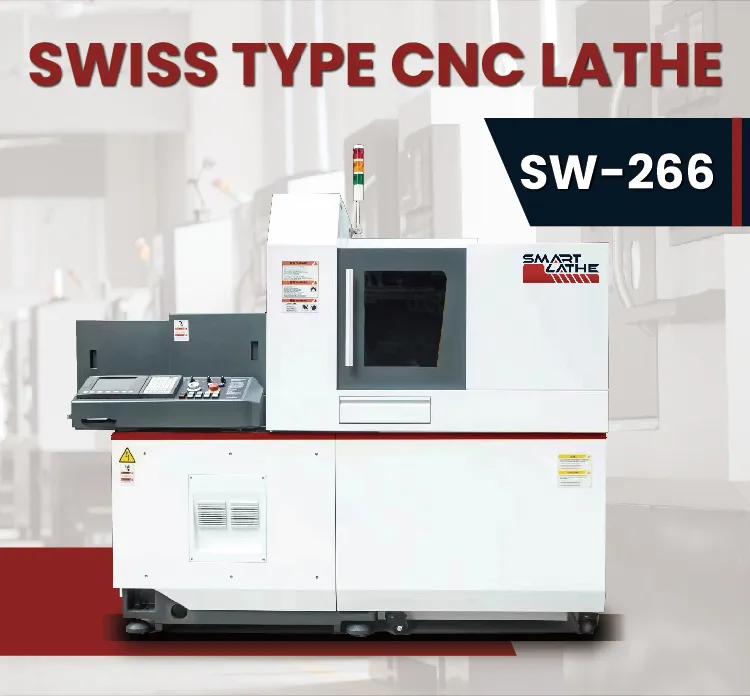

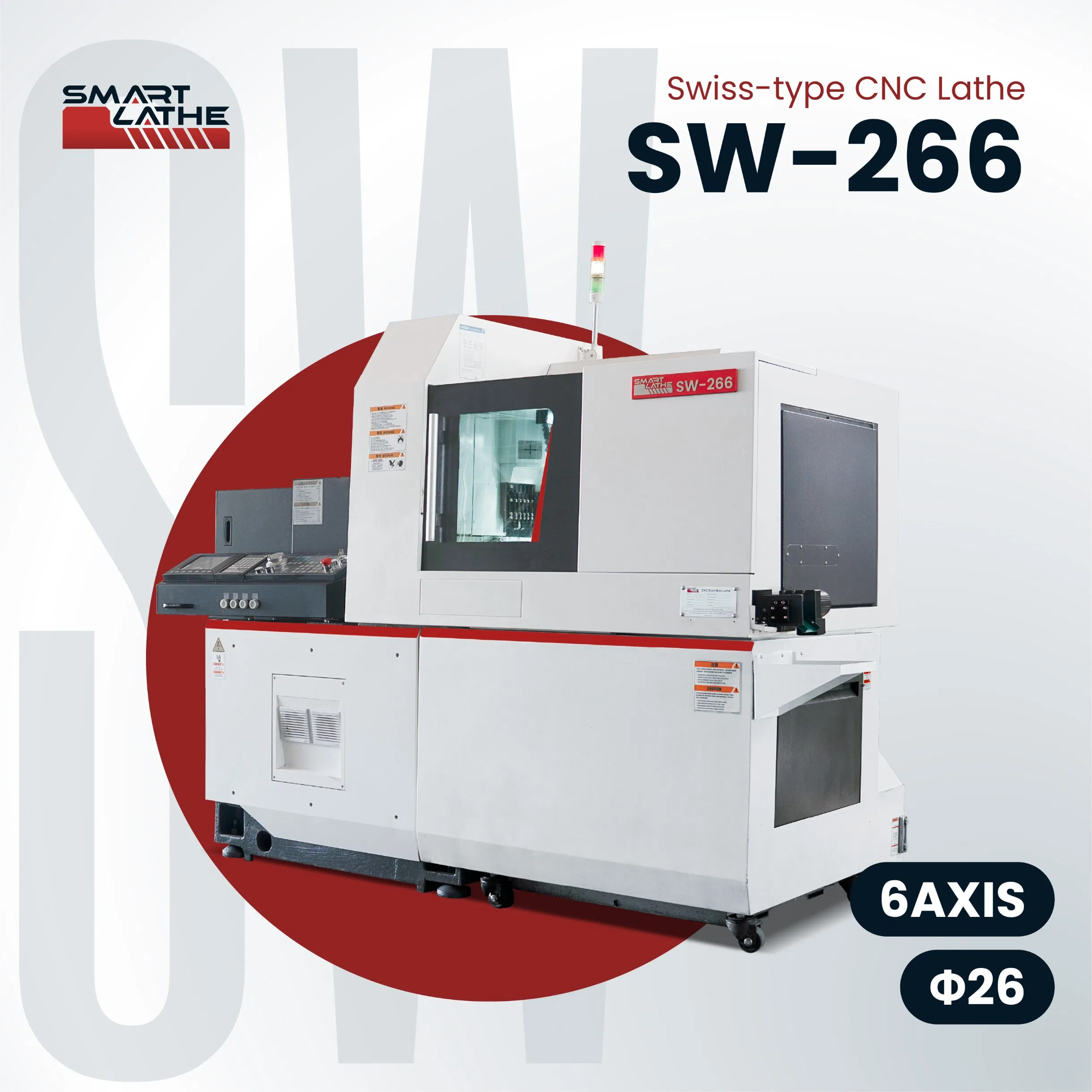

Horizontal Flat bed CNC lathe machine with Bar feeder Guide bushing Turning and Milling Sub-spindle Swiss type CNC lathe.
Core Advantages
- High production rates: Swiss-type lathes can perform multiple operations simultaneously, such as turning, drilling, and threading, allowing for faster production and shorter cycle times.
- Reduced material waste: Uses a guide bushing that supports the material, reducing vibration and increasing accuracy for small-diameter parts.
- Improved surface finish: Produces high-quality surface finishes, eliminating the need for additional finishing processes.
- Longer parts machining: Better suited for long components as the material is supported by the guide bushing throughout the process.
Key Features

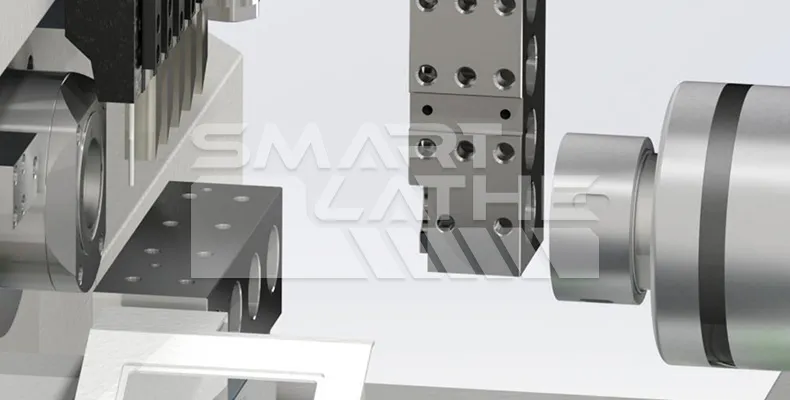

| This machine adopts dual-spindle, closed-loop processing, which has stable rigidity and improved efficiency. The dual spindles can process complex workpieces and complete them at one time. |

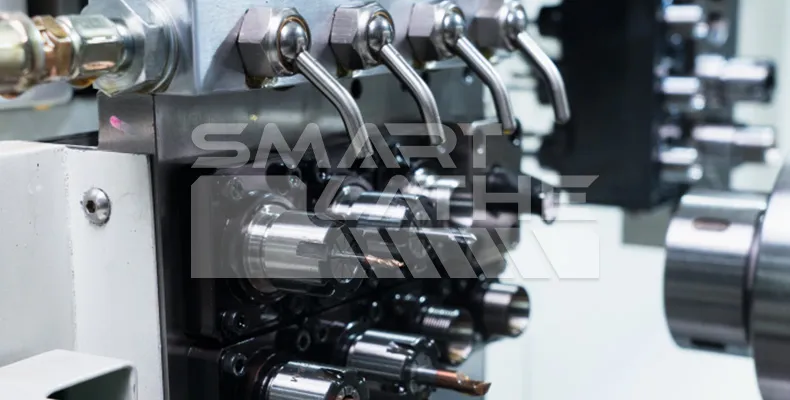

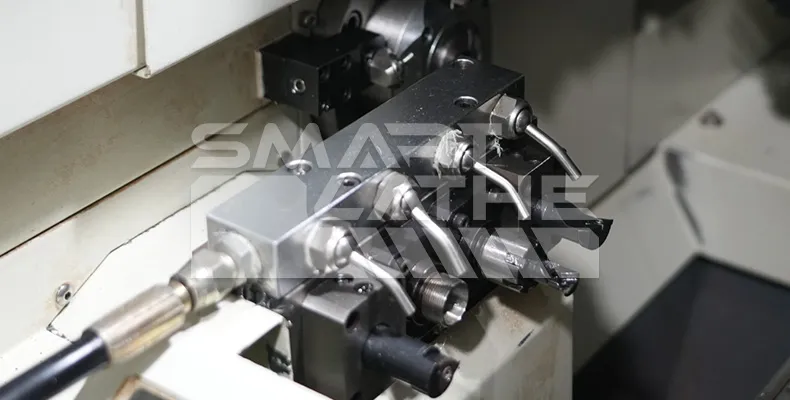

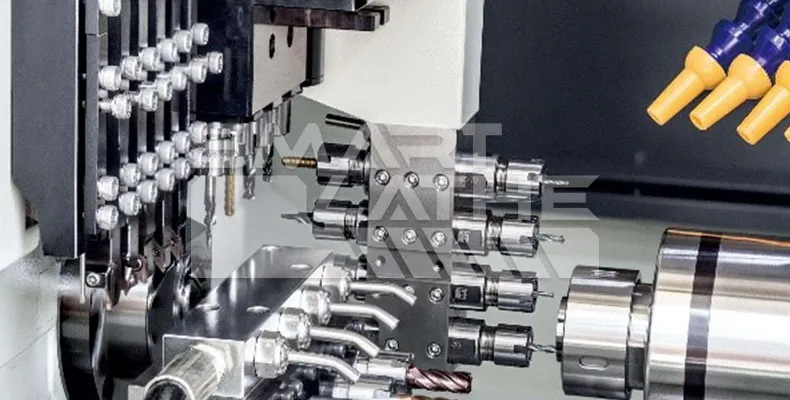

Equipped with 21 total tools - 4 live tools, 5 turning tools on the gang tool post, 8 tools for back-end work, and 4 tools for front-end work. |
When equipped with optional Y2 Axis Unit, it can realize the processing and production of lateral movement. |

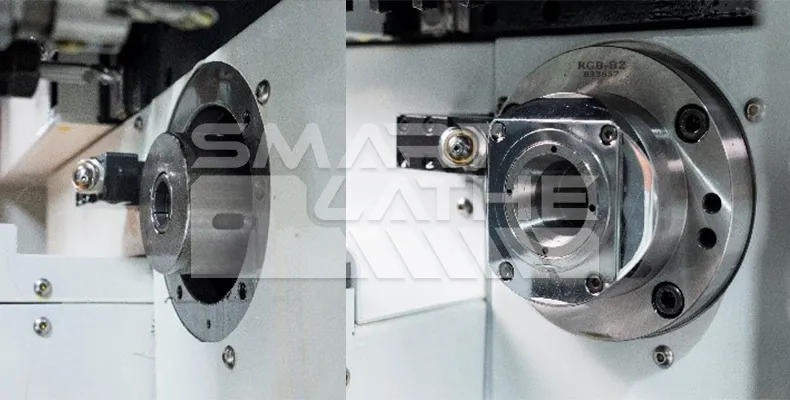

| Function of switching between the guide brush type and the non-guide brush type. |

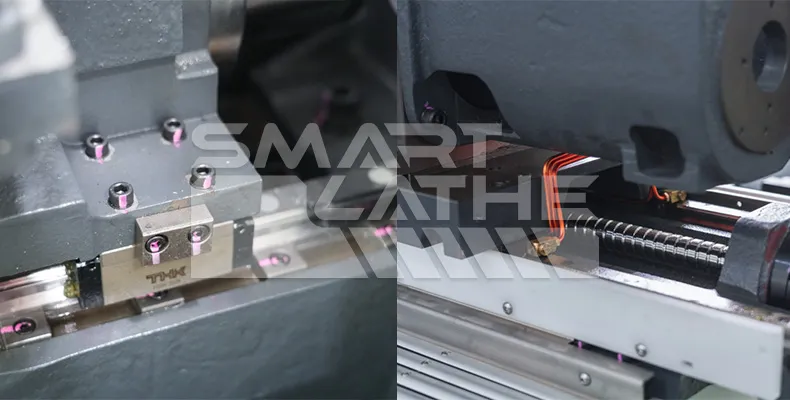

Equips with PMI ball screw rod rail and linear guideway to provide precision and low-vibration movement. |
| Equips with auto lubrication system to ensure transmission system smoothly and long-lived. |
SYNTEC CNC system co-works with quality electrical parts providing a rapid-operation and durable use. |
Standard Configuration
| Spindle Collet / Spindle Cooling Device |
Tools Box / Sub-Spindle Position Block |

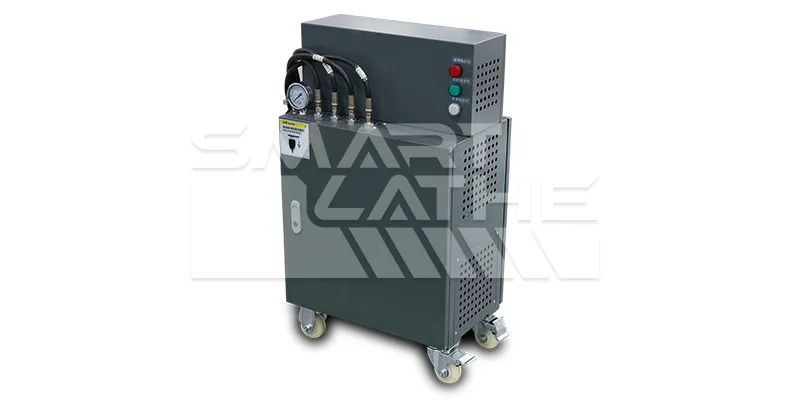

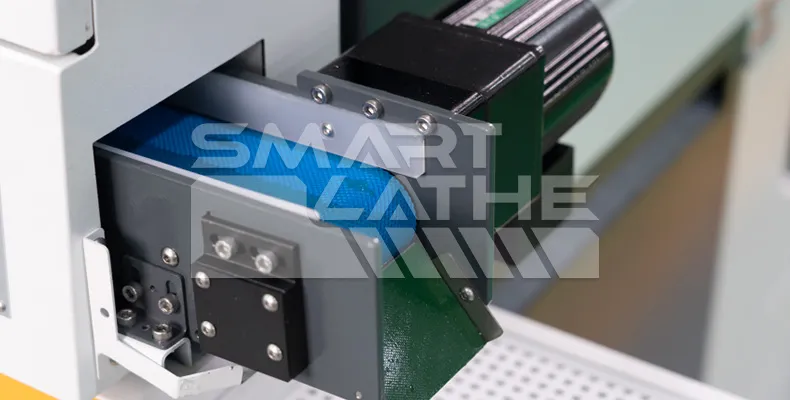

Cutting Fluid Device / Finished Product Storage Box |
| Sub-Spindle Chuck / Security Door Locks |
Cutting Tool Detection / Lighting, Alarm Light |
Lubrication Unit |

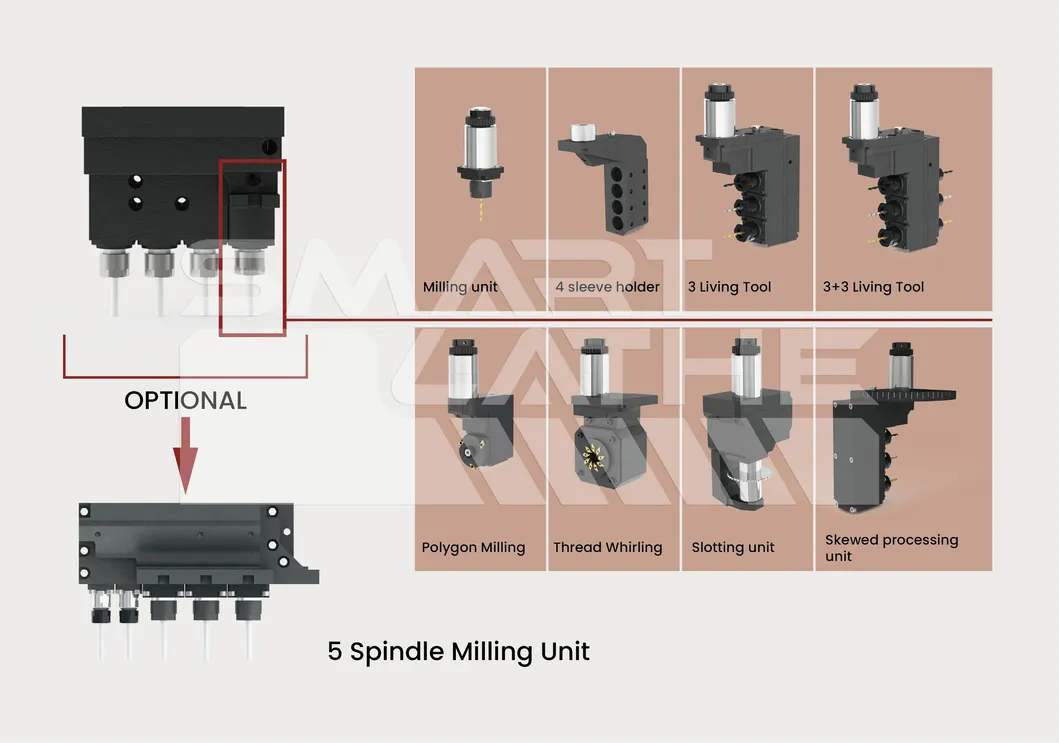

Optional Accessories

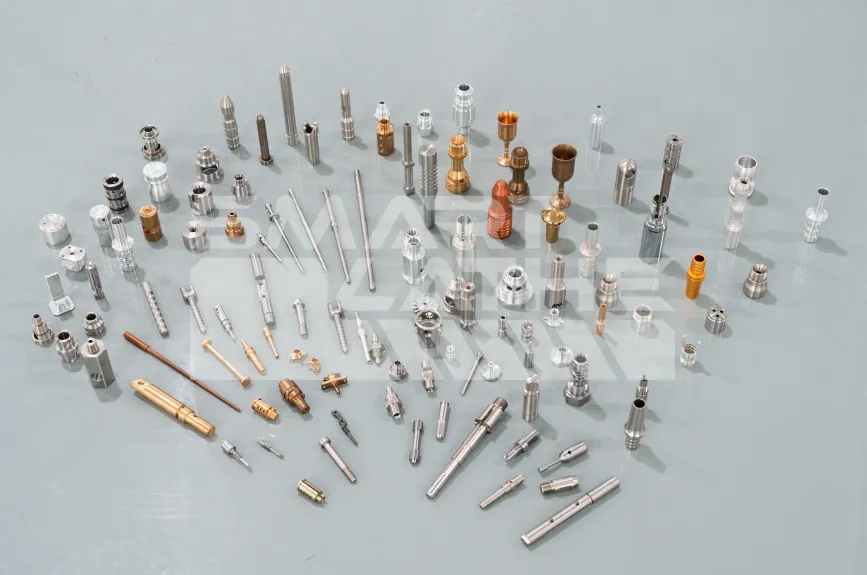

Industrial Applications
Swiss-type lathes are well-suited for industries requiring high-precision machining of small to medium-sized parts:
- Medical: Surgical screws, implants, and dental components.
- Aerospace: Precision fittings, fasteners, and pneumatic components.
- Electronics: Connectors, pins, and sockets.
- Automotive: Fuel injectors, pistons, and bearings.
- Watchmaking: Gears, pinions, and high-precision screws.
Frequently Asked Questions
How can I choose the right machine?
Please send us the drawing of the turning part. Our engineers will evaluate it and provide the suitable configuration of the CNC lathe fit for your specific needs.
What are the trade and payment terms?
FOB, CFR, and CIF are all acceptable. Standard payment is 30% initial payment when ordering, with the 70% balance due before shipment. Irrevocable LC at sight is also accepted.
What is the Minimum Order Quantity (MOQ)?
The MOQ is 1 set. We offer more competitive pricing for larger order quantities.
What is the standard delivery time?
A full series of standard models are generally kept in stock. For customized machines, the delivery time depends on the specific requirements.
What is the warranty period for the machines?
The warranty period is generally 13 months after the B/L date. Our machines are CE-compliant and manufactured under ISO 9001 accreditation.
Do you provide technical support?
Yes, technical responses are available within 12 hours, and solutions for troubleshooting are provided within 48 hours.
