📋 Basic Information
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Horizontal
Numerical Control
Fanuc 25ti
Processing Precision
High Precision
Certification
CE, ISO 9001
Max. Turning Diameter
960mm
Max. Machining Length
1850/2850/3850mm
Z-Axis Travel
1500mm-4000mm
📦 Packaging & Delivery
Package Size
470.00cm * 185.00cm * 274.00cm
Transport Package
Wooden Case / Fumigated Wooden Case
⚙ Technical Specifications
| Item |
Specification |
Unit |
| Max. turning diameter of bed | 630 | mm |
| Recommended max. cutting diameter | 275 | mm |
| Max. machining length | 1350 / 1850 / 2850 / 3850 | mm |
| X-axis travel | 350 | mm |
| Z-axis travel | 1500 / 2000 / 3000 / 4000 | mm |
| Main spindle power | 18 | Kw |
| Main spindle speed | 0-2000 | rpm |
| Max. output torque of main spindle | 460 | Nm |
| Control system | Fanuc 25i-T | - |
| Tool post specifications | BMT 55 | - |
| Tool capacity | 12 | T |
| X-axis positioning accuracy | ±0.004 | mm |
| Z-axis positioning accuracy | ±0.006 / ±0.008 / ±0.010 / ±0.012 | mm |
| Machine Weight | 8 / 9 / 11 / 13 | T |
✨ Key Features & Performance
| Feature |
Description |

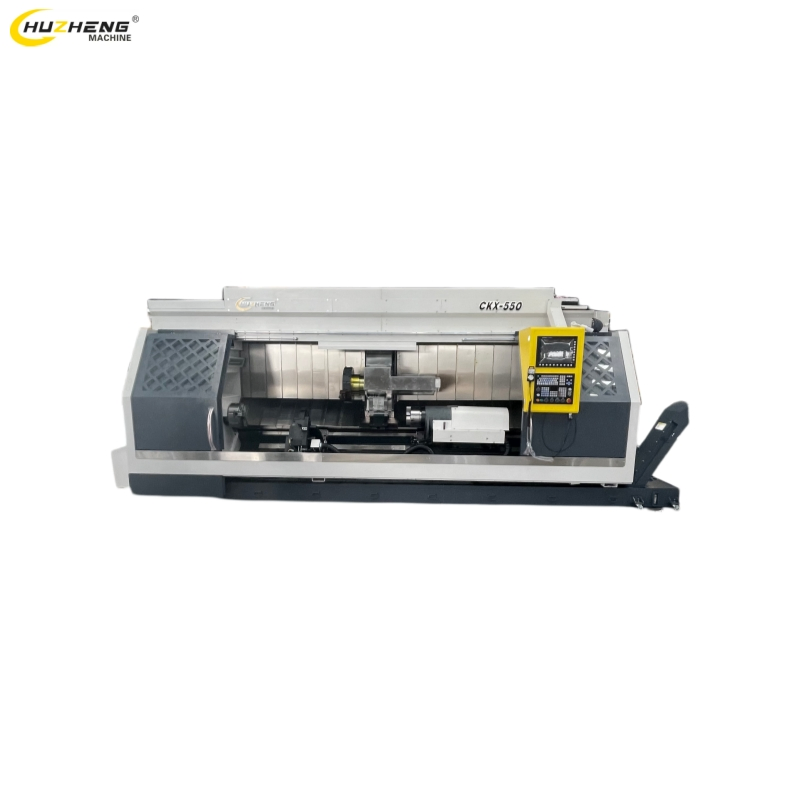

| Product Overview | Heavy-duty 4-axis CNC turning milling machine for high-precision metalworking. |

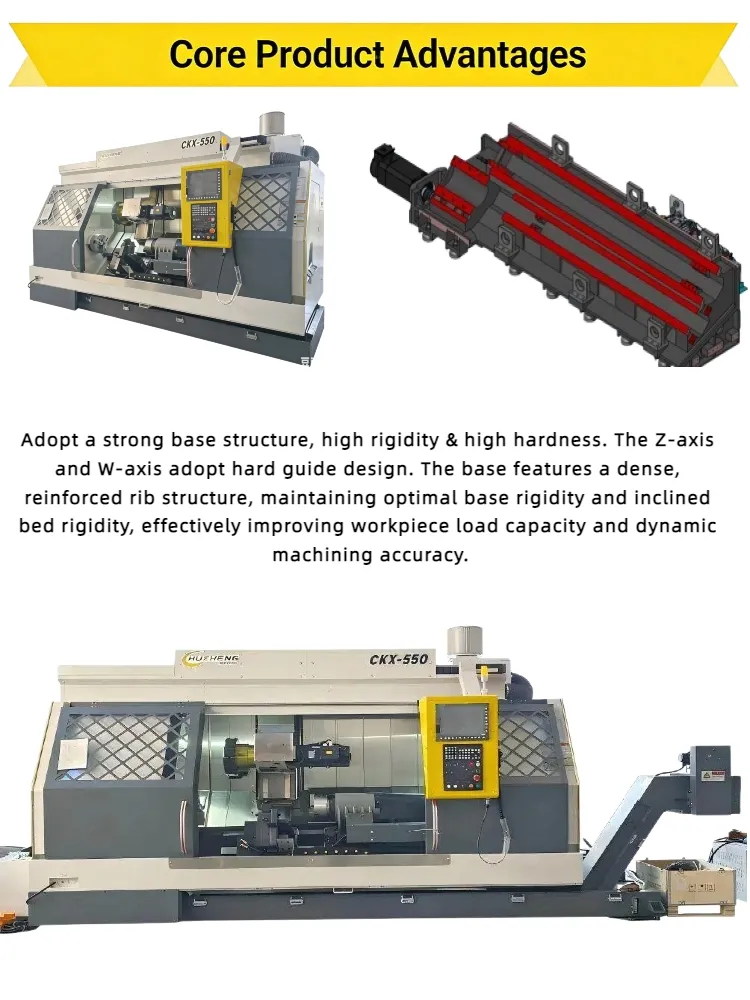

| Robust Build | Constructed with a cast iron bed and an 18kW main spindle for stability. |
| High Precision | X-axis accuracy of ±0.004mm ensures exceptional quality parts. |

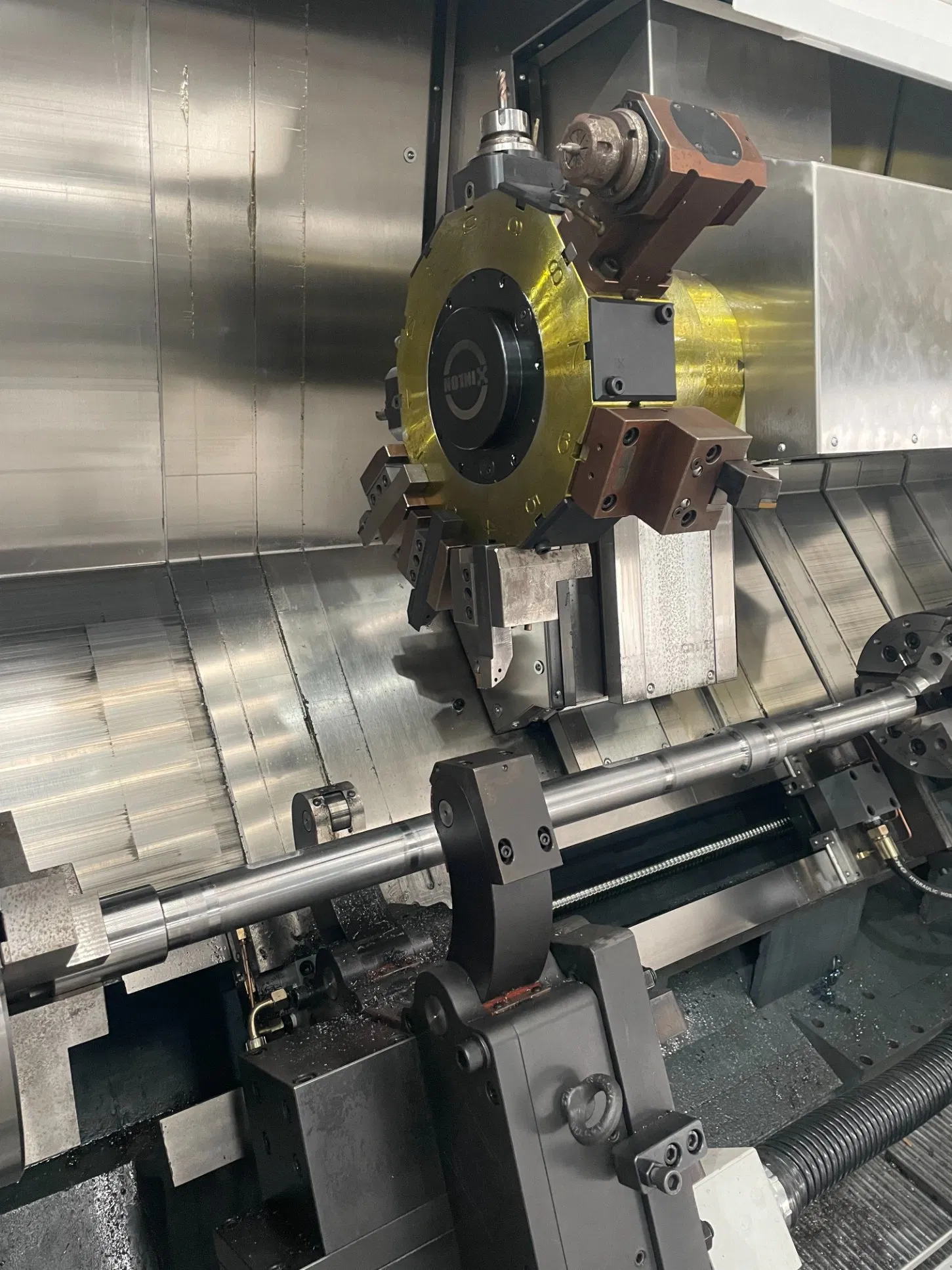

| Tooling Versatility | Equipped with a BMT-55 turret featuring 12 tool positions. |
| Standard Config | Includes oil chiller, splash guard, chip conveyor, and oil-water separator. |
📷 Product Gallery
❓ Frequently Asked Questions

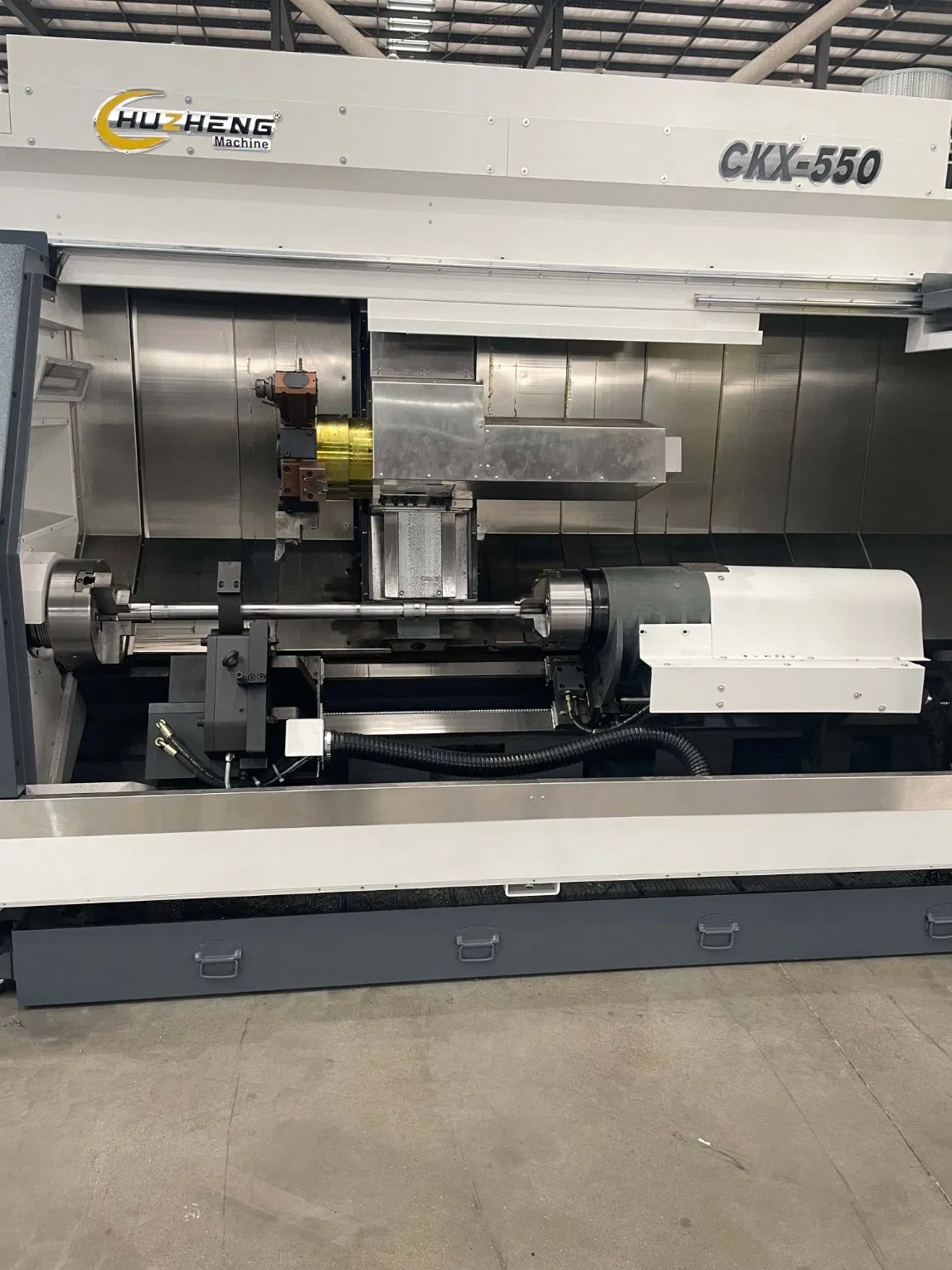

1. What are the primary applications of the CKX550?
The CKX550 is a heavy-duty 4-axis CNC turning milling machine designed for high-precision metalworking in aerospace, automotive, energy, and general engineering industries.
2. Which control system does this machine utilize?
The machine is equipped with the reliable Fanuc 25i-T (also listed as 25ti) CNC control system for high-precision operations.
3. What is the maximum machining capacity of the CKX550?
The machine offers a maximum turning diameter of 960mm and can handle machining lengths up to 3850mm depending on the specific model configuration.
4. What is the positioning accuracy for the X and Z axes?
The X-axis features a positioning accuracy of ±0.004mm, while the Z-axis accuracy ranges from ±0.006mm to ±0.012mm depending on the travel length.
5. What standard accessories are included with the machine?
Standard configuration includes an oil chiller, splash guard, chip conveyor, oil-water separator, and mist collector to ensure optimal performance and cleanliness.
6. How many tool positions does the turret have?
The machine features a BMT 55 turret with a capacity for 12 tools, allowing for versatile and complex machining operations.
