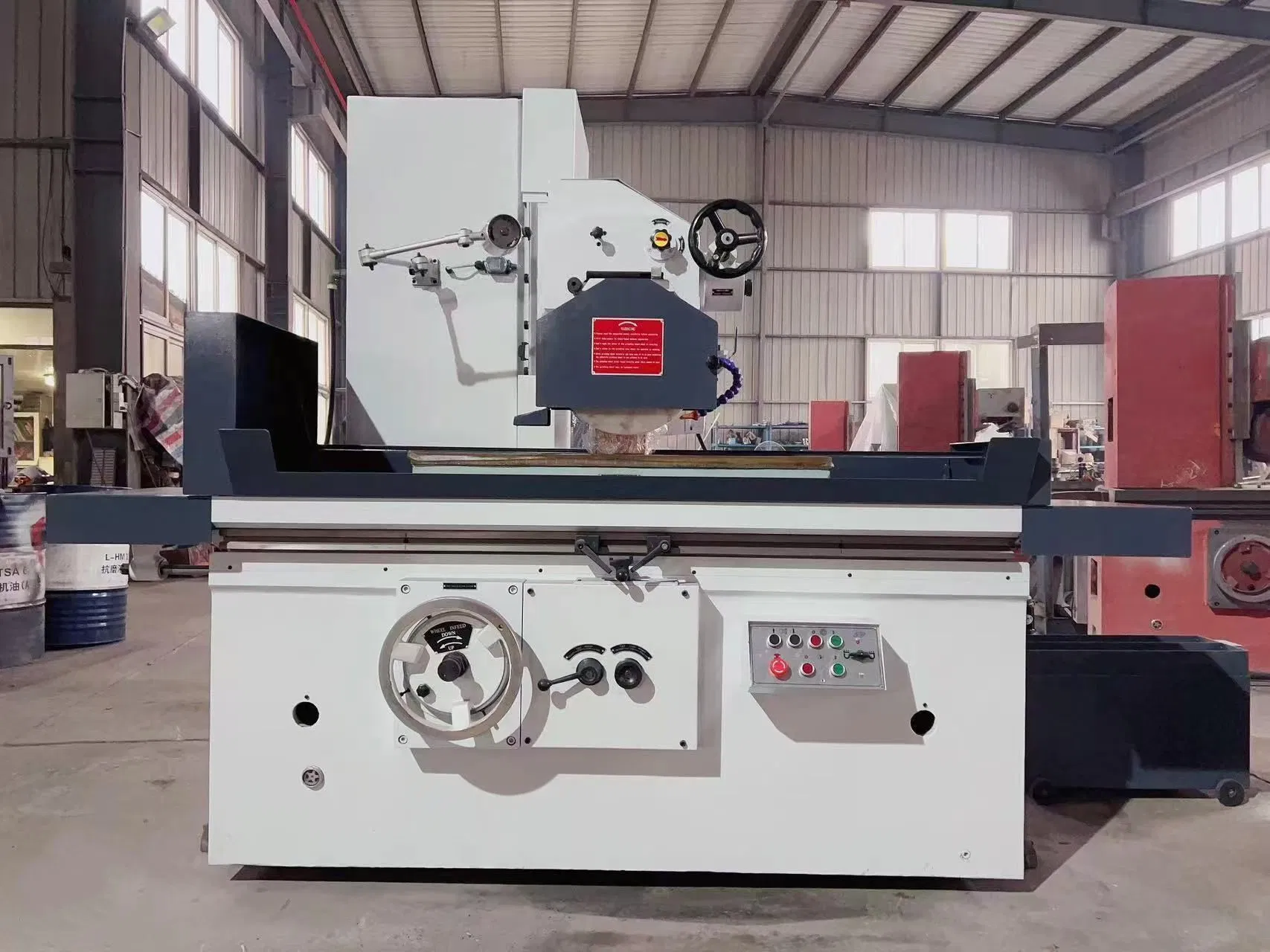

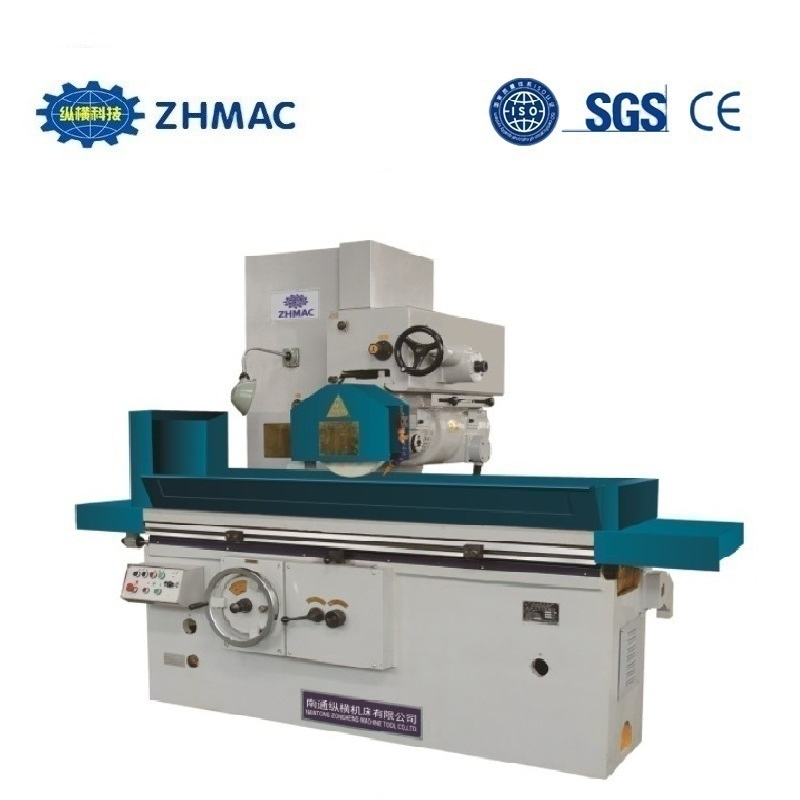

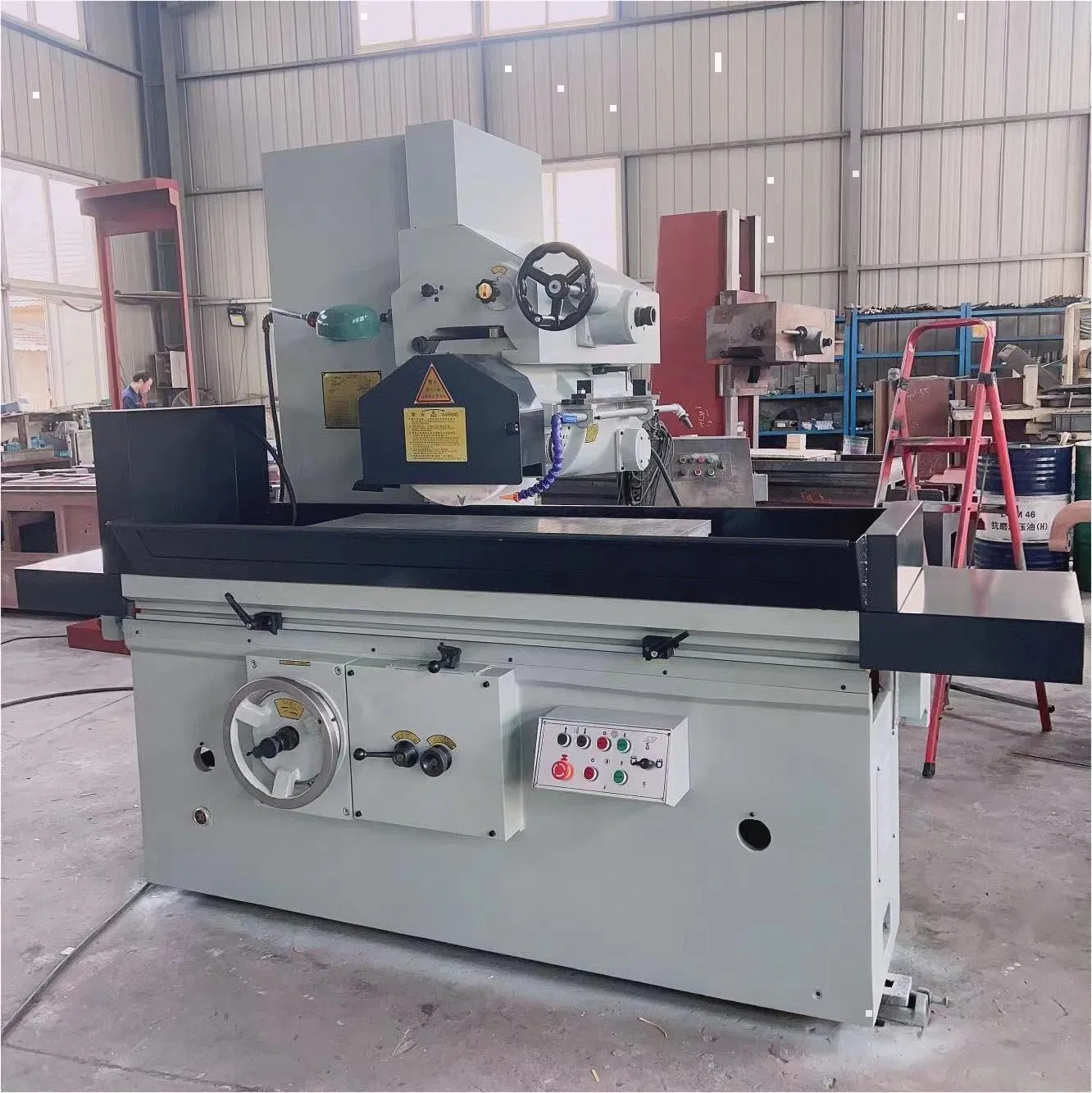

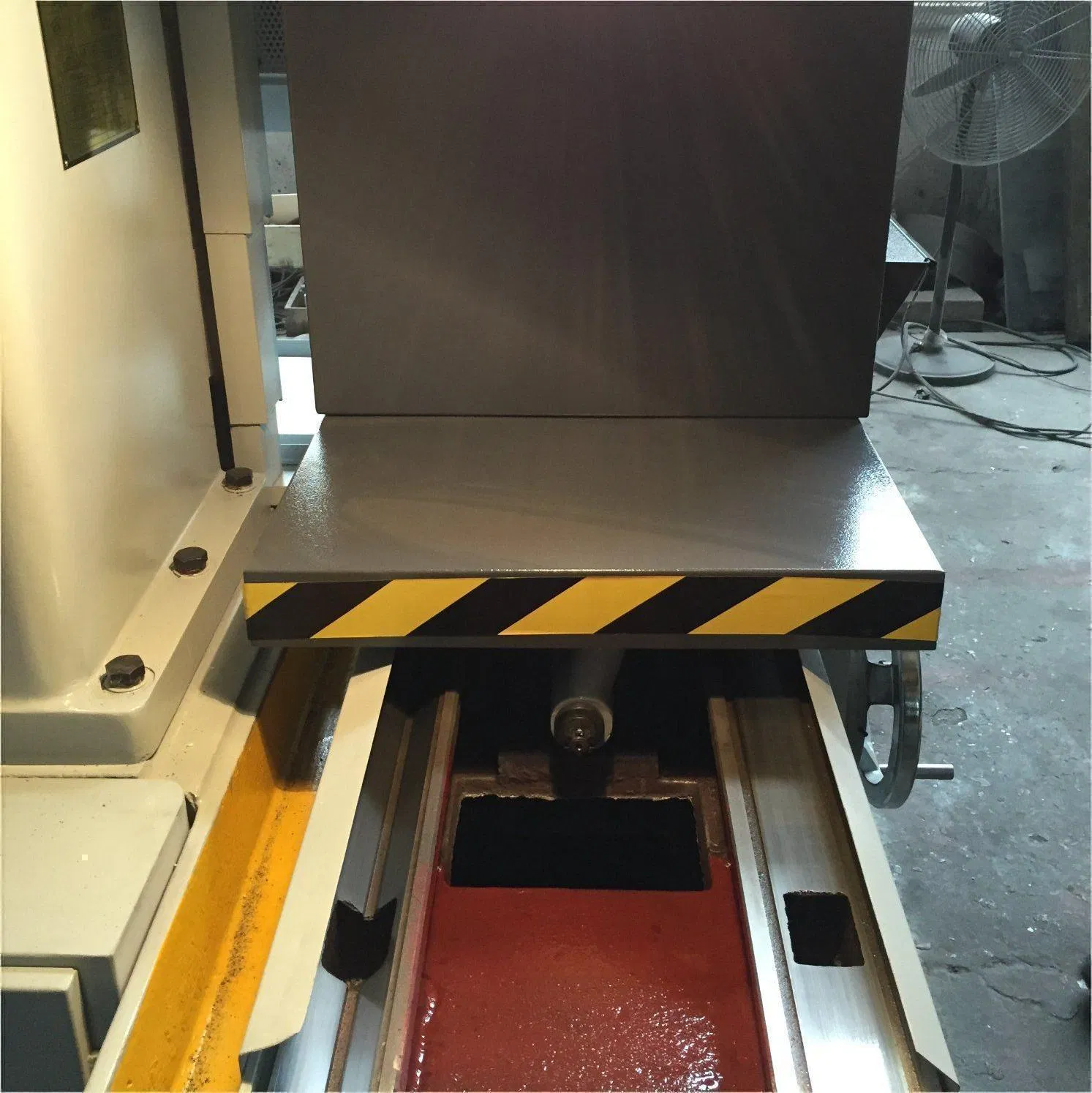

The machine tool is a high efficiency grinding machine. The working table adopts hydraulic transmission, and the grinding head transverse motion can be both hydraulic and manual. The grinding head vertical lifting features a fast lifting mechanism on the original manual basis to significantly improve production efficiency.
Applications: Suitable for all kinds of mechanical processing, auto parts, fixtures, magnetic steel, mold parts, and other processing industries.
| Project | Unit | M7140×1000 | M7140×1600 | M7140×2000 | |
|---|---|---|---|---|---|
| Working table surface (L×W) | mm | 1000×400 | 1600×400 | 2000×400 | |
| Max. Longitudinal movement | mm | 1100 | 1700 | 2100 | |
| Max. Distance spindle centerline to table | mm | 570 | 570 | 570 | |
| Grinding wheel size (D×d×W) | mm | 350×127×40 | 350×127×40 | 350×127×40 | |
| Grinding wheel speed | r/min | 1440 | 1440 | 1440 | |
| Total motor power | kw | 11 | 14 | 14 | |
| Surface roughness | μm | Ra:0.63 | Ra:0.63 | Ra:0.63 | |
As a large-scale machine tool manufacturing enterprise in East China, we specialize in gantry machining centers, vertical machining centers, CNC lathes, surface grinders, and milling machines. Our products are widely used in mold manufacturing, auto parts, wind power, nuclear power, aerospace, and educational fields.
