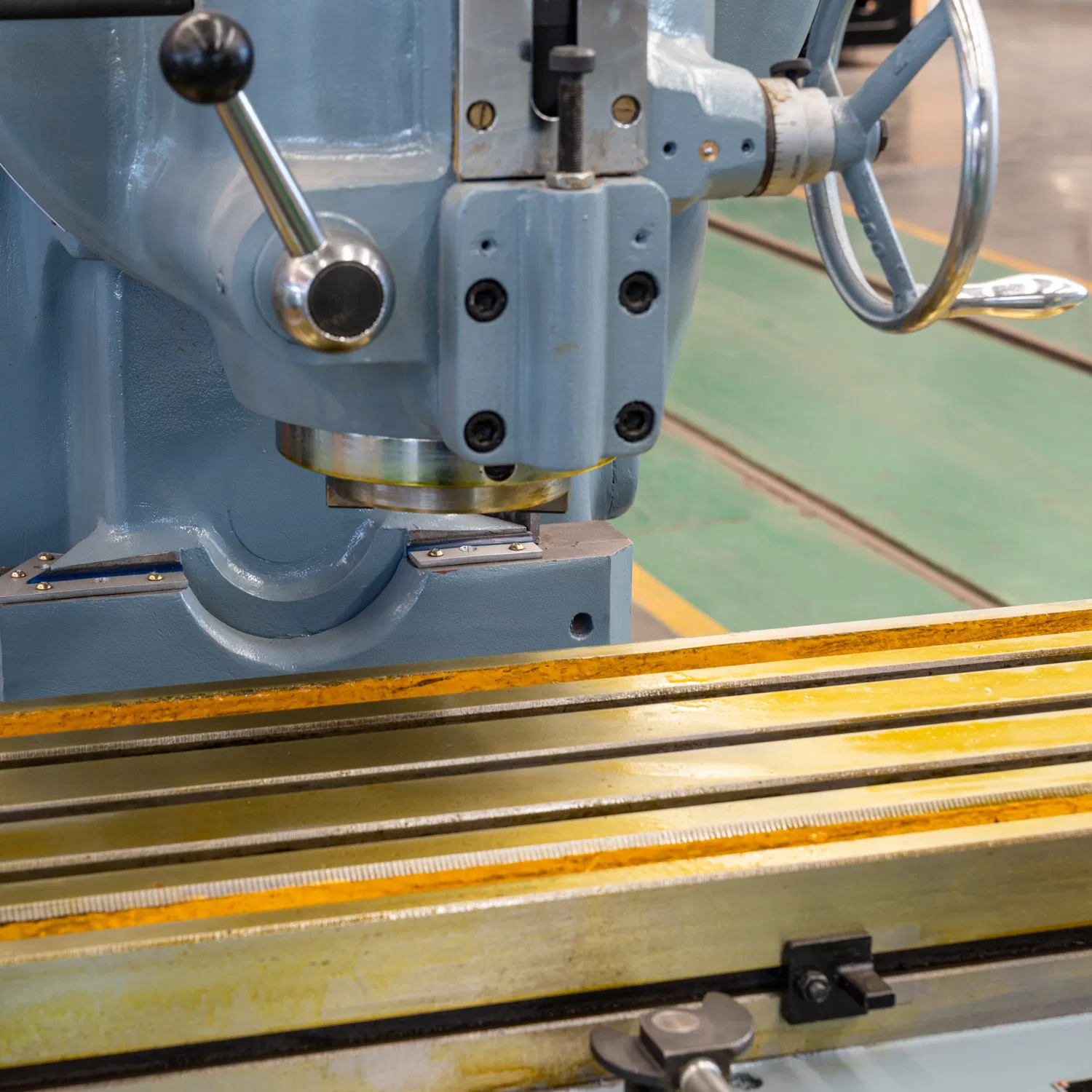

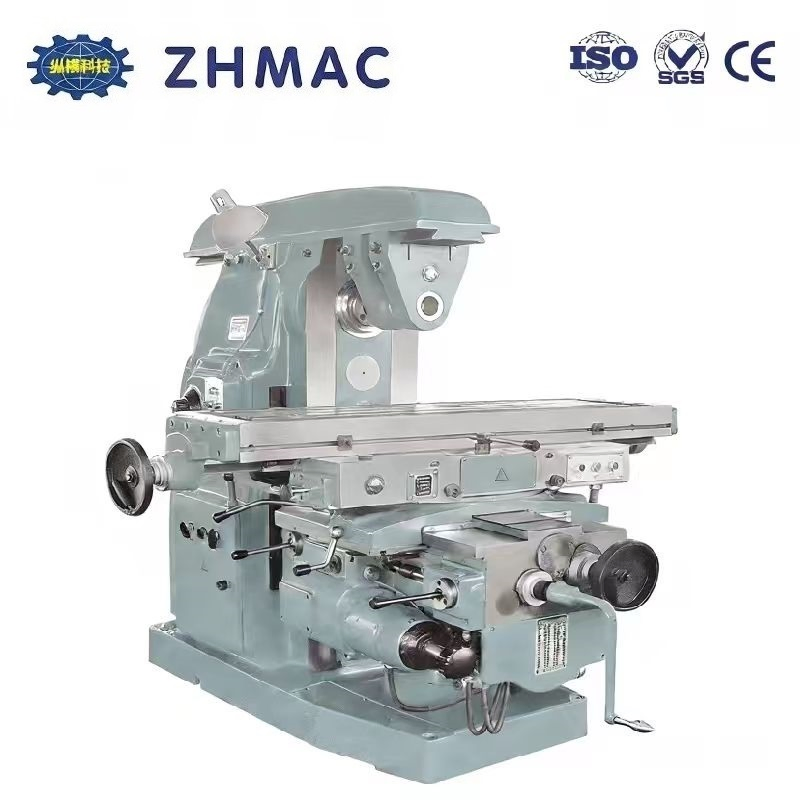

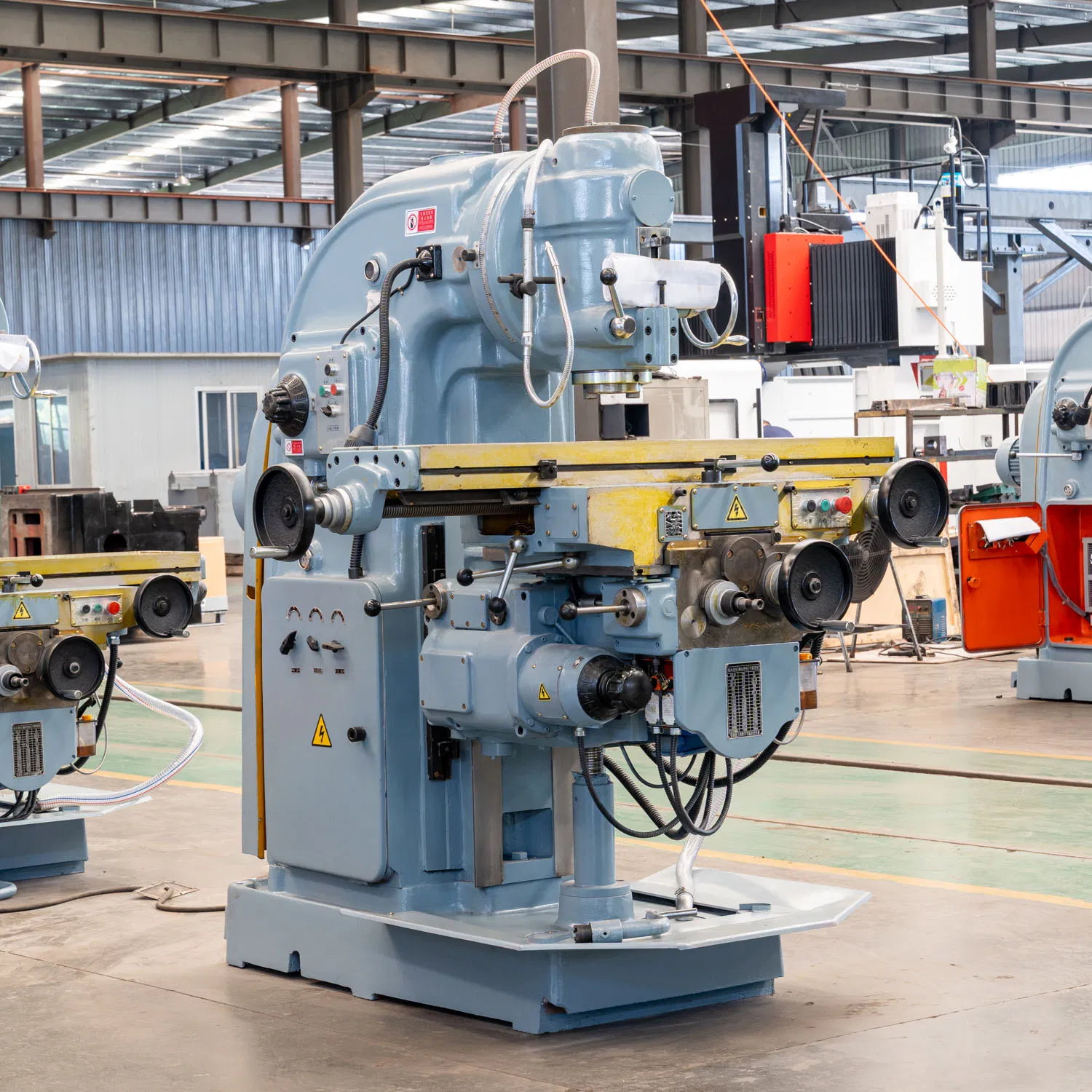

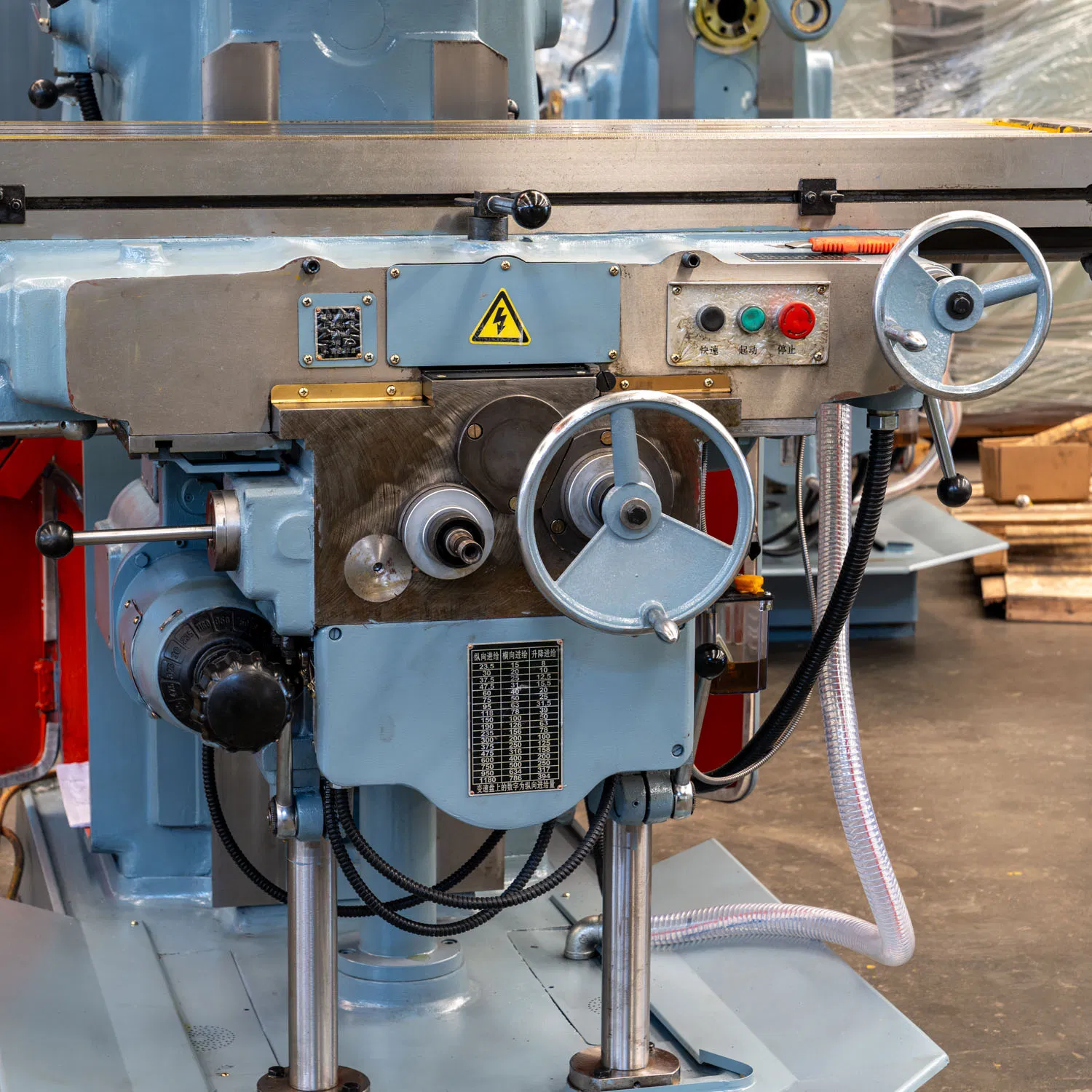

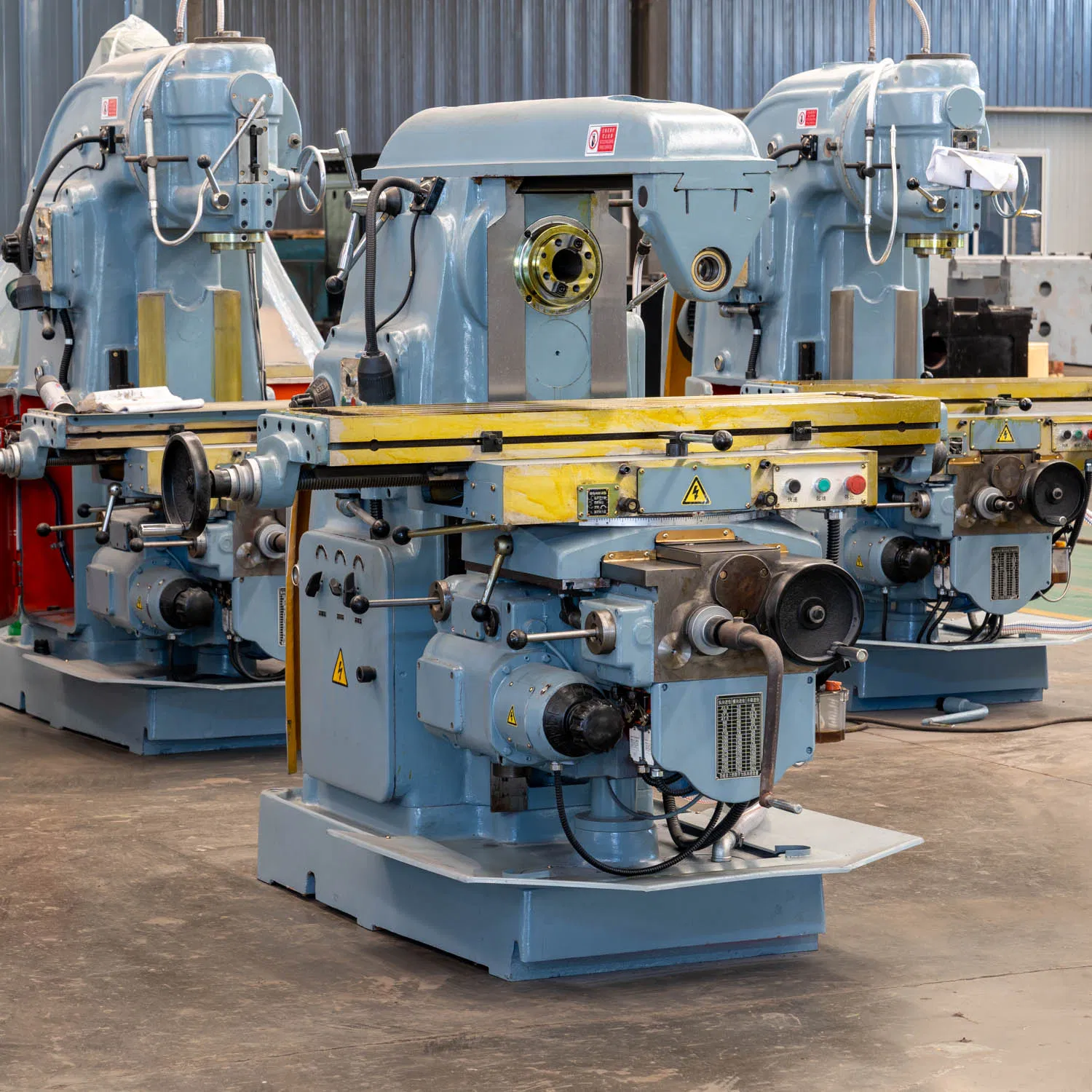

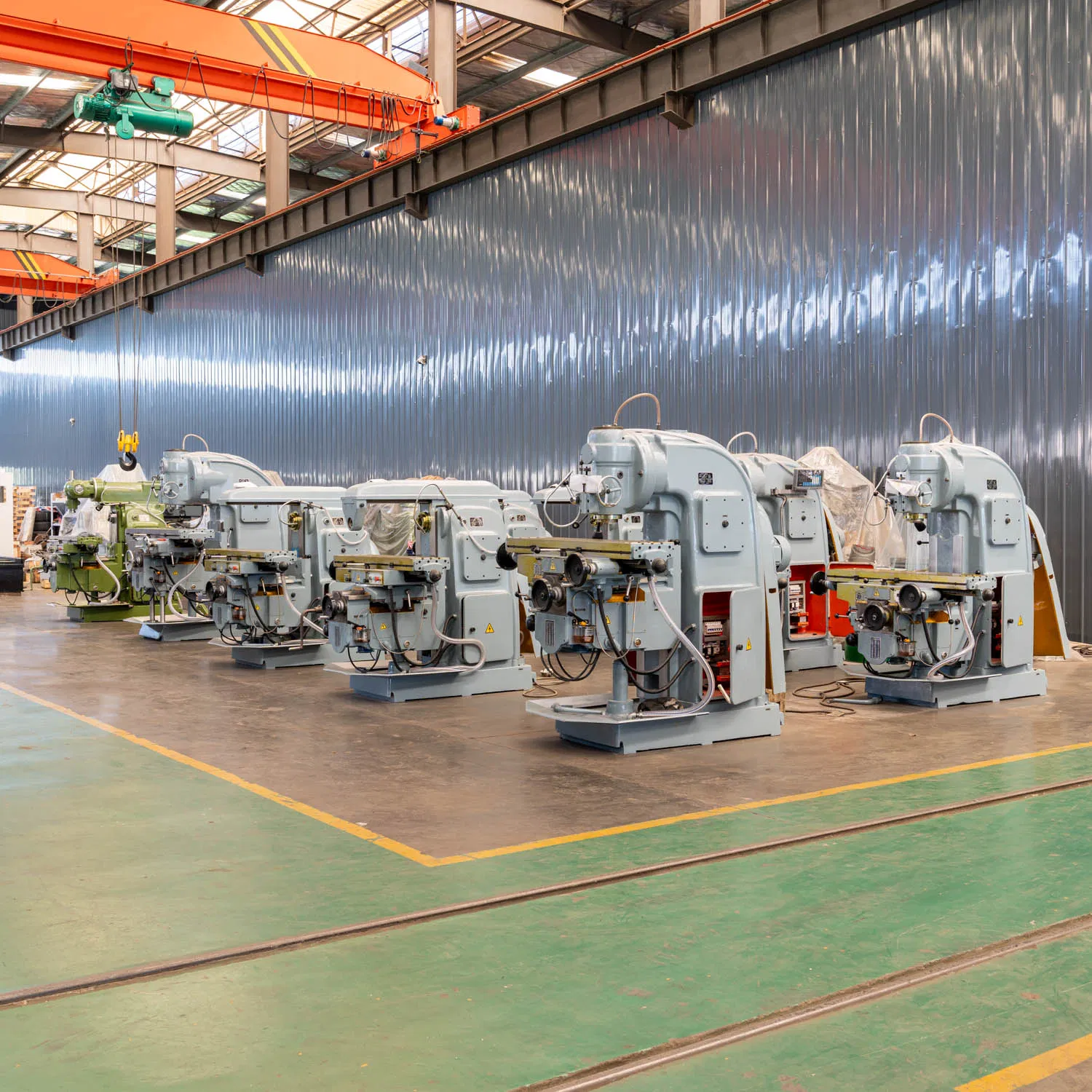

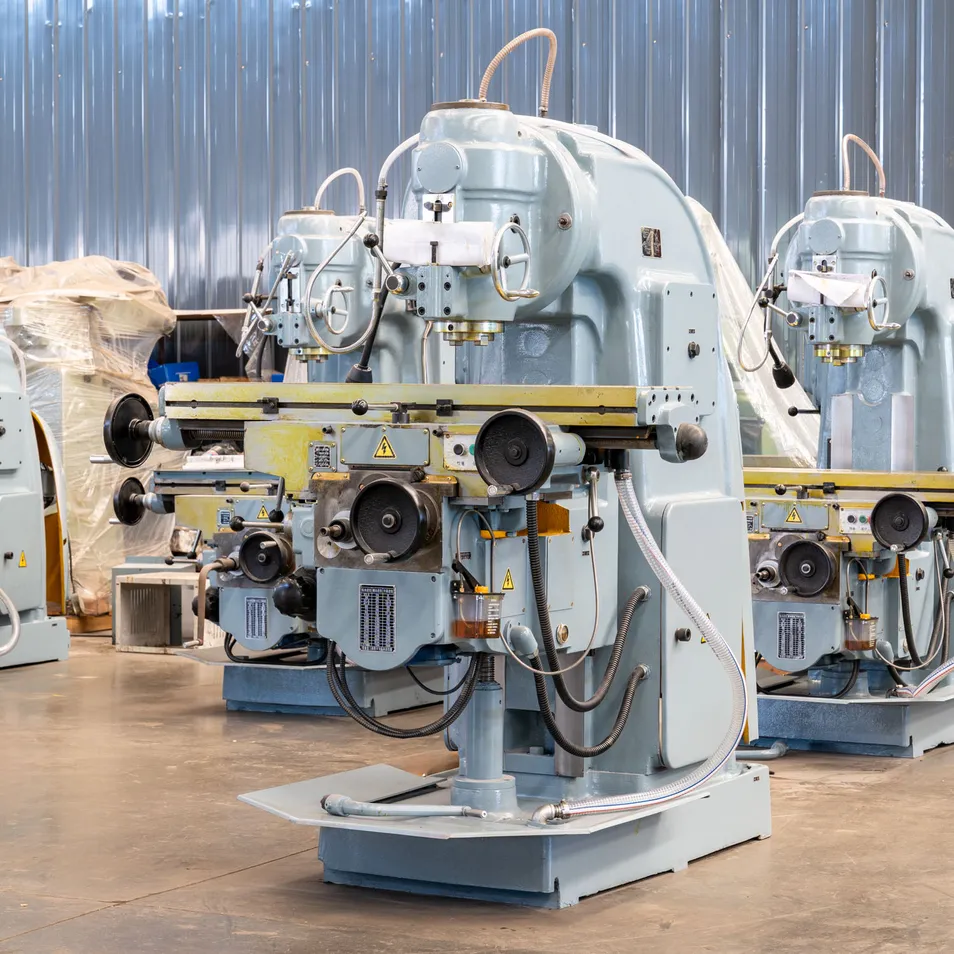

The X5032/X5040 vertical lifting table milling machine is a type of high-strength and multi-functional metal cutting equipment, mainly used for processing planes (horizontal and vertical planes), grooves (keyways, T-shaped grooves, dovetail grooves), gear parts (gears, spline shafts), helical surfaces (threads, helical grooves) and complex curved surfaces. It is widely applied in fields such as mold manufacturing, automotive parts, construction machinery, aerospace, etc.
| Project | Unit | X5032 | X5040 |
|---|---|---|---|
| Working table surface (W×L) | mm | 320×1250 | 400×1700 / 2000 |
| Max. Table Load | kg | 500 | 800 |
| Longitudinal Travel (X) | mm | 700/680 | 900/880 / 1200/1180 |
| Cross Travel (Y) | mm | 255/240 | 315/300 |
| Vertical Travel (Z) | mm | 370/350 | 385/265 |
| Spindle Taper | - | ISO(7:24)No.50 | ISO(7:24)No.50 |
| Speed range | r/min | 30-1500 | 30-1500 |
| Power of Spindle Motor | kw | 7.5 | 11 |

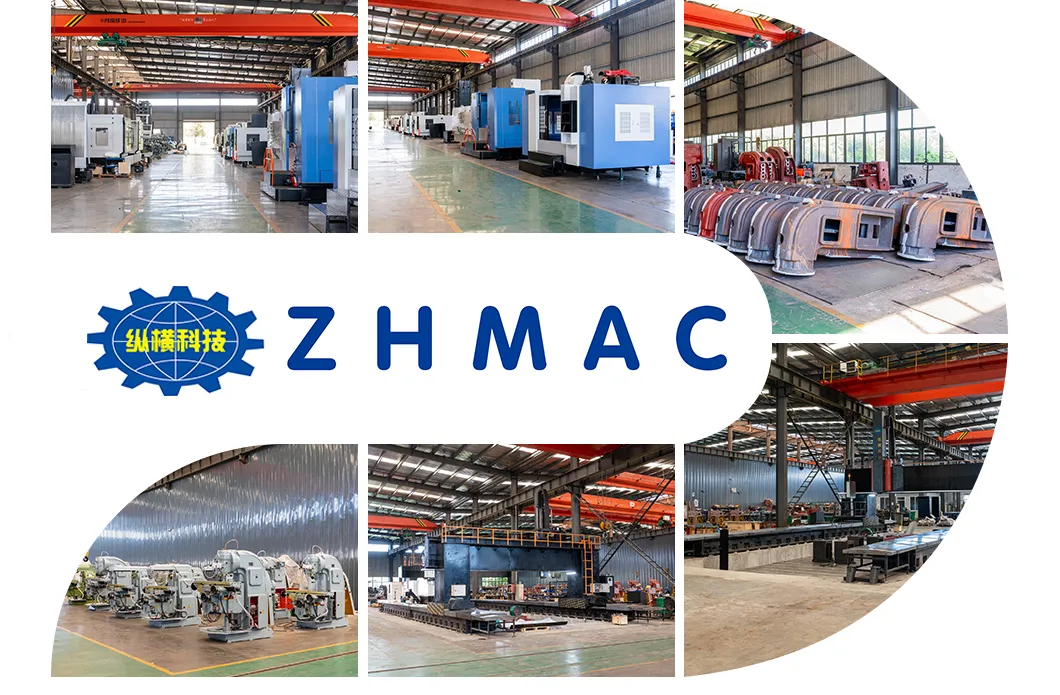

Our enterprise is a large-scale machine tool manufacturing enterprise in East China. The main products are gantry machining centers, vertical machining centers, CNC lathes, surface grinders, vertical knee type milling machines, and turret universal rocker milling machines. Products are widely used in mould manufacturing, auto parts, wind power, nuclear power, ocean ships, aerospace, and college teaching fields.
