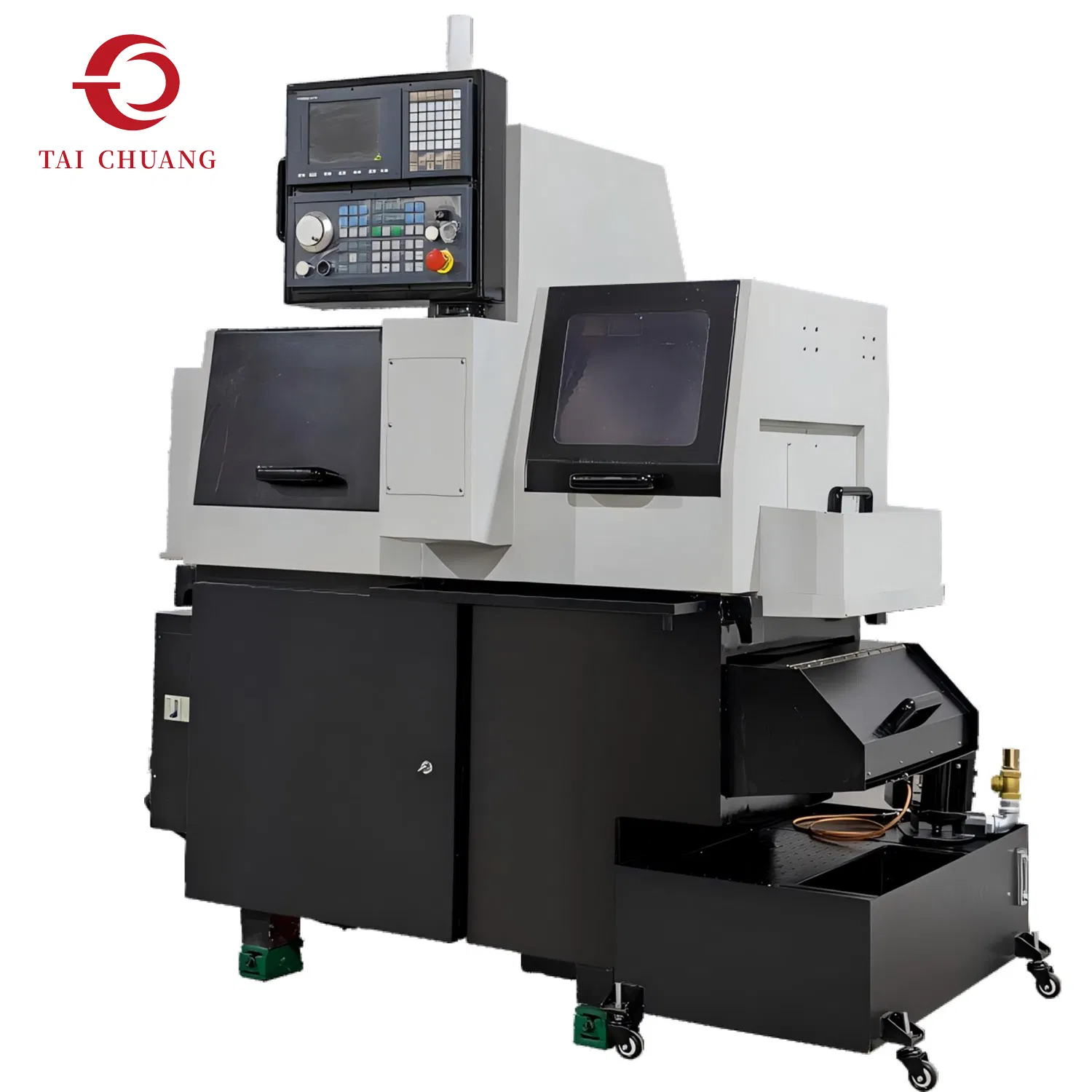

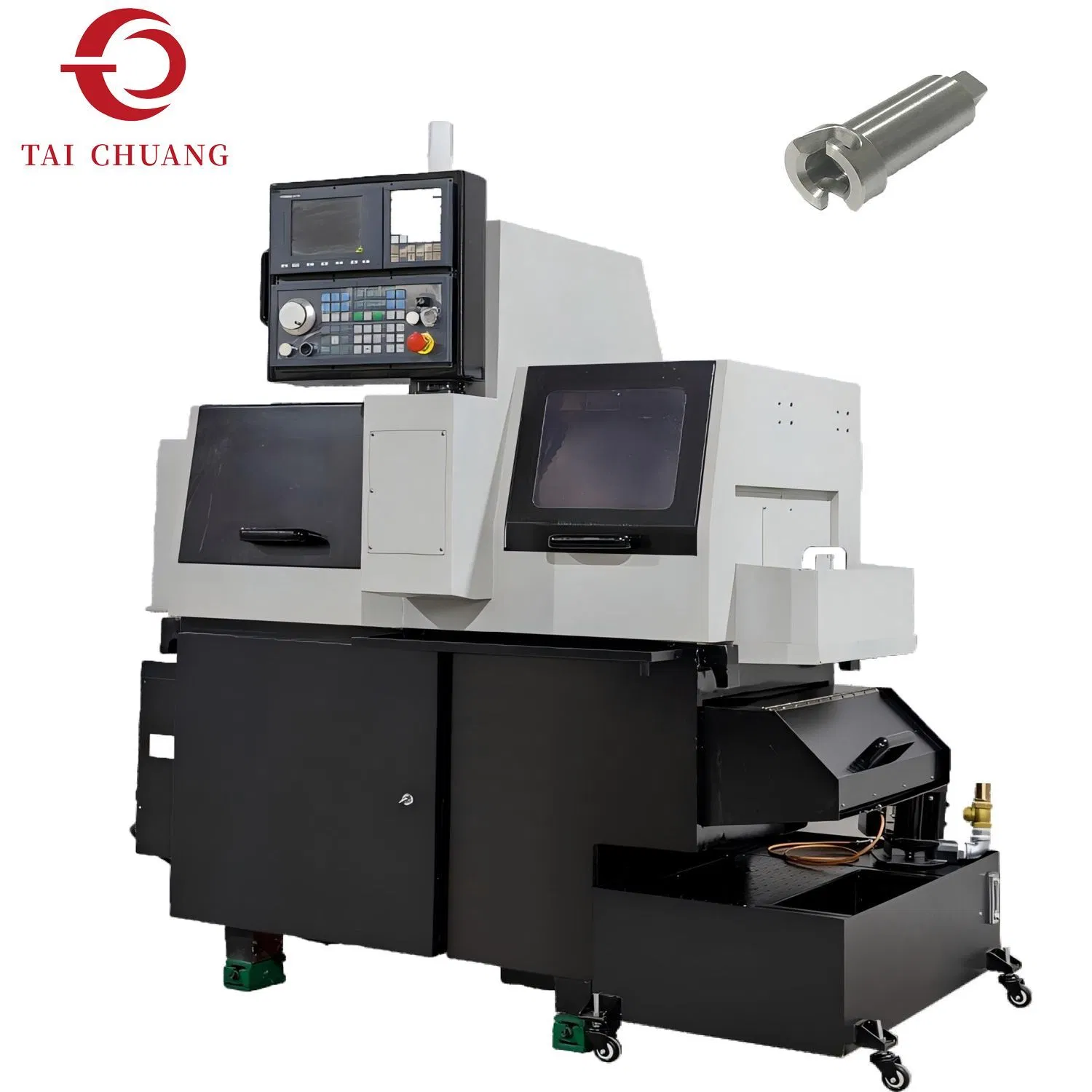

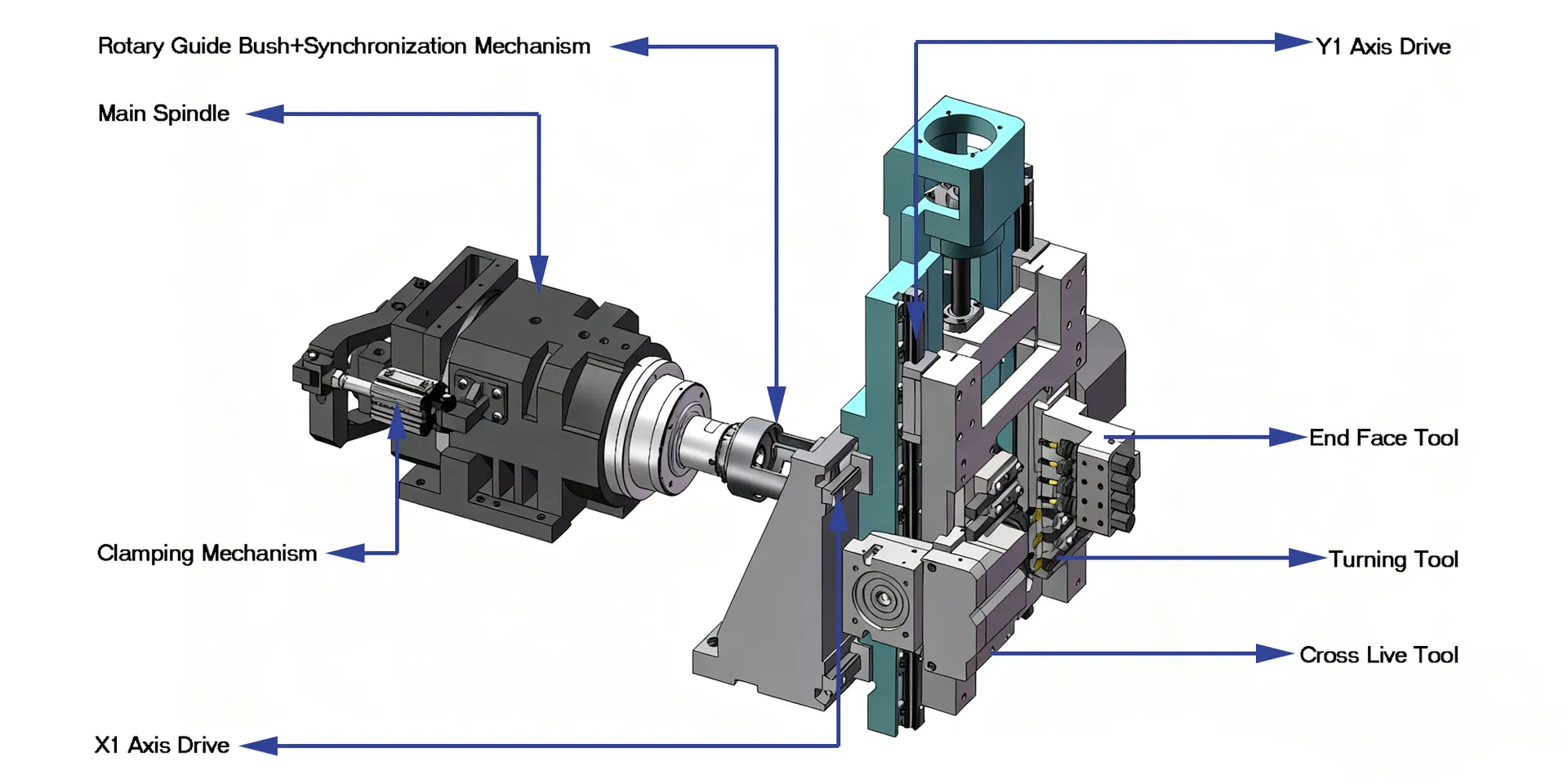

12 Series 3 AXIS Options:

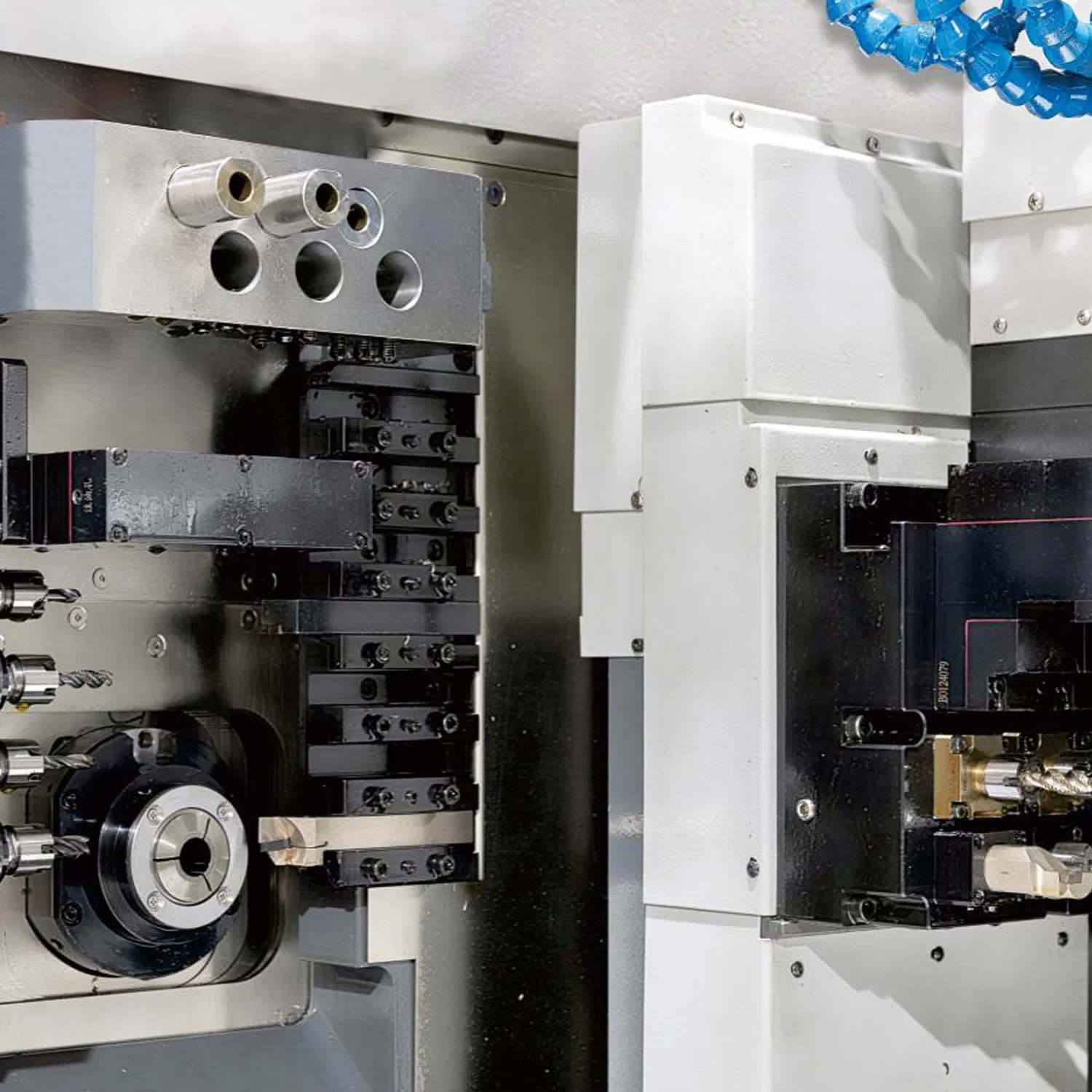

RPC-123: Setup: 3-axis, 12 Series. 3:1 length-diameter (non-guide), 80mm standard (guide). 200mm spindle stroke, 8000rpm, φ12mm turning dia, φ13mm bore, continuous indexing. Tools: 5 turning tools, 12×12 shanks. 4×φ20 (ERT11) axial tools (φ9 drill, M8 tap).
RPC-123A: 3-axis, same base range as RPC-123. 200mm stroke, 8000rpm. Tools: 5 turning tools, 2×φ20 (ERT11) axial tools. Axial tools: ER11×3 (φ5 drill, M4 tap, 5000rpm).
RPC-123B: 3-axis, 200mm stroke, 8000rpm. Tools: 12 turning tools, 12×12 shanks. Designed for high-volume turning needs without radial power tool requirements.
| Item | Feature | RPC-263 | RPC-263A | RPC-263B |
|---|---|---|---|---|
| Spindle Specs | Max Speed (rpm) | 8000 | 8000 | 8000 |
| Max Swivel Dia (mm) | Φ12 | Φ12 | Φ12 | |
| Hole Diameter (mm) | Φ13 | Φ13 | Φ13 | |
| Tooling | OD Turning Tools | 5 | 5 | 12 |
| Fixed Tool Hole | ER11 x 4 | ER11 x 2 | / | |
| Cross Power Tools | ER11x2 + ER16x2 | ER11x2 + ER16x2 | / | |
| Motor & Power | Main Spindle (kw) | 2.2 | 2.2 | 2.2 |
| Total Power (kw) | 7 | 7.5 | 6 |

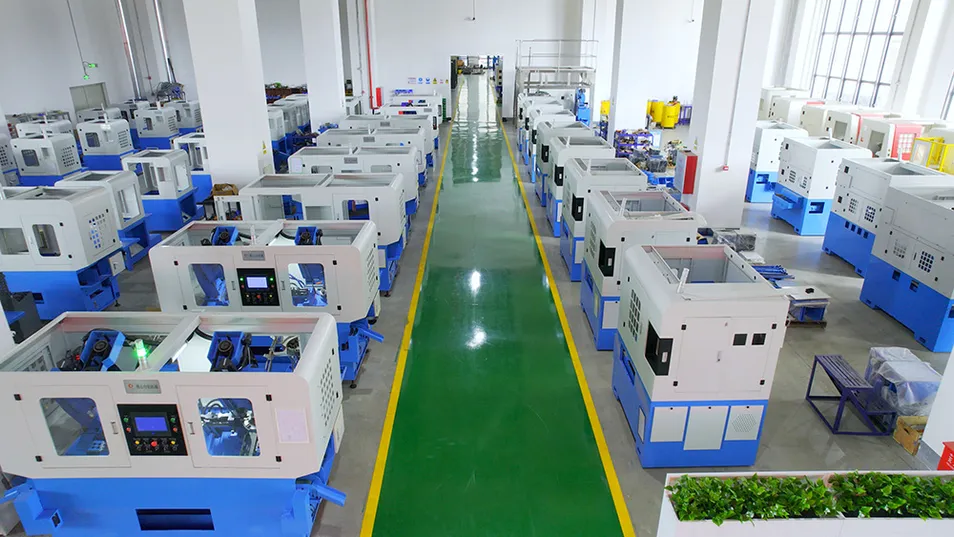

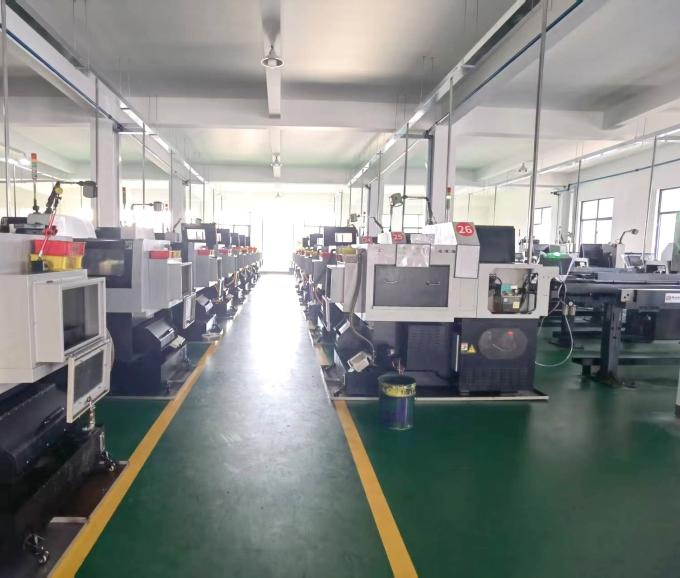

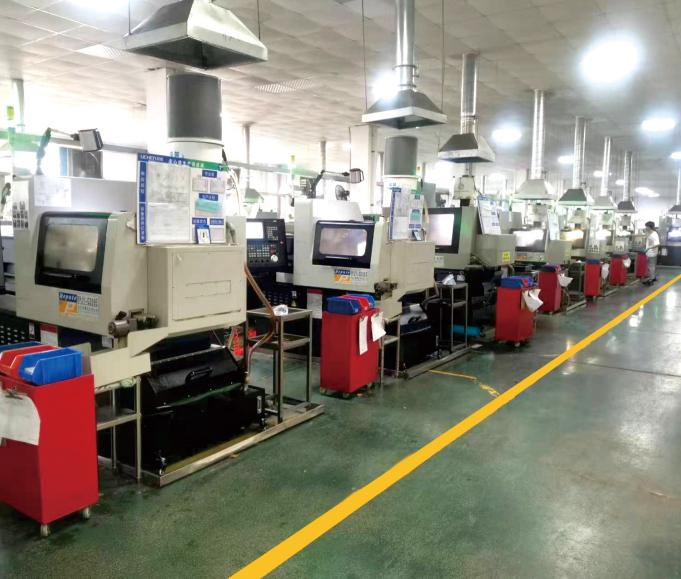

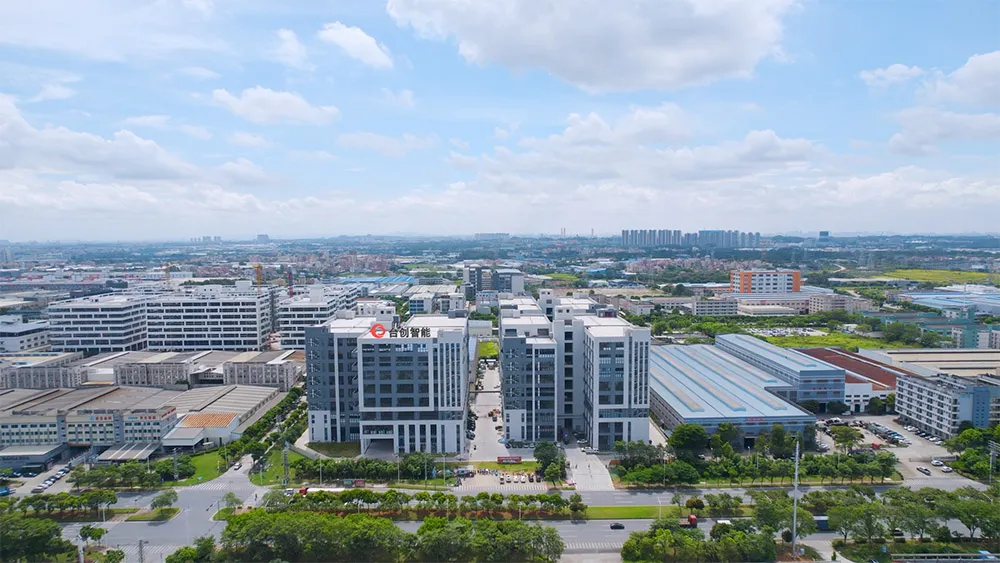

Our production base covers an area of more than 5,000 square meters, with a modern and intelligent production workshop, equipped with scientific and rigorous process flow and management systems. The workshop layout is neat and orderly, and the ISO quality management system is strictly implemented to realize digital control of the entire process from raw materials to finished products.
Advanced equipment including CNC laser cutting machines, CNC bending machines, and turning-milling compound machines ensures high precision and stability of every unit produced.
