DSCUT CNC
1 / 5
| Model NO. | swiss lathe machine | Type | Multicut Lathe |
| Processing Accessory | Chuck CNC Lathe | Guide Rail | Horizontal Guide Rail |
| Tool Holder | Double-tool Holder CNC Lathe | Power Source | Hydraulic Pressure |
| Controlling Mode | CNC | Automatic Grade | Automatic |
| Precision | High Precision | Condition | New |
| System | Fanuc 0I TF-Plus /Syntec 220tb | Max.Rpm | Main 8,000min-1 / Sub 8,000min-1 |
| Main Spindle Stroke | 210mm | Rapid Traverse Speed | 32m/Min |
| Weight | 4,500kg | Size | 2760mm x 1564mm x 1882mm |

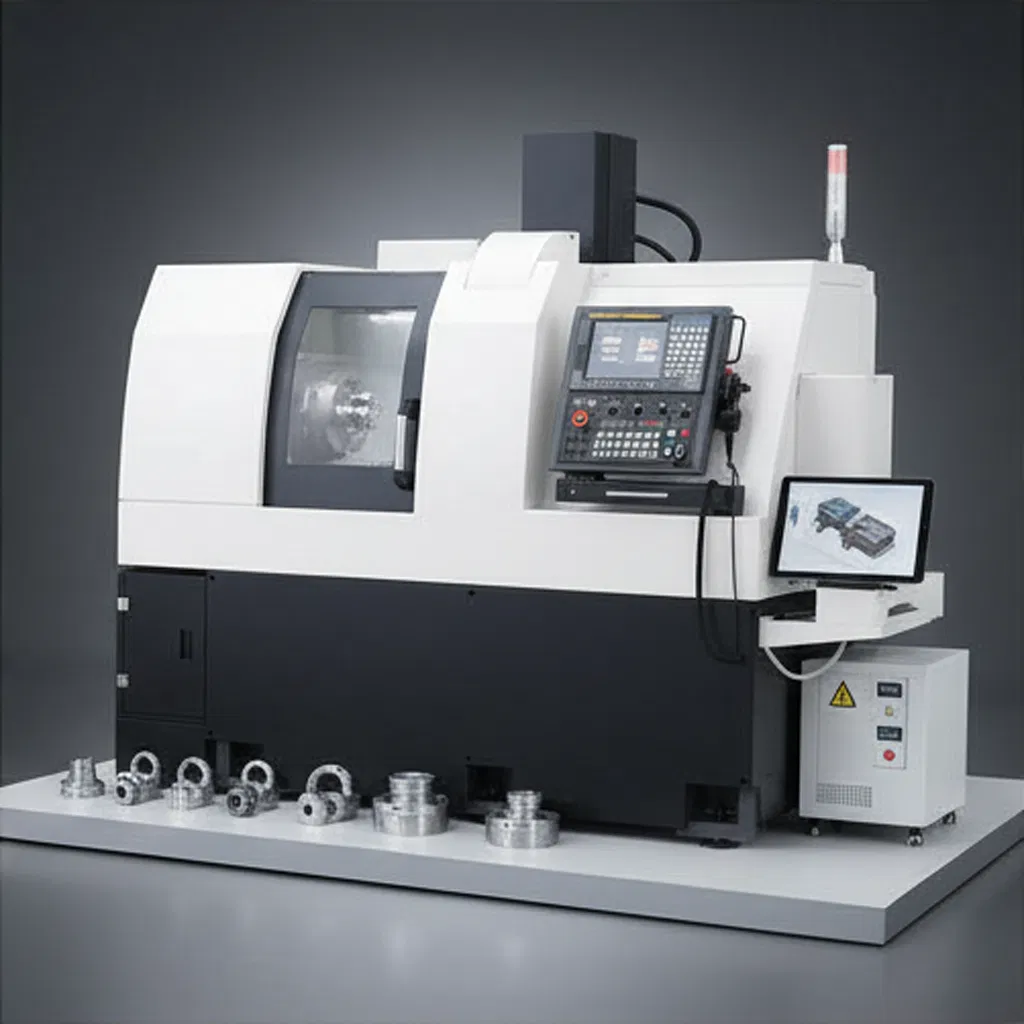

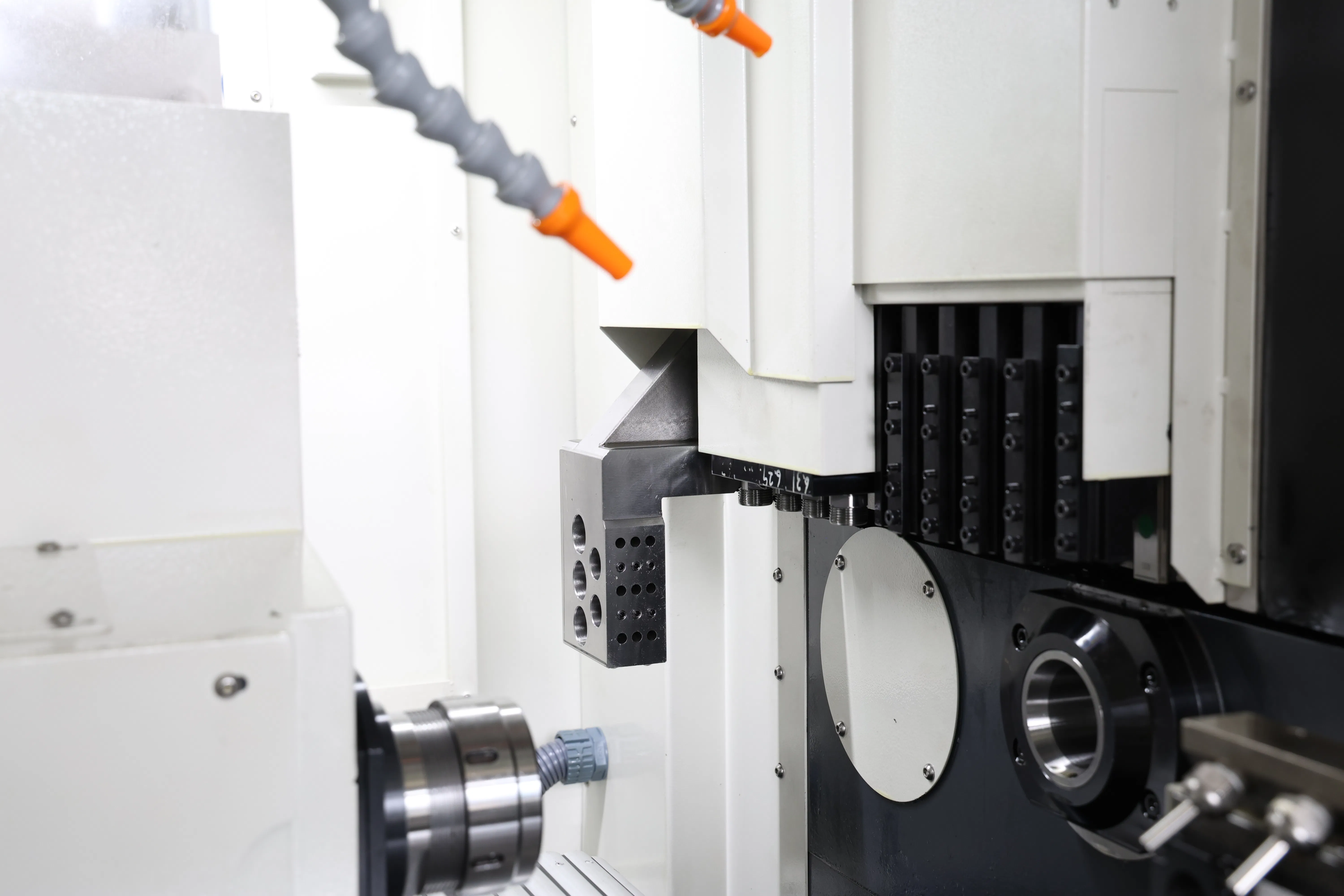

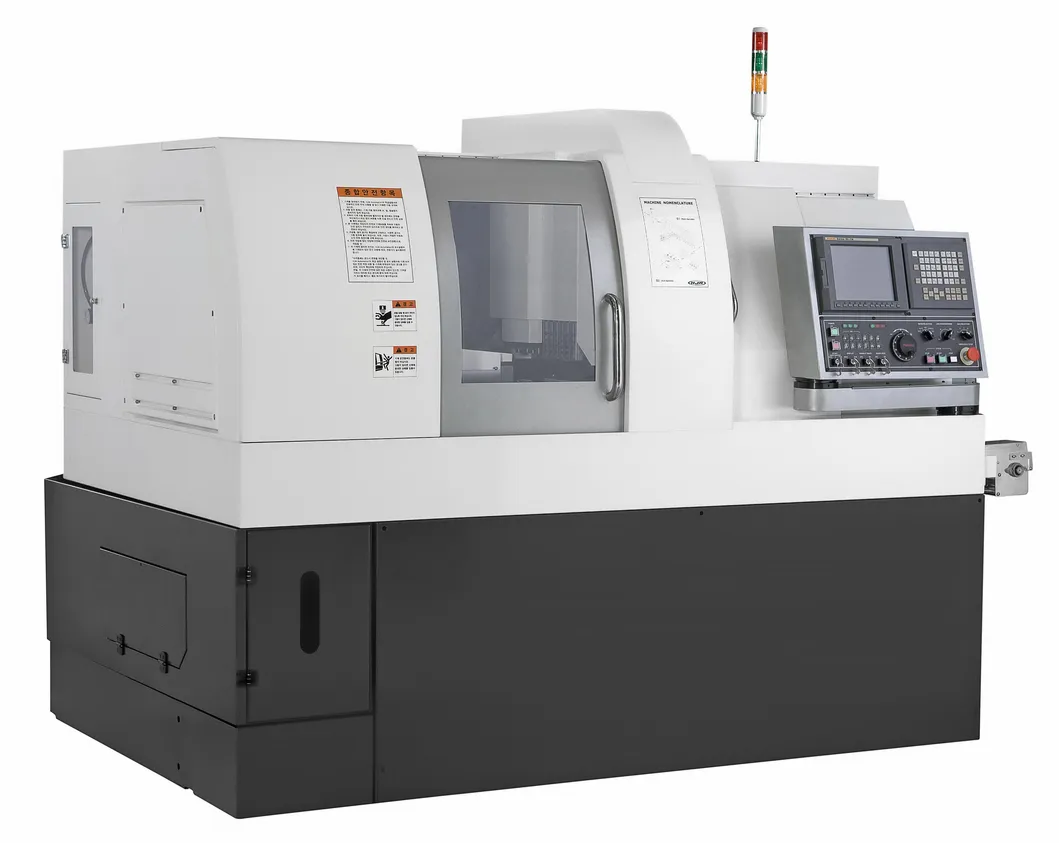

The Swiss type lathe, recognized as a CNC automatic lathe, stands as a hallmark of precision machining excellence. It deftly performs tasks like tapping, milling, drilling, and turning while featuring dual spindles and an advanced double Y-axis. This dual-action capability dramatically slashes processing time, making it ideal for batch operations involving uniquely shaped, non-standard parts like precision hardware and shafts.

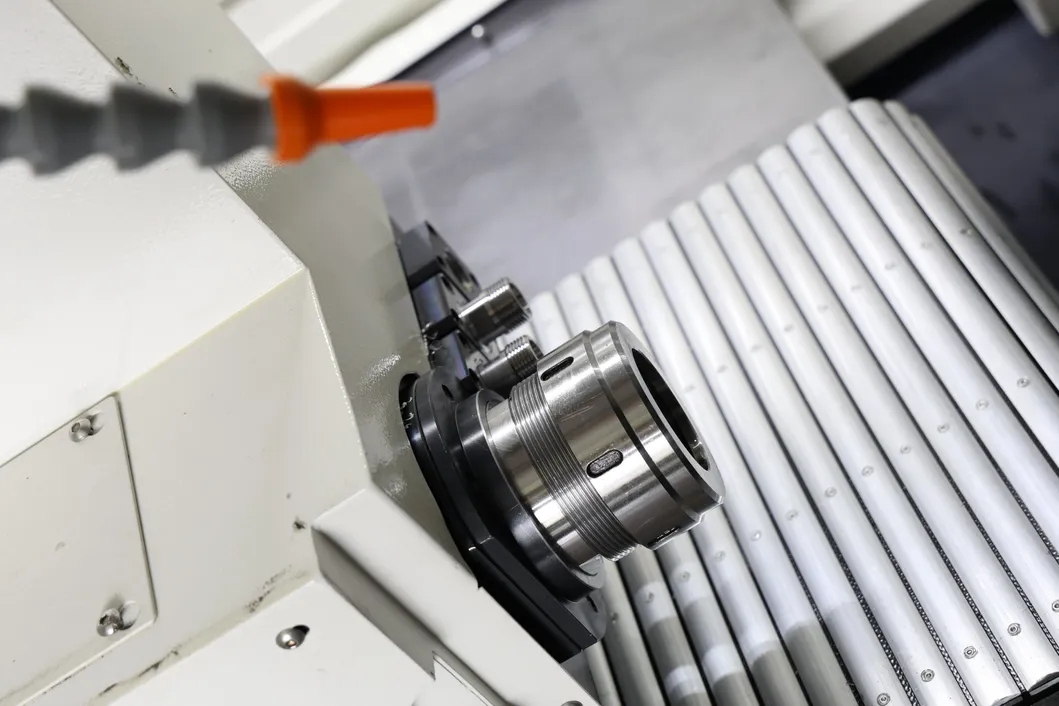

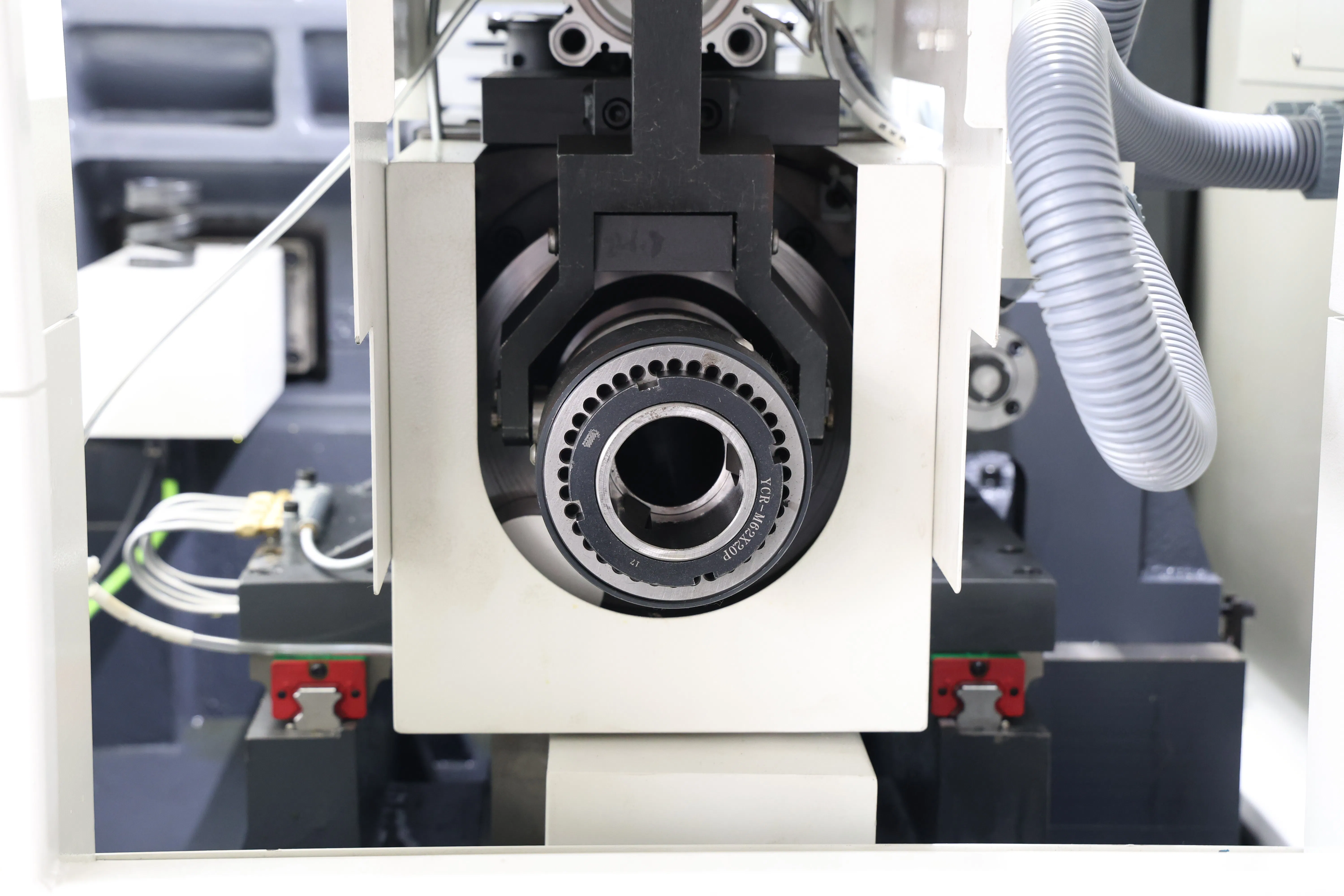

Equipped with a sophisticated sliding headstock, it effortlessly guides metal stock through the guide bushing with unparalleled precision. This segmented machining strategy is the epitome of rapid, accurate manufacturing, ingeniously combatting part deflection arising from intense cutting forces, thus elevating the quality of the final product to new heights.
| Category | Items | Specification (AK164) |
|---|---|---|
| Mechanic | Control System | FANUC 0i TF-PLUS / SYTENC 22TB |
| Max RPM | Main 10,000 / Sub 8,000 min-1 | |
| Max Turning Diameter | φ16mm | |
| Rapid Traverse Speed | 32m/min | |
| Tools | O.D Tools | 6X [12×12] |
| Cross Driven Tools | 3X [ER16] | |
| Motors | Main Motor | 2.2 / 3.7 KW |
| Sub Motor | 0.55 / 1.1 KW | |
| Dimensions | L×W×H | 1985 × 1321 × 1692 mm |

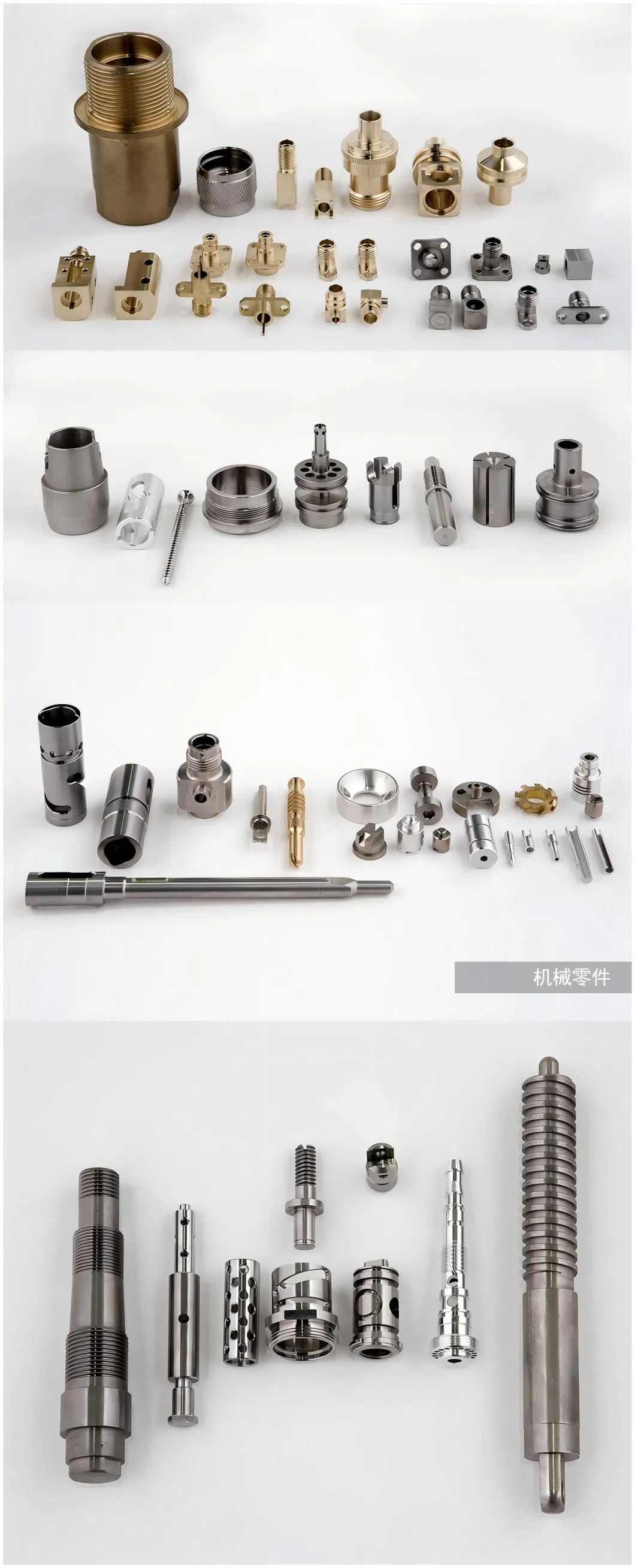

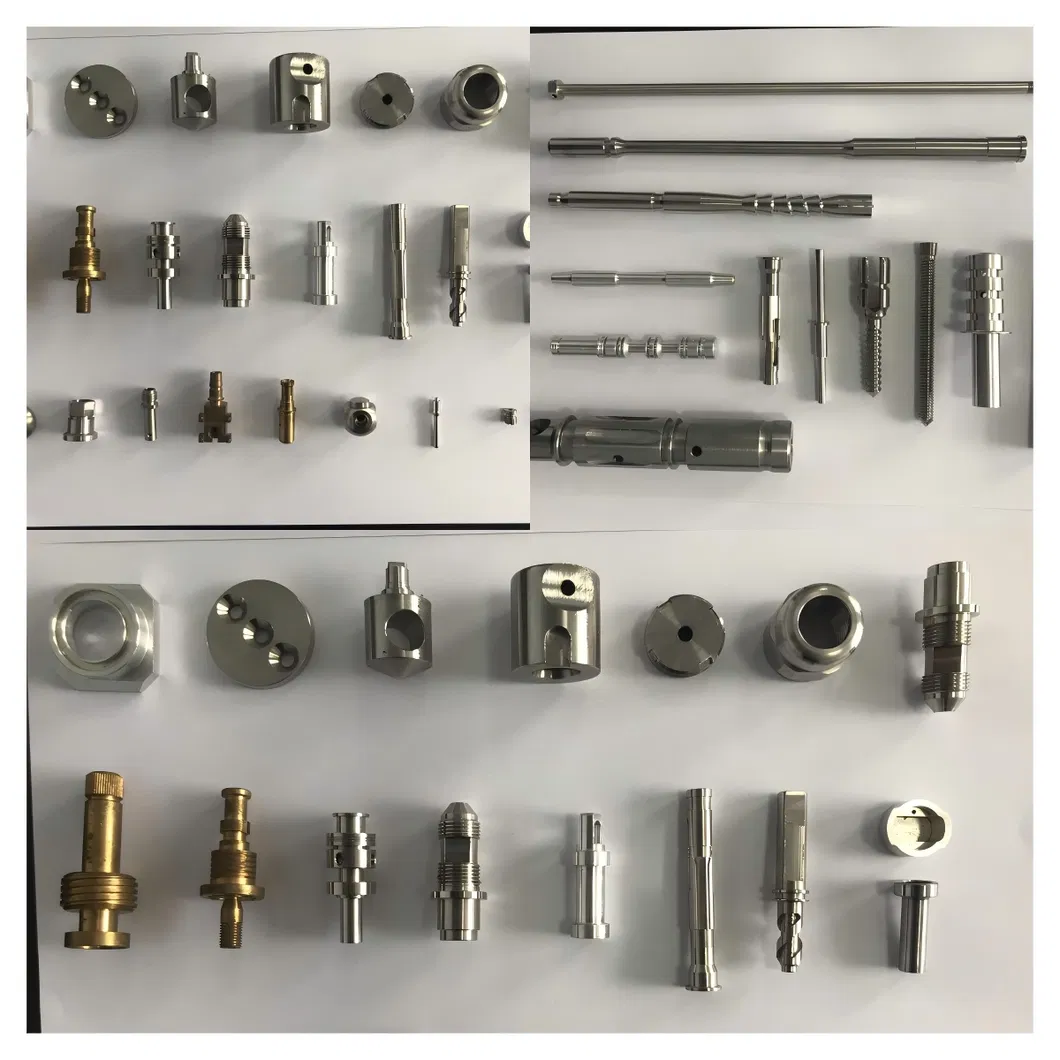

Crucial in shaping vital components from premium materials like aluminum alloys and steel for fans and fasteners.
The backbone of manufacturing finely detailed surgical instruments and implants with stringent precision standards.
Delivers unparalleled precision for connectors, pins, and sophisticated electronic components.
Produces critical parts such as suspension components, engine elements, and carburetor covers.
