🛠️ Product Description

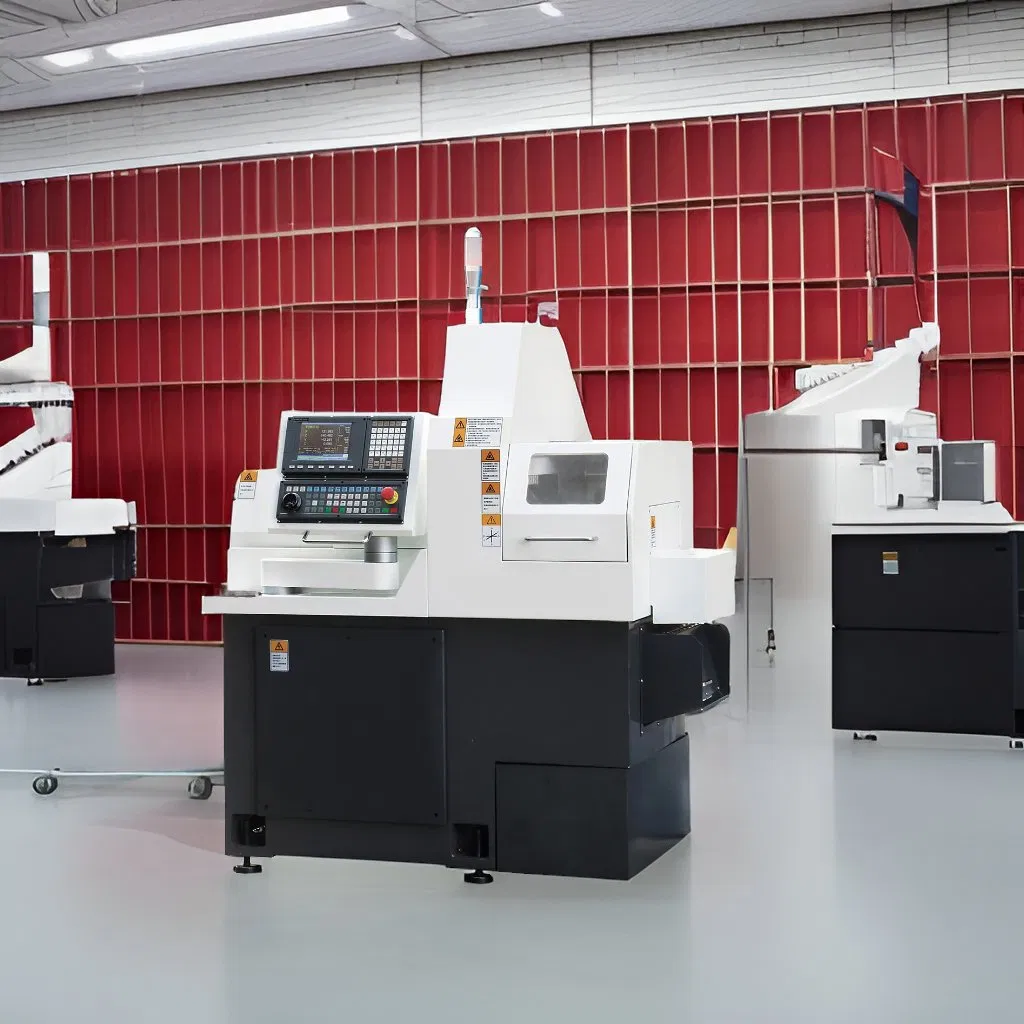

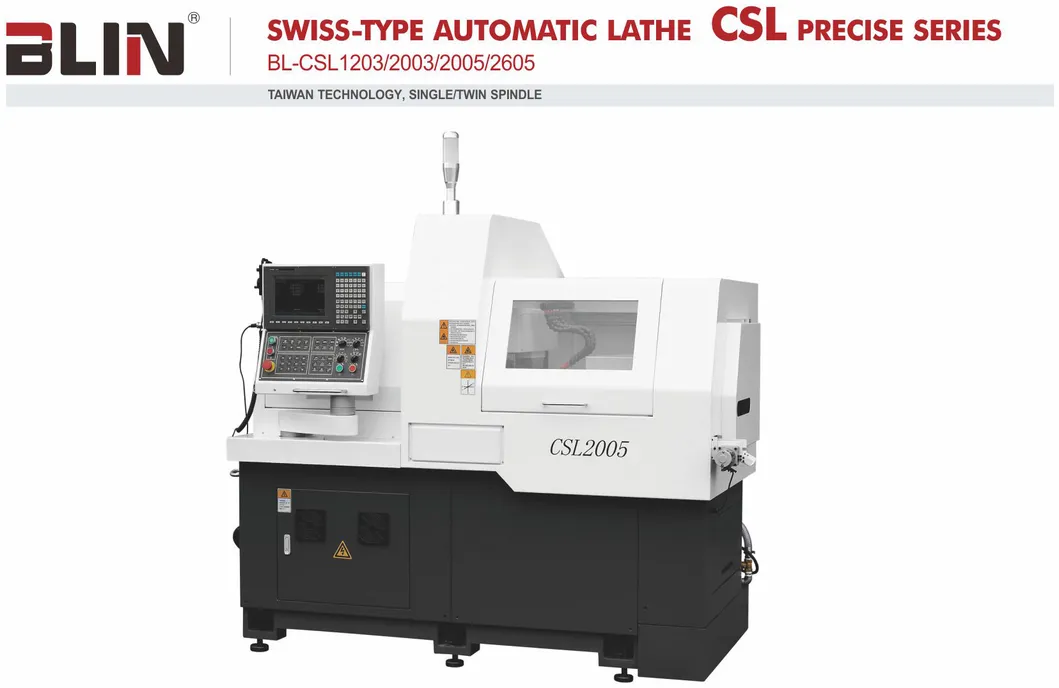

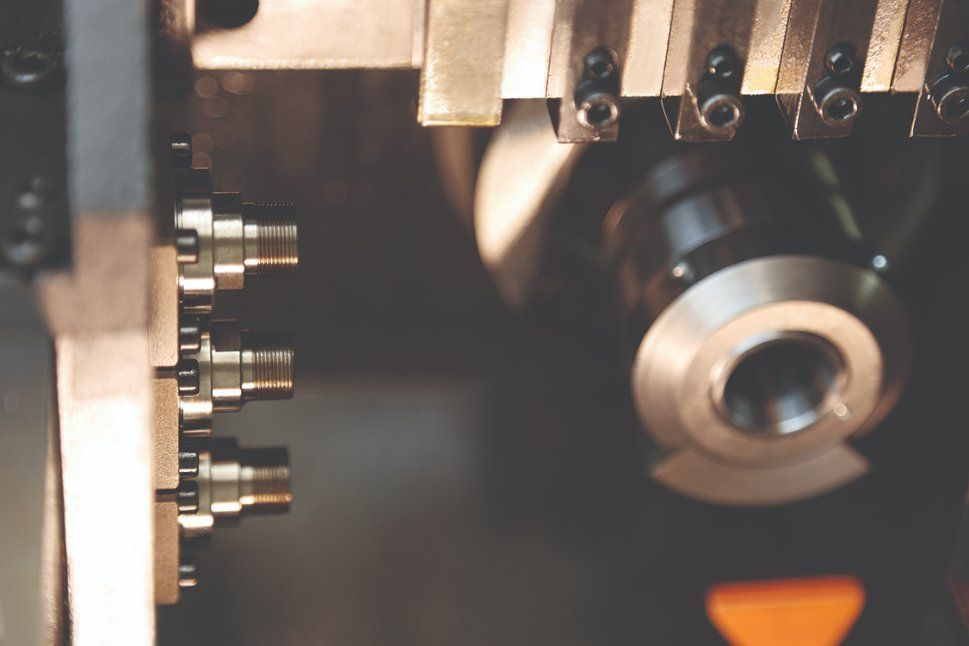

Swiss Type Automatical Lathe (BL-CSL123/203)
- Single spindle, total 3 axes
- Adopt TAIWAN technology, most parts adopt GERMANY/JAPAN/TAIWAN brand
- Adopt meehanite resin sand cast iron, after aging treatment, small distortion, good heat stability and high rigidity
- Adopt high precision built-in electro-spindle, NSK super high precise angle contact ball bearing, achieve spindle's high rigidity and good precision retention, spindle flop ≤2μm
- Adopt TAIWAN HIWIN brand high precision ball screw and linear guideway

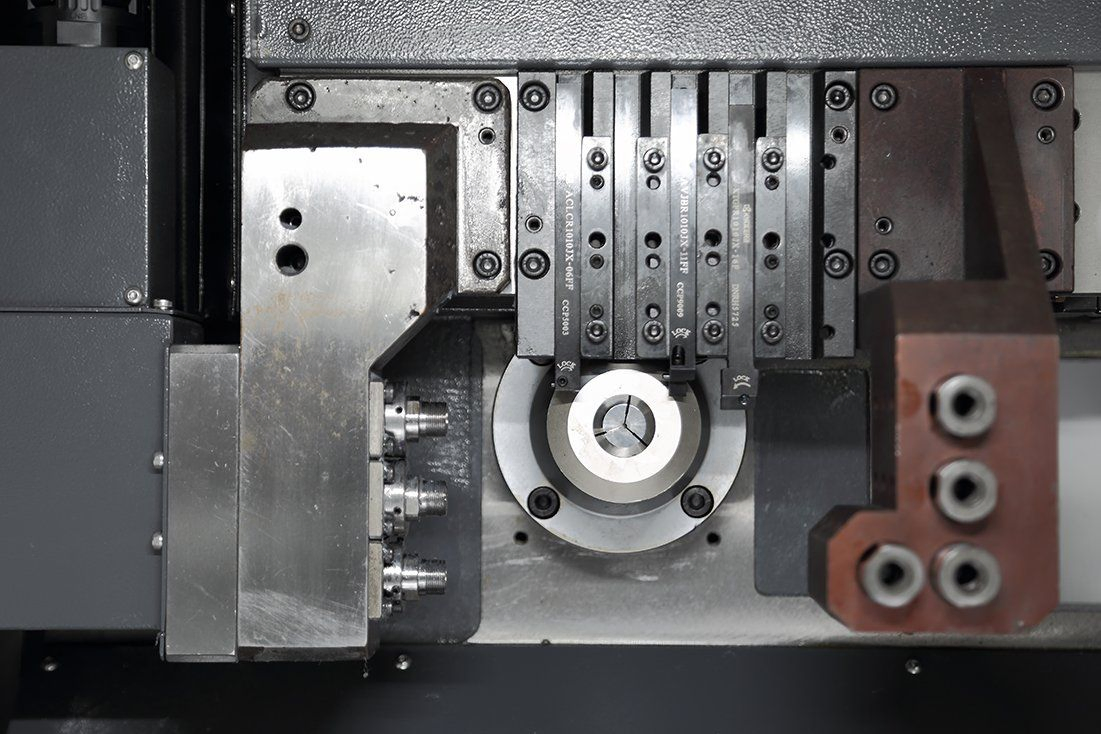

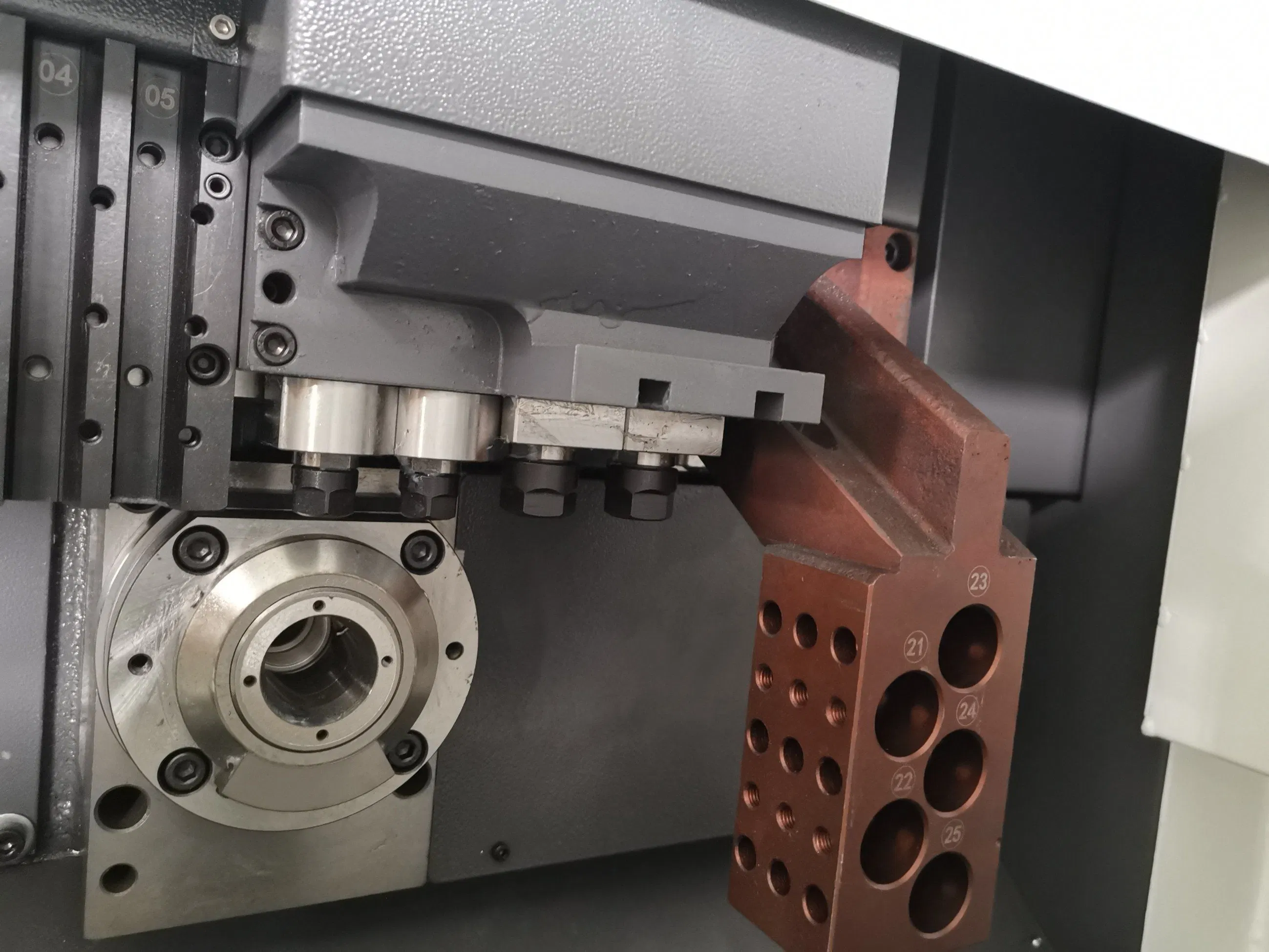

- Adopt gang type tool, can achieve turning/milling/drilling etc combined machining by side-mounted live tool and C axes
- After mount automatic bar feeder, can realize automatic machining
- Suitable for complex, small-sized, precise, slender axles workpiece machining
📊 Technical Specifications
| Item |
Unit |
BL-CSL123 |
BL-CSL203 |
| Max. machineable bar dia. | mm | Φ12 | Φ20 (opt:25) |
| Main spindle bore | mm | Φ16 | Φ25 (opt:27) |
| Max. machineable length (Fixed) | mm | 140 | 200 |
| Max. face drilling dia. | mm | Φ7 | Φ10 |
| Main spindle max. speed | rpm | 6000 | 8000 |
| Main spindle motor | kw | 2.2 | 4.2 |
| Spindle flopping | mm | ≤0.002 | ≤0.002 |
| Repeat positioning accuracy | mm | ≤0.003 | ≤0.003 |
| O.D. tool | mm | 5 pos 10*10 | 5 pos 12*12 |
| Overall size | mm | 1510×1000×1660 | 1600×1250×1760 |
⚙️ Main Parts & Configuration
| Component |
Brand Source |
| CNC controller | TAIWAN-SYNTEC |
| Servo motor & driver | TAIWAN-SYNTEC |
| Spindle bearing | JAPAN-NSK P4 class |
| Ball screw / Linear guideway | TAIWAN-HIWIN |
| Lubrication system | JAPAN-HERG |
| Main electricity parts | FRANCE-SCHNEIDER |
| Pneumatic parts | TAIWAN-AIRTAC |
| Shaft coupling | GERMANY-KTR |
Standard Configuration:
- SYNTEC 22TB CNC controller
- Single spindle
- Parts catcher (without convey belt)
Optional Configuration:
- High pressure coolant system
- Oil mist collection system
- Automatic chip conveyor
- Automatic bar feeder
🖼️ Gallery & Series
❓ Frequently Asked Questions
1. What are the main applications for the BL-CSL series?
These Swiss-type automated lathes are specifically designed for high-precision machining of small-sized, complex, and slender metal axle workpieces.
2. What type of CNC controller does this machine use?
The standard configuration features the reliable TAIWAN-SYNTEC 22TB CNC controller for precise operation and movement control.
3. How precise is the spindle performance?
The machine adopts a high-precision built-in electro-spindle with NSK bearings, ensuring a spindle flop of ≤2μm and repeat positioning accuracy of ≤0.003mm.
4. Can this lathe perform multi-process machining?
Yes, by utilizing the gang-type tool system with side-mounted live tools and C-axis control, it can perform combined turning, milling, and drilling operations.
5. Is it possible to upgrade for fully automated production?
Absolutely. By adding an optional automatic bar feeder and chip conveyor, the BL-CSL series can achieve high-efficiency automated machining.
6. What is the difference between BL-CSL123 and BL-CSL203?
The main difference lies in the processing capacity; the 123 model handles up to 12mm bar diameters, while the 203 model handles up to 20mm (optionally 25mm) with a higher spindle speed.
