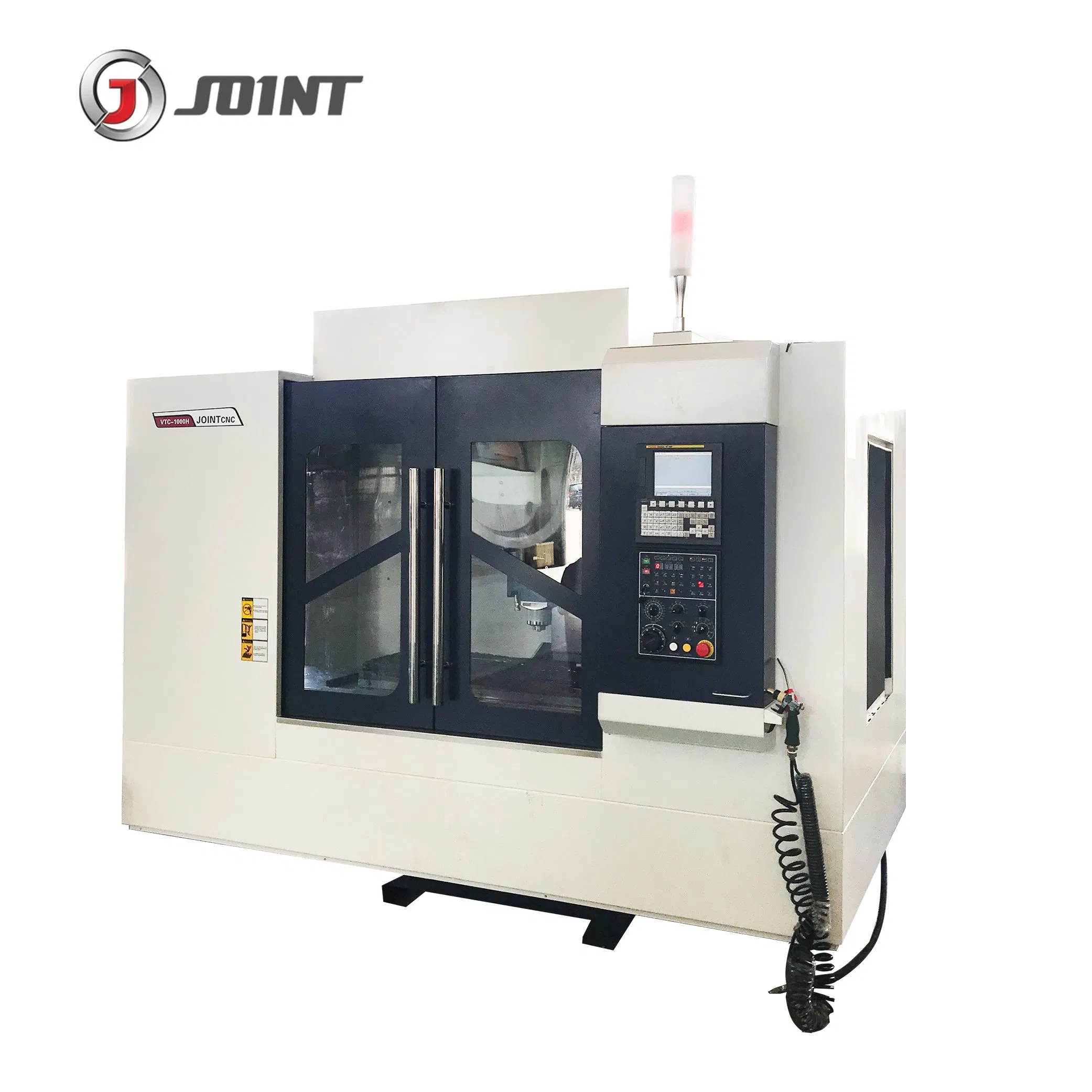

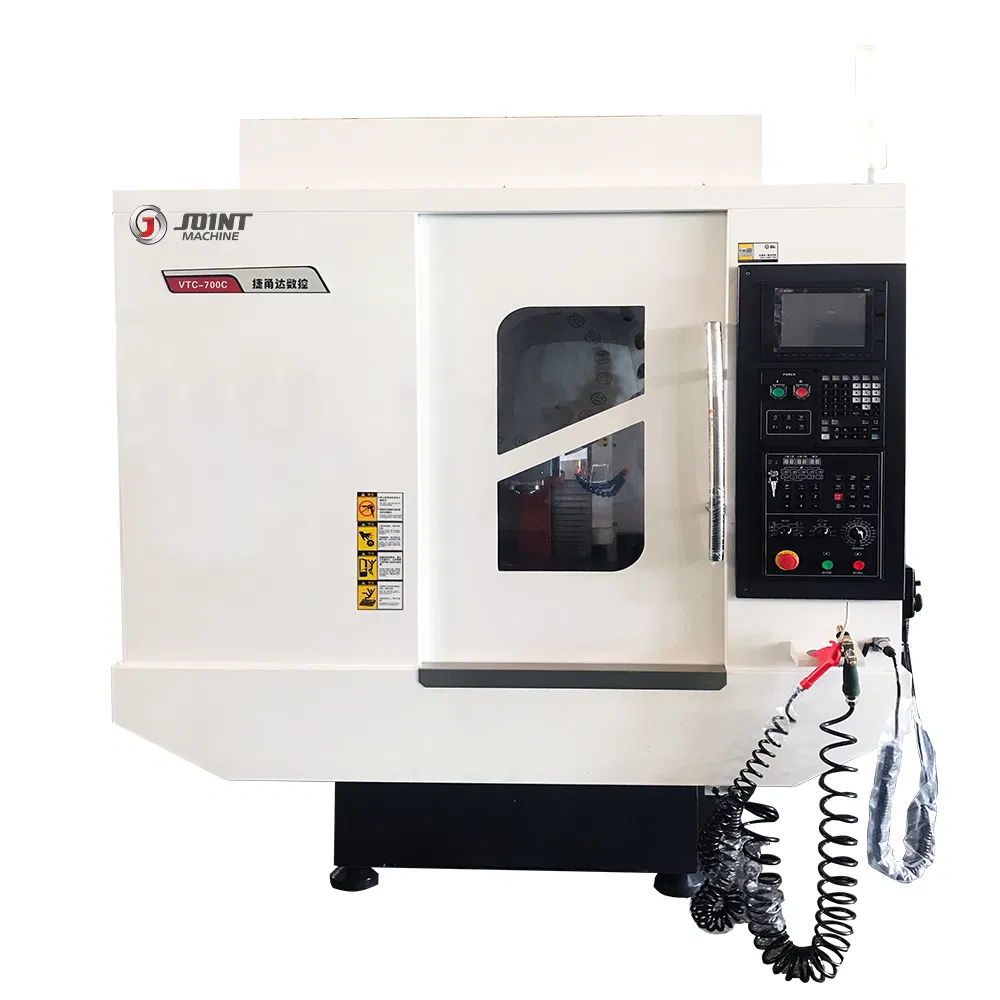

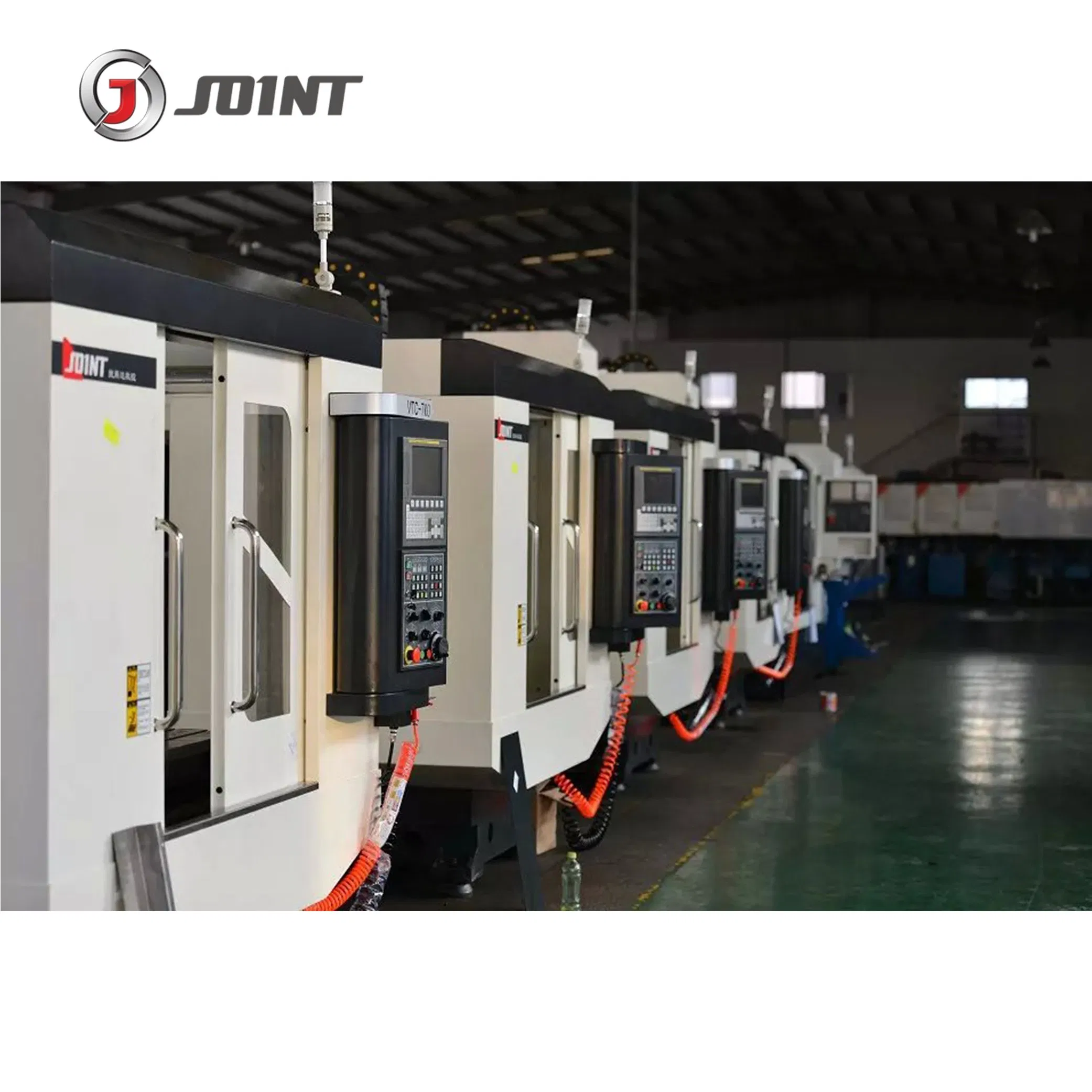

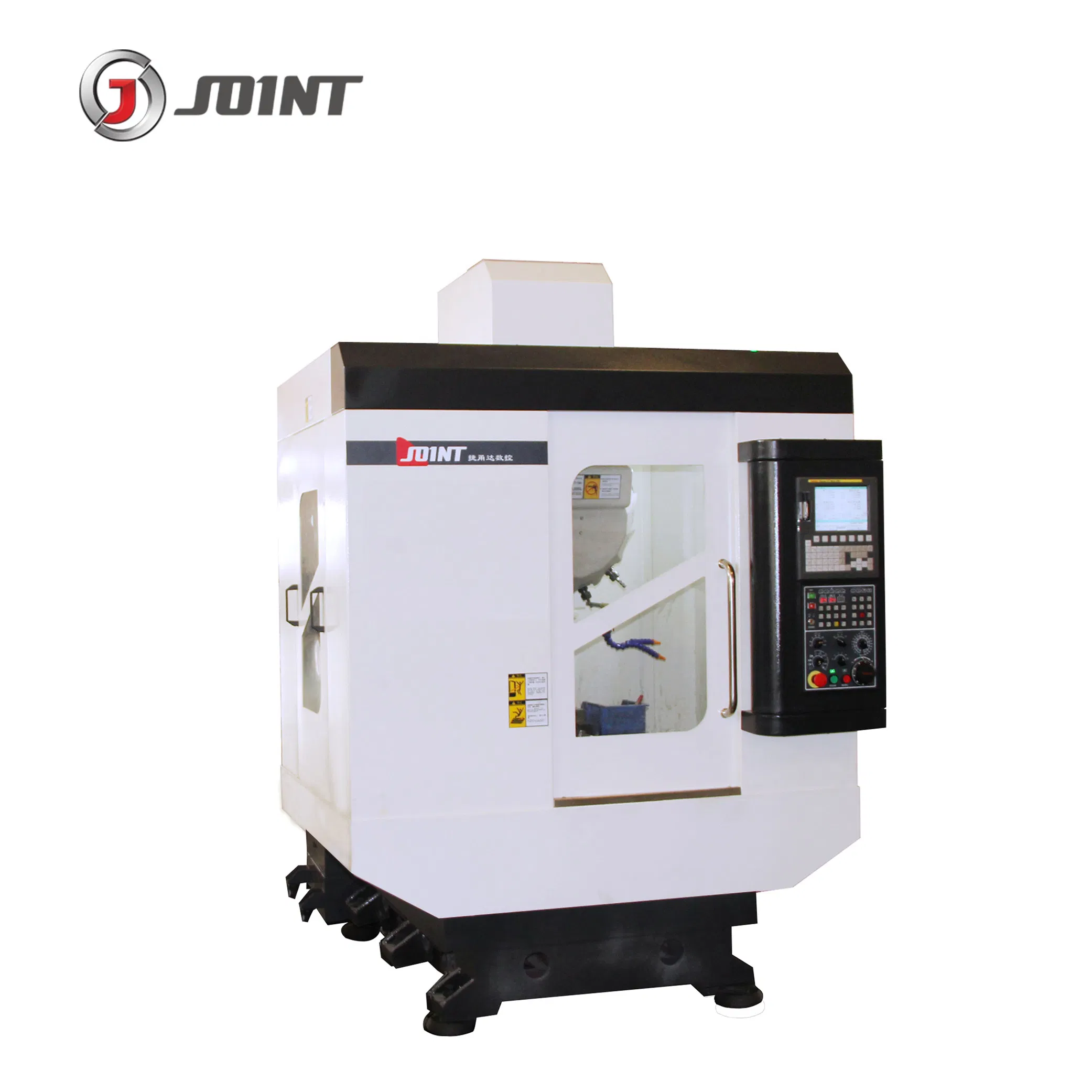

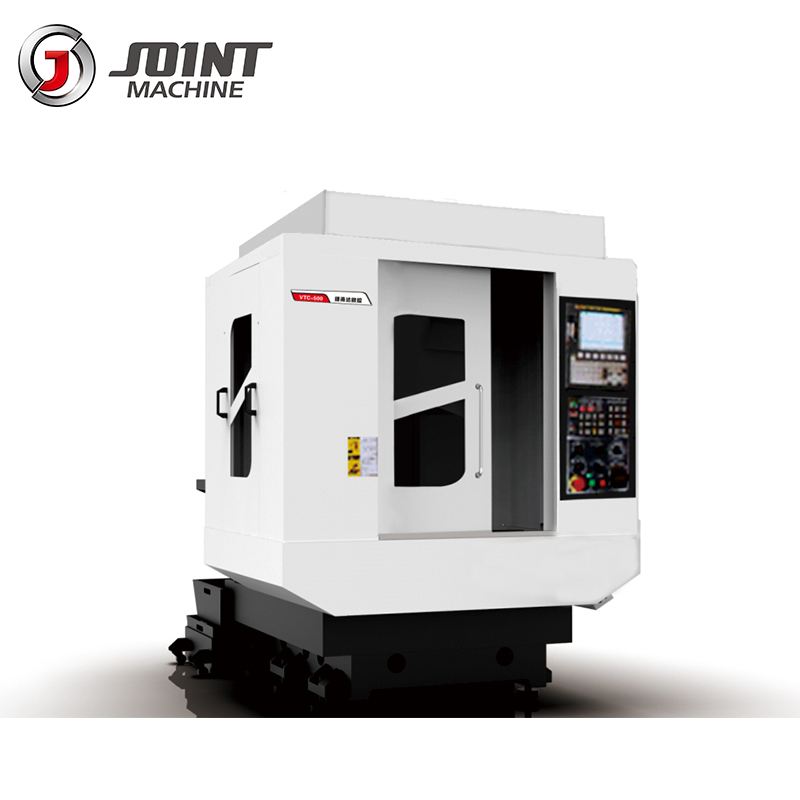

Speedcn 4 Axis Vertical Drilling Tapping Machine CNC Cutting Tools
Speedcn 4 Axis Vertical Drilling Tapping Machine CNC Cutting Tools
Speedcn 4 Axis Vertical Drilling Tapping Machine CNC Cutting Tools
Speedcn 4 Axis Vertical Drilling Tapping Machine CNC Cutting Tools
Speedcn 4 Axis Vertical Drilling Tapping Machine CNC Cutting Tools
1 / 5
Speedcn 4 Axis Vertical Drilling Tapping Machine CNC Cutting Tools
Speedcn 4 Axis Vertical Drilling Tapping Machine CNC Cutting Tools
Speedcn 4 Axis Vertical Drilling Tapping Machine CNC Cutting Tools
Speedcn 4 Axis Vertical Drilling Tapping Machine CNC Cutting Tools
Speedcn 4 Axis Vertical Drilling Tapping Machine CNC Cutting Tools

Speedcn 4 Axis Vertical Drilling Tapping Machine CNC Cutting Tools

After-sales Service: Online After-Sales Service
Warranty: One Year
Application: Metal
Send Inquiry

Product Description

ℹ Basic Specifications
Model NO.
VTC-700C
Numerical Control
CNC/MNC
Working Table Size
1000*500mm
X Axis Travel
800mm
Y Axis Travel
500mm
Z Axis Travel
330mm
Spindle Rotation Speed
20000rpm
Processing Precision
0.05~0.06(mm)
Spindle Motor Rate
3.7kw
Rapid Feed (X/Y/Z)
48m/Min
Positioning Accuracy
0.005mm/M
Certification
ISO 9001
★ Product Characteristics
  • Three axes utilize linear guiding pairs with rapid feed speeds up to 60m/min.
  • Enhanced structural rigidity allows for drilling and low-strength milling of aluminum parts.
  • Key components (bearings, spindle, ball screw, guideways) adopt top-tier brands from Germany, Japan, and Taiwan.
  • Modular configuration options: 10000-20000rpm spindle, 16T or 21T tool magazines.
  • Designed for porous precision small parts with high-speed processing and swift tool changes.
  • Advanced technical support and application data optimization for outstanding performance.
⚙ Industrial Applications
Handphone shell processing
Handphone shell
Mechanical part processing
Mechanical part
Digital camera part processing
Digital camera part
📋 Technical Specifications
Item Unit Parameters
X/Y/Z axis travelmm800 / 500 / 330
Working table sizemm1000 * 500
Max load of working tableKG350
Spindle Rotation speed ranger/min40-20000
Spindle motor rateKW3.7 / 3.7
Cutting feedm/min15
Rapid movement speed (X,Y,Z)m/min48 / 48 / 48
Positioning accuracymm0.005
Machine Dimensionmm2330 * 1930 * 2250
Total machine weightKG3800
🔍 Product Details

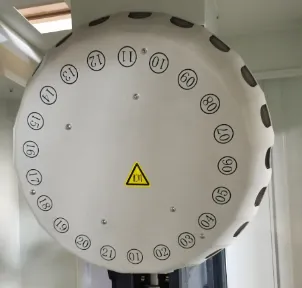

CNC Detail 1

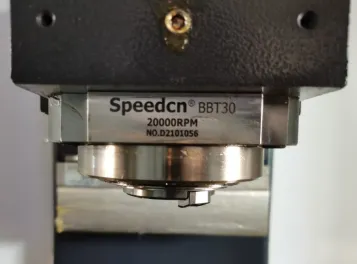

CNC Detail 2
🛠 Accessories
Standard Accessories
  • Fanuc/ Mitsubishi control system
  • Three axes Rexroth linear guideway
  • 21T servo tool magazine
  • Spindle oil cooler & Heat exchange
  • Auto lubrication & Cooling system
  • Pneumatic system & Clean air/water gun
Optional Accessories
  • Chain type auto chip conveyor
  • 4th axis rotary table
📦 Packaging & Delivery
Package Size
235.00cm * 195.00cm * 225.00cm
Gross Weight
3800.00kg
Packaging view 1
Packaging view 2

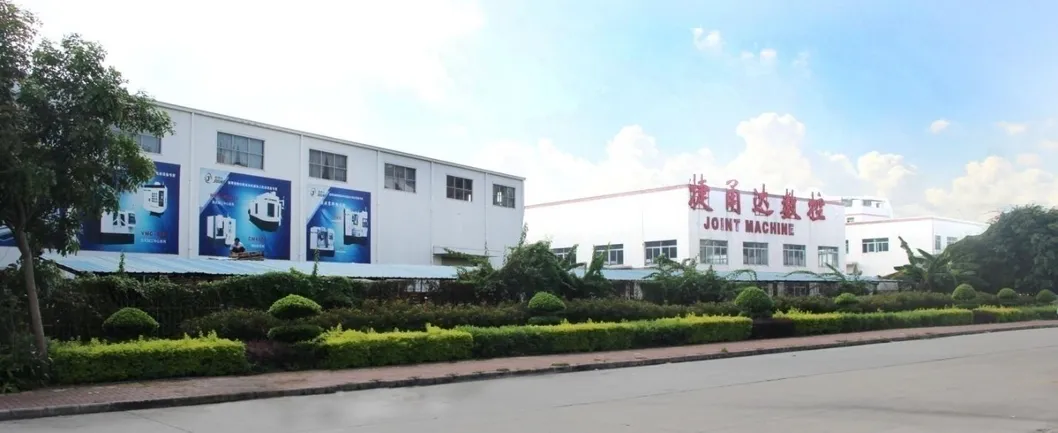

Process flow
Machine assembly

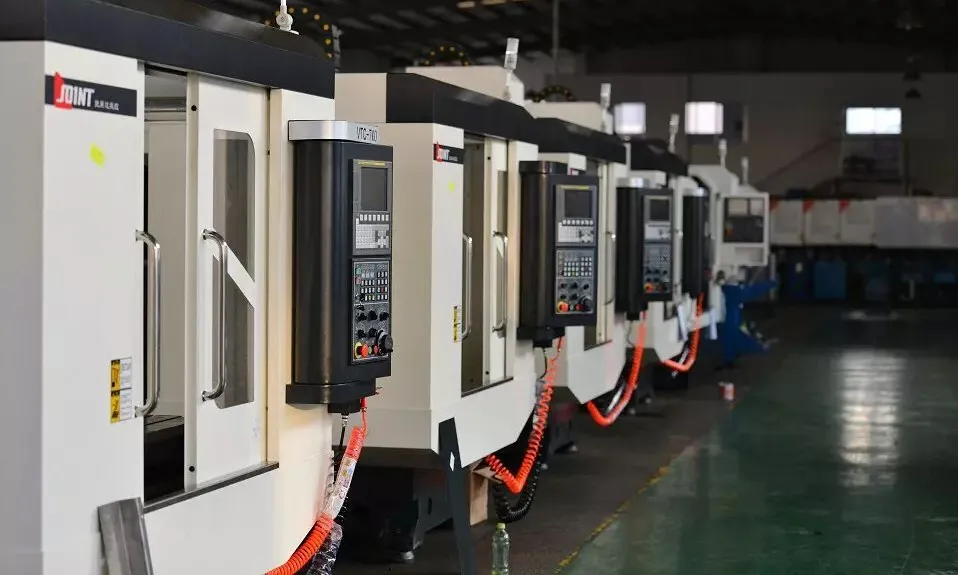

Workshop
Quality control
❓ Frequently Asked Questions
What is the maximum spindle speed of the VTC-700C?
The machine features a high-speed spindle capable of reaching up to 20,000 rpm, ideal for precision drilling and tapping.
Which control systems are compatible with this machine?
Standard configurations support industry-leading Fanuc and Mitsubishi control systems for high reliability and ease of use.
Can this machine be upgraded to 4-axis processing?
Yes, a 4th axis is available as an optional accessory to accommodate more complex machining requirements.
What are the rapid feed rates for the X, Y, and Z axes?
All three axes feature linear guideways providing a rapid feed speed of 48m/min (up to 60m/min depending on specific configuration).
What industries is this machine best suited for?
It is primarily designed for precision small parts machining, such as mobile phone shells, mechanical components, and digital camera parts.
What is the tool magazine capacity?
The machine offers modular options for tool magazines, typically featuring 16T or 21T configurations for efficient tool changes.
