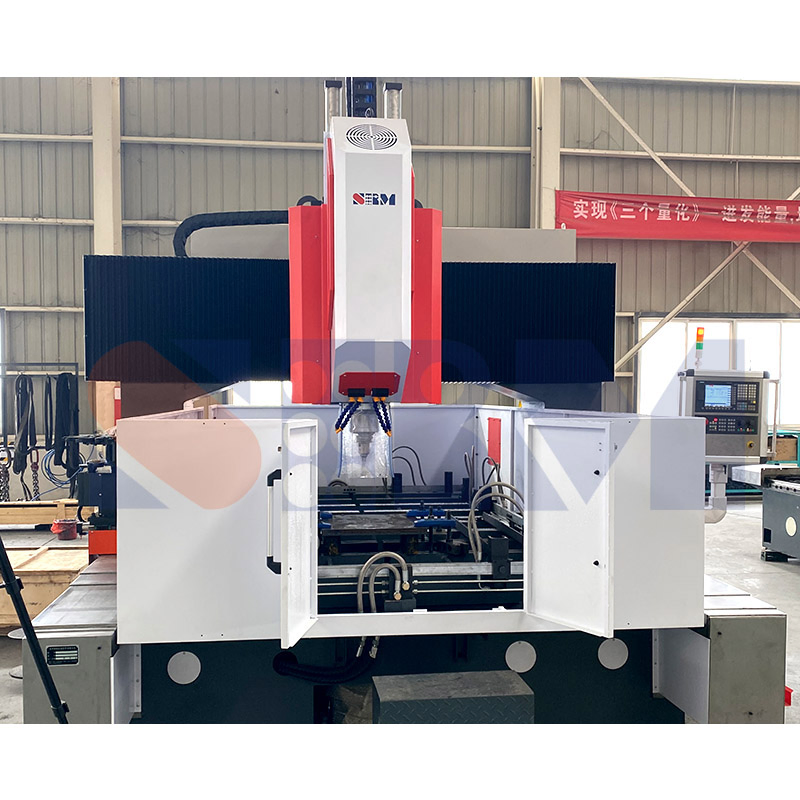

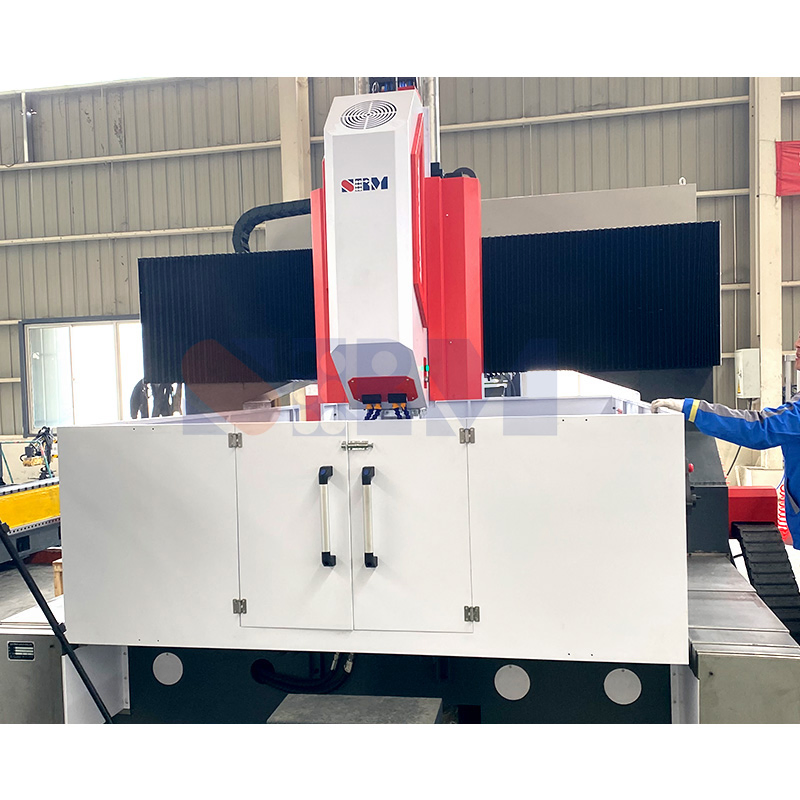

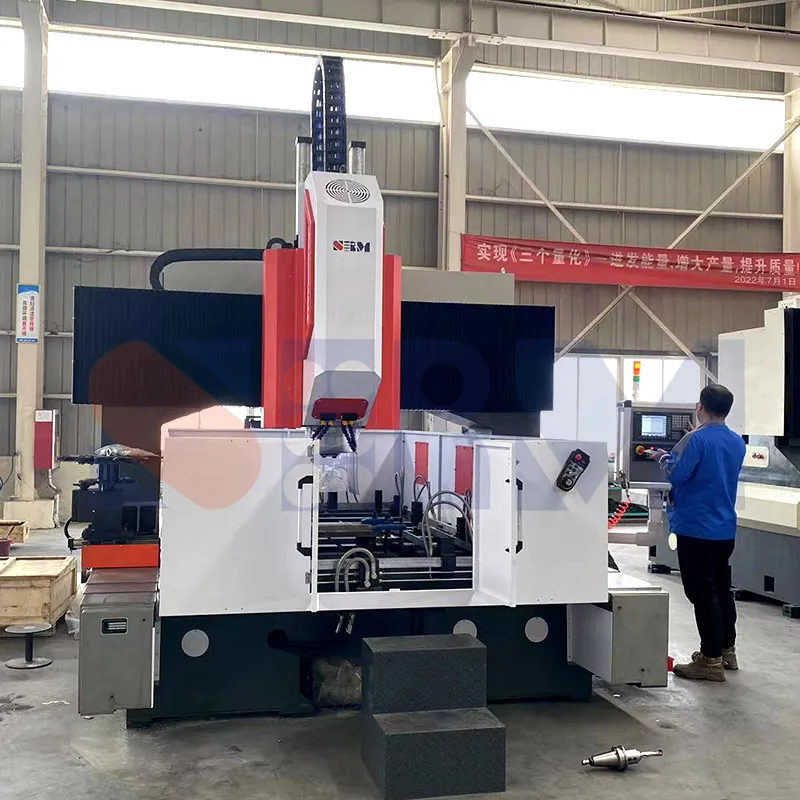

PHD3016 CNC Drilling Machine With Gantry Moveable

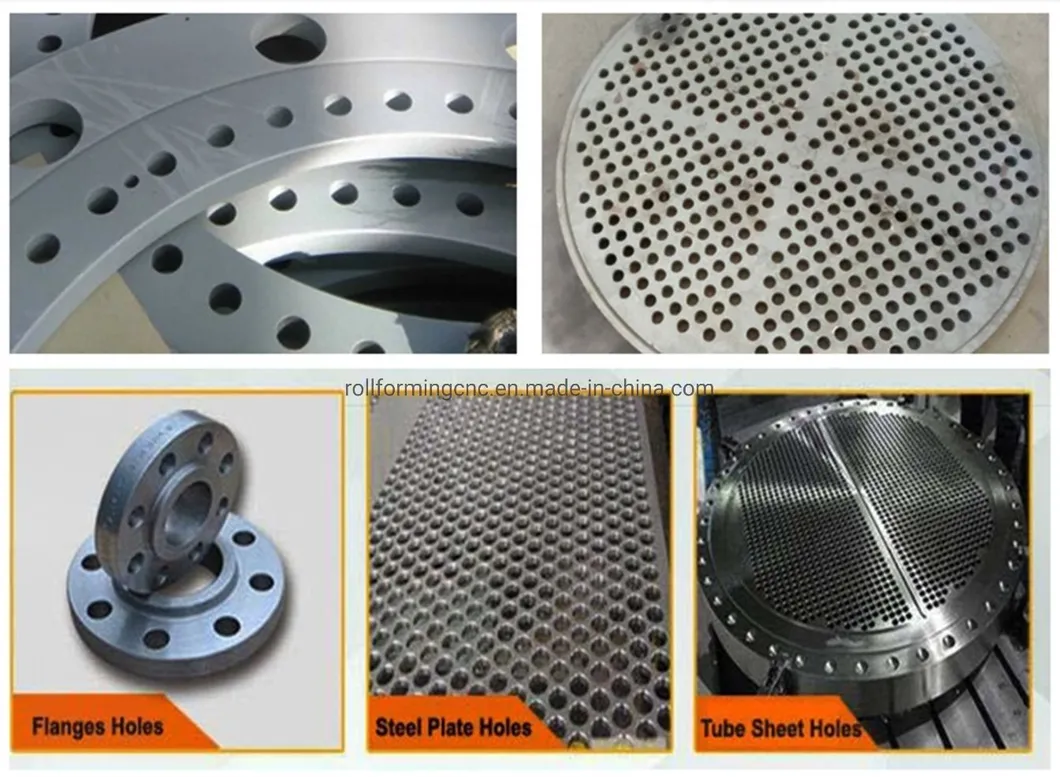

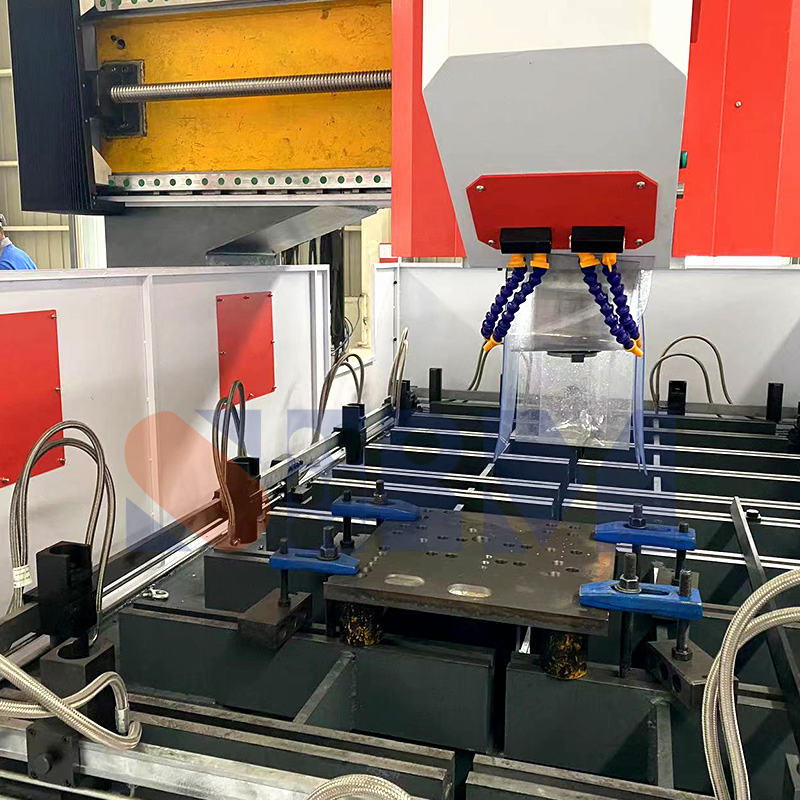

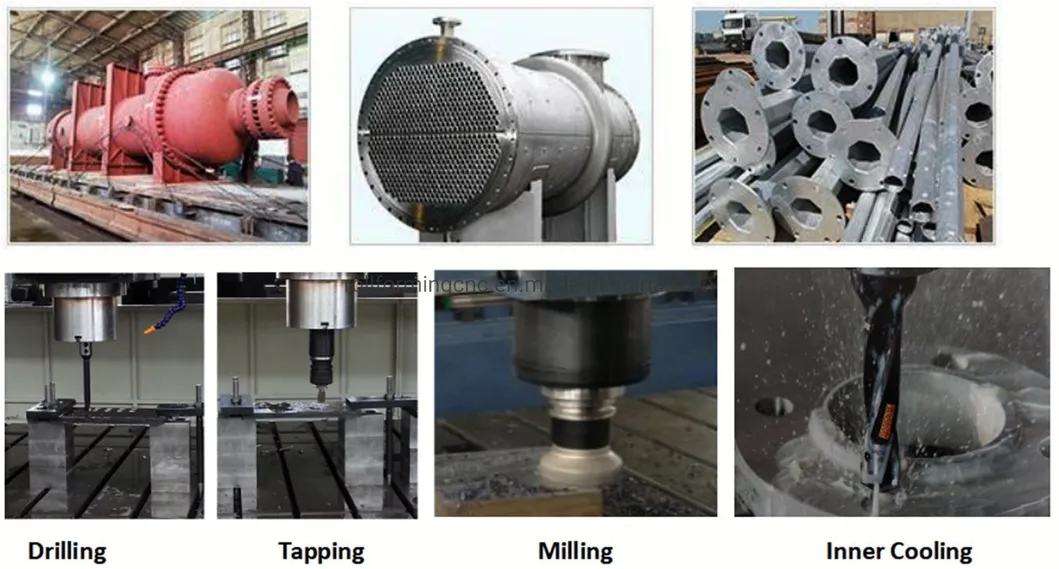

The PHD series is a gantry moving CNC high-speed drilling and milling machine, mainly used for drilling, shaving, chamfering, grooves inside holes and milling of flanges, heat exchangers, tubeplates, rotary supports and other workpieces. It supports internal cold high-speed drilling with hard alloy bits or external cold drilling with high-speed steel twist bits. Achieve drilling depths of up to 10D with special crown bits. The NC process ensures automatic, high-precision mass production.
| Model | PHD1616 | PHD2016 | PHD3016 |
|---|---|---|---|
| Processing Range LxW (mm) | 1600x1600 | 2000x1600 | 3000x1600 |
| Thickness (mm) | 15-300 | ||
| Spindle Model | BT40/BT50 | ||
| Spindle Speed (RPM) | 30-4500 | ||
| Tapping Diameters | M20 | ||
| Spindle Servo Motor | 7.5/11KW | ||
| Positional Accuracy (mm) | 0.1 | ||

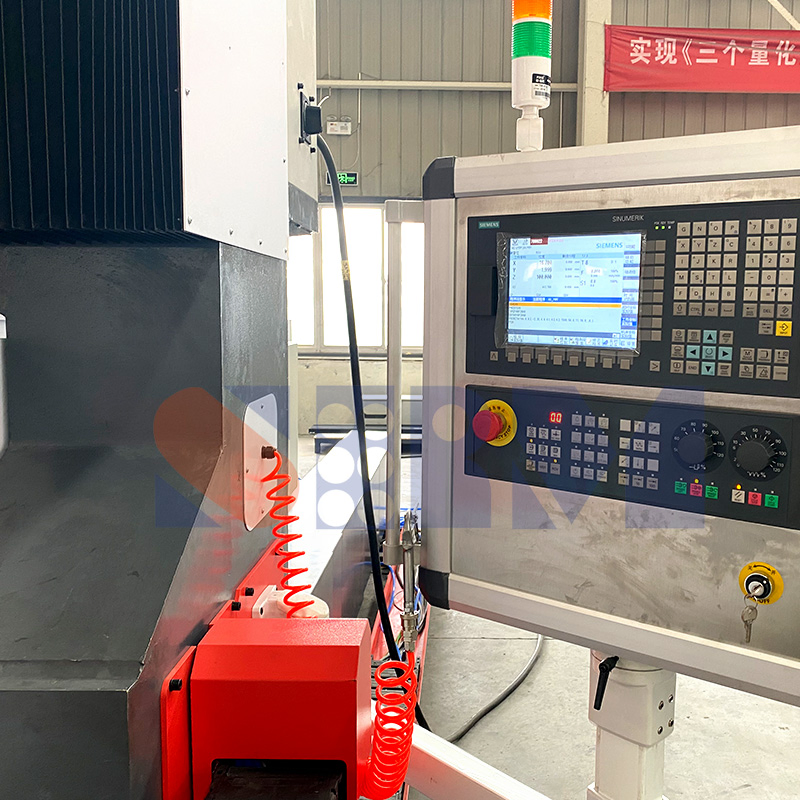

| Control Mode | CNC System / PLC + Upper Computer | ||
