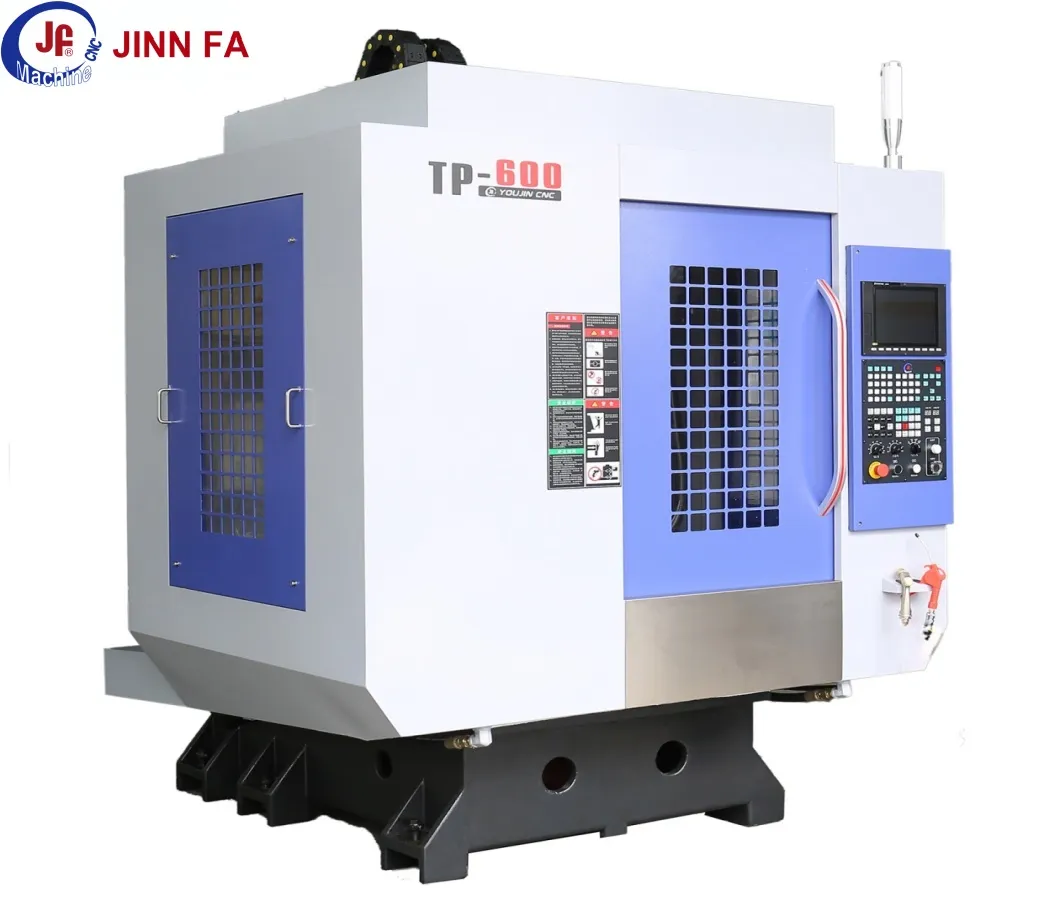

Vertical CNC Drilling and Tapping Center - TP Series
The drilling and tapping machine is characterized by high speed, high precision, high efficiency, and compact structure. It is mainly used for drilling, tapping, milling, and other precision machining processes, widely applied in 3C products, auto parts, hardware, and small metal components.
| Item | TP-600 | TP-700 | TP-800 |
|---|---|---|---|
| X-axis travel | 600mm | 700mm | 800mm |
| Y-axis travel | 400mm | 400mm | 500mm |
| Z-axis travel | 350mm | 350mm | 420mm |
| Table Size | 700x420mm | 800x420mm | 1000x500mm |
| Max Loading | 300kg | 300kg | 350kg |
| Spindle Speed | 20000/24000rpm | 20000/24000rpm | 20000/24000rpm |
| Spindle Motor | 5.5kw | 5.5kw | 5.5kw |
| Rapid Feed | 48000mm/min | 48000mm/min | 48000mm/min |
| Tool Magazine | 21T | 21T | 21T |
| Controller | SYNTEC / MITSUBISHI / FANUC | ||
More cost-effective tool change process utilizing standard axis servos, reducing overall machinery costs.
Simpler moving parts reduce tolerance stack-up, ensuring high accuracy for short-distance movements.

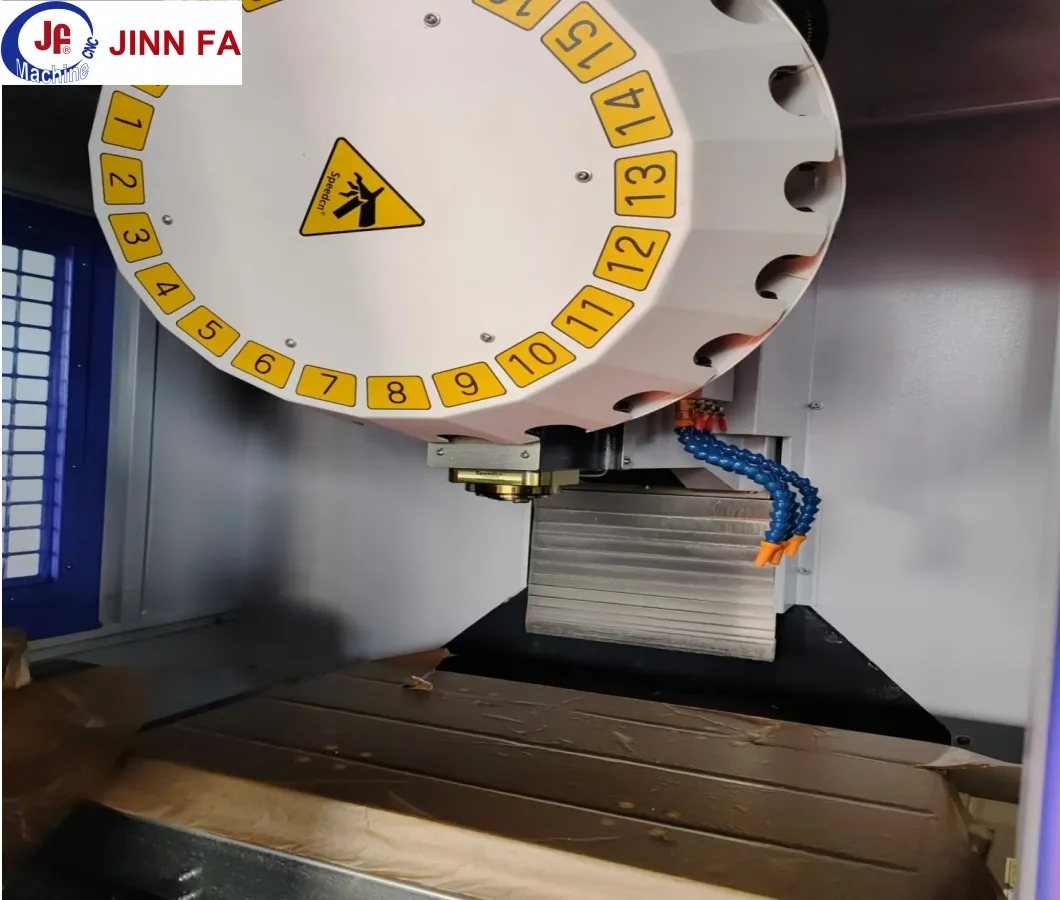

Utilizes slide motion for incredibly fast tool changes, eliminating the need for turret indexing.
Robust design with fewer moving parts leads to a longer lifespan and minimal malfunctions.

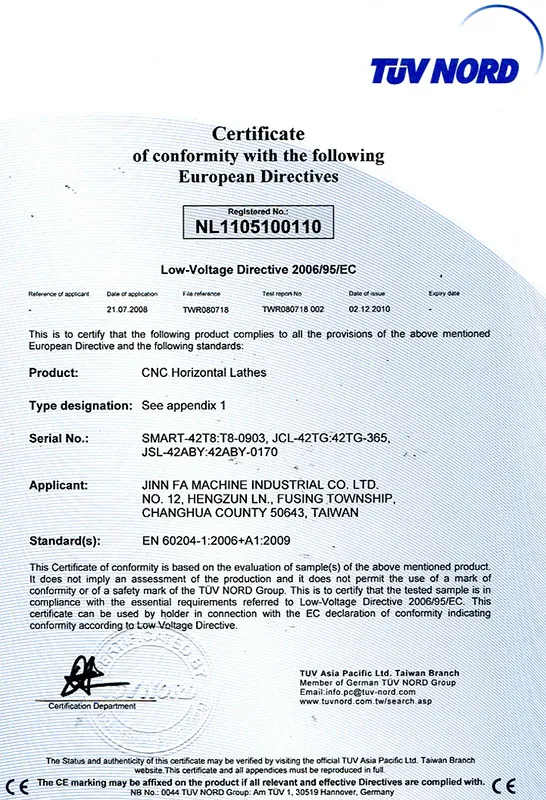

We ensure machine quality meets international standards through rigorous inspection procedures conducted throughout all phases of manufacturing. This commitment to expert workmanship enables us to offer machines that meet strict requirements for performance and reliability.
