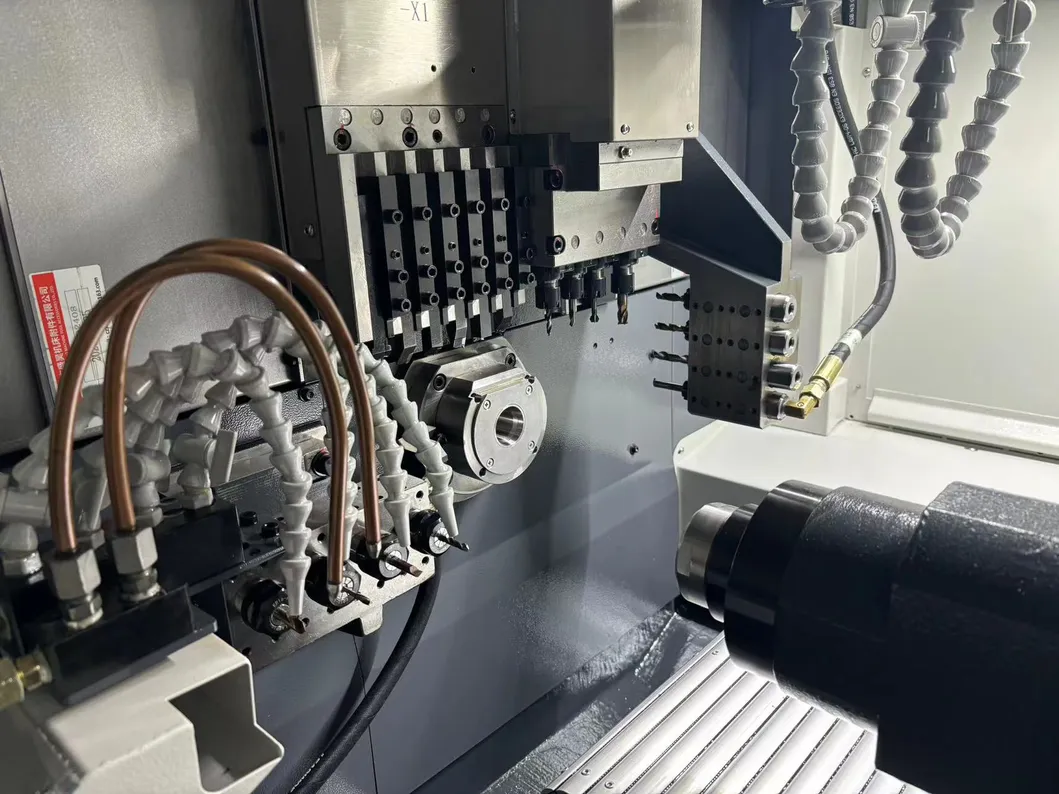

Each axis uses imported high-precision linear guides, ball screws, and precision bearings for superior accuracy.
Switch between guide bush and non-guide bush modes to meet different processing technology requirements.
Key components feature a gas sealing structure for oil and slag prevention, enhancing service life and stability.

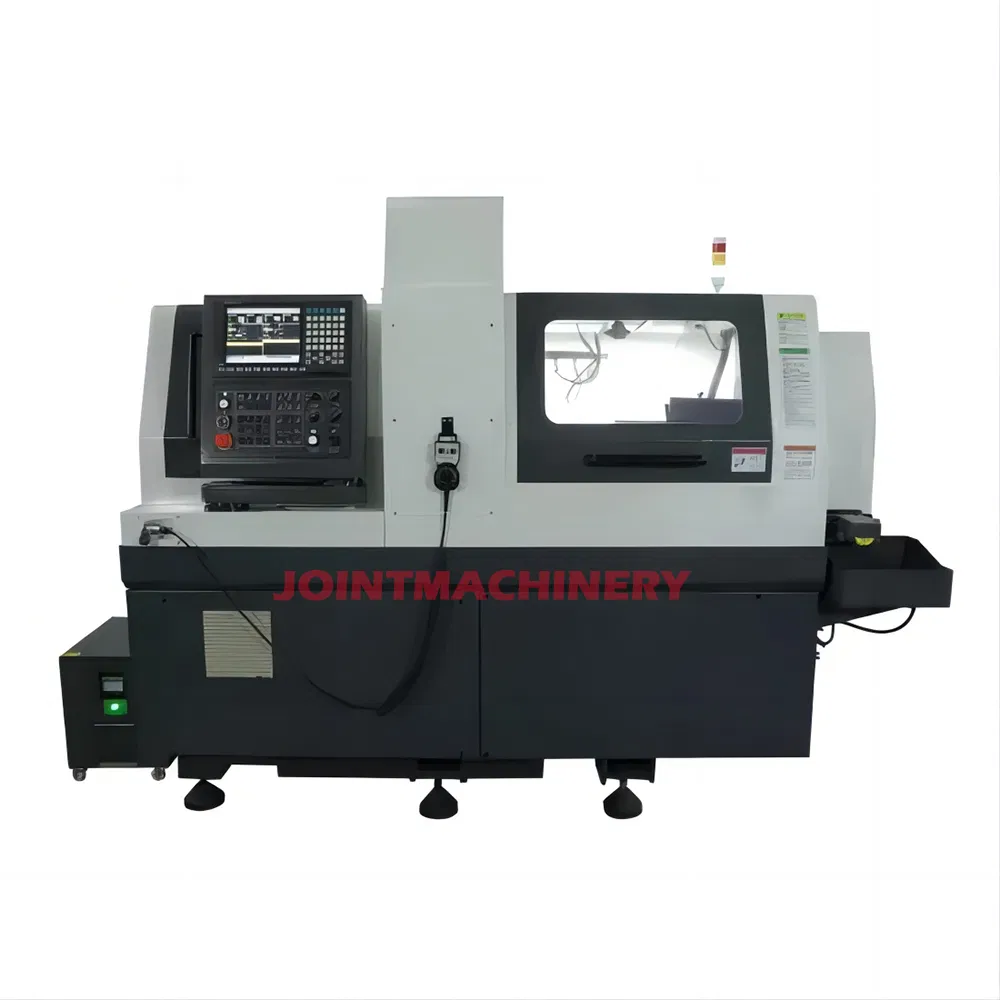

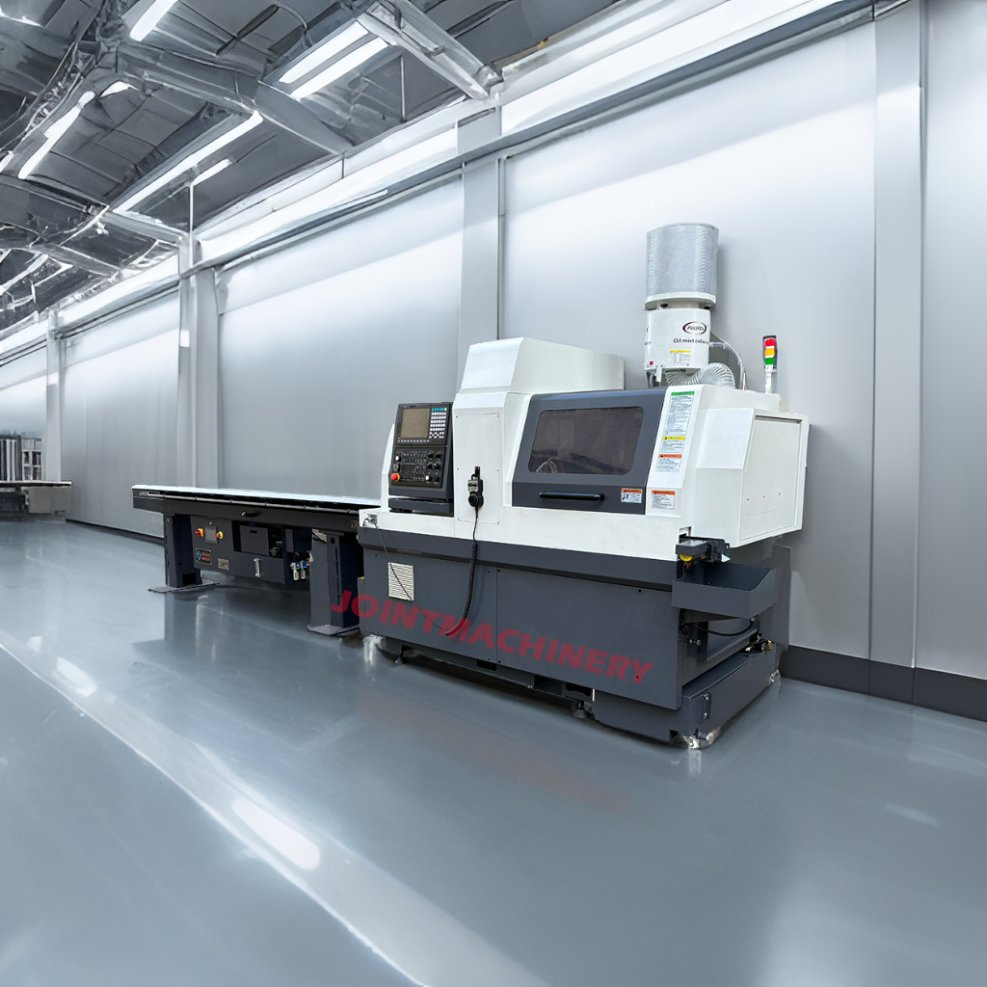

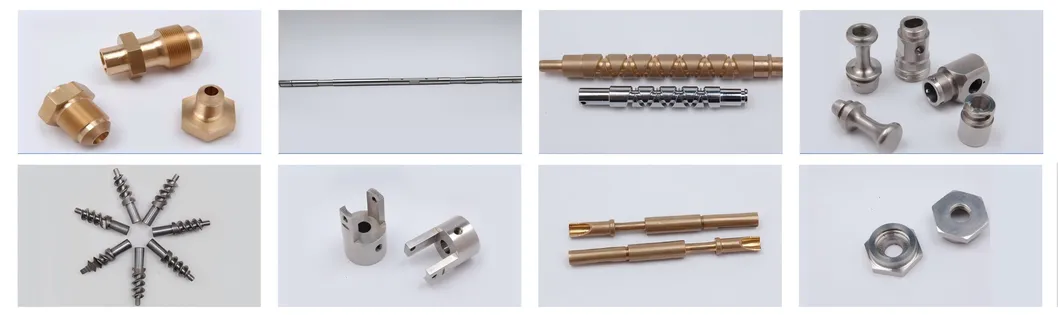

This sophisticated series of machines is designed for precision processing, capable of performing composite tasks like turning, milling, drilling, boring, tapping, and engraving simultaneously. Ideal for batch processing of precision hardware and uniquely shaped non-standard shaft parts.
| Specifications | Unit | SLM265M-3 Parameters |
|---|---|---|
| NC System | - | SYNTEC 220TB |
| Max Machining Diameter | mm | Φ26 |
| Max Machining Length (With Guide Bush) | mm | 310 |
| Max Machining Length (Non Guide Bush) | mm | 2D |
| Main Spindle Power | kw | 4.4 |
| Sub Spindle Power | kw | 3 |
| Main/Sub Spindle Speed | rpm | 6000/6000 |

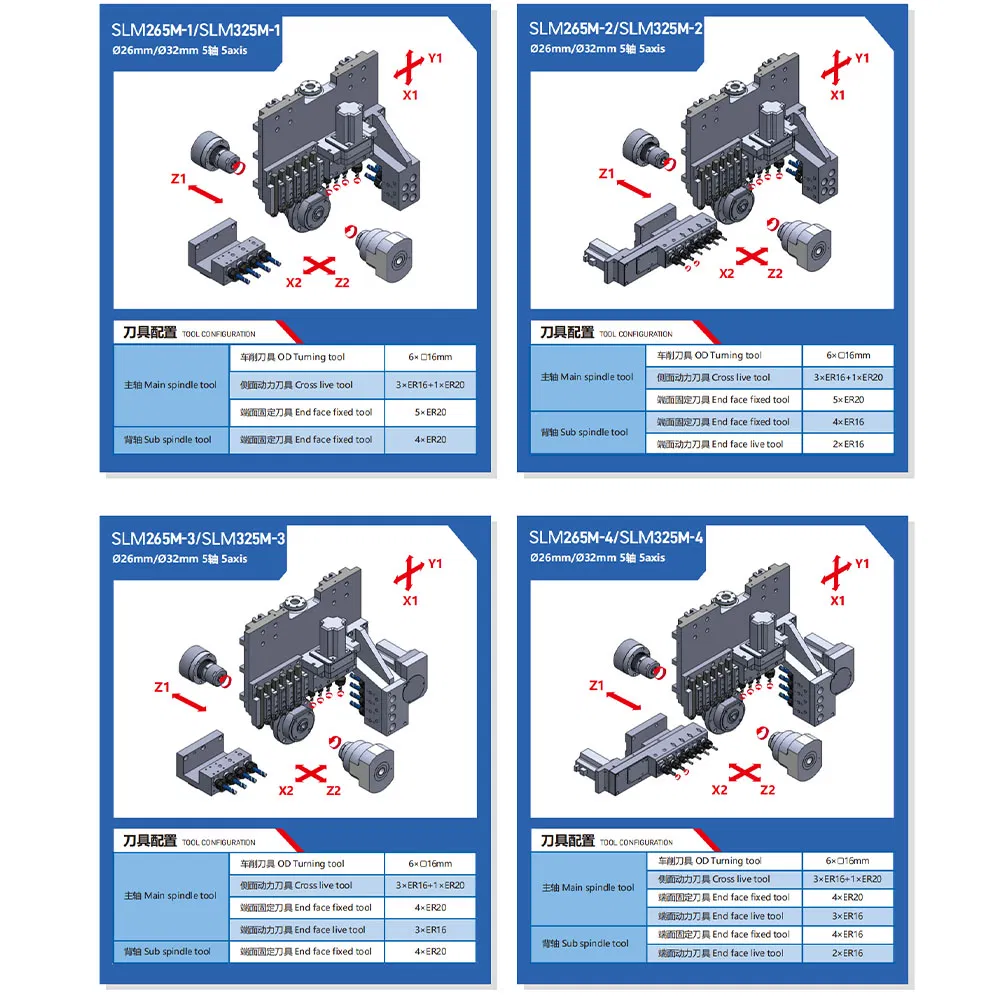

| Max Tool Installed Qty | pcs | 21 |
| Rapid Feed Speed | m/min | 18(X1/Y2) 24(X2/Y1/Z1/Z2) |
| Air Pressure | mpa | 0.6 |

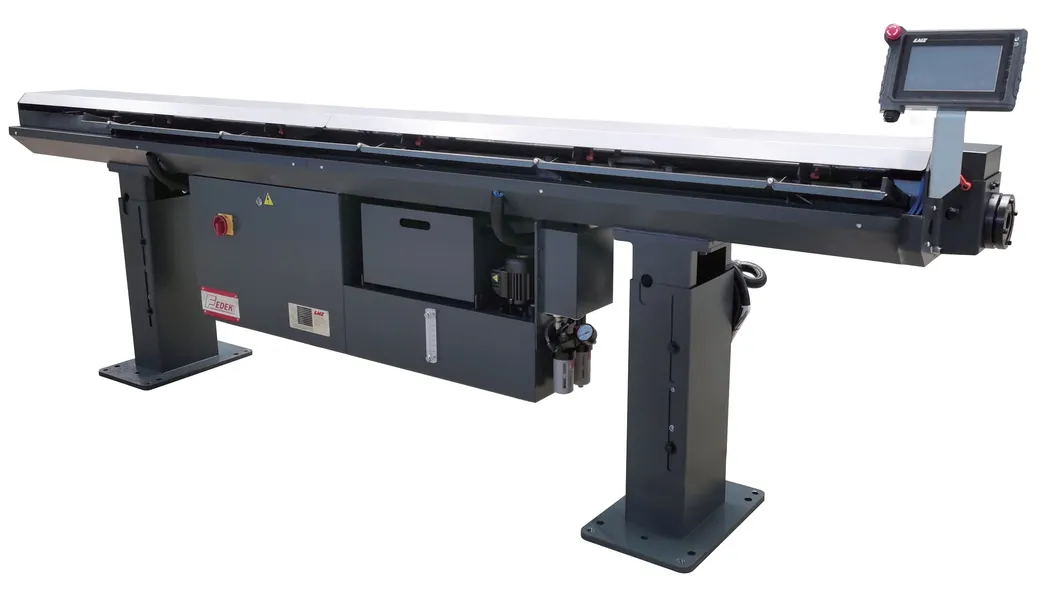

| Parameter | Unit | Specifications |
|---|---|---|
| Diameter Range | mm | Φ3 - Φ26 |
| Magazine Capacity | pcs | Φ5mm * 52pcs |
| Air Pressure | kg/cm² | 5~7 |
| Spindle Height | mm | 900~1200 |
| Headstock Type | - | Fixed / Sliding |
