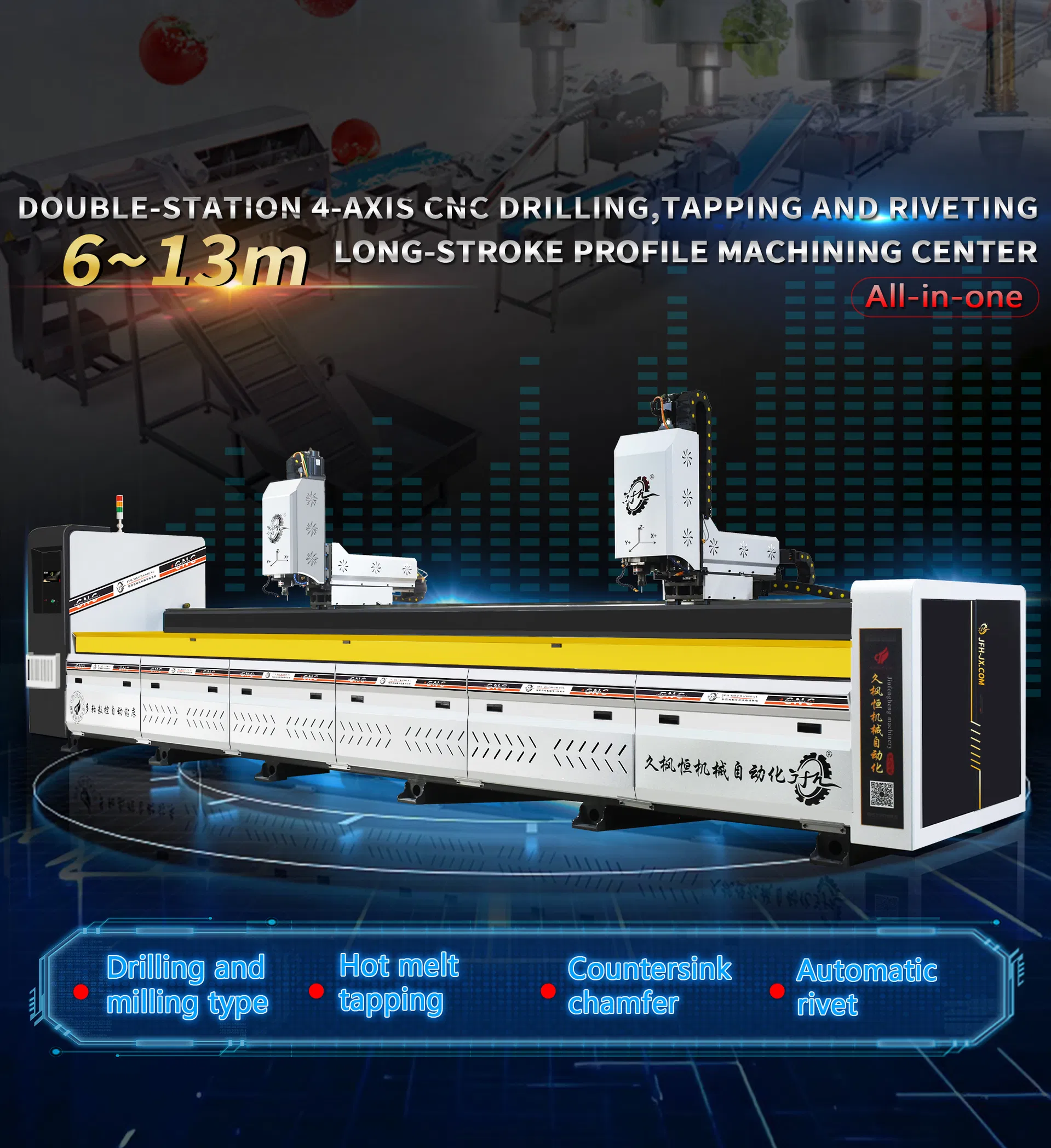

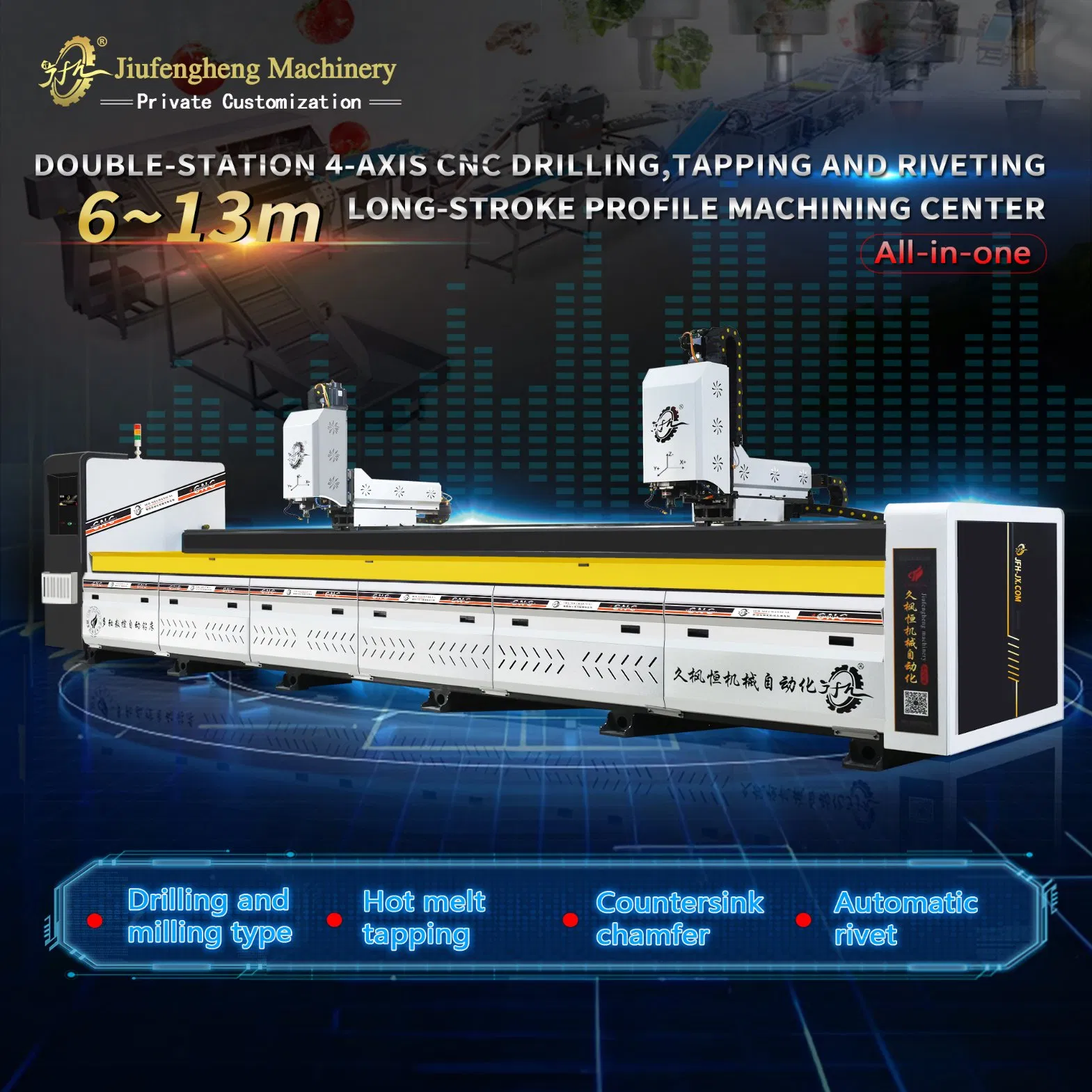

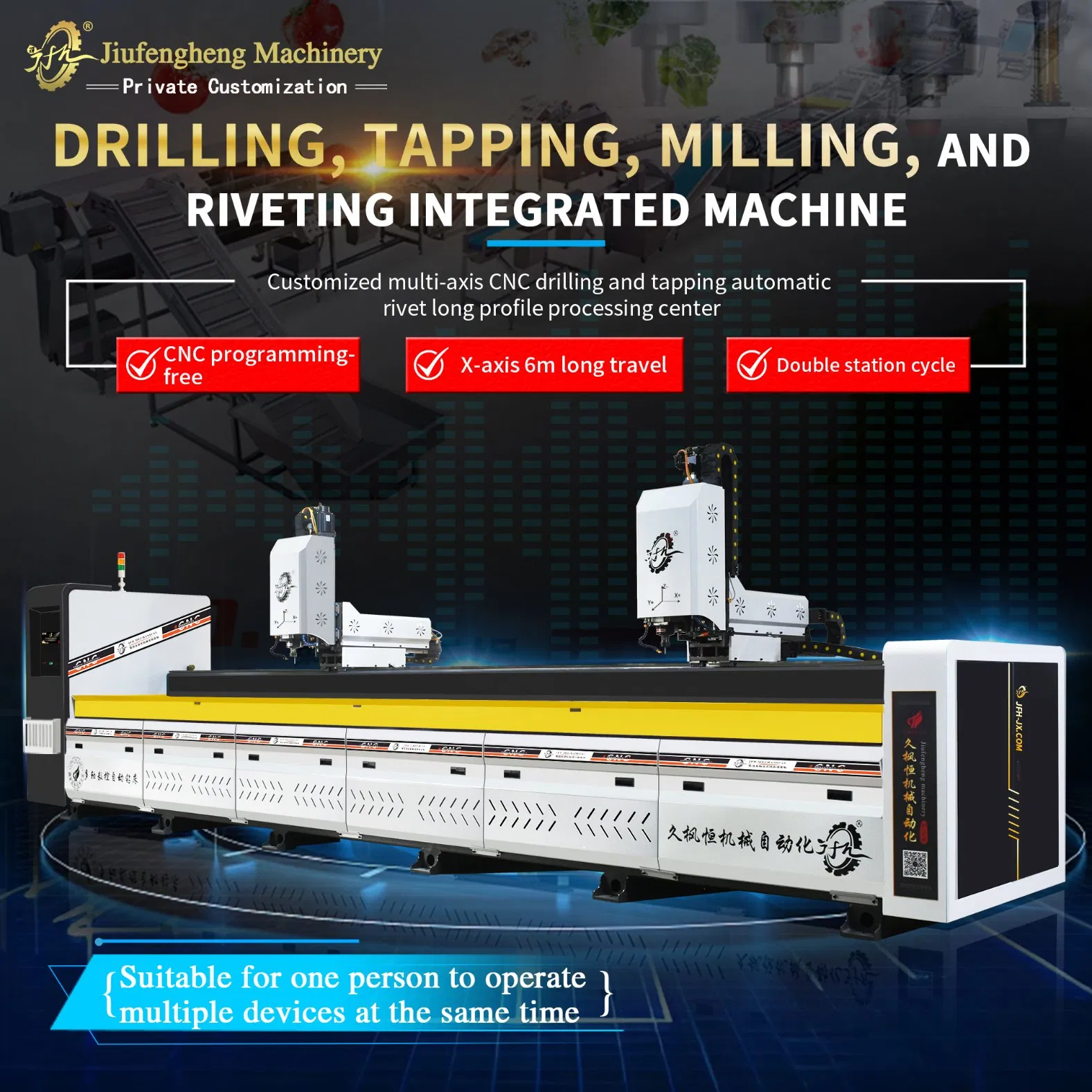

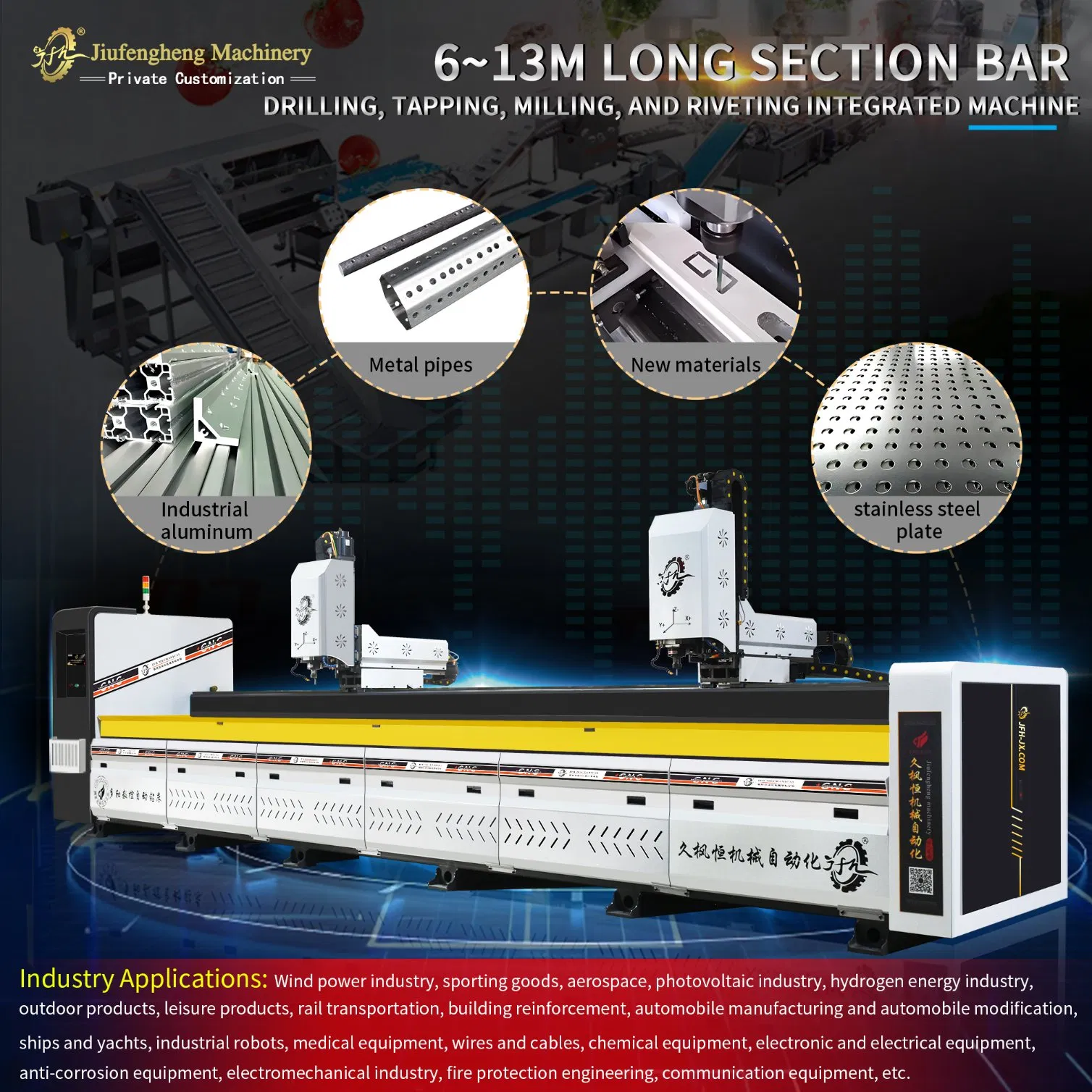

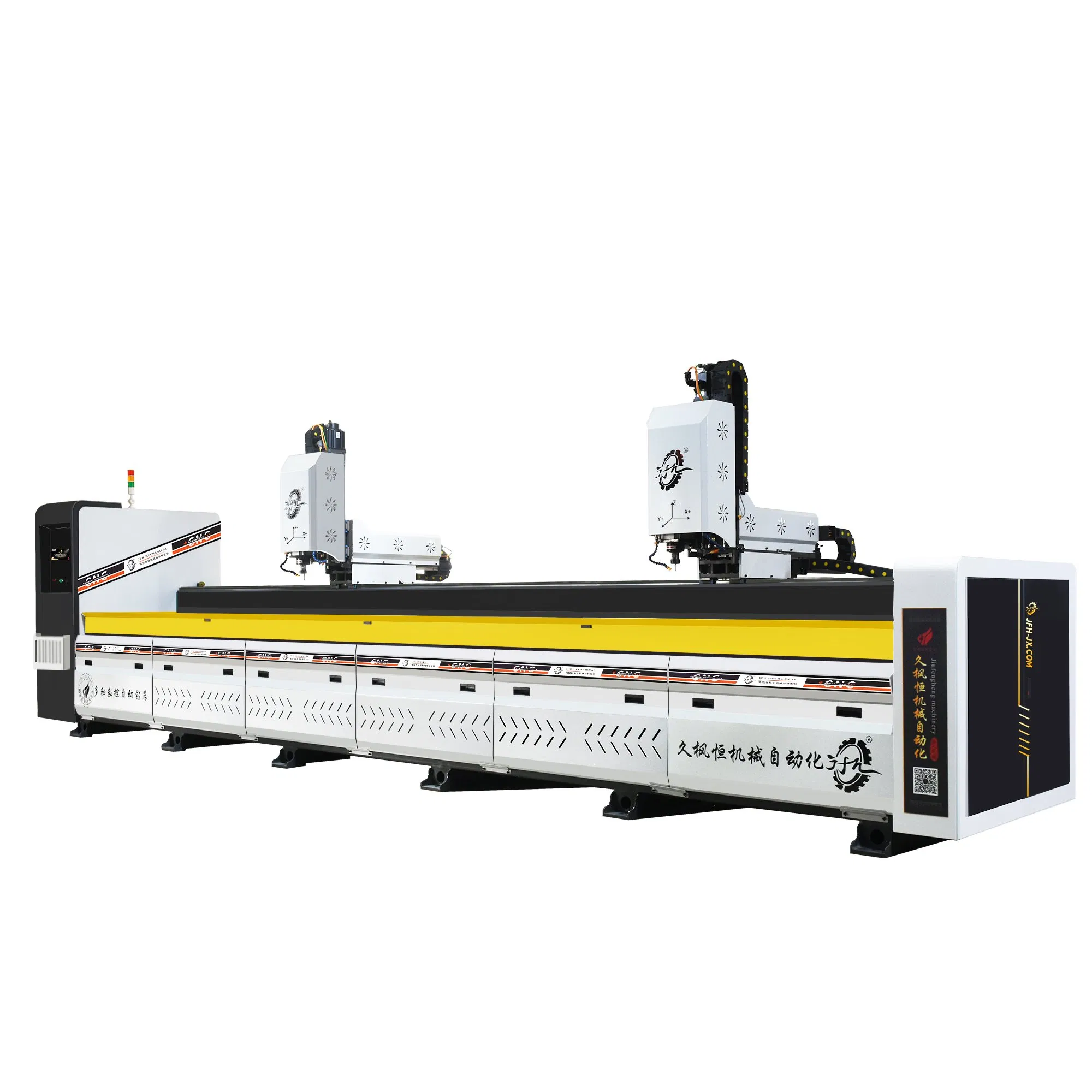

FRP Fiberglass PU Polyurethane Profile CNC Drilling Tapping Milling Cutting Machine Center

Customization:	Available
After-sales Service:	Worry-Free After-Sales Service
Warranty:	One-Year Warranty

Send Inquiry

Product Description

📊

Basic Machine Information

Model No.	JFH-JX-D02-T04-L5500
Structure	Vertical Drilling Machine
Control Mode	CNC (Automatic)
Number of Shafts	4
Hole Diameter	>200mm
Precision	High Precision
Total Power	14.5kw
Working Area (W×H×L)	300 x 290 x 5400mm
Certification	CE, ISO 9001

⚙️

Product Description

Scope of Application

The JFH-JX-D02-T04-L5500 is a dual-station CNC drilling machine customized for the fiberglass reinforced plastic (FRP) industry. It is engineered for lightweight, high-strength composite materials including carbon fiber composites, aluminum alloys, and engineering plastics.

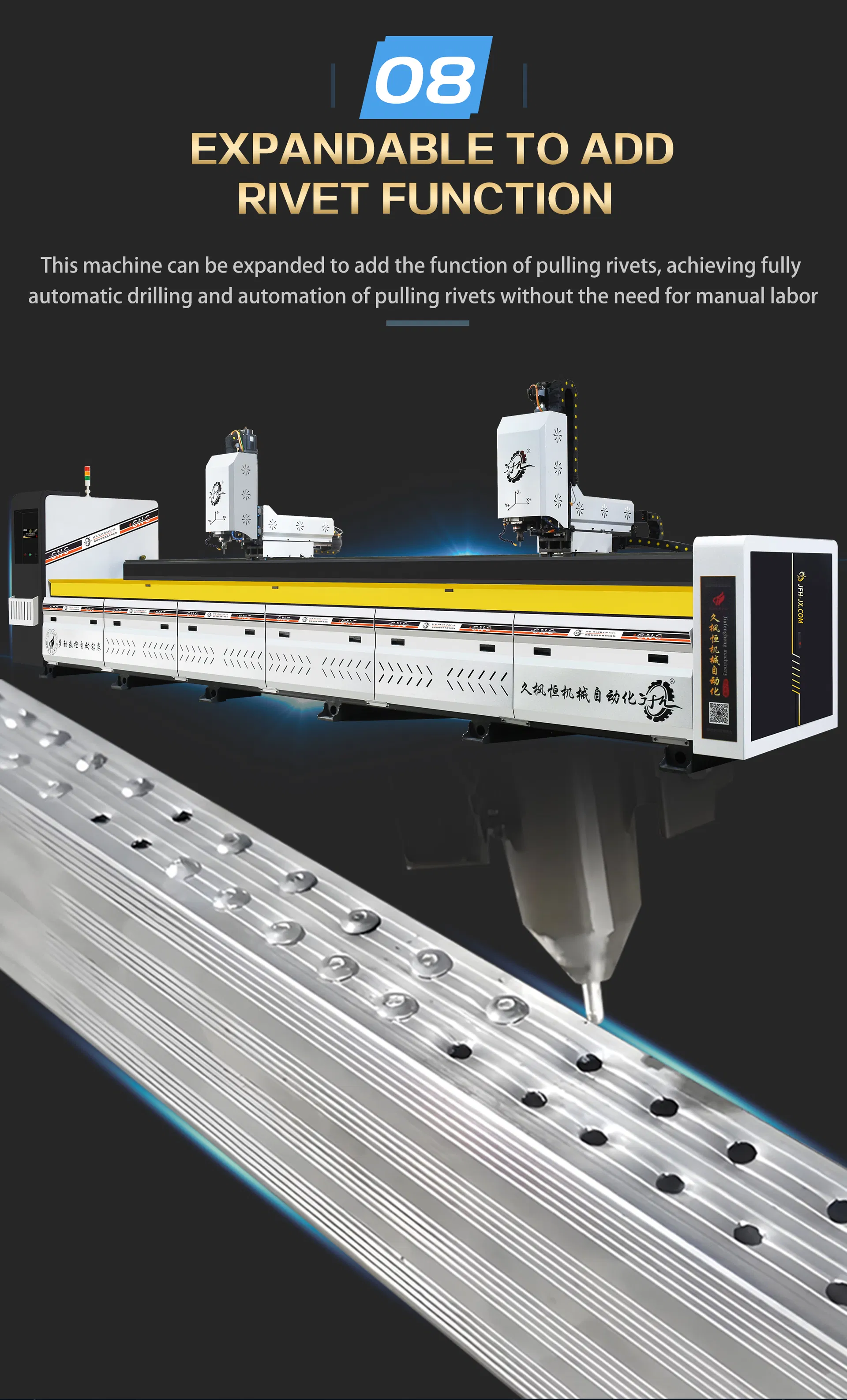

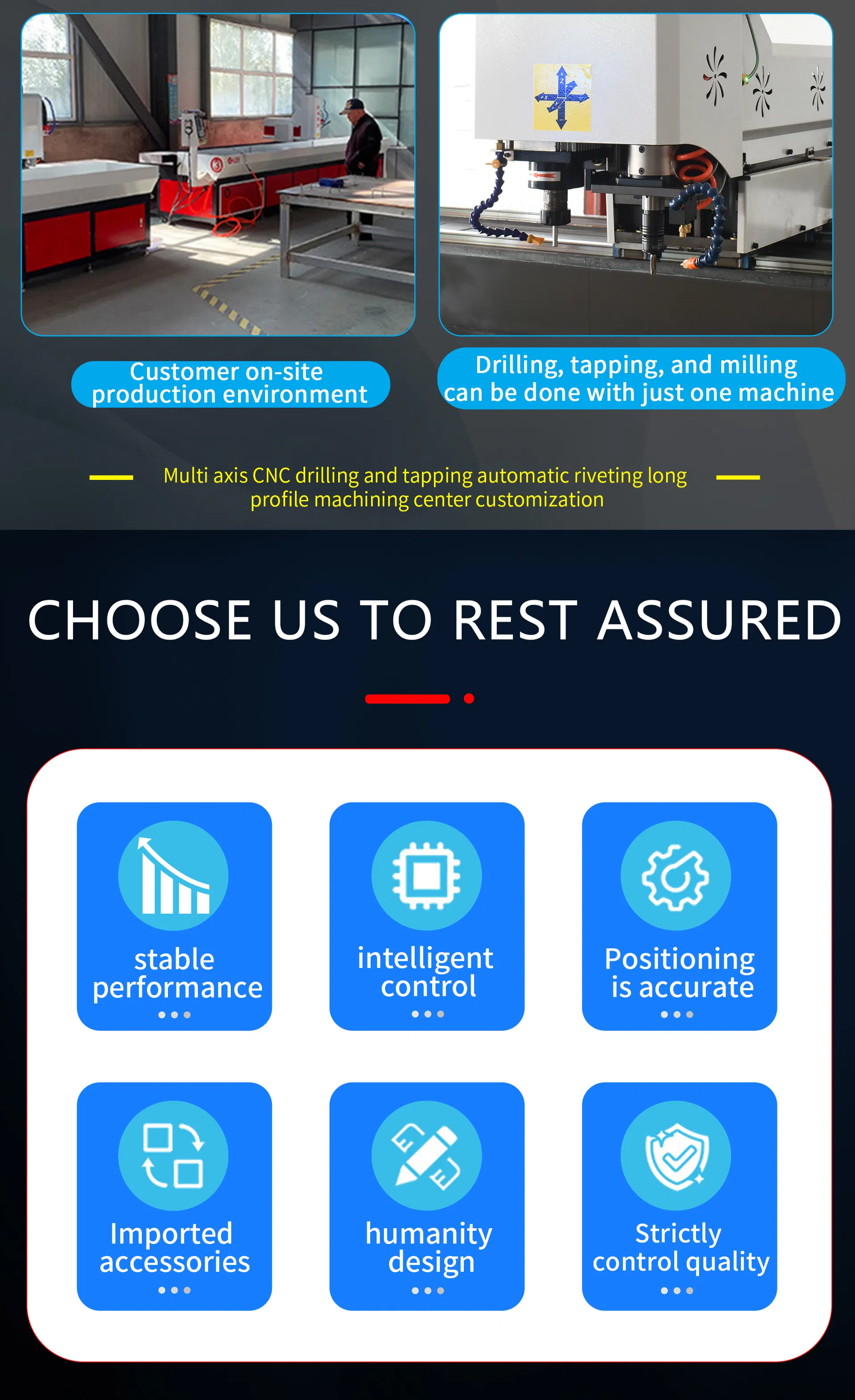

Multi-Process Machining: Supports drilling, tapping (threading), milling, and contour cutting in a single clamping setup.
Heavy-Duty Applications: Ideal for long profiles (≤6000mm) used in cooling towers, power facilities, wind turbine blades, and rail transit.

Core Structural Features

Dual-Station Collaborative Design: Two independent stations support simultaneous processing or alternating loading, increasing production efficiency by over 40%.

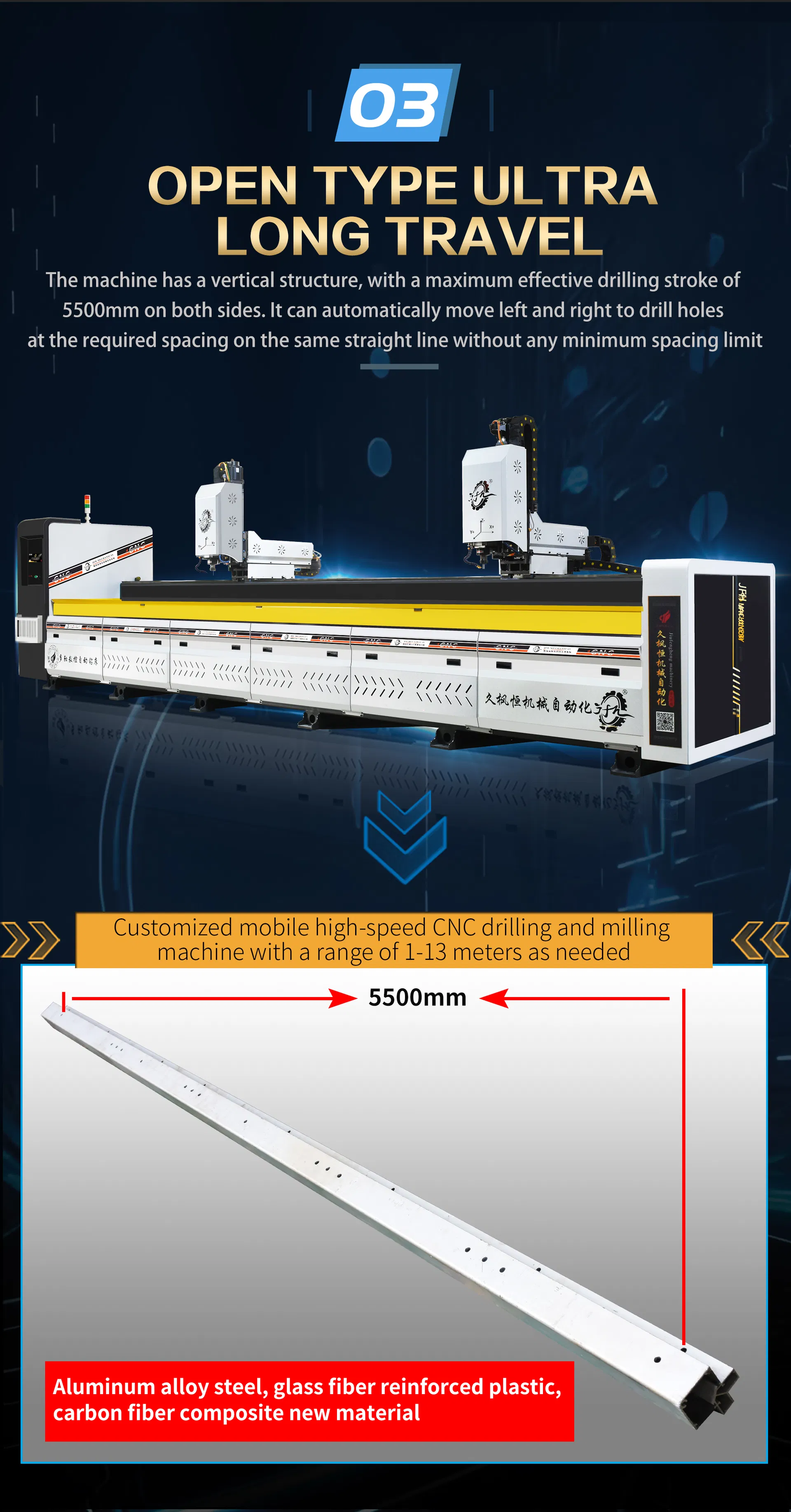

Ultra-Long Travel: 5500mm X-axis travel allows one-time machining of extra-long components, eliminating segmentation errors.
High-Rigidity Frame: Welded from high-strength microalloyed steel using laser-arc hybrid technology, increasing dynamic rigidity by 30%.
Automatic Tool Setting: Real-time monitoring of tool length and wear with automatic offset compensation.

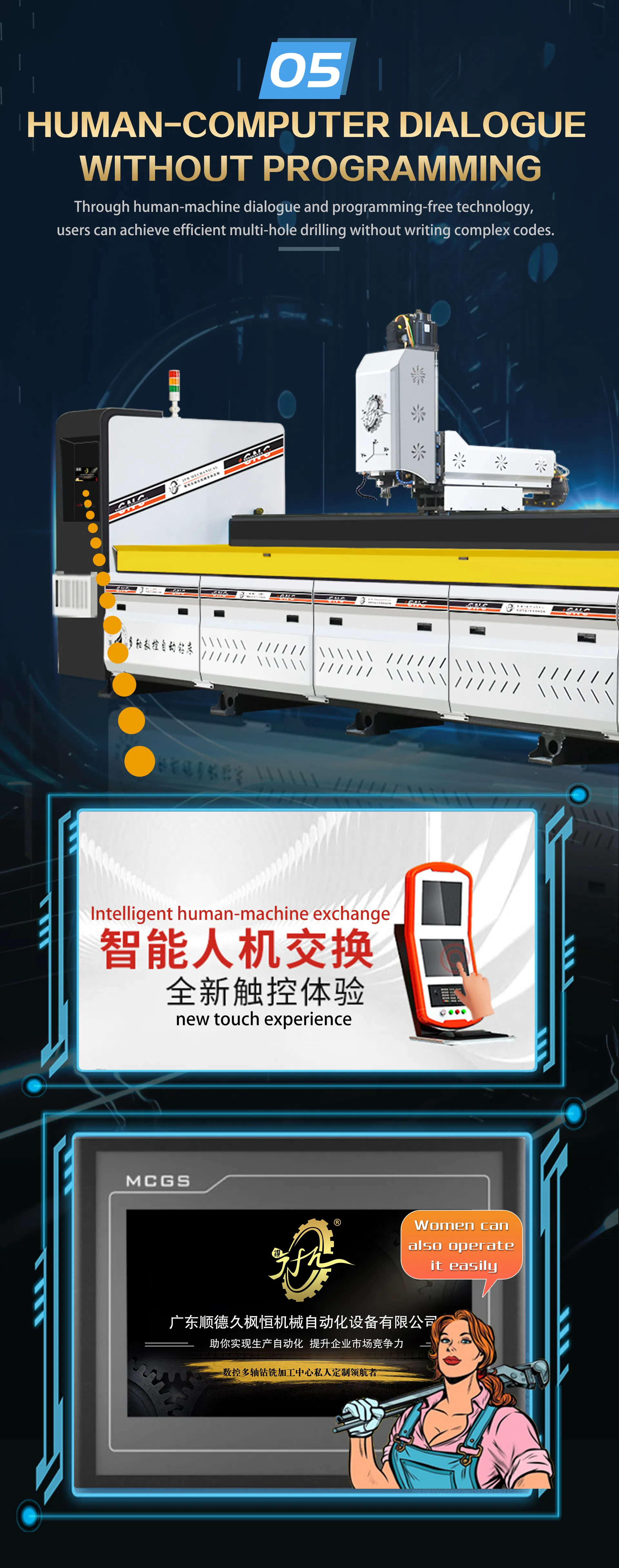

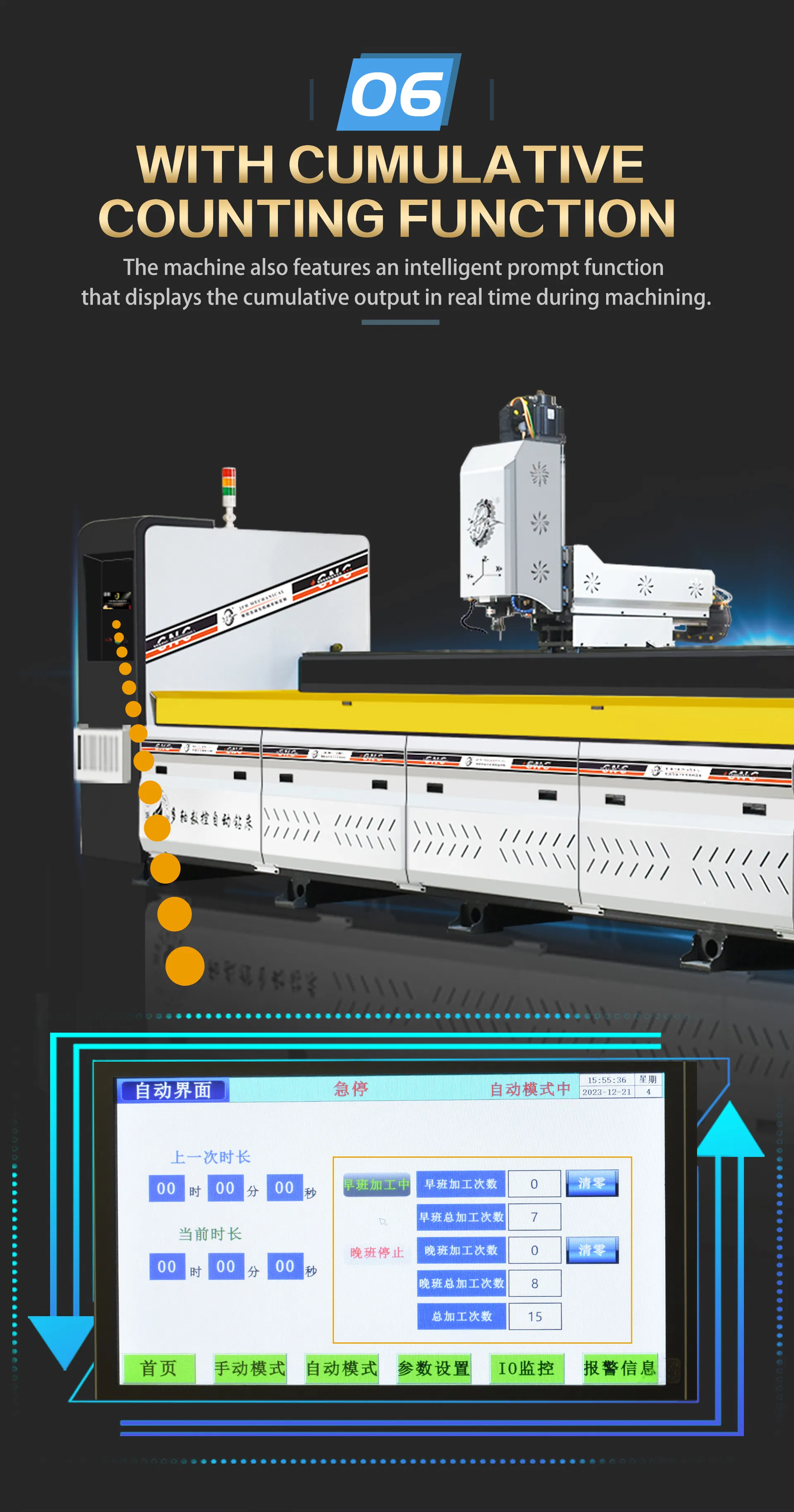

Intelligent Control: One-touch operation via touchscreen, complying with Smart Factory standards.

🚀

Performance & Application Areas

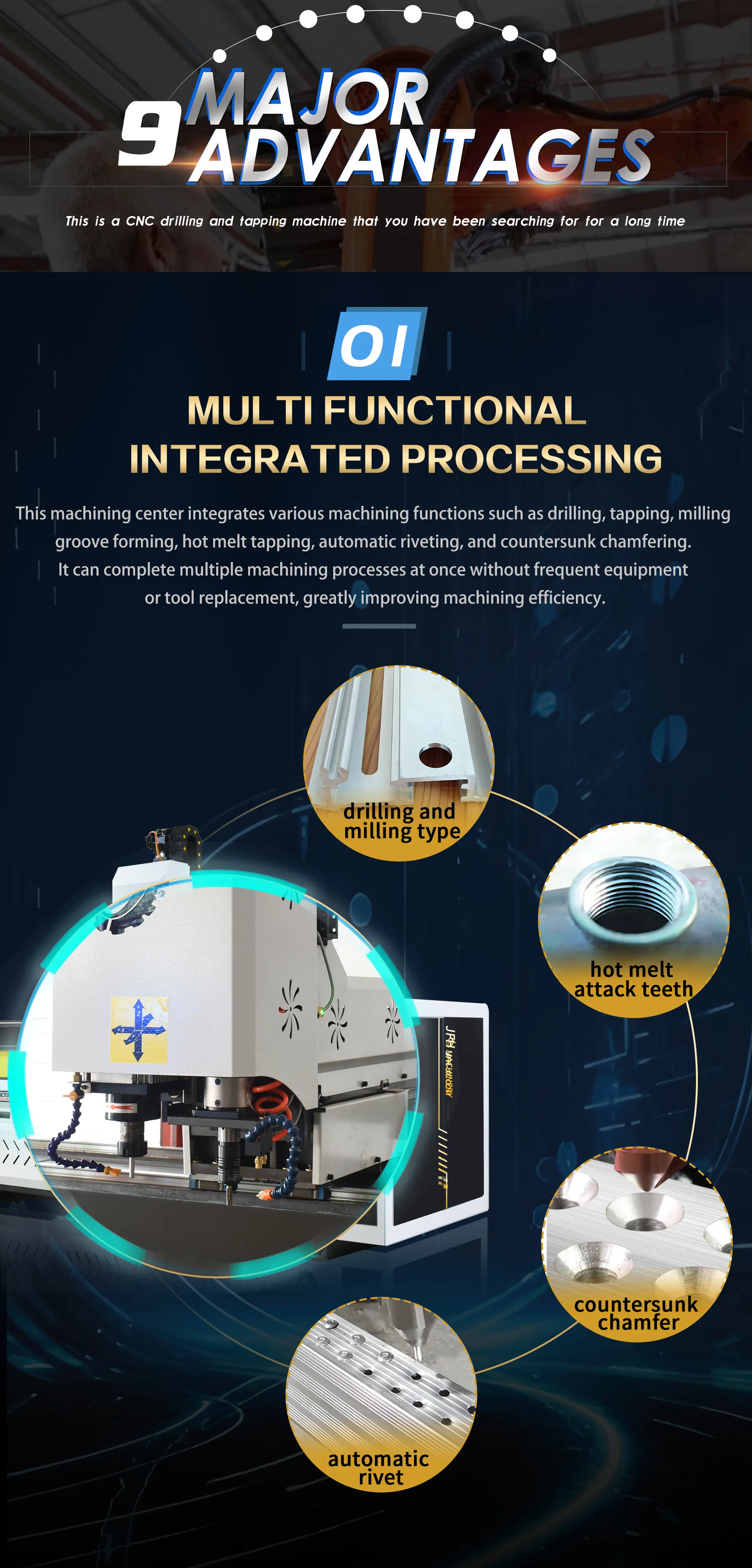

Main Advantages

This equipment features a dual-powered head design for seamless switching between drilling and tapping. With spindle speeds up to 6000 RPM and feed speeds up to 30 m/min, cycle times are significantly reduced. The built-in self-diagnostic algorithms monitor motor current, temperature, and vibration for maximum safety.

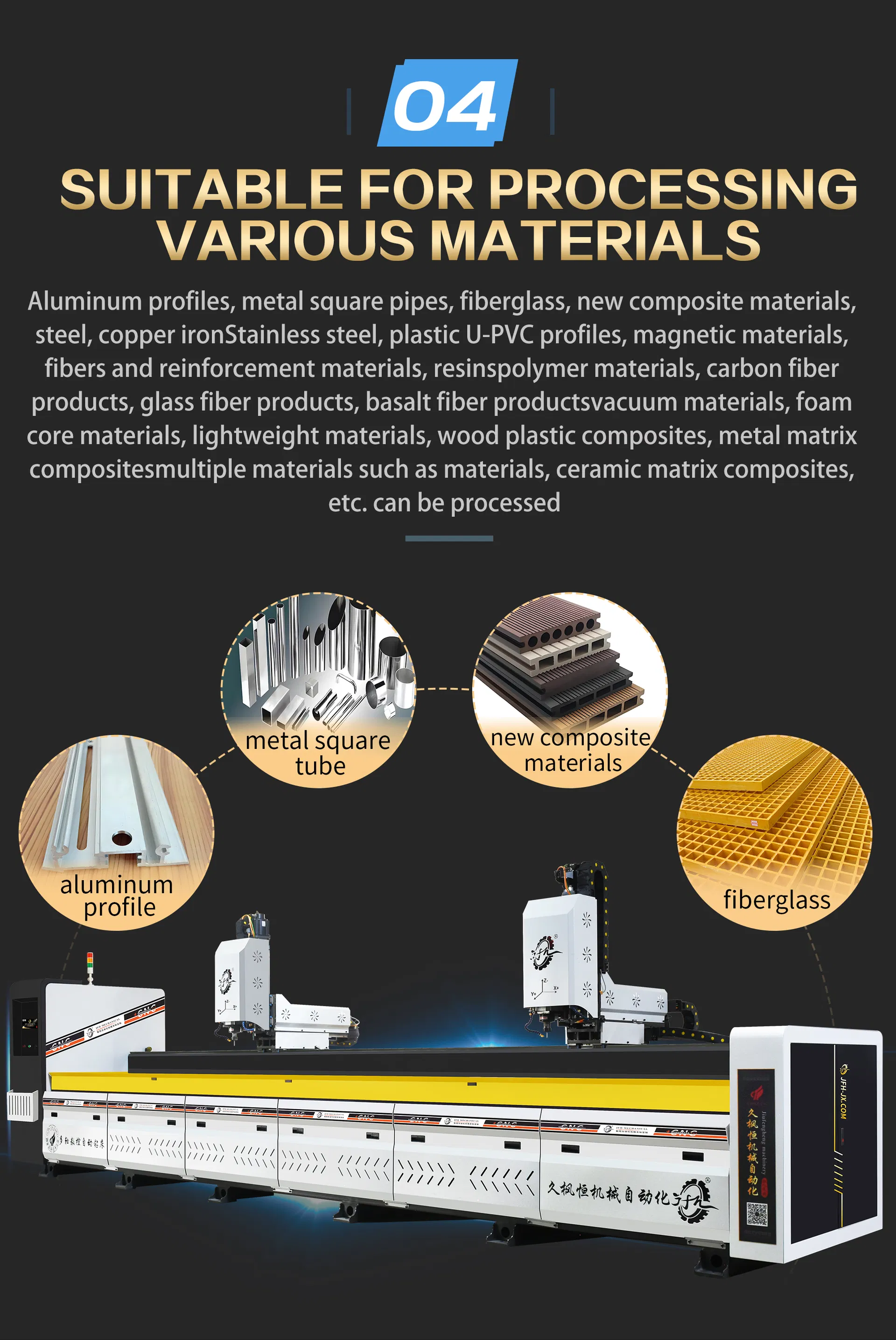

Application Industries

Category	Specific Applications

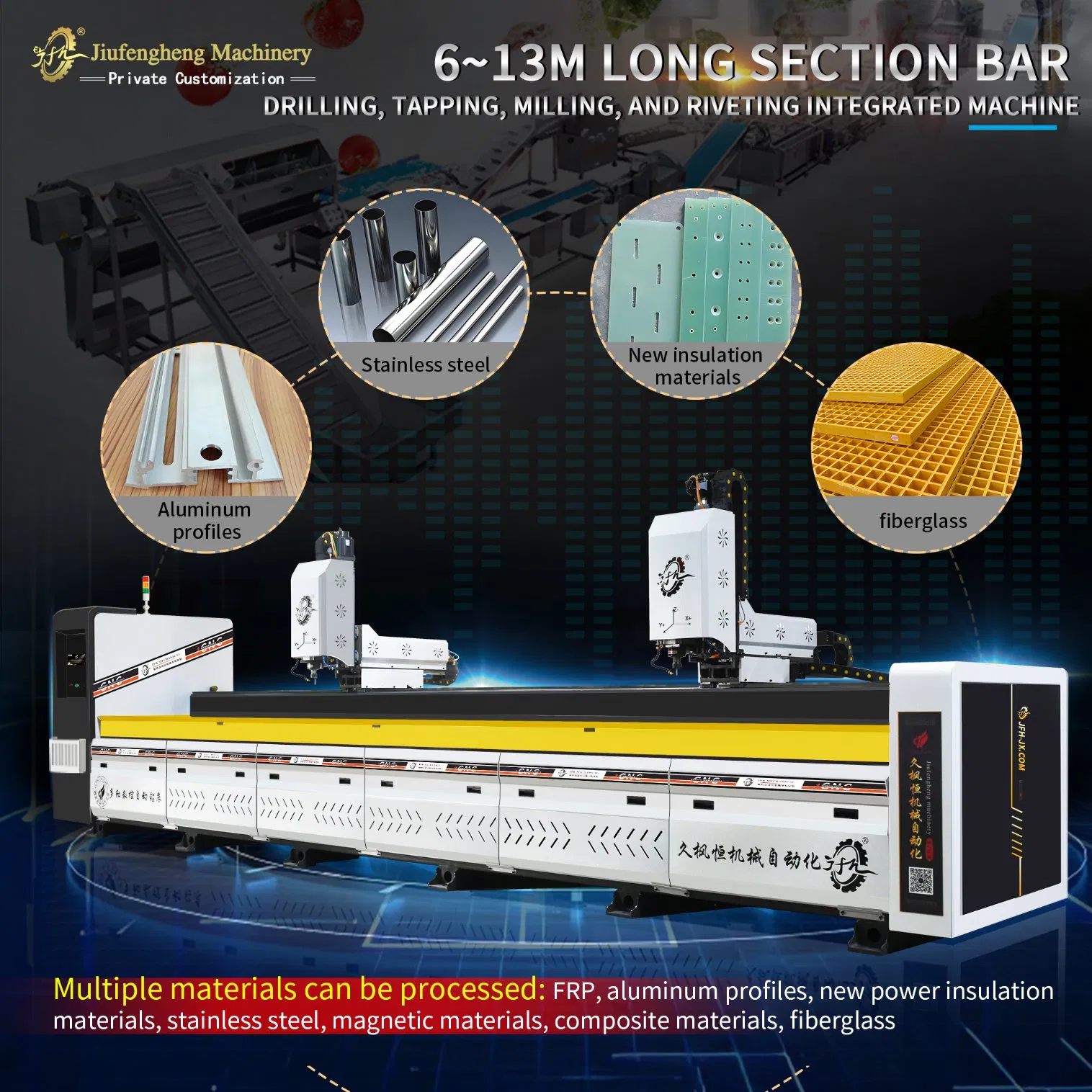

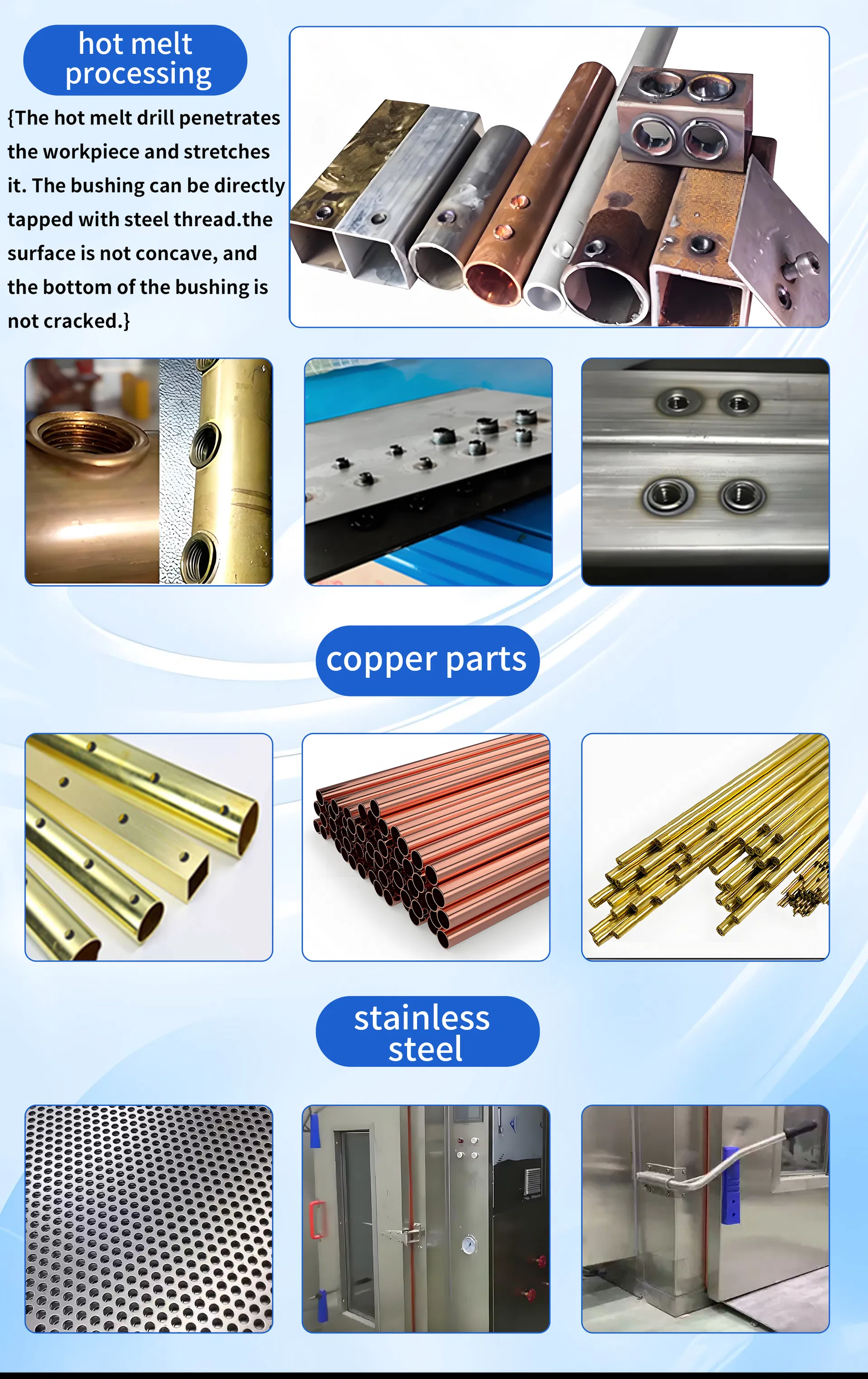

Fiberglass Products	Insulated ladders, cooling towers, boat manufacturing, radomes, and corrosion-resistant pipes.

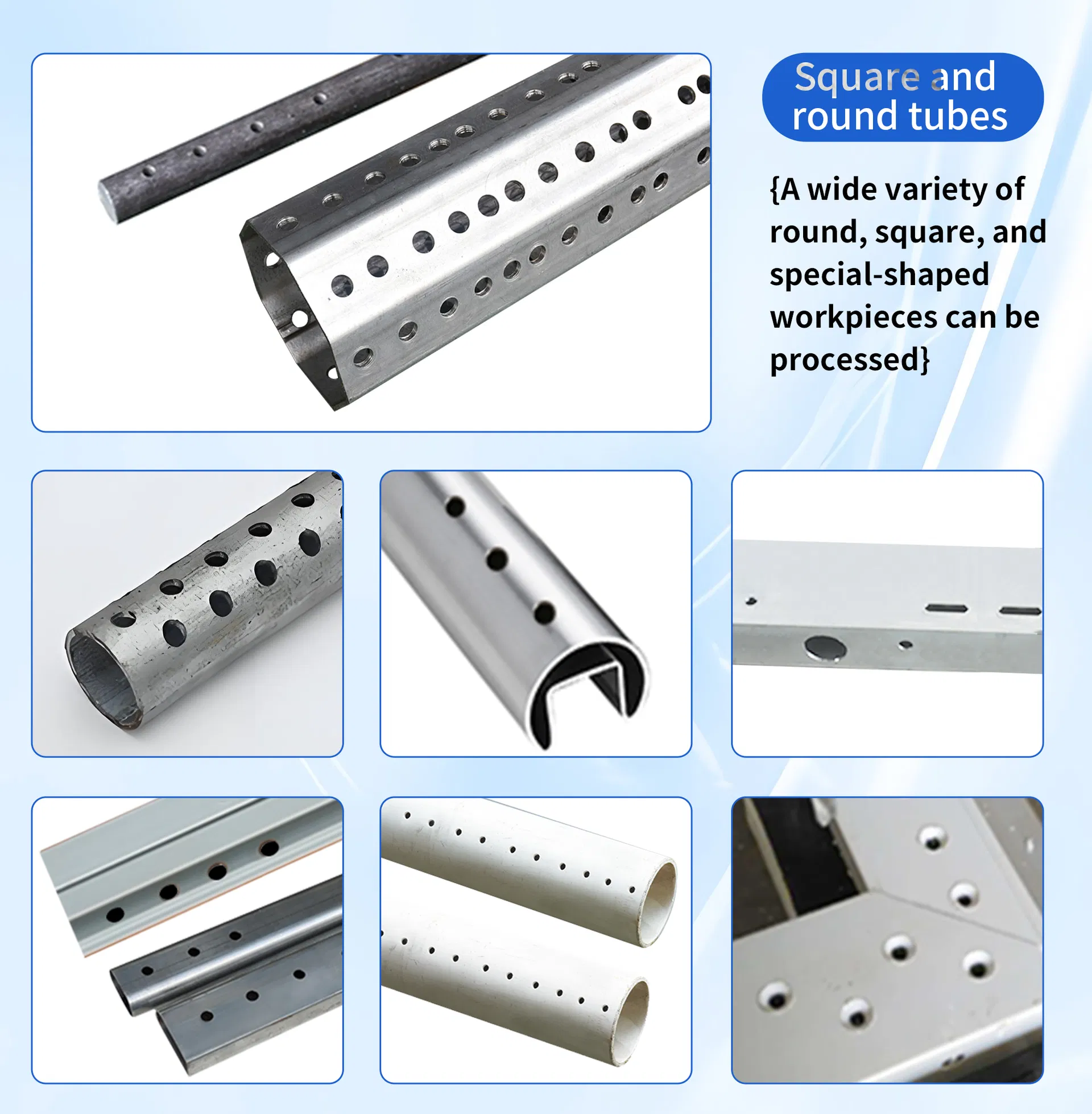

Aluminum Profiles	LED lighting frames, curtain walls, rail transit vehicle bodies, and battery pack casings.

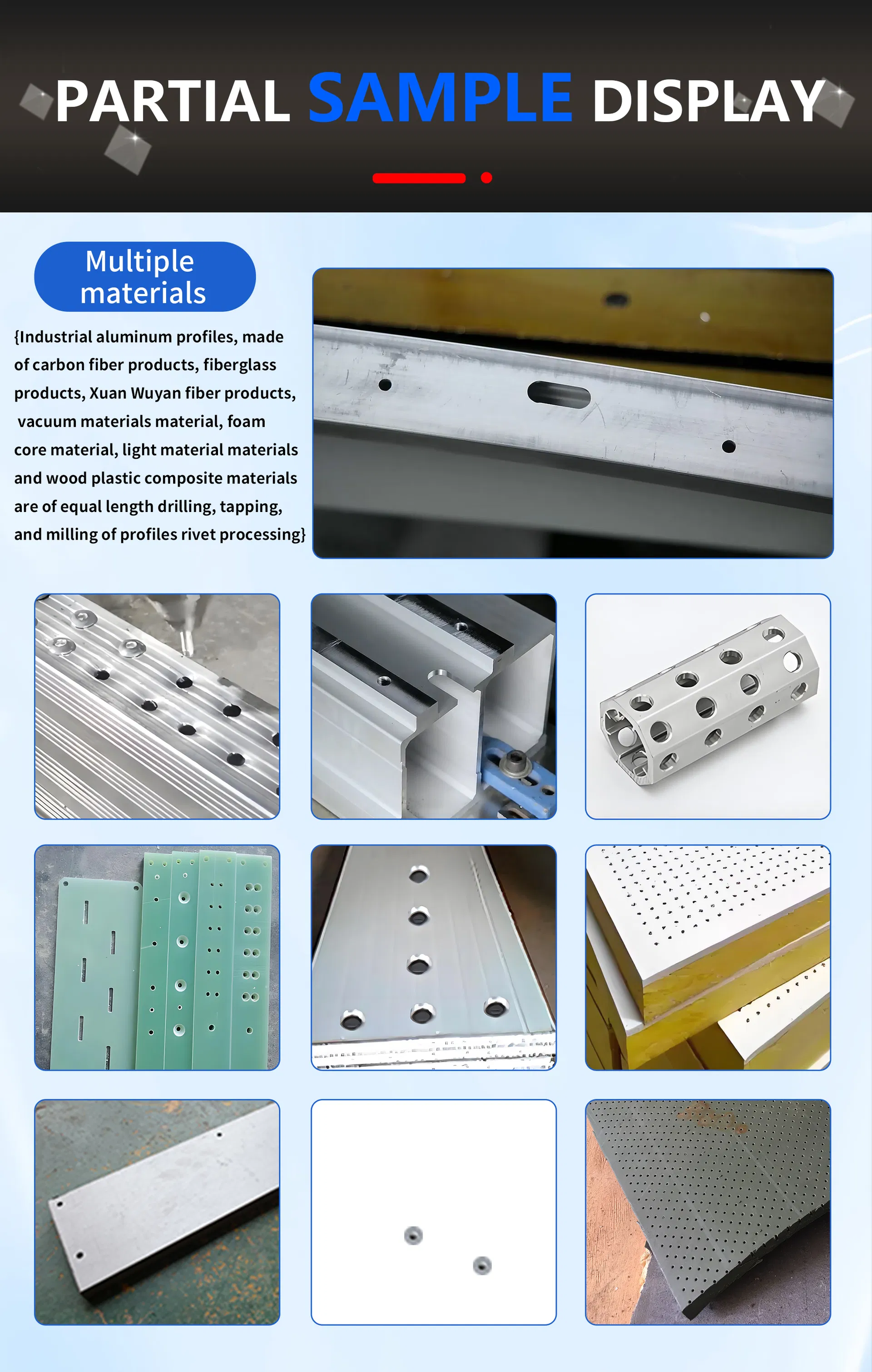

Composite Materials	Aerospace wings, carbon fiber drive shafts, drone components, and high-end bicycle frames.

📋

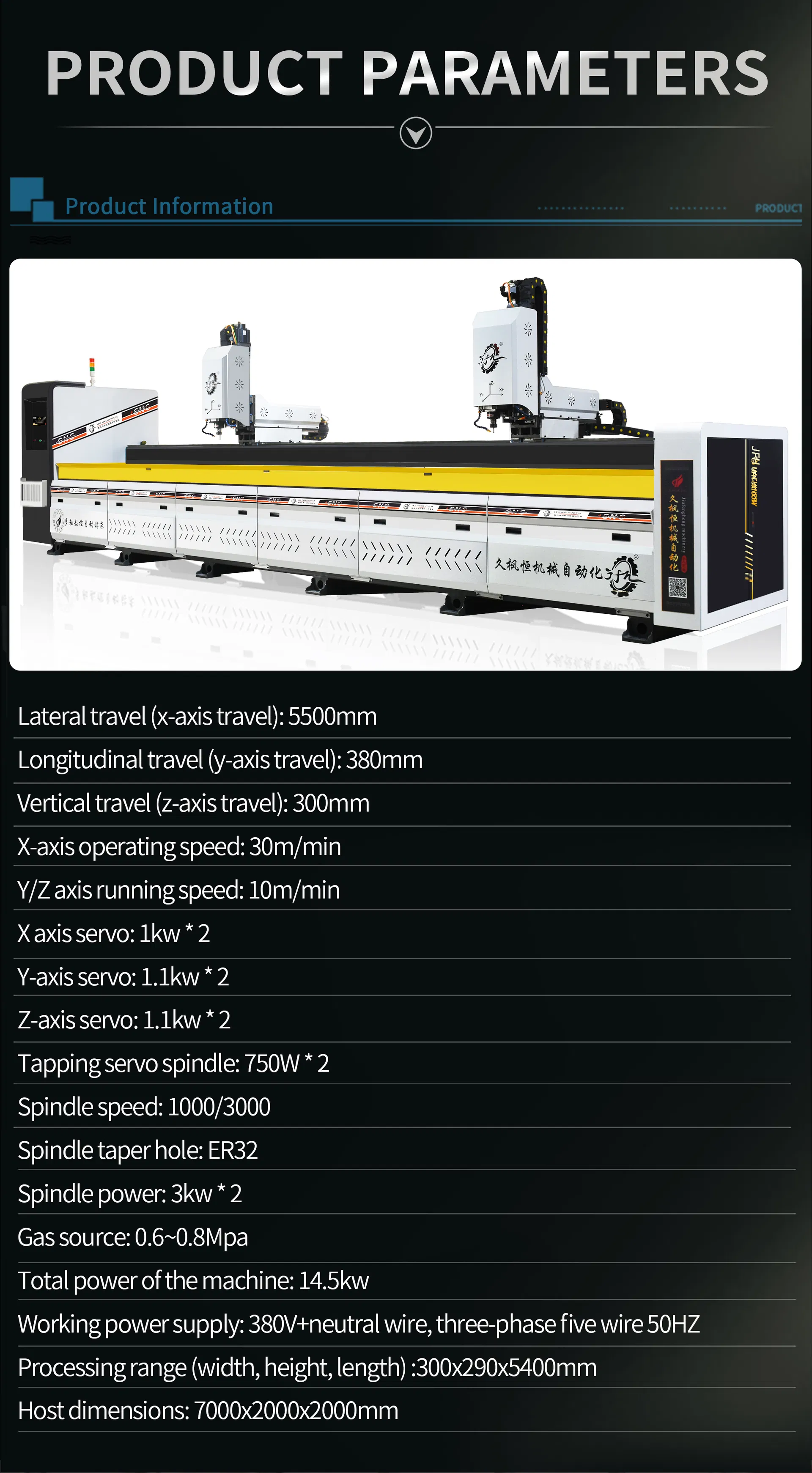

Technical Specifications

X-Axis Travel	5500mm	X-Axis Speed	30m/min
Y-Axis Travel	370mm	Y/Z Axis Speed	10m/min
Z-Axis Travel	280mm	Spindle Taper	ER32
X-Axis Servo	1kw * 2	Drilling Motor Speed	3000r/min
Tapping Spindle	750W * 2	Air Pressure	0.6-0.8Mpa
Machine Weight	2800kg	Rated Voltage	380V / 50Hz
Dimensions	7400x1800x2300mm	Lubrication	N15#-46# Lubricating oil

🖼️

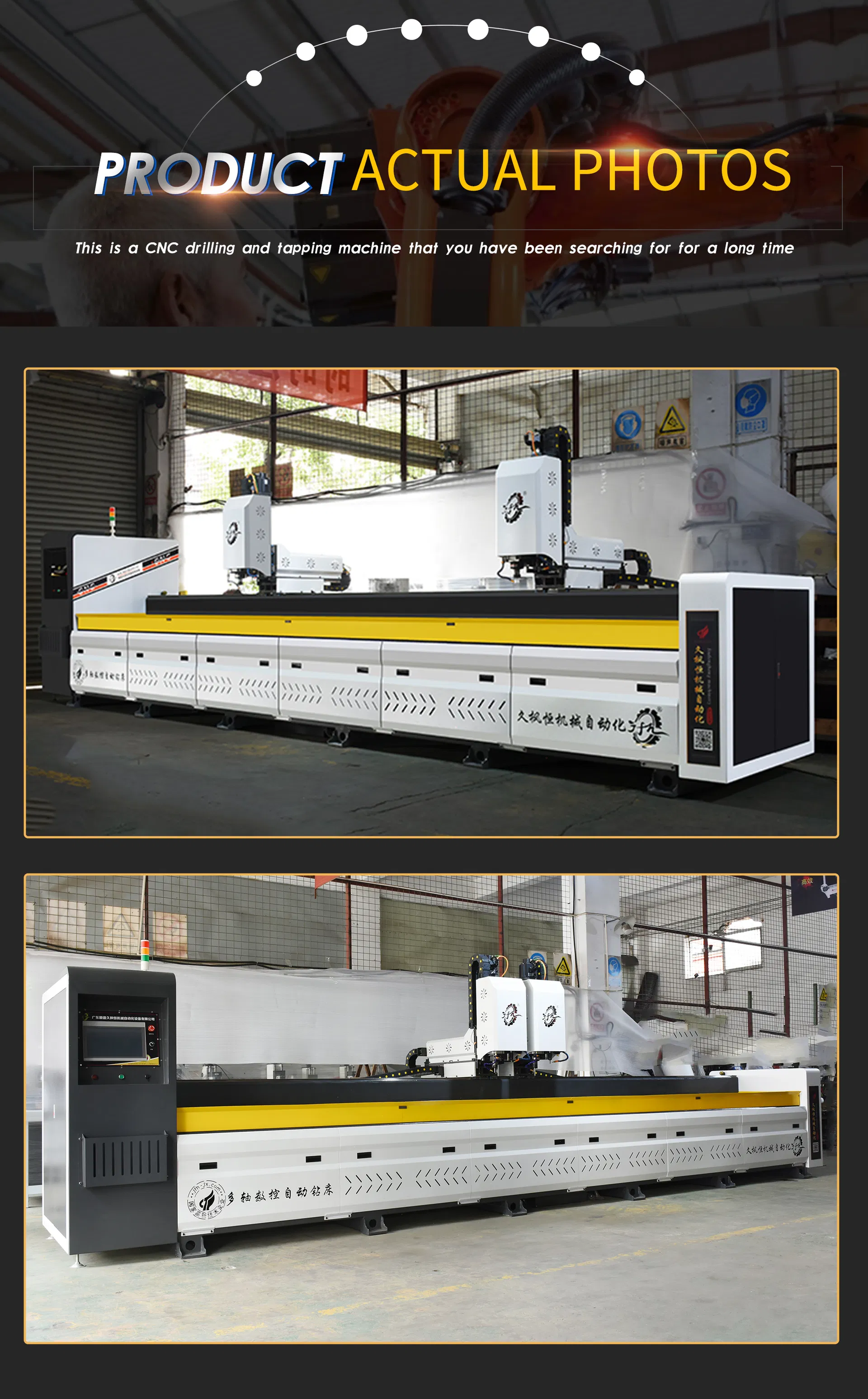

Product Gallery

❓

Frequently Asked Questions

1. What materials is this CNC drilling machine suitable for?

It is primarily designed for fiberglass reinforced plastics (FRP), but it also performs exceptionally well on carbon fiber composites, aluminum alloys, and engineering plastics.

2. How does the dual-station design benefit production?

The dual-station setup allows for simultaneous processing or alternating loading/unloading. This eliminates "waiting time" and can improve overall production efficiency by more than 40%.

3. Can the machine handle extra-long workpieces?

Yes, with an X-axis travel of 5500mm and a total processing length capacity of up to 6000mm, it is ideal for long components like wind turbine blades and electrical ladders.

4. What processing functions are supported?

The machine supports multi-process integration including high-speed drilling, tapping (M3 to M16), milling, and contour cutting in a single setup.

5. Does the machine include any automated maintenance features?

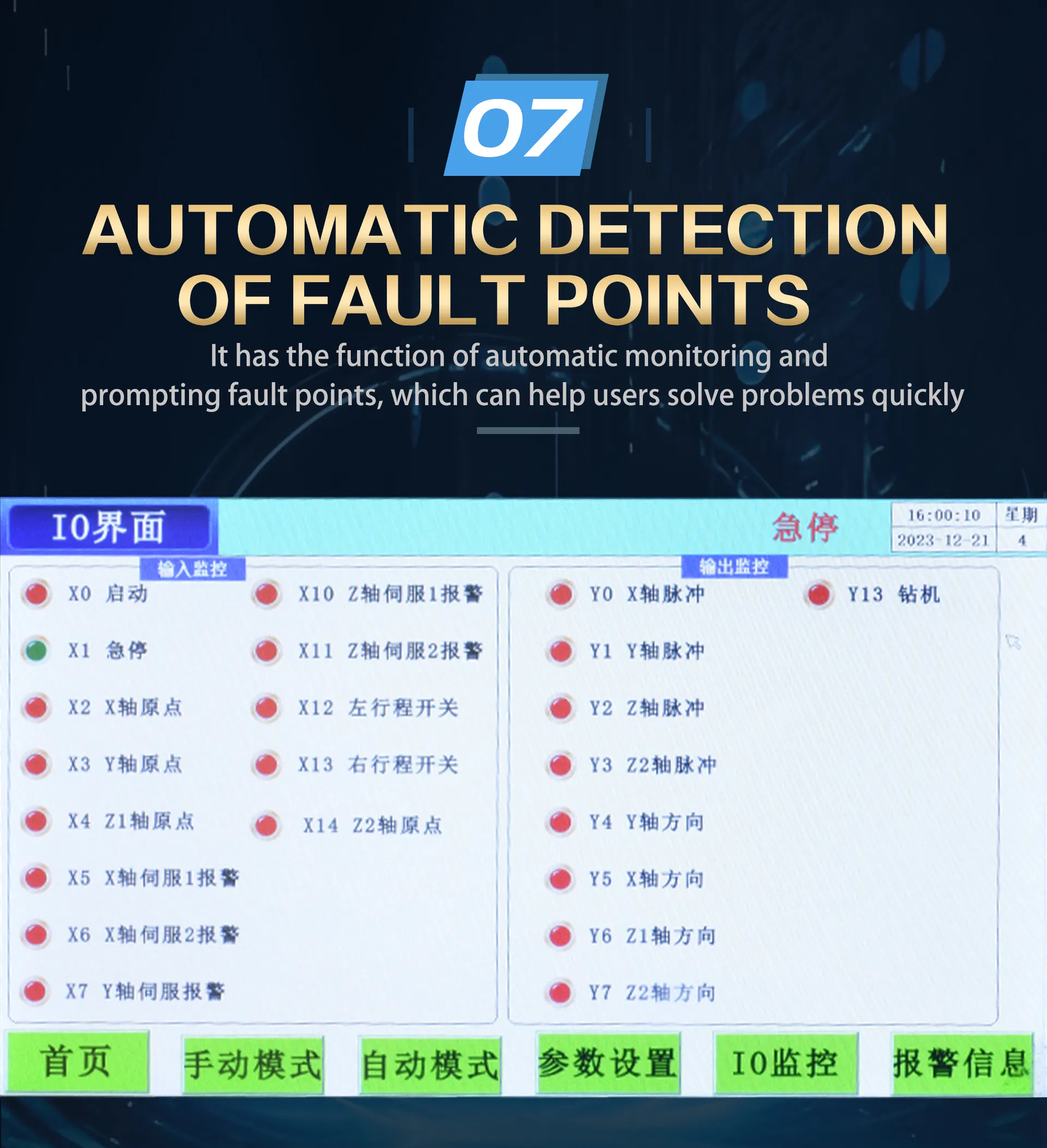

Yes, it features an integrated contact-type automatic tool setter for monitoring tool wear and an intelligent fault diagnosis system that monitors motor status in real time.

6. Is the operation difficult for new workers?

The machine is designed for ease of use with a one-touch operation system. Operators can simply enter parameters on the touchscreen to begin automatic processing.
